什么是责任链模式?

客户端发出一个请求,链上的对象都有机会处理这个请求,客户端不需要知道谁是具体的处理对象。

好处:

发送者和接受之间结耦,并且客户端可以实现动态组合责任链,编程更加方便灵活。

应用场景:

过滤器,api限流,权限控制,参数过滤,session过滤,表单过滤,请求头过滤等

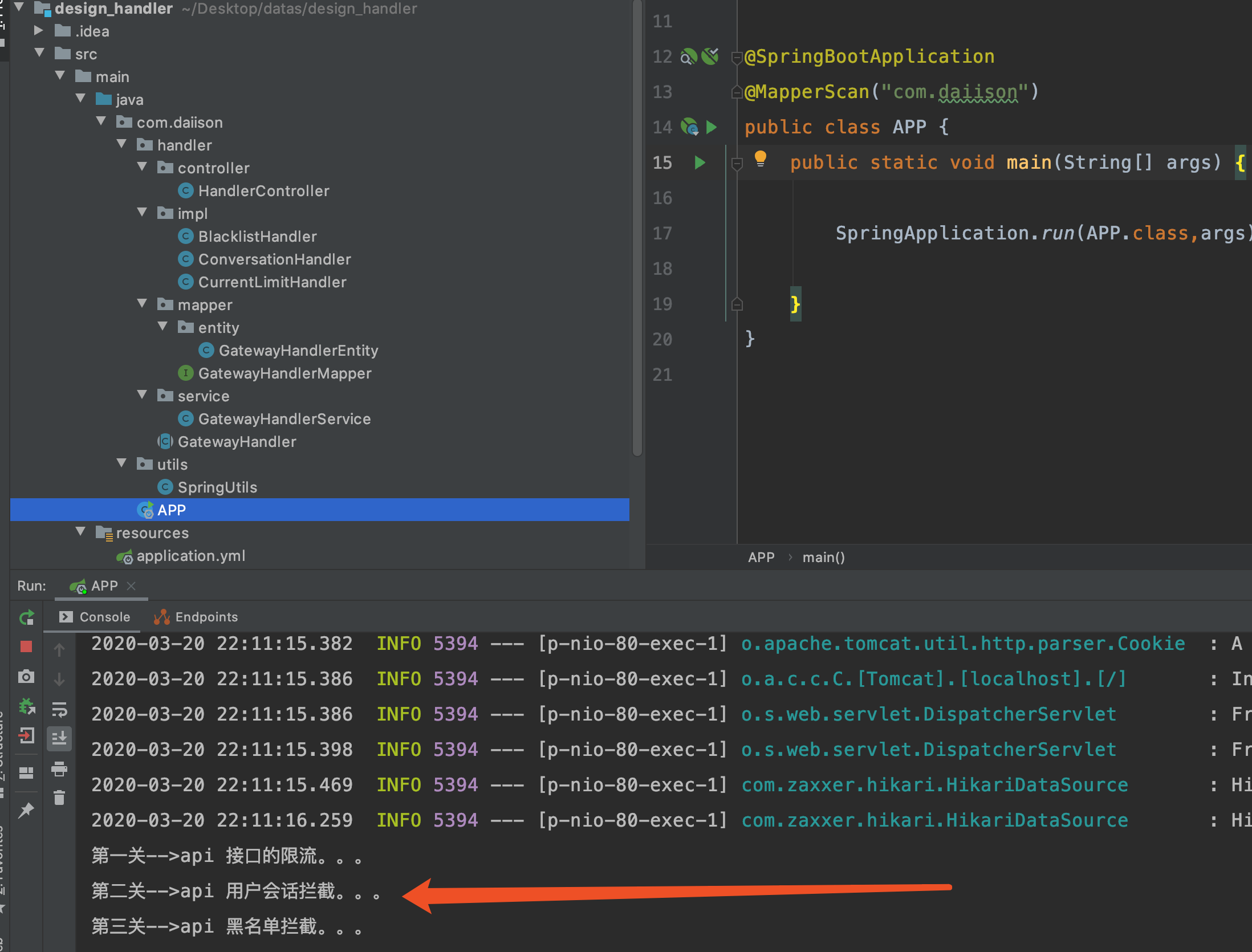

项目结构和结果

这里我们以拦截关的形式,链表形式,开始上代码!

数据库表结构

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for gateway_handler
-- ----------------------------
DROP TABLE IF EXISTS `gateway_handler`;
CREATE TABLE `gateway_handler` (
  `ID` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `handler_name` varchar(32) DEFAULT NULL COMMENT 'handler名称',
  `handler_id` varchar(32) DEFAULT NULL COMMENT 'handler主键id',
  `prev_handler_id` varchar(32) DEFAULT NULL,
  `next_handler_id` varchar(32) DEFAULT NULL COMMENT '下一个handler',
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=19 DEFAULT CHARSET=utf8 COMMENT='权限表';

-- ----------------------------
-- Records of gateway_handler
-- ----------------------------
BEGIN;
INSERT INTO `gateway_handler` VALUES (16, 'Api接口限流', 'currentLimitHandler', NULL, 'blacklistHandler');
INSERT INTO `gateway_handler` VALUES (17, '黑名单拦截', 'blacklistHandler', 'currentLimitHandler', 'conversationHandler');
INSERT INTO `gateway_handler` VALUES (18, '会话验证', 'conversationHandler', 'blacklistHandler', NULL);
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

pom.xml 配置

   <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.1.RELEASE</version>
    </parent>
    <dependencies>
        <!-- sprinboot web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.10</version>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>2.6</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.1.1</version>
        </dependency>
        <!-- mysql 依赖 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

    </dependencies>

application.yml 配置文件

###服务启动端口号
server:
  port: 80
spring:
  ###数据库相关连接
  datasource:
    username: root
    password: root
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/design?useUnicode=true&characterEncoding=UTF-8
####打印MyBatias日志
logging:
  level:
    ### 开发环境使用DEBUG 生产环境info或者error
    com.mayikt.daiison.mapper: DEBUG

启动类

@SpringBootApplication
@MapperScan("com.daiison")
public class APP {
    public static void main(String[] args) {

        SpringApplication.run(APP.class,args);

    }
}

springUtils可以根据类名小写获取类

import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

@Component
public class SpringUtils implements ApplicationContextAware {

    private static ApplicationContext applicationContext;

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }

    //获取applicationContext
    public static ApplicationContext getApplicationContext() {
        return applicationContext;
    }

    //通过name获取 Bean.
    public static Object getBean(String name){
        return getApplicationContext().getBean(name);
    }

    //通过class获取Bean.
    public static <T> T getBean(Class<T> clazz){
        return getApplicationContext().getBean(clazz);
    }

    //通过name,以及Clazz返回指定的Bean
    public static <T> T getBean(String name,Class<T> clazz){
        return getApplicationContext().getBean(name, clazz);
    }

}

pojo实体类

import lombok.Data;
import java.io.Serializable;

@Data
public class GatewayHandlerEntity implements Serializable, Cloneable {
    /**
     * 主键ID
     */
    private Integer id;
    /**
     * handler名称
     */
    private String handlerName;
    /**
     * handler主键id
     */
    private String handlerId;
    /**
     * 下一个handler
     */
    private String nextHandlerId;
}

mapper

import com.daiison.handler.mapper.entity.GatewayHandlerEntity;
import org.apache.ibatis.annotations.Select;

public interface GatewayHandlerMapper {

   /**
    * 获取第一个GatewayHandler
    * @return
    */
   @Select("SELECT  handler_name AS handlerName,handler_id AS handlerid ,prev_handler_id AS prevhandlerid ,next_handler_id AS nexthandlerid  FROM gateway_handler WHERE  prev_handler_id is null;")
   public GatewayHandlerEntity getFirstGatewayHandler();

   @Select("SELECT  handler_name AS handlerName,handler_id AS handlerid ,prev_handler_id AS prevhandlerid ,next_handler_id AS nexthandlerid   FROM gateway_handler WHERE  handler_id=#{handlerId}")
   public GatewayHandlerEntity getByHandler(String handlerId);

}

public abstract class GatewayHandler {

    /**
     * 执行下一个handler
     */
    protected GatewayHandler nextGatewayHandler;

    /**
     * 实现的handler 处理方案 强制必须实现
     */
    public abstract void service();


    public void setNextGatewayHandler(GatewayHandler nextGatewayHandler) {
        this.nextGatewayHandler = nextGatewayHandler;
    }

    protected void nextService() {
        if (nextGatewayHandler != null)
            nextGatewayHandler.service();// 指向下一关黑名单
    }

}





import com.daiison.handler.GatewayHandler;
import com.daiison.handler.mapper.GatewayHandlerMapper;
import com.daiison.handler.mapper.entity.GatewayHandlerEntity;
import com.daiison.utils.SpringUtils;
import org.apache.commons.lang.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class GatewayHandlerService {
    @Autowired
    private GatewayHandlerMapper gatewayHandlerMapper;

    private GatewayHandler firstGatewayHandler;

    public GatewayHandler getDbFirstGatewayHandler() {
        if (firstGatewayHandler != null) {
            return firstGatewayHandler;
        }
        // 1.从数据库中查询地址hanlder
        GatewayHandlerEntity firstGatewayHandlerEntity = gatewayHandlerMapper.getFirstGatewayHandler();
        if (firstGatewayHandlerEntity == null) {
            return null;
        }
        // 2.获取springboot注入容器id
        String handlerId = firstGatewayHandlerEntity.getHandlerId();
        GatewayHandler firstGatewayHandler = SpringUtils.getBean(handlerId, GatewayHandler.class);
        // 3.获取下一个handler容器beanid
        String nextHandlerId = firstGatewayHandlerEntity.getNextHandlerId();
        // 4. 记录当前循环hanlder对象
        GatewayHandler tempGatewayHandler = firstGatewayHandler;
        while (!StringUtils.isEmpty(nextHandlerId)) {
            // 5.从springboot容器获取下一个handerl对象
            GatewayHandler nextGatewayHandler = SpringUtils.getBean(nextHandlerId, GatewayHandler.class);
            tempGatewayHandler.setNextGatewayHandler(nextGatewayHandler);
            // 6.设置下一个nextHandlerId
            GatewayHandlerEntity nextGatewayHandlerEntity = gatewayHandlerMapper.getByHandler(nextHandlerId);
            if (nextGatewayHandlerEntity == null) {
                break;
            }
            nextHandlerId = nextGatewayHandlerEntity.getNextHandlerId();
            tempGatewayHandler = nextGatewayHandler;
        }
        this.firstGatewayHandler = firstGatewayHandler;
        return firstGatewayHandler;
    }
}





三个实现



@Component
public class CurrentLimitHandler extends GatewayHandler {

    public void service() {
        System.out.println("第一关-->api 接口的限流。。。");
        nextService();

    }
}



@Component
public class ConversationHandler extends GatewayHandler {

    public void service() {
        System.out.println("第三关-->api 黑名单拦截。。。");
    }

}



@Component
public class BlacklistHandler extends GatewayHandler {

    public void service() {
        System.out.println("第二关-->api 用户会话拦截。。。");
        nextService();// 指向下一关黑名单
    }

}



最后controller

@RestController
public class HandlerController {

    @Autowired
    private GatewayHandlerService gatewayHandlerService;

    @RequestMapping("/clentHanlder")
    public String clentHanlder() {
        GatewayHandler firstGatewayHandler = gatewayHandlerService.getDbFirstGatewayHandler();
        firstGatewayHandler.service();
        return "success";
    }
}
