基础知识

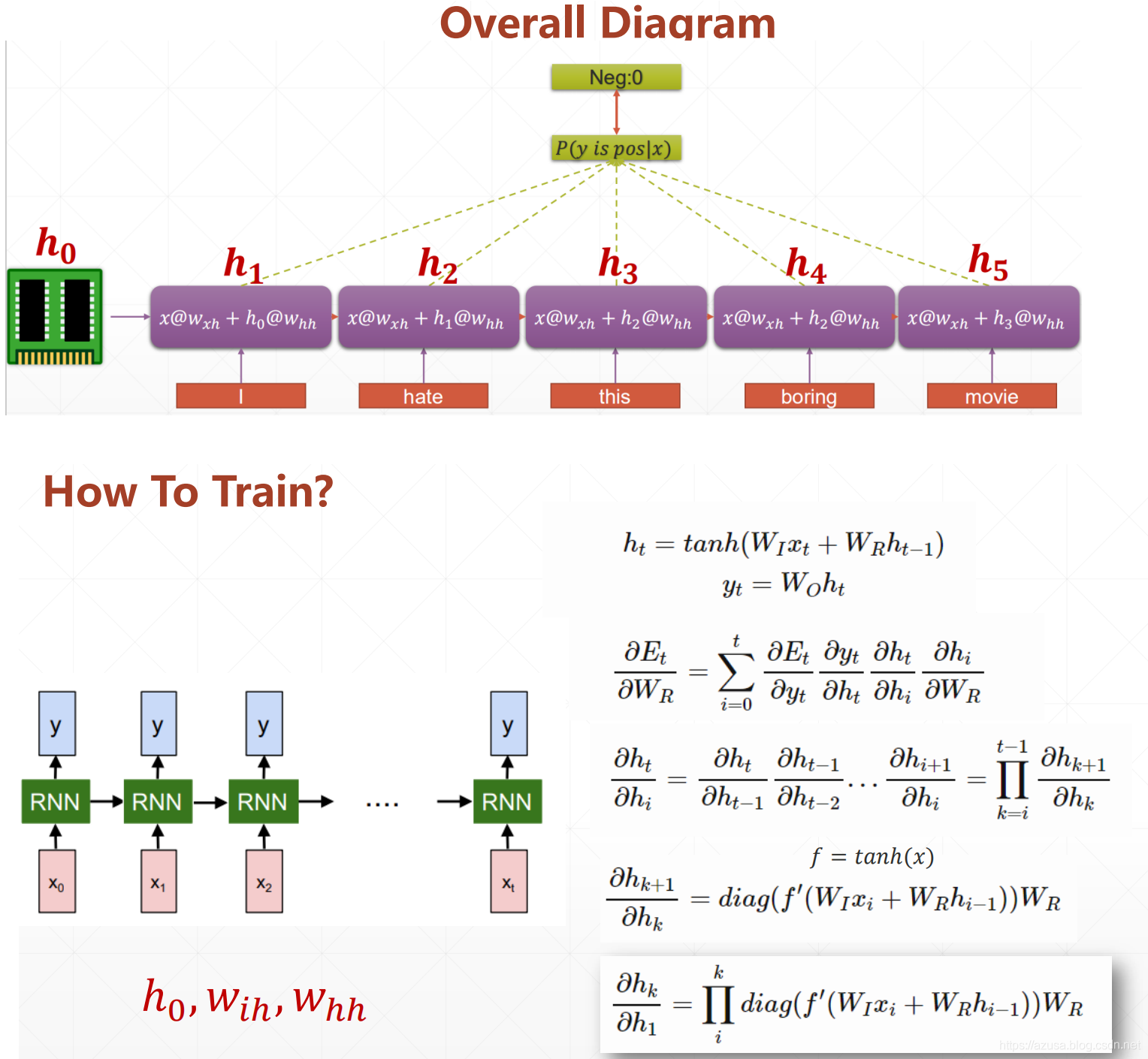

梯度传播相关原理

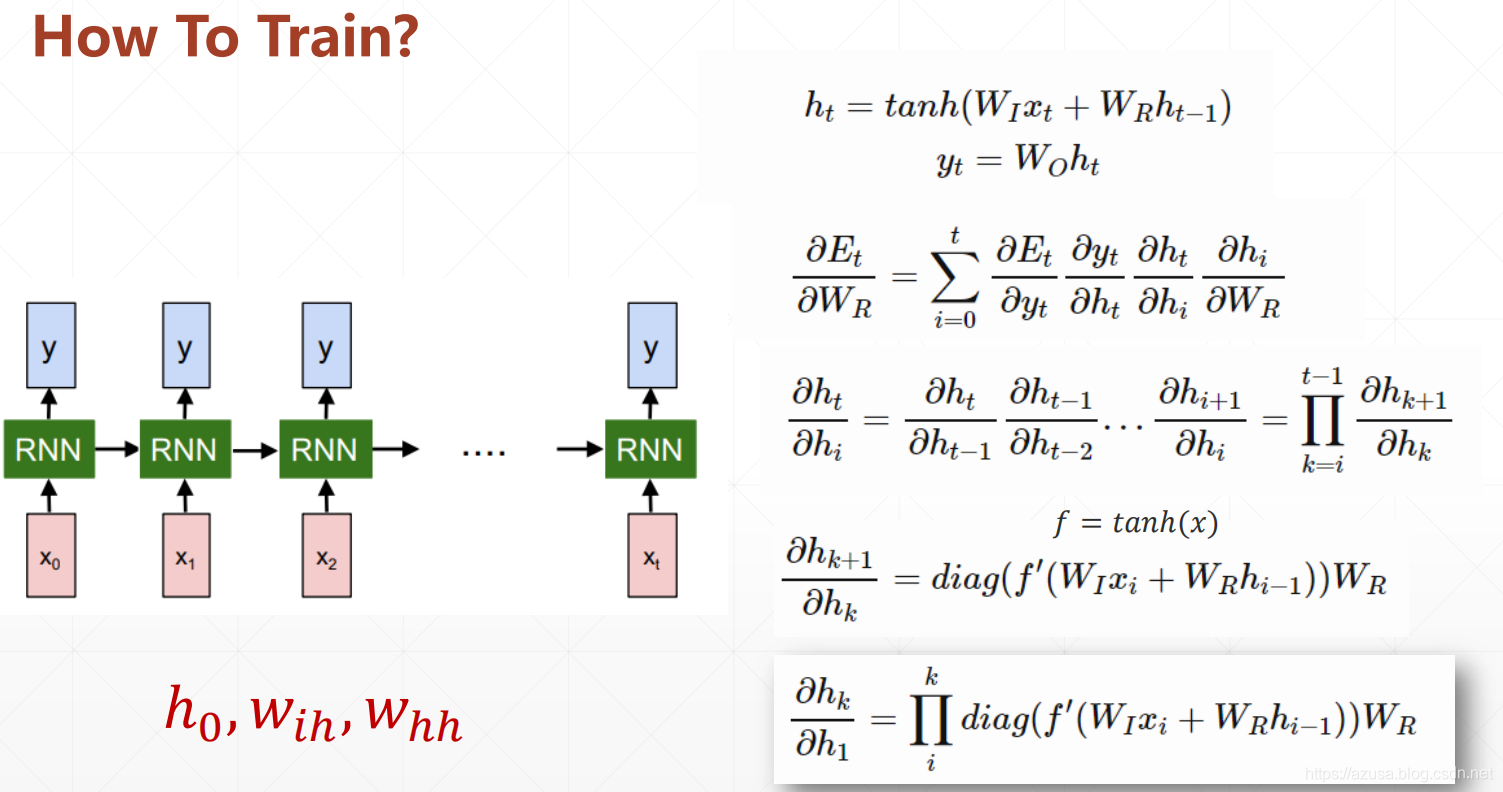

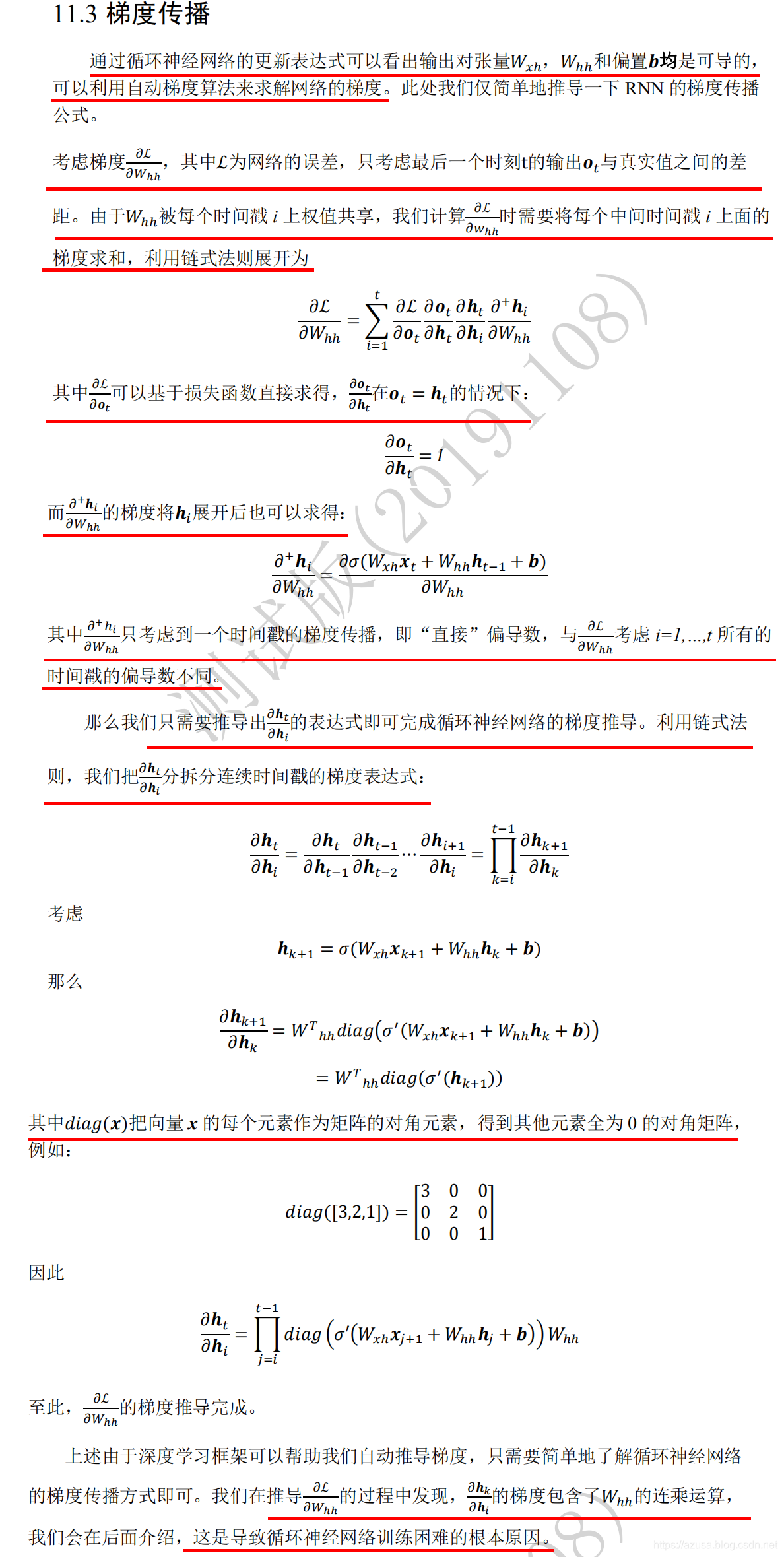

梯度传播原理

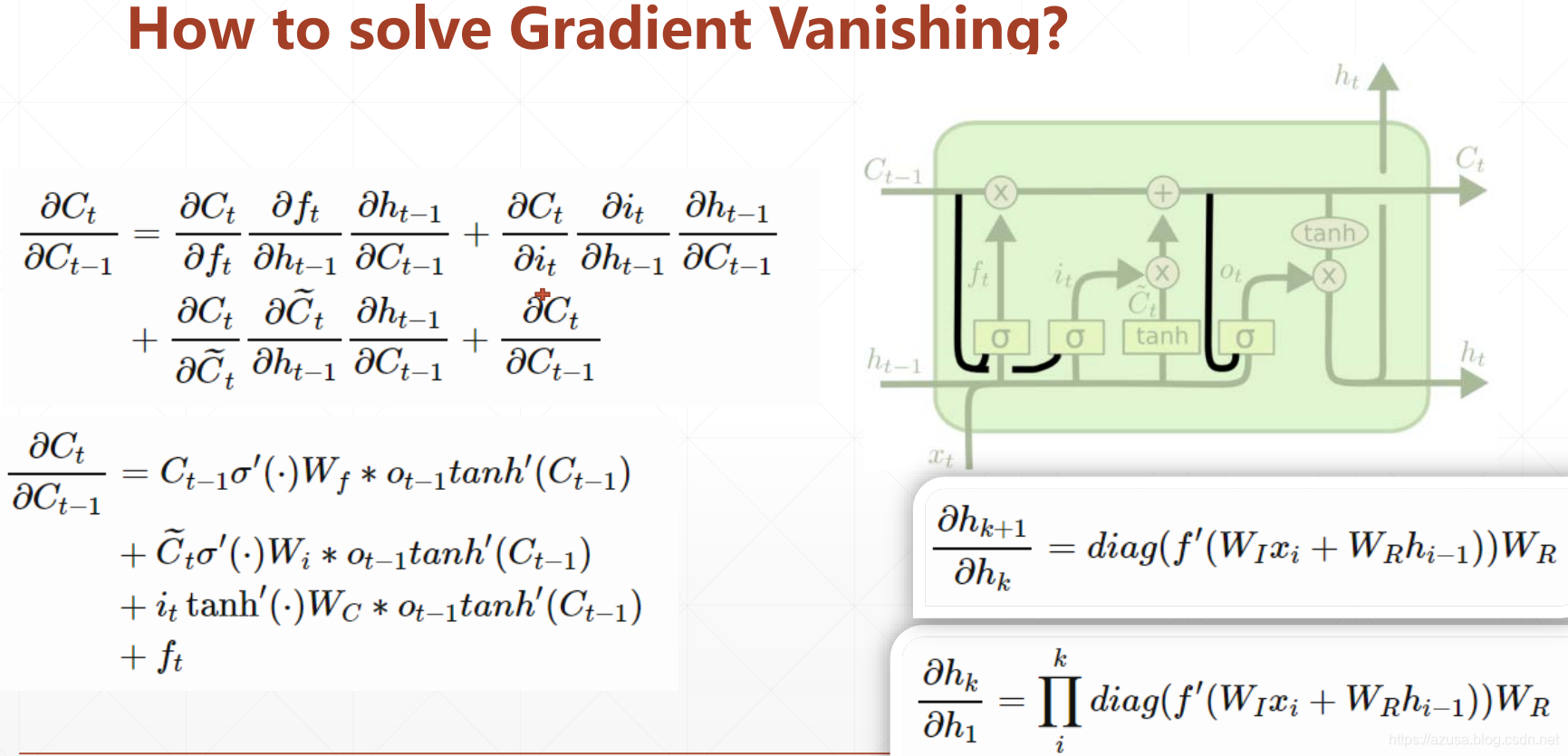

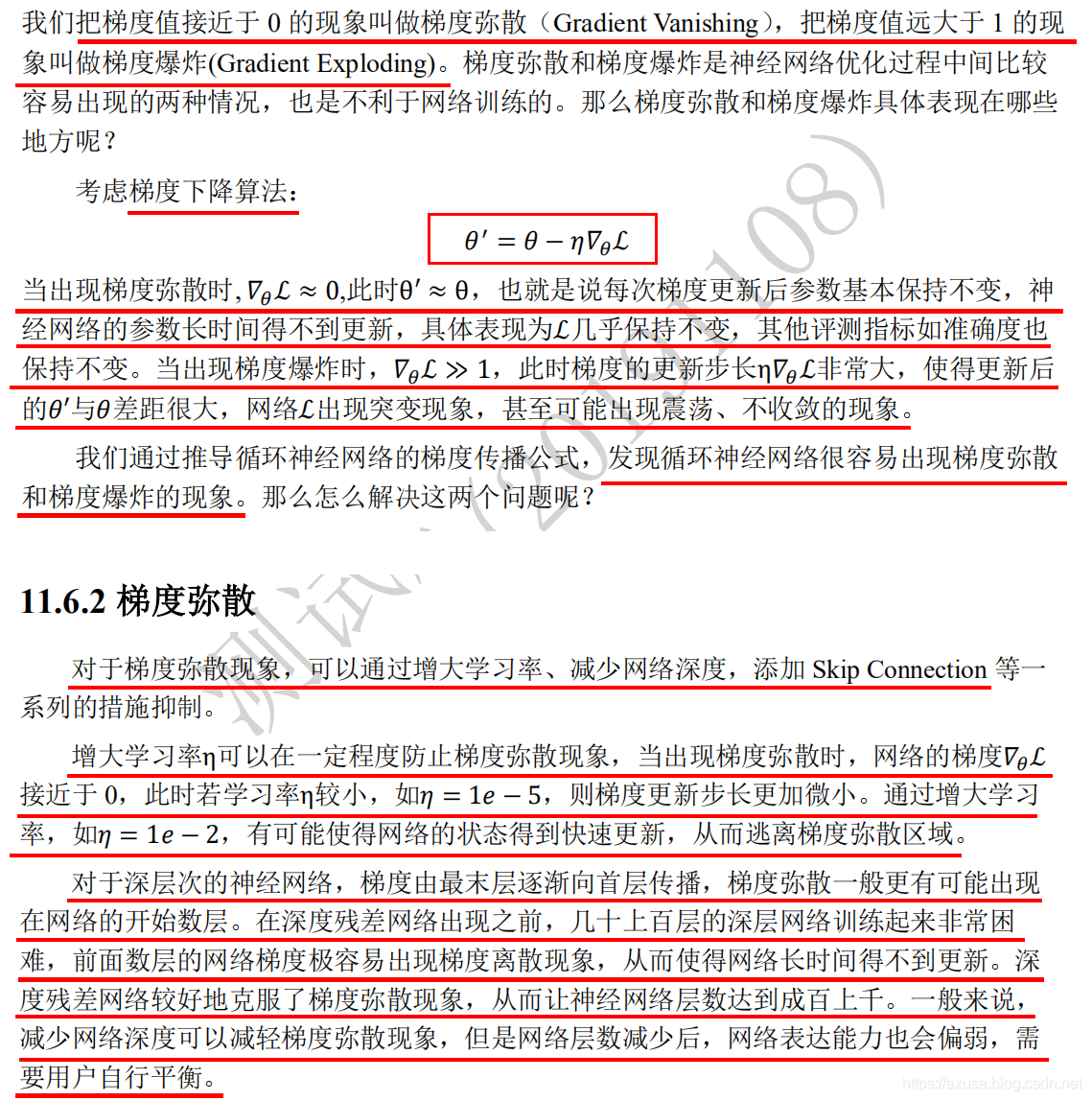

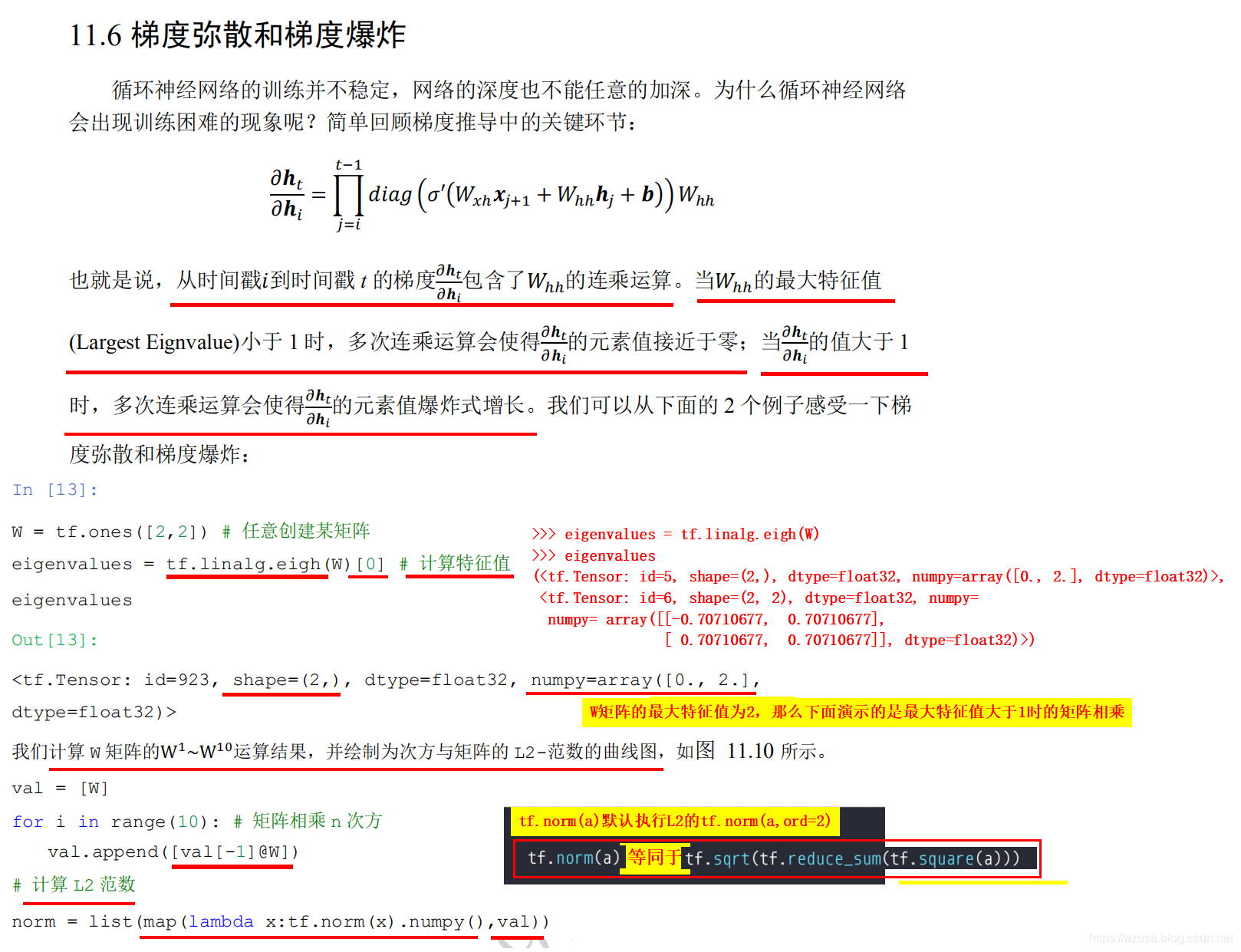

梯度弥散、梯度爆炸
>>> import tensorflow as tf
>>> W = tf.ones([2,2]) # 任意创建某矩阵
>>> W
<tf.Tensor: id=2, shape=(2, 2), dtype=float32, numpy=
array([[1., 1.],
[1., 1.]], dtype=float32)>
>>> tf.linalg.eigh(W)
(<tf.Tensor: id=3, shape=(2,), dtype=float32, numpy=array([0., 2.], dtype=float32)>,
<tf.Tensor: id=4, shape=(2, 2), dtype=float32, numpy=
array([[-0.70710677, 0.70710677],
[ 0.70710677, 0.70710677]], dtype=float32)>)
>>> tf.linalg.eigh(W)[0] # 计算特征值：此时的W矩阵的最大特征值为2，那么下面演示的是最大特征值大于1时的矩阵相乘
<tf.Tensor: id=5, shape=(2,), dtype=float32, numpy=array([0., 2.], dtype=float32)>
>>> tf.linalg.eigh(W)[1]
<tf.Tensor: id=8, shape=(2, 2), dtype=float32, numpy=
array([[-0.70710677, 0.70710677],
[ 0.70710677, 0.70710677]], dtype=float32)>
>>> val = [W]
>>> val
[<tf.Tensor: id=2, shape=(2, 2), dtype=float32, numpy=
array([[1., 1.],
[1., 1.]], dtype=float32)>]
>>> for i in range(10): # 矩阵相乘 n 次方
... val.append([val[-1]@W])
...
>>> val
[<tf.Tensor: id=2, shape=(2, 2), dtype=float32, numpy=
array([[1., 1.],
[1., 1.]], dtype=float32)>,
[<tf.Tensor: id=9, shape=(2, 2), dtype=float32, numpy=
array([[2., 2.],
[2., 2.]], dtype=float32)>],
[<tf.Tensor: id=11, shape=(1, 2, 2), dtype=float32, numpy=
array([[[4., 4.],
[4., 4.]]], dtype=float32)>],
[<tf.Tensor: id=13, shape=(1, 1, 2, 2), dtype=float32, numpy=
array([[[[8., 8.],
[8., 8.]]]], dtype=float32)>],
[<tf.Tensor: id=15, shape=(1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[16., 16.],
[16., 16.]]]]], dtype=float32)>],
[<tf.Tensor: id=17, shape=(1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[32., 32.],
[32., 32.]]]]]], dtype=float32)>],
[<tf.Tensor: id=19, shape=(1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[64., 64.],
[64., 64.]]]]]]], dtype=float32)>],
[<tf.Tensor: id=21, shape=(1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[128., 128.],
[128., 128.]]]]]]]], dtype=float32)>],
[<tf.Tensor: id=23, shape=(1, 1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[[256., 256.],
[256., 256.]]]]]]]]], dtype=float32)>],
[<tf.Tensor: id=25, shape=(1, 1, 1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[[[512., 512.],
[512., 512.]]]]]]]]]], dtype=float32)>],
[<tf.Tensor: id=27, shape=(1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[[[[1024., 1024.],
[1024., 1024.]]]]]]]]]]], dtype=float32)>]]
>>> l = list(map(lambda x:x,val)) #map遍历val中的每个array到list中作为list的每个元素
>>> len(l)
11
>>> norm = list(map(lambda x:tf.norm(x).numpy(),val)) #tf.norm(x)默认执行L2的tf.norm(x,ord=2)等同于tf.sqrt(tf.reduce_sum(tf.square(a)))
>>> len(norm)
11
>>> norm
[2.0, 4.0, 8.0, 16.0, 32.0, 64.0, 128.0, 256.0, 512.0, 1024.0, 2048.0]
>>> m = list(map(lambda x:tf.sqrt(tf.reduce_sum(tf.square(x))),val)) #tf.norm(x)默认执行L2的tf.norm(x,ord=2)等同于tf.sqrt(tf.reduce_sum(tf.square(a)))
>>> m
[<tf.Tensor: id=130, shape=(), dtype=float32, numpy=2.0>,
<tf.Tensor: id=135, shape=(), dtype=float32, numpy=4.0>,
<tf.Tensor: id=140, shape=(), dtype=float32, numpy=8.0>,
<tf.Tensor: id=145, shape=(), dtype=float32, numpy=16.0>,
<tf.Tensor: id=150, shape=(), dtype=float32, numpy=32.0>,
<tf.Tensor: id=155, shape=(), dtype=float32, numpy=64.0>,
<tf.Tensor: id=160, shape=(), dtype=float32, numpy=128.0>,
<tf.Tensor: id=165, shape=(), dtype=float32, numpy=256.0>,
<tf.Tensor: id=170, shape=(), dtype=float32, numpy=512.0>,
<tf.Tensor: id=175, shape=(), dtype=float32, numpy=1024.0>,
<tf.Tensor: id=180, shape=(), dtype=float32, numpy=2048.0>]

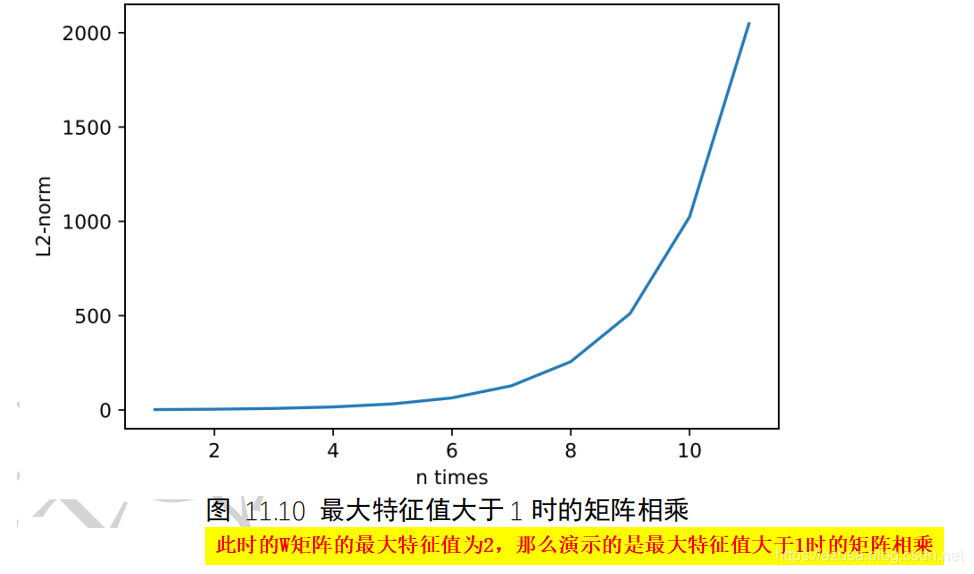

>>> from matplotlib import pyplot as plt
>>> plt.plot(range(1,12),norm)
[<matplotlib.lines.Line2D object at 0x0000025773D525C8>]
>>> plt.show()

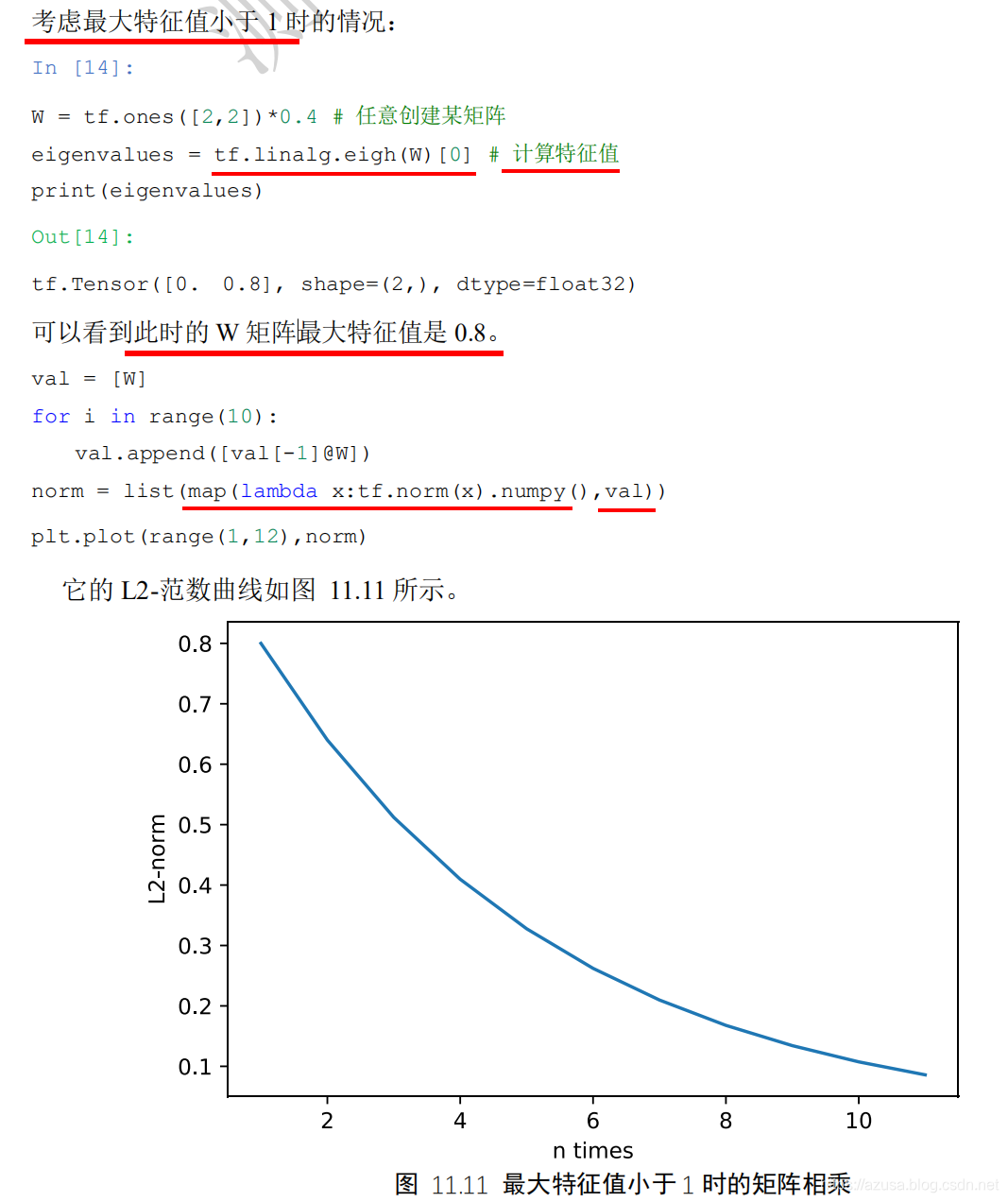

>>> eigenvalues = tf.linalg.eigh(W)
>>> eigenvalues #此时的 W 矩阵最大特征值是 0.8
(<tf.Tensor: id=14, shape=(2,), dtype=float32, numpy=array([0. , 0.8], dtype=float32)>,
<tf.Tensor: id=15, shape=(2, 2), dtype=float32,
numpy=array([[-0.70710677, 0.70710677],
[ 0.70710677, 0.70710677]], dtype=float32)>)
>>> import tensorflow as tf
>>> from matplotlib import pyplot as plt
>>> W = tf.ones([2,2])*0.4 # 任意创建某矩阵
>>> W
<tf.Tensor: id=185, shape=(2, 2), dtype=float32, numpy=
array([[0.4, 0.4],
[0.4, 0.4]], dtype=float32)>
>>> tf.linalg.eigh(W)
(<tf.Tensor: id=186, shape=(2,), dtype=float32, numpy=array([0. , 0.8], dtype=float32)>,
<tf.Tensor: id=187, shape=(2, 2), dtype=float32, numpy=
array([[-0.70710677, 0.70710677],
[ 0.70710677, 0.70710677]], dtype=float32)>)
>>> eigenvalues = tf.linalg.eigh(W)[0] # 计算特征值：此时的W矩阵的最大特征值为0.8，那么下面演示的是最大特征值小于1时的矩阵相乘
>>> eigenvalues
<tf.Tensor: id=188, shape=(2,), dtype=float32, numpy=array([0. , 0.8], dtype=float32)>
>>> val = [W]
>>> for i in range(10):
... val.append([val[-1]@W])
...
>>> val
[<tf.Tensor: id=185, shape=(2, 2), dtype=float32, numpy=
array([[0.4, 0.4],
[0.4, 0.4]], dtype=float32)>,
[<tf.Tensor: id=190, shape=(2, 2), dtype=float32, numpy=
array([[0.32000002, 0.32000002],
[0.32000002, 0.32000002]], dtype=float32)>],
[<tf.Tensor: id=192, shape=(1, 2, 2), dtype=float32, numpy=
array([[[0.256, 0.256],
[0.256, 0.256]]], dtype=float32)>],
[<tf.Tensor: id=194, shape=(1, 1, 2, 2), dtype=float32, numpy=
array([[[[0.20480001, 0.20480001],
[0.20480001, 0.20480001]]]], dtype=float32)>],
[<tf.Tensor: id=196, shape=(1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[0.16384001, 0.16384001],
[0.16384001, 0.16384001]]]]], dtype=float32)>],
[<tf.Tensor: id=198, shape=(1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[0.13107201, 0.13107201],
[0.13107201, 0.13107201]]]]]], dtype=float32)>],
[<tf.Tensor: id=200, shape=(1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[0.10485762, 0.10485762],
[0.10485762, 0.10485762]]]]]]], dtype=float32)>],
[<tf.Tensor: id=202, shape=(1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[0.08388609, 0.08388609],
[0.08388609, 0.08388609]]]]]]]], dtype=float32)>],
[<tf.Tensor: id=204, shape=(1, 1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[[0.06710888, 0.06710888],
[0.06710888, 0.06710888]]]]]]]]], dtype=float32)>],
[<tf.Tensor: id=206, shape=(1, 1, 1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[[[0.0536871, 0.0536871],
[0.0536871, 0.0536871]]]]]]]]]], dtype=float32)>],
[<tf.Tensor: id=208, shape=(1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2), dtype=float32, numpy=
array([[[[[[[[[[[0.04294968, 0.04294968],
[0.04294968, 0.04294968]]]]]]]]]]], dtype=float32)>]]
>>> norm = list(map(lambda x:tf.norm(x).numpy(),val))
>>> norm
[0.8, 0.64000005, 0.512, 0.40960002, 0.32768002, 0.26214403, 0.20971523, 0.16777219, 0.13421775, 0.107374206, 0.08589937]
>>> plt.plot(range(1,12),norm)
[<matplotlib.lines.Line2D object at 0x000002577AACD888>]
>>> plt.show()

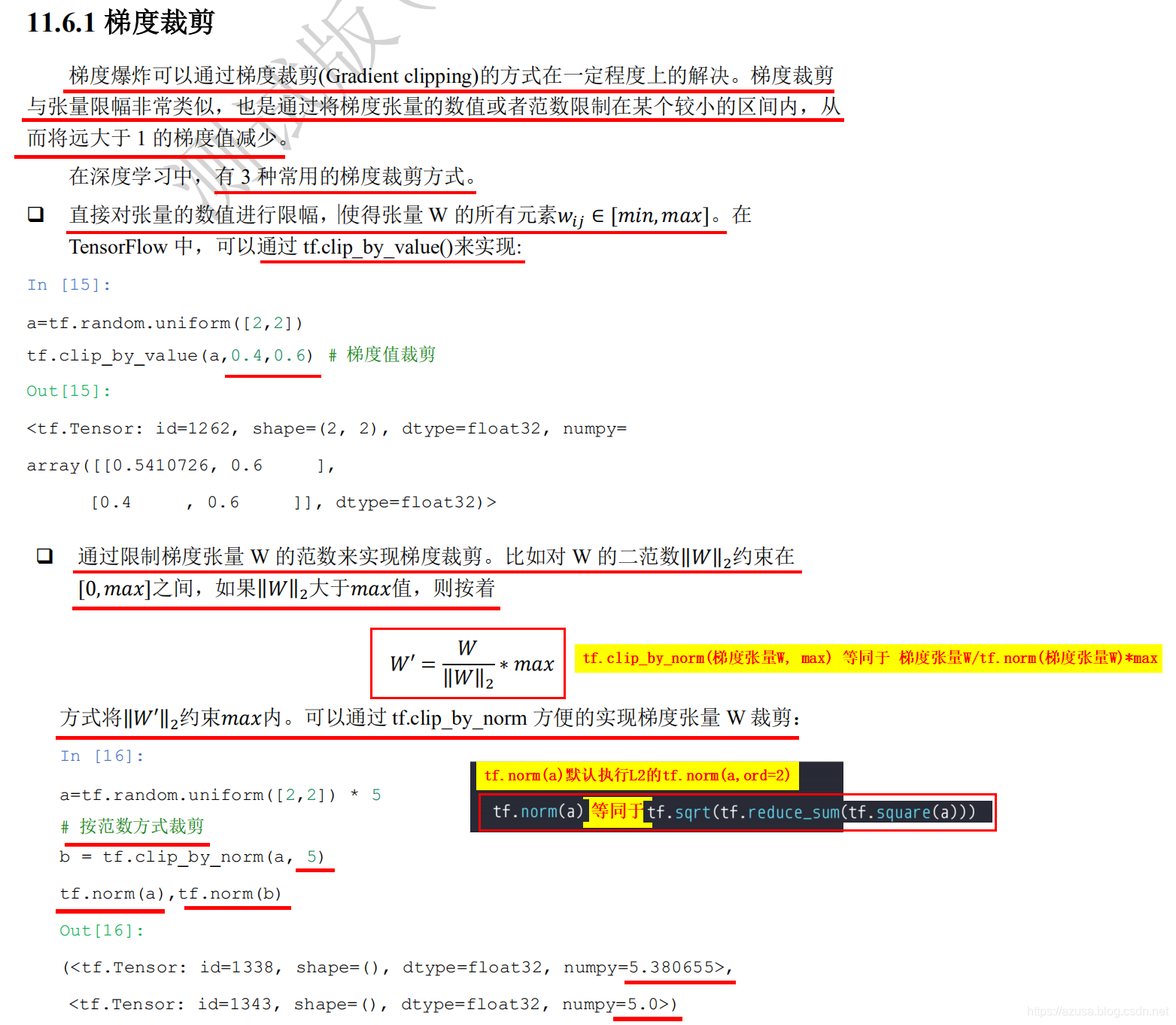

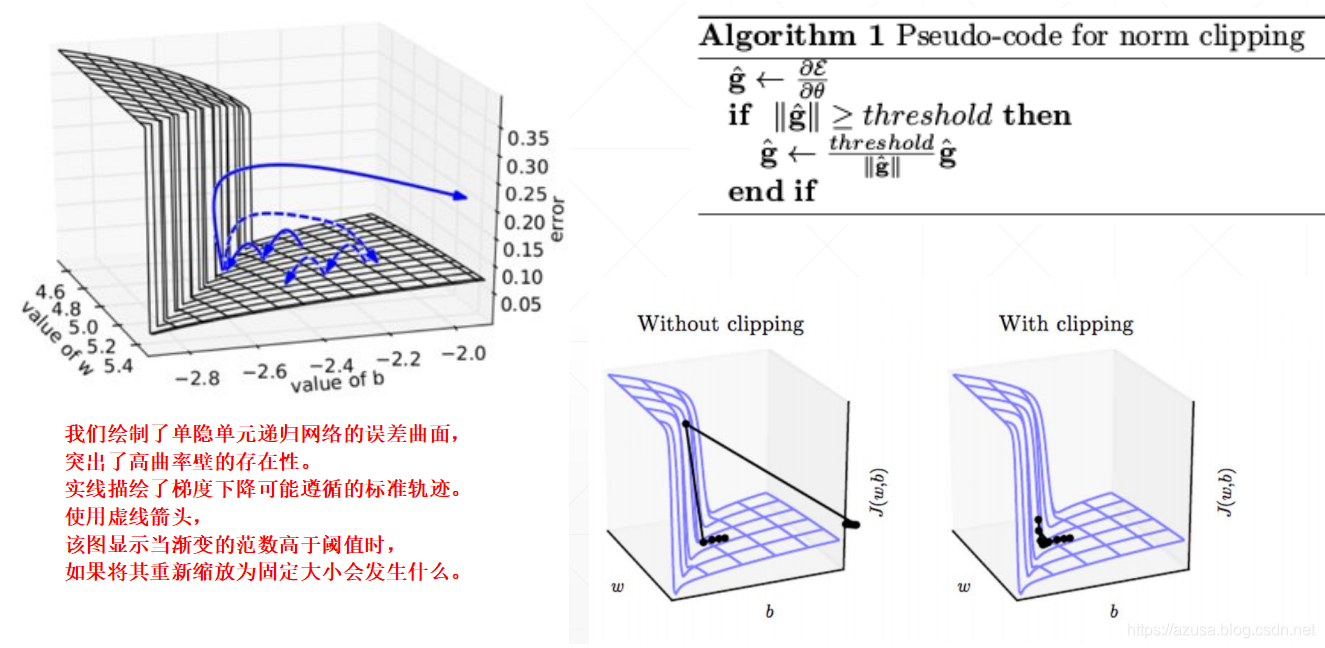

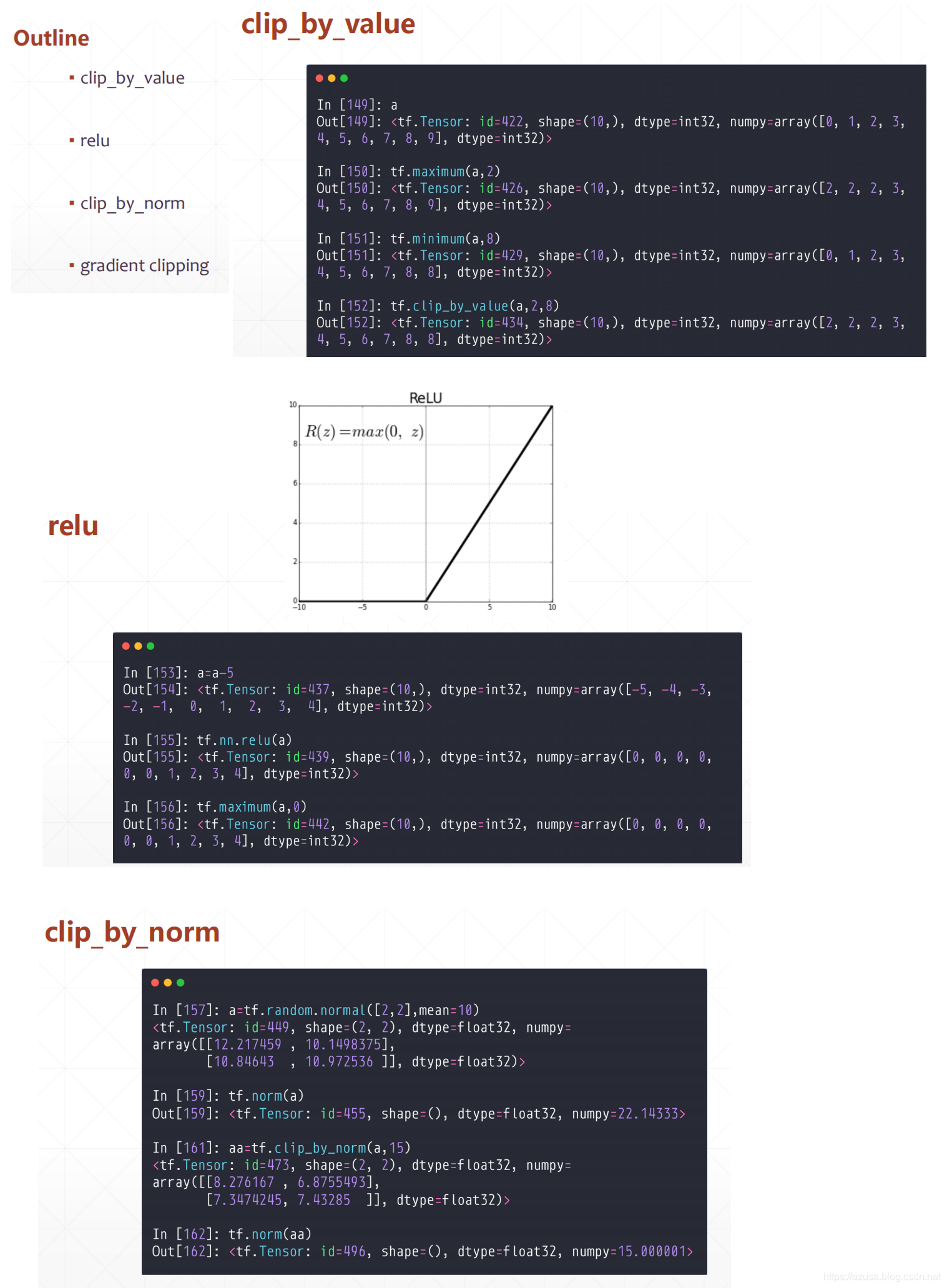

梯度裁剪(clip_by_value、clip_by_norm、clip_by_global_norm)
>>> a=tf.random.uniform([2,2]) * 5
>>> a
<tf.Tensor: id=356, shape=(2, 2), dtype=float32, numpy=
array([[1.5947735, 2.6630645],
[3.2025905, 3.669492 ]], dtype=float32)>
>>> tf.norm(a)
<tf.Tensor: id=361, shape=(), dtype=float32, numpy=5.7755494>
>>> # 按范数方式裁剪
... b = tf.clip_by_norm(a, 5) #tf.clip_by_norm(梯度张量W, max) 等同于 梯度张量W/tf.norm(梯度张量W)*max
>>> b
<tf.Tensor: id=378, shape=(2, 2), dtype=float32, numpy=
array([[1.3806249, 2.3054643],
[2.772542 , 3.176747 ]], dtype=float32)>
>>> tf.norm(b)
<tf.Tensor: id=383, shape=(), dtype=float32, numpy=5.0>
>>> a1 = a/tf.norm(a)*5 #梯度张量W/tf.norm(梯度张量W)*max 等同于 tf.clip_by_norm(梯度张量W, max)
>>> tf.norm(a1)
<tf.Tensor: id=409, shape=(), dtype=float32, numpy=5.0000005>

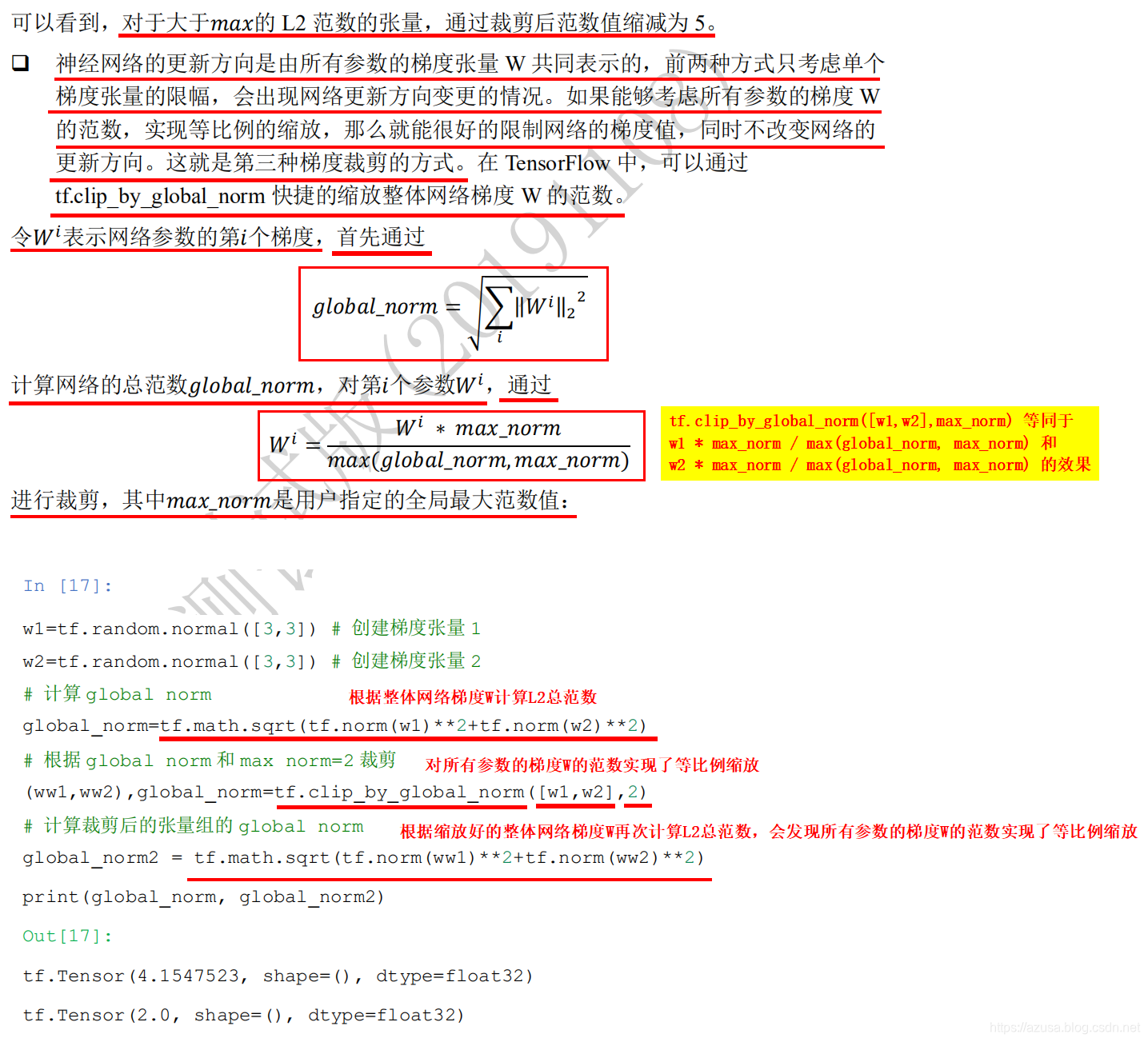

>>> import tensorflow as tf
>>> w1=tf.random.normal([3,3]) # 创建梯度张量 1
>>> w2=tf.random.normal([3,3]) # 创建梯度张量 2
>>> w1
<tf.Tensor: id=480, shape=(3, 3), dtype=float32, numpy=
array([[-0.6576707 , -0.90442616, 0.34582302],
[-1.7328235 , -2.1596272 , 0.4980505 ],
[-0.05848425, 0.3528551 , 0.11080291]], dtype=float32)>
>>> w2
<tf.Tensor: id=486, shape=(3, 3), dtype=float32, numpy=
array([[ 0.08453857, -0.2454122 , -0.67583424],
[ 0.32974792, -1.3895415 , -0.3052706 ],
[-0.37487552, -0.9419025 , -0.86943924]], dtype=float32)>
>>> # 计算“还没实现等比例缩放的”所有参数的梯度W的范数global_norm
... global_norm = tf.math.sqrt(tf.norm(w1)**2+tf.norm(w2)**2)
>>> global_norm
<tf.Tensor: id=502, shape=(), dtype=float32, numpy=3.7236474>
>>> # 根据 max_norm=2 裁剪，返回“对所有参数的梯度W的范数实现了等比例缩放的新的”梯度W 和 原有的“还没实现等比例缩放的”所有参数的梯度W的范数global_norm
... (ww1,ww2),global_norm = tf.clip_by_global_norm([w1,w2],2)
>>> ww1
<tf.Tensor: id=522, shape=(3, 3), dtype=float32, numpy=
array([[-0.35324 , -0.4857743 , 0.18574423],
[-0.93071294, -1.1599525 , 0.2675068 ],
[-0.03141234, 0.18952121, 0.0595131 ]], dtype=float32)>
>>> ww2
<tf.Tensor: id=523, shape=(3, 3), dtype=float32, numpy=
array([[ 0.04540632, -0.1318128 , -0.3629958 ],
[ 0.17711017, -0.74633354, -0.16396321],
[-0.20134856, -0.5059032 , -0.46698257]], dtype=float32)>
>>> global_norm
<tf.Tensor: id=510, shape=(), dtype=float32, numpy=3.7236474>
>>> # 计算"实现了等比例缩放(裁剪后)的"所有参数的梯度W的范数global_norm
... global_norm2 = tf.math.sqrt(tf.norm(ww1)**2+tf.norm(ww2)**2)
>>> print(global_norm, global_norm2) #tf.Tensor(4.073522, shape=(), dtype=float32) tf.Tensor(2.0000002, shape=(), dtype=float32)
>>> # 计算“还没实现等比例缩放的”所有参数的梯度W的范数global_norm
... global_norm = tf.math.sqrt(tf.norm(w1)**2+tf.norm(w2)**2)
>>> global_norm
<tf.Tensor: id=502, shape=(), dtype=float32, numpy=3.7236474>
>>> max_norm = 2
#tf.clip_by_global_norm([w1,w2],max_norm) 等同于 w1 * max_norm / max(global_norm, max_norm) 和 w2 * max_norm / max(global_norm, max_norm) 的效果
>>> ww1 = w1 * max_norm / max(global_norm, max_norm)
>>> ww2 = w2 * max_norm / max(global_norm, max_norm)
>>> ww1
<tf.Tensor: id=586, shape=(3, 3), dtype=float32, numpy=
array([[-0.35324004, -0.48577434, 0.18574424],
[-0.930713 , -1.1599526 , 0.2675068 ],
[-0.03141235, 0.18952121, 0.05951311]], dtype=float32)>
>>> ww2
<tf.Tensor: id=591, shape=(3, 3), dtype=float32, numpy=
array([[ 0.04540633, -0.13181281, -0.36299583],
[ 0.17711018, -0.74633354, -0.16396323],
[-0.20134856, -0.5059032 , -0.4669826 ]], dtype=float32)>
>>> global_norm2 = tf.math.sqrt(tf.norm(ww1)**2+tf.norm(ww2)**2)
>>> global_norm2
<tf.Tensor: id=607, shape=(), dtype=float32, numpy=1.9999998>
>>> import tensorflow as tf
>>> w1=tf.random.normal([3,3])
>>> w2=tf.random.normal([3,3])
>>> w1
<tf.Tensor: id=5, shape=(3, 3), dtype=float32, numpy=
array([[-0.3745235 , -0.54776704, -0.6978908 ],
[-0.48667282, -1.9662677 , 1.2693951 ],
[-1.6218463 , -1.3147658 , 1.1985897 ]], dtype=float32)>
#tf.norm(a)默认为执行L2范数的tf.norm(a. ord=2)，等同于tf.sqrt(tf.reduce_sum(tf.square(a)))
#计算裁剪前的网络参数θ的总范数global_norm：所有裁剪前的网络参数θ的L2范数tf.norm(θ)的平方和，然后开方sqrt
>>> global_norm=tf.math.sqrt(tf.norm(w1)**2+tf.norm(w2)**2)
>>> global_norm #4.7265425
<tf.Tensor: id=27, shape=(), dtype=float32, numpy=4.7265425>

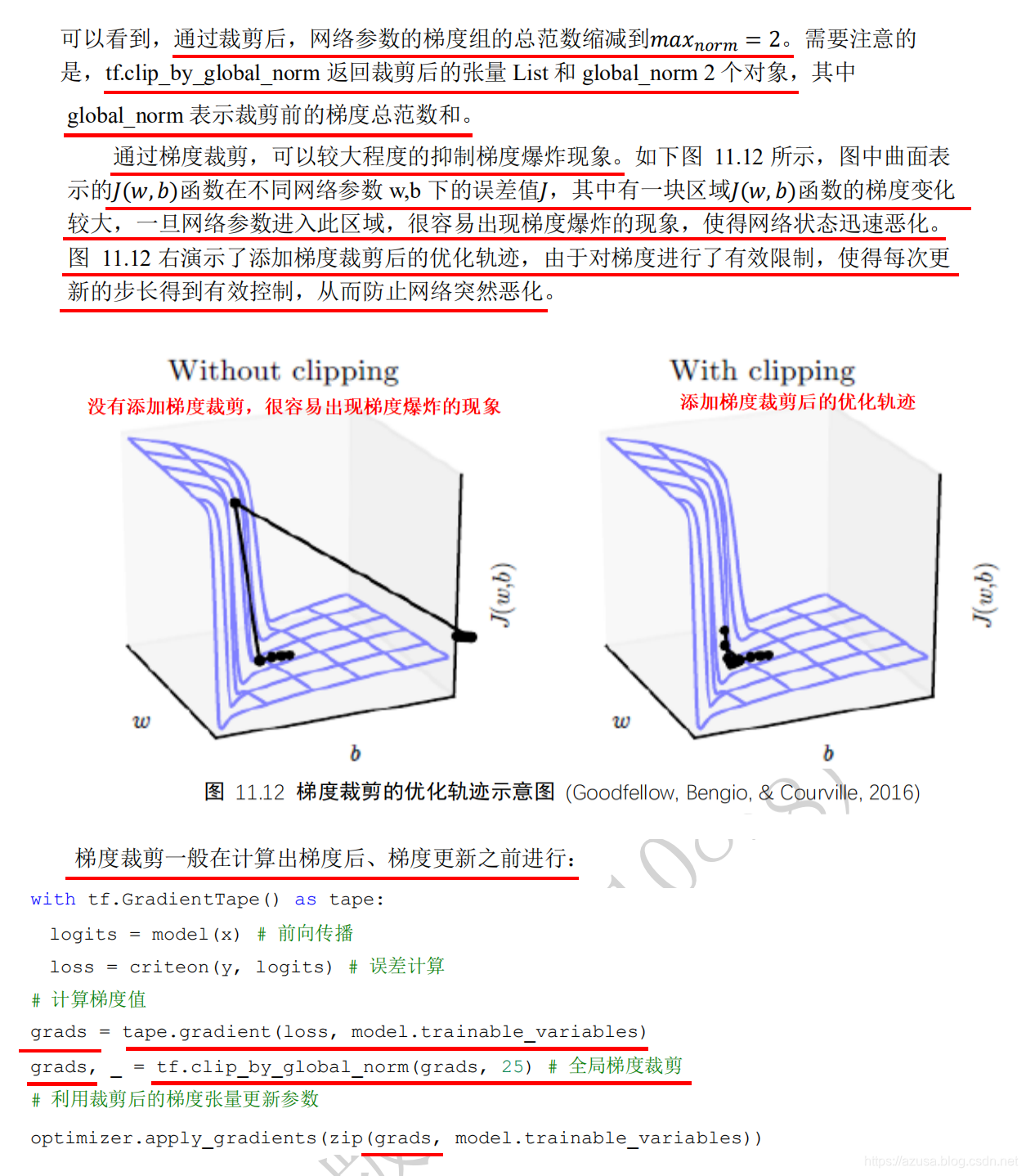

#通过tf.clip_by_global_norm([θ],MAX_norm)裁剪后，网络参数的梯度组的总范数缩减到MAX_norm=2
#clip_by_global_norm返回裁剪后的List[参数θ] 和 裁剪前的梯度总范数和global_norm 的2个对象
>>> (ww1,ww2),global_norm=tf.clip_by_global_norm([w1,w2],2) #梯度裁剪一般在计算出梯度后、梯度更新之前进行
>>> ww1
<tf.Tensor: id=47, shape=(3, 3), dtype=float32, numpy=
array([[-0.15847673, -0.2317834 , -0.29530713],
[-0.20593184, -0.832011 , 0.53713477],
[-0.6862717 , -0.556333 , 0.50717396]], dtype=float32)>
>>> ww2
<tf.Tensor: id=48, shape=(3, 3), dtype=float32, numpy=
array([[ 0.03117203, -0.7264457 , 0.32293826],
[ 0.5894358 , 0.87403387, 0.04680141],
[ 0.0015509 , 0.15240058, 0.05759645]], dtype=float32)>
>>> global_norm
<tf.Tensor: id=35, shape=(), dtype=float32, numpy=4.7265425>
#计算裁剪后的网络参数θ的总范数global_norm：所有裁剪后的网络参数θ的L2范数tf.norm(θ)的平方和，然后开方sqrt
>>> global_norm2 = tf.math.sqrt(tf.norm(ww1)**2+tf.norm(ww2)**2)
>>> global_norm2
<tf.Tensor: id=64, shape=(), dtype=float32, numpy=1.9999998>
>>> print(global_norm, global_norm2)
tf.Tensor(4.7265425, shape=(), dtype=float32) tf.Tensor(1.9999998, shape=(), dtype=float32)
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import datasets, layers, optimizers
import os
os.environ['TF_CPP_MIN_LOG_LEVEL']='2'
print(tf.__version__)
(x, y), _ = datasets.mnist.load_data()
x = tf.convert_to_tensor(x, dtype=tf.float32) / 50. #标准化/归一化
y = tf.convert_to_tensor(y)
y = tf.one_hot(y, depth=10) #真实标签one-hot化
print('x:', x.shape, 'y:', y.shape)
#构建批量大小和epoch训练次数
train_db = tf.data.Dataset.from_tensor_slices((x,y)).batch(128).repeat(30)
x,y = next(iter(train_db)) #获取生成器并调用next遍历第一个批量大小的数据
print('sample:', x.shape, y.shape)
# print(x[0], y[0])
def main():
# 784 => 512 第一层权重[输入神经元数, 输出神经元数]，偏置[输出神经元数]
w1, b1 = tf.Variable(tf.random.truncated_normal([784, 512], stddev=0.1)), tf.Variable(tf.zeros([512]))
# 512 => 256 第二层权重[输入神经元数, 输出神经元数]，偏置[输出神经元数]
w2, b2 = tf.Variable(tf.random.truncated_normal([512, 256], stddev=0.1)), tf.Variable(tf.zeros([256]))
# 256 => 10 第三层权重[输入神经元数, 输出神经元数]，偏置[输出神经元数]
w3, b3 = tf.Variable(tf.random.truncated_normal([256, 10], stddev=0.1)), tf.Variable(tf.zeros([10]))
optimizer = optimizers.SGD(lr=0.01) #SGD随机梯度下降优化算法
#每次遍历训练集生成器的一个批量大小数据
for step, (x,y) in enumerate(train_db):
# [b, 28, 28] => [b, 784] 展平
x = tf.reshape(x, (-1, 784))
#构建梯度记录环境
with tf.GradientTape() as tape:
# layer1.
h1 = x @ w1 + b1
h1 = tf.nn.relu(h1)
# layer2
h2 = h1 @ w2 + b2
h2 = tf.nn.relu(h2)
# output
out = h2 @ w3 + b3
# out = tf.nn.relu(out)
# compute loss
# [b, 10] - [b, 10] 均方差mse = mean(sum(y-out)^2) 预测值与真实值之差的平方的平均值
loss = tf.square(y-out)
# [b, 10] => [b] 计算每个样本的平均误差
loss = tf.reduce_mean(loss, axis=1)
# [b] => scalar 总误差除以样本数
loss = tf.reduce_mean(loss)
#1.求导，tape.gradient(y,[参数θ])求参数θ相对于y的梯度信息
# dy_dw = tape.gradient(y, [w])
#2.通过tape.gradient(loss,[参数θ])函数求得网络参数θ的梯度信息
# grads = tape.gradient(loss, [w1, b1, w2, b2, w3, b3])
# compute gradients。根据loss 求w1, w2, w3, b1, b2, b3的梯度值 用于后面继续更新对应的模型参数θ。
grads = tape.gradient(loss, [w1, b1, w2, b2, w3, b3])
# print('==before==')
# for g in grads: #计算所有裁剪前的网络参数θ的梯度值的L2范数tf.norm(a)，等同于tf.norm(a. ord=2)、tf.sqrt(tf.reduce_sum(tf.square(a)))
# print(tf.norm(g)) #tf.norm(a)默认为执行L2范数tf.norm(a. ord=2)，等同于tf.sqrt(tf.reduce_sum(tf.square(a)))
#通过tf.clip_by_global_norm([θ],MAX_norm)裁剪后，网络参数的梯度组的总范数缩减到MAX_norm=15
#clip_by_global_norm返回裁剪后的List[参数θ] 和 裁剪前的梯度总范数和global_norm 的2个对象
grads, _ = tf.clip_by_global_norm(grads, 15) #梯度裁剪一般在计算出梯度后、梯度更新之前进行
# print('==after==')
# for g in grads: #计算所有裁剪后的网络参数θ的梯度值的L2范数tf.norm(a)，等同于tf.norm(a. ord=2)、tf.sqrt(tf.reduce_sum(tf.square(a)))
# print(tf.norm(g)) #tf.norm(a)默认为执行L2的tf.norm(a. ord=2)，等同于tf.sqrt(tf.reduce_sum(tf.square(a)))
#优化器规则，根据 模型参数θ = θ - lr * grad 更新网络参数
# update w' = w - lr*grad
optimizer.apply_gradients(zip(grads, [w1, b1, w2, b2, w3, b3]))
if step % 100 == 0:
print(step, 'loss:', float(loss))
if __name__ == '__main__':
main()
W = tf.ones([2,2]) #任意创建某矩阵
eigenvalues = tf.linalg.eigh(W)[0] # 计算特征值
eigenvalues
val = [W]
# 矩阵相乘n次方
for i in range(10):
val.append([val[-1]@W])
# 计算L2范数
norm = list(map(lambda x:tf.norm(x).numpy(),val))
plt.plot(range(1,12),norm)
plt.xlabel('n times')
plt.ylabel('L2-norm')
plt.savefig('w_n_times_1.svg')
W = tf.ones([2,2])*0.4 # 任意创建某矩阵
eigenvalues = tf.linalg.eigh(W)[0] # 计算特征值
print(eigenvalues)
val = [W]
for i in range(10):
val.append([val[-1]@W])
norm = list(map(lambda x:tf.norm(x).numpy(),val))
plt.plot(range(1,12),norm)
plt.xlabel('n times')
plt.ylabel('L2-norm')
plt.savefig('w_n_times_0.svg')
a=tf.random.uniform([2,2])
tf.clip_by_value(a,0.4,0.6) # 梯度值裁剪
a=tf.random.uniform([2,2]) * 5
# 按范数方式裁剪
b = tf.clip_by_norm(a, 5)
tf.norm(a),tf.norm(b)
w1=tf.random.normal([3,3]) # 创建梯度张量1
w2=tf.random.normal([3,3]) # 创建梯度张量2
# 计算global norm
global_norm=tf.math.sqrt(tf.norm(w1)**2+tf.norm(w2)**2)
# 根据global norm和max norm=2裁剪
(ww1,ww2),global_norm=tf.clip_by_global_norm([w1,w2],2)
# 计算裁剪后的张量组的global norm
global_norm2 = tf.math.sqrt(tf.norm(ww1)**2+tf.norm(ww2)**2)
print(global_norm, global_norm2)
with tf.GradientTape() as tape:
logits = model(x) # 前向传播
loss = criteon(y, logits) # 误差计算
# 计算梯度值
grads = tape.gradient(loss, model.trainable_variables)
grads, _ = tf.clip_by_global_norm(grads, 25) # 全局梯度裁剪
# 利用裁剪后的梯度张量更新参数
optimizer.apply_gradients(zip(grads, model.trainable_variables))
各种循环神经网络

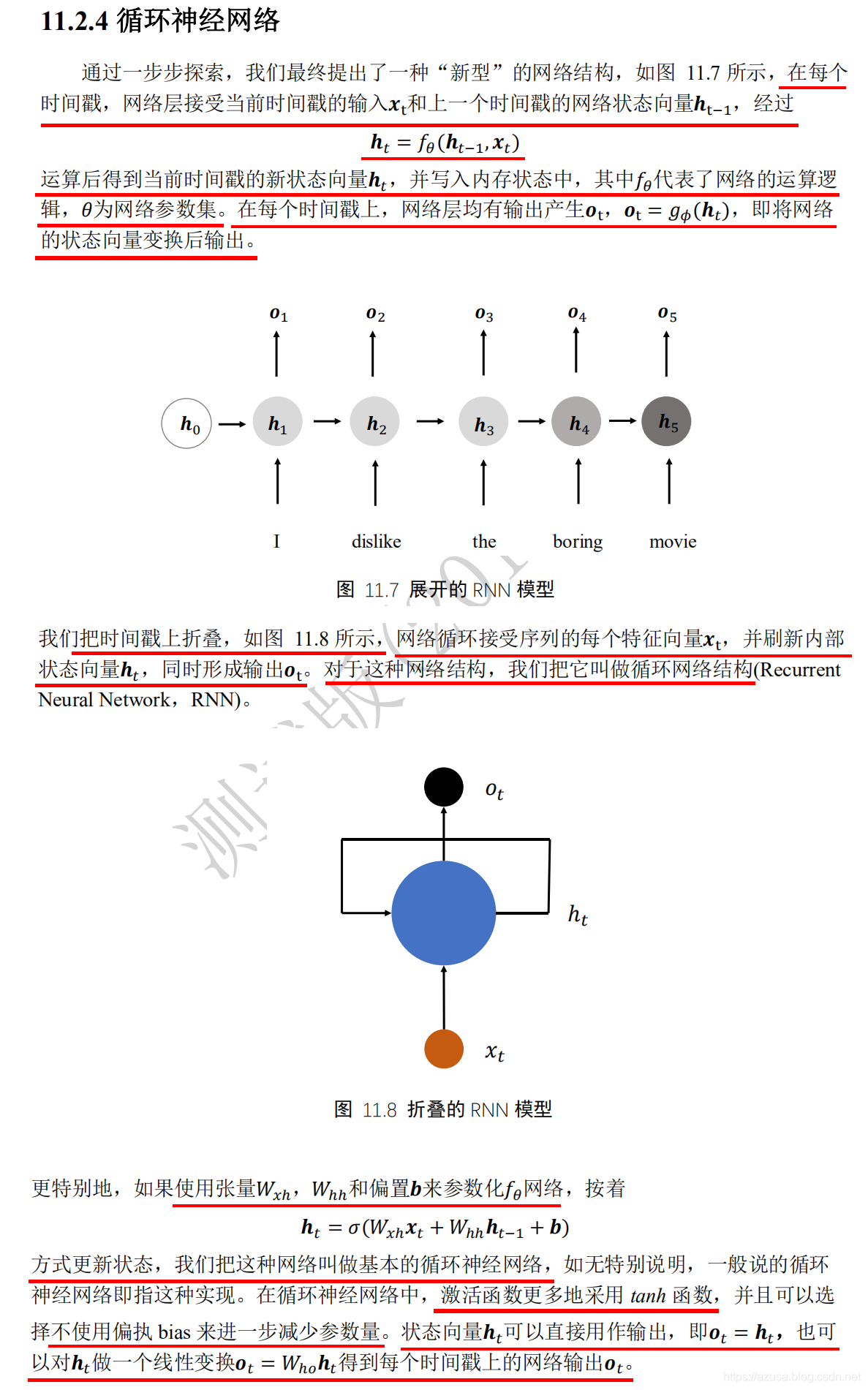

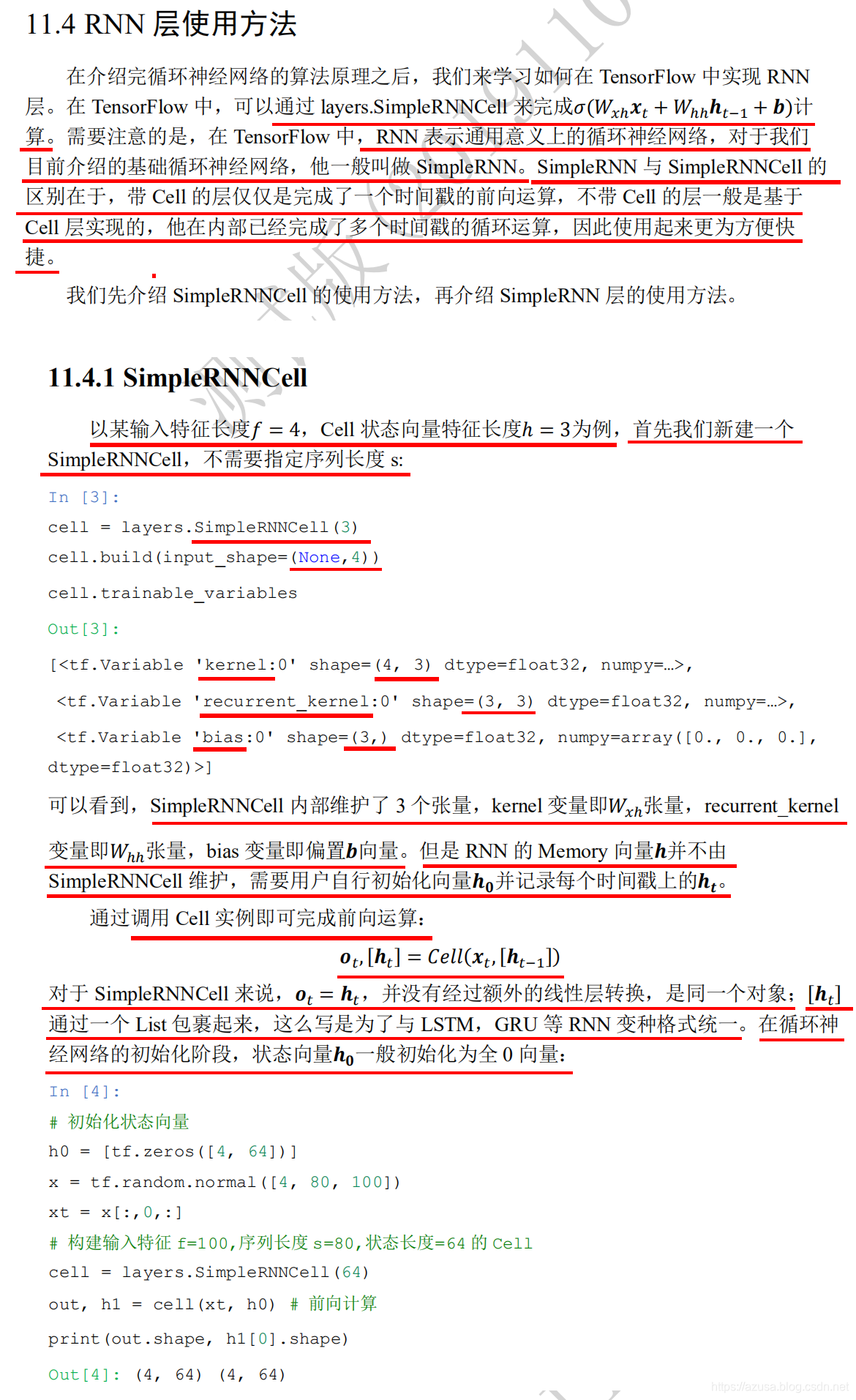

SimpleRNNCell
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import datasets, layers, optimizers
#状态向量特征长度h=3
cell = layers.SimpleRNNCell(3)
#不需要指定序列长度s，默认为None即可。时间戳t的输入特征长度f/词向量特征长度f=4
cell.build(input_shape=(None,4))
#SimpleRNNCell内部维护了3个张量，kernel为Wxh(时间戳t的输入特征长度f, 状态向量特征长度h)，shape为(4, 3)，
#recurrent_kernel为Whh(状态向量特征长度h, 状态向量特征长度h)，shape为(3, 3)，bias为偏置b(状态向量特征长度h,)，shape为(3,)

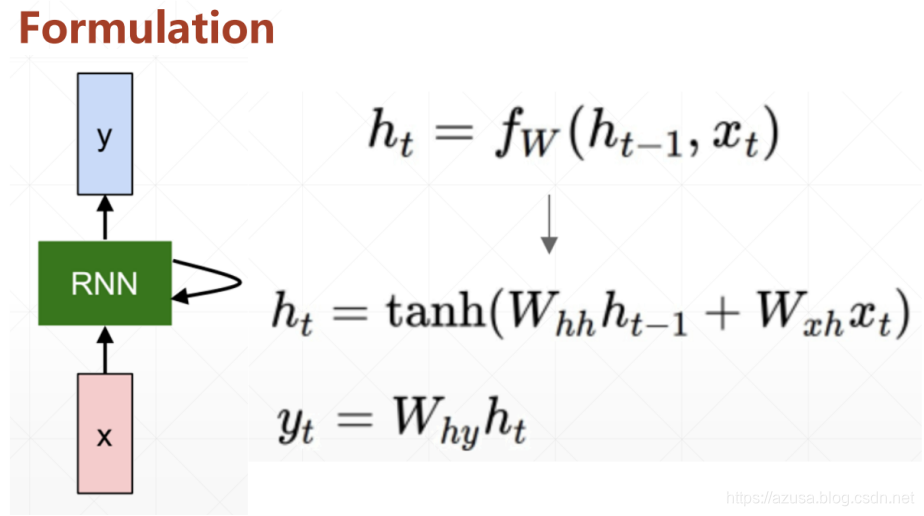

#前向计算：ht = Wxh * Xt + Whh * ht-1 + b = (4, 3) * Xt + (3, 3) * ht-1 + (3,)
cell.trainable_variables
#[<tf.Variable 'kernel:0' shape=(4, 3) dtype=float32, numpy=
# array([[ 0.08301067, -0.46076387, 0.15347064],
# [-0.1890313 , 0.60186946, -0.85642815],
# [ 0.5622045 , -0.07674742, -0.80009407],
# [ 0.5321919 , -0.44575736, -0.3680237 ]], dtype=float32)>,
# <tf.Variable 'recurrent_kernel:0' shape=(3, 3) dtype=float32, numpy=
# array([[ 0.9972923 , 0.07062273, -0.02049942],
# [-0.06413236, 0.69885963, -0.7123779 ],
# [ 0.03598386, -0.71176374, -0.7014966 ]], dtype=float32)>,
# <tf.Variable 'bias:0' shape=(3,) dtype=float32, numpy=
# array([0., 0., 0.], dtype=float32)>]
#初始化状态向量h0(批量大小b,状态向量特征长度h)，shape=(4, 64)
h0 = [tf.zeros([4, 64])]
#输入序列数据(b,s,f)，即序列数量b=4，序列长度s=80，时间戳t的输入特征长度f/词向量特征长度f=100，shape=(4, 80, 100)
x = tf.random.normal([4, 80, 100])
#按 x[:,i,:] 或 for xt in tf.unstack(x, axis=1) 方式可以从[序列数量b, 序列长度s, 词向量特征长度f]中获取 s个[序列数量b, 词向量特征长度f]，
#即一个序列中有N个单词数，那么就遍历N次，每次遍历同时获取批量多个序列中的同一个时间戳上的单词，当遍历次数等于序列长度s时才算完成一次网络层的前向计算
#即每次需要把(批量大小b, 词向量特征长度f)输入到SimpleRNNCell中，序列数量b=4，输入特征f=100，shape=(4, 100)
#即每次输入数据到SimpleRNNCell中时，输入所有序列数据中同一个时间戳t的数据，对于长度为t+1的训练来说，需要遍历等同于序列长度s的次数才算完成一次网络层的前向计算
xt = x[:,0,:] #取第一个时间戳的输入x0(4, 100) 即xt为(批量大小b, 词向量特征长度f)
# 构建输入特征 f=100，序列长度 s=80，状态向量长度h=64 的Cell
cell = layers.SimpleRNNCell(64)
#SimpleRNNCell内部维护了3个张量，kernel为Wxh(时间戳t的输入特征长度f, 状态向量特征长度h)，shape为(100, 64)，
#recurrent_kernel为Whh(状态向量特征长度h, 状态向量特征长度h)，shape为(64, 64)，bias为偏置b(状态向量特征长度h,)，shape为(64,)
#前向计算，输入批量序列中同一个时间戳t的字符数据xt和状态向量h0：ht = Wxh * Xt + Whh * ht-1 + b = (100, 64) * (4, 100) + (64, 64) * (4, 64) + (64,)
#对于长度为t+1的训练来说，需要遍历等同于序列长度s的次数才算完成一次网络层的前向计算
out, h1 = cell(xt, h0)
#输出ot和状态向量ht的shape都为(批量大小b, 状态向量特征长度h)，即(4, 64)。
#并且两者id一致，代表两者都指向为同一个内存空间的变量值，即状态向量ht直接作为输出ot。
print(out.shape, h1[0].shape) #(4, 64) (4, 64)
print(id(out), id(h1[0])) #1863500704760 1863500704760

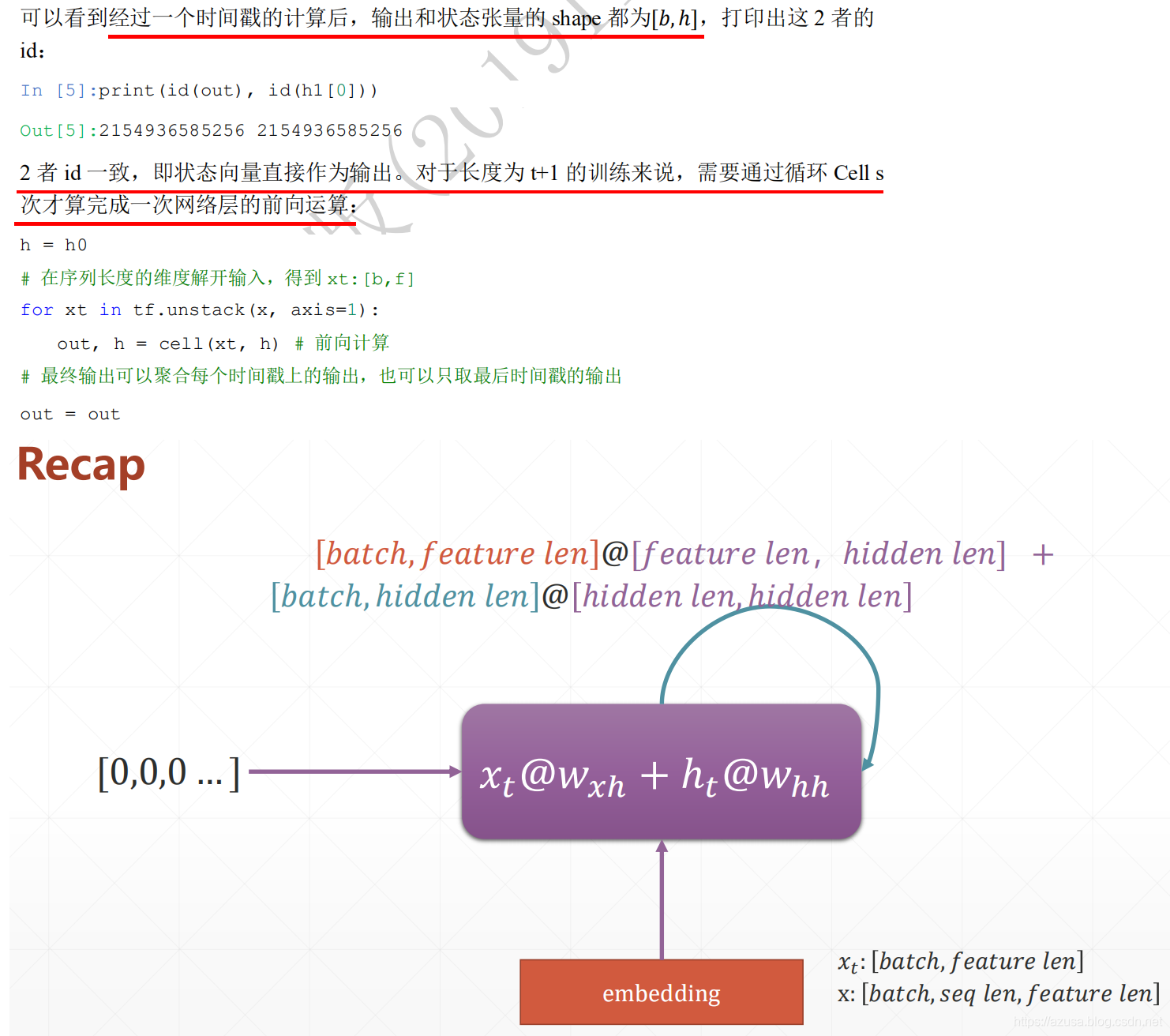

h = h0
# 在序列长度的维度解开输入，得到 xt:[批量大小b, 时间戳t的输入特征长度f]
# 即一个序列中有N个单词数，那么就遍历N次，每次遍历同时获取批量多个序列中的同一个时间戳上的单词，当遍历次数等于序列长度s时才算完成一次网络层的前向计算
# 对于长度为t+1的训练来说，需要遍历等同于序列长度s的次数才算完成一次网络层的前向计算
for xt in tf.unstack(x, axis=1):
# 前向计算，输入批量序列中同一个时间戳t的字符数据xt和状态向量h：ht = Wxh * Xt + Whh * ht-1 + b
out, h = cell(xt, h)
# 最终输出可以聚合每个时间戳上的输出，也可以只取最后时间戳的输出
# 最终输出可以把每个时间戳t上的输出ot进行聚合再输出，或者只输出最后一个时间戳t的输出ot
out = out

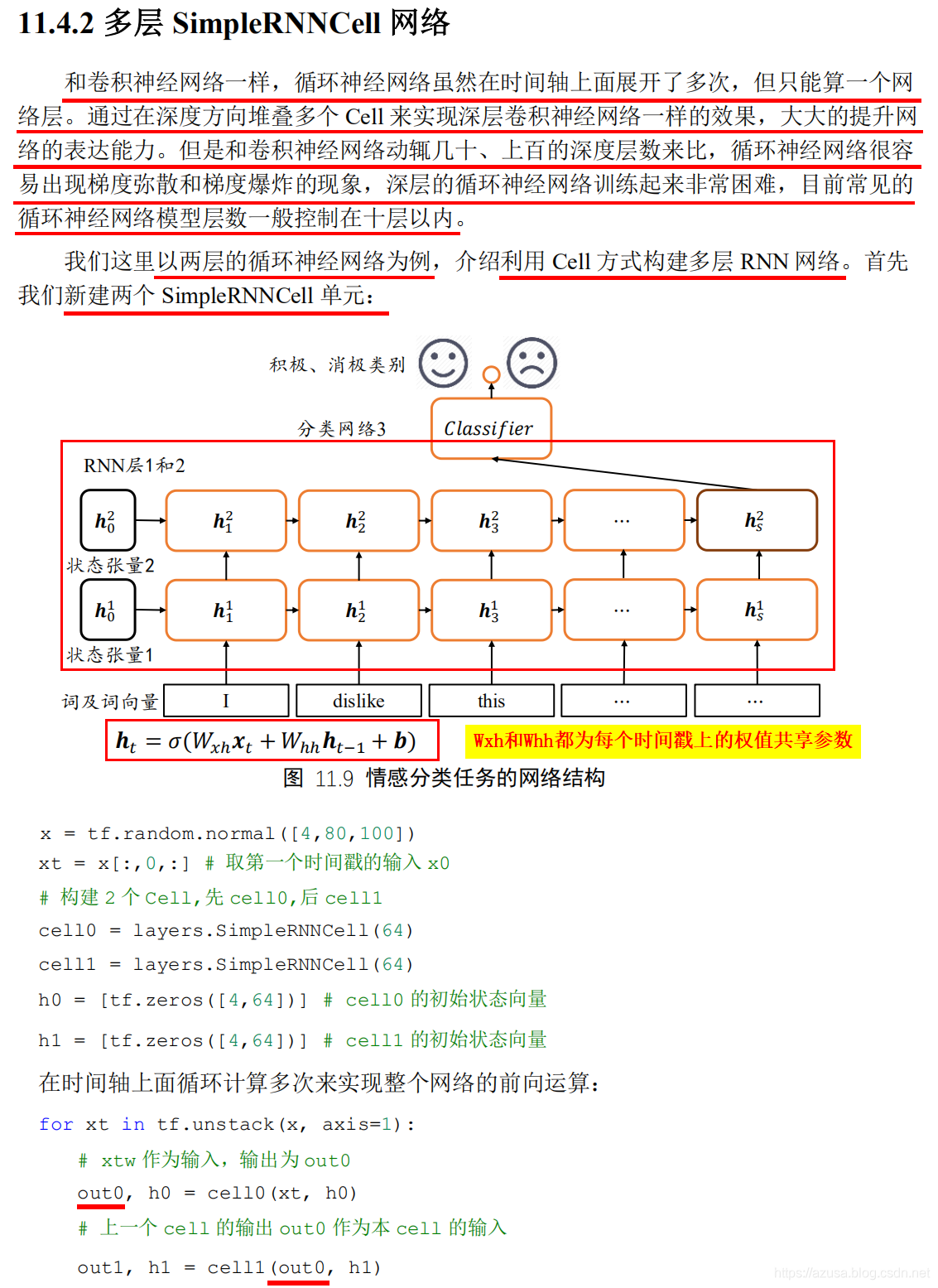

多层SimpleRNNCell网络
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import datasets, layers, optimizers
x = tf.random.normal([4,80,100])
# 构建 2 个 Cell,先 cell0,后 cell1
cell0 = layers.SimpleRNNCell(64)
cell1 = layers.SimpleRNNCell(64)
h0 = [tf.zeros([4,64])] # cell0 的初始状态向量
h1 = [tf.zeros([4,64])] # cell1 的初始状态向量
for xt in tf.unstack(x, axis=1):
print("xt:",xt.shape) #(4, 100) [序列数量b, 词向量特征长度f]
#第一层RNN 每次接收的是 [序列数量b, 词向量特征长度f]的序列数据，也即是批量序列数据中同一个时间戳的单词的词向量特征长度f
#第二层RNN 每次接收的是 第一层RNN输出的 [序列数量b, 状态向量特征长度h]，也即是每个时间戳上的网络输出Ot，而网络输出Ot可以是直接等于状态向量ht，
#或者也可以是对状态向量ht做一个线性变换Ot=Who*ht得到每个时间戳上的网络输出Ot。
# xtw 作为输入，输出为 out0
out0, h0 = cell0(xt, h0)
print("out0:",out0.shape, h0[0].shape) #(4, 64) (4, 64) [序列数量b, 状态向量特征长度h]
# 上一个 cell 的输出 out0 作为本 cell 的输入
out1, h1 = cell1(out0, h1)
print("out1:",out1.shape, h1[0].shape) #(4, 64) (4, 64) [序列数量b, 状态向量特征长度h]
import os
os.environ['TF_CPP_MIN_LOG_LEVEL']='2'
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers
tf.random.set_seed(22)
np.random.seed(22)
assert tf.__version__.startswith('2.')
batchsz = 128
total_words = 10000
max_review_len = 80
embedding_len = 100
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
# x_train:[b, 80]
# x_test: [b, 80]
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)

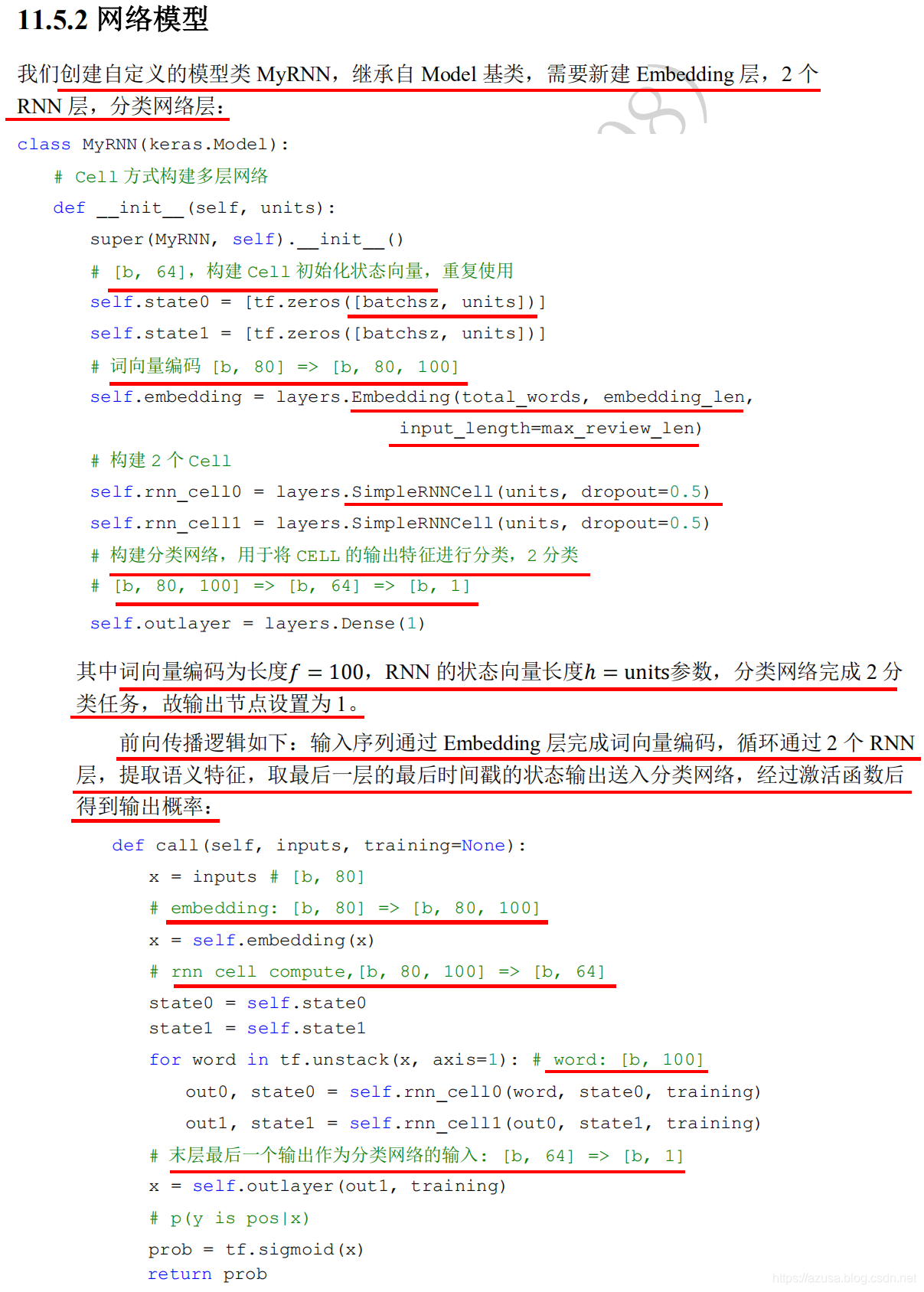

class MyRNN(keras.Model):
def __init__(self, units):
super(MyRNN, self).__init__()
# [b, 64]
self.state0 = [tf.zeros([batchsz, units])]
self.state1 = [tf.zeros([batchsz, units])]

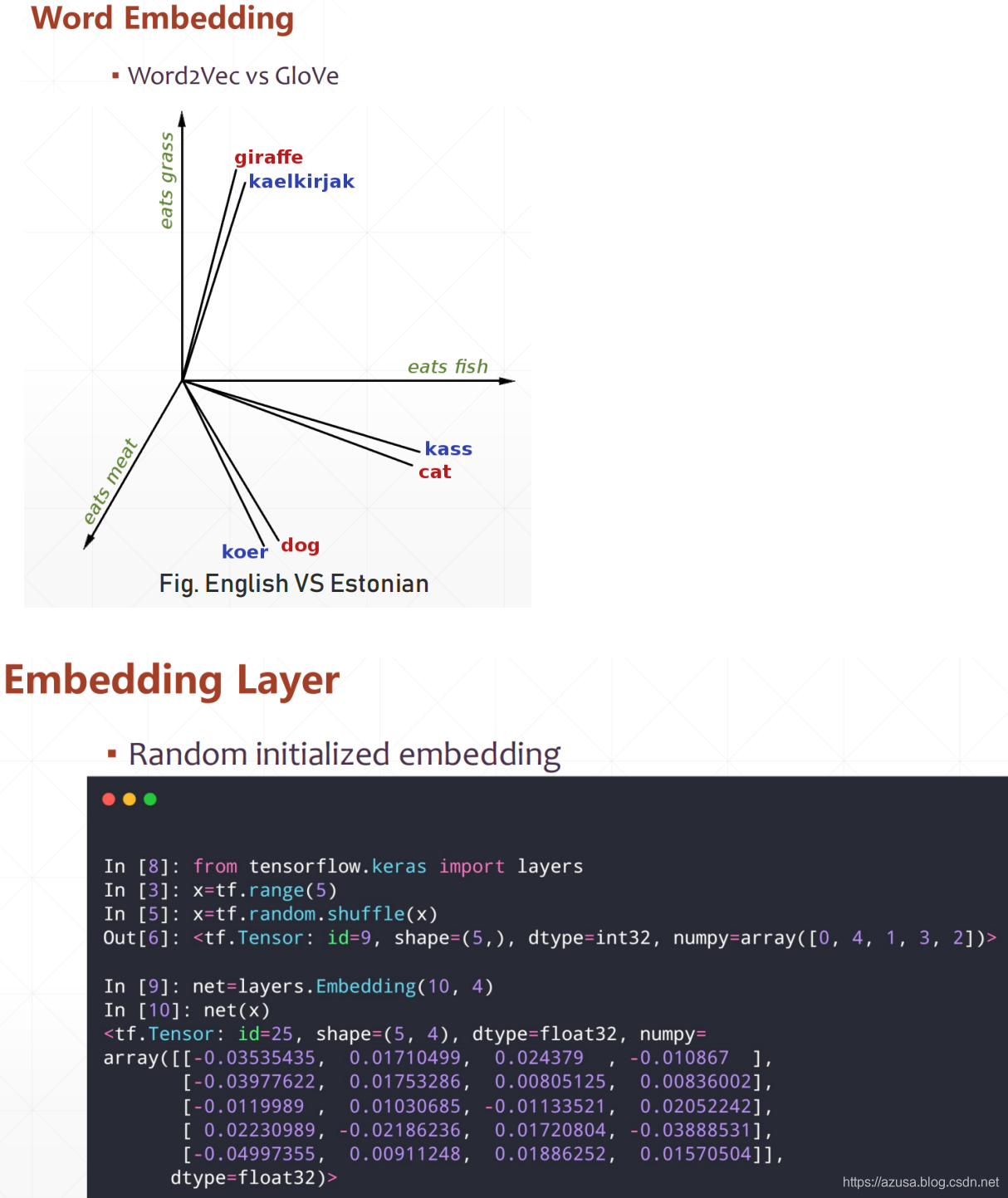

# 将文本转换为嵌入表示
# [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len, input_length=max_review_len)
# [b, 80, 100] , h_dim: 64
# RNN: cell1 ,cell2, cell3
# SimpleRNN
self.rnn_cell0 = layers.SimpleRNNCell(units, dropout=0.5)
self.rnn_cell1 = layers.SimpleRNNCell(units, dropout=0.5)
# fc, [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = layers.Dense(1)
def call(self, inputs, training=None):
"""
net(x) net(x, training=True) :train mode
net(x, training=False): test
:param inputs: [b, 80]
:param training:
:return:
"""
# [b, 80]
x = inputs
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute
# [b, 80, 100] => [b, 64]
state0 = self.state0
state1 = self.state1
for word in tf.unstack(x, axis=1): # word: [b, 100]
# h1 = x*wxh+h0*whh
# out0: [b, 64]
out0, state0 = self.rnn_cell0(word, state0, training)
# out1: [b, 64]
out1, state1 = self.rnn_cell1(out0, state1, training)
# out: [b, 64] => [b, 1]
x = self.outlayer(out1)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob

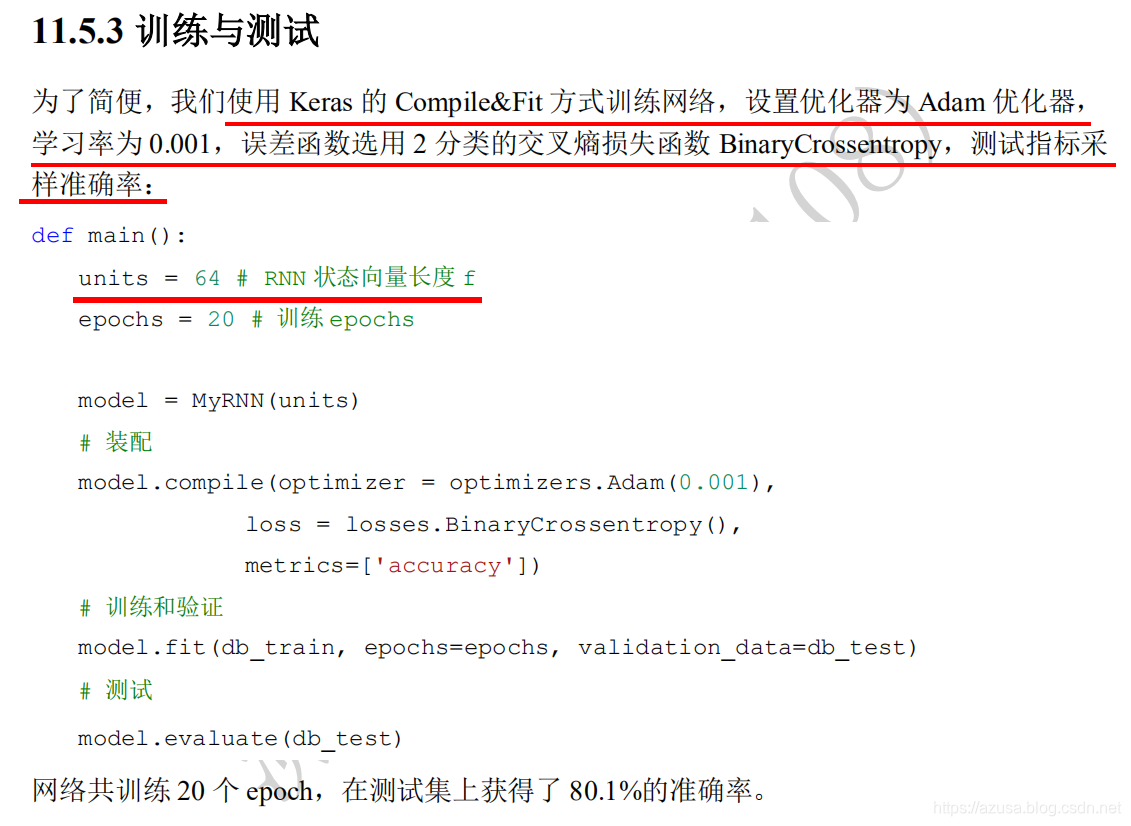

def main():
units = 64
epochs = 4
model = MyRNN(units)
model.compile(optimizer = keras.optimizers.Adam(0.001),
loss = tf.losses.BinaryCrossentropy(),
metrics=['accuracy'], experimental_run_tf_function=False)
model.fit(db_train, epochs=epochs, validation_data=db_test)
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
os.environ['TF_CPP_MIN_LOG_LEVEL']='2'
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers
tf.random.set_seed(22)
np.random.seed(22)
assert tf.__version__.startswith('2.')
batchsz = 128
total_words = 10000
max_review_len = 80
embedding_len = 100
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
# x_train:[b, 80]
# x_test: [b, 80]
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
def __init__(self, units):
super(MyRNN, self).__init__()
# 将文本转换为嵌入表示
# [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len, input_length=max_review_len)
# [b, 80, 100] , h_dim: 64
self.rnn = keras.Sequential([
layers.SimpleRNN(units, dropout=0.5, return_sequences=True, unroll=True),
layers.SimpleRNN(units, dropout=0.5, unroll=True)
])
# fc, [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = layers.Dense(1)
def call(self, inputs, training=None):
"""
net(x) net(x, training=True) :train mode
net(x, training=False): test
:param inputs: [b, 80]
:param training:
:return:
"""
# [b, 80]
x = inputs
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute
# x: [b, 80, 100] => [b, 64]
x = self.rnn(x,training=training)
# out: [b, 64] => [b, 1]
x = self.outlayer(x)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 64
epochs = 4
model = MyRNN(units)
# model.build(input_shape=(4,80))
# model.summary()
model.compile(optimizer = keras.optimizers.Adam(0.001),
loss = tf.losses.BinaryCrossentropy(),
metrics=['accuracy'])
model.fit(db_train, epochs=epochs, validation_data=db_test)
model.evaluate(db_test)
if __name__ == '__main__':
main()
SimpleRNN

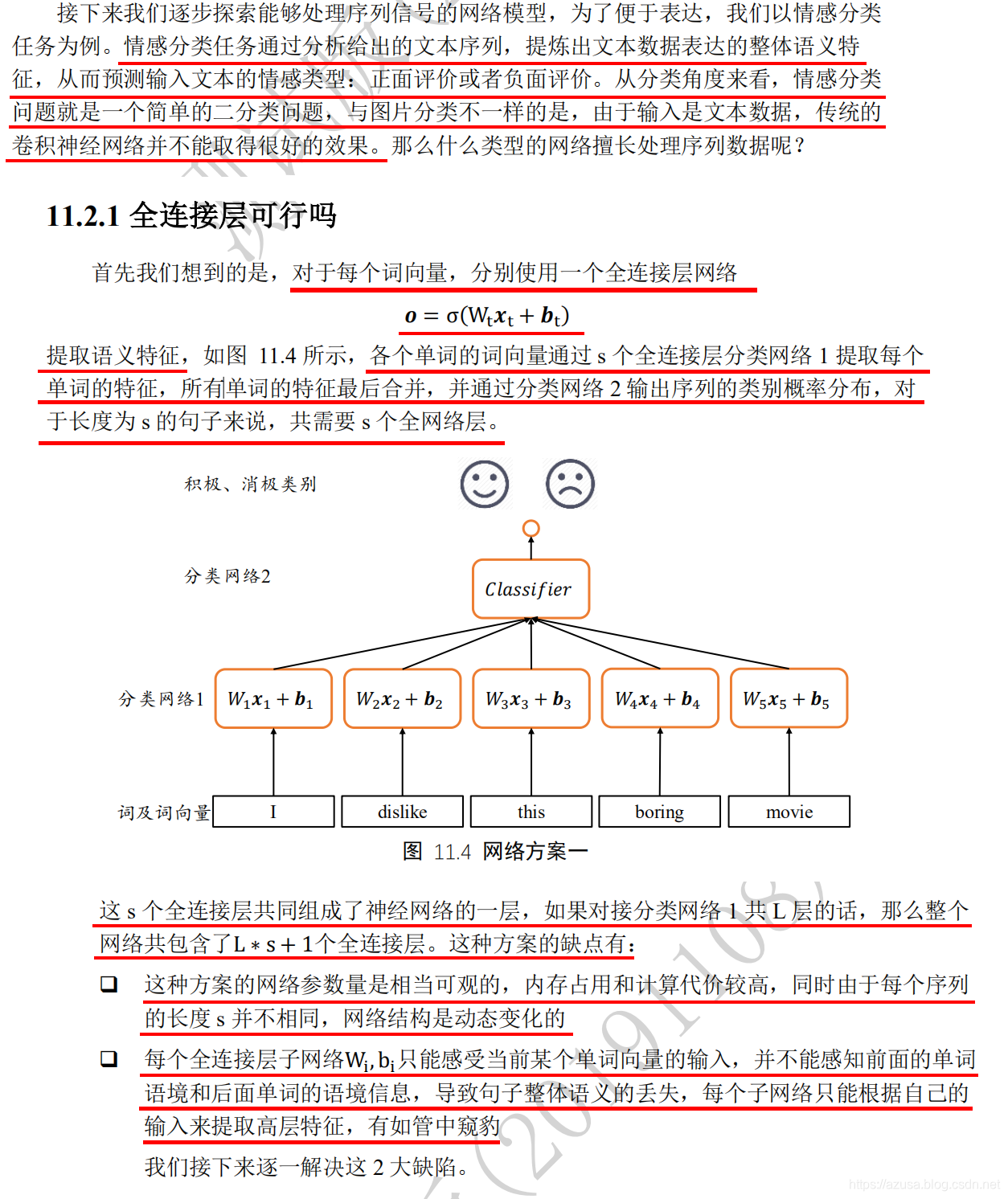

情感分类任务的网络结构
#初始化状态向量h0(批量大小b,状态向量特征长度h/units)，此处即[b, 64]
[tf.zeros([batchsz, units])]
# 词向量编码 [b, 80] => [b, 80, 100]
layers.Embedding(total_words, embedding_len, input_length=max_review_len)
total_words = 10000：词汇表大小
input_length = max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f，即时间戳t的输入特征长度f
#状态向量特征长度h/units=64
#xt为(批量大小b, 词向量特征长度f)。SimpleRNNCell内部维护了3个张量，kernel为Wxh(词向量特征长度f, 状态向量特征长度h)，shape为(100, 64)，
#recurrent_kernel为Whh(状态向量特征长度h, 状态向量特征长度h)，shape为(64, 64)，bias为偏置b(状态向量特征长度h,)，shape为(64,)
#前向计算，输入批量序列中同一个时间戳t的字符数据xt和状态向量h0：ht = Wxh * Xt + Whh * ht-1 + b = (100, 64)*(b, 100)+(64, 64)*[b, 64]+(64,)=>[b, 64]
layers.SimpleRNNCell(units, dropout=0.5)
#构建分类网络，用于将 CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = layers.Dense(1)
1.按照 x[:,i,:] 或 for xt in tf.unstack(x, axis=1) 方式对[序列数量b, 序列长度s, 词向量特征长度f]数据进行遍历时，
一共可以遍历出 s个[序列数量b, 词向量特征长度f]，即一个序列中有N个单词数，那么就遍历N次，每次遍历同时获取批量多个序列中的同一个时间戳上的单词，
当遍历次数等于序列长度s时才算完成一次网络层的前向计算。
2.第一层RNN 每次接收的是 [序列数量b, 词向量特征长度f]的序列数据，也即是批量序列数据中同一个时间戳的单词的词向量特征长度f
第二层RNN 每次接收的是 第一层RNN输出的 [序列数量b, 状态向量特征长度h]，也即是每个时间戳上的网络输出Ot，而网络输出Ot可以是直接等于状态向量ht，
或者也可以是对状态向量ht做一个线性变换Ot=Who*ht得到每个时间戳上的网络输出Ot。

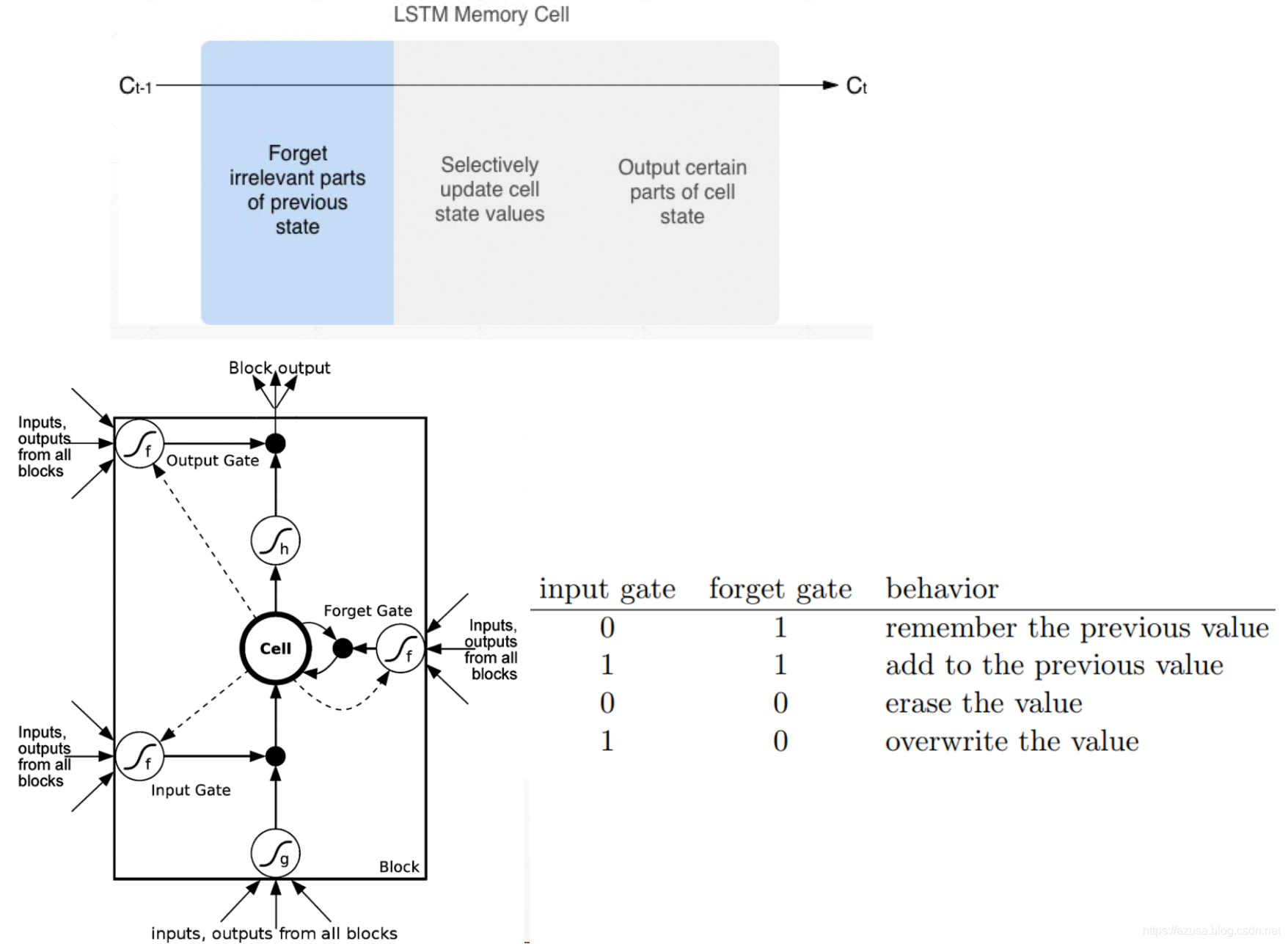

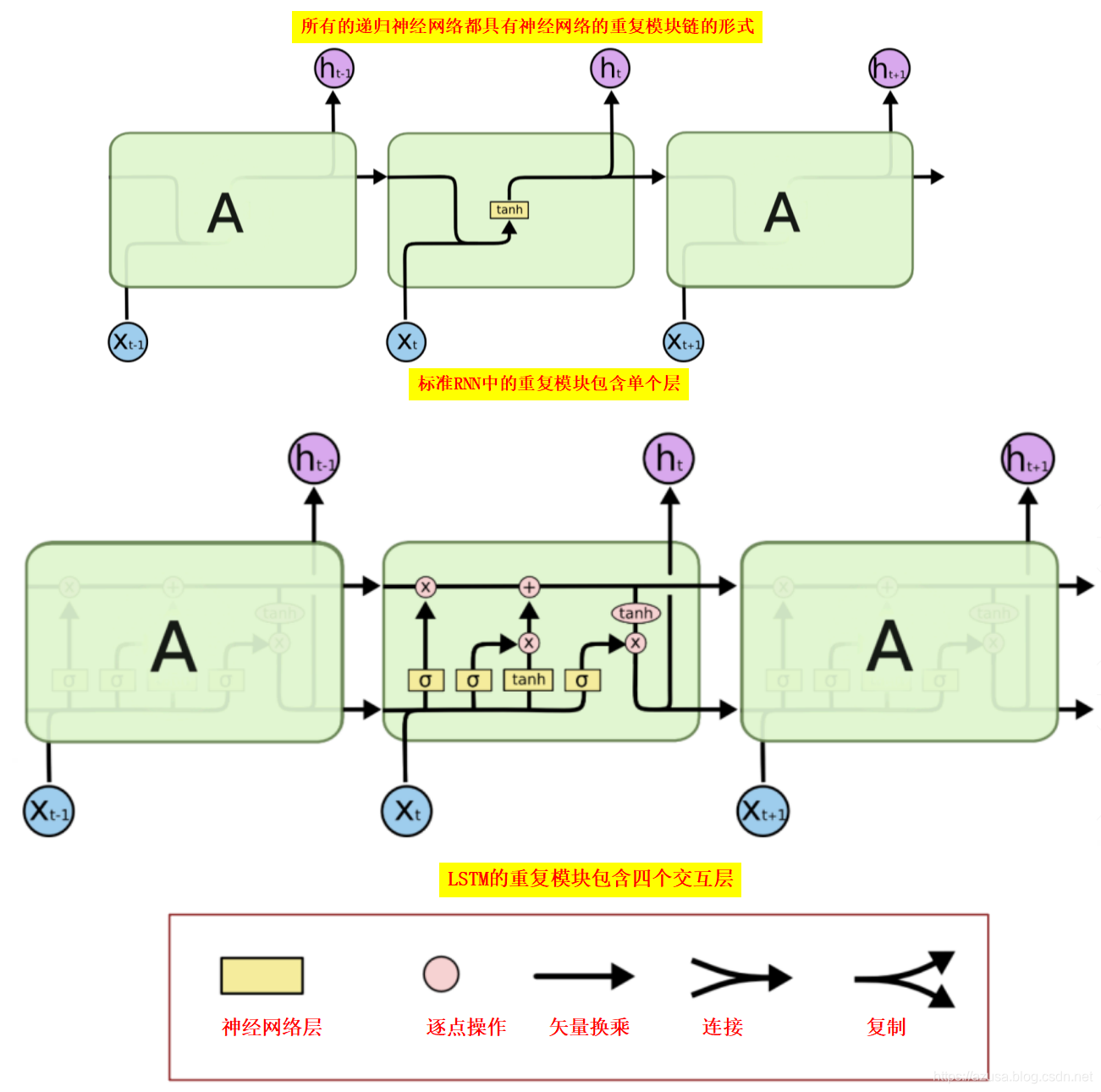

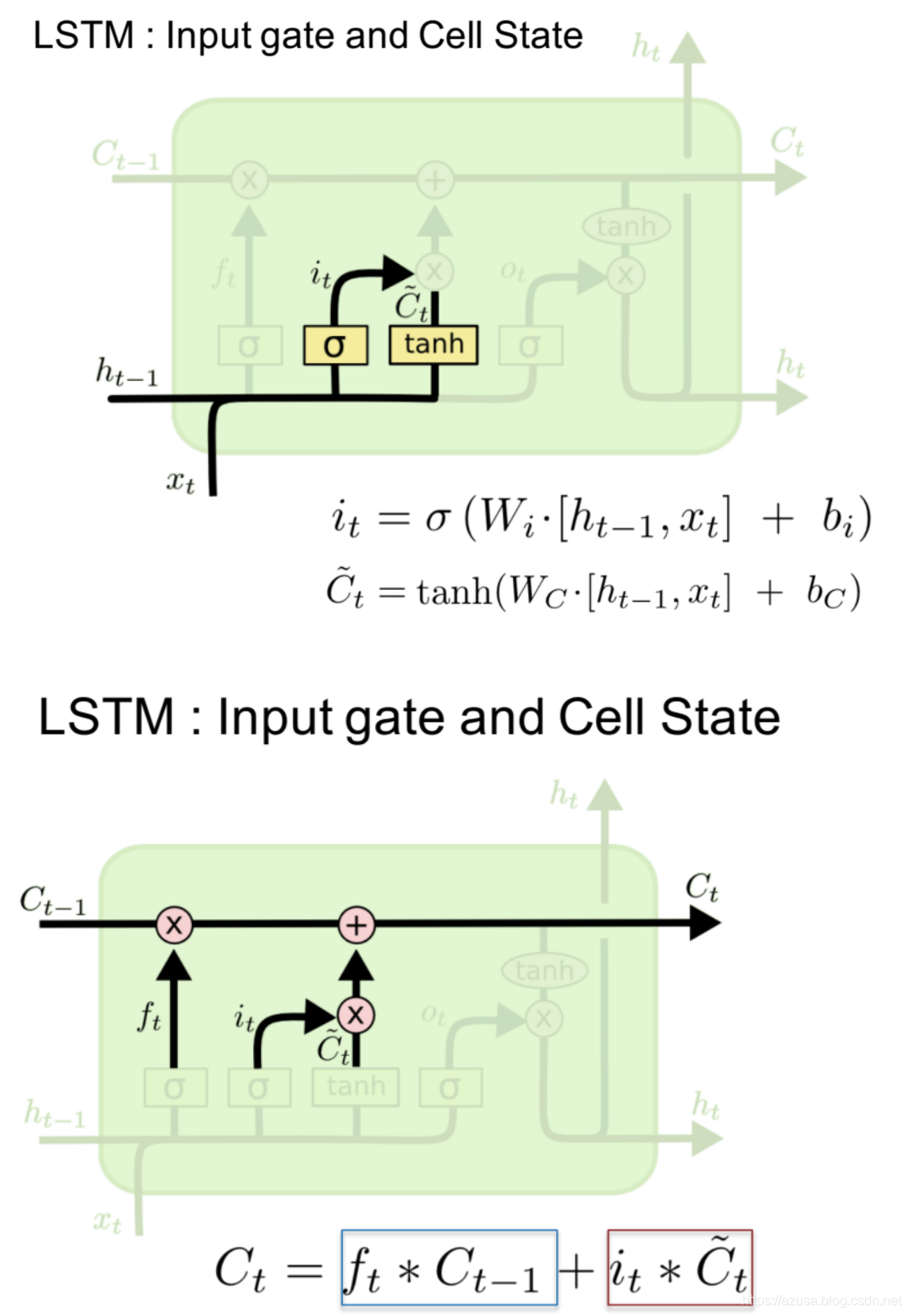

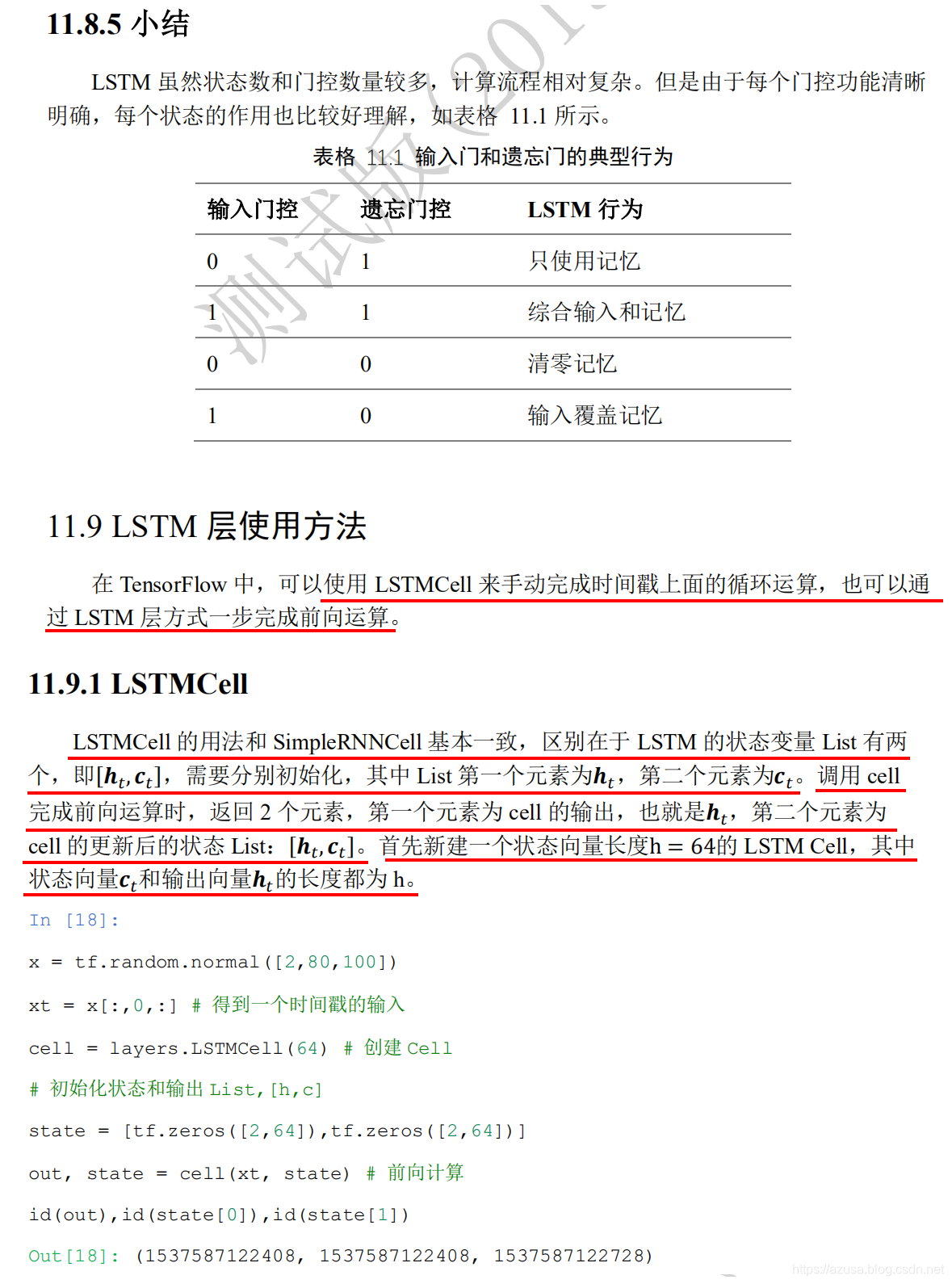

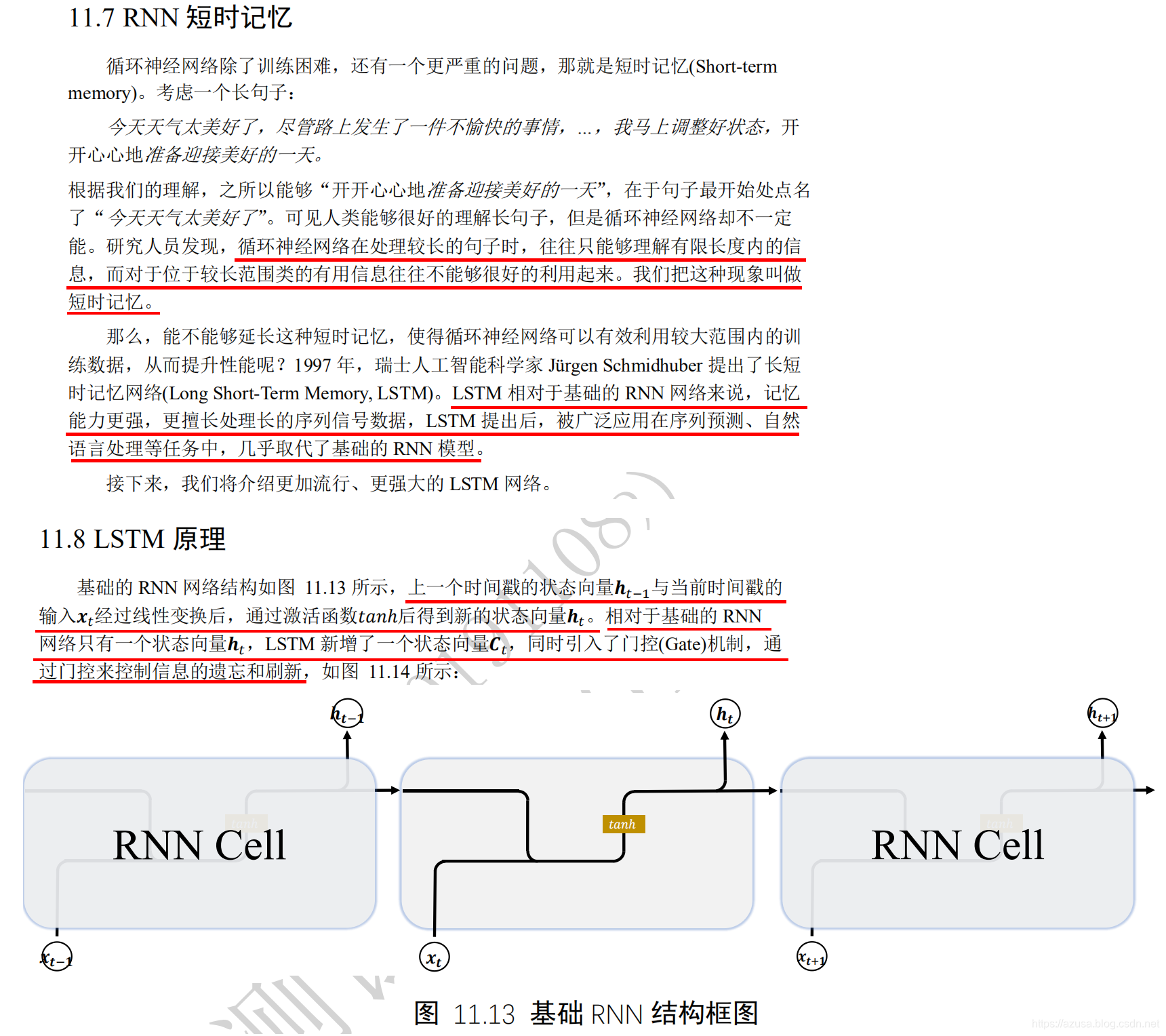

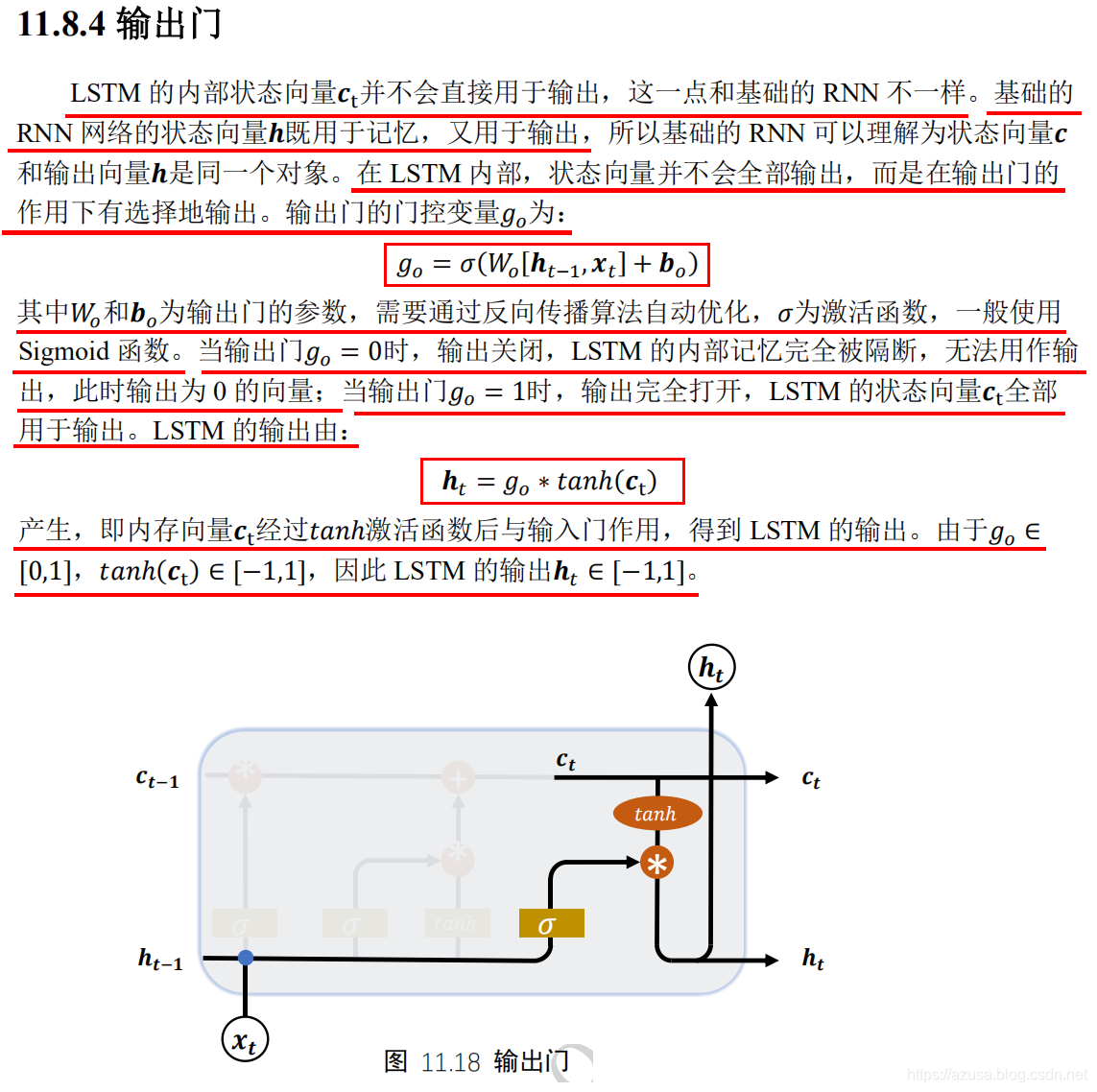

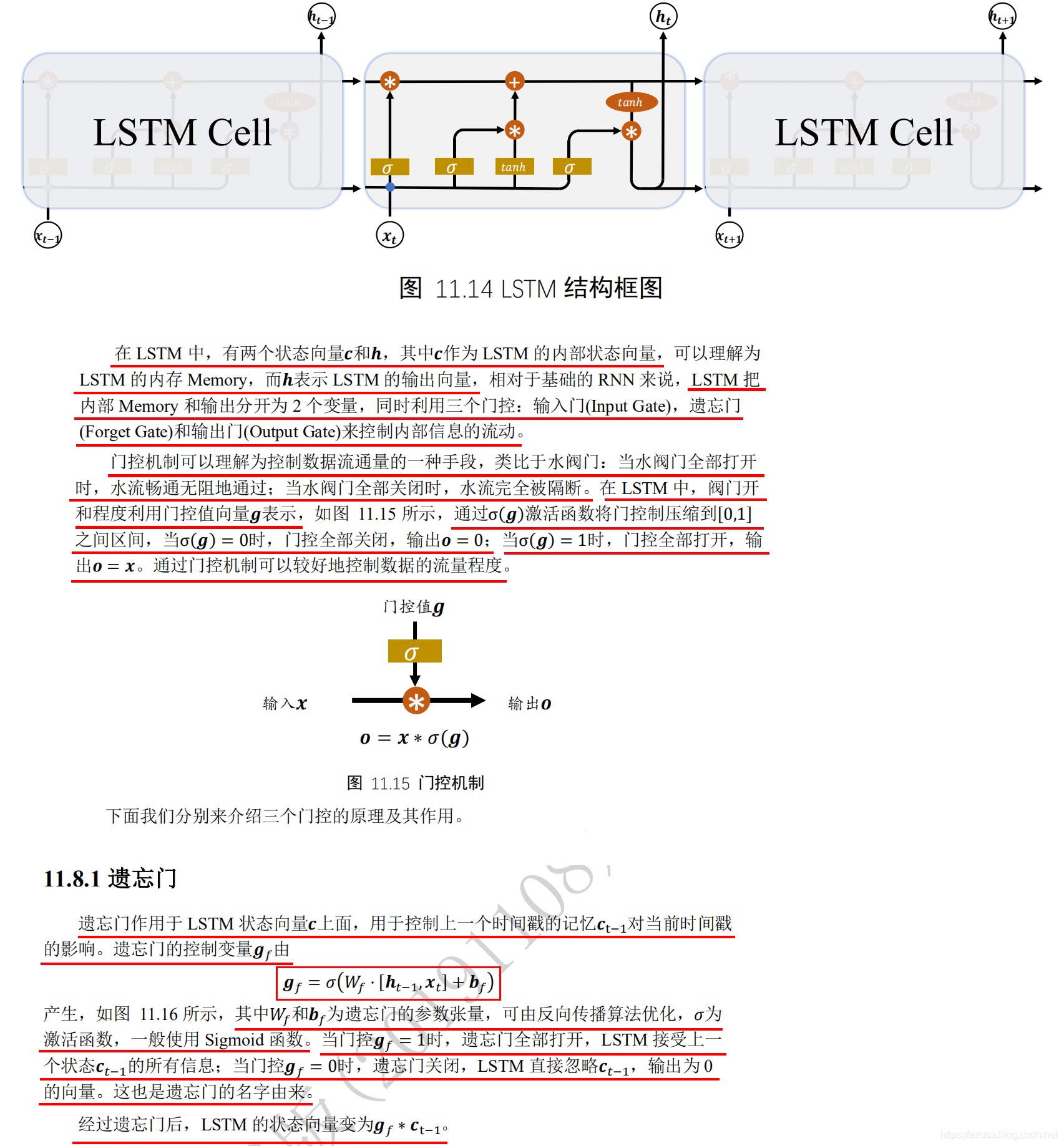

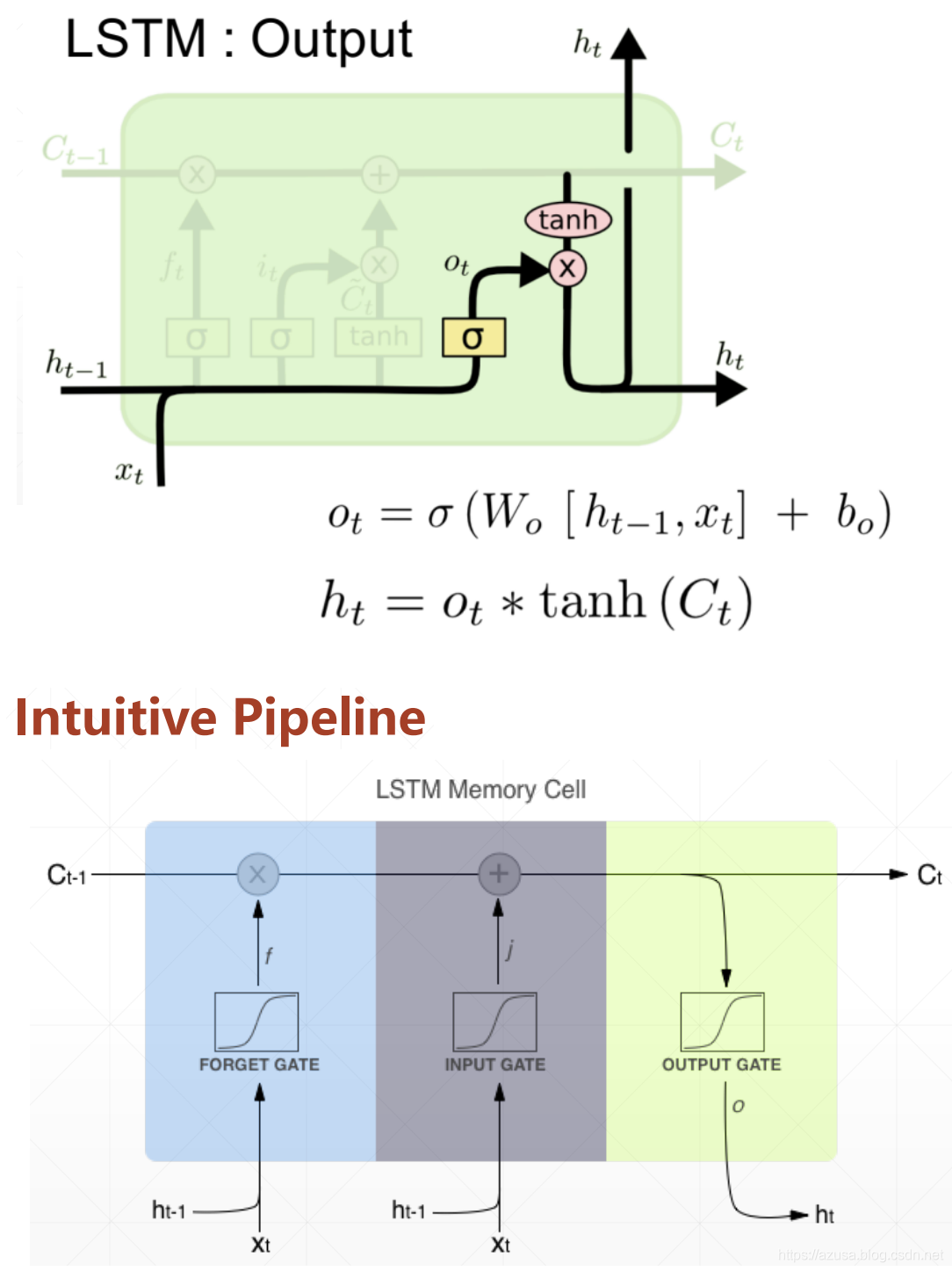

LSTM
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import datasets, layers, optimizers
#[序列数量b, 序列长度s, 词向量特征长度f]
x = tf.random.normal([2,80,100])
# 得到一个时间戳的输入，从[序列数量b, 序列长度s, 词向量特征长度f]中获取 s个[序列数量b, 词向量特征长度f]
xt = x[:,0,:]
xt.shape #TensorShape([2, 100])
# 创建 Cell
cell = layers.LSTMCell(64)
# 初始化状态和输出 List[h,c]，状态向量h和c的形状均都是[批量大小b, 状态向量特征长度h]
state = [tf.zeros([2,64]),tf.zeros([2,64])]
# 前向计算
out, state = cell(xt, state) #state为List[h,c]，out和List的第一个元素h都是相同的
id(out),id(state[0]),id(state[1])
#遍历批量序列中的每一个时间戳，遍历次数和时间戳数量一致，每次遍历的时间戳的形状为[序列数量b, 词向量特征长度f]
for xt in tf.unstack(x, axis=1):
out, state = cell(xt, state)

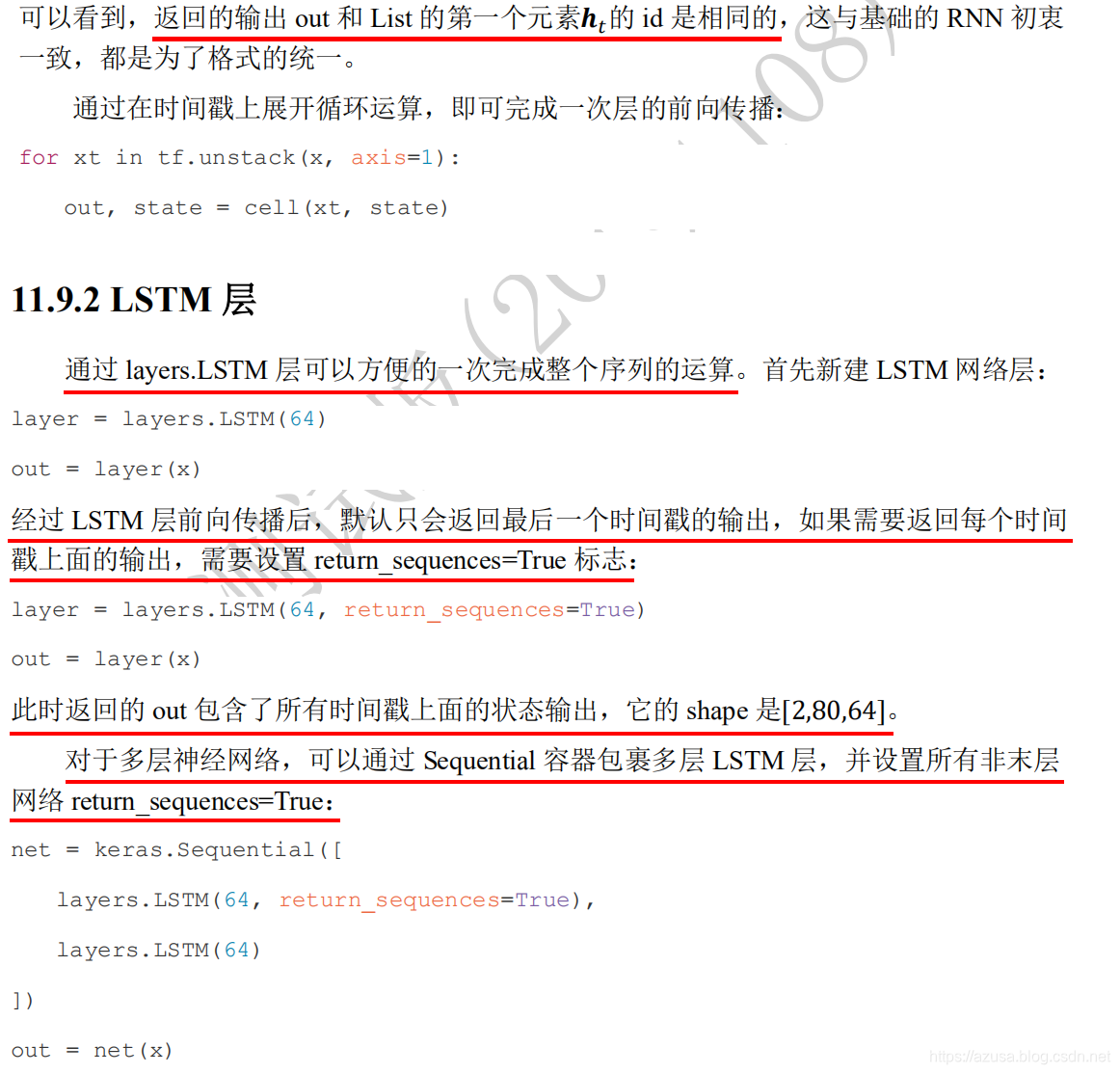

layer = layers.LSTM(64)
out = layer(x) #[批量大小b,状态向量特征长度h]
out.shape #TensorShape([2, 64])
layer = layers.LSTM(64, return_sequences=True)
out = layer(x) #[批量大小b,序列长度s,状态向量特征长度h]
out.shape #TensorShape([2, 80, 64])

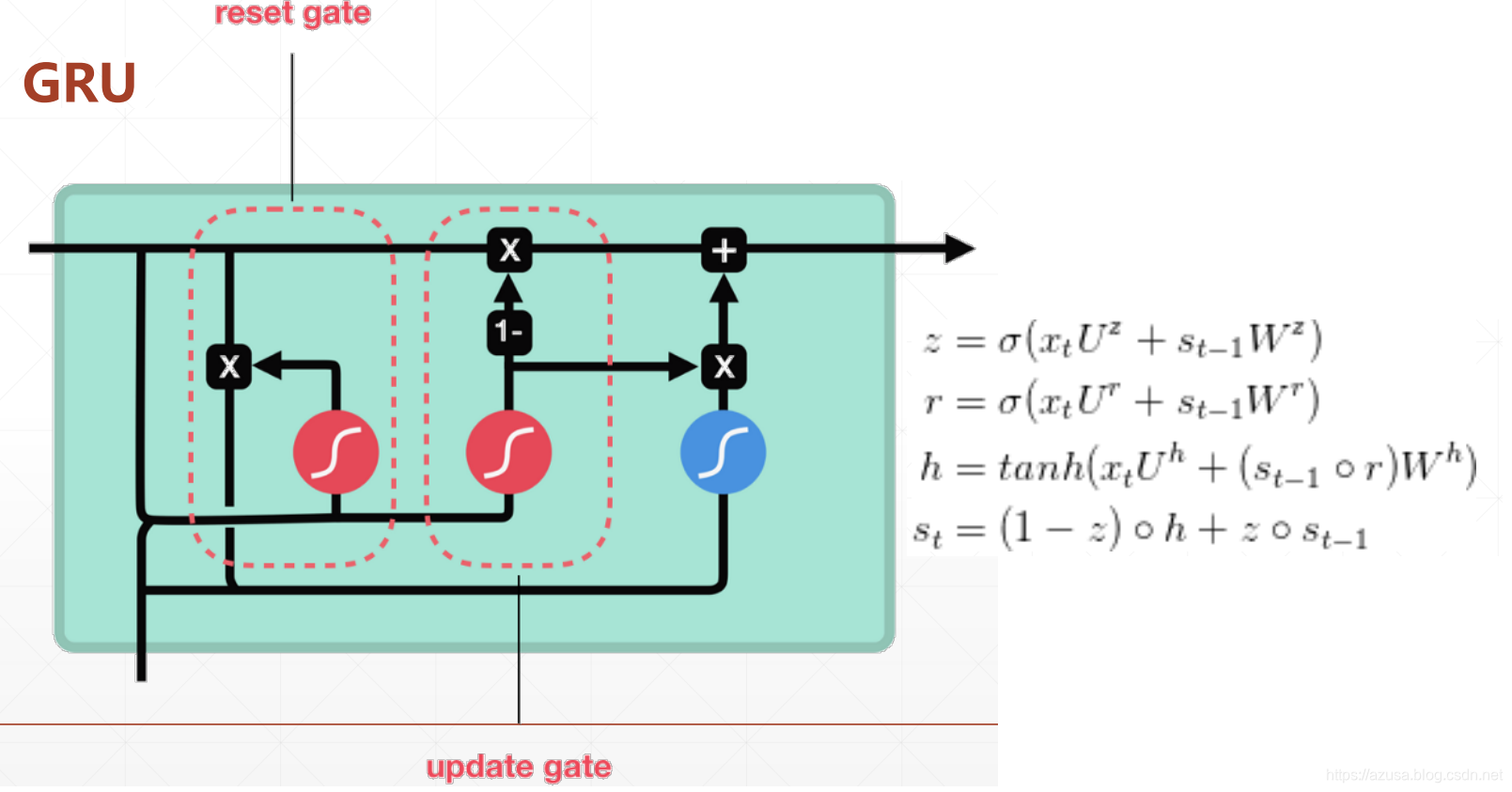

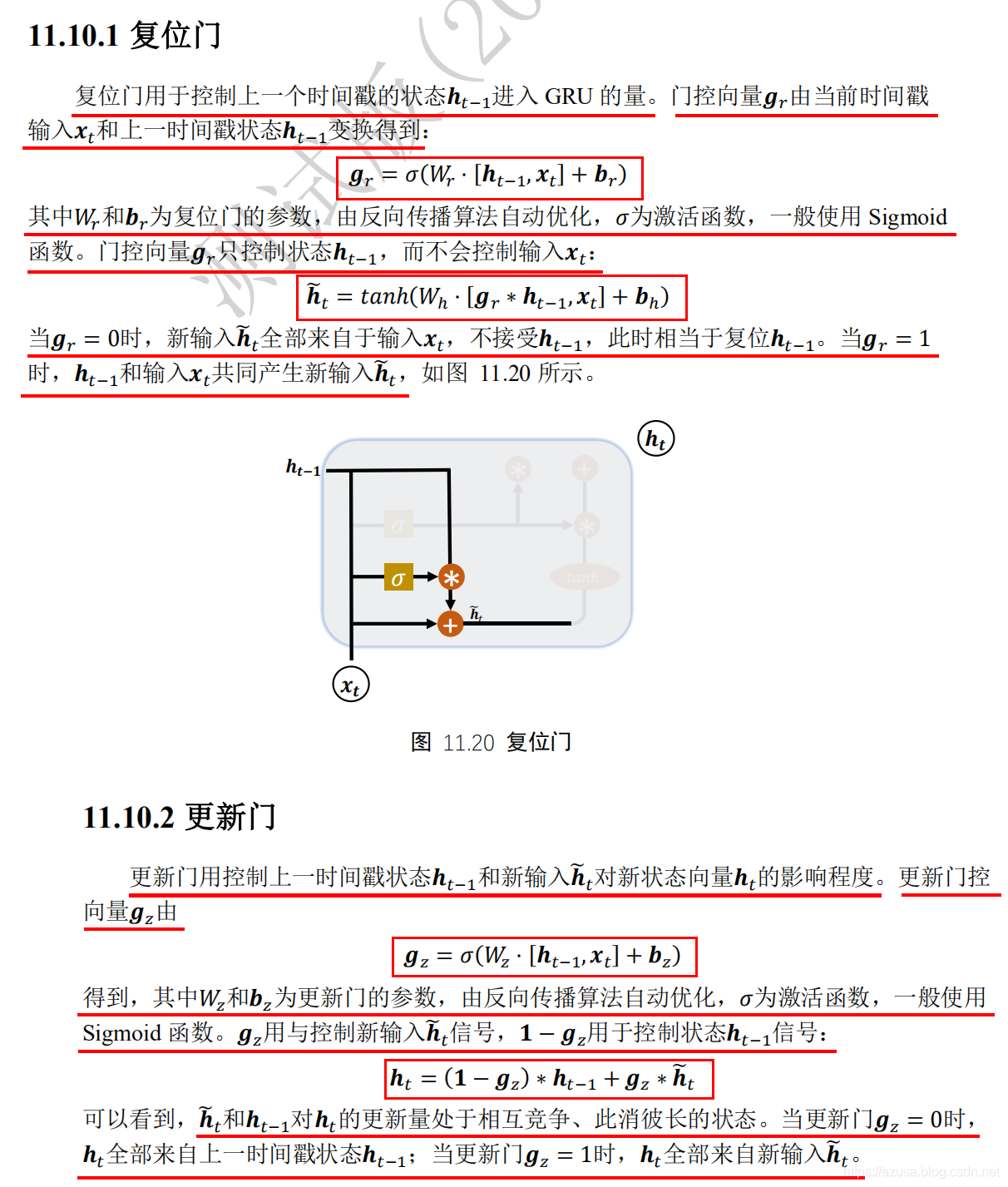

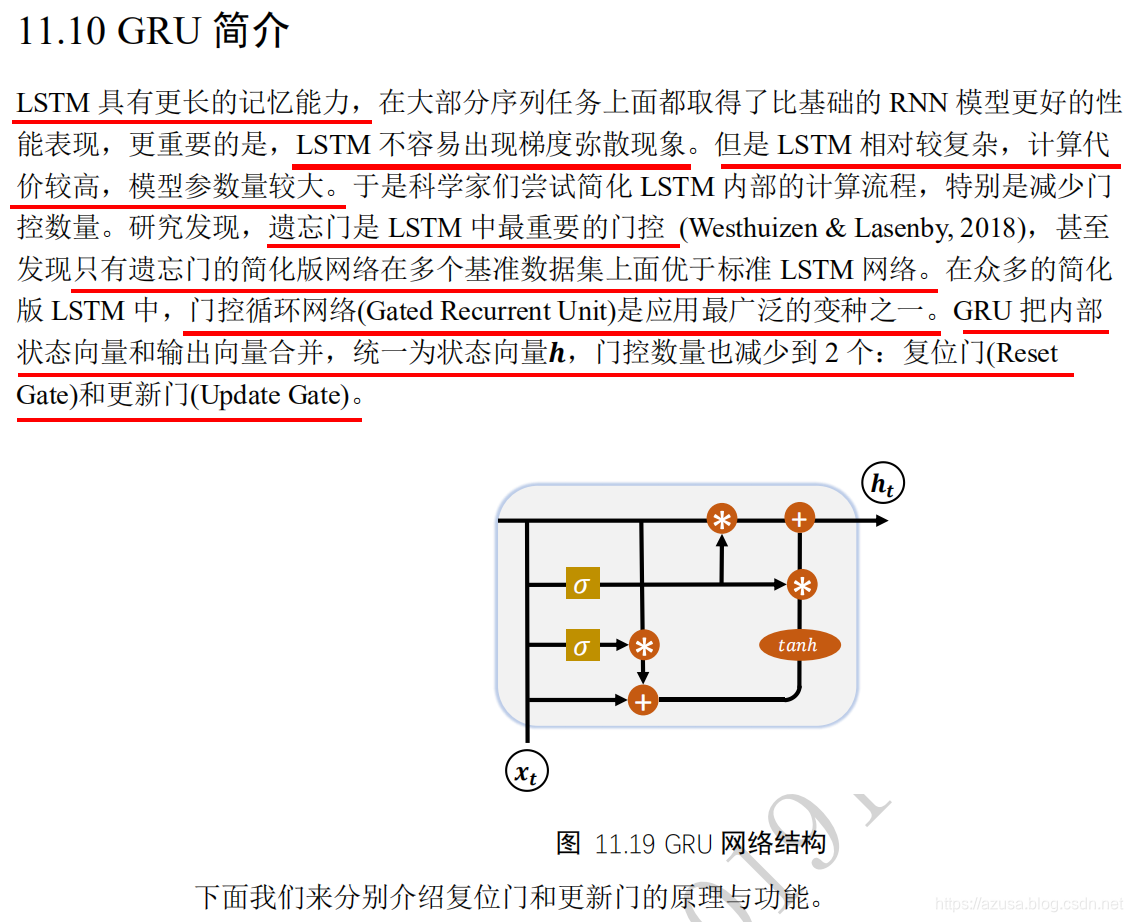

GRU

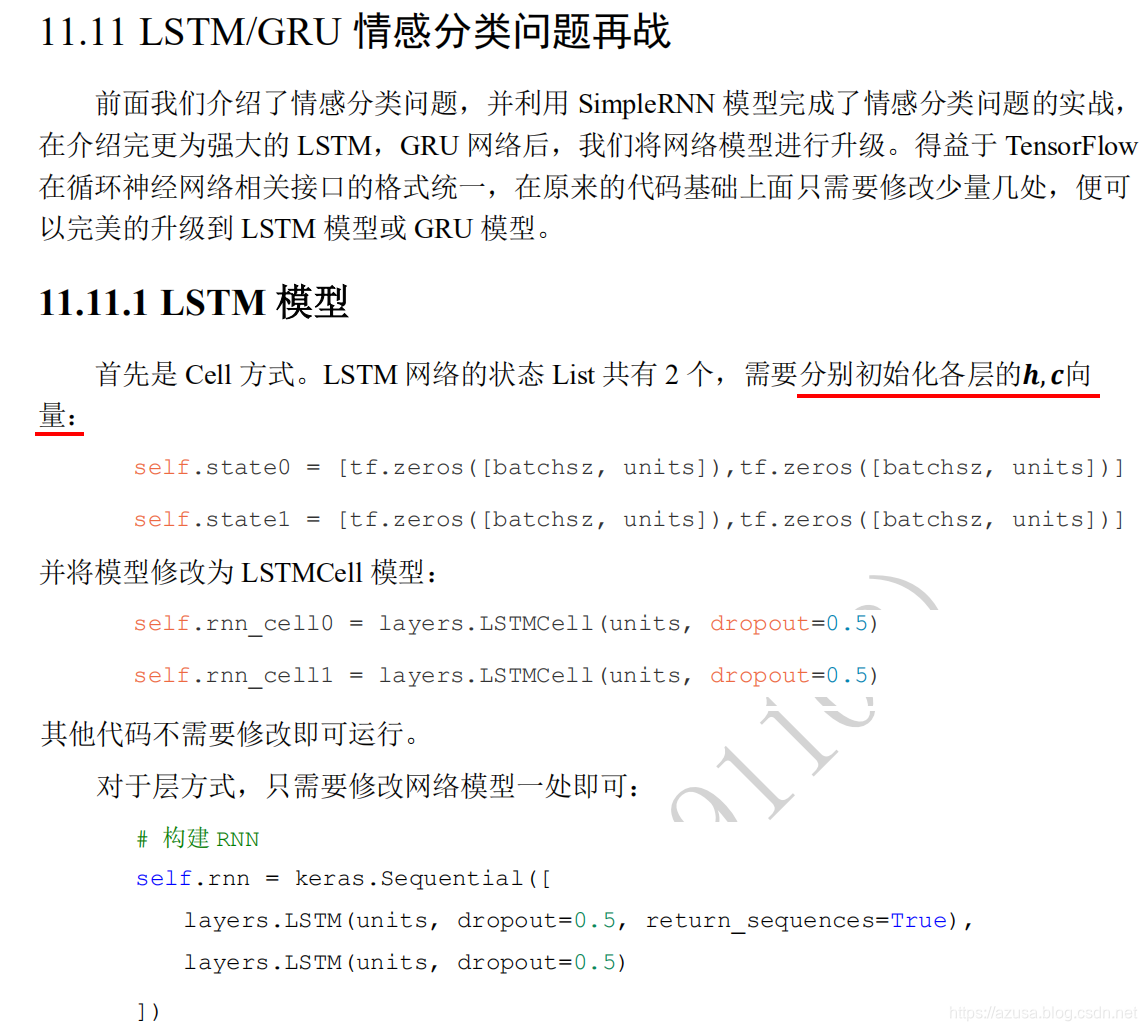

LSTM/GRU情感分类问题
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers
import matplotlib.pyplot as plt
x = tf.range(10)
x = tf.random.shuffle(x)

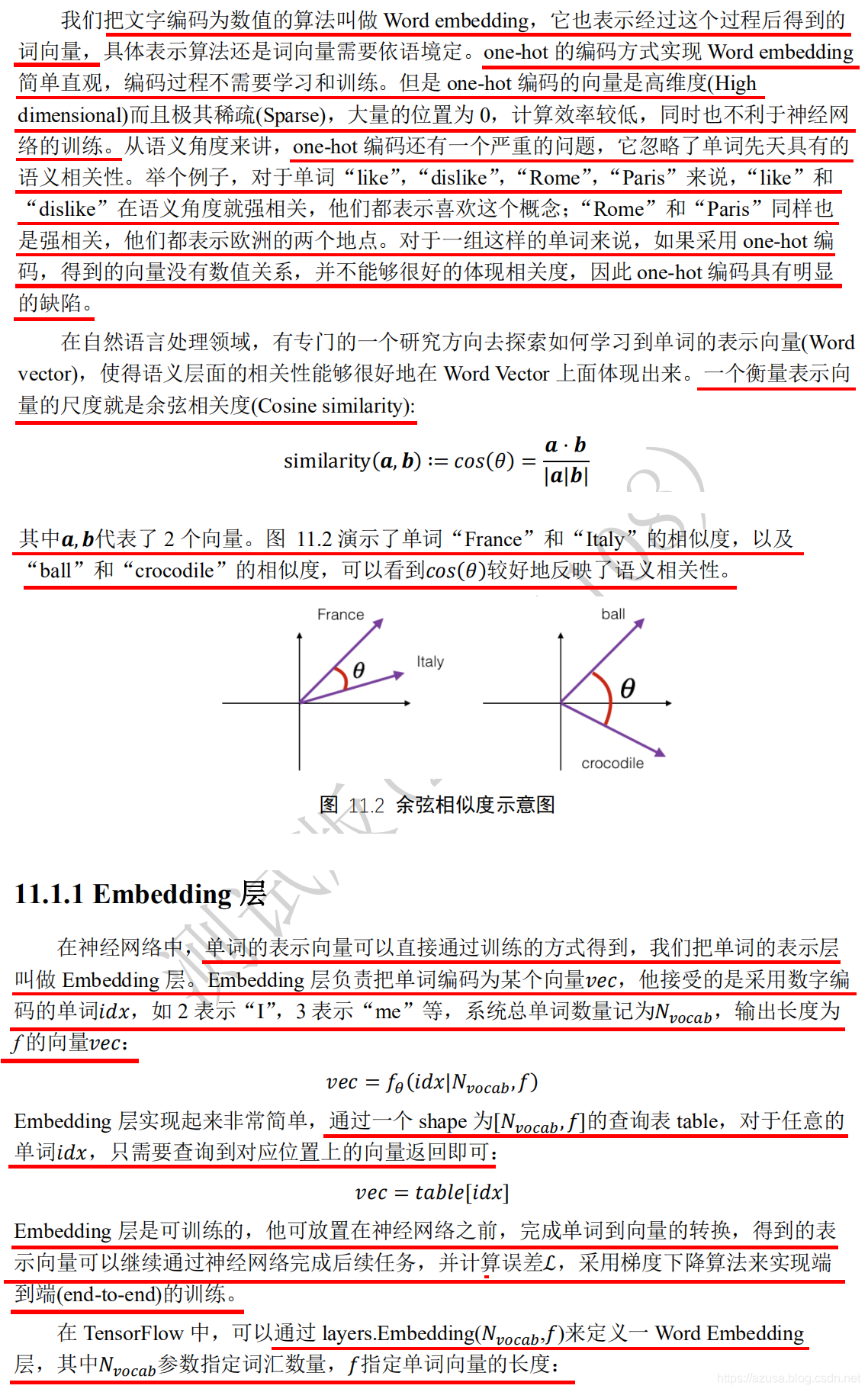

# 创建共10个单词，每个单词用长度为4的向量表示的层
net = layers.Embedding(10, 4) #[词汇表大小, 词向量特征长度f]
out = net(x)
out
out.shape #TensorShape([10, 4]) 即[词汇表大小, 词向量特征长度f]
net.embeddings
net.embeddings.shape #TensorShape([10, 4]) 即[词汇表大小, 词向量特征长度f]
net.embeddings.trainable #True
net.trainable = False

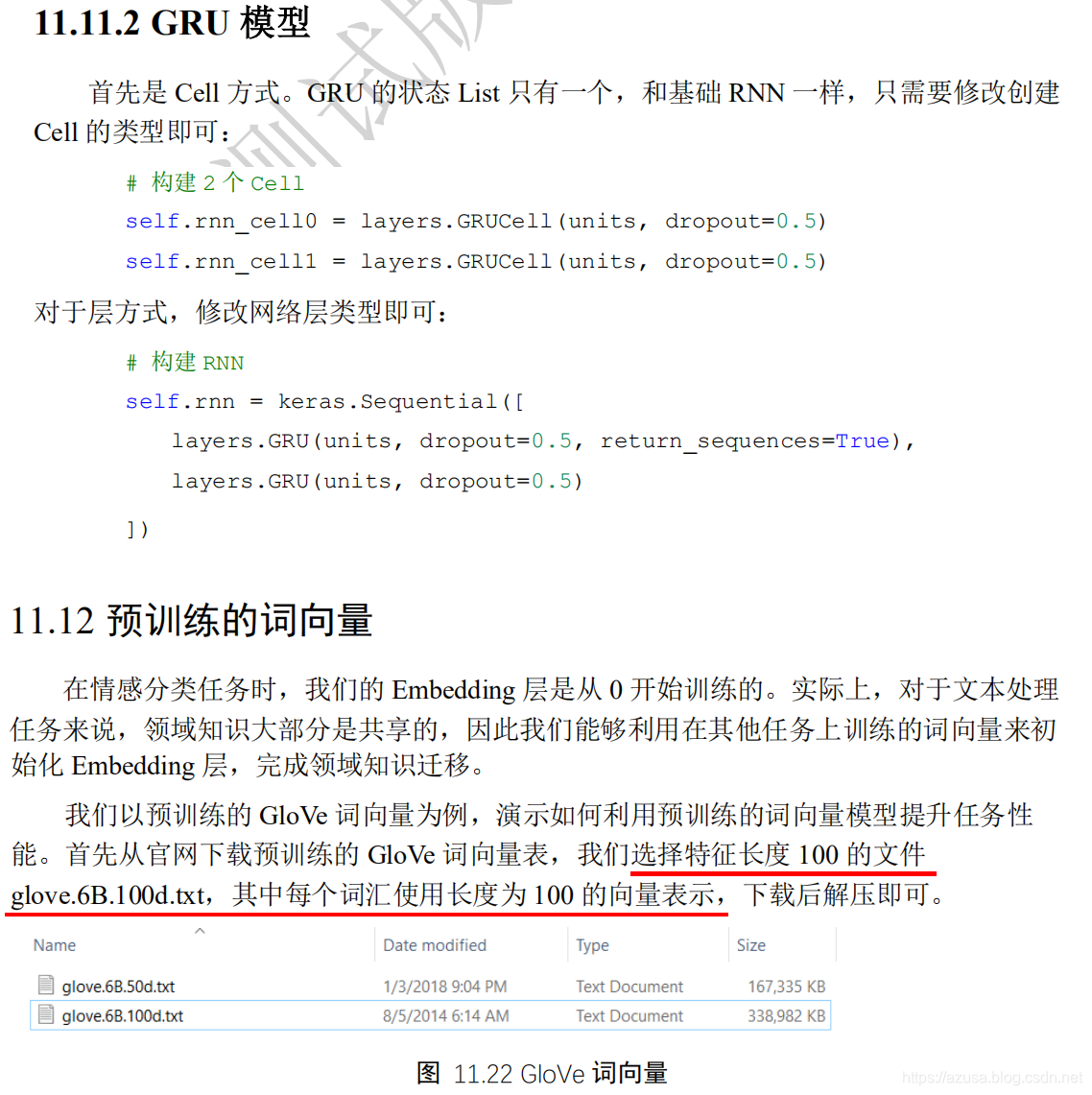

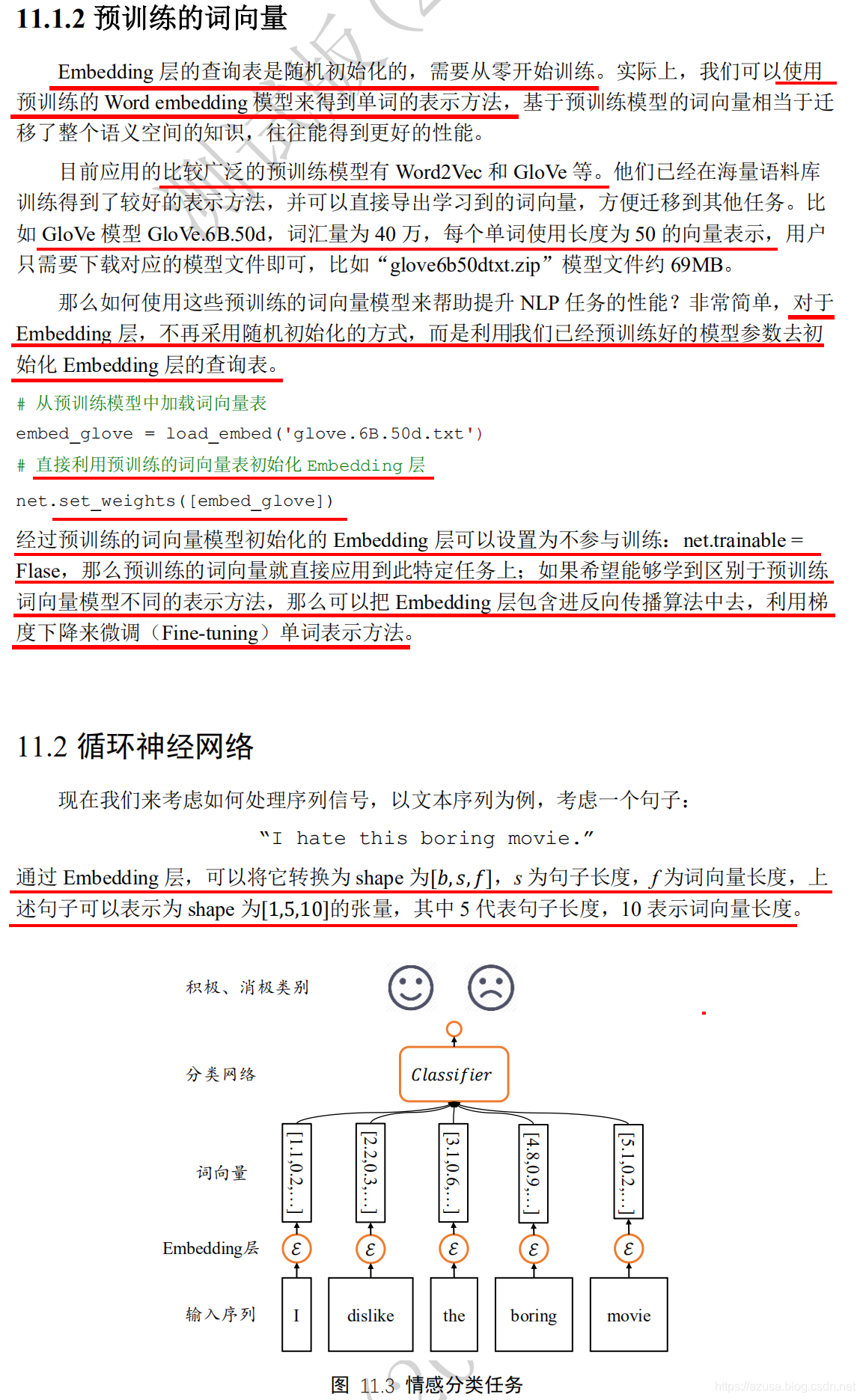

# 从预训练模型中加载词向量表
embed_glove = load_embed('glove.6B.50d.txt')
# 直接利用预训练的词向量表初始化Embedding层
net.set_weights([embed_glove])
cell = layers.SimpleRNNCell(3) #状态向量特征长度h
cell.build(input_shape=(None,4)) #input_shape=(序列数量,序列长度)
#SimpleRNNCell内部维护了3个张量，kernel为Wxh(词向量特征长度f, 状态向量特征长度h)，shape为(4, 3)，
#recurrent_kernel为Whh(状态向量特征长度h, 状态向量特征长度h)，shape为(3, 3)，bias为偏置b(状态向量特征长度h,)，shape为(3,)
cell.trainable_variables
#[<tf.Variable 'kernel:0' shape=(4, 3) dtype=float32, numpy=
#array(。。。, dtype=float32)>,
#<tf.Variable 'recurrent_kernel:0' shape=(3, 3) dtype=float32, numpy=
#array(。。。, dtype=float32)>,
#<tf.Variable 'bias:0' shape=(3,) dtype=float32, numpy=array([0., 0., 0.], dtype=float32)>]
# 初始化状态向量
h0 = [tf.zeros([4, 64])] #[词向量特征长度f, 状态向量特征长度h]
x = tf.random.normal([4, 80, 100]) #[序列数量b,序列长度s,词向量特征长度f]
xt = x[:,0,:] #批量序列的第一个时间戳/单词的形状 [序列数量b,词向量特征长度f]
# 构建词向量特征长度f=100，序列长度s=80，状态向量长度h=64的 Cell
cell = layers.SimpleRNNCell(64)
out, h1 = cell(xt, h0) # 前向计算，out和h1均为同一个状态向量
print(out.shape, h1[0].shape) #(4, 64) (4, 64)
print(id(out), id(h1[0])) #2310103532472 2310103532472
h = h0
# 在序列长度的维度解开输入，得到xt:[b,f] [序列数量b,词向量特征长度f]
for xt in tf.unstack(x, axis=1):
out, h = cell(xt, h) # 前向计算
# 最终输出可以聚合每个时间戳上的输出，也可以只取最后时间戳的输出
out = out
x = tf.random.normal([4,80,100]) #[序列数量b,序列长度s,词向量特征长度f]
xt = x[:,0,:] # 取第一个时间戳的输入x0 [序列数量b,词向量特征长度f]
# 构建2个Cell,先cell0,后cell1
cell0 = layers.SimpleRNNCell(64) #状态向量长度h=64
cell1 = layers.SimpleRNNCell(64)
h0 = [tf.zeros([4,64])] # cell0的初始状态向量 [批量大小b,状态向量特征长度h]
h1 = [tf.zeros([4,64])] # cell1的初始状态向量
out0, h0 = cell0(xt, h0)
out1, h1 = cell1(out0, h1)
for xt in tf.unstack(x, axis=1):
# xtw作为输入，输出为out0
out0, h0 = cell0(xt, h0)
# 上一个cell的输出out0作为本cell的输入
out1, h1 = cell1(out0, h1)
print(x.shape)
# 保存上一层的所有时间戳上面的输出
middle_sequences = []
# 计算第一层的所有时间戳上的输出，并保存
for xt in tf.unstack(x, axis=1):
out0, h0 = cell0(xt, h0)
middle_sequences.append(out0)
# 计算第二层的所有时间戳上的输出
# 如果不是末层，需要保存所有时间戳上面的输出
for xt in middle_sequences:
out1, h1 = cell1(xt, h1)
layer = layers.SimpleRNN(64) #状态向量长度h=64
x = tf.random.normal([4, 80, 100]) #[序列数量b,序列长度s,词向量特征长度f]
out = layer(x)
out.shape
layer = layers.SimpleRNN(64, return_sequences=True) #返回所有时间戳上的输出
out = layer(x)
out
# 构建2层RNN网络
# 除最末层外，都需要返回所有时间戳的输出
net = keras.Sequential([
layers.SimpleRNN(64, return_sequences=True),
layers.SimpleRNN(64),
])
out = net(x)
x = tf.random.normal([2,80,100])#[序列数量b,序列长度s,词向量特征长度f]
xt = x[:,0,:] # 得到一个时间戳的输入 [序列数量b,词向量特征长度f]
cell = layers.LSTMCell(64) # 创建Cell #状态向量长度h=64
# 初始化状态和输出List,[h,c]
state = [tf.zeros([2,64]),tf.zeros([2,64])] #[批量大小b,状态向量特征长度h]
out, state = cell(xt, state) # 前向计算
id(out),id(state[0]),id(state[1]) #(2316639101352, 2316639101352, 2316639102232) out和List的第一个元素h都是相同的
net = layers.LSTM(4) #状态向量长度h=4
net.build(input_shape=(None,5,3)) #input_shape=[序列数量b,序列长度s,词向量特征长度f]
#LSTM内部维护了3个张量，kernel为Wxh(词向量特征长度f, 状态向量特征长度h*4)，shape为(3, 16)，
#recurrent_kernel为Whh(状态向量特征长度h, 状态向量特征长度h*4)，shape为(4, 16)，bias为偏置b(状态向量特征长度h*4,)，shape为(16,)
net.trainable_variables
#[<tf.Variable 'kernel:0' shape=(3, 16) dtype=float32, numpy=
#array(。。。, dtype=float32)>,
#<tf.Variable 'recurrent_kernel:0' shape=(4, 16) dtype=float32, numpy=
#array(。。。, dtype=float32)>,
#<tf.Variable 'bias:0' shape=(16,) dtype=float32, numpy=
#array(。。。, dtype=float32)>]
net = layers.GRU(4) #状态向量长度h=4
net.build(input_shape=(None,5,3)) #input_shape=[序列数量b,序列长度s,词向量特征长度f]
#GRU内部维护了3个张量，kernel为Wxh(词向量特征长度f, 状态向量特征长度h*3)，shape为(3, 12)，
#recurrent_kernel为Whh(状态向量特征长度h, 状态向量特征长度h*3)，shape为(4, 12)，bias为偏置b(状态向量特征长度h*3,)，shape为(12,)
net.trainable_variables
[<tf.Variable 'kernel:0' shape=(3, 12) dtype=float32, numpy=
array(。。。, dtype=float32)>,
<tf.Variable 'recurrent_kernel:0' shape=(4, 12) dtype=float32, numpy=
array(。。。, dtype=float32)>,
<tf.Variable 'bias:0' shape=(2, 12) dtype=float32, numpy=
array(。。。, dtype=float32)>]

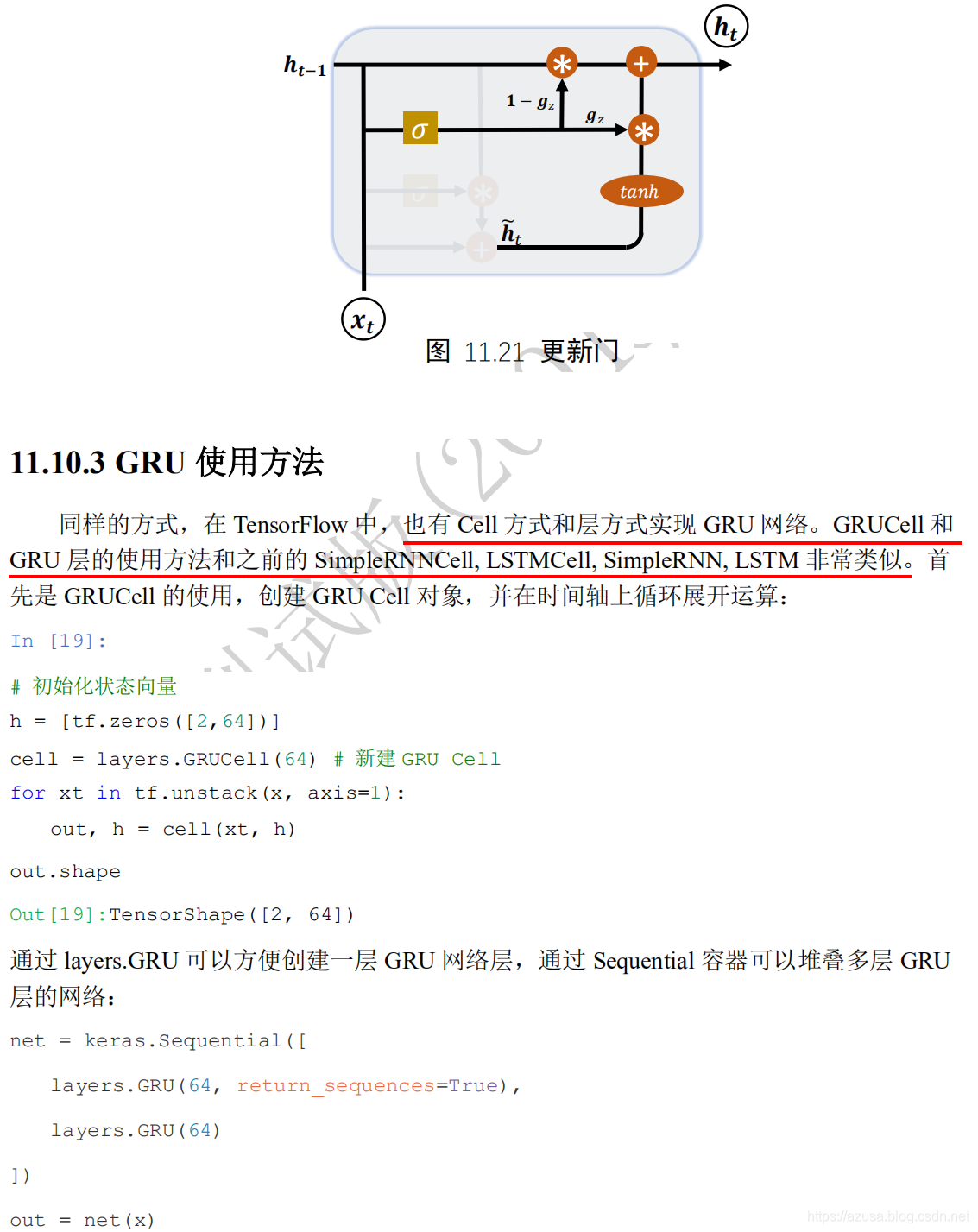

# 初始化状态向量
h = [tf.zeros([2,64])]
cell = layers.GRUCell(64) # 新建GRU Cell
for xt in tf.unstack(x, axis=1):
out, h = cell(xt, h)
out.shape
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers, losses, optimizers, Sequential
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
batchsz = 128 # 批量大小
total_words = 10000 # 词汇表大小N_vocab
max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f
# 加载IMDB数据集，此处的数据采用数字编码，一个数字代表一个单词
#x_train/x_test实际为25000个list列表，x_train中的每个list列表中有218个数字(单词)，x_test中的每个list列表中有218个数字(单词)
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
print(x_train.shape, len(x_train[0]), y_train.shape) #(25000,) 218 (25000,)
print(x_test.shape, len(x_test[0]), y_test.shape) #(25000,) 68 (25000,)
x_train[0] #这个list列表中有218个数字(单词)
# 数字编码表：字典中的key为单词，value为索引
word_index = keras.datasets.imdb.get_word_index()
# for k,v in word_index.items():
# print(k,v)
#把数字编码表(字典)中的每个key(单词)对应的value(索引值)加3
word_index = {k:(v+3) for k,v in word_index.items()}
word_index["<PAD>"] = 0
word_index["<START>"] = 1
word_index["<UNK>"] = 2 # unknown
word_index["<UNUSED>"] = 3
# 翻转编码表：key(单词)换到value的位置，value(索引值)换到key的位置
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
#根据翻转的数字编码表(字典) 通过序列数据(每个list列表)中的每个数字(索引值) 获取其对应的单词
def decode_review(text):
return ' '.join([reverse_word_index.get(i, '?') for i in text])
#根据该list列表中的所有数字(索引值)获取其对应的单词
decode_review(x_train[8])
print('Indexing word vectors.')
embeddings_index = {}
#GLOVE_DIR = r'C:\Users\z390\Downloads\glove6b50dtxt'
GLOVE_DIR = r'F:\人工智能\学习资料\GloVe 词嵌入'
with open(os.path.join(GLOVE_DIR, 'glove.6B.100d.txt'),encoding='utf-8') as f:
for line in f:
values = line.split()
word = values[0] #获取单词
coefs = np.asarray(values[1:], dtype='float32')#获取单词对应的训练好的词向量特征值
embeddings_index[word] = coefs #单词作为key，单词对应的权重矩阵值作为value
print('Found %s word vectors.' % len(embeddings_index)) #Found 400000 word vectors.
len(embeddings_index.keys()) #400000
len(word_index.keys()) #88588
MAX_NUM_WORDS = total_words # 词汇表大小N_vocab
# prepare embedding matrix
num_words = min(MAX_NUM_WORDS, len(word_index))
embedding_matrix = np.zeros((num_words, embedding_len)) #[词汇表大小, 词向量特征长度f]
applied_vec_count = 0
for word, i in word_index.items(): #遍历每个key(单词)和对应的value(索引值)
if i >= MAX_NUM_WORDS:
continue
embedding_vector = embeddings_index.get(word) #根据key(单词)获取对应的训练好的词向量特征值
# print(word,embedding_vector)
if embedding_vector is not None:
# words not found in embedding index will be all-zeros.
embedding_matrix[i] = embedding_vector #key为单词对应的索引值，value为单词对应的训练好的词向量特征值
applied_vec_count += 1
#9793 (10000, 100) 即[词汇表大小, 词向量特征长度f]
print(applied_vec_count, embedding_matrix.shape)
# x_train:[b, 80]
# x_test: [b, 80]
# 截断和填充句子，使得等长，此处长句子保留句子后面的部分，短句子在前面填充
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
# 构建数据集，打散，批量，并丢掉最后一个不够batchsz的batch
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
#x_train shape: (25000, 80) tf.Tensor(1, shape=(), dtype=int64) tf.Tensor(0, shape=(), dtype=int64)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
#x_test shape: (25000, 80)
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
# Cell方式构建多层网络
def __init__(self, units):
super(MyRNN, self).__init__()
# total_words 词汇表大小
# input_length = max_review_len 句子最大长度s，大于的句子部分将截断，小于的将填充
# embedding_len 词向量特征长度f，即时间戳t的输入特征长度f

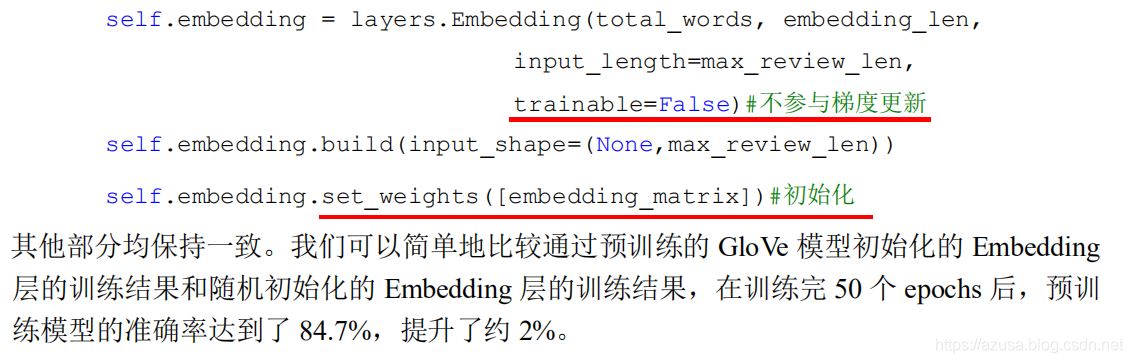

# 在获得了词汇表后，利用词汇表初始化 Embedding 层即可，并设置 Embedding 层不参与梯度优化，设置trainable=False不参与梯度更新
# 词向量编码 [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len, input_length=max_review_len, trainable=False)
# input_shape=[序列数量b,序列长度s]
self.embedding.build(input_shape=(None,max_review_len))
# 直接利用预训练的词向量表初始化 Embedding 层
self.embedding.set_weights([embedding_matrix])
# 构建RNN
self.rnn = keras.Sequential([
layers.LSTM(units, dropout=0.5, return_sequences=True),
layers.LSTM(units, dropout=0.5)
])
# 构建分类网络，用于将CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = Sequential([
layers.Dense(32),
layers.Dropout(rate=0.5),
layers.ReLU(),
layers.Dense(1)])
def call(self, inputs, training=None):
x = inputs # [b, 80]
# embedding: [b, 80] => [b, 80, 100] [序列数量b,序列长度s,词向量特征长度f]
x = self.embedding(x)
# rnn cell compute,[b, 80, 100] => [b, 64]
x = self.rnn(x)
# 末层最后一个输出作为分类网络的输入: [b, 64] => [b, 1]
x = self.outlayer(x,training)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 512 # RNN状态向量长度f
epochs = 50 # 训练epochs
model = MyRNN(units)
# 装配
model.compile(optimizer = optimizers.Adam(0.001),
loss = losses.BinaryCrossentropy(),
metrics=['accuracy'])
# 训练和验证
model.fit(db_train, epochs=epochs, validation_data=db_test)
# 测试
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers, losses, optimizers, Sequential
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
batchsz = 128 # 批量大小
total_words = 10000 # 词汇表大小N_vocab
max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f
# 加载IMDB数据集，此处的数据采用数字编码，一个数字代表一个单词
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
print(x_train.shape, len(x_train[0]), y_train.shape)
print(x_test.shape, len(x_test[0]), y_test.shape)
x_train[0]
# 数字编码表
word_index = keras.datasets.imdb.get_word_index()
# for k,v in word_index.items():
# print(k,v)
word_index = {k:(v+3) for k,v in word_index.items()}
word_index["<PAD>"] = 0
word_index["<START>"] = 1
word_index["<UNK>"] = 2 # unknown
word_index["<UNUSED>"] = 3
# 翻转编码表
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
def decode_review(text):
return ' '.join([reverse_word_index.get(i, '?') for i in text])
decode_review(x_train[8])
# x_train:[b, 80]
# x_test: [b, 80]
# 截断和填充句子，使得等长，此处长句子保留句子后面的部分，短句子在前面填充
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
# 构建数据集，打散，批量，并丢掉最后一个不够batchsz的batch
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
# Cell方式构建多层网络
def __init__(self, units):
super(MyRNN, self).__init__()
# 词向量编码 [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len, input_length=max_review_len)
# 构建RNN
self.rnn = keras.Sequential([
layers.LSTM(units, dropout=0.5, return_sequences=True),
layers.LSTM(units, dropout=0.5)
])
# 构建分类网络，用于将CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = Sequential([
layers.Dense(32),
layers.Dropout(rate=0.5),
layers.ReLU(),
layers.Dense(1)])
def call(self, inputs, training=None):
x = inputs # [b, 80]
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute,[b, 80, 100] => [b, 64]
x = self.rnn(x)
# 末层最后一个输出作为分类网络的输入: [b, 64] => [b, 1]
x = self.outlayer(x,training)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 32 # RNN状态向量长度f
epochs = 50 # 训练epochs
model = MyRNN(units)
# 装配
model.compile(optimizer = optimizers.Adam(0.001),
loss = losses.BinaryCrossentropy(),
metrics=['accuracy'])
# 训练和验证
model.fit(db_train, epochs=epochs, validation_data=db_test)
# 测试
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers, losses, optimizers, Sequential
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
batchsz = 128 # 批量大小
total_words = 10000 # 词汇表大小N_vocab
max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f
# 加载IMDB数据集，此处的数据采用数字编码，一个数字代表一个单词
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
print(x_train.shape, len(x_train[0]), y_train.shape)
print(x_test.shape, len(x_test[0]), y_test.shape)
x_train[0]
# 数字编码表
word_index = keras.datasets.imdb.get_word_index()
# for k,v in word_index.items():
# print(k,v)
word_index = {k:(v+3) for k,v in word_index.items()}
word_index["<PAD>"] = 0
word_index["<START>"] = 1
word_index["<UNK>"] = 2 # unknown
word_index["<UNUSED>"] = 3
# 翻转编码表
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
def decode_review(text):
return ' '.join([reverse_word_index.get(i, '?') for i in text])
decode_review(x_train[8])
# x_train:[b, 80]
# x_test: [b, 80]
# 截断和填充句子，使得等长，此处长句子保留句子后面的部分，短句子在前面填充
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
# 构建数据集，打散，批量，并丢掉最后一个不够batchsz的batch
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
# Cell方式构建多层网络
def __init__(self, units):
super(MyRNN, self).__init__()
# 词向量编码 [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len, input_length=max_review_len)
# 构建RNN
self.rnn = keras.Sequential([
layers.GRU(units, dropout=0.5, return_sequences=True),
layers.GRU(units, dropout=0.5)
])
# 构建分类网络，用于将CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = Sequential([
layers.Dense(32),
layers.Dropout(rate=0.5),
layers.ReLU(),
layers.Dense(1)])
def call(self, inputs, training=None):
x = inputs # [b, 80]
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute,[b, 80, 100] => [b, 64]
x = self.rnn(x)
# 末层最后一个输出作为分类网络的输入: [b, 64] => [b, 1]
x = self.outlayer(x,training)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 32 # RNN状态向量长度f
epochs = 50 # 训练epochs
model = MyRNN(units)
# 装配
model.compile(optimizer = optimizers.Adam(0.001),
loss = losses.BinaryCrossentropy(),
metrics=['accuracy'])
# 训练和验证
model.fit(db_train, epochs=epochs, validation_data=db_test)
# 测试
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers, losses, optimizers, Sequential
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
batchsz = 512 # 批量大小
total_words = 10000 # 词汇表大小N_vocab
max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f
# 加载IMDB数据集，此处的数据采用数字编码，一个数字代表一个单词
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
print(x_train.shape, len(x_train[0]), y_train.shape)
print(x_test.shape, len(x_test[0]), y_test.shape)
x_train[0]
# 数字编码表
word_index = keras.datasets.imdb.get_word_index()
# for k,v in word_index.items():
# print(k,v)
word_index = {k:(v+3) for k,v in word_index.items()}
word_index["<PAD>"] = 0
word_index["<START>"] = 1
word_index["<UNK>"] = 2 # unknown
word_index["<UNUSED>"] = 3
# 翻转编码表
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
def decode_review(text):
return ' '.join([reverse_word_index.get(i, '?') for i in text])
decode_review(x_train[8])
# x_train:[b, 80]
# x_test: [b, 80]
# 截断和填充句子，使得等长，此处长句子保留句子后面的部分，短句子在前面填充
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
# 构建数据集，打散，批量，并丢掉最后一个不够batchsz的batch
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
# Cell方式构建多层网络
def __init__(self, units):
super(MyRNN, self).__init__()
# 词向量编码 [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len, input_length=max_review_len)
# 构建RNN
self.rnn = keras.Sequential([
layers.SimpleRNN(units, dropout=0.5, return_sequences=True),
layers.SimpleRNN(units, dropout=0.5)
])
# 构建分类网络，用于将CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = Sequential([
layers.Dense(32),
layers.Dropout(rate=0.5),
layers.ReLU(),
layers.Dense(1)])
def call(self, inputs, training=None):
x = inputs # [b, 80]
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute,[b, 80, 100] => [b, 64]
x = self.rnn(x)
# 末层最后一个输出作为分类网络的输入: [b, 64] => [b, 1]
x = self.outlayer(x,training)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 64 # RNN状态向量长度f
epochs = 50 # 训练epochs
model = MyRNN(units)
# 装配
model.compile(optimizer = optimizers.Adam(0.001),
loss = losses.BinaryCrossentropy(),
metrics=['accuracy'])
# 训练和验证
model.fit(db_train, epochs=epochs, validation_data=db_test)
# 测试
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers, losses, optimizers, Sequential
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
batchsz = 128 # 批量大小
total_words = 10000 # 词汇表大小N_vocab
max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f
# 加载IMDB数据集，此处的数据采用数字编码，一个数字代表一个单词
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
print(x_train.shape, len(x_train[0]), y_train.shape)
print(x_test.shape, len(x_test[0]), y_test.shape)
x_train[0]
# 数字编码表
word_index = keras.datasets.imdb.get_word_index()
# for k,v in word_index.items():
# print(k,v)
word_index = {k:(v+3) for k,v in word_index.items()}
word_index["<PAD>"] = 0
word_index["<START>"] = 1
word_index["<UNK>"] = 2 # unknown
word_index["<UNUSED>"] = 3
# 翻转编码表
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
def decode_review(text):
return ' '.join([reverse_word_index.get(i, '?') for i in text])
decode_review(x_train[8])
# x_train:[b, 80]
# x_test: [b, 80]
# 截断和填充句子，使得等长，此处长句子保留句子后面的部分，短句子在前面填充
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
# 构建数据集，打散，批量，并丢掉最后一个不够batchsz的batch
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
# Cell方式构建多层网络
def __init__(self, units):
super(MyRNN, self).__init__()
# [b, 64]，构建Cell初始化状态向量，重复使用
self.state0 = [tf.zeros([batchsz, units])]
self.state1 = [tf.zeros([batchsz, units])]
# 词向量编码 [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len,
input_length=max_review_len)
# 构建2个Cell
self.rnn_cell0 = layers.GRUCell(units, dropout=0.5)
self.rnn_cell1 = layers.GRUCell(units, dropout=0.5)
# 构建分类网络，用于将CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = Sequential([
layers.Dense(units),
layers.Dropout(rate=0.5),
layers.ReLU(),
layers.Dense(1)])
def call(self, inputs, training=None):
x = inputs # [b, 80]
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute,[b, 80, 100] => [b, 64]
state0 = self.state0
state1 = self.state1
for word in tf.unstack(x, axis=1): # word: [b, 100]
out0, state0 = self.rnn_cell0(word, state0, training)
out1, state1 = self.rnn_cell1(out0, state1, training)
# 末层最后一个输出作为分类网络的输入: [b, 64] => [b, 1]
x = self.outlayer(out1, training)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 64 # RNN状态向量长度f
epochs = 50 # 训练epochs
model = MyRNN(units)
# 装配
model.compile(optimizer = optimizers.RMSprop(0.001),
loss = losses.BinaryCrossentropy(),
metrics=['accuracy'])
# 训练和验证
model.fit(db_train, epochs=epochs, validation_data=db_test)
# 测试
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers, losses, optimizers, Sequential
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
batchsz = 128 # 批量大小
total_words = 10000 # 词汇表大小N_vocab
max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f
# 加载IMDB数据集，此处的数据采用数字编码，一个数字代表一个单词
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
print(x_train.shape, len(x_train[0]), y_train.shape)
print(x_test.shape, len(x_test[0]), y_test.shape)
x_train[0]
# 数字编码表
word_index = keras.datasets.imdb.get_word_index()
# for k,v in word_index.items():
# print(k,v)
word_index = {k:(v+3) for k,v in word_index.items()}
word_index["<PAD>"] = 0
word_index["<START>"] = 1
word_index["<UNK>"] = 2 # unknown
word_index["<UNUSED>"] = 3
# 翻转编码表
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
def decode_review(text):
return ' '.join([reverse_word_index.get(i, '?') for i in text])
decode_review(x_train[8])
# x_train:[b, 80]
# x_test: [b, 80]
# 截断和填充句子，使得等长，此处长句子保留句子后面的部分，短句子在前面填充
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
# 构建数据集，打散，批量，并丢掉最后一个不够batchsz的batch
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
# Cell方式构建多层网络
def __init__(self, units):
super(MyRNN, self).__init__()
# [b, 64]，构建Cell初始化状态向量，重复使用
self.state0 = [tf.zeros([batchsz, units]),tf.zeros([batchsz, units])]
self.state1 = [tf.zeros([batchsz, units]),tf.zeros([batchsz, units])]
# 词向量编码 [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len, input_length=max_review_len)
# 构建2个Cell
self.rnn_cell0 = layers.LSTMCell(units, dropout=0.5)
self.rnn_cell1 = layers.LSTMCell(units, dropout=0.5)
# 构建分类网络，用于将CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = Sequential([
layers.Dense(units),
layers.Dropout(rate=0.5),
layers.ReLU(),
layers.Dense(1)])
def call(self, inputs, training=None):
x = inputs # [b, 80]
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute,[b, 80, 100] => [b, 64]
state0 = self.state0
state1 = self.state1
for word in tf.unstack(x, axis=1): # word: [b, 100]
out0, state0 = self.rnn_cell0(word, state0, training)
out1, state1 = self.rnn_cell1(out0, state1, training)
# 末层最后一个输出作为分类网络的输入: [b, 64] => [b, 1]
x = self.outlayer(out1,training)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 64 # RNN状态向量长度f
epochs = 50 # 训练epochs
model = MyRNN(units)
# 装配
model.compile(optimizer = optimizers.RMSprop(0.001),
loss = losses.BinaryCrossentropy(),
metrics=['accuracy'])
# 训练和验证
model.fit(db_train, epochs=epochs, validation_data=db_test)
# 测试
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
from tensorflow.keras import layers, losses, optimizers, Sequential
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
batchsz = 128 # 批量大小
total_words = 10000 # 词汇表大小N_vocab
max_review_len = 80 # 句子最大长度s，大于的句子部分将截断，小于的将填充
embedding_len = 100 # 词向量特征长度f
# 加载IMDB数据集，此处的数据采用数字编码，一个数字代表一个单词
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=total_words)
print(x_train.shape, len(x_train[0]), y_train.shape)
print(x_test.shape, len(x_test[0]), y_test.shape)
x_train[0]
# 数字编码表
word_index = keras.datasets.imdb.get_word_index()
# for k,v in word_index.items():
# print(k,v)
word_index = {k:(v+3) for k,v in word_index.items()}
word_index["<PAD>"] = 0
word_index["<START>"] = 1
word_index["<UNK>"] = 2 # unknown
word_index["<UNUSED>"] = 3
# 翻转编码表
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
def decode_review(text):
return ' '.join([reverse_word_index.get(i, '?') for i in text])
decode_review(x_train[8])
# x_train:[b, 80]
# x_test: [b, 80]
# 截断和填充句子，使得等长，此处长句子保留句子后面的部分，短句子在前面填充
x_train = keras.preprocessing.sequence.pad_sequences(x_train, maxlen=max_review_len)
x_test = keras.preprocessing.sequence.pad_sequences(x_test, maxlen=max_review_len)
# 构建数据集，打散，批量，并丢掉最后一个不够batchsz的batch
db_train = tf.data.Dataset.from_tensor_slices((x_train, y_train))
db_train = db_train.shuffle(1000).batch(batchsz, drop_remainder=True)
db_test = tf.data.Dataset.from_tensor_slices((x_test, y_test))
db_test = db_test.batch(batchsz, drop_remainder=True)
print('x_train shape:', x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
print('x_test shape:', x_test.shape)
class MyRNN(keras.Model):
# Cell方式构建多层网络
def __init__(self, units):
super(MyRNN, self).__init__()
# [b, 64]，构建Cell初始化状态向量，重复使用
self.state0 = [tf.zeros([batchsz, units])]
self.state1 = [tf.zeros([batchsz, units])]
# 词向量编码 [b, 80] => [b, 80, 100]
self.embedding = layers.Embedding(total_words, embedding_len,
input_length=max_review_len)
# 构建2个Cell
self.rnn_cell0 = layers.SimpleRNNCell(units, dropout=0.5)
self.rnn_cell1 = layers.SimpleRNNCell(units, dropout=0.5)
# 构建分类网络，用于将CELL的输出特征进行分类，2分类
# [b, 80, 100] => [b, 64] => [b, 1]
self.outlayer = Sequential([
layers.Dense(units),
layers.Dropout(rate=0.5),
layers.ReLU(),
layers.Dense(1)])
def call(self, inputs, training=None):
x = inputs # [b, 80]
# embedding: [b, 80] => [b, 80, 100]
x = self.embedding(x)
# rnn cell compute,[b, 80, 100] => [b, 64]
state0 = self.state0
state1 = self.state1
for word in tf.unstack(x, axis=1): # word: [b, 100]
out0, state0 = self.rnn_cell0(word, state0, training)
out1, state1 = self.rnn_cell1(out0, state1, training)
# 末层最后一个输出作为分类网络的输入: [b, 64] => [b, 1]
x = self.outlayer(out1, training)
# p(y is pos|x)
prob = tf.sigmoid(x)
return prob
def main():
units = 64 # RNN状态向量长度f
epochs = 50 # 训练epochs
model = MyRNN(units)
# 装配
model.compile(optimizer = optimizers.RMSprop(0.001),
loss = losses.BinaryCrossentropy(),
metrics=['accuracy'])
# 训练和验证
model.fit(db_train, epochs=epochs, validation_data=db_test)
# 测试
model.evaluate(db_test)
if __name__ == '__main__':
main()
import os
import tensorflow as tf
import numpy as np
from tensorflow import keras
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
# 确定随机种子的可重复性
np.random.seed(7)
# 加载数据集，但只保留前n个单词，其余的为零
top_words = 10000
# 截断和填充输入序列
max_review_length = 80
(X_train, y_train), (X_test, y_test) = keras.datasets.imdb.load_data(num_words=top_words)
# X_train = tf.convert_to_tensor(X_train)
# y_train = tf.one_hot(y_train, depth=2)
print('Pad sequences (samples x time)')
x_train = keras.preprocessing.sequence.pad_sequences(X_train, maxlen=max_review_length)
x_test = keras.preprocessing.sequence.pad_sequences(X_test, maxlen=max_review_length)
print('x_train shape:', x_train.shape)
print('x_test shape:', x_test.shape)
class RNN(keras.Model):
def __init__(self, units, num_classes, num_layers):
super(RNN, self).__init__()
# self.cells = [keras.layers.LSTMCell(units) for _ in range(num_layers)]
# self.rnn = keras.layers.RNN(self.cells, unroll=True)
self.rnn = keras.layers.LSTM(units, return_sequences=True)
self.rnn2 = keras.layers.LSTM(units)
# self.cells = (keras.layers.LSTMCell(units) for _ in range(num_layers))
# self.rnn = keras.layers.RNN(self.cells, return_sequences=True, return_state=True)
# self.rnn = keras.layers.LSTM(units, unroll=True)
# self.rnn = keras.layers.StackedRNNCells(self.cells)
# 总共有1000个单词，每个单词都将嵌入到100长度的向量中，最大句子长度是80字
self.embedding = keras.layers.Embedding(top_words, 100, input_length=max_review_length)
self.fc = keras.layers.Dense(1)
def call(self, inputs, training=None, mask=None):
# print('x', inputs.shape)
# [b, sentence len] => [b, sentence len, word embedding]
x = self.embedding(inputs)
# print('embedding', x.shape)
x = self.rnn(x)
x = self.rnn2(x)
# print('rnn', x.shape)
x = self.fc(x)
print(x.shape)
return x
def main():
units = 64
num_classes = 2
batch_size = 32
epochs = 20
model = RNN(units, num_classes, num_layers=2)
model.compile(optimizer=keras.optimizers.Adam(0.001),
loss=keras.losses.BinaryCrossentropy(from_logits=True),
metrics=['accuracy'])
# train
model.fit(x_train, y_train, batch_size=batch_size, epochs=epochs,
validation_data=(x_test, y_test), verbose=1)
# evaluate on test set
scores = model.evaluate(x_test, y_test, batch_size, verbose=1)
print("Final test loss and accuracy :", scores)
if __name__ == '__main__':
main()
RNNColorbot
import os, six, time
import tensorflow as tf
import numpy as np
from tensorflow import keras
from matplotlib import pyplot as plt
from utils import load_dataset, parse
from model import RNNColorbot
tf.random.set_seed(22)
np.random.seed(22)
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
assert tf.__version__.startswith('2.')
def test(model, eval_data):
"""
计算评估数据的平均损失，应该是一个Dataset
"""
avg_loss = keras.metrics.Mean()
for (labels, chars, sequence_length) in eval_data:
predictions = model((chars, sequence_length), training=False)
avg_loss.update_state(keras.losses.mean_squared_error(labels, predictions))
print("eval/loss: %.6f" % avg_loss.result().numpy())
def train_one_epoch(model, optimizer, train_data, log_interval, epoch):
"""
使用优化器对train_data建模
"""
for step, (labels, chars, sequence_length) in enumerate(train_data):
with tf.GradientTape() as tape:
predictions = model((chars, sequence_length), training=True)
loss = keras.losses.mean_squared_error(labels, predictions)
loss = tf.reduce_mean(loss)
grads = tape.gradient(loss, model.trainable_variables)
optimizer.apply_gradients(zip(grads, model.trainable_variables))
if step % 100 == 0:
print(epoch, step, 'loss:', float(loss))
SOURCE_TRAIN_URL = "https://raw.githubusercontent.com/random-forests/tensorflow-workshop/master/archive/extras/colorbot/data/train.csv"
SOURCE_TEST_URL = "https://raw.githubusercontent.com/random-forests/tensorflow-workshop/master/archive/extras/colorbot/data/test.csv"
def main():
batchsz = 64
rnn_cell_sizes = [256, 128]
epochs = 40
data_dir = os.path.join('.', "data")
train_data = load_dataset(
data_dir=data_dir, url=SOURCE_TRAIN_URL, batch_size=batchsz)
eval_data = load_dataset(
data_dir=data_dir, url=SOURCE_TEST_URL, batch_size=batchsz)
model = RNNColorbot(
rnn_cell_sizes=rnn_cell_sizes,
label_dimension=3,
keep_prob=0.5)
optimizer = keras.optimizers.Adam(0.01)
for epoch in range(epochs):
start = time.time()
train_one_epoch(model, optimizer, train_data, 50, epoch)
end = time.time()
# print("train/time for epoch #%d: %.2f" % (epoch, end - start))
if epoch % 10 == 0:
test(model, eval_data)
print("Colorbot is ready to generate colors!")
while True:
try:
color_name = six.moves.input("Give me a color name (or press enter to exit): ")
except EOFError:
return
if not color_name:
return
_, chars, length = parse(color_name)
(chars, length) = (tf.identity(chars), tf.identity(length))
chars = tf.expand_dims(chars, 0)
length = tf.expand_dims(length, 0)
preds = tf.unstack(model((chars, length), training=False)[0])
# 预测不能为负，因为它们是由ReLU layer层生成的
# 但是，它们可能大于1
clipped_preds = tuple(min(float(p), 1.0) for p in preds)
rgb = tuple(int(p * 255) for p in clipped_preds)
print("rgb:", rgb)
data = [[clipped_preds]]
plt.imshow(data)
plt.title(color_name)
plt.savefig(color_name+'.png')
if __name__ == "__main__":
main()
import os, six, time
import tensorflow as tf
import numpy as np
from tensorflow import keras
import urllib
def parse(line):
"""
分析colors dataset中的行
"""
# dataset的每一行以逗号分隔，格式为 color_name, r, g, b
# 所以“items”是一个列表 [color_name, r, g, b].
items = tf.string_split([line], ",").values
rgb = tf.strings.to_number(items[1:], out_type=tf.float32) / 255.
# 将颜色名称表示为一个one-hot编码字符序列
color_name = items[0]
chars = tf.one_hot(tf.io.decode_raw(color_name, tf.uint8), depth=256)
# RNN需要序列长度
length = tf.cast(tf.shape(chars)[0], dtype=tf.int64)
return rgb, chars, length
def maybe_download(filename, work_directory, source_url):
"""
从源url下载数据，除非它已经在这里了
Args:
filename: 字符串，目录中文件的名称。
work_directory: 字符串，工作目录的路径。
source_url: 如果文件不存在则从URL去下载。
Returns:
result文件的路径。
"""
if not tf.io.gfile.exists(work_directory):
tf.io.gfile.makedirs(work_directory)
filepath = os.path.join(work_directory, filename)
if not tf.io.gfile.exists(filepath):
temp_file_name, _ = urllib.request.urlretrieve(source_url)
tf.io.gfile.copy(temp_file_name, filepath)
with tf.io.gfile.GFile(filepath) as f:
size = f.size()
print("Successfully downloaded", filename, size, "bytes.")
return filepath
def load_dataset(data_dir, url, batch_size):
"""将路径处的颜色数据加载到PaddedDataset中"""
# 将数据下载到url到data_dir/basename(url)中。dataset 有一个header
# 行(color_name, r, g, b) 后跟逗号分隔的行。
path = maybe_download(os.path.basename(url), data_dir, url)
# 此命令链通过以下方式加载我们的数据:
# 1. 跳过header (.skip(1))
# 2. 分析后续行(.map(parse))
# 3. shuffle 数据(.shuffle(...))
# 3. 将数据分组到填充的批中 (.padded_batch(...)).
dataset = tf.data.TextLineDataset(path).skip(1).map(parse).shuffle(
buffer_size=10000).padded_batch(
batch_size, padded_shapes=([None], [None, None], []))
return dataset
import tensorflow as tf
from tensorflow import keras
class RNNColorbot(keras.Model):
"""
在实值向量标签上回归的多层（LSTM）RNN
"""
def __init__(self, rnn_cell_sizes, label_dimension, keep_prob):
"""构造一个 RNNColorbot
Args:
rnn_cell_sizes: 表示RNN中每个LSTM单元大小的整数列表; rnn_cell_sizes[i] 是第i层单元的大小
label_dimension: 要回归的labels的长度
keep_prob: (1 - dropout 概率); dropout应用于每个LSTM层的输出
"""
super(RNNColorbot, self).__init__(name="")
self.rnn_cell_sizes = rnn_cell_sizes
self.label_dimension = label_dimension
self.keep_prob = keep_prob
self.cells = [keras.layers.LSTMCell(size) for size in rnn_cell_sizes]
self.relu = keras.layers.Dense(label_dimension, activation=tf.nn.relu)
def call(self, inputs, training=None):
"""
实现RNN逻辑和预测生成
Args:
inputs: 元组（字符，序列长度）, 其中chars是一个由一个one-hot编码的颜色名组成的batch，表示为一个张量，
其维度为[batch_size, time_steps, 256] 和 序列长度，将每个字符序列（color name）的长度保持为一个张量，其维度为[batch_size]
training: 调用是否在training 期间发生
Returns:
通过传递字符产生的 通过多层RNN并将ReLU应用到最终隐藏状态而产生的维度张量[batch_size, label_dimension]。
"""
(chars, sequence_length) = inputs
# 变换第一和第二维度，使字符具有形状 [time_steps, batch_size, dimension].
chars = tf.transpose(chars, [1, 0, 2])
# 外环在RNN的各个层之间循环；内环执行特定层的时间步。
batch_size = int(chars.shape[1])
for l in range(len(self.cells)): # for each layer
cell = self.cells[l]
outputs = []
# h_zero, c_zero
state = (tf.zeros((batch_size, self.rnn_cell_sizes[l])),
tf.zeros((batch_size, self.rnn_cell_sizes[l])))
# 取消堆栈输入以获取批列表，每个时间步一个。
chars = tf.unstack(chars, axis=0)
for ch in chars: # for each time stamp
output, state = cell(ch, state)
outputs.append(output)
# 这一层的输出是下一层的输入。
# [t, b, h]
chars = tf.stack(outputs, axis=0)
if training:
chars = tf.nn.dropout(chars, self.keep_prob)
# 为每个示例提取正确的输出（即隐藏状态）。此批中的所有字符序列都被填充到相同的固定长度，以便它们可以很容易地通过上述RNN循环输入
# `sequence_length`向量告诉我们字符序列的真实长度，让我们为每个序列获取由其非填充字符生成的隐藏状态。
batch_range = [i for i in range(batch_size)]
# stack [64] with [64] => [64, 2]
indices = tf.stack([sequence_length - 1, batch_range], axis=1)
# [t, b, h]
# print(chars.shape)
hidden_states = tf.gather_nd(chars, indices)
# print(hidden_states.shape)
return self.relu(hidden_states)
来源：CSDN
作者：日萌社
链接：https://blog.csdn.net/zimiao552147572/article/details/104088366
