前几天装了一下stf环境 ,mac环境搭建stf
环境搭建还是比较简单的。这个平台登陆的时候是没有限制的，只要输入个名称和邮箱就可以登陆。打算修改一下，改成公司内部账号登陆，下面来撸一撸代码。

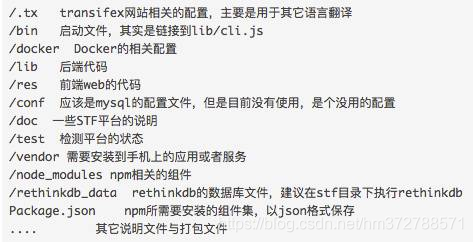

这张图片是在网上找的，根据这个区分出来了前端和后端代码。

在这里插入图片描述
stf前端使用的是angularjs语言开发的（测试小白，以前没有听过?），后端是nodejs（对于使用Java的我来说，这两个语言有点懵）没办法现学现卖，先去看看基本语法，然后在结合stf源码慢慢啃吧。
打开stf地址是http://192.168.110.18:7100/auth/mock/

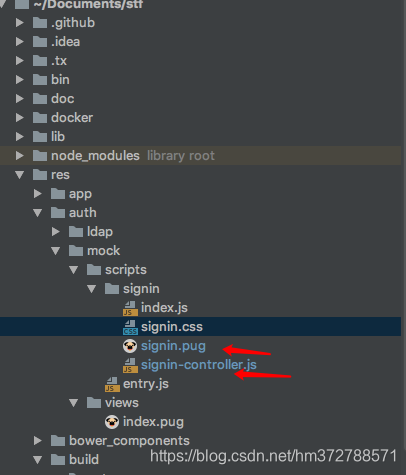

在res路径下面找到了前端代码，修改.pug文件可以改变前端页面渲染。
先打开signin.pug把邮箱和name换一下，把name输入框换成password输入框。

.login2(ng-controller='SignInCtrl')
  .login-wrapper
    a(href='./')
      img(width='200', height='85', src='/static/logo/exports/STF-512.png', title='STF')

    form(name='signin', novalidate, ng-submit='submit()')
      .alert.alert-danger(ng-show='error')
        span(ng-show='error.$invalid', translate) Check errors below
        span(ng-show='error.$incorrect', translate) Incorrect login details
        span(ng-show='error.$server', translate) Server error. Check log output.

      .form-group
        .input-group
          span.input-group-addon
            i.fa.fa-envelope
          input.form-control(ng-model='email', name='email', required, type='email', placeholder='E-mail',
          autocorrect='off', autocapitalize='off', spellcheck='false', autocomplete='section-login email')
        .alert.alert-warning(ng-show='signin.email.$dirty && signin.email.$invalid')
          span(ng-show='signin.email.$error.email', translate) Please enter a valid email
          span(ng-show='signin.email.$error.required', translate) Please enter your email

      .form-group
        .input-group
          span.input-group-addon
            i.fa.fa-user
          input.form-control(ng-model='pwd', name='pwd', required, type='password', placeholder='Password',
          autocorrect='off', autocapitalize='off', spellcheck='false', autocomplete='section-login username')
        .alert.alert-warning(ng-show='signin.pwd.$dirty && signin.pwd.$invalid')
          span(translate) Please enter your password

      input.btn.btn-lg.btn-primary.btn-block(type='submit', value='Log In')

再找到前端控制器signin-controller.js，修改之前的name为pwd

module.exports = function SignInCtrl($scope, $http) {

  $scope.error = null
  //获取前端页面提交的用户名和email
  $scope.submit = function() {
    var data = {
      pwd: $scope.signin.pwd.$modelValue  //这里是修改过的
      , email: $scope.signin.email.$modelValue   //这里是修改过的
    }
    $scope.invalid = false
    //发送用户名和邮箱给后端
    $http.post('/auth/api/v1/mock', data)
      .success(function(response) {
        $scope.error = null
        //后端返回成功后，重定向页面
        location.replace(response.redirect)
      })
      .error(function(response) {
        switch (response.error) {
          case 'ValidationError':
            $scope.error = {
              $invalid: true
            }
            break
          case 'InvalidCredentialsError':
            $scope.error = {
              $incorrect: true
            }
            break
          default:
            $scope.error = {
              $server: true
            }
            break
        }
      })
  }
}

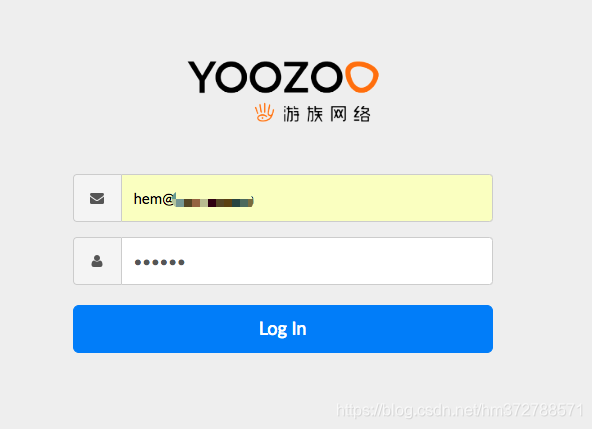

在这里插入图片描述

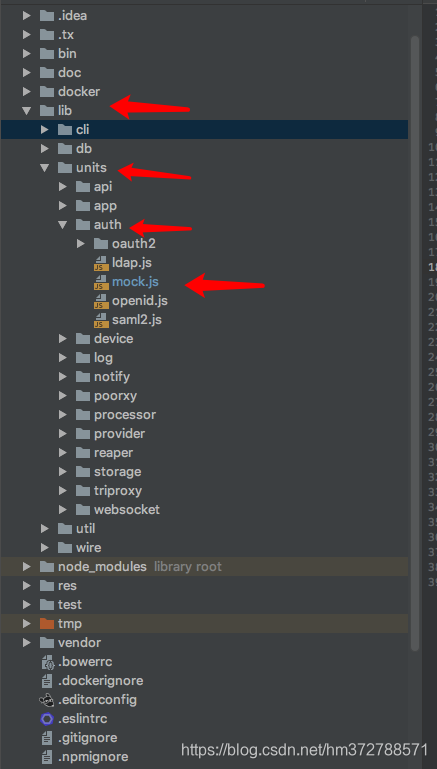

再找到后端登录接口，打开mock.js

var http = require('http')

var express = require('express')
var validator = require('express-validator')
var cookieSession = require('cookie-session')
var bodyParser = require('body-parser')
var serveStatic = require('serve-static')
var csrf = require('csurf')
var Promise = require('bluebird')
var basicAuth = require('basic-auth')

var logger = require('../../util/logger')
var requtil = require('../../util/requtil')
var jwtutil = require('../../util/jwtutil')
var pathutil = require('../../util/pathutil')
var urlutil = require('../../util/urlutil')
var lifecycle = require('../../util/lifecycle')

module.exports = function(options) {
  var log = logger.createLogger('auth-mock')
  var app = express()
  var server = Promise.promisifyAll(http.createServer(app))
  lifecycle.observe(function() {
    log.info('Waiting for client connections to end')
    return server.closeAsync()
      .catch(function() {
        // Okay
      })
  })

  // 这里没有用到
  // BasicAuth Middleware
  var basicAuthMiddleware = function(req, res, next) {
    function unauthorized(res) {
      res.set('WWW-Authenticate', 'Basic realm=Authorization Required')
      return res.send(401)
    }

    var user = basicAuth(req)

    if (!user || !user.name || !user.pass) {
      return unauthorized(res)
    }
    if (user.name === options.mock.basicAuth.username &&
        user.pass === options.mock.basicAuth.password) {
      return next()
    }
    else {
      return unauthorized(res)
    }
  }

  app.set('view engine', 'pug')
  app.set('views', pathutil.resource('auth/mock/views'))
  app.set('strict routing', true)
  app.set('case sensitive routing', true)

  app.use(cookieSession({
    name: options.ssid
  , keys: [options.secret]
  }))
  app.use(bodyParser.json())
  app.use(csrf())
  app.use(validator())
  app.use('/static/bower_components',
    serveStatic(pathutil.resource('bower_components')))
  app.use('/static/auth/mock', serveStatic(pathutil.resource('auth/mock')))

  app.use(function(req, res, next) {
    res.cookie('XSRF-TOKEN', req.csrfToken())
    next()
  })

  if (options.mock.useBasicAuth) {
    app.use(basicAuthMiddleware)
  }
  // 页面请求为ip+端口，重定向到登陆页面
  app.get('/', function(req, res) {
    res.redirect('/auth/mock/')
  })
  // 页面请求为ip+端口/auth/mock/，打开登陆页面
  app.get('/auth/mock/', function(req, res) {
    res.render('index')
  })
  // 前端请求登陆接口，验证用户名密码是否正确
  app.post('/auth/api/v1/mock', function(req, res) {
    var log = logger.createLogger('auth-mock')
    log.setLocalIdentifier(req.ip)
    switch (req.accepts(['json'])) {
      case 'json':
        // 验证传入的用户名
        requtil.validate(req, function() {
            req.checkBody('pwd').notEmpty()
            req.checkBody('email').isEmail()
          })
          .then(function() {
            log.info('Authenticated "%s"', req.body.email)
            var token = jwtutil.encode({
              payload: {
                email: req.body.email
                , pwd: req.body.pwd
              }
              , secret: options.secret
              , header: {
                exp: Date.now() + 24 * 3600
              }
            })
		//下面一直到########结束都是新添加的
            var Data = {
              account: req.body.email
              , password: req.body.pwd
            }
            var postData = JSON.stringify(Data)
            var Options = {
              hostname: 'www.baidu.com' //这里是公司oa的登录接口
              , port: 80
              , path: '/api/login/password'
              , method: 'post'
              , headers: {
                'Content-Type': 'application/json;charset=UTF-8'
              }
            }
            var Request = http.request(Options, function(response) {
              var responseString = ''
              response.on('data', function(chun) {
                responseString += chun
              })
              response.on('end', function() {
                var resultObject = JSON.parse(responseString)
                if (resultObject.status === 200) {
                  res.status(200)
                    .json({
                      success: true
                      , redirect: urlutil.addParams(options.appUrl, {
                        jwt: token
                      })
                    })
                }
                else {
                  res.status(400)
                    .json({
                      success: false
                      , error: 'ValidationError'
                      , validationErrors: resultObject.msg
                    })
                }
              })
            }) //################
            Request.on('error', function(err) {
              log.error(err)
            })
            Request.write(postData)
            Request.end()
          })
          .catch(requtil.ValidationError, function(err) {
            res.status(400)
              .json({
                success: false
              , error: 'ValidationError'
              , validationErrors: err.errors
              })
          })
          .catch(function(err) {
            log.error('Unexpected error', err.stack)
            res.status(500)
              .json({
                success: false
              , error: 'ServerError'
              })
          })
        break
      default:
        res.send(406)
        break
    }
  })

  server.listen(options.port)
  log.info('Listening on port %d', options.port)
}

在这里插入图片描述

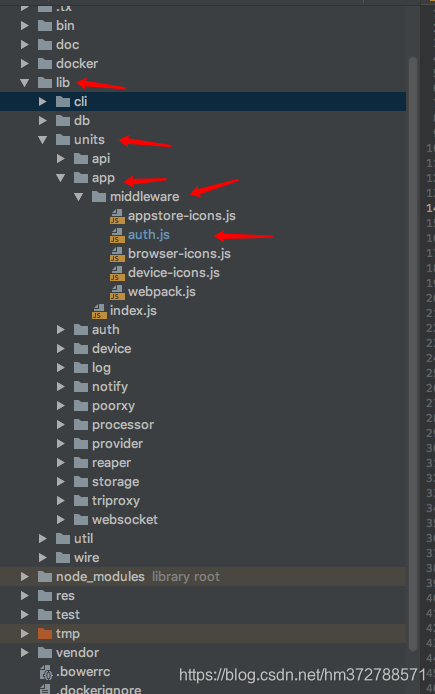

再找到修改数据库的代码auth.js

var jwtutil = require('../../../util/jwtutil')
var urlutil = require('../../../util/urlutil')

var dbapi = require('../../../db/api')

module.exports = function(options) {
  return function(req, res, next) {
    if (req.query.jwt) {
      // Coming from auth client
      var data = jwtutil.decode(req.query.jwt, options.secret)
      var redir = urlutil.removeParam(req.url, 'jwt')
      if (data) {
        // Redirect once to get rid of the token
        dbapi.saveUserAfterLogin({
            pwd: data.pwd  //这里是修改过的
          , email: data.email
          , ip: req.ip
          })
          .then(function() {
            req.session.jwt = data
            res.redirect(redir)
          })
          .catch(next)
      }
      else {
        // Invalid token, forward to auth client
        res.redirect(options.authUrl)
      }
    }
    else if (req.session && req.session.jwt) {
      dbapi.loadUser(req.session.jwt.email)
        .then(function(user) {
          if (user) {
            // Continue existing session
            req.user = user
            next()
          }
          else {
            // We no longer have the user in the database
            res.redirect(options.authUrl)
          }
        })
        .catch(next)
    }
    else {
      // No session, forward to auth client
      res.redirect(options.authUrl)
    }
  }
}

在这里插入图片描述

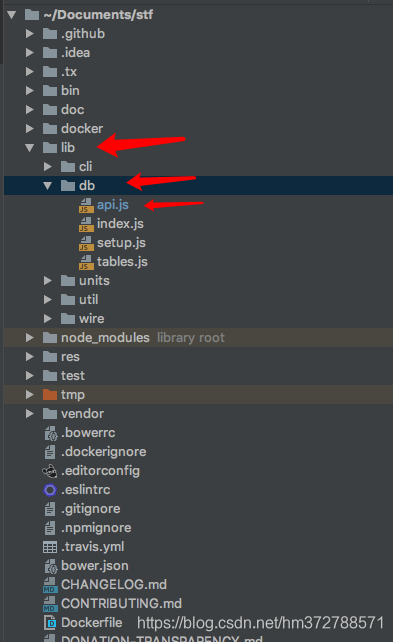

最后找到执行数据库语句操作的代码api.js

var r = require('rethinkdb')
var util = require('util')

var db = require('./')
var wireutil = require('../wire/util')

var dbapi = Object.create(null)

dbapi.DuplicateSecondaryIndexError = function DuplicateSecondaryIndexError() {
  Error.call(this)
  this.name = 'DuplicateSecondaryIndexError'
  Error.captureStackTrace(this, DuplicateSecondaryIndexError)
}

util.inherits(dbapi.DuplicateSecondaryIndexError, Error)

dbapi.close = function(options) {
  return db.close(options)
}

dbapi.saveUserAfterLogin = function(user) {
  return db.run(r.table('users').get(user.email).update({
      name: user.email.split('@')[0] //这里是修改过的
    , ip: user.ip
    , lastLoggedInAt: r.now()
    }))
    .then(function(stats) {
      if (stats.skipped) {
        return db.run(r.table('users').insert({
          email: user.email
        , name: user.email.split('@')[0] //这里是修改过的
        , ip: user.ip
        , group: wireutil.makePrivateChannel()
        , lastLoggedInAt: r.now()
        , createdAt: r.now()
        , forwards: []
        , settings: {}
        }))
      }
      return stats
    })
}

dbapi.loadUser = function(email) {
  return db.run(r.table('users').get(email))
}

dbapi.updateUserSettings = function(email, changes) {
  return db.run(r.table('users').get(email).update({
    settings: changes
  }))
}

dbapi.resetUserSettings = function(email) {
  return db.run(r.table('users').get(email).update({
    settings: r.literal({})
  }))
}

dbapi.insertUserAdbKey = function(email, key) {
  return db.run(r.table('users').get(email).update({
    adbKeys: r.row('adbKeys').default([]).append({
      title: key.title
    , fingerprint: key.fingerprint
    })
  }))
}

dbapi.deleteUserAdbKey = function(email, fingerprint) {
  return db.run(r.table('users').get(email).update({
    adbKeys: r.row('adbKeys').default([]).filter(function(key) {
      return key('fingerprint').ne(fingerprint)
    })
  }))
}

dbapi.lookupUsersByAdbKey = function(fingerprint) {
  return db.run(r.table('users').getAll(fingerprint, {
    index: 'adbKeys'
  }))
}

dbapi.lookupUserByAdbFingerprint = function(fingerprint) {
  return db.run(r.table('users').getAll(fingerprint, {
      index: 'adbKeys'
    })
    .pluck('email', 'name', 'group'))
    .then(function(cursor) {
      return cursor.toArray()
    })
    .then(function(groups) {
      switch (groups.length) {
        case 1:
          return groups[0]
        case 0:
          return null
        default:
          throw new Error('Found multiple users for same ADB fingerprint')
      }
    })
}

dbapi.lookupUserByVncAuthResponse = function(response, serial) {
  return db.run(r.table('vncauth').getAll([response, serial], {
      index: 'responsePerDevice'
    })
    .eqJoin('userId', r.table('users'))('right')
    .pluck('email', 'name', 'group'))
    .then(function(cursor) {
      return cursor.toArray()
    })
    .then(function(groups) {
      switch (groups.length) {
        case 1:
          return groups[0]
        case 0:
          return null
        default:
          throw new Error('Found multiple users with the same VNC response')
      }
    })
}

dbapi.loadUserDevices = function(email) {
  return db.run(r.table('devices').getAll(email, {
    index: 'owner'
  }))
}

dbapi.saveDeviceLog = function(serial, entry) {
  return db.run(r.table('logs').insert({
      serial: serial
    , timestamp: r.epochTime(entry.timestamp)
    , priority: entry.priority
    , tag: entry.tag
    , pid: entry.pid
    , message: entry.message
    }
  , {
      durability: 'soft'
    }))
}

dbapi.saveDeviceInitialState = function(serial, device) {
  var data = {
    present: false
  , presenceChangedAt: r.now()
  , provider: device.provider
  , owner: null
  , status: device.status
  , statusChangedAt: r.now()
  , ready: false
  , reverseForwards: []
  , remoteConnect: false
  , remoteConnectUrl: null
  , usage: null
  }
  return db.run(r.table('devices').get(serial).update(data))
    .then(function(stats) {
      if (stats.skipped) {
        data.serial = serial
        data.createdAt = r.now()
        return db.run(r.table('devices').insert(data))
      }
      return stats
    })
}

dbapi.setDeviceConnectUrl = function(serial, url) {
  return db.run(r.table('devices').get(serial).update({
    remoteConnectUrl: url
  , remoteConnect: true
  }))
}

dbapi.unsetDeviceConnectUrl = function(serial) {
  return db.run(r.table('devices').get(serial).update({
    remoteConnectUrl: null
  , remoteConnect: false
  }))
}

dbapi.saveDeviceStatus = function(serial, status) {
  return db.run(r.table('devices').get(serial).update({
    status: status
  , statusChangedAt: r.now()
  }))
}

dbapi.setDeviceOwner = function(serial, owner) {
  return db.run(r.table('devices').get(serial).update({
    owner: owner
  }))
}

dbapi.unsetDeviceOwner = function(serial) {
  return db.run(r.table('devices').get(serial).update({
    owner: null
  }))
}

dbapi.setDevicePresent = function(serial) {
  return db.run(r.table('devices').get(serial).update({
    present: true
  , presenceChangedAt: r.now()
  }))
}

dbapi.setDeviceAbsent = function(serial) {
  return db.run(r.table('devices').get(serial).update({
    present: false
  , presenceChangedAt: r.now()
  }))
}

dbapi.setDeviceUsage = function(serial, usage) {
  return db.run(r.table('devices').get(serial).update({
    usage: usage
  , usageChangedAt: r.now()
  }))
}

dbapi.unsetDeviceUsage = function(serial) {
  return db.run(r.table('devices').get(serial).update({
    usage: null
  , usageChangedAt: r.now()
  }))
}

dbapi.setDeviceAirplaneMode = function(serial, enabled) {
  return db.run(r.table('devices').get(serial).update({
    airplaneMode: enabled
  }))
}

dbapi.setDeviceBattery = function(serial, battery) {
  return db.run(r.table('devices').get(serial).update({
      battery: {
        status: battery.status
      , health: battery.health
      , source: battery.source
      , level: battery.level
      , scale: battery.scale
      , temp: battery.temp
      , voltage: battery.voltage
      }
    }
  , {
      durability: 'soft'
    }))
}

dbapi.setDeviceBrowser = function(serial, browser) {
  return db.run(r.table('devices').get(serial).update({
    browser: {
      selected: browser.selected
    , apps: browser.apps
    }
  }))
}

dbapi.setDeviceConnectivity = function(serial, connectivity) {
  return db.run(r.table('devices').get(serial).update({
    network: {
      connected: connectivity.connected
    , type: connectivity.type
    , subtype: connectivity.subtype
    , failover: !!connectivity.failover
    , roaming: !!connectivity.roaming
    }
  }))
}

dbapi.setDevicePhoneState = function(serial, state) {
  return db.run(r.table('devices').get(serial).update({
    network: {
      state: state.state
    , manual: state.manual
    , operator: state.operator
    }
  }))
}

dbapi.setDeviceRotation = function(serial, rotation) {
  return db.run(r.table('devices').get(serial).update({
    display: {
      rotation: rotation
    }
  }))
}

dbapi.setDeviceNote = function(serial, note) {
  return db.run(r.table('devices').get(serial).update({
    notes: note
  }))
}

dbapi.setDeviceReverseForwards = function(serial, forwards) {
  return db.run(r.table('devices').get(serial).update({
    reverseForwards: forwards
  }))
}

dbapi.setDeviceReady = function(serial, channel) {
  return db.run(r.table('devices').get(serial).update({
    channel: channel
  , ready: true
  , owner: null
  , reverseForwards: []
  }))
}

dbapi.saveDeviceIdentity = function(serial, identity) {
  return db.run(r.table('devices').get(serial).update({
    platform: identity.platform
  , manufacturer: identity.manufacturer
  , operator: identity.operator
  , model: identity.model
  , version: identity.version
  , abi: identity.abi
  , sdk: identity.sdk
  , display: identity.display
  , phone: identity.phone
  , product: identity.product
  , cpuPlatform: identity.cpuPlatform
  , openGLESVersion: identity.openGLESVersion
  }))
}

dbapi.loadDevices = function() {
  return db.run(r.table('devices'))
}

dbapi.loadPresentDevices = function() {
  return db.run(r.table('devices').getAll(true, {
    index: 'present'
  }))
}

dbapi.loadDevice = function(serial) {
  return db.run(r.table('devices').get(serial))
}

dbapi.saveUserAccessToken = function(email, token) {
  return db.run(r.table('accessTokens').insert({
    email: email
  , id: token.id
  , title: token.title
  , jwt: token.jwt
  }))
}

dbapi.removeUserAccessToken = function(email, title) {
  return db.run(r.table('accessTokens').getAll(email, {
    index: 'email'
  }).filter({title: title}).delete())
}

dbapi.loadAccessTokens = function(email) {
  return db.run(r.table('accessTokens').getAll(email, {
    index: 'email'
  }))
}

dbapi.loadAccessToken = function(id) {
  return db.run(r.table('accessTokens').get(id))
}

module.exports = dbapi

在这里插入图片描述
这样就可以使用公司内部的账号密码登录了。

加班写的，思维有点乱，有时间整理一下。
