Datax源码解析与Writer插件开发

Datax是个啥

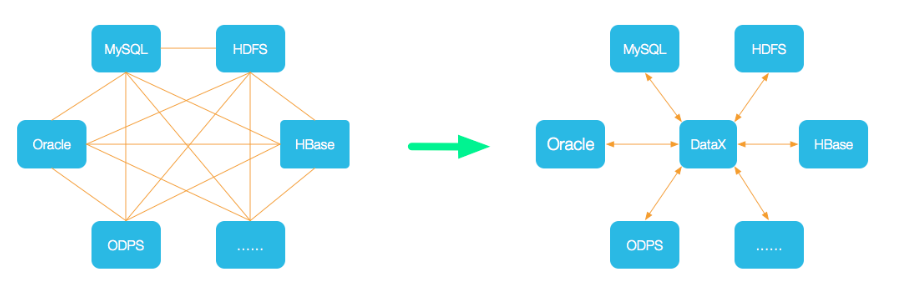

DataX 是阿里巴巴集团内被广泛使用的 离线数据 同步工具/平台，实现包括 MySQL、Oracle、SqlServer、Postgre、HDFS、Hive、ADS、HBase、TableStore(OTS)、MaxCompute(ODPS)、DRDS 等各种 异构数据源之间 高效的数据同步功能。

框架设计

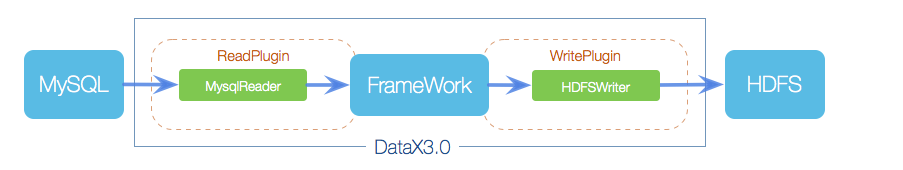

DataX本身作为离线数据同步框架，采用 Framework + plugin架构构建。将数据源读取和写入抽象成为Reader/Writer插件，纳入到整个同步框架中。

Reader：Reader为数据采集模块，负责采集数据源的数据，将数据发送给Framework。
Writer： Writer为数据写入模块，负责不断向Framework取数据，并将数据写入到目的端。
Framework：Framework用于连接reader和writer，作为两者的数据传输通道，并处理 缓冲，流控，并发，数据转换等核心技术问题。

源码下载和工程编译

源码下载地址： https://github.com/alibaba/DataX

编译命令：

mvn -U clean package assembly:assembly -Dmaven.test.skip=true

Job&Task概念

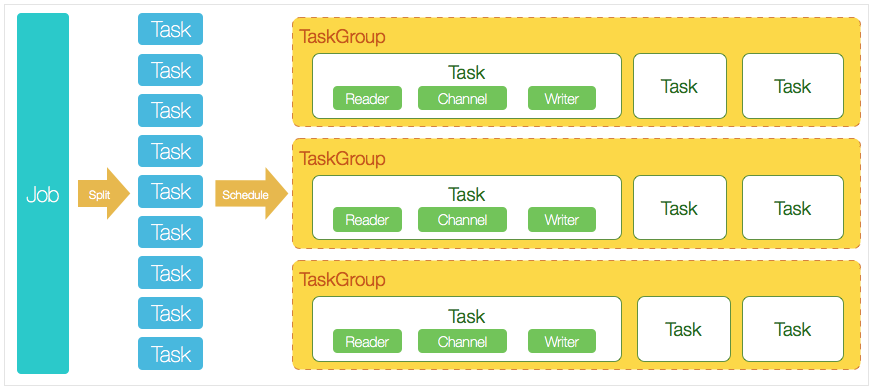

在DataX的逻辑模型中包括job、task两个维度，通过将job进行task拆分，然后将task合并到taskGroup进行运行。

job实例运行在jobContainer容器中，它是所有任务的master，负责初始化、拆分、调度、运行、回收、监控和汇报，但它并不做实际的数据同步操作。
Job: Job是DataX用以描述从一个源头到一个目的端的同步作业，是DataX数据同步的最小业务单元。比如：从一张mysql的表同步到odps的一个表的特定分区。
Task: Task是为最大化而把Job拆分得到的最小执行单元。比如：读一张有1024个分表的mysql表的Job，拆分成1024个读Task，用若干个并发执行。
TaskGroup: 描述的是一组Task集合。在同一个TaskGroupContainer执行下的Task集合称之为TaskGroup。
JobContainer: Job执行器，负责Job全局拆分、调度、前置语句和后置语句等工作的工作单元。类似Yarn中的JobTracker。
TaskGroupContainer: TaskGroup执行器，负责执行一组Task的工作单元，类似Yarn中的TaskTracker。

简而言之， Job拆分成Task，分别在框架提供的容器中执行，插件只需要实现Job和Task两部分逻辑。

物理运行模型

框架为插件提供物理上的执行能力（线程）。DataX框架有三种运行模式：

Standalone: 单进程运行，没有外部依赖。

Local: 单进程运行，统计信息、错误信息汇报到集中存储。

Distrubuted: 分布式多进程运行， 依赖DataX Service服务。

当然，上述三种模式对插件的编写而言没有什么区别，你只需要避开一些小错误，插件就能够在单机/分布式之间无缝切换了。当JobContainer和TaskGroupContainer运行在同一个进程内时，就是单机模式（Standalone和Local）；当它们分布在不同的进程中执行时，就是分布式（Distributed）模式。

源码解析

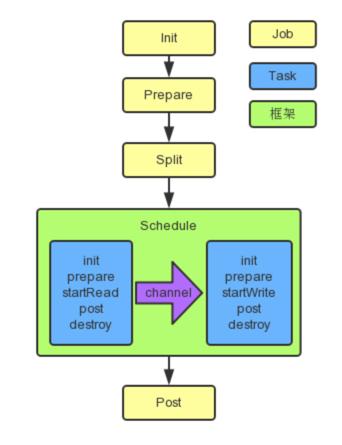

1、启动流程：

说明：黄色表示 Job 部分的执行阶段，蓝色表示 Task 部分的执行阶段，绿色表示框架执行阶段。

2、工程入口： DataX的入口是 Engine 这个类，直接进去看它的 main 方法，main方法的主要功能就是接收传入的运行参数，然后运行Engine的 entry 方法来启动整个工程；

运行参数：

-mode standalone

-jobid -1

-job C:\Users\Administrator\Desktop\19年新功能\datax-json\test_datax.json

main方法：

public static void main(String[] args) throws Exception {

int exitCode = 0;

try {

LOG.info("##### 请求参数 #####");

for(String arg:args){

LOG.info(arg);

}

LOG.info("##### 请求参数 #####");

System.setProperty("datax.home","D:\\Code\\ideaCode\\DataX-master\\target\\datax\\datax");

Engine.entry(args);

} catch (Throwable e) {

exitCode = 1;

LOG.error("经DataX智能分析,该任务最可能的错误原因是:" + ExceptionTracker.trace(e));

if (e instanceof DataXException) {

DataXException tempException = (DataXException) e;

ErrorCode errorCode = tempException.getErrorCode();

if (errorCode instanceof FrameworkErrorCode) {

FrameworkErrorCode tempErrorCode = (FrameworkErrorCode) errorCode;

exitCode = tempErrorCode.toExitValue();

}

System.exit(exitCode);

}

System.exit(exitCode);

}

3、Entry方法工作： 主要做了2件事情，运行 ConfigParser.parse(String path) 方法解析生成configration生成一个新的Engine然后启动Engine的 start() 方法；

public static void entry(final String[] args) throws Throwable {

Options options = new Options();

options.addOption("job", true, "Job config.");

options.addOption("jobid", true, "Job unique id.");

options.addOption("mode", true, "Job runtime mode.");

BasicParser parser = new BasicParser();

CommandLine cl = parser.parse(options, args);

String jobPath = cl.getOptionValue("job");

// 如果用户没有明确指定jobid, 则 datax.py 会指定 jobid 默认值为-1

String jobIdString = cl.getOptionValue("jobid");

RUNTIME_MODE = cl.getOptionValue("mode");

1. 解析job.json的数据抽取文件，生成一个configuration

整个解析配置文件的过程分为三部分

1.解析job的配置信息，由启动参数指定job.json文件。

2. 解析DataX自带配置信息，由默认指定的core.json文件。

3.解析读写插件配置信息，由job.json指定的reader和writer插件信息

4.加载对应的插件信息

Configuration configuration = ConfigParser.parse(jobPath);

long jobId;

if (!"-1".equalsIgnoreCase(jobIdString)) {

jobId = Long.parseLong(jobIdString);

} else {

// only for dsc & ds & datax 3 update

String dscJobUrlPatternString = "/instance/(\\d{1,})/config.xml";

String dsJobUrlPatternString = "/inner/job/(\\d{1,})/config";

String dsTaskGroupUrlPatternString = "/inner/job/(\\d{1,})/taskGroup/";

List<String> patternStringList = Arrays.asList(dscJobUrlPatternString,

dsJobUrlPatternString, dsTaskGroupUrlPatternString);

jobId = parseJobIdFromUrl(patternStringList, jobPath);

}

boolean isStandAloneMode = "standalone".equalsIgnoreCase(RUNTIME_MODE);

if (!isStandAloneMode && jobId == -1) {

// 如果不是 standalone 模式，那么 jobId 一定不能为-1

throw DataXException.asDataXException(FrameworkErrorCode.CONFIG_ERROR, "非 standalone 模式必须在 URL 中提供有效的 jobId.");

}

configuration.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_ID, jobId);

//打印vmInfo

VMInfo vmInfo = VMInfo.getVmInfo();

if (vmInfo != null) {

LOG.info(vmInfo.toString());

}

LOG.info("\n" + Engine.filterJobConfiguration(configuration) + "\n");

LOG.debug(configuration.toJSON());

ConfigurationValidate.doValidate(configuration);

//2. 新建一个engine, 然后调用start方法启动

Engine engine = new Engine();

engine.start(configuration);

}

解析job.json文件生成configuration的过程主要有三步：

解析job的配置信息，由启动参数指定job.json文件。
解析DataX自带配置信息，由默认指定的core.json文件。
解析读写插件配置信息，由job.json指定的reader和writer插件信息。

public static Configuration parse(final String jobPath) {

//1.解析job的配置信息，由启动参数指定job.json文件。

Configuration configuration = ConfigParser.parseJobConfig(jobPath);

//2. 解析DataX自带配置信息，由默认指定的core.json文件。

configuration.merge(

ConfigParser.parseCoreConfig(CoreConstant.DATAX_CONF_PATH),

false);

// todo config优化，只捕获需要的plugin

//3.解析读写插件配置信息，由job.json指定的reader和writer插件信息

String readerPluginName = configuration.getString(

CoreConstant.DATAX_JOB_CONTENT_READER_NAME);

String writerPluginName = configuration.getString(

CoreConstant.DATAX_JOB_CONTENT_WRITER_NAME);

String preHandlerName = configuration.getString(

CoreConstant.DATAX_JOB_PREHANDLER_PLUGINNAME);

String postHandlerName = configuration.getString(

CoreConstant.DATAX_JOB_POSTHANDLER_PLUGINNAME);

Set<String> pluginList = new HashSet<String>();

pluginList.add(readerPluginName);

pluginList.add(writerPluginName);

if(StringUtils.isNotEmpty(preHandlerName)) {

pluginList.add(preHandlerName);

}

if(StringUtils.isNotEmpty(postHandlerName)) {

pluginList.add(postHandlerName);

}

try {

// 4.加载对应的插件信息

configuration.merge(parsePluginConfig(new ArrayList<String>(pluginList)), false);

}catch (Exception e){

//吞掉异常，保持log干净。这里message足够。

LOG.warn(String.format("插件[%s,%s]加载失败，1s后重试... Exception:%s ", readerPluginName, writerPluginName, e.getMessage()));

try {

Thread.sleep(1000);

} catch (InterruptedException e1) {

}

configuration.merge(parsePluginConfig(new ArrayList<String>(pluginList)), false);

}

return configuration;

}

Configuration的配置文件：有job.json，core.json，plugin.json，以上代码的作用就是读取这三个配置文件并合并成项目需要的Configuration对象；

job.json

{

"job":{

"content":[{

"reader":{

"parameter":{

"password":"iflytek",

"column":[

"sed_account",

"rec_account",

"sed_zjhm",

"sed_name",

"rec_zjhm",

"rec_name",

"trans_type",

"channel",

"amount",

"detail",

"trans_date",

"increment_id"

"connection":[{

"jdbcUrl":[

"jdbc:mysql://172.31.95.34:3306/zstp"

"table":[

"r_transfer"

]

}],

"where":"increment_id>0 and increment_id<=44",

"splitPk":"increment_id",

"username":"root"

"name":"mysqlreader"

"writer":{

"parameter":{

"writerParams":{

"columnsMapping":{

"amount":{"name":"交易_金额"},

"trans_date":{"name":"交易_交易日期"},

"sed_zjhm":{"name":"交易_转出身份证号"},

"channel":{

"name":"交易_交易渠道"},

"increment_id":{

"name":"交易_自增长ID"},

"sed_name":{

"name":"交易_转出姓名"},

"rec_account":{

"name":"账号_账号",

"type":"end"},

"detail":{

"name":"交易_交易明细"},

"sed_name":{

"name":"交易_转入姓名"},

"rec_account":{

"name":"账号_账号",

"type":"start"},

"rec_zjhm":{

"name":"交易_转入身份证号"},

"trans_type":{

"name":"交易_交易类型"}

"direction":"positive",

"graphConfigInfo":{

"cachedbCache":"true",

"cachedbCacheCleanWait":"20",

"cachedbCacheSize":"0.5",

"cachedbCacheTime":"180000",

"gremlinGraph":"org.janusgraph.core.JanusGraphFactory",

"indexSearchBackend":"elasticsearch",

"indexSearchClientOnly":"true",

"indexSearchHostname":"171.31.95.50",

"storageBackend":"hbase",

"storageBatchLoading":"true",

"storageHbaseTable":"JDModel",

"storageHostname":"171.31.95.50"

"importType":"relation",

"insertType":"edge",

"isPeriod":"2",

"kafkaConf":{

"brokerHost":"171.31.95.50:9092",

"dirtyDataTopic":"datax_plugin_task_dirtyData",

"staticTopic":"datax_plugin_task_importStatic"},

"moveDuplicate":"true",

"ownerId":"229061068735066112",

"sourceColumns":[

{"name":"sed_account","type":"String"},

{"name":"rec_account","type":"String"},

{"name":"sed_zjhm","type":"String"},

{"name":"sed_name","type":"String"},

{"name":"rec_zjhm","type":"String"},

{"name":"rec_name","type":"String"},

{"name":"trans_type","type":"String"},

{"name":"channel","type":"String"},

{"name":"amount","type":"Float"},

{"name":"detail","type":"String"},

{"name":"trans_date","type":"Date"},

{"name":"increment_id","type":"Integer"}

"tableName":"交易",

"taskId":"230918959959814144"

}

"name":"janusgraphwriter"

}

}],

"setting":{

"speed":{

"channel":4

}

core.json

{

"entry": {

"jvm": "-Xms1G -Xmx1G",

"environment": {}

"common": {

"column": {

"datetimeFormat": "yyyy-MM-dd HH:mm:ss",

"timeFormat": "HH:mm:ss",

"dateFormat": "yyyy-MM-dd",

"extraFormats":["yyyyMMdd"],

"timeZone": "GMT+8",

"encoding": "utf-8"

}

"core": {

"dataXServer": {

"address": "http://localhost:7001/api",

"timeout": 10000,

"reportDataxLog": false,

"reportPerfLog": false

"transport": {

"channel": {

"class": "com.alibaba.datax.core.transport.channel.memory.MemoryChannel",

"speed": {

"byte": -1,

"record": -1

"flowControlInterval": 20,

"capacity": 512,

"byteCapacity": 67108864

"exchanger": {

"class": "com.alibaba.datax.core.plugin.BufferedRecordExchanger",

"bufferSize": 32

}

"container": {

"job": {

"reportInterval": 10000

"taskGroup": {

"channel": 5

"trace": {

"enable": "false"

}

"statistics": {

"collector": {

"plugin": {

"taskClass": "com.alibaba.datax.core.statistics.plugin.task.StdoutPluginCollector",

"maxDirtyNumber": 10

}

plugin.json

{

"name": "mysqlreader",

"class": "com.alibaba.datax.plugin.reader.mysqlreader.MysqlReader",

"description": "useScene: prod. mechanism: Jdbc connection using the database, execute select sql, retrieve data from the ResultSet. warn: The more you know about the database, the less problems you encounter.",

"developer": "alibaba"

}

{

"name": "janusgraphwriter",

"class": "com.alibaba.datax.plugin.writer.janusgraphwriter.JanusgraphWriter",

"description": "useScene: dev. mechanism: via org.janusgraph.core.JanusGraphFactory.class connect Janusgraph to write data .",

"developer": "wangzhou"

}

合并之后的Configuration

{

"common": {

"column": {

"dateFormat": "yyyy-MM-dd",

"datetimeFormat": "yyyy-MM-dd HH:mm:ss",

"encoding": "utf-8",

"extraFormats": ["yyyyMMdd"],

"timeFormat": "HH:mm:ss",

"timeZone": "GMT+8"

}

"core": {

"container": {

"job": {

"id": -1,

"reportInterval": 10000

"taskGroup": {

"channel": 5

"trace": {

"enable": "false"

}

"dataXServer": {

"address": "http://localhost:7001/api",

"reportDataxLog": false,

"reportPerfLog": false,

"timeout": 10000

"statistics": {

"collector": {

"plugin": {

"maxDirtyNumber": 10,

"taskClass": "com.alibaba.datax.core.statistics.plugin.task.StdoutPluginCollector"

}

"transport": {

"channel": {

"byteCapacity": 67108864,

"capacity": 512,

"class": "com.alibaba.datax.core.transport.channel.memory.MemoryChannel",

"flowControlInterval": 20,

"speed": {

"byte": -1,

"record": -1

}

"exchanger": {

"bufferSize": 32,

"class": "com.alibaba.datax.core.plugin.BufferedRecordExchanger"

}

"entry": {

"jvm": "-Xms1G -Xmx1G"

"job": {

"content": [{

"reader": {

"name": "mysqlreader",

"parameter": {

"column": ["sed_account", "rec_account", "sed_zjhm", "sed_name", "rec_zjhm", "rec_name", "trans_type", "channel", "amount", "detail", "trans_date", "increment_id"],

"connection": [{

"jdbcUrl": ["jdbc:mysql://172.31.95.34:3306/zstp"],

"table": ["r_transfer"]

}],

"password": "iflytek",

"splitPk": "increment_id",

"username": "root",

"where": "increment_id>0 and increment_id<=44"

}

"writer": {

"name": "janusgraphwriter",

"parameter": {

"writerParams": {

"columnsMapping": {

"amount": {

"name": "交易_金额"

"channel": {

"name": "交易_交易渠道"

"detail": {

"name": "交易_交易明细"

"increment_id": {

"name": "交易_自增长ID"

"rec_account": {

"name": "账号_账号",

"type": "start"

"rec_zjhm": {

"name": "交易_转入身份证号"

"sed_name": {

"name": "交易_转入姓名"

"sed_zjhm": {

"name": "交易_转出身份证号"

"trans_date": {

"name": "交易_交易日期"

"trans_type": {

"name": "交易_交易类型"

}

"direction": "positive",

"graphConfigInfo": {

"cachedbCache": "true",

"cachedbCacheCleanWait": "20",

"cachedbCacheSize": "0.5",

"cachedbCacheTime": "180000",

"gremlinGraph": "org.janusgraph.core.JanusGraphFactory",

"indexSearchBackend": "elasticsearch",

"indexSearchClientOnly": "true",

"indexSearchHostname": "171.31.95.50",

"storageBackend": "hbase",

"storageBatchLoading": "true",

"storageHbaseTable": "JDModel",

"storageHostname": "171.31.95.50"

"importType": "relation",

"insertType": "edge",

"isPeriod": "2",

"kafkaConf": {

"brokerHost": "171.31.95.50:9092",

"dirtyDataTopic": "datax_plugin_task_dirtyData",

"staticTopic": "datax_plugin_task_importStatic"

"moveDuplicate": "true",

"ownerId": "229061068735066112",

"sourceColumns": [{

"name": "sed_account",

"type": "String"

}, {

"name": "rec_account",

"type": "String"

}, {

"name": "sed_zjhm",

"type": "String"

}, {

"name": "sed_name",

"type": "String"

}, {

"name": "rec_zjhm",

"type": "String"

}, {

"name": "rec_name",

"type": "String"

}, {

"name": "trans_type",

"type": "String"

}, {

"name": "channel",

"type": "String"

}, {

"name": "amount",

"type": "Float"

}, {

"name": "detail",

"type": "String"

}, {

"name": "trans_date",

"type": "Date"

}, {

"name": "increment_id",

"type": "Integer"

}],

"tableName": "交易",

"taskId": "230918959959814144"

}

}],

"setting": {

"speed": {

"channel": 4

}

"plugin": {

"reader": {

"mysqlreader": {

"class": "com.alibaba.datax.plugin.reader.mysqlreader.MysqlReader",

"developer": "alibaba",

"name": "mysqlreader",

"path": "D:\\Code\\ideaCode\\DataX-master\\target\\datax\\datax\\plugin\\reader\\mysqlreader"

}

"writer": {

"janusgraphwriter": {

"class": "com.alibaba.datax.plugin.writer.janusgraphwriter.JanusgraphWriter",

"description": "useScene: dev. mechanism: via org.janusgraph.core.JanusGraphFactory.class connect Janusgraph to write data .",

"developer": "wangzhou",

"name": "janusgraphwriter",

"path": "D:\\Code\\ideaCode\\DataX-master\\target\\datax\\datax\\plugin\\writer\\janusgraphwriter"

}

Engine.start()方法主要目的就是创建JobContainer对象，调用JobContainer.start()的方法启动JobContainer对象：

public void start(Configuration allConf) {

// 绑定column转换信息

ColumnCast.bind(allConf);

/**

* 初始化PluginLoader，可以获取各种插件配置

LoadUtil.bind(allConf);

boolean isJob = !("taskGroup".equalsIgnoreCase(allConf

.getString(CoreConstant.DATAX_CORE_CONTAINER_MODEL)));

//JobContainer会在schedule后再行进行设置和调整值

int channelNumber =0;

AbstractContainer container;

long instanceId;

int taskGroupId = -1;

if (isJob) {

allConf.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_MODE, RUNTIME_MODE);

container = new JobContainer(allConf);

instanceId = allConf.getLong(

CoreConstant.DATAX_CORE_CONTAINER_JOB_ID, 0);

} else {

container = new TaskGroupContainer(allConf);

instanceId = allConf.getLong(

CoreConstant.DATAX_CORE_CONTAINER_JOB_ID);

taskGroupId = allConf.getInt(

CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_ID);

channelNumber = allConf.getInt(

CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL);

}

//缺省打开perfTrace

boolean traceEnable = allConf.getBool(CoreConstant.DATAX_CORE_CONTAINER_TRACE_ENABLE, true);

boolean perfReportEnable = allConf.getBool(CoreConstant.DATAX_CORE_REPORT_DATAX_PERFLOG, true);

//standlone模式的datax shell任务不进行汇报

if(instanceId == -1){

perfReportEnable = false;

}

int priority = 0;

try {

priority = Integer.parseInt(System.getenv("SKYNET_PRIORITY"));

}catch (NumberFormatException e){

LOG.warn("prioriy set to 0, because NumberFormatException, the value is: "+System.getProperty("PROIORY"));

}

Configuration jobInfoConfig = allConf.getConfiguration(CoreConstant.DATAX_JOB_JOBINFO);

//初始化PerfTrace

PerfTrace perfTrace = PerfTrace.getInstance(isJob, instanceId, taskGroupId, priority, traceEnable);

perfTrace.setJobInfo(jobInfoConfig,perfReportEnable,channelNumber);

container.start();

}

4、JobContainer.start(): JobContainer.start方法是整个框架的核心，依次执行job的preHandler()、init()、prepare()、split()、schedule()、 post()、postHandle()等方法，最重要的就是 init()， split() ， schedule() ，其主要过程如下：

执行job的preHandle()操作，暂时不关注。
执行job的 init() 操作，需重点关注。
执行job的prepare()操作，涉及到初始化reader和writer插件的初始化，保存当前classLoader，并将当前线程的classLoader设置为所给classLoader，再将当前线程的类加载器设置为保存的类加载，通过调用插件的prepare()方法实现，每个插件都有自己的jarLoader，是通过集成URLClassloader实现而来，暂时不关注。
执行job的 split() 操作，通过adjustChannelNumber()方法调整channel个数，同时执行reader和writer最细粒度的切分，需要注意的是，writer的切分结果要参照reader的切分结果，达到切分后数目相等，才能满足1：1的通道模型；channel的计数主要是根据byte和record的限速来实现的，在split()的函数中第一步就是计算channel的大小；split()方法reader插件会根据channel的值进行拆分，但是有些reader插件可能不会参考channel的值，writer插件会完全根据reader的插件1:1进行返回；split()方法内部的mergeReaderAndWriterTaskConfigs()负责合并reader、writer、以及transformer三者关系，生成task的配置，并且重写job.content的配置，需重点关注。
执行job的 schedule() 操作，根据split()拆分生成的task配置分配生成taskGroup对象，根据task的数量和单个taskGroup支持的task数量进行配置，两者相除就可以得出taskGroup的数量；schdule()内部通过AbstractScheduler的schedule()执行，继续执行startAllTaskGroup()方法创建所有的TaskGroupContainer组织相关的task，TaskGroupContainerRunner负责运行TaskGroupContainer执行分配的task；taskGroupContainerExecutorService启动固定的线程池用以执行TaskGroupContainerRunner对象，TaskGroupContainerRunner的run()方法调用taskGroupContainer.start()方法，针对每个channel创建一个TaskExecutor，通过taskExecutor.doStart()启动任务，需重点关注。
执行job的post()和postHandle()操作，暂时不关注。

public void start() {

LOG.info("DataX jobContainer starts job.");

boolean hasException = false;

boolean isDryRun = false;

try {

this.startTimeStamp = System.currentTimeMillis();

isDryRun = configuration.getBool(CoreConstant.DATAX_JOB_SETTING_DRYRUN, false);

if(isDryRun) {

LOG.info("jobContainer starts to do preCheck ...");

this.preCheck();

} else {

userConf = configuration.clone();

LOG.debug("jobContainer starts to do preHandle ...");

this.preHandle();

LOG.debug("jobContainer starts to do init ...");

this.init();

LOG.info("jobContainer starts to do prepare ...");

this.prepare();

LOG.info("jobContainer starts to do split ...");

this.totalStage = this.split();

LOG.info("jobContainer starts to do schedule ...");

this.schedule();

LOG.debug("jobContainer starts to do post ...");

this.post();

LOG.debug("jobContainer starts to do postHandle ...");

this.postHandle();

LOG.info("DataX jobId [{}] completed successfully.", this.jobId);

this.invokeHooks();

}

} catch (Throwable e) {

LOG.error("Exception when job run", e);

hasException = true;

if (e instanceof OutOfMemoryError) {

this.destroy();

System.gc();

}

if (super.getContainerCommunicator() == null) {

// 由于 containerCollector 是在 scheduler() 中初始化的，所以当在 scheduler() 之前出现异常时，需要在此处对 containerCollector 进行初始化

AbstractContainerCommunicator tempContainerCollector;

// standalone

tempContainerCollector = new StandAloneJobContainerCommunicator(configuration);

super.setContainerCommunicator(tempContainerCollector);

}

Communication communication = super.getContainerCommunicator().collect();

// 汇报前的状态，不需要手动进行设置

// communication.setState(State.FAILED);

communication.setThrowable(e);

communication.setTimestamp(this.endTimeStamp);

Communication tempComm = new Communication();

tempComm.setTimestamp(this.startTransferTimeStamp);

Communication reportCommunication = CommunicationTool.getReportCommunication(communication, tempComm, this.totalStage);

super.getContainerCommunicator().report(reportCommunication);

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR, e);

} finally {

if(!isDryRun) {

this.destroy();

this.endTimeStamp = System.currentTimeMillis();

if (!hasException) {

//最后打印cpu的平均消耗，GC的统计

VMInfo vmInfo = VMInfo.getVmInfo();

if (vmInfo != null) {

vmInfo.getDelta(false);

LOG.info(vmInfo.totalString());

}

LOG.info(PerfTrace.getInstance().summarizeNoException());

this.logStatistics();

}

Job的初始化过程

init()方法中涉及到根据configuration来初始化reader和writer插件，这里涉及到通过 URLClassLoader实现类加载， jar包热加载以及调用插件init()操作方法，同时设置reader和writer的configuration信息， initJobReader()和initJobWriter()方法差不多，主要就是根据json配置文件获取插件具体的class，然后进行加载class，获取具体的插件对象(write类似)，然后执行插件的init()方法并返回这个插件：

private void init() {

this.jobId = this.configuration.getLong(

CoreConstant.DATAX_CORE_CONTAINER_JOB_ID, -1);

if (this.jobId < 0) {

LOG.info("Set jobId = 0");

this.jobId = 0;

this.configuration.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_ID,

this.jobId);

}

Thread.currentThread().setName("job-" + this.jobId);

JobPluginCollector jobPluginCollector = new DefaultJobPluginCollector(

this.getContainerCommunicator());

//必须先Reader ，后Writer

this.jobReader = this.initJobReader(jobPluginCollector);

this.jobWriter = this.initJobWriter(jobPluginCollector);

}

Job的split过程

spilt()主要做三件事：

adjustChannelNumber() 调整channel个数
doReaderSplit() & doWriterSplit()
mergeReaderAndWriterTaskConfigs

private int split() {

this.adjustChannelNumber();

if (this.needChannelNumber <= 0) {

this.needChannelNumber = 1;

}

System.out.println("**********通道数："+needChannelNumber);

List<Configuration> readerTaskConfigs = this

.doReaderSplit(this.needChannelNumber);

int taskNumber = readerTaskConfigs.size();

System.out.println("**********taskNumber:"+taskNumber);

List<Configuration> writerTaskConfigs = this

.doWriterSplit(taskNumber);

List<Configuration> transformerList = this.configuration.getListConfiguration(CoreConstant.DATAX_JOB_CONTENT_TRANSFORMER);

LOG.debug("transformer configuration: "+ JSON.toJSONString(transformerList));

/**

* 输入是reader和writer的parameter list，输出是content下面元素的list

List<Configuration> contentConfig = mergeReaderAndWriterTaskConfigs(

readerTaskConfigs, writerTaskConfigs, transformerList);

LOG.debug("contentConfig configuration: "+ JSON.toJSONString(contentConfig));

this.configuration.set(CoreConstant.DATAX_JOB_CONTENT, contentConfig);

return contentConfig.size();

}

adjustChannelNumber的过程根据按照字节限流和record限流计算channe l的个数

private void adjustChannelNumber() {

int needChannelNumberByByte = Integer.MAX_VALUE;

int needChannelNumberByRecord = Integer.MAX_VALUE;

boolean isByteLimit = (this.configuration.getInt(

CoreConstant.DATAX_JOB_SETTING_SPEED_BYTE, 0) > 0);

if (isByteLimit) {

long globalLimitedByteSpeed = this.configuration.getInt(

CoreConstant.DATAX_JOB_SETTING_SPEED_BYTE, 10 * 1024 * 1024);

// 在byte流控情况下，单个Channel流量最大值必须设置，否则报错！

Long channelLimitedByteSpeed = this.configuration

.getLong(CoreConstant.DATAX_CORE_TRANSPORT_CHANNEL_SPEED_BYTE);

if (channelLimitedByteSpeed == null || channelLimitedByteSpeed <= 0) {

DataXException.asDataXException(

FrameworkErrorCode.CONFIG_ERROR,

"在有总bps限速条件下，单个channel的bps值不能为空，也不能为非正数");

}

needChannelNumberByByte =

(int) (globalLimitedByteSpeed / channelLimitedByteSpeed);

needChannelNumberByByte =

needChannelNumberByByte > 0 ? needChannelNumberByByte : 1;

LOG.info("Job set Max-Byte-Speed to " + globalLimitedByteSpeed + " bytes.");

}

boolean isRecordLimit = (this.configuration.getInt(

CoreConstant.DATAX_JOB_SETTING_SPEED_RECORD, 0)) > 0;

if (isRecordLimit) {

long globalLimitedRecordSpeed = this.configuration.getInt(

CoreConstant.DATAX_JOB_SETTING_SPEED_RECORD, 100000);

Long channelLimitedRecordSpeed = this.configuration.getLong(

CoreConstant.DATAX_CORE_TRANSPORT_CHANNEL_SPEED_RECORD);

if (channelLimitedRecordSpeed == null || channelLimitedRecordSpeed <= 0) {

DataXException.asDataXException(FrameworkErrorCode.CONFIG_ERROR,

"在有总tps限速条件下，单个channel的tps值不能为空，也不能为非正数");

}

needChannelNumberByRecord =

(int) (globalLimitedRecordSpeed / channelLimitedRecordSpeed);

needChannelNumberByRecord =

needChannelNumberByRecord > 0 ? needChannelNumberByRecord : 1;

LOG.info("Job set Max-Record-Speed to " + globalLimitedRecordSpeed + " records.");

}

// 取较小值

this.needChannelNumber = needChannelNumberByByte < needChannelNumberByRecord ?

needChannelNumberByByte : needChannelNumberByRecord;

// 如果从byte或record上设置了needChannelNumber则退出

if (this.needChannelNumber < Integer.MAX_VALUE) {

return;

}

boolean isChannelLimit = (this.configuration.getInt(

CoreConstant.DATAX_JOB_SETTING_SPEED_CHANNEL, 0) > 0);

if (isChannelLimit) {

this.needChannelNumber = this.configuration.getInt(

CoreConstant.DATAX_JOB_SETTING_SPEED_CHANNEL);

LOG.info("Job set Channel-Number to " + this.needChannelNumber

+ " channels.");

return;

}

throw DataXException.asDataXException(

FrameworkErrorCode.CONFIG_ERROR,

"Job运行速度必须设置");

}

doReaderSplit & doWriterSplit的主要工作就是根据配置加载插件的类和jar包，然后调用插件内部的split()方法根据通道数对插件进行拆分，返回复制的插件配置信息， reader的通道数根据channel数确认，writer的split个数是根据reader的split个数确认的，以保证reader和writer的1：1的个数

private List<Configuration> doReaderSplit(int adviceNumber) {

LOG.info("*********** 传入reader的通道数："+adviceNumber);

classLoaderSwapper.setCurrentThreadClassLoader(LoadUtil.getJarLoader(

PluginType.READER, this.readerPluginName));

List<Configuration> readerSlicesConfigs =

this.jobReader.split(adviceNumber);

if (readerSlicesConfigs == null || readerSlicesConfigs.size() <= 0) {

throw DataXException.asDataXException(

FrameworkErrorCode.PLUGIN_SPLIT_ERROR,

"reader切分的task数目不能小于等于0");

}

LOG.info("DataX Reader.Job [{}] splits to [{}] tasks.",

this.readerPluginName, readerSlicesConfigs.size());

classLoaderSwapper.restoreCurrentThreadClassLoader();

return readerSlicesConfigs;

}

private List<Configuration> doWriterSplit(int readerTaskNumber) {

classLoaderSwapper.setCurrentThreadClassLoader(LoadUtil.getJarLoader(

PluginType.WRITER, this.writerPluginName));

List<Configuration> writerSlicesConfigs = this.jobWriter

.split(readerTaskNumber);

if (writerSlicesConfigs == null || writerSlicesConfigs.size() <= 0) {

throw DataXException.asDataXException(

FrameworkErrorCode.PLUGIN_SPLIT_ERROR,

"writer切分的task不能小于等于0");

}

LOG.info("DataX Writer.Job [{}] splits to [{}] tasks.",

this.writerPluginName, writerSlicesConfigs.size());

classLoaderSwapper.restoreCurrentThreadClassLoader();

return writerSlicesConfigs;

}

mergeReaderAndWriterTaskConfigs 方法生成reader+writer的task 的configuration

private List<Configuration> mergeReaderAndWriterTaskConfigs(

List<Configuration> readerTasksConfigs,

List<Configuration> writerTasksConfigs,

List<Configuration> transformerConfigs) {

if (readerTasksConfigs.size() != writerTasksConfigs.size()) {

throw DataXException.asDataXException(

FrameworkErrorCode.PLUGIN_SPLIT_ERROR,

String.format("reader切分的task数目[%d]不等于writer切分的task数目[%d].",

readerTasksConfigs.size(), writerTasksConfigs.size())

);

}

List<Configuration> contentConfigs = new ArrayList<Configuration>();

for (int i = 0; i < readerTasksConfigs.size(); i++) {

Configuration taskConfig = Configuration.newDefault();

taskConfig.set(CoreConstant.JOB_READER_NAME,

this.readerPluginName);

taskConfig.set(CoreConstant.JOB_READER_PARAMETER,

readerTasksConfigs.get(i));

taskConfig.set(CoreConstant.JOB_WRITER_NAME,

this.writerPluginName);

taskConfig.set(CoreConstant.JOB_WRITER_PARAMETER,

writerTasksConfigs.get(i));

if(transformerConfigs!=null && transformerConfigs.size()>0){

taskConfig.set(CoreConstant.JOB_TRANSFORMER, transformerConfigs);

}

taskConfig.set(CoreConstant.TASK_ID, i);

contentConfigs.add(taskConfig);

}

return contentConfigs;

}

Job的schedule过程

Job的schedule的过程主要做了两件事，分别是分组和启动：

将task拆分成taskGroup，生成List<Configuration> taskGroupConfigs。
启动taskgroup的对象， scheduler.schedule(taskGroupConfigs)。

private void schedule() {

/**

* 这里的全局speed和每个channel的速度设置为B/s

int channelsPerTaskGroup = this.configuration.getInt(

CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL, 5);

int taskNumber = this.configuration.getList(

CoreConstant.DATAX_JOB_CONTENT).size();

this.needChannelNumber = Math.min(this.needChannelNumber, taskNumber);

PerfTrace.getInstance().setChannelNumber(needChannelNumber);

/**

* 通过获取配置信息得到每个taskGroup需要运行哪些tasks任务

List<Configuration> taskGroupConfigs = JobAssignUtil.assignFairly(this.configuration,

this.needChannelNumber, channelsPerTaskGroup);

LOG.info("Scheduler starts [{}] taskGroups.", taskGroupConfigs.size());

ExecuteMode executeMode = null;

AbstractScheduler scheduler;

try {

executeMode = ExecuteMode.STANDALONE;

scheduler = initStandaloneScheduler(this.configuration);

//设置 executeMode

for (Configuration taskGroupConfig : taskGroupConfigs) {

taskGroupConfig.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_MODE, executeMode.getValue());

}

if (executeMode == ExecuteMode.LOCAL || executeMode == ExecuteMode.DISTRIBUTE) {

if (this.jobId <= 0) {

throw DataXException.asDataXException(FrameworkErrorCode.RUNTIME_ERROR,

"在[ local | distribute ]模式下必须设置jobId，并且其值 > 0 .");

}

LOG.info("Running by {} Mode.", executeMode);

this.startTransferTimeStamp = System.currentTimeMillis();

scheduler.schedule(taskGroupConfigs);

this.endTransferTimeStamp = System.currentTimeMillis();

} catch (Exception e) {

LOG.error("运行scheduler 模式[{}]出错.", executeMode);

this.endTransferTimeStamp = System.currentTimeMillis();

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR, e);

}

/**

* 检查任务执行情况

this.checkLimit();

}

先来看看分组，在分组之前，先调整needChannelNumber的值，从上一步split()方法获得的needChannelNumber和task的数量，这两个值取一个小的重新赋值给needChannelNumber。然后进入这个assignFairly()，assignFamily方法主要做了三件事：

确定任务分组号taskGroupNumber，根据task的数量和单个taskGroup支持的task数量进行配置，两者相除就可以得出taskGroup的数量
做分组分配
做分组优化

public static List<Configuration> assignFairly(Configuration configuration, int channelNumber, int channelsPerTaskGroup) {

Validate.isTrue(configuration != null, "框架获得的 Job 不能为 null.");

List<Configuration> contentConfig = configuration.getListConfiguration(CoreConstant.DATAX_JOB_CONTENT);

Validate.isTrue(contentConfig.size() > 0, "框架获得的切分后的 Job 无内容.");

Validate.isTrue(channelNumber > 0 && channelsPerTaskGroup > 0,

"每个channel的平均task数[averTaskPerChannel]，channel数目[channelNumber]，每个taskGroup的平均channel数[channelsPerTaskGroup]都应该为正数");

int taskGroupNumber = (int) Math.ceil(1.0 * channelNumber / channelsPerTaskGroup);

Configuration aTaskConfig = contentConfig.get(0);

String readerResourceMark = aTaskConfig.getString(CoreConstant.JOB_READER_PARAMETER + "." +

CommonConstant.LOAD_BALANCE_RESOURCE_MARK);

String writerResourceMark = aTaskConfig.getString(CoreConstant.JOB_WRITER_PARAMETER + "." +

CommonConstant.LOAD_BALANCE_RESOURCE_MARK);

boolean hasLoadBalanceResourceMark = StringUtils.isNotBlank(readerResourceMark) ||

StringUtils.isNotBlank(writerResourceMark);

if (!hasLoadBalanceResourceMark) {

// fake 一个固定的 key 作为资源标识（在 reader 或者 writer 上均可，此处选择在 reader 上进行 fake）

for (Configuration conf : contentConfig) {

conf.set(CoreConstant.JOB_READER_PARAMETER + "." +

CommonConstant.LOAD_BALANCE_RESOURCE_MARK, "aFakeResourceMarkForLoadBalance");

}

// 是为了避免某些插件没有设置资源标识而进行了一次随机打乱操作

Collections.shuffle(contentConfig, new Random(System.currentTimeMillis()));

}

LinkedHashMap<String, List<Integer>> resourceMarkAndTaskIdMap = parseAndGetResourceMarkAndTaskIdMap(contentConfig);

List<Configuration> taskGroupConfig = doAssign(resourceMarkAndTaskIdMap, configuration, taskGroupNumber);

// 调整每个 taskGroup 对应的 Channel 个数（属于优化范畴）

adjustChannelNumPerTaskGroup(taskGroupConfig, channelNumber);

return taskGroupConfig;

}

doAssign()方法，这个方法主要就是根据传入的resourceMarkAndTaskIdMap和taskGroupNumber来把task分配到taskGroup中去。

private static List<Configuration> doAssign(LinkedHashMap<String, List<Integer>> resourceMarkAndTaskIdMap, Configuration jobConfiguration, int taskGroupNumber) {

List<Configuration> contentConfig = jobConfiguration.getListConfiguration(CoreConstant.DATAX_JOB_CONTENT);

Configuration taskGroupTemplate = jobConfiguration.clone();

taskGroupTemplate.remove(CoreConstant.DATAX_JOB_CONTENT);

List<Configuration> result = new LinkedList<Configuration>();

List<List<Configuration>> taskGroupConfigList = new ArrayList<List<Configuration>>(taskGroupNumber);

for (int i = 0; i < taskGroupNumber; i++) {

taskGroupConfigList.add(new LinkedList<Configuration>());

}

int mapValueMaxLength = -1;

List<String> resourceMarks = new ArrayList<String>();

for (Map.Entry<String, List<Integer>> entry : resourceMarkAndTaskIdMap.entrySet()) {

resourceMarks.add(entry.getKey());

if (entry.getValue().size() > mapValueMaxLength) {

mapValueMaxLength = entry.getValue().size();

}

int taskGroupIndex = 0;

for (int i = 0; i < mapValueMaxLength; i++) {

for (String resourceMark : resourceMarks) {

if (resourceMarkAndTaskIdMap.get(resourceMark).size() > 0) {

int taskId = resourceMarkAndTaskIdMap.get(resourceMark).get(0);

taskGroupConfigList.get(taskGroupIndex % taskGroupNumber).add(contentConfig.get(taskId));

taskGroupIndex++;

resourceMarkAndTaskIdMap.get(resourceMark).remove(0);

}

Configuration tempTaskGroupConfig;

for (int i = 0; i < taskGroupNumber; i++) {

tempTaskGroupConfig = taskGroupTemplate.clone();

tempTaskGroupConfig.set(CoreConstant.DATAX_JOB_CONTENT, taskGroupConfigList.get(i));

tempTaskGroupConfig.set(CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_ID, i);

result.add(tempTaskGroupConfig);

}

return result;

}

assignFairly()中的adjustChannelNumPerTaskGroup()，这个方法主要就是把整除之后多余的余数个task的组多加一个channel，从而使整个分配最优化

private static void adjustChannelNumPerTaskGroup(List<Configuration> taskGroupConfig, int channelNumber) {

int taskGroupNumber = taskGroupConfig.size();

int avgChannelsPerTaskGroup = channelNumber / taskGroupNumber;

int remainderChannelCount = channelNumber % taskGroupNumber;

// 表示有 remainderChannelCount 个 taskGroup,其对应 Channel 个数应该为：avgChannelsPerTaskGroup + 1；

// （taskGroupNumber - remainderChannelCount）个 taskGroup,其对应 Channel 个数应该为：avgChannelsPerTaskGroup

int i = 0;

for (; i < remainderChannelCount; i++) {

taskGroupConfig.get(i).set(CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL, avgChannelsPerTaskGroup + 1);

}

for (int j = 0; j < taskGroupNumber - remainderChannelCount; j++) {

taskGroupConfig.get(i + j).set(CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL, avgChannelsPerTaskGroup);

}

接下来便是taskGroup对象的启动，也就是具体的Task数据抽取代码的启动，通过调用 StandAloneScheduler的schedule()方法，也就是AbstractScheduler.schedule()，而这个方法中最主要的就是调用了startAllTaskGroup(configurations)来启动所有任务组。

public void schedule(List<Configuration> configurations) {

Validate.notNull(configurations,

"scheduler配置不能为空");

int jobReportIntervalInMillSec = configurations.get(0).getInt(

CoreConstant.DATAX_CORE_CONTAINER_JOB_REPORTINTERVAL, 30000);

int jobSleepIntervalInMillSec = configurations.get(0).getInt(

CoreConstant.DATAX_CORE_CONTAINER_JOB_SLEEPINTERVAL, 10000);

this.jobId = configurations.get(0).getLong(

CoreConstant.DATAX_CORE_CONTAINER_JOB_ID);

errorLimit = new ErrorRecordChecker(configurations.get(0));

/**

* 给 taskGroupContainer 的 Communication 注册

this.containerCommunicator.registerCommunication(configurations);

int totalTasks = calculateTaskCount(configurations);

startAllTaskGroup(configurations);

Communication lastJobContainerCommunication = new Communication();

long lastReportTimeStamp = System.currentTimeMillis();

try {

while (true) {

/**

* step 1: collect job stat

* step 2: getReport info, then report it

* step 3: errorLimit do check

* step 4: dealSucceedStat();

* step 5: dealKillingStat();

* step 6: dealFailedStat();

* step 7: refresh last job stat, and then sleep for next while

* above steps, some ones should report info to DS

Communication nowJobContainerCommunication = this.containerCommunicator.collect();

nowJobContainerCommunication.setTimestamp(System.currentTimeMillis());

LOG.debug(nowJobContainerCommunication.toString());

//汇报周期

long now = System.currentTimeMillis();

if (now - lastReportTimeStamp > jobReportIntervalInMillSec) {

Communication reportCommunication = CommunicationTool

.getReportCommunication(nowJobContainerCommunication, lastJobContainerCommunication, totalTasks);

this.containerCommunicator.report(reportCommunication);

lastReportTimeStamp = now;

lastJobContainerCommunication = nowJobContainerCommunication;

}

errorLimit.checkRecordLimit(nowJobContainerCommunication);

if (nowJobContainerCommunication.getState() == State.SUCCEEDED) {

LOG.info("Scheduler accomplished all tasks.");

break;

}

if (isJobKilling(this.getJobId())) {

dealKillingStat(this.containerCommunicator, totalTasks);

} else if (nowJobContainerCommunication.getState() == State.FAILED) {

dealFailedStat(this.containerCommunicator, nowJobContainerCommunication.getThrowable());

}

Thread.sleep(jobSleepIntervalInMillSec);

}

} catch (InterruptedException e) {

// 以 failed 状态退出

LOG.error("捕获到InterruptedException异常!", e);

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR, e);

}

整个框架的核心 startAllTaskGroup(configurations)，用来执行taskGroup中的Task

TaskGroupContainerRunner负责运行TaskGroupContainer执行分配的task；taskGroupContainerExecutorService启动固定的线程池用以执行TaskGroupContainerRunner对象，TaskGroupContainerRunner的run()方法调用taskGroupContainer.start()方法，针对每个channel创建一个TaskExecutor，通过taskExecutor.doStart()启动任务

public void startAllTaskGroup(List<Configuration> configurations) {

//根据taskGroup的大小创建一个固定线程池用以执行TaskGroupContainerRunner对象

this.taskGroupContainerExecutorService = Executors

.newFixedThreadPool(configurations.size());

for (Configuration taskGroupConfiguration : configurations) {

//TaskGroupContainerRunner负责运行TaskGroupContainer执行分配的task

TaskGroupContainerRunner taskGroupContainerRunner = newTaskGroupContainerRunner(taskGroupConfiguration);

this.taskGroupContainerExecutorService.execute(taskGroupContainerRunner);

}

this.taskGroupContainerExecutorService.shutdown();

}

private TaskGroupContainerRunner newTaskGroupContainerRunner(

Configuration configuration) {

TaskGroupContainer taskGroupContainer = new TaskGroupContainer(configuration);

return new TaskGroupContainerRunner(taskGroupContainer);

}

public class TaskGroupContainerRunner implements Runnable {

private TaskGroupContainer taskGroupContainer;

private State state;

public TaskGroupContainerRunner(TaskGroupContainer taskGroup) {

this.taskGroupContainer = taskGroup;

this.state = State.SUCCEEDED;

}

@Override

public void run() {

try {

Thread.currentThread().setName(

String.format("taskGroup-%d", this.taskGroupContainer.getTaskGroupId()));

this.taskGroupContainer.start();

this.state = State.SUCCEEDED;

} catch (Throwable e) {

this.state = State.FAILED;

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR, e);

}

public TaskGroupContainer getTaskGroupContainer() {

return taskGroupContainer;

}

public State getState() {

return state;

}

public void setState(State state) {

this.state = state;

}

可以看到最后线程执行的是 TaskGroupContaine.start()方法，它有两部分工作，首先创建TaskExecutor，生成reader和writer运行的线程，然后执行taskExecutor.doStart()方法调用线程run方法；去启动task的读写。

taskExecutor.doStart()方法调用 this.writerThread.start() 和this.readerThread.start() 也就是调用了插件Writer.Task和Reader.Task开始读写了。

public void start() {

try {

/**

* 状态check时间间隔，较短，可以把任务及时分发到对应channel中

int sleepIntervalInMillSec = this.configuration.getInt(

CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_SLEEPINTERVAL, 100);

/**

* 状态汇报时间间隔，稍长，避免大量汇报

long reportIntervalInMillSec = this.configuration.getLong(

CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_REPORTINTERVAL,

10000);

/**

* 2分钟汇报一次性能统计

// 获取channel数目

int channelNumber = this.configuration.getInt(

CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL);

int taskMaxRetryTimes = this.configuration.getInt(

CoreConstant.DATAX_CORE_CONTAINER_TASK_FAILOVER_MAXRETRYTIMES, 1);

long taskRetryIntervalInMsec = this.configuration.getLong(

CoreConstant.DATAX_CORE_CONTAINER_TASK_FAILOVER_RETRYINTERVALINMSEC, 10000);

long taskMaxWaitInMsec = this.configuration.getLong(CoreConstant.DATAX_CORE_CONTAINER_TASK_FAILOVER_MAXWAITINMSEC, 60000);

List<Configuration> taskConfigs = this.configuration

.getListConfiguration(CoreConstant.DATAX_JOB_CONTENT);

if(LOG.isDebugEnabled()) {

LOG.debug("taskGroup[{}]'s task configs[{}]", this.taskGroupId,

JSON.toJSONString(taskConfigs));

}

int taskCountInThisTaskGroup = taskConfigs.size();

LOG.info(String.format(

"taskGroupId=[%d] start [%d] channels for [%d] tasks.",

this.taskGroupId, channelNumber, taskCountInThisTaskGroup));

this.containerCommunicator.registerCommunication(taskConfigs);

Map<Integer, Configuration> taskConfigMap = buildTaskConfigMap(taskConfigs); //taskId与task配置

List<Configuration> taskQueue = buildRemainTasks(taskConfigs); //待运行task列表

Map<Integer, TaskExecutor> taskFailedExecutorMap = new HashMap<Integer, TaskExecutor>(); //taskId与上次失败实例

List<TaskExecutor> runTasks = new ArrayList<TaskExecutor>(channelNumber); //正在运行task

Map<Integer, Long> taskStartTimeMap = new HashMap<Integer, Long>(); //任务开始时间

long lastReportTimeStamp = 0;

Communication lastTaskGroupContainerCommunication = new Communication();

while (true) {

//1.判断task状态

boolean failedOrKilled = false;

Map<Integer, Communication> communicationMap = containerCommunicator.getCommunicationMap();

for(Map.Entry<Integer, Communication> entry : communicationMap.entrySet()){

Integer taskId = entry.getKey();

Communication taskCommunication = entry.getValue();

if(!taskCommunication.isFinished()){

continue;

}

TaskExecutor taskExecutor = removeTask(runTasks, taskId);

//上面从runTasks里移除了，因此对应在monitor里移除

taskMonitor.removeTask(taskId);

//失败，看task是否支持failover，重试次数未超过最大限制

if(taskCommunication.getState() == State.FAILED){

taskFailedExecutorMap.put(taskId, taskExecutor);

if(taskExecutor.supportFailOver() && taskExecutor.getAttemptCount() < taskMaxRetryTimes){

taskExecutor.shutdown(); //关闭老的executor

containerCommunicator.resetCommunication(taskId); //将task的状态重置

Configuration taskConfig = taskConfigMap.get(taskId);

taskQueue.add(taskConfig); //重新加入任务列表

}else{

failedOrKilled = true;

break;

}

}else if(taskCommunication.getState() == State.KILLED){

failedOrKilled = true;

break;

}else if(taskCommunication.getState() == State.SUCCEEDED){

Long taskStartTime = taskStartTimeMap.get(taskId);

if(taskStartTime != null){

Long usedTime = System.currentTimeMillis() - taskStartTime;

LOG.info("taskGroup[{}] taskId[{}] is successed, used[{}]ms",

this.taskGroupId, taskId, usedTime);

//usedTime*1000*1000 转换成PerfRecord记录的ns，这里主要是简单登记，进行最长任务的打印。因此增加特定静态方法

PerfRecord.addPerfRecord(taskGroupId, taskId, PerfRecord.PHASE.TASK_TOTAL,taskStartTime, usedTime * 1000L * 1000L);

taskStartTimeMap.remove(taskId);

taskConfigMap.remove(taskId);

}

// 2.发现该taskGroup下taskExecutor的总状态失败则汇报错误

if (failedOrKilled) {

lastTaskGroupContainerCommunication = reportTaskGroupCommunication(

lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

throw DataXException.asDataXException(

FrameworkErrorCode.PLUGIN_RUNTIME_ERROR, lastTaskGroupContainerCommunication.getThrowable());

}

//3.有任务未执行，且正在运行的任务数小于最大通道限制

Iterator<Configuration> iterator = taskQueue.iterator();

while(iterator.hasNext() && runTasks.size() < channelNumber){

Configuration taskConfig = iterator.next();

Integer taskId = taskConfig.getInt(CoreConstant.TASK_ID);

int attemptCount = 1;

TaskExecutor lastExecutor = taskFailedExecutorMap.get(taskId);

if(lastExecutor!=null){

attemptCount = lastExecutor.getAttemptCount() + 1;

long now = System.currentTimeMillis();

long failedTime = lastExecutor.getTimeStamp();

if(now - failedTime < taskRetryIntervalInMsec){ //未到等待时间，继续留在队列

continue;

}

if(!lastExecutor.isShutdown()){ //上次失败的task仍未结束

if(now - failedTime > taskMaxWaitInMsec){

markCommunicationFailed(taskId);

reportTaskGroupCommunication(lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

throw DataXException.asDataXException(CommonErrorCode.WAIT_TIME_EXCEED, "task failover等待超时");

}else{

lastExecutor.shutdown(); //再次尝试关闭

continue;

}

}else{

LOG.info("taskGroup[{}] taskId[{}] attemptCount[{}] has already shutdown",

this.taskGroupId, taskId, lastExecutor.getAttemptCount());

}

Configuration taskConfigForRun = taskMaxRetryTimes > 1 ? taskConfig.clone() : taskConfig;

TaskExecutor taskExecutor = new TaskExecutor(taskConfigForRun, attemptCount);

taskStartTimeMap.put(taskId, System.currentTimeMillis());

taskExecutor.doStart();

iterator.remove();

runTasks.add(taskExecutor);

//上面，增加task到runTasks列表，因此在monitor里注册。

taskMonitor.registerTask(taskId, this.containerCommunicator.getCommunication(taskId));

taskFailedExecutorMap.remove(taskId);

LOG.info("taskGroup[{}] taskId[{}] attemptCount[{}] is started",

this.taskGroupId, taskId, attemptCount);

}

//4.任务列表为空，executor已结束, 搜集状态为success--->成功

if (taskQueue.isEmpty() && isAllTaskDone(runTasks) && containerCommunicator.collectState() == State.SUCCEEDED) {

// 成功的情况下，也需要汇报一次。否则在任务结束非常快的情况下，采集的信息将会不准确

lastTaskGroupContainerCommunication = reportTaskGroupCommunication(

lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

LOG.info("taskGroup[{}] completed it's tasks.", this.taskGroupId);

break;

}

// 5.如果当前时间已经超出汇报时间的interval，那么我们需要马上汇报

long now = System.currentTimeMillis();

if (now - lastReportTimeStamp > reportIntervalInMillSec) {

lastTaskGroupContainerCommunication = reportTaskGroupCommunication(

lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

lastReportTimeStamp = now;

//taskMonitor对于正在运行的task，每reportIntervalInMillSec进行检查

for(TaskExecutor taskExecutor:runTasks){

taskMonitor.report(taskExecutor.getTaskId(),this.containerCommunicator.getCommunication(taskExecutor.getTaskId()));

}

Thread.sleep(sleepIntervalInMillSec);

}

//6.最后还要汇报一次

reportTaskGroupCommunication(lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

} catch (Throwable e) {

Communication nowTaskGroupContainerCommunication = this.containerCommunicator.collect();

if (nowTaskGroupContainerCommunication.getThrowable() == null) {

nowTaskGroupContainerCommunication.setThrowable(e);

}

nowTaskGroupContainerCommunication.setState(State.FAILED);

this.containerCommunicator.report(nowTaskGroupContainerCommunication);

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR, e);

}finally {

if(!PerfTrace.getInstance().isJob()){

//最后打印cpu的平均消耗，GC的统计

VMInfo vmInfo = VMInfo.getVmInfo();

if (vmInfo != null) {

vmInfo.getDelta(false);

LOG.info(vmInfo.totalString());

}

LOG.info(PerfTrace.getInstance().summarizeNoException());

}

TaskExecutor

class TaskExecutor {

private Configuration taskConfig;

private int taskId;

private int attemptCount;

private Channel channel;

private Thread readerThread;

private Thread writerThread;

private ReaderRunner readerRunner;

private WriterRunner writerRunner;

/**

* 该处的taskCommunication在多处用到：

* 1. channel

* 2. readerRunner和writerRunner

* 3. reader和writer的taskPluginCollector

private Communication taskCommunication;

public TaskExecutor(Configuration taskConf, int attemptCount) {

// 获取该taskExecutor的配置

this.taskConfig = taskConf;

Validate.isTrue(null != this.taskConfig.getConfiguration(CoreConstant.JOB_READER)

&& null != this.taskConfig.getConfiguration(CoreConstant.JOB_WRITER),

"[reader|writer]的插件参数不能为空!");

// 得到taskId

this.taskId = this.taskConfig.getInt(CoreConstant.TASK_ID);

this.attemptCount = attemptCount;

/**

* 由taskId得到该taskExecutor的Communication

* 要传给readerRunner和writerRunner，同时要传给channel作统计用

this.taskCommunication = containerCommunicator

.getCommunication(taskId);

Validate.notNull(this.taskCommunication,

String.format("taskId[%d]的Communication没有注册过", taskId));

this.channel = ClassUtil.instantiate(channelClazz,

Channel.class, configuration);

this.channel.setCommunication(this.taskCommunication);

/**

* 获取transformer的参数

List<TransformerExecution> transformerInfoExecs = TransformerUtil.buildTransformerInfo(taskConfig);

/**

* 生成writerThread

writerRunner = (WriterRunner) generateRunner(PluginType.WRITER);

this.writerThread = new Thread(writerRunner,

String.format("%d-%d-%d-writer",

jobId, taskGroupId, this.taskId));

//通过设置thread的contextClassLoader，即可实现同步和主程序不通的加载器

this.writerThread.setContextClassLoader(LoadUtil.getJarLoader(

PluginType.WRITER, this.taskConfig.getString(

CoreConstant.JOB_WRITER_NAME)));

/**

* 生成readerThread

readerRunner = (ReaderRunner) generateRunner(PluginType.READER,transformerInfoExecs);

this.readerThread = new Thread(readerRunner,

String.format("%d-%d-%d-reader",

jobId, taskGroupId, this.taskId));

/**

* 通过设置thread的contextClassLoader，即可实现同步和主程序不通的加载器

this.readerThread.setContextClassLoader(LoadUtil.getJarLoader(

PluginType.READER, this.taskConfig.getString(

CoreConstant.JOB_READER_NAME)));

}

public void doStart() {

this.writerThread.start();

// reader没有起来，writer不可能结束

if (!this.writerThread.isAlive() || this.taskCommunication.getState() == State.FAILED) {

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR,

this.taskCommunication.getThrowable());

}

this.readerThread.start();

// 这里reader可能很快结束

if (!this.readerThread.isAlive() && this.taskCommunication.getState() == State.FAILED) {

// 这里有可能出现Reader线上启动即挂情况对于这类情况需要立刻抛出异常

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR,

this.taskCommunication.getThrowable());

}

ReaderRunner

public class ReaderRunner extends AbstractRunner implements Runnable {

private static final Logger LOG = LoggerFactory

.getLogger(ReaderRunner.class);

private RecordSender recordSender;

public void setRecordSender(RecordSender recordSender) {

this.recordSender = recordSender;

}

public ReaderRunner(AbstractTaskPlugin abstractTaskPlugin) {

super(abstractTaskPlugin);

}

@Override

public void run() {

assert null != this.recordSender;

Reader.Task taskReader = (Reader.Task) this.getPlugin();

//统计waitWriterTime，并且在finally才end。

PerfRecord channelWaitWrite = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WAIT_WRITE_TIME);

try {

channelWaitWrite.start();

LOG.debug("task reader starts to do init ...");

PerfRecord initPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_INIT);

initPerfRecord.start();

taskReader.init();

initPerfRecord.end();

LOG.debug("task reader starts to do prepare ...");

PerfRecord preparePerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_PREPARE);

preparePerfRecord.start();

taskReader.prepare();

preparePerfRecord.end();

LOG.debug("task reader starts to read ...");

PerfRecord dataPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_DATA);

dataPerfRecord.start();

taskReader.startRead(recordSender);

recordSender.terminate();

dataPerfRecord.addCount(CommunicationTool.getTotalReadRecords(super.getRunnerCommunication()));

dataPerfRecord.addSize(CommunicationTool.getTotalReadBytes(super.getRunnerCommunication()));

dataPerfRecord.end();

LOG.debug("task reader starts to do post ...");

PerfRecord postPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_POST);

postPerfRecord.start();

taskReader.post();

postPerfRecord.end();

// automatic flush

// super.markSuccess(); 这里不能标记为成功，成功的标志由 writerRunner 来标志（否则可能导致 reader 先结束，而 writer 还没有结束的严重 bug）

} catch (Throwable e) {

LOG.error("Reader runner Received Exceptions:", e);

super.markFail(e);

} finally {

LOG.debug("task reader starts to do destroy ...");

PerfRecord desPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_DESTROY);

desPerfRecord.start();

super.destroy();

desPerfRecord.end();

channelWaitWrite.end(super.getRunnerCommunication().getLongCounter(CommunicationTool.WAIT_WRITER_TIME));

long transformerUsedTime = super.getRunnerCommunication().getLongCounter(CommunicationTool.TRANSFORMER_USED_TIME);

if (transformerUsedTime > 0) {

PerfRecord transformerRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.TRANSFORMER_TIME);

transformerRecord.start();

transformerRecord.end(transformerUsedTime);

}

public void shutdown(){

recordSender.shutdown();

}

WriterRunner

public class WriterRunner extends AbstractRunner implements Runnable {

private static final Logger LOG = LoggerFactory

.getLogger(WriterRunner.class);

private RecordReceiver recordReceiver;

public void setRecordReceiver(RecordReceiver receiver) {

this.recordReceiver = receiver;

}

public WriterRunner(AbstractTaskPlugin abstractTaskPlugin) {

super(abstractTaskPlugin);

}

@Override

public void run() {

Validate.isTrue(this.recordReceiver != null);

Writer.Task taskWriter = (Writer.Task) this.getPlugin();

//统计waitReadTime，并且在finally end

PerfRecord channelWaitRead = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WAIT_READ_TIME);

try {

channelWaitRead.start();

LOG.debug("task writer starts to do init ...");

PerfRecord initPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_INIT);

initPerfRecord.start();

taskWriter.init();

initPerfRecord.end();

LOG.debug("task writer starts to do prepare ...");

PerfRecord preparePerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_PREPARE);

preparePerfRecord.start();

taskWriter.prepare();

preparePerfRecord.end();

LOG.debug("task writer starts to write ...");

PerfRecord dataPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_DATA);

dataPerfRecord.start();

taskWriter.startWrite(recordReceiver);

dataPerfRecord.addCount(CommunicationTool.getTotalReadRecords(super.getRunnerCommunication()));

dataPerfRecord.addSize(CommunicationTool.getTotalReadBytes(super.getRunnerCommunication()));

dataPerfRecord.end();

LOG.debug("task writer starts to do post ...");

PerfRecord postPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_POST);

postPerfRecord.start();

taskWriter.post();

postPerfRecord.end();

super.markSuccess();

} catch (Throwable e) {

LOG.error("Writer Runner Received Exceptions:", e);

super.markFail(e);

} finally {

LOG.debug("task writer starts to do destroy ...");

PerfRecord desPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_DESTROY);

desPerfRecord.start();

super.destroy();

desPerfRecord.end();

channelWaitRead.end(super.getRunnerCommunication().getLongCounter(CommunicationTool.WAIT_READER_TIME));

}

public boolean supportFailOver(){

Writer.Task taskWriter = (Writer.Task) this.getPlugin();

return taskWriter.supportFailOver();

}

public void shutdown(){

recordReceiver.shutdown();

}

5、DataX的数据传输

Reader插件和Writer插件之间也是通过channel来实现数据的传输的。channel可以是内存的，也可能是持久化的，插件不必关心。插件通过 RecordSender往channel写入数据，通过 RecordReceiver从channel读取数据。channel中的一条数据为一个 Record的对象，Record中可以放多个Column对象，这可以简单理解为数据库中的记录和列。主要是对column的操作和对占用内存的记录。

public class DefaultRecord implements Record {

private static final int RECORD_AVERGAE_COLUMN_NUMBER = 16;

private List<Column> columns;

private int byteSize;

// 首先是Record本身需要的内存

private int memorySize = ClassSize.DefaultRecordHead; //这个东西看似在这里没啥用，实际上是作为往channel里面写数据时候的重入锁的其中一个condition的计算条件

public DefaultRecord() {

this.columns = new ArrayList<Column>(RECORD_AVERGAE_COLUMN_NUMBER);

}

@Override

public void addColumn(Column column) {

columns.add(column);

incrByteSize(column);

}

@Override

public Column getColumn(int i) {

if (i < 0 || i >= columns.size()) {

return null;

}

return columns.get(i);

}

@Override

public void setColumn(int i, final Column column) {

if (i < 0) {

throw DataXException.asDataXException(FrameworkErrorCode.ARGUMENT_ERROR,

"不能给index小于0的column设置值");

}

if (i >= columns.size()) {

expandCapacity(i + 1);

}

decrByteSize(getColumn(i));

this.columns.set(i, column);

incrByteSize(getColumn(i));

}

@Override

public String toString() {

Map<String, Object> json = new HashMap<String, Object>();

json.put("size", this.getColumnNumber());

json.put("data", this.columns);

return JSON.toJSONString(json);

}

@Override

public int getColumnNumber() {

return this.columns.size();

}

@Override

public int getByteSize() {

return byteSize;

}

public int getMemorySize(){

return memorySize;

}

private void decrByteSize(final Column column) {

if (null == column) {

return;

}

byteSize -= column.getByteSize();

//内存的占用是column对象的头再加实际大小

memorySize = memorySize - ClassSize.ColumnHead - column.getByteSize();

}

private void incrByteSize(final Column column) {

if (null == column) {

return;

}

byteSize += column.getByteSize();

//内存的占用是column对象的头再加实际大小

memorySize = memorySize + ClassSize.ColumnHead + column.getByteSize();

}

private void expandCapacity(int totalSize) {

if (totalSize <= 0) {

return;

}

int needToExpand = totalSize - columns.size();

while (needToExpand-- > 0) {

this.columns.add(null);

}

数据与channel的交互是通过调用 generateRunner方法生成ReaderRunner和writerRunner开始的。

private AbstractRunner generateRunner(PluginType pluginType, List<TransformerExecution> transformerInfoExecs) {

AbstractRunner newRunner = null;

TaskPluginCollector pluginCollector;

switch (pluginType) {

case READER:

newRunner = LoadUtil.loadPluginRunner(pluginType,

this.taskConfig.getString(CoreConstant.JOB_READER_NAME));

newRunner.setJobConf(this.taskConfig.getConfiguration(

CoreConstant.JOB_READER_PARAMETER));

pluginCollector = ClassUtil.instantiate(

taskCollectorClass, AbstractTaskPluginCollector.class,

configuration, this.taskCommunication,

PluginType.READER);

RecordSender recordSender;

if (transformerInfoExecs != null && transformerInfoExecs.size() > 0) {

recordSender = new BufferedRecordTransformerExchanger(taskGroupId, this.taskId, this.channel,this.taskCommunication ,pluginCollector, transformerInfoExecs);

} else {

recordSender = new BufferedRecordExchanger(this.channel, pluginCollector);

}

//将数据与线程绑定

((ReaderRunner) newRunner).setRecordSender(recordSender);

/**

* 设置taskPlugin的collector，用来处理脏数据和job/task通信

newRunner.setTaskPluginCollector(pluginCollector);

break;

case WRITER:

newRunner = LoadUtil.loadPluginRunner(pluginType,

this.taskConfig.getString(CoreConstant.JOB_WRITER_NAME));

newRunner.setJobConf(this.taskConfig

.getConfiguration(CoreConstant.JOB_WRITER_PARAMETER));

pluginCollector = ClassUtil.instantiate(

taskCollectorClass, AbstractTaskPluginCollector.class,

configuration, this.taskCommunication,

PluginType.WRITER);

//将reader写入channel的数据与线程绑定

((WriterRunner) newRunner).setRecordReceiver(new BufferedRecordExchanger(

this.channel, pluginCollector));

/**

* 设置taskPlugin的collector，用来处理脏数据和job/task通信

newRunner.setTaskPluginCollector(pluginCollector);

break;

default:

throw DataXException.asDataXException(FrameworkErrorCode.ARGUMENT_ERROR, "Cant generateRunner for:" + pluginType);

}

newRunner.setTaskGroupId(taskGroupId);

newRunner.setTaskId(this.taskId);

newRunner.setRunnerCommunication(this.taskCommunication);

return newRunner;

}

reader与channel交互

reader与channel的数据交互是通过BufferdRecordExchanher类来实现的

public class BufferedRecordExchanger implements RecordSender, RecordReceiver {

private final Channel channel;

private final Configuration configuration;

private final List<Record> buffer; //用来缓存数据，批量提交，通过buffersize来控制批量提交个数

private int bufferSize ;

protected final int byteCapacity;

private final AtomicInteger memoryBytes = new AtomicInteger(0);

private final AtomicInteger dirtyDataNum = new AtomicInteger(0); //脏数据数量

private final AtomicInteger totalDataNum = new AtomicInteger(0); //总数量

private int bufferIndex = 0;

private static Class<? extends Record> RECORD_CLASS;

private volatile boolean shutdown = false;

private final TaskPluginCollector pluginCollector;

@Override

public AtomicInteger getDirtyDataNum(){

return dirtyDataNum;

}

@Override

public AtomicInteger getTotalDataNum() {

return totalDataNum;

}

@SuppressWarnings("unchecked")

public BufferedRecordExchanger(final Channel channel, final TaskPluginCollector pluginCollector) {

assert null != channel;

assert null != channel.getConfiguration();

this.channel = channel;

this.pluginCollector = pluginCollector;

this.configuration = channel.getConfiguration();

this.bufferSize = configuration

.getInt(CoreConstant.DATAX_CORE_TRANSPORT_EXCHANGER_BUFFERSIZE);

this.buffer = new ArrayList<Record>(bufferSize);

//channel的queue默认大小为8M，原来为64M

this.byteCapacity = configuration.getInt(

CoreConstant.DATAX_CORE_TRANSPORT_CHANNEL_CAPACITY_BYTE, 8 * 1024 * 1024);

try {

BufferedRecordExchanger.RECORD_CLASS = ((Class<? extends Record>) Class

.forName(configuration.getString(

CoreConstant.DATAX_CORE_TRANSPORT_RECORD_CLASS,

"com.alibaba.datax.core.transport.record.DefaultRecord")));

} catch (Exception e) {

throw DataXException.asDataXException(

FrameworkErrorCode.CONFIG_ERROR, e);

}

@Override

public Record createRecord() {

try {

return BufferedRecordExchanger.RECORD_CLASS.newInstance();

} catch (Exception e) {

throw DataXException.asDataXException(

FrameworkErrorCode.CONFIG_ERROR, e);

}

@Override

//在reader的task.startRead方法中被调用，用来往channel中写数据

public void sendToWriter(Record record) {

if(shutdown){

throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");

}

Validate.notNull(record, "record不能为空.");

if (record.getMemorySize() > this.byteCapacity) {

this.pluginCollector.collectDirtyRecord(record, new Exception(String.format("单条记录超过大小限制，当前限制为:%s", this.byteCapacity)));

return;

}

boolean isFull = (this.bufferIndex >= this.bufferSize || this.memoryBytes.get() + record.getMemorySize() > this.byteCapacity);

if (isFull) {

flush();

}

this.buffer.add(record);

this.bufferIndex++;

memoryBytes.addAndGet(record.getMemorySize());

}

@Override

public void flush() {

if(shutdown){

throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");

}

this.channel.pushAll(this.buffer);

this.buffer.clear();

this.bufferIndex = 0;

this.memoryBytes.set(0);

}

@Override

public void terminate() {

if(shutdown){

throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");

}

flush();

this.channel.pushTerminate(TerminateRecord.get());

}

@Override

public Record getFromReader() {

if(shutdown){

throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");

}

boolean isEmpty = (this.bufferIndex >= this.buffer.size());

if (isEmpty) {

receive();

}

Record record = this.buffer.get(this.bufferIndex++);

if (record instanceof TerminateRecord) {

record = null;

}

return record;

}

@Override

public void shutdown(){

shutdown = true;

try{

buffer.clear();

channel.clear();

}catch(Throwable t){

t.printStackTrace();

}

private void receive() {

this.channel.pullAll(this.buffer);

this.bufferIndex = 0;

this.bufferSize = this.buffer.size();

}

下面我们以mysqlReader为例看看在startReader方法中如何与channel交互

public void startRead(RecordSender recordSender) {

int fetchSize = this.readerSliceConfig.getInt(Constant.FETCH_SIZE);

this.commonRdbmsReaderTask.startRead(this.readerSliceConfig, recordSender,

super.getTaskPluginCollector(), fetchSize);

}

public void startRead(Configuration readerSliceConfig,

RecordSender recordSender,

TaskPluginCollector taskPluginCollector, int fetchSize) {

String querySql = readerSliceConfig.getString(Key.QUERY_SQL);

String table = readerSliceConfig.getString(Key.TABLE);

PerfTrace.getInstance().addTaskDetails(taskId, table + "," + basicMsg);

LOG.info("Begin to read record by Sql: [{}\n] {}.",

querySql, basicMsg);

PerfRecord queryPerfRecord = new PerfRecord(taskGroupId,taskId, PerfRecord.PHASE.SQL_QUERY);

queryPerfRecord.start();

Connection conn = DBUtil.getConnection(this.dataBaseType, jdbcUrl,

username, password);

// session config .etc related

DBUtil.dealWithSessionConfig(conn, readerSliceConfig,

this.dataBaseType, basicMsg);

int columnNumber = 0;

ResultSet rs = null;

try {

rs = DBUtil.query(conn, querySql, fetchSize);

queryPerfRecord.end();

ResultSetMetaData metaData = rs.getMetaData();

columnNumber = metaData.getColumnCount();

//这个统计干净的result_Next时间

PerfRecord allResultPerfRecord = new PerfRecord(taskGroupId, taskId, PerfRecord.PHASE.RESULT_NEXT_ALL);

allResultPerfRecord.start();

long rsNextUsedTime = 0;

long lastTime = System.nanoTime();

while (rs.next()) {

rsNextUsedTime += (System.nanoTime() - lastTime);

this.transportOneRecord(recordSender, rs,

metaData, columnNumber, mandatoryEncoding, taskPluginCollector);

lastTime = System.nanoTime();

}

allResultPerfRecord.end(rsNextUsedTime);

//目前大盘是依赖这个打印，而之前这个Finish read record是包含了sql查询和result next的全部时间

LOG.info("Finished read record by Sql: [{}\n] {}.",

querySql, basicMsg);

}catch (Exception e) {

throw RdbmsException.asQueryException(this.dataBaseType, e, querySql, table, username);

} finally {

DBUtil.closeDBResources(null, conn);

}

protected Record transportOneRecord(RecordSender recordSender, ResultSet rs,

ResultSetMetaData metaData, int columnNumber, String mandatoryEncoding,

TaskPluginCollector taskPluginCollector) {

Record record = buildRecord(recordSender,rs,metaData,columnNumber,mandatoryEncoding,taskPluginCollector);

recordSender.sendToWriter(record);

return record;

}

至此我们发现，reader与channel的交互是通过sendtoWriter方法来实现的，而此方法最后调用了抽象类 Channel的pushAll(this.buffer)方法，将数据push到channel的队列中，至此reader和channel的交互就完成了，意味着取数据的时候就是将队列中的数据pull出来。

public void pushAll(final Collection<Record> rs) {

Validate.notNull(rs);

Validate.noNullElements(rs);

this.doPushAll(rs);

this.statPush(rs.size(), this.getByteSize(rs));

}

@Override

//一个是重入锁，一个是数组实现的有界阻塞线程安全队列（为什么使用有界阻塞队列并且加上重入锁具体原理再说）

private ArrayBlockingQueue<Record> queue = null;

private ReentrantLock lock;

protected void doPushAll(Collection<Record> rs) {

try {

long startTime = System.nanoTime();

lock.lockInterruptibly();

int bytes = getRecordBytes(rs);

while (memoryBytes.get() + bytes > this.byteCapacity || rs.size() > this.queue.remainingCapacity()) {

notInsufficient.await(200L, TimeUnit.MILLISECONDS);

}

this.queue.addAll(rs);

waitWriterTime += System.nanoTime() - startTime;

memoryBytes.addAndGet(bytes);

notEmpty.signalAll();

} catch (InterruptedException e) {

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR, e);

} finally {

lock.unlock();

}

private void statPush(long recordSize, long byteSize) {

currentCommunication.increaseCounter(CommunicationTool.READ_SUCCEED_RECORDS,

recordSize);

currentCommunication.increaseCounter(CommunicationTool.READ_SUCCEED_BYTES,

byteSize);

//在读的时候进行统计waitCounter即可，因为写（pull）的时候可能正在阻塞，但读的时候已经能读到这个阻塞的counter数

currentCommunication.setLongCounter(CommunicationTool.WAIT_READER_TIME, waitReaderTime);

currentCommunication.setLongCounter(CommunicationTool.WAIT_WRITER_TIME, waitWriterTime);

boolean isChannelByteSpeedLimit = (this.byteSpeed > 0);

boolean isChannelRecordSpeedLimit = (this.recordSpeed > 0);

if (!isChannelByteSpeedLimit && !isChannelRecordSpeedLimit) {

return;

}

long lastTimestamp = lastCommunication.getTimestamp();

long nowTimestamp = System.currentTimeMillis();

long interval = nowTimestamp - lastTimestamp;

if (interval - this.flowControlInterval >= 0) {

long byteLimitSleepTime = 0;

long recordLimitSleepTime = 0;

//channel的限流操作

if (isChannelByteSpeedLimit) {

long currentByteSpeed = (CommunicationTool.getTotalReadBytes(currentCommunication) -

CommunicationTool.getTotalReadBytes(lastCommunication)) * 1000 / interval;

if (currentByteSpeed > this.byteSpeed) {

// 计算根据byteLimit得到的休眠时间

byteLimitSleepTime = currentByteSpeed * interval / this.byteSpeed

- interval;

}

if (isChannelRecordSpeedLimit) {

long currentRecordSpeed = (CommunicationTool.getTotalReadRecords(currentCommunication) -

CommunicationTool.getTotalReadRecords(lastCommunication)) * 1000 / interval;

if (currentRecordSpeed > this.recordSpeed) {

// 计算根据recordLimit得到的休眠时间

recordLimitSleepTime = currentRecordSpeed * interval / this.recordSpeed

- interval;

}

// 休眠时间取较大值

long sleepTime = byteLimitSleepTime < recordLimitSleepTime ?

recordLimitSleepTime : byteLimitSleepTime;

if (sleepTime > 0) {

try {

Thread.sleep(sleepTime);

} catch (InterruptedException e) {

Thread.currentThread().interrupt();

}

lastCommunication.setLongCounter(CommunicationTool.READ_SUCCEED_BYTES,

currentCommunication.getLongCounter(CommunicationTool.READ_SUCCEED_BYTES));

lastCommunication.setLongCounter(CommunicationTool.READ_FAILED_BYTES,

currentCommunication.getLongCounter(CommunicationTool.READ_FAILED_BYTES));

lastCommunication.setLongCounter(CommunicationTool.READ_SUCCEED_RECORDS,

currentCommunication.getLongCounter(CommunicationTool.READ_SUCCEED_RECORDS));

lastCommunication.setLongCounter(CommunicationTool.READ_FAILED_RECORDS,

currentCommunication.getLongCounter(CommunicationTool.READ_FAILED_RECORDS));

lastCommunication.setTimestamp(nowTimestamp);

}

writer与channel交互

reader将数据写入channel的ArrayBlockingQueue队列中，那么writer是如何取到channel中的数据的呢？有个很巧妙的设计TaskExecutor将task执行线程通过channel成员变量和channel绑定到一起， BufferedRecordExchanger， BufferedRecordExchanger 实现了 RecordSender, RecordReceiver，

class TaskExecutor {

private Configuration taskConfig;

private int taskId;

private int attemptCount;

private Channel channel; //绑定channel

private Thread readerThread;

private Thread writerThread;

private ReaderRunner readerRunner;

private WriterRunner writerRunner;

/**

* 该处的taskCommunication在多处用到：

* 1. channel

* 2. readerRunner和writerRunner

* 3. reader和writer的taskPluginCollector

private Communication taskCommunication;

public TaskExecutor(Configuration taskConf, int attemptCount) {

// 获取该taskExecutor的配置

this.taskConfig = taskConf;

Validate.isTrue(null != this.taskConfig.getConfiguration(CoreConstant.JOB_READER)

&& null != this.taskConfig.getConfiguration(CoreConstant.JOB_WRITER),

"[reader|writer]的插件参数不能为空!");

// 得到taskId

this.taskId = this.taskConfig.getInt(CoreConstant.TASK_ID);

this.attemptCount = attemptCount;

/**

* 由taskId得到该taskExecutor的Communication

* 要传给readerRunner和writerRunner，同时要传给channel作统计用

this.taskCommunication = containerCommunicator

.getCommunication(taskId);

Validate.notNull(this.taskCommunication,

String.format("taskId[%d]的Communication没有注册过", taskId));

this.channel = ClassUtil.instantiate(channelClazz,

Channel.class, configuration);

this.channel.setCommunication(this.taskCommunication);

/**

* 获取transformer的参数

List<TransformerExecution> transformerInfoExecs = TransformerUtil.buildTransformerInfo(taskConfig);

/**

* 生成writerThread

writerRunner = (WriterRunner) generateRunner(PluginType.WRITER);

this.writerThread = new Thread(writerRunner,

String.format("%d-%d-%d-writer",

jobId, taskGroupId, this.taskId));

//通过设置thread的contextClassLoader，即可实现同步和主程序不通的加载器

this.writerThread.setContextClassLoader(LoadUtil.getJarLoader(

PluginType.WRITER, this.taskConfig.getString(

CoreConstant.JOB_WRITER_NAME)));

/**

* 生成readerThread

readerRunner = (ReaderRunner) generateRunner(PluginType.READER,transformerInfoExecs);

this.readerThread = new Thread(readerRunner,

String.format("%d-%d-%d-reader",

jobId, taskGroupId, this.taskId));

/**

* 通过设置thread的contextClassLoader，即可实现同步和主程序不通的加载器

this.readerThread.setContextClassLoader(LoadUtil.getJarLoader(

PluginType.READER, this.taskConfig.getString(

CoreConstant.JOB_READER_NAME)));

}

public void doStart() {

this.writerThread.start();

// reader没有起来，writer不可能结束

if (!this.writerThread.isAlive() || this.taskCommunication.getState() == State.FAILED) {

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR,

this.taskCommunication.getThrowable());

}

this.readerThread.start();

// 这里reader可能很快结束

if (!this.readerThread.isAlive() && this.taskCommunication.getState() == State.FAILED) {

// 这里有可能出现Reader线上启动即挂情况对于这类情况需要立刻抛出异常

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR,

this.taskCommunication.getThrowable());

}

private AbstractRunner generateRunner(PluginType pluginType) {

return generateRunner(pluginType, null);

}

private AbstractRunner generateRunner(PluginType pluginType, List<TransformerExecution> transformerInfoExecs) {

AbstractRunner newRunner = null;

TaskPluginCollector pluginCollector;

switch (pluginType) {

case READER:

newRunner = LoadUtil.loadPluginRunner(pluginType,

this.taskConfig.getString(CoreConstant.JOB_READER_NAME));

newRunner.setJobConf(this.taskConfig.getConfiguration(

CoreConstant.JOB_READER_PARAMETER));

pluginCollector = ClassUtil.instantiate(

taskCollectorClass, AbstractTaskPluginCollector.class,

configuration, this.taskCommunication,

PluginType.READER);

RecordSender recordSender;

if (transformerInfoExecs != null && transformerInfoExecs.size() > 0) {

recordSender = new BufferedRecordTransformerExchanger(taskGroupId, this.taskId, this.channel,this.taskCommunication ,pluginCollector, transformerInfoExecs);

} else {

recordSender = new BufferedRecordExchanger(this.channel, pluginCollector);

}

((ReaderRunner) newRunner).setRecordSender(recordSender);

/**

* 设置taskPlugin的collector，用来处理脏数据和job/task通信

newRunner.setTaskPluginCollector(pluginCollector);

break;

case WRITER:

newRunner = LoadUtil.loadPluginRunner(pluginType,

this.taskConfig.getString(CoreConstant.JOB_WRITER_NAME));

newRunner.setJobConf(this.taskConfig

.getConfiguration(CoreConstant.JOB_WRITER_PARAMETER));

pluginCollector = ClassUtil.instantiate(

taskCollectorClass, AbstractTaskPluginCollector.class,

configuration, this.taskCommunication,

PluginType.WRITER);

//将reader写过数据的channel与writerRunner绑定

((WriterRunner) newRunner).setRecordReceiver(new BufferedRecordExchanger(

this.channel, pluginCollector));

/**

* 设置taskPlugin的collector，用来处理脏数据和job/task通信

newRunner.setTaskPluginCollector(pluginCollector);

break;

default:

throw DataXException.asDataXException(FrameworkErrorCode.ARGUMENT_ERROR, "Cant generateRunner for:" + pluginType);

}

newRunner.setTaskGroupId(taskGroupId);

newRunner.setTaskId(this.taskId);

newRunner.setRunnerCommunication(this.taskCommunication);

return newRunner;

}

// 检查任务是否结束

private boolean isTaskFinished() {

// 如果reader 或 writer没有完成工作，那么直接返回工作没有完成

if (readerThread.isAlive() || writerThread.isAlive()) {

return false;

}

if(taskCommunication==null || !taskCommunication.isFinished()){

return false;

}

return true;

}

private int getTaskId(){

return taskId;

}

private long getTimeStamp(){

return taskCommunication.getTimestamp();

}

private int getAttemptCount(){

return attemptCount;

}

private boolean supportFailOver(){

return writerRunner.supportFailOver();

}

private void shutdown(){

writerRunner.shutdown();

readerRunner.shutdown();

if(writerThread.isAlive()){

writerThread.interrupt();

}

if(readerThread.isAlive()){

readerThread.interrupt();

}

private boolean isShutdown(){

return !readerThread.isAlive() && !writerThread.isAlive();

}

以janusGrpahWriter为例子，看数据如何取出，查看WriterRunner的run方法，终止会盗用writer的startWriter(lineReceiver)方法，发现是调用了lineReceiver.getFromReader()方法来获取数据，最终调用channel的 pullAll方法获取reader对象push到队列中的数据；

public Record getFromReader() {

if(shutdown){

throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");

}

boolean isEmpty = (this.bufferIndex >= this.buffer.size());

if (isEmpty) {

receive();

}

Record record = this.buffer.get(this.bufferIndex++);

if (record instanceof TerminateRecord) {

record = null;

}

return record;

}

private void receive() {

this.channel.pullAll(this.buffer);

this.bufferIndex = 0;

this.bufferSize = this.buffer.size();

}

public void pullAll(final Collection<Record> rs) {

Validate.notNull(rs);

this.doPullAll(rs);

this.statPull(rs.size(), this.getByteSize(rs));

}

@Override

protected void doPullAll(Collection<Record> rs) {

assert rs != null;

rs.clear();

try {

long startTime = System.nanoTime();

lock.lockInterruptibly();

while (this.queue.drainTo(rs, bufferSize) <= 0) {

notEmpty.await(200L, TimeUnit.MILLISECONDS);

}

waitReaderTime += System.nanoTime() - startTime;

int bytes = getRecordBytes(rs);

memoryBytes.addAndGet(-bytes);

notInsufficient.signalAll();

} catch (InterruptedException e) {

throw DataXException.asDataXException(

FrameworkErrorCode.RUNTIME_ERROR, e);

} finally {

lock.unlock();

}

至此，整个DataX运行的大概流程全部完成。

插件开发

整个datax执行流程清楚之后基本插件的开发就没有太大的难度了，大概工作就是重写 Reader.startRead()和 Writer.startWriter()方法，基本都是与业务相关的逻辑，此处不再赘述，开发流程见阿里Datax插件开发文档，演示见janusGraphWriter或elasticsearchWriter插件代码。

来源：https://my.oschina.net/zhouwang93/blog/3111933

标签

datax

源码交易

string
