我只讲讲检测部分的模型，后面两样性分类的试验我没有做，这篇论文采用了很多肺结节检测论文都采用的u-net结构，准确地说是具有DPN结构的3D版本的u-net，直接上图。

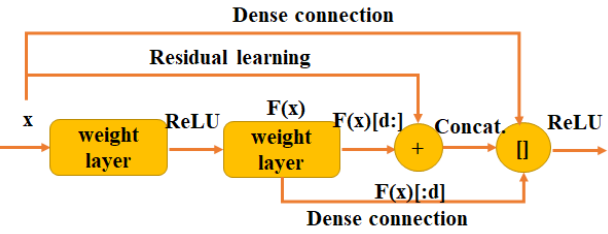

DPN是颜水成老师团队的成果，简单讲就是dense 与 residual的结合，如上图，输入特征图一部分通过residual与输出相加，另一部分与residual的结果再串联，个人觉得这个网络好乱，不简洁的网络都不是好网络，恰好文章中还给出了只采用residual的版本，所以我其实要讲的是这个只有residual的u-net，上图。
可以看到，输入是96*96*96的立方体，里面包含标记的结节，经过24个3*3*3的卷积核，通道数变为24，然后经过4个stage，尺寸缩减为1/16，接下来是分辨率放大阶段，采用反卷积实现，连续两个阶段都是反卷积后与低层特征串联，然后经过两个卷积操作，通道数变为15，图示中以3*5显示，是为了更清楚地表明，最后输出的proposal中，每个位置有三个，分别采用三种尺寸，设置的三个anchor尺寸是[5,10,20]，每个位置预测z，y，x，d，p分别是结节的三维坐标以及直径，置信度。
下面看一下源码，采用pytorch框架。
首先是residual block的设计，位于layers.py文件
class PostRes(nn.Module):
def __init__(self, n_in, n_out, stride = 1):
super(PostRes, self).__init__()
self.conv1 = nn.Conv3d(n_in, n_out, kernel_size = 3, stride = stride, padding = 1)
self.bn1 = nn.BatchNorm3d(n_out)
self.relu = nn.ReLU(inplace = True)
self.conv2 = nn.Conv3d(n_out, n_out, kernel_size = 3, padding = 1)
self.bn2 = nn.BatchNorm3d(n_out)
if stride != 1 or n_out != n_in:
self.shortcut = nn.Sequential(
nn.Conv3d(n_in, n_out, kernel_size = 1, stride = stride),
nn.BatchNorm3d(n_out))
else:
self.shortcut = None
def forward(self, x):
residual = x
if self.shortcut is not None:
residual = self.shortcut(x)
out = self.conv1(x)
out = self.bn1(out)
out = self.relu(out)
out = self.conv2(out)
out = self.bn2(out)
out += residual
out = self.relu(out)
return out可以看到采用结构与2D的residual基本一致，采用的都是conv-bn-relu，根据步长和输入输出的尺寸，采用identity或1*1卷积作为skip connection。
然后就是网络，位于res18.py文件
class Net(nn.Module):
def __init__(self):
super(Net, self).__init__()
# The first few layers consumes the most memory, so use simple convolution to save memory.
# Call these layers preBlock, i.e., before the residual blocks of later layers.
self.preBlock = nn.Sequential(
nn.Conv3d(1, 24, kernel_size = 3, padding = 1),
nn.BatchNorm3d(24),
nn.ReLU(inplace = True),
nn.Conv3d(24, 24, kernel_size = 3, padding = 1),
nn.BatchNorm3d(24),
nn.ReLU(inplace = True))
# 3 poolings, each pooling downsamples the feature map by a factor 2.
# 3 groups of blocks. The first block of each group has one pooling.
num_blocks_forw = [2,2,3,3]
num_blocks_back = [3,3] self.featureNum_forw = [24,32,64,64,64]
self.featureNum_back = [128,64,64]
for i in range(len(num_blocks_forw)):
blocks = []
for j in range(num_blocks_forw[i]):
if j == 0:
blocks.append(PostRes(self.featureNum_forw[i], self.featureNum_forw[i+1]))
else:
blocks.append(PostRes(self.featureNum_forw[i+1], self.featureNum_forw[i+1]))
setattr(self, 'forw' + str(i + 1), nn.Sequential(*blocks))
for i in range(len(num_blocks_back)):
blocks = []
for j in range(num_blocks_back[i]):
if j == 0:
if i==0:
addition = 3
else:
addition = 0
blocks.append(PostRes(self.featureNum_back[i+1]+self.featureNum_forw[i+2]+addition, self.featureNum_back[i]))
else:
blocks.append(PostRes(self.featureNum_back[i], self.featureNum_back[i]))
setattr(self, 'back' + str(i + 2), nn.Sequential(*blocks))
self.maxpool1 = nn.MaxPool3d(kernel_size=2,stride=2,return_indices =True)
self.maxpool2 = nn.MaxPool3d(kernel_size=2,stride=2,return_indices =True)
self.maxpool3 = nn.MaxPool3d(kernel_size=2,stride=2,return_indices =True)
self.maxpool4 = nn.MaxPool3d(kernel_size=2,stride=2,return_indices =True)
self.unmaxpool1 = nn.MaxUnpool3d(kernel_size=2,stride=2)
self.unmaxpool2 = nn.MaxUnpool3d(kernel_size=2,stride=2)
self.path1 = nn.Sequential(
nn.ConvTranspose3d(64, 64, kernel_size = 2, stride = 2),
nn.BatchNorm3d(64),
nn.ReLU(inplace = True))
self.path2 = nn.Sequential(
nn.ConvTranspose3d(64, 64, kernel_size = 2, stride = 2),
nn.BatchNorm3d(64*k),
nn.ReLU(inplace = True))
self.drop = nn.Dropout3d(p = 0.5, inplace = False)
self.output = nn.Sequential(nn.Conv3d(self.featureNum_back[0], 64, kernel_size = 1),
nn.ReLU(),
#nn.Dropout3d(p = 0.3),
nn.Conv3d(64, 5 * len(config['anchors']), kernel_size = 1))
def forward(self, x, coord):
out = self.preBlock(x)#16
out_pool,indices0 = self.maxpool1(out)
out1 = self.forw1(out_pool)#32
out1_pool,indices1 = self.maxpool2(out1)
out2 = self.forw2(out1_pool)#64
#out2 = self.drop(out2)
out2_pool,indices2 = self.maxpool3(out2)
out3 = self.forw3(out2_pool)#64
out3_pool,indices3 = self.maxpool4(out3)
out4 = self.forw4(out3_pool)#64
#out4 = self.drop(out4)
rev3 = self.path1(out4)
comb3 = self.back3(torch.cat((rev3, out3), 1))#64+64
#comb3 = self.drop(comb3)
rev2 = self.path2(comb3)
comb2 = self.back2(torch.cat((rev2, out2,coord), 1))#128
comb2 = self.drop(comb2)
out = self.output(comb2)
size = out.size()
out = out.view(out.size(0), out.size(1), -1)
#out = out.transpose(1, 4).transpose(1, 2).transpose(2, 3).contiguous()
out = out.transpose(1, 2).contiguous().view(size[0], size[2], size[3], size[4], len(config['anchors']), 5)
#out = out.view(-1, 5)
return out看代码的时候有个地方比较绕，就是forw模块和back模块的迭代实现，个人觉得还不如直接一个模块一个模块地写出来，虽然多点代码，但比较清晰。还有就是path模块，其实就是反卷积模块。
网络结构就是这些，其实难点在loss的定义，以及标签的映射，下面来看一下loss的定义，标签映射以及数据增强部分待到（中）（下）部再讲。
loss的定义采用的也是pytorch网络的定义，位于layers.py文件。
上代码。
class Loss(nn.Module):
def __init__(self, num_hard = 0):
super(Loss, self).__init__()
self.sigmoid = nn.Sigmoid()
self.classify_loss = nn.BCELoss() #二分类交叉熵损失
self.regress_loss = nn.SmoothL1Loss() #平滑L1损失
self.num_hard = num_hard #hardming 数目
def forward(self, output, labels, train = True):
batch_size = labels.size(0) #标签的第0维度，样本数
output = output.view(-1, 5) #将输出维度调整，以anchor为第二维度
labels = labels.view(-1, 5) #将标签维度对应调整,同上
pos_idcs = labels[:, 0] > 0.5 #对标签进行筛选，输出为索引，示例[1,2,5]
pos_idcs = pos_idcs.unsqueeze(1).expand(pos_idcs.size(0), 5) #对索引维度扩展，重复5次，示例[[1,1,1,1,1],[2,2,2,2,2],[5,5,5,5,5]]
pos_output = output[pos_idcs].view(-1, 5) #筛选出与正标签对应的输出
pos_labels = labels[pos_idcs].view(-1, 5) #筛选出正标签
neg_idcs = labels[:, 0] < -0.5 #同上，筛选负标签索引，此处为负值
neg_output = output[:, 0][neg_idcs] #注意，此处与上面不同，负标签只考虑置信度即可，因为位置及直径不计入损失，没有意义
neg_labels = labels[:, 0][neg_idcs]
if self.num_hard > 0 and train:#判断是否定义了，hardmining
neg_output, neg_labels = hard_mining(neg_output, neg_labels, self.num_hard * batch_size) #只选择置信度较高的负样本作计算，对于易于分类的负样本，都是虾兵蟹将，不足虑
neg_prob = self.sigmoid(neg_output)#对负样本输出进行sigmoid处理，生成0~1之间的值，符合置信度的范围，可能大家要问输出不就是0~1吗，这里网络最后没有用sigmoid激活函数，所以最后输出应该是没有范围的，
#这里我也比较不解，直接在网络中加入sigmoid不就行了
#classify_loss = self.classify_loss(
# torch.cat((pos_prob, neg_prob), 0),
# torch.cat((pos_labels[:, 0], neg_labels + 1), 0))
if len(pos_output)>0:
pos_prob = self.sigmoid(pos_output[:, 0]) #对正样本进行sigmoid处理
pz, ph, pw, pd = pos_output[:, 1], pos_output[:, 2], pos_output[:, 3], pos_output[:, 4] #依次输出z,h,w,d以便与标签结合求损失
lz, lh, lw, ld = pos_labels[:, 1], pos_labels[:, 2], pos_labels[:, 3], pos_labels[:, 4] #依次输出z,h,w,d以便与输出结合求损失
regress_losses = [ #回归损失
self.regress_loss(pz, lz),
self.regress_loss(ph, lh),
self.regress_loss(pw, lw),
self.regress_loss(pd, ld)]
regress_losses_data = [l.data[0] for l in regress_losses]
classify_loss = 0.5 * self.classify_loss( #对正样本和负样本分别求分类损失
pos_prob, pos_labels[:, 0]) + 0.5 * self.classify_loss(
neg_prob, neg_labels + 1)
pos_correct = (pos_prob.data >= 0.5).sum() #那些输出确实大于0.5的正样本是正确预测的正样本
pos_total = len(pos_prob) #正样本总数
else: #如果没有正标签，由于负标签又不用计算回归损失，于是回归损失就置零了，分类损失只计算负标签的分类损失
regress_losses = [0,0,0,0]
classify_loss = 0.5 * self.classify_loss(
neg_prob, neg_labels + 1)
pos_correct = 0 #此时没有正样本或正标签
pos_total = 0 #总数也为0
regress_losses_data = [0,0,0,0]
classify_loss_data = classify_loss.data[0]
#loss = classify_loss#pytorch 0.4
loss = classify_loss.clone()
for regress_loss in regress_losses: #将回归损失与分类损失相加，求出总损失（标量）
loss += regress_loss
neg_correct = (neg_prob.data < 0.5).sum() #那些输出确实低于0.5的负样本是正确预测的负样本
neg_total = len(neg_prob) #负样本总数
return [loss, classify_loss_data] + regress_losses_data + [pos_correct, pos_total, neg_correct, neg_total]对于损失的解释都在代码旁边的注释了，只是有一点不大明白，求负样本损失的时候为何要把置信度加1？，应该是负标签在打标签的时候置为-1了，由此又想到一个问题，那些既非正也非负的样本的置信度是如何设置的，应该不是随机设置的，难道设为0了？
