Shadertoy学习笔记（四）飘落的花瓣

首先画一个圆

#define S(a,b,t) smoothstep(a,b,t)

void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
    // Normalized pixel coordinates (from 0 to 1)
    vec2 uv = (fragCoord.xy - .5*iResolution.xy)/iResolution.y;
    vec3 col = vec3(0.);
    float d = length(uv);
    float c = S(.3,.28,d);
    col = vec3(c);

    fragColor = vec4(col,1.);
}

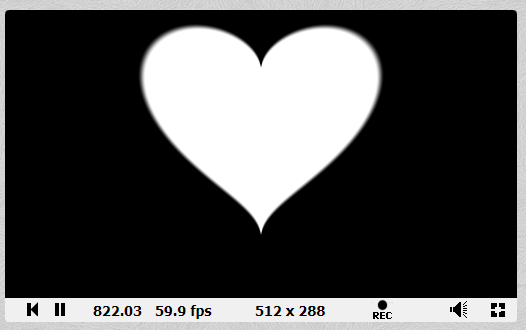

心形

   uv.x*=.7;
    uv.y -= sqrt(abs(uv.x))*.5;

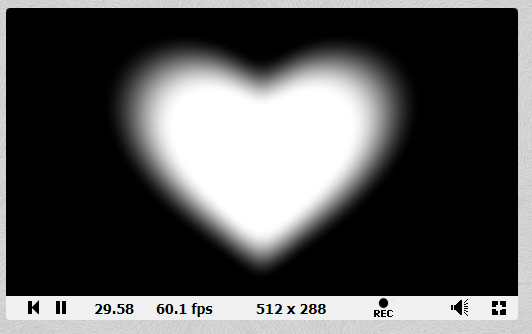

增加模糊

#define S(a,b,t) smoothstep(a,b,t)

float smax(float a,float b,float k)
{
    float h = clamp((b-a)/k+.5,0.,1.);
    return mix(a,b,h)+h*(1.-h)*k*.5;
}



void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
    // Normalized pixel coordinates (from 0 to 1)
    vec2 uv = (fragCoord.xy - .5*iResolution.xy)/iResolution.y;
    vec2 m = iMouse.xy/iResolution.xy;

    float r = .3;
    float b = m.y*r;

    uv.x*=.7;
    uv.y -= smax(sqrt(abs(uv.x))*.5,b,.1);
    uv.y += .1+b*.5;
    vec3 col = vec3(0.);
    float d = length(uv);

    float c = S(r+b,r-b,d);
    col = vec3(c);

    fragColor = vec4(col,1.);
}
