SpringMVC第一天
一、理解什么是SpringMVC
视图解析器:选择结果应该如何渲染

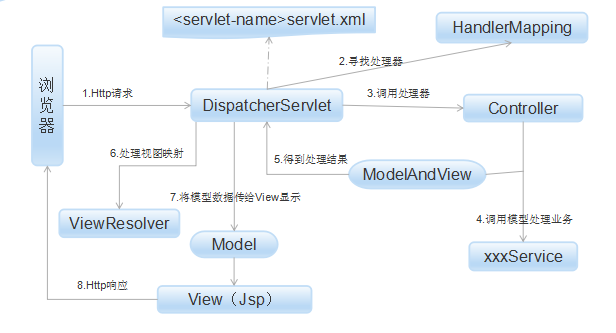

二、SpringMVC运行原理
(1) Http请求:客户端请求提交到DispatcherServlet。
(2) 寻找处理器:由DispatcherServlet控制器查询一个或多个HandlerMapping,找到处理请求的Controller。
(3) 调用处理器:DispatcherServlet将请求提交到Controller。
(4)(5)调用业务处理和返回结果:Controller调用业务逻辑处理后,返回ModelAndView。
(6)(7)处理视图映射并返回模型: DispatcherServlet查询一个或多个ViewResoler视图解析器,找到ModelAndView指定的视图。
(8) Http响应:视图负责将结果显示到客户端。
三、SpringMVC接口解释
(1)DispatcherServlet接口:
Spring提供的前端控制器,所有的请求都有经过它来统一分发。在DispatcherServlet将请求分发给Spring Controller之前,需要借助于Spring提供的HandlerMapping定位到具体的Controller。
(2)HandlerMapping接口:
能够完成客户请求到Controller映射。
(3)Controller接口:
需要为并发用户处理上述请求,因此实现Controller接口时,必须保证线程安全并且可重用。
Controller将处理用户请求,这和Struts Action扮演的角色是一致的。一旦Controller处理完用户请求,则返回ModelAndView对象给DispatcherServlet前端控制器,ModelAndView中包含了模型(Model)和视图(View)。
从宏观角度考虑,DispatcherServlet是整个Web应用的控制器;从微观考虑,Controller是单个Http请求处理过程中的控制器,而ModelAndView是Http请求过程中返回的模型(Model)和视图(View)。
(4)ViewResolver接口:
Spring提供的视图解析器(ViewResolver)在Web应用中查找View对象,从而将相应结果渲染给客户。
四、DispatcherServlet:
是整个Spring MVC的核心。它负责接收HTTP请求组织协调Spring MVC的各个组成部分。其主要工作有以下三项:
(1)截获符合特定格式的URL请求。
(2)初始化DispatcherServlet上下文对应WebApplicationContext,并将其与业务层、持久化层的WebApplicationContext建立关联。
(3)初始化Spring MVC的各个组成组件,并装配到DispatcherServlet中。
以上转载自https://blog.csdn.net/jianyuerensheng/article/details/51258942
五、简单例子(快速入门)

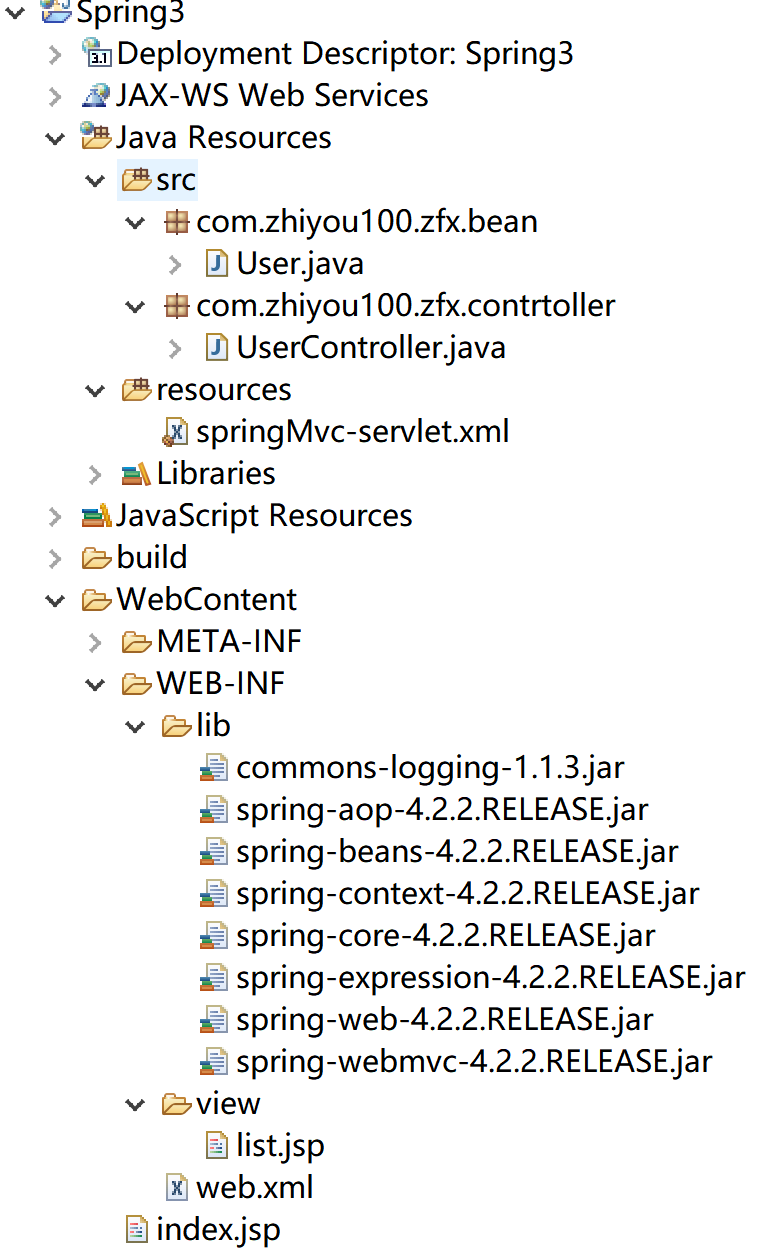

1)首先建立项目
2)导入所需的jar包
如上图所示,将jar包放入工程目录的lib文件夹下。
3)在web.xml文件中进行配置
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1"> <display-name>Spring3</display-name> <welcome-file-list> <welcome-file>index.html</welcome-file> <welcome-file>index.htm</welcome-file> <welcome-file>index.jsp</welcome-file> <welcome-file>default.html</welcome-file> <welcome-file>default.htm</welcome-file> <welcome-file>default.jsp</welcome-file> </welcome-file-list> <filter> <filter-name>encodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!-- The front controller of this Spring Web application, responsible for handling all application requests --> <servlet> <servlet-name>springDispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:springMvc-servlet.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <!-- Map all requests to the DispatcherServlet for handling --> <servlet-mapping> <servlet-name>springDispatcherServlet</servlet-name> <url-pattern>*.do</url-pattern> </servlet-mapping> </web-app>
4)配置springMvc-servlet.xml文件
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd"> <!-- 包扫描 --> <context:component-scan base-package="com.zhiyou100.zfx.contrtoller"/> <!-- 开启注解驱动 --> <mvc:annotation-driven/> <!-- 视图解析器 --> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/view/"/> <property name="suffix" value=".jsp"/> </bean> </beans>
注意:路径写完之后要检验,检验方法是按住CTRL键不放,用鼠标来点击路径,出现了超链接形式才算正确
5)编写代码
User.java
package com.zhiyou100.zfx.bean; public class User { private String uname; private String password; private String sex; private int age; private String address; private String phone; public String getUname() { return uname; } public void setUname(String uname) { this.uname = uname; } public String getPassword() { return password; } public void setPassword(String password) { this.password = password; } public String getSex() { return sex; } public void setSex(String sex) { this.sex = sex; } public int getAge() { return age; } public void setAge(int age) { this.age = age; } public String getAddress() { return address; } public void setAddress(String address) { this.address = address; } public String getPhone() { return phone; } public void setPhone(String phone) { this.phone = phone; } @Override public String toString() { return "User [uname=" + uname + ", password=" + password + ", sex=" + sex + ", age=" + age + ", address=" + address + ", phone=" + phone + "]"; } }
UserController.java
package com.zhiyou100.zfx.contrtoller; import org.springframework.stereotype.Controller; import org.springframework.web.bind.annotation.RequestMapping; import com.zhiyou100.zfx.bean.User; @Controller @RequestMapping("/user/") public class UserController { @RequestMapping("list.do") public String list(String name) { //参数名一定要和请求名相同 System.out.println("name:"+name); return "list"; } @RequestMapping("list2.do") public String list2(User user) { //请求参数名一定要和实体类中的属性名相同 System.out.println(user); return "list"; } }
list.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> list页面 </body> </html>
index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <a href="user/list.do?name=zs">连接到list.do</a> <form action="user/list2.do" method="post"> 姓名:<input type="text" name="uname" /><br> 密码:<input type="text" name="password" /><br> 性别:<input type="text" name="sex" /><br> 年龄:<input type="text" name="age" /><br> 地址:<input type="text" name="address" /><br> 手机:<input type="text" name="phone" /><br> <input type="submit" value="提交" /> </form> </body> </html>
