UI5-学习篇-8-本地SAP WEB IDE开发

狂风中的少年 提交于 2021-02-13 07:33:12

1.本地SAP WEB IDE下载

 UI5-学习篇-3-Local SAP WEB IDE下载

2.启动Orion服务

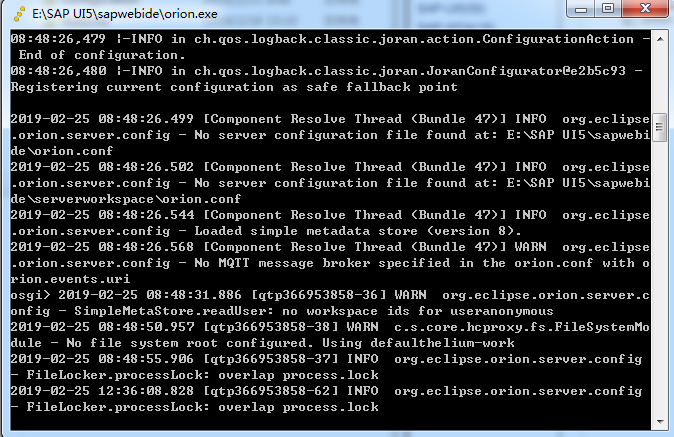

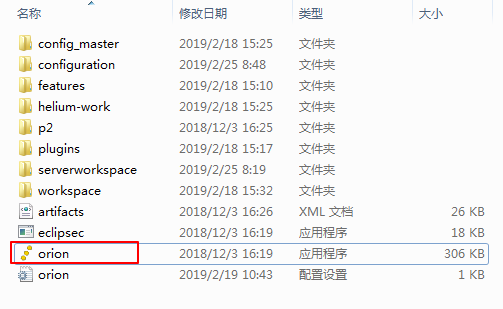

 解压SAP WEB IDE文件后,双击Orion应用程序启动服务,如下图:





 服务启动完成后,打开如下路径,进入SAP WEB IDE开发平台:

 http://localhost:8080/webide/index.html

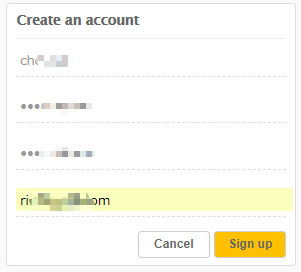

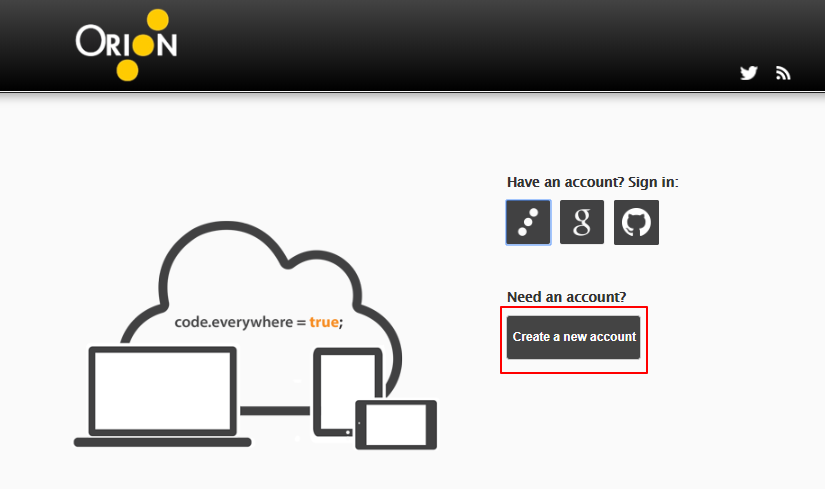

3.创建账号并登录





 账号创建成功后登录





 进入开发平台:







4.UI5开发实例

 4.1创建项目

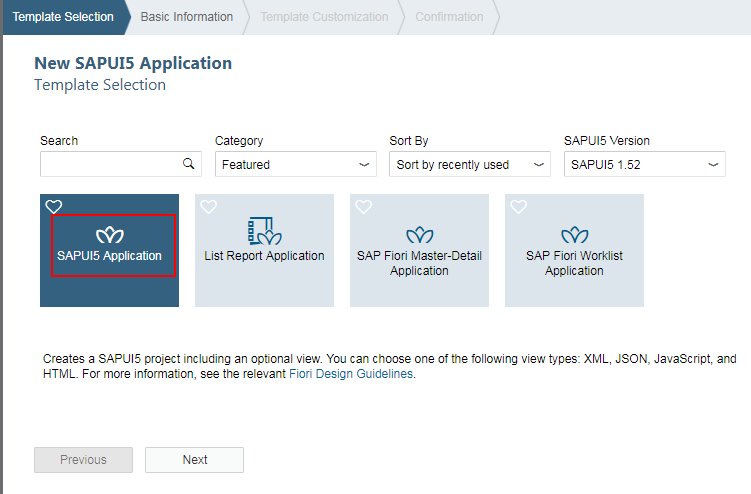

  如上图所示:选择 New Project from Template

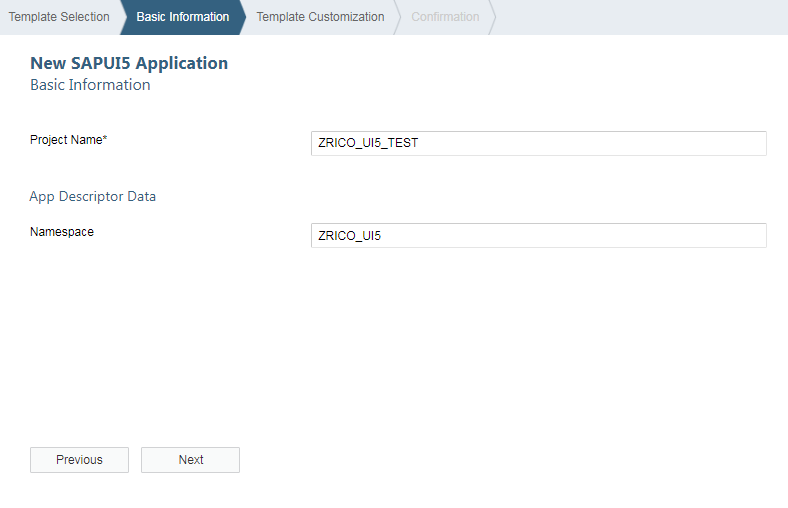

  项目名称及命名空间

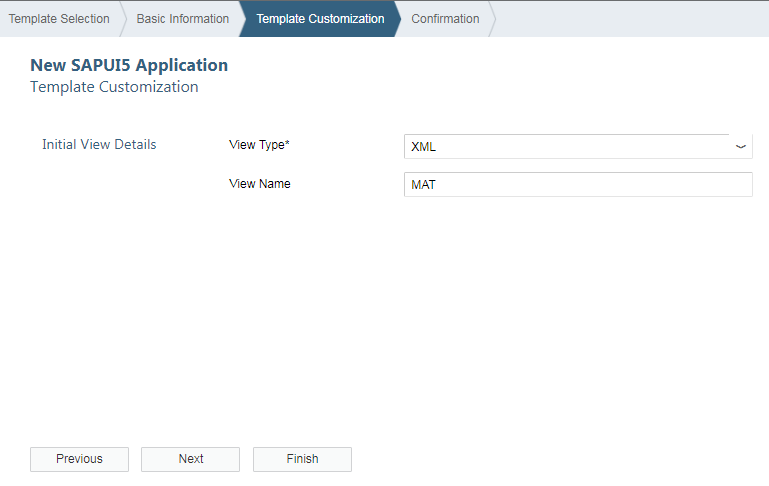

  视图名及类型





  项目创建完成。



 4.2配置数据源

  在SAP WEB IDE安装目录下:\config_master\service.destinations\destinations

  创建没有后缀名的文件,如下图所示:



  文件中配置如下参数(注意替换URL路径及User,Password):

 1 #
 2 #Tue Feb 19 08:34:23 UTC 2019
 3 Description=GMD HANA
 4 Type=HTTP
 5 Authentication=BasicAuthentication
 6 WebIDEUsage=odata_abap,dev_abap,ui5_execute_abap
 7 Name=GMD
 8 WebIDEEnabled=true
 9 CloudConnectorLocationId=evun-rico
10 URL=http://gmd.xxxxx.com:8000
11 ProxyType=Internet
12 sap-client=300
13 WebIDESystem=GMD
14 User=chenrk
15 Password=XXXXX

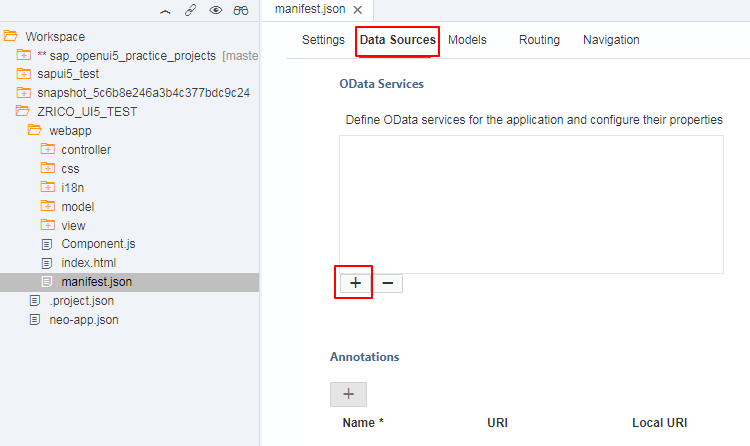

  文件保存后退出,然后重启WEB IDE平台,打开manifest.json配置数据源,进入Data Sources页面,增加Odata services

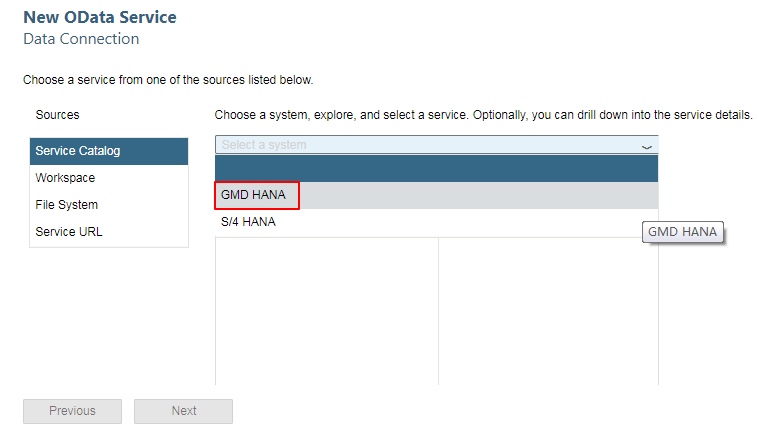

  选择上一步已经配置好的Destination,例如 GMD HANA,如下图:

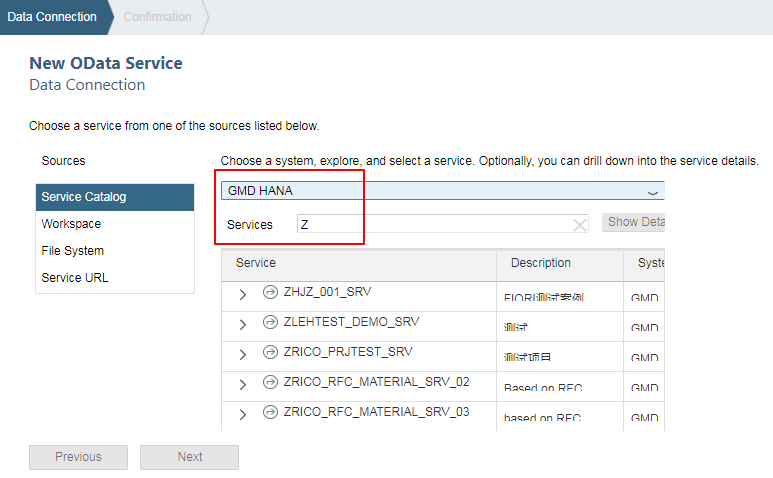

  Services输入前缀字符Z,下面目录会自动带出SAP后台已创建的OData服务

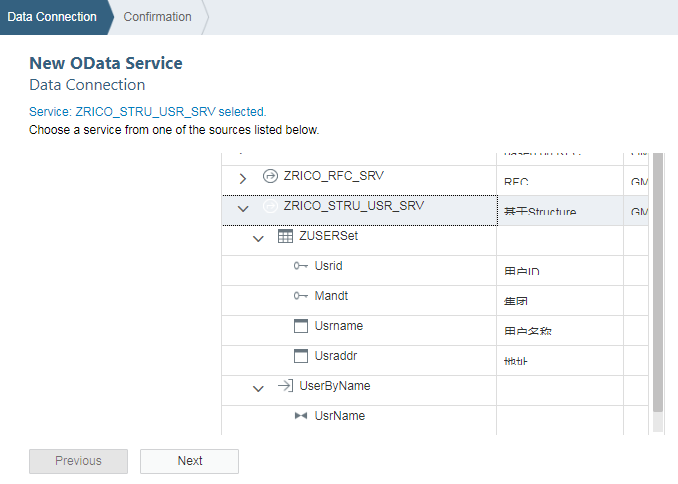

  选择对应的服务,可以看到服务下面的实体集合以及对应的字段名,例如:服务ZRICO_STRU_USR_SRV集合ZUSERSet,然后继续Next

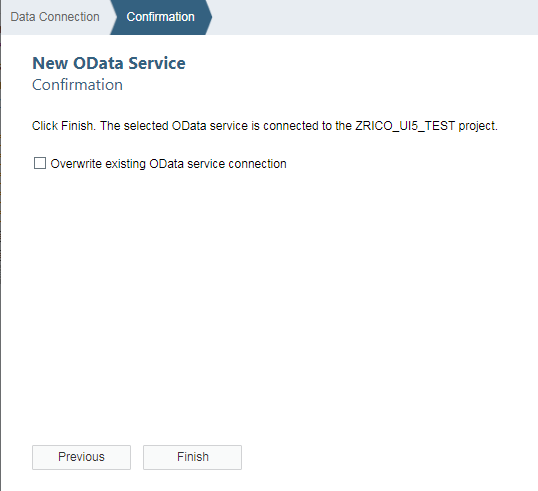

  最后Finish完成,如下图:

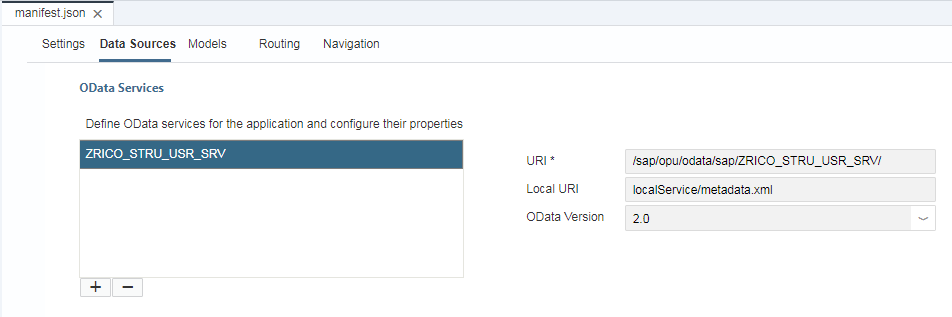

  完成后会自动生成本地元数据XML文件,并显示URL,Local URI,OData Version



 4.3配置MODEL

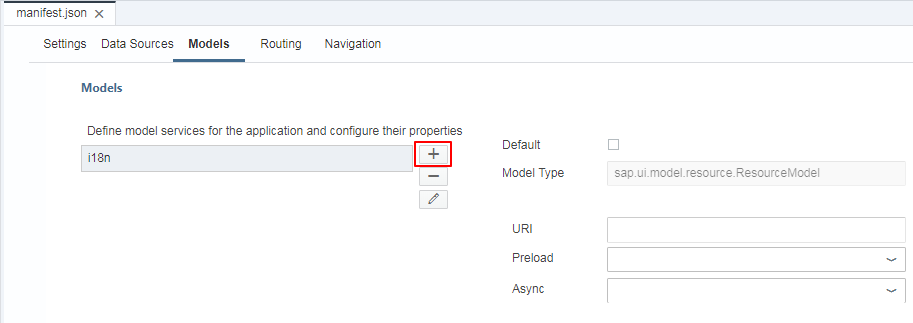

  上一步创建了数据源,这里根据数据源配置对应的数据Model,打开manifest.json文件,显示Models标签页,如下图:

  点击+符号,添加Models

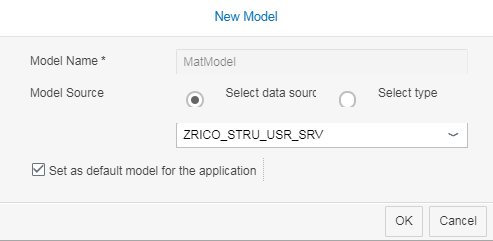

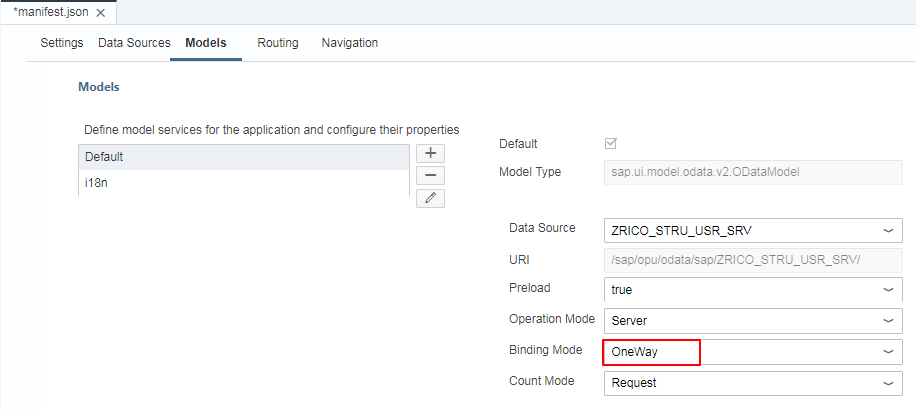

  选择已配置的数据源ZRICO_STRU_USR_SRV,设置为默认Model,如下图:



   确认后可以看到Model对应的相关参数,注意数据绑定模式Binding Mode



  完成后Ctrl+S进行保存,Model配置完成。

 4.4View视图界面设计

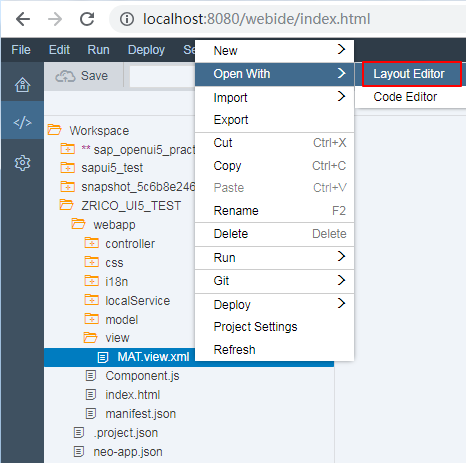

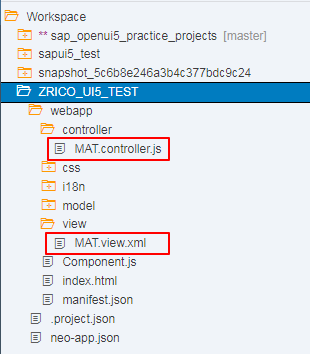

  选择VIEW文件:MAT.VIEW.XML,右键进入Layout布局编辑器,如下图:

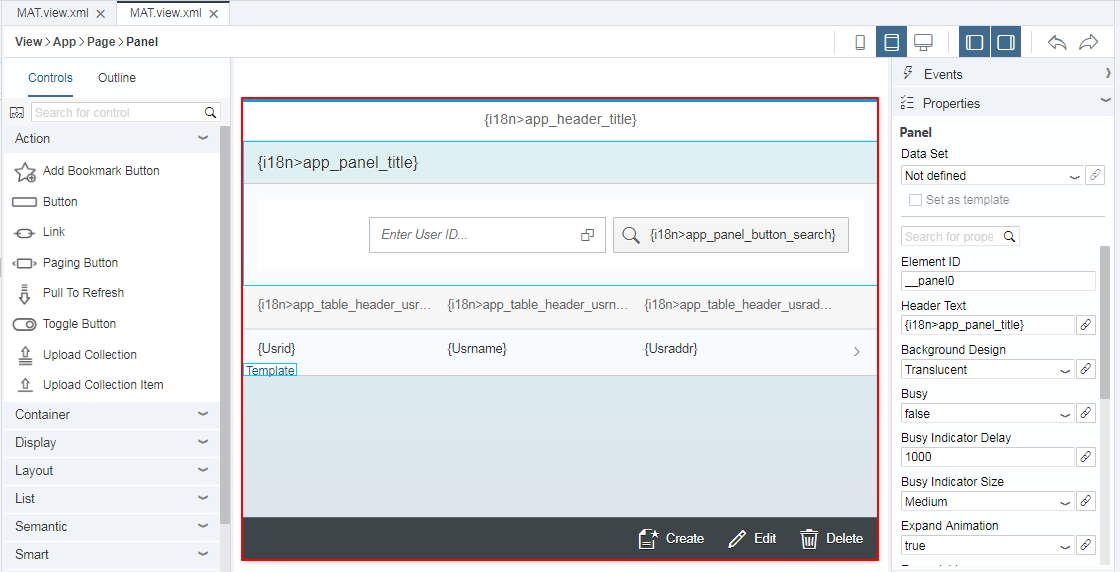

  界面中增加了如下组件:Panel,Form,Label,Input,Button,Table,如下图所示:

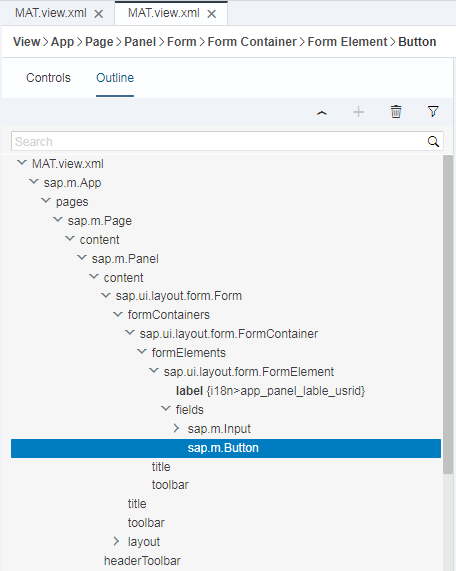

  小技巧:左端组件拖拽到中间界面后,可以进入Outline进行调整,剪切Cut后粘贴Paste到相应的组件后面。



   针对不同组件,需要维护对应的事件及属性:



  整个视图布局设计完成后,代码部分如下所示:


  1 <mvc:View
  2     controllerName="ZRICO_UI5ZRICO_UI5_TEST.controller.MAT"
  3     xmlns:html="http://www.w3.org/1999/xhtml"
  4     xmlns:mvc="sap.ui.core.mvc"
  5     xmlns:core="sap.ui.core"
  6     xmlns:form="sap.ui.layout.form"
  7     displayBlock="true" xmlns="sap.m">
  8     <App>
  9         <pages>
 10             <Page title="{i18n>app_header_title}" id="PG_SEARCH">
 11             <content>
 12                 <Panel
 13                     xmlns:html="http://www.w3.org/1999/xhtml"
 14                     xmlns:mvc="sap.ui.core.mvc"
 15                     xmlns="sap.m"
 16                     id="__panel0"
 17                     headerText="{i18n>app_panel_title}">
 18                     <content>
 19                     <form:Form
 20                         xmlns:html="http://www.w3.org/1999/xhtml"
 21                         xmlns:mvc="sap.ui.core.mvc"
 22                         xmlns="sap.m"
 23                         xmlns:sap.ui.layout.form="sap.ui.layout.form"
 24                         editable="true"
 25                         id="__form2">
 26                         <form:formContainers>
 27                             <form:FormContainer
 28                                 id="__container2">
 29                                 <form:formElements>
 30                                     <form:FormElement
 31                                         id="__element2"
 32                                         label="{i18n>app_panel_lable_usrid}">
 33                                         <form:fields>
 34                                             <Input
 35                                                 id="productInput"
 36                                                 type="Text"
 37                                                 width="auto"
 38                                                 textFormatMode="KeyValue"
 39                                                 placeholder="Enter User ID..."
 40                                                 showSuggestion="true"
 41                                                 showValueHelp="true"
 42                                                 valueHelpRequest="handleValueHelp"
 43                                                 suggestionItems="{/ZUSERSet}"
 44                                                 suggestionItemSelected="suggestionItemSelected">
 45                                                 <suggestionItems>
 46                                                     <core:ListItem key="{Usrid}" text="{Usrname}" additionalText="{Usrid}"/>
 47                                                 </suggestionItems>
 48                                             </Input>
 49                                             <Button
 50                                                 xmlns:html="http://www.w3.org/1999/xhtml"
 51                                                 xmlns:mvc="sap.ui.core.mvc"
 52                                                 xmlns="sap.m"
 53                                                 width="auto"
 54                                                 id="app_panel_button_read"
 55                                                 icon="sap-icon://search"
 56                                                 text="{i18n>app_panel_button_search}"
 57                                                 press="onRead"/>
 58
 59                                         </form:fields>
 60
 61                                     </form:FormElement>
 62
 63                                 </form:formElements>
 64
 65                             </form:FormContainer>
 66
 67                         </form:formContainers>
 68                         <form:layout>
 69                             <form:ResponsiveGridLayout
 70                                 id="__layout2"/>
 71                         </form:layout>
 72                         </form:Form>
 73                 </content>
 74                 </Panel>
 75                 <Table xmlns:html="http://www.w3.org/1999/xhtml" xmlns:mvc="sap.ui.core.mvc" xmlns="sap.m" noDataText="No data" id="idTable" items="{path:'/ZUSERSet'}">
 76                     <items>
 77                         <ColumnListItem type="Navigation" press="onItemPress">
 78                             <cells>
 79                                 <Text text="{Usrid}"/>
 80                                 <Text text="{Usrname}"/>
 81                                 <Text text="{Usraddr}"/>
 82                             </cells>
 83                         </ColumnListItem>
 84                     </items>
 85                     <columns>
 86                         <Column id="__column0">
 87                             <header>
 88                                 <Label id="lUsrid" text="{i18n>app_table_header_usrid}"/>
 89                             </header>
 90                         </Column>
 91                         <Column id="__column1">
 92                             <header>
 93                                 <Label text="{i18n>app_table_header_usrname}" id="lUsrname"/>
 94                             </header>
 95                         </Column>
 96                         <Column id="__column2">
 97                             <header>
 98                                 <Label text="{i18n>app_table_header_usraddr}" id="lUsraddr"/>
 99                             </header>
100                         </Column>
101                         </columns>
102                     </Table>
103             </content>
104                <footer>
105                     <Bar>
106                         <contentRight>
107                             <Button icon="sap-icon://create" text="Create" press="onCreate"/>
108                             <Button icon="sap-icon://edit" text="Edit" press="onEdit"/>
109                             <Button icon="sap-icon://delete" text="Delete" press="onDelete"/>
110                         </contentRight>
111                     </Bar>
112                 </footer>
113             </Page>
114         </pages>
115     </App>
116 </mvc:View>
View Code



 4.5Fragment对话框设计

  增加两个对话框:创建/修改事件对话框,Usrid输入框帮助对话框

  4.5.1输入框帮助对话框

  View增加文件InputUsridDialog.fragment.xml



  InputUsridDialog代码部分:


 1 <core:FragmentDefinition
 2     xmlns="sap.m"
 3     xmlns:core="sap.ui.core">
 4     <SelectDialog
 5         title="{i18n>inputusriddialog_header_title}"
 6         class="sapUiPopupWithPadding"
 7         items="{/ZUSERSet}"
 8         search="_handleValueHelpSearch"
 9         confirm="_handleValueHelpClose"
10         cancel="_handleValueHelpClose">
11         <StandardListItem
12             title="{Usrid}{Usrname}"
13             description="{Usrid}" />
14     </SelectDialog>
15 </core:FragmentDefinition>
View Code

  4.5.2创建/修改事件对话框

  创建文件UsrDialog.fragment.xml



  UsrDialog代码部分:


 1 <core:FragmentDefinition xmlns="sap.m" xmlns:core="sap.ui.core" xmlns:f="sap.ui.layout.form">
 2     <Dialog id="UsrDialog" title="{i18n>usrdialog_header_title}">
 3         <f:SimpleForm>
 4             <Label text="{i18n>usrdialog_lable_usrid}"/>
 5             <Input id="Usrid" value="{Usrid}"/>
 6             <Label text="{i18n>usrdialog_lable_usrname}"/>
 7             <Input id="Usrname" value="{Usrname}"/>
 8             <Label text="{i18n>usrdialog_lable_usraddr}"/>
 9             <Input id="Usraddr" value="{Usraddr}"/>
10         </f:SimpleForm>
11         <Toolbar>
12             <ToolbarSpacer/>
13             <Button id="SaveCreate" text="Save"/>
14             <Button id="SaveEdit" text="Save Edit"/>
15             <Button id="CancelButton" text="Cancel"/>
16         </Toolbar>
17     </Dialog>
18 </core:FragmentDefinition>
View Code



 4.6Control控制事件

  创建MAT.controller.js文件,编制事件实现过程



  代码部分(注意12行Controller Name与VIEW视图保存一致):


sap.ui.define([
    "sap/ui/core/mvc/Controller",
    "sap/ui/model/Filter",
    "sap/ui/model/json/JSONModel",
    "sap/ui/model/resource/ResourceModel"
], function(Controller,Filter,JSONModel,ResourceModel) {
    "use strict";
    var oModel;
    var aFilters;
    var sCurrentPath; // current path
    var sCurrentUsr;  // cureent user

    return Controller.extend("ZRICO_UI5ZRICO_UI5_TEST.controller.MAT", {
        inputId: "",

        onInit: function() {
            // var mConfig = this.getMetadata().getConfig();
            // // resource bundle
            // var oResourceModel = new ResourceModel({
            //     bundleName: mConfig.i18nBundle
            // });
            // this.setModel(oResourceModel, "i18n");
            // // application data
            // var rModel = new JSONModel(mConfig.serviceUrl);
            // this.setModel(rModel);

            //sap.m.MessageToast.show("Initial");
            oModel = this.getOwnerComponent().getModel();
            oModel.setUseBatch(false);
            this.getView().setModel(oModel);
            //sap.m.MessageToast.show("End Initial");
        },

        onRead:function(){

            var sInputValue = this.getView().byId("productInput").getSelectedKey();
            // define filters

            if ( sInputValue === ""){
            aFilters = [    new Filter("Usrid",
                    sap.ui.model.FilterOperator.Contains,
                    sInputValue) ];
            }
            else{
            aFilters = [    new Filter("Usrid",
                    sap.ui.model.FilterOperator.EQ,
                    sInputValue)];
            }

            // get data using filter
            oModel.read("/ZUSERSet", {
                filters: aFilters,
                success: function(oData, oResponse){
                    //window.console.log(oData);
                }
            });

            var oList = this.getView().byId("idTable");
            var oBinding = oList.getBinding("items");

            oBinding.filter(aFilters);

        },

        openDialog: function() {
            var oView = this.getView();
            // Open dialog
            var oUsrDialog = oView.byId("UsrDialog");
            if (!oUsrDialog) {
                oUsrDialog = sap.ui.xmlfragment(oView.getId(),
                    "ZRICO_UI5ZRICO_UI5_TEST.view.UsrDialog");
                oView.addDependent(oUsrDialog);
            }
            oUsrDialog.open();
            // Attach press event for CancelButton
            var oCancelButton = oView.byId("CancelButton");
            oCancelButton.attachPress(function() {
                oUsrDialog.close();
            });
        },
        // onCreate event
        onCreate: function() {
            sap.m.MessageToast.show("Create starting.");
            var oView = this.getView();
            this.openDialog();
            var oUsrDialog = oView.byId("UsrDialog");
            oUsrDialog.setTitle("Create User");
            oView.byId("Usrid").setEditable(true);
            oView.byId("SaveEdit").setVisible(false);
            oView.byId("SaveCreate").setVisible(true);
            // clear
            oView.byId("Usrid").setValue("");
            oView.byId("Usrname").setValue("");
            oView.byId("Usraddr").setValue("");
            // commit save
            oView.byId("SaveCreate").attachPress(function() {
                var oNewEntry = {
                    "Mandt": "300",
                    "Usrid": "",
                    "Usrname": "",
                    "Usraddr": ""
                };
                // populate value from form
                oNewEntry.Usrid   = oView.byId("Usrid").getValue();
                oNewEntry.Usrname = oView.byId("Usrname").getValue();
                oNewEntry.Usraddr = oView.byId("Usraddr").getValue();

                if(!oNewEntry.Usrid){
                    sap.m.MessageToast.show("Please input the value of Usrid");
                    return;
                }else{
                    // Commit creation operation
                    oModel.create("/ZUSERSet", oNewEntry, {
                        success: function() {
                            sap.m.MessageToast.show("Created successfully.");
                        },
                        error: function(oError) {
                            window.console.log("Error", oError);
                        }
                    });
                }

                // close dialog
                if (oUsrDialog) {
                    oUsrDialog.close();
                }
            });
        },
        //onEdit event
        onEdit: function() {
            // no Item was selected
            if (!sCurrentUsr) {
                sap.m.MessageToast.show("No Item was selected.");
                return;
            }
            var oView = this.getView();
            this.openDialog();
            var oUsrDialog = oView.byId("UsrDialog");
            oUsrDialog.setTitle("Edit User");
            oView.byId("Usrid").setEditable(false);
            oView.byId("SaveEdit").setVisible(true);
            oView.byId("SaveCreate").setVisible(false);
            // populate fields
            oView.byId("Usrid").setValue(oModel.getProperty(sCurrentPath + "/Usrid"));
            oView.byId("Usrname").setValue(oModel.getProperty(sCurrentPath + "/Usrname"));
            oView.byId("Usraddr").setValue(oModel.getProperty(sCurrentPath + "/Usraddr"));
            // Attach save event
            oView.byId("SaveEdit").attachPress(function() {
                var oChanges = {
                    "Mandt": "300",
                    "Usrid":"",
                    "Usrname": "",
                    "Usraddr": ""
                };
                // populate value from form
                oChanges.Usrid = oView.byId("Usrid").getValue();
                oChanges.Usrname = oView.byId("Usrname").getValue();
                oChanges.Usraddr = oView.byId("Usraddr").getValue();
                // commit creation
                oModel.update(sCurrentPath, oChanges, {
                    success: function() {
                        sap.m.MessageToast.show("Changes were saved successfully.");
                    },
                    error: function(oError) {
                        window.console.log("Error", oError);
                    }
                });
                // close dialog
                if (oUsrDialog) {
                    oUsrDialog.close();
                }
            });
        },
        // onDelete event
        onDelete: function() {
            var that = this;
            // no Item was selected
            if (!sCurrentUsr) {
                sap.m.MessageToast.show("No Item was selected.");
                return;
            }
            var oDeleteDialog = new sap.m.Dialog();
            oDeleteDialog.setTitle("Deletion");
            var oText = new sap.m.Label({
                text: "Are you sure to delete UsrId [" + sCurrentUsr + "]?"
            });
            oDeleteDialog.addContent(oText);
            oDeleteDialog.addButton(
                new sap.m.Button({
                    text: "Confirm",
                    press: function() {
                        that.deleteUsr();
                        oDeleteDialog.close();
                    }
                })
            );
            oDeleteDialog.open();
        },
        // deletion operation
        deleteUsr: function() {
            oModel.remove(sCurrentPath, {
                success: function() {
                    sap.m.MessageToast.show("Deletion successful.");
                },
                error: function(oError) {
                    window.console.log("Error", oError);
                }
            });
        },

        onItemPress: function(evt) {
            var oContext = evt.getSource().getBindingContext();
            sCurrentPath = oContext.getPath();
            sCurrentUsr = oContext.getProperty("Usrname");
        },

        //Input usrid value help
        handleValueHelp : function (oEvent) {
            var sInputValue = oEvent.getSource().getValue();

            this.inputId = oEvent.getSource().getId();
            // create value help dialog
            if (!this._valueHelpDialog) {
                this._valueHelpDialog = sap.ui.xmlfragment(
                    "ZRICO_UI5ZRICO_UI5_TEST.view.InputUsridDialog",
                    this
                );
                this.getView().addDependent(this._valueHelpDialog);
            }

            // create a filter for the binding
            this._valueHelpDialog.getBinding("items").filter([new Filter(
                "Usrname",
                sap.ui.model.FilterOperator.Contains, sInputValue
            )]);

            // open value help dialog filtered by the input value
            this._valueHelpDialog.open(sInputValue);
        },

        _handleValueHelpSearch : function (evt) {
            var sValue = evt.getParameter("value");
            var oFilter = new Filter(
                "Usrname",
                sap.ui.model.FilterOperator.Contains, sValue
            );
            evt.getSource().getBinding("items").filter([oFilter]);
        },

        _handleValueHelpClose : function (evt) {
            var oSelectedItem = evt.getParameter("selectedItem");
            if (oSelectedItem) {
                var productInput = this.byId(this.inputId),
                    //oText = this.byId('selectedKey'),
                    sDescription = oSelectedItem.getDescription();

                productInput.setSelectedKey(sDescription);
                //oText.setText(sDescription);
            }
            evt.getSource().getBinding("items").filter([]);
        },

        suggestionItemSelected: function (evt) {
            var oItem = evt.getParameter('selectedItem'),
                //oText = this.byId('selectedKey'),
                sKey = oItem ? oItem.getKey() : '';
            //oText.setText(sKey);
        }
    });
});
View Code



 4.7多语言

  打开i18n.properties文件,维护字段描述文本:




 1 app_header_title=用户信息查询
 2 app_panel_title=查询条件
 3 app_panel_lable_usrid=用户ID
 4 app_panel_button_search=查询
 5 app_table_header_usrid=用户ID
 6 app_table_header_usrname=用户名称
 7 app_table_header_usraddr=用户地址
 8 usrdialog_header_title=用户信息维护
 9 usrdialog_lable_usrid=用户ID
10 usrdialog_lable_usrname=用户名称
11 usrdialog_lable_usraddr=用户地址
12 usrdialog_button_savecreate=保存
13 usrdialog_button_saveedit=保存修改
14 usrdialog_button_cancel=取消
15 inputusriddialog_header_title=用户ID选择
View Code

5.测试

 5.1执行

  选中项目,点击执行按钮



  然后显示页面:



 5.2创建

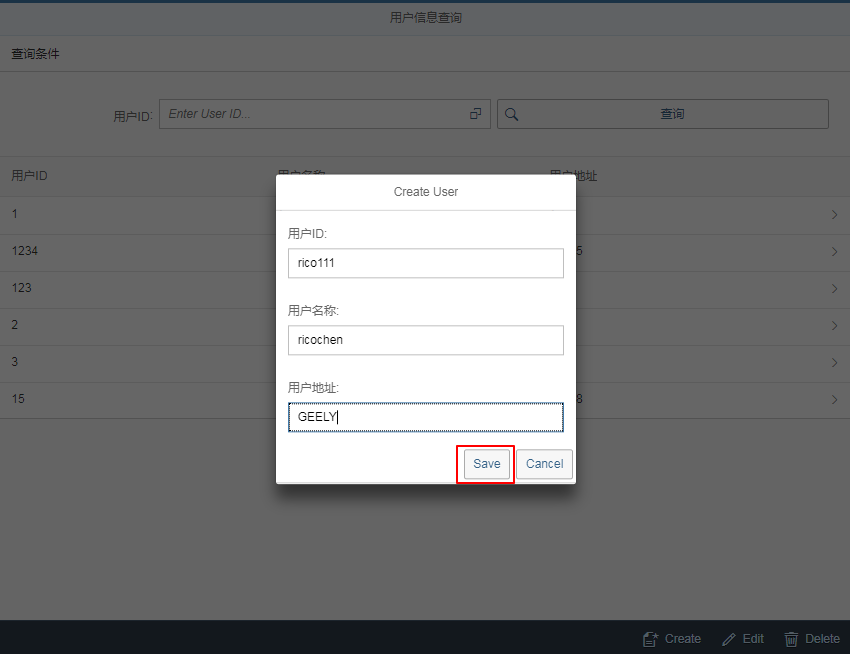

  点击右下角创建按钮Create

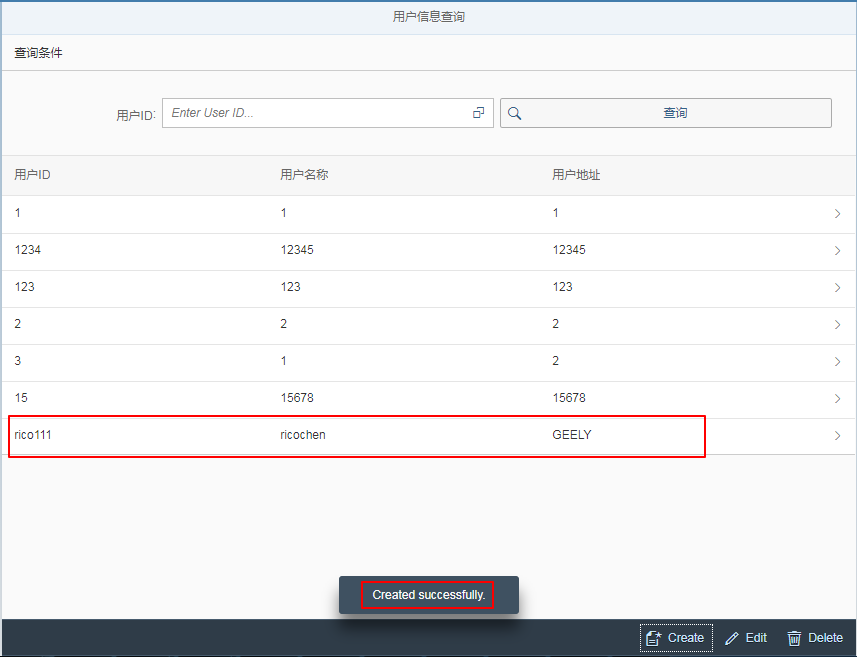

  维护数据后提交

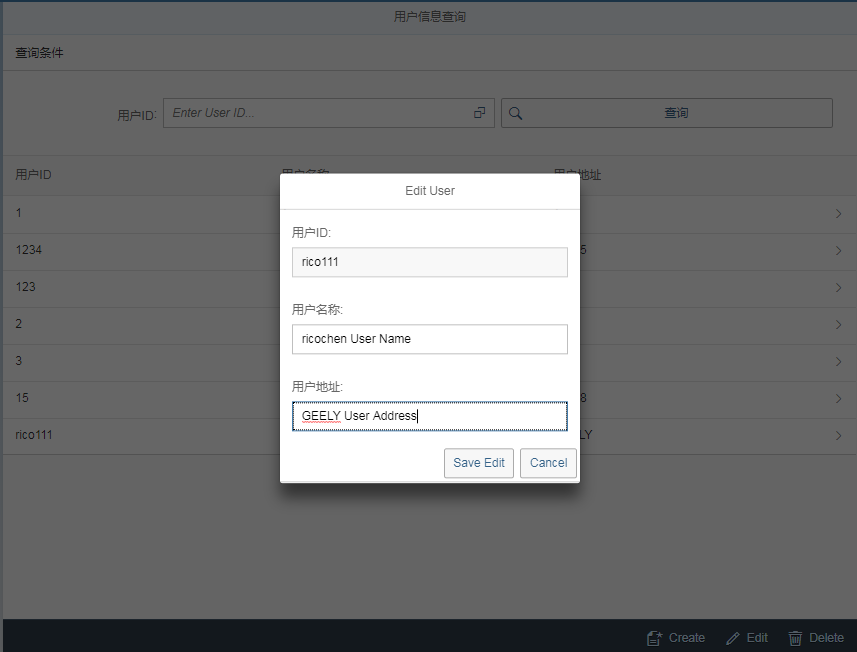

 5.3修改

  选中行项目,点击EDIT按钮

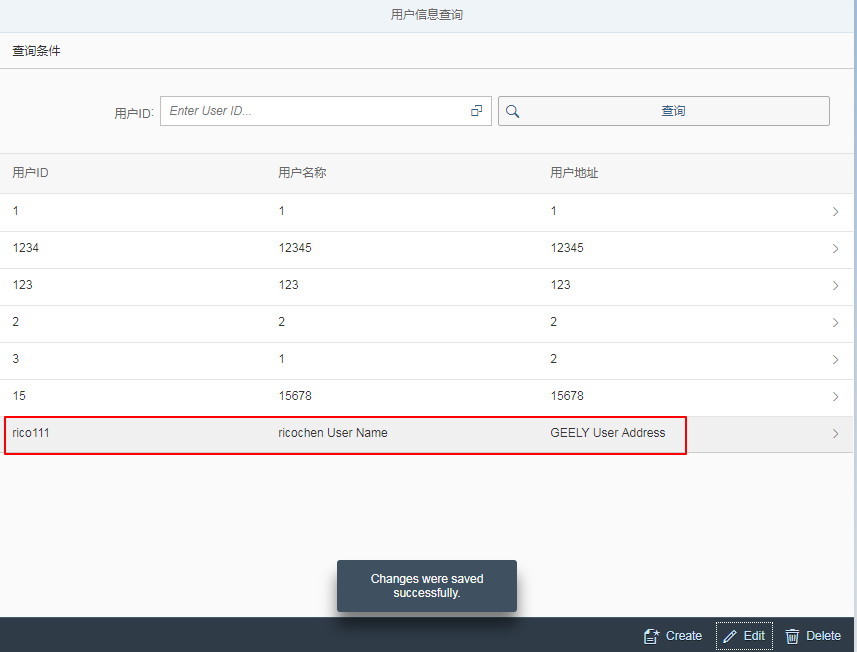

  修改数据后保存

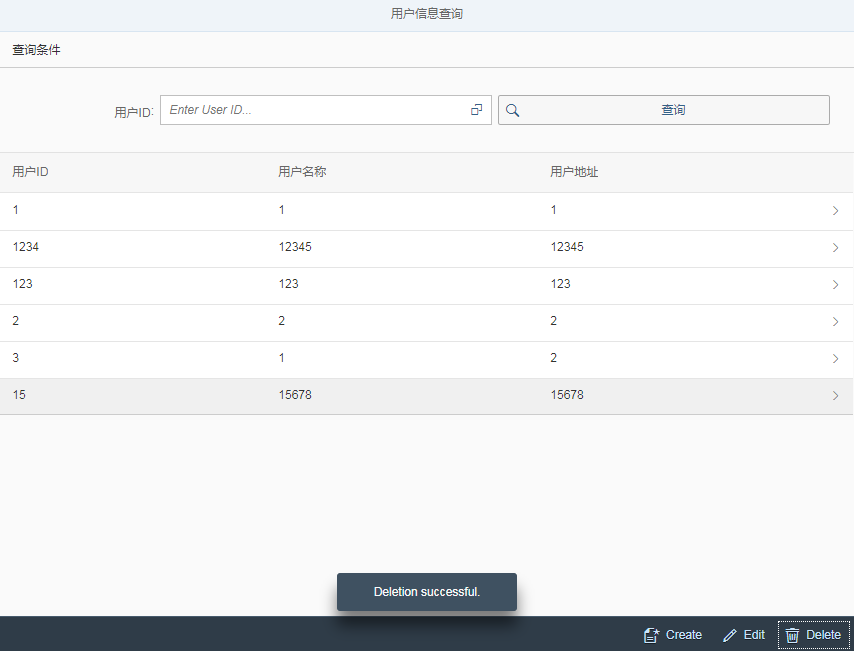

 5.4删除

  选中行项目,点击Delete按钮



  确认Confirm操作后,记录已删除











易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
