一、kafka-manager 简介

为了简化开发者和服务工程师维护Kafka集群的工作，yahoo构建了一个叫做Kafka管理器的基于Web工具，叫做 Kafka Manager。这个管理工具可以很容易地发现分布在集群中的哪些topic分布不均匀，或者是分区在整个集群分布不均匀的的情况。它支持管理多个集群、选择副本、副本重新分配以及创建Topic。同时，这个管理工具也是一个非常好的可以快速浏览这个集群的工具，有如下功能：

1.管理多个kafka集群
2.便捷的检查kafka集群状态(topics,brokers,备份分布情况,分区分布情况)
3.选择你要运行的副本
4.基于当前分区状况进行
5.可以选择topic配置并创建topic(0.8.1.1和0.8.2的配置不同)
6.删除topic(只支持0.8.2以上的版本并且要在broker配置中设置delete.topic.enable=true)
7.Topic list会指明哪些topic被删除（在0.8.2以上版本适用）
8.为已存在的topic增加分区
9.为已存在的topic更新配置
10.在多个topic上批量重分区
11.在多个topic上批量重分区(可选partition broker位置)

kafka-manager 项目地址：https://github.com/yahoo/kafka-manager

二、安装

1. 环境要求

1.安装jdk8
jdk-1.8.0_60

2，kafka集群
服务器：
10.0.0.50:12181
10.0.0.60:12181
10.0.0.70:12181
软件：
kafka_2.8.0-0.8.1.1
zookeeper-3.3.6

3.系统
Linux kafka50 2.6.32-642.el6.x86_64 #1 SMP Tue May 10 17:27:01 UTC 2016 x86_64 x86_64 x86_64 GNU/Linux

2. 下载安装 kafka-manager

2.1 .下载kafka-manager

想要查看和管理Kafka，完全使用命令并不方便，我们可以使用雅虎开源的Kafka-manager，GitHub地址如下：

https://github.com/yahoo/kafka-manager

我们可以使用Git或者直接从Releases中下载，此处从下面的地址下载 1.3.3.7 版本：

https://github.com/yahoo/kafka-manager/releases

下载完成后解压。

注意：上面下载的是源码，下载后需要按照后面步骤进行编译。如果觉得麻烦，可以直接从下面地址下载编译好的 kafka-manager-1.3.3.7.zip。
链接：https://pan.baidu.com/s/1qYifoa4 密码：el4o

2.2.解压

unzip kafka-manager-1.3.3.7.zip -d /data/
cd /data/kafka-manager-1.3.3.7

2.3.修改配置 conf/application.properties

[root@kafka50 conf]# pwd
/data/kafka-manager-1.3.3.7/conf
[root@kafka50 conf]# ls
application.conf  consumer.properties  logback.xml  logger.xml  nohup.out  routes
编辑配置文件application.conf

#kafka-manager.zkhosts="localhost:2181"       ##注释这一行，下面添加一行
kafka-manager.zkhosts="10.0.0.50:12181,10.0.0.60:12181,10.0.0.70:12181"

2.4启动

bin/kafka-manager
kafka-manager 默认的端口是9000，可通过 -Dhttp.port，指定端口; -Dconfig.file=conf/application.conf指定配置文件:

nohup bin/kafka-manager -Dconfig.file=conf/application.conf -Dhttp.port=8080 &

启动过程：

[root@kafka50 kafka-manager-1.3.3.7]# /data/kafka-manager-1.3.3.7/bin/kafka-manager
17:41:03,313 |-INFO in ch.qos.logback.classic.LoggerContext[default] - Could NOT find resource [logback.groovy]
17:41:03,313 |-INFO in ch.qos.logback.classic.LoggerContext[default] - Could NOT find resource [logback-test.xml]
17:41:03,313 |-INFO in ch.qos.logback.classic.LoggerContext[default] - Found resource [logback.xml] at [file:/data/kafka-manager-1.3.3.7/conf/logback.xml]
17:41:03,785 |-INFO in ch.qos.logback.classic.joran.action.ConfigurationAction - debug attribute not set
17:41:03,787 |-INFO in ch.qos.logback.core.joran.action.ConversionRuleAction - registering conversion word coloredLevel with class [play.api.Logger$ColoredLevel]
17:41:03,787 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - About to instantiate appender of type [ch.qos.logback.core.rolling.RollingFileAppender]
17:41:03,795 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - Naming appender as [FILE]
17:41:03,899 |-INFO in ch.qos.logback.core.joran.action.NestedComplexPropertyIA - Assuming default type [ch.qos.logback.classic.encoder.PatternLayoutEncoder] for [encoder] property
17:41:04,002 |-ERROR in ch.qos.logback.core.joran.spi.Interpreter@18:27 - no applicable action for [totalSizeCap], current ElementPath  is [[configuration][appender][rollingPolicy][totalSizeCap]]
17:41:04,017 |-INFO in c.q.l.core.rolling.TimeBasedRollingPolicy - No compression will be used
17:41:04,020 |-INFO in c.q.l.core.rolling.TimeBasedRollingPolicy - Will use the pattern application.home_IS_UNDEFINED/logs/application.%d{yyyy-MM-dd}.log for the active file
17:41:04,029 |-INFO in c.q.l.core.rolling.DefaultTimeBasedFileNamingAndTriggeringPolicy - The date pattern is 'yyyy-MM-dd' from file name pattern 'application.home_IS_UNDEFINED/logs/application.%d{yyyy-MM-dd}.log'.
17:41:04,029 |-INFO in c.q.l.core.rolling.DefaultTimeBasedFileNamingAndTriggeringPolicy - Roll-over at midnight.
17:41:04,053 |-INFO in c.q.l.core.rolling.DefaultTimeBasedFileNamingAndTriggeringPolicy - Setting initial period to Fri Jan 05 17:41:04 CST 2018
17:41:04,059 |-INFO in ch.qos.logback.core.rolling.RollingFileAppender[FILE] - Active log file name: application.home_IS_UNDEFINED/logs/application.log
17:41:04,059 |-INFO in ch.qos.logback.core.rolling.RollingFileAppender[FILE] - File property is set to [application.home_IS_UNDEFINED/logs/application.log]
17:41:04,063 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - About to instantiate appender of type [ch.qos.logback.core.ConsoleAppender]
17:41:04,065 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - Naming appender as [STDOUT]
17:41:04,076 |-INFO in ch.qos.logback.core.joran.action.NestedComplexPropertyIA - Assuming default type [ch.qos.logback.classic.encoder.PatternLayoutEncoder] for [encoder] property
17:41:04,083 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - About to instantiate appender of type [ch.qos.logback.classic.AsyncAppender]
17:41:04,085 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - Naming appender as [ASYNCFILE]
17:41:04,085 |-INFO in ch.qos.logback.core.joran.action.AppenderRefAction - Attaching appender named [FILE] to ch.qos.logback.classic.AsyncAppender[ASYNCFILE]
17:41:04,085 |-INFO in ch.qos.logback.classic.AsyncAppender[ASYNCFILE] - Attaching appender named [FILE] to AsyncAppender.
17:41:04,086 |-INFO in ch.qos.logback.classic.AsyncAppender[ASYNCFILE] - Setting discardingThreshold to 51
17:41:04,089 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - About to instantiate appender of type [ch.qos.logback.classic.AsyncAppender]
17:41:04,090 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - Naming appender as [ASYNCSTDOUT]
17:41:04,090 |-INFO in ch.qos.logback.core.joran.action.AppenderRefAction - Attaching appender named [STDOUT] to ch.qos.logback.classic.AsyncAppender[ASYNCSTDOUT]
17:41:04,090 |-INFO in ch.qos.logback.classic.AsyncAppender[ASYNCSTDOUT] - Attaching appender named [STDOUT] to AsyncAppender.
17:41:04,090 |-INFO in ch.qos.logback.classic.AsyncAppender[ASYNCSTDOUT] - Setting discardingThreshold to 51
17:41:04,094 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [play] to INFO
17:41:04,094 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [application] to INFO
17:41:04,094 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [kafka.manager] to INFO
17:41:04,096 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [com.avaje.ebean.config.PropertyMapLoader] to OFF
17:41:04,096 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [com.avaje.ebeaninternal.server.core.XmlConfigLoader] to OFF
17:41:04,096 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [com.avaje.ebeaninternal.server.lib.BackgroundThread] to OFF
17:41:04,096 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [com.gargoylesoftware.htmlunit.javascript] to OFF
17:41:04,096 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [org.apache.zookeeper] to INFO
17:41:04,096 |-INFO in ch.qos.logback.classic.joran.action.RootLoggerAction - Setting level of ROOT logger to WARN
17:41:04,096 |-INFO in ch.qos.logback.core.joran.action.AppenderRefAction - Attaching appender named [ASYNCFILE] to Logger[ROOT]
17:41:04,096 |-INFO in ch.qos.logback.core.joran.action.AppenderRefAction - Attaching appender named [ASYNCSTDOUT] to Logger[ROOT]
17:41:04,096 |-INFO in ch.qos.logback.classic.joran.action.ConfigurationAction - End of configuration.
17:41:04,097 |-INFO in ch.qos.logback.classic.joran.JoranConfigurator@67c99d6b - Registering current configuration as safe fallback point

[warn] o.a.c.r.ExponentialBackoffRetry - maxRetries too large (100). Pinning to 29
[info] k.m.a.KafkaManagerActor - Starting curator...
[info] o.a.z.ZooKeeper - Client environment:zookeeper.version=3.4.6-1569965, built on 02/20/2014 09:09 GMT
[info] o.a.z.ZooKeeper - Client environment:host.name=kafka50
[info] o.a.z.ZooKeeper - Client environment:java.version=1.8.0_60
[info] o.a.z.ZooKeeper - Client environment:java.vendor=Oracle Corporation
[info] o.a.z.ZooKeeper - Client environment:java.home=/application/jdk1.8.0_60/jre
[info] o.a.z.ZooKeeper - Client environment:java.class.path=/data/kafka-manager-1.3.3.7/lib/../conf/:/data/kafka-manager-1.3.3.7/lib/kafka-manager.kafka-manager-1.3.3.7-sans-externalized.jar:/data/kafka-manager-1.3.3.7/lib/org.scala-lang.scala-library-2.11.8.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.twirl-api_2.11-1.1.1.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.commons.commons-lang3-3.4.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-server_2.11-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play_2.11-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.build-link-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-exceptions-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/org.javassist.javassist-3.19.0-GA.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-iteratees_2.11-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/org.scala-stm.scala-stm_2.11-0.7.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.config-1.3.0.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-json_2.11-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-functional_2.11-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-datacommons_2.11-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/joda-time.joda-time-2.8.1.jar:/data/kafka-manager-1.3.3.7/lib/org.joda.joda-convert-1.7.jar:/data/kafka-manager-1.3.3.7/lib/com.fasterxml.jackson.datatype.jackson-datatype-jdk8-2.5.4.jar:/data/kafka-manager-1.3.3.7/lib/com.fasterxml.jackson.datatype.jackson-datatype-jsr310-2.5.4.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-netty-utils-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/org.slf4j.jul-to-slf4j-1.7.12.jar:/data/kafka-manager-1.3.3.7/lib/org.slf4j.jcl-over-slf4j-1.7.12.jar:/data/kafka-manager-1.3.3.7/lib/ch.qos.logback.logback-core-1.1.3.jar:/data/kafka-manager-1.3.3.7/lib/ch.qos.logback.logback-classic-1.1.3.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.akka.akka-actor_2.11-2.3.14.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.akka.akka-slf4j_2.11-2.3.14.jar:/data/kafka-manager-1.3.3.7/lib/commons-codec.commons-codec-1.10.jar:/data/kafka-manager-1.3.3.7/lib/xerces.xercesImpl-2.11.0.jar:/data/kafka-manager-1.3.3.7/lib/xml-apis.xml-apis-1.4.01.jar:/data/kafka-manager-1.3.3.7/lib/javax.transaction.jta-1.1.jar:/data/kafka-manager-1.3.3.7/lib/com.google.inject.guice-4.0.jar:/data/kafka-manager-1.3.3.7/lib/javax.inject.javax.inject-1.jar:/data/kafka-manager-1.3.3.7/lib/aopalliance.aopalliance-1.0.jar:/data/kafka-manager-1.3.3.7/lib/com.google.guava.guava-16.0.1.jar:/data/kafka-manager-1.3.3.7/lib/com.google.inject.extensions.guice-assistedinject-4.0.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.play.play-netty-server_2.11-2.4.6.jar:/data/kafka-manager-1.3.3.7/lib/io.netty.netty-3.10.4.Final.jar:/data/kafka-manager-1.3.3.7/lib/com.typesafe.netty.netty-http-pipelining-1.1.4.jar:/data/kafka-manager-1.3.3.7/lib/com.google.code.findbugs.jsr305-2.0.1.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.webjars-play_2.11-2.4.0-2.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.requirejs-2.1.20.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.webjars-locator-0.28.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.webjars-locator-core-0.27.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.commons.commons-compress-1.9.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.npm.validate.js-0.8.0.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.bootstrap-3.3.5.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.jquery-2.1.4.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.backbonejs-1.2.3.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.underscorejs-1.8.3.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.dustjs-linkedin-2.6.1-1.jar:/data/kafka-manager-1.3.3.7/lib/org.webjars.json-20121008-1.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.curator.curator-framework-2.10.0.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.curator.curator-client-2.10.0.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.zookeeper.zookeeper-3.4.6.jar:/data/kafka-manager-1.3.3.7/lib/jline.jline-0.9.94.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.curator.curator-recipes-2.10.0.jar:/data/kafka-manager-1.3.3.7/lib/org.json4s.json4s-jackson_2.11-3.4.0.jar:/data/kafka-manager-1.3.3.7/lib/org.json4s.json4s-core_2.11-3.4.0.jar:/data/kafka-manager-1.3.3.7/lib/org.json4s.json4s-ast_2.11-3.4.0.jar:/data/kafka-manager-1.3.3.7/lib/org.json4s.json4s-scalap_2.11-3.4.0.jar:/data/kafka-manager-1.3.3.7/lib/com.thoughtworks.paranamer.paranamer-2.8.jar:/data/kafka-manager-1.3.3.7/lib/org.scala-lang.modules.scala-xml_2.11-1.0.5.jar:/data/kafka-manager-1.3.3.7/lib/com.fasterxml.jackson.core.jackson-databind-2.6.7.jar:/data/kafka-manager-1.3.3.7/lib/com.fasterxml.jackson.core.jackson-annotations-2.6.0.jar:/data/kafka-manager-1.3.3.7/lib/com.fasterxml.jackson.core.jackson-core-2.6.7.jar:/data/kafka-manager-1.3.3.7/lib/org.json4s.json4s-scalaz_2.11-3.4.0.jar:/data/kafka-manager-1.3.3.7/lib/org.scalaz.scalaz-core_2.11-7.2.4.jar:/data/kafka-manager-1.3.3.7/lib/org.slf4j.log4j-over-slf4j-1.7.12.jar:/data/kafka-manager-1.3.3.7/lib/com.adrianhurt.play-bootstrap3_2.11-0.4.5-P24.jar:/data/kafka-manager-1.3.3.7/lib/org.clapper.grizzled-slf4j_2.11-1.0.2.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.kafka.kafka_2.11-0.10.0.1.jar:/data/kafka-manager-1.3.3.7/lib/com.101tec.zkclient-0.8.jar:/data/kafka-manager-1.3.3.7/lib/com.yammer.metrics.metrics-core-2.2.0.jar:/data/kafka-manager-1.3.3.7/lib/org.scala-lang.modules.scala-parser-combinators_2.11-1.0.4.jar:/data/kafka-manager-1.3.3.7/lib/net.sf.jopt-simple.jopt-simple-4.9.jar:/data/kafka-manager-1.3.3.7/lib/org.apache.kafka.kafka-clients-0.10.0.1.jar:/data/kafka-manager-1.3.3.7/lib/net.jpountz.lz4.lz4-1.3.0.jar:/data/kafka-manager-1.3.3.7/lib/org.xerial.snappy.snappy-java-1.1.2.6.jar:/data/kafka-manager-1.3.3.7/lib/org.slf4j.slf4j-api-1.7.21.jar:/data/kafka-manager-1.3.3.7/lib/com.beachape.enumeratum_2.11-1.4.4.jar:/data/kafka-manager-1.3.3.7/lib/com.beachape.enumeratum-macros_2.11-1.4.4.jar:/data/kafka-manager-1.3.3.7/lib/org.scala-lang.scala-reflect-2.11.8.jar:/data/kafka-manager-1.3.3.7/lib/kafka-manager.kafka-manager-1.3.3.7-assets.jar
[info] o.a.z.ZooKeeper - Client environment:java.library.path=/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib
[info] o.a.z.ZooKeeper - Client environment:java.io.tmpdir=/tmp
[info] o.a.z.ZooKeeper - Client environment:java.compiler=<NA>
[info] o.a.z.ZooKeeper - Client environment:os.name=Linux
[info] o.a.z.ZooKeeper - Client environment:os.arch=amd64
[info] o.a.z.ZooKeeper - Client environment:os.version=2.6.32-642.el6.x86_64
[info] o.a.z.ZooKeeper - Client environment:user.name=root
[info] o.a.z.ZooKeeper - Client environment:user.home=/root
[info] o.a.z.ZooKeeper - Client environment:user.dir=/data/kafka-manager-1.3.3.7
[info] o.a.z.ZooKeeper - Initiating client connection, connectString=10.0.0.50:12181,10.0.0.60:12181,10.0.0.70:12181 sessionTimeout=60000 watcher=org.apache.curator.ConnectionState@b6c3e2e
[info] o.a.z.ClientCnxn - Opening socket connection to server 10.0.0.50/10.0.0.50:12181. Will not attempt to authenticate using SASL (unknown error)
[info] k.m.a.KafkaManagerActor - zk=10.0.0.50:12181,10.0.0.60:12181,10.0.0.70:12181
[info] k.m.a.KafkaManagerActor - baseZkPath=/kafka-manager
[info] o.a.z.ClientCnxn - Socket connection established to 10.0.0.50/10.0.0.50:12181, initiating session
[warn] o.a.z.ClientCnxnSocket - Connected to an old server; r-o mode will be unavailable
[info] o.a.z.ClientCnxn - Session establishment complete on server 10.0.0.50/10.0.0.50:12181, sessionid = 0x160c59c8a510001, negotiated timeout = 40000
[info] k.m.a.KafkaManagerActor - Started actor akka://kafka-manager-system/user/kafka-manager
[info] k.m.a.KafkaManagerActor - Starting delete clusters path cache...
[info] k.m.a.DeleteClusterActor - Started actor akka://kafka-manager-system/user/kafka-manager/delete-cluster
[info] k.m.a.DeleteClusterActor - Starting delete clusters path cache...
[info] k.m.a.DeleteClusterActor - Adding kafka manager path cache listener...
[info] k.m.a.DeleteClusterActor - Scheduling updater for 10 seconds
[info] k.m.a.KafkaManagerActor - Starting kafka manager path cache...
[info] k.m.a.KafkaManagerActor - Adding kafka manager path cache listener...
[info] k.m.a.KafkaManagerActor - Updating internal state...
[info] play.api.Play - Application started (Prod)
[info] p.c.s.NettyServer - Listening for HTTP on /0:0:0:0:0:0:0:0:9000
[info] k.m.a.KafkaManagerActor - Adding new cluster manager for cluster : kafka-cluster-1
[warn] o.a.c.r.ExponentialBackoffRetry - maxRetries too large (100). Pinning to 29
[info] k.m.a.c.ClusterManagerActor - Starting curator...
[info] o.a.z.ZooKeeper - Initiating client connection, connectString=10.0.0.50:12181,10.0.0.60:12181,10.0.0.70:12181 sessionTimeout=60000 watcher=org.apache.curator.ConnectionState@7621f705
[info] o.a.z.ClientCnxn - Opening socket connection to server 10.0.0.50/10.0.0.50:12181. Will not attempt to authenticate using SASL (unknown error)
[info] o.a.z.ClientCnxn - Socket connection established to 10.0.0.50/10.0.0.50:12181, initiating session
[warn] o.a.c.r.ExponentialBackoffRetry - maxRetries too large (100). Pinning to 29
[info] k.m.a.c.ClusterManagerActor - Starting shared curator...
[info] o.a.z.ZooKeeper - Initiating client connection, connectString=10.0.0.50:12181,10.0.0.60:12181,10.0.0.70:12181 sessionTimeout=60000 watcher=org.apache.curator.ConnectionState@34545ff9
[info] o.a.z.ClientCnxn - Opening socket connection to server 10.0.0.70/10.0.0.70:12181. Will not attempt to authenticate using SASL (unknown error)
[info] o.a.z.ClientCnxn - Socket connection established to 10.0.0.70/10.0.0.70:12181, initiating session
[warn] o.a.z.ClientCnxnSocket - Connected to an old server; r-o mode will be unavailable
[info] o.a.z.ClientCnxn - Session establishment complete on server 10.0.0.50/10.0.0.50:12181, sessionid = 0x160c59c8a510002, negotiated timeout = 40000
[warn] o.a.z.ClientCnxnSocket - Connected to an old server; r-o mode will be unavailable
[info] o.a.z.ClientCnxn - Session establishment complete on server 10.0.0.70/10.0.0.70:12181, sessionid = 0x360c59eb4ac0002, negotiated timeout = 40000
[info] k.m.a.c.KafkaCommandActor - Started actor akka://kafka-manager-system/user/kafka-manager/kafka-cluster-1/kafka-command
[info] k.m.a.c.KafkaAdminClientActor - KafkaAdminClientActorConfig(ClusterContext(ClusterFeatures(Set()),ClusterConfig(kafka-cluster-1,CuratorConfig(10.0.0.50:12181,10.0.0.60:12181,10.0.0.70:12181,100,100,1000),true,0.8.1.1,false,None,None,false,false,false,false,false,false,Some(ClusterTuning(Some(30),Some(2),Some(100),Some(2),Some(100),Some(2),Some(100),Some(30),Some(5),Some(2),Some(1000),Some(2),Some(1000),Some(2),Some(1000))))),LongRunningPoolConfig(2,1000),akka://kafka-manager-system/user/kafka-manager/kafka-cluster-1/kafka-state)
[info] k.m.a.c.BrokerViewCacheActor - Started actor akka://kafka-manager-system/user/kafka-manager/kafka-cluster-1/broker-view
[info] k.m.a.c.BrokerViewCacheActor - Scheduling updater for 30 seconds
[info] k.m.a.c.BrokerViewCacheActor - Updating broker view...
[info] k.m.a.c.ClusterManagerActor - Started actor akka://kafka-manager-system/user/kafka-manager/kafka-cluster-1
[info] k.m.a.c.ClusterManagerActor - Starting cluster manager topics path cache...
[info] k.m.a.c.KafkaStateActor - KafkaStateActorConfig(org.apache.curator.framework.imps.CuratorFrameworkImpl@62d9cd2d,pinned-dispatcher,ClusterContext(ClusterFeatures(Set()),ClusterConfig(kafka-cluster-1,CuratorConfig(10.0.0.50:12181,10.0.0.60:12181,10.0.0.70:12181,100,100,1000),true,0.8.1.1,false,None,None,false,false,false,false,false,false,Some(ClusterTuning(Some(30),Some(2),Some(100),Some(2),Some(100),Some(2),Some(100),Some(30),Some(5),Some(2),Some(1000),Some(2),Some(1000),Some(2),Some(1000))))),LongRunningPoolConfig(2,1000),LongRunningPoolConfig(2,1000),5,10000,None)
[info] k.m.a.c.KafkaStateActor - Started actor akka://kafka-manager-system/user/kafka-manager/kafka-cluster-1/kafka-state
[info] k.m.a.c.KafkaStateActor - Starting topics tree cache...
[info] k.m.a.c.KafkaStateActor - Starting topics config path cache...
[info] k.m.a.c.KafkaStateActor - Starting brokers path cache...
[info] k.m.a.c.KafkaStateActor - Starting admin path cache...
[info] k.m.a.c.KafkaStateActor - Starting delete topics path cache...
[info] k.m.a.c.KafkaStateActor - Adding topics tree cache listener...
[info] k.m.a.c.KafkaStateActor - Adding admin path cache listener...
[info] k.m.a.c.KafkaStateActor - Starting offset cache...
[info] k.m.a.c.OffsetCachePassive - Starting consumers path children cache...
[info] k.m.a.c.OffsetCachePassive - Adding consumers path children cache listener...
[info] k.m.a.KafkaManagerActor - Updating internal state...
[info] k.m.a.KafkaManagerActor - Updating internal state...
[info] k.m.a.KafkaManagerActor - Updating internal state...
[info] k.m.a.c.BrokerViewCacheActor - Updating broker view...
[info] k.m.a.KafkaManagerActor - Updating internal state...


##如果不放后台启动，就会一直在前台显示

^C[info] k.m.a.KafkaManagerActor - Shutting down kafka manager
[info] k.m.a.DeleteClusterActor - Stopped actor akka://kafka-manager-system/user/kafka-manager/delete-cluster
[info] k.m.a.DeleteClusterActor - Removing delete clusters path cache listener...
[info] k.m.a.DeleteClusterActor - Shutting down delete clusters path cache...
[info] k.m.a.c.KafkaCommandActor - Shutting down long running executor...
[info] k.m.a.c.KafkaAdminClientActor - Closing admin client...

View Code

启动完毕后可以查看端口是否启动，由于启动过程需要一段时间，端口起来的时间可能会延后。

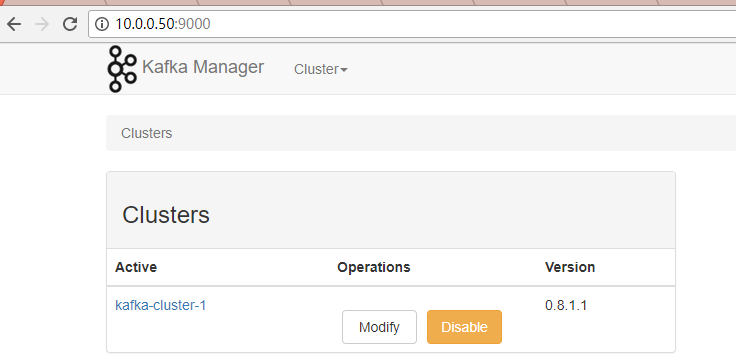

3.浏览器访问

使用ip地址：端口访问

三、测试 kafka-mamager

1. 新建 Cluster

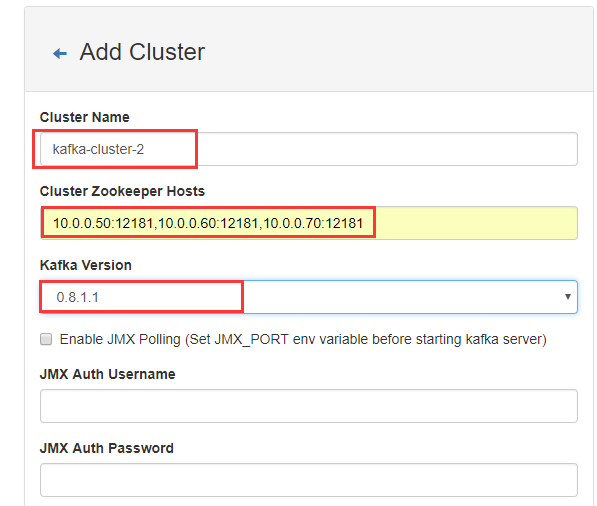

点击【Cluster】>【Add Cluster】打开如下添加集群的配置界面：

输入集群的名字（如Kafka-Cluster-1）和 Zookeeper 服务器地址（如localhost:2181），选择最接近的Kafka版本（如0.8.1.1）

注意：如果没有在 Kafka 中配置过 JMX_PORT，千万不要选择第一个复选框。

Enable JMX Polling

如果选择了该复选框，Kafka-manager 可能会无法启动。

其他broker的配置可以根据自己需要进行配置，默认情况下，点击【保存】时，会提示几个默认值为1的配置错误，需要配置为>=2的值。提示如下。

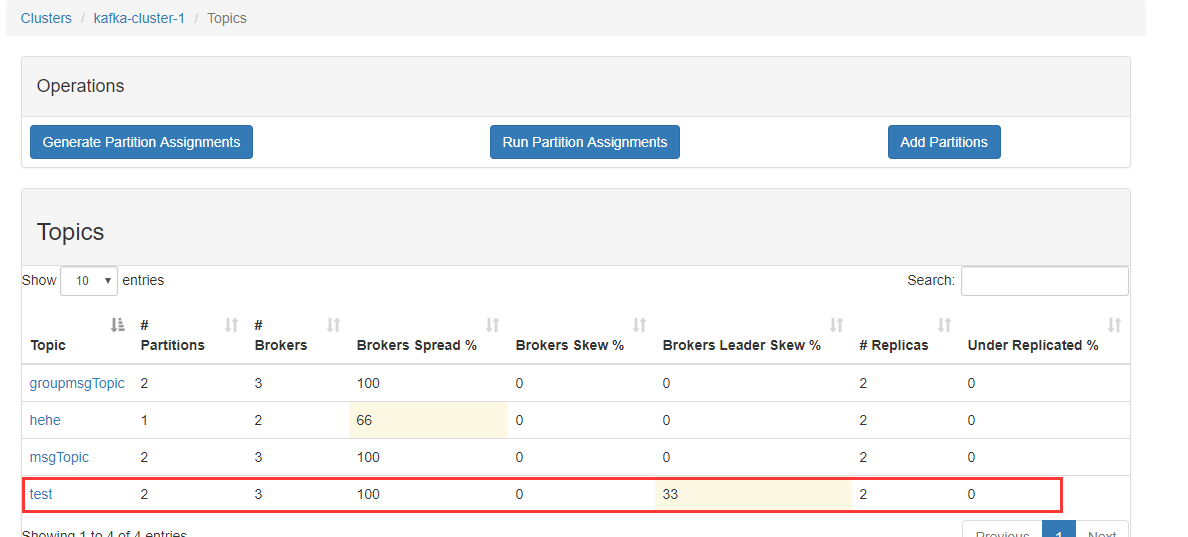

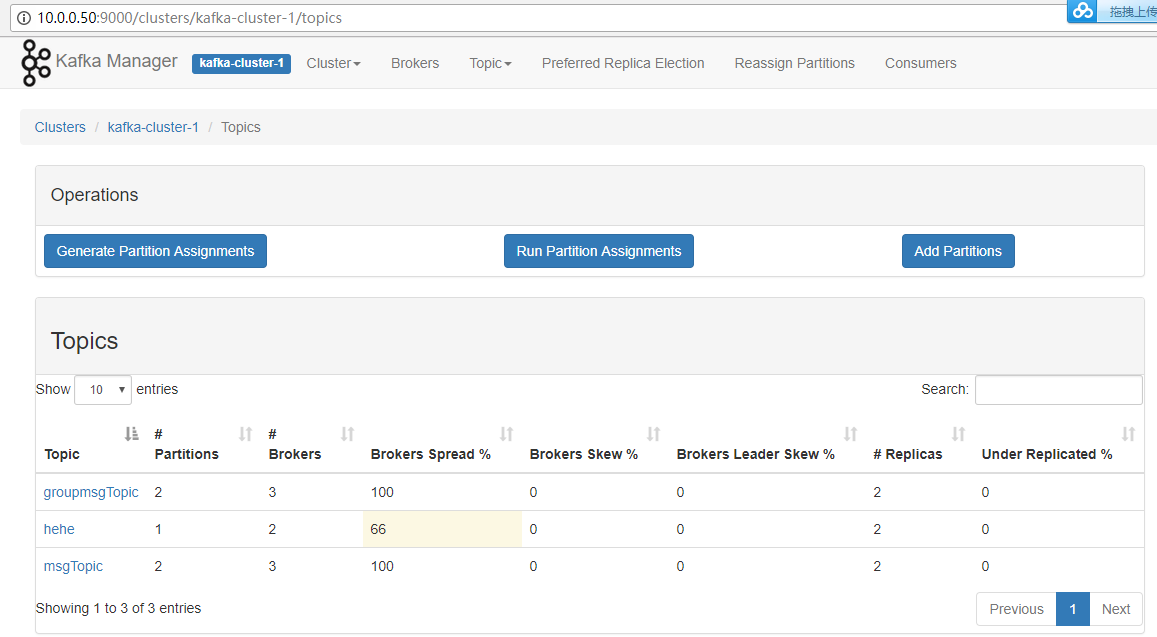

新建完成后，运行界面如下：

TOPIC list

broker

三、管理 kafka-mamager

3.1.新建主题

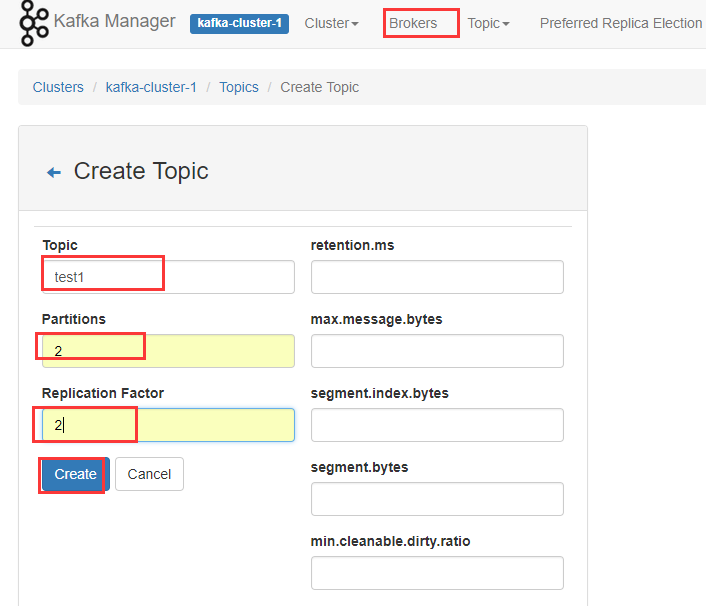

点击【Topic】>【Create】可以方便的创建并配置主题。如下显示。

接下来我们根据一张图讲解

这里写图片描述

在上图一个Kafka集群中，有两个服务器，每个服务器上都有2个分区。P0,P3可能属于同一个主题，也可能是两个不同的主题。

如果设置的Partitons和Replication Factor都是2，这种情况下该主题的分步就和上图中Kafka集群显示的相同，此时P0,P3是同一个主题的两个分区。P1,P2也是同一个主题的两个分区，Server1和Server2其中一个会作为Leader进行读写操作，另一个通过复制进行同步。

如果设置的Partitons和Replication Factor都是1，这时只会根据算法在某个Server上创建一个分区，可以是P0~4中的某一个（分区都是新建的，不是先存在4个然后从中取1个）。
