harbor 2.0 搭建docker私有仓库

淺唱寂寞╮ 提交于 2020-10-23 17:50:36

harbor

Harbor 是一个CNCF基金会托管的开源的可信的云原生docker registry项目,可以用于存储、签名、扫描镜像内容,Harbor 通过添加一些常用的功能如安全性、身份权限管理等来扩展 docker registry 项目,此外还支持在 registry 之间复制镜像,还提供更加高级的安全功能,如用户管理、访问控制和活动审计等,在新版本中还添加了Helm仓库托管的支持。

Harbor最核心的功能就是给 docker registry 添加上一层权限保护的功能,要实现这个功能,就需要我们在使用 docker login、pull、push 等命令的时候进行拦截,先进行一些权限相关的校验,再进行操作,其实这一系列的操作 docker registry v2 就已经为我们提供了支持,v2 集成了一个安全认证的功能,将安全认证暴露给外部服务,让外部服务去实现。

环境准备

linux 3.10.0-957.5.1.el7.x86_64
centos 7.6.1810
配置 2c2g500g

安装

docker 安装

docker 为centos用户提供了三种安装方式,我们选择第一种,也是官网推荐的安装方式

  1. 移除旧的docker 依赖
 sudo yum remove docker \
                  docker-client \
                  docker-client-latest \
                  docker-common \
                  docker-latest \
                  docker-latest-logrotate \
                  docker-logrotate \
                  docker-engine
  1. 设置docker 源
sudo yum install -y yum-utils
sudo yum-config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo
  1. 安装docker引擎,默认最新版本
sudo yum install docker-ce docker-ce-cli containerd.io
  1. 启动
systemctl enable docker
systemctl start docker
  1. 测试
docker -v
Docker version 19.03.12, build 48a66213fe

docker-compose 安装

  1. 下载可执行文件
sudo curl -L "https://github.com/docker/compose/releases/download/1.26.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

  1. 修改权限
sudo chmod +x /usr/local/bin/docker-compose
  1. 测试
docker-compose -v
docker-compose version 1.26.0, build d4451659

harbor安装

  1. 下载在线安装包
    harbor可通过在线和离线安装,由于离线安装包下载失败,所以选择在线安装
 wget https://github.com/goharbor/harbor/releases/download/v2.0.0/harbor-online-installer-v2.0.0.tgz
  1. 解压
tar xvf harbor-online-installer-v2.0.0.tgz
  1. 修改配置
    harbor通过docker-compose 管理,harbor.yml 是compose 配置文件
    备份配置文件:cp harbor.yml.tmpl harbor.yml
    修改配置:vim harbor.yml


# Configuration file of Harbor

# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
hostname: xx.xx.xx.xx  # 对外开发访问的 ip或域名

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 80
# 注释掉https,当然你也可以通过设置证书,开放https,建议生产使用https
# https related config
#https:
  # https port for harbor, default is 443
#  port: 443
  # The path of cert and key files for nginx
#  certificate: /your/certificate/path
#  private_key: /your/private/key/path

# # Uncomment following will enable tls communication between all harbor components
# internal_tls:
#   # set enabled to true means internal tls is enabled
#   enabled: true
#   # put your cert and key files on dir
#   dir: /etc/harbor/tls/internal

# Uncomment external_url if you want to enable external proxy
# And when it enabled the hostname will no longer used
# external_url: https://reg.mydomain.com:8433

# The initial password of Harbor admin
# It only works in first time to install harbor
# Remember Change the admin password from UI after launching Harbor.
harbor_admin_password: Harbor12345

# Harbor DB configuration
database:
  # The password for the root user of Harbor DB. Change this before any production use.
  password: root123
  # The maximum number of connections in the idle connection pool. If it <=0, no idle connections are retained.
  max_idle_conns: 50
  # The maximum number of open connections to the database. If it <= 0, then there is no limit on the number of open connections.
  # Note: the default number of connections is 100 for postgres.
  max_open_conns: 100

# The default data volume
data_volume: /data/harbor

# Harbor Storage settings by default is using /data dir on local filesystem
# Uncomment storage_service setting If you want to using external storage
# storage_service:
#   # ca_bundle is the path to the custom root ca certificate, which will be injected into the truststore
#   # of registry's and chart repository's containers.  This is usually needed when the user hosts a internal storage with self signed certificate.
#   ca_bundle:

#   # storage backend, default is filesystem, options include filesystem, azure, gcs, s3, swift and oss
#   # for more info about this configuration please refer https://docs.docker.com/registry/configuration/
#   filesystem:
#     maxthreads: 100
#   # set disable to true when you want to disable registry redirect
#   redirect:
#     disabled: false

# Clair configuration
clair:
  # The interval of clair updaters, the unit is hour, set to 0 to disable the updaters.
  updaters_interval: 12

# Trivy configuration
trivy:
  # ignoreUnfixed The flag to display only fixed vulnerabilities
  ignore_unfixed: false
  # skipUpdate The flag to enable or disable Trivy DB downloads from GitHub
  #
  # You might want to enable this flag in test or CI/CD environments to avoid GitHub rate limiting issues.
  # If the flag is enabled you have to manually download the `trivy.db` file and mount it in the
  # /home/scanner/.cache/trivy/db/trivy.db path.
  skip_update: false
  #
  # insecure The flag to skip verifying registry certificate
  insecure: false
  # github_token The GitHub access token to download Trivy DB
  #
  # Trivy DB contains vulnerability information from NVD, Red Hat, and many other upstream vulnerability databases.
  # It is downloaded by Trivy from the GitHub release page https://github.com/aquasecurity/trivy-db/releases and cached
  # in the local file system (/home/scanner/.cache/trivy/db/trivy.db). In addition, the database contains the update
  # timestamp so Trivy can detect whether it should download a newer version from the Internet or use the cached one.
  # Currently, the database is updated every 12 hours and published as a new release to GitHub.
  #
  # Anonymous downloads from GitHub are subject to the limit of 60 requests per hour. Normally such rate limit is enough
  # for production operations. If, for any reason, it's not enough, you could increase the rate limit to 5000
  # requests per hour by specifying the GitHub access token. For more details on GitHub rate limiting please consult
  # https://developer.github.com/v3/#rate-limiting
  #
  # You can create a GitHub token by following the instuctions in
  # https://help.github.com/en/github/authenticating-to-github/creating-a-personal-access-token-for-the-command-line
  #
  # github_token: xxx

jobservice:
  # Maximum number of job workers in job service
  max_job_workers: 10

notification:
  # Maximum retry count for webhook job
  webhook_job_max_retry: 10

chart:
  # Change the value of absolute_url to enabled can enable absolute url in chart
  absolute_url: disabled

# Log configurations
log:
  # options are debug, info, warning, error, fatal
  level: info
  # configs for logs in local storage
  local:
    # Log files are rotated log_rotate_count times before being removed. If count is 0, old versions are removed rather than rotated.
    rotate_count: 50
    # Log files are rotated only if they grow bigger than log_rotate_size bytes. If size is followed by k, the size is assumed to be in kilobytes.
    # If the M is used, the size is in megabytes, and if G is used, the size is in gigabytes. So size 100, size 100k, size 100M and size 100G
    # are all valid.
    rotate_size: 200M
    # The directory on your host that store log
    location: /var/log/harbor

  # Uncomment following lines to enable external syslog endpoint.
  # external_endpoint:
  #   # protocol used to transmit log to external endpoint, options is tcp or udp
  #   protocol: tcp
  #   # The host of external endpoint
  #   host: localhost
  #   # Port of external endpoint
  #   port: 5140

#This attribute is for migrator to detect the version of the .cfg file, DO NOT MODIFY!
_version: 2.0.0

# Uncomment external_database if using external database.
# external_database:
#   harbor:
#     host: harbor_db_host
#     port: harbor_db_port
#     db_name: harbor_db_name
#     username: harbor_db_username
#     password: harbor_db_password
#     ssl_mode: disable
#     max_idle_conns: 2
#     max_open_conns: 0
#   clair:
#     host: clair_db_host
#     port: clair_db_port
#     db_name: clair_db_name
#     username: clair_db_username
#     password: clair_db_password
#     ssl_mode: disable
#   notary_signer:
#     host: notary_signer_db_host
#     port: notary_signer_db_port
#     db_name: notary_signer_db_name
#     username: notary_signer_db_username
#     password: notary_signer_db_password
#     ssl_mode: disable
#   notary_server:
#     host: notary_server_db_host
#     port: notary_server_db_port
#     db_name: notary_server_db_name
#     username: notary_server_db_username
#     password: notary_server_db_password
#     ssl_mode: disable

# Uncomment external_redis if using external Redis server
# external_redis:
#   host: redis
#   port: 6379
#   password:
#   # db_index 0 is for core, it's unchangeable
#   registry_db_index: 1
#   jobservice_db_index: 2
#   chartmuseum_db_index: 3
#   clair_db_index: 4
#   trivy_db_index: 5
#   idle_timeout_seconds: 30

# Uncomment uaa for trusting the certificate of uaa instance that is hosted via self-signed cert.
# uaa:
#   ca_file: /path/to/ca

# Global proxy
# Config http proxy for components, e.g. http://my.proxy.com:3128
# Components doesn't need to connect to each others via http proxy.
# Remove component from `components` array if want disable proxy
# for it. If you want use proxy for replication, MUST enable proxy
# for core and jobservice, and set `http_proxy` and `https_proxy`.
# Add domain to the `no_proxy` field, when you want disable proxy
# for some special registry.
proxy:
  http_proxy:
  https_proxy:
  no_proxy:
  components:
    - core
    - jobservice
    - clair
    - trivy
  1. 安装
cd /home/admin/harbor/
./install.sh

脚本执行完成后查看harbor组成 和运行状态

docker ps
CONTAINER ID        IMAGE                                COMMAND                  CREATED             STATUS                  PORTS                       NAMES
3c73fc1bdf49        goharbor/nginx-photon:v2.0.0         "nginx -g 'daemon of…"   44 hours ago        Up 44 hours (healthy)   0.0.0.0:80->8080/tcp        nginx
cc58e0fd2347        goharbor/harbor-jobservice:v2.0.0    "/harbor/entrypoint.…"   44 hours ago        Up 44 hours (healthy)                               harbor-jobservice
7f5929dba6bc        goharbor/harbor-core:v2.0.0          "/harbor/entrypoint.…"   44 hours ago        Up 44 hours (healthy)                               harbor-core
001167acd8fc        goharbor/harbor-db:v2.0.0            "/docker-entrypoint.…"   44 hours ago        Up 44 hours (healthy)   5432/tcp                    harbor-db
1684303e0782        goharbor/harbor-registryctl:v2.0.0   "/home/harbor/start.…"   44 hours ago        Up 44 hours (healthy)                               registryctl
aa4b212f6595        goharbor/redis-photon:v2.0.0         "redis-server /etc/r…"   44 hours ago        Up 44 hours (healthy)   6379/tcp                    redis
79189cffe12a        goharbor/registry-photon:v2.0.0      "/home/harbor/entryp…"   44 hours ago        Up 44 hours (healthy)   5000/tcp                    registry
c1f45a3e3131        goharbor/harbor-portal:v2.0.0        "nginx -g 'daemon of…"   44 hours ago        Up 44 hours (healthy)   8080/tcp                    harbor-portal
4c85974a6c25        goharbor/harbor-log:v2.0.0           "/bin/sh -c /usr/loc…"   44 hours ago        Up 44 hours (healthy)   127.0.0.1:1514->10514/tcp   harbor-log

docker-compose ps
      Name                     Command                  State                 Ports
---------------------------------------------------------------------------------------------
harbor-core         /harbor/entrypoint.sh            Up (healthy)
harbor-db           /docker-entrypoint.sh            Up (healthy)   5432/tcp
harbor-jobservice   /harbor/entrypoint.sh            Up (healthy)
harbor-log          /bin/sh -c /usr/local/bin/ ...   Up (healthy)   127.0.0.1:1514->10514/tcp
harbor-portal       nginx -g daemon off;             Up (healthy)   8080/tcp
nginx               nginx -g daemon off;             Up (healthy)   0.0.0.0:80->8080/tcp
redis               redis-server /etc/redis.conf     Up (healthy)   6379/tcp
registry            /home/harbor/entrypoint.sh       Up (healthy)   5000/tcp
registryctl         /home/harbor/start.sh            Up (healthy)

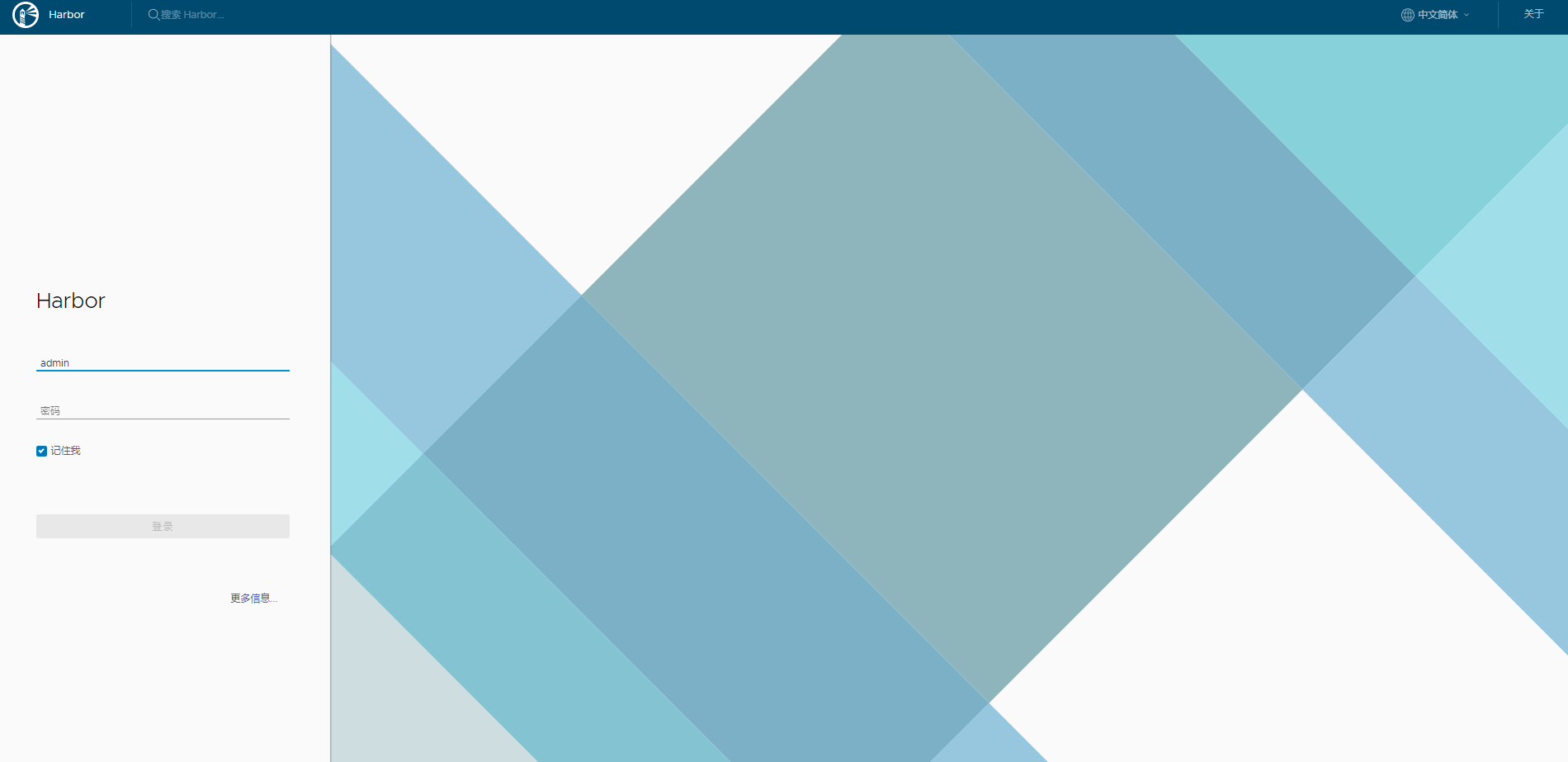

  1. 访问 harbor
    使用默认用户名密码登录,登录后可修改 admin : Harbor12345
    harbor

Harbor 组成

Harbor 配置

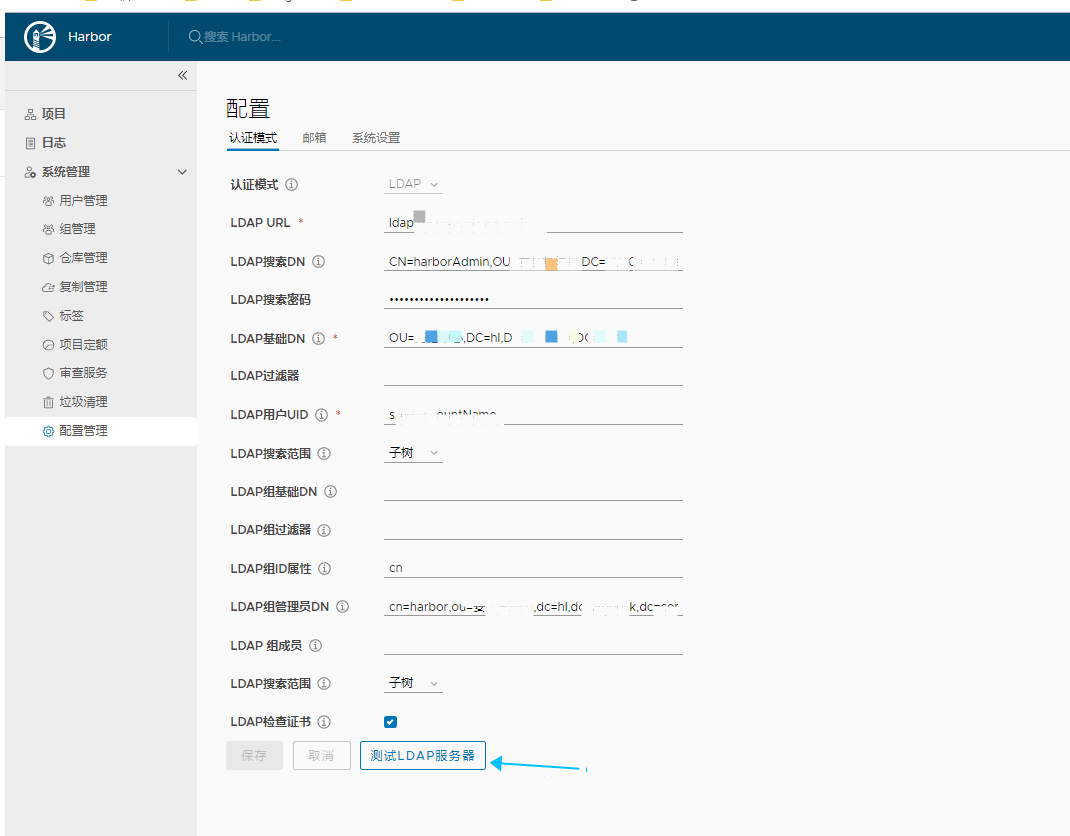

  1. 配置认证方式
    harbor 支持 数据库,ldap/ad, oidc等认证方式,这里配置ldap的认证方式,如图,选择LDAP,并填写
    LDAP相关信息,关于LDAP和AD可考虑内网协议学习LDAP篇之组和OU介绍,配置好后,点击测试,通过即可
    auth


注意:选择ldap后,用户认证管理通过ldap控制,不能通过harbor 新增,删除,管理用户组权限

Harbor 功能

  1. 项目管理
    Harbor中的一个项目包含了一个应用程序所需要的所有repositories。在工程创建之前,并不允许推送镜像到Harbor中。Harbor对于project采用基于角色的访问控制。在Harbor中projects有两种类型:
    • Public: 所有的用户都具有读取public project的权限, 其主要是为了方便你分享一些repositories
    • Private: 一个私有project只能被特定用户以适当的权限进行访问

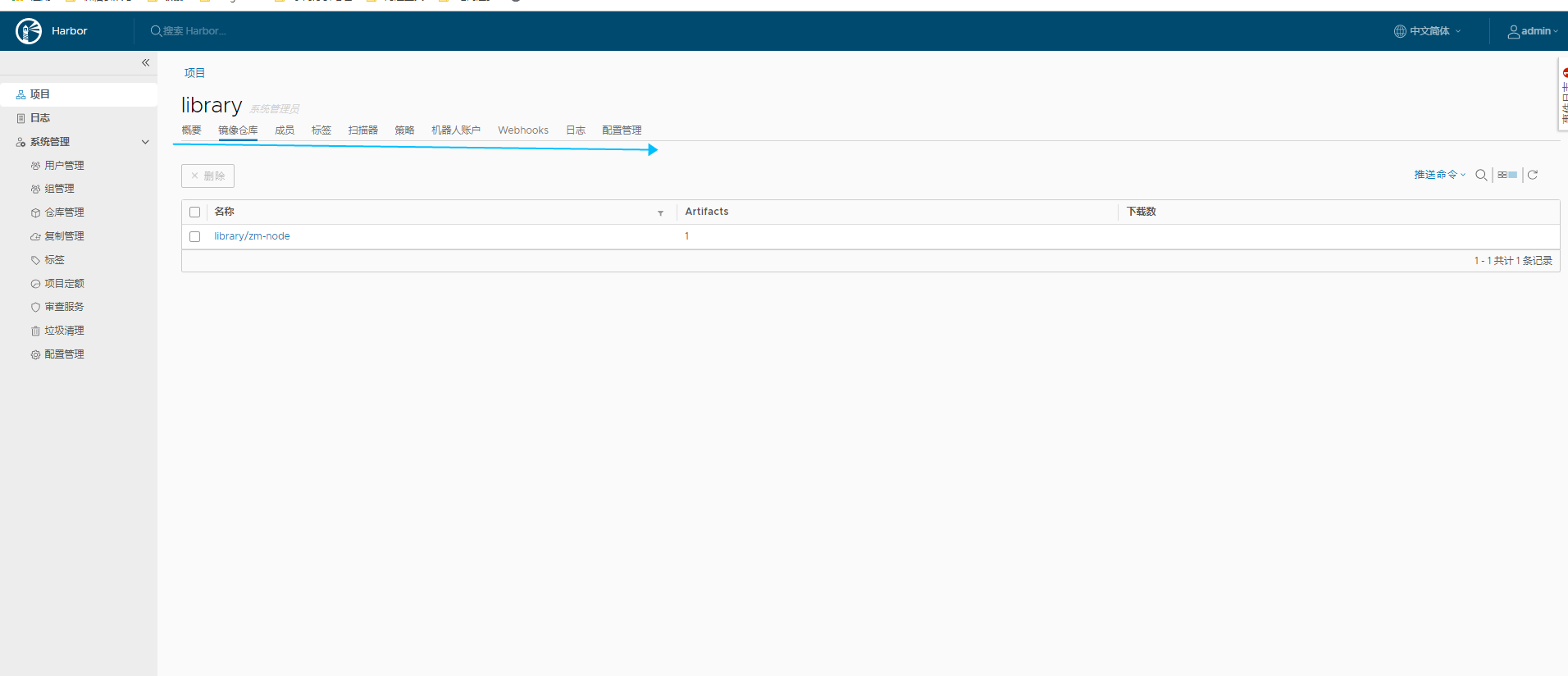

如图:一个项目下,包含这个对项目的镜像仓库管理(项目下的镜像),成员管理(可访问项目的成员),配置管理(白名单,可访问程度等),标签管理(分类表示),机器人账户(通过机器人账户自动pull , push 镜像)管理等功能
项目

  1. 系统管理

基础功能都集中在上图,左侧菜单栏提供了系统管理的功能,包括用户管理,组管理, 仓库管理,复制管理,标签,项目定额,审查服务,垃圾清理等功能

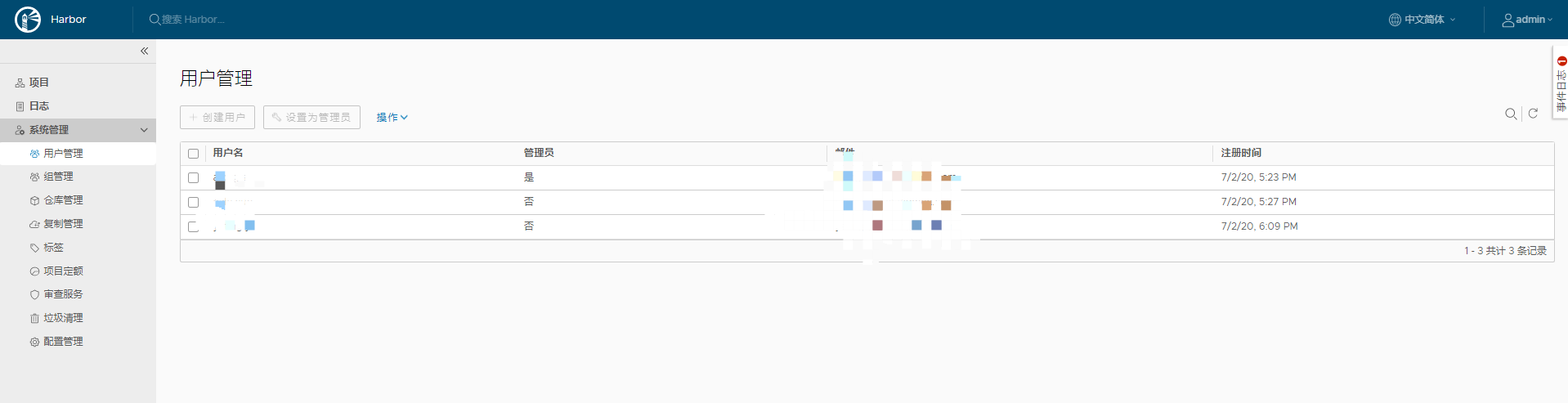

  • 用户管理
    启用ldap后,初次登录后的用户,就会成为系统可展示的用户
    用户管理

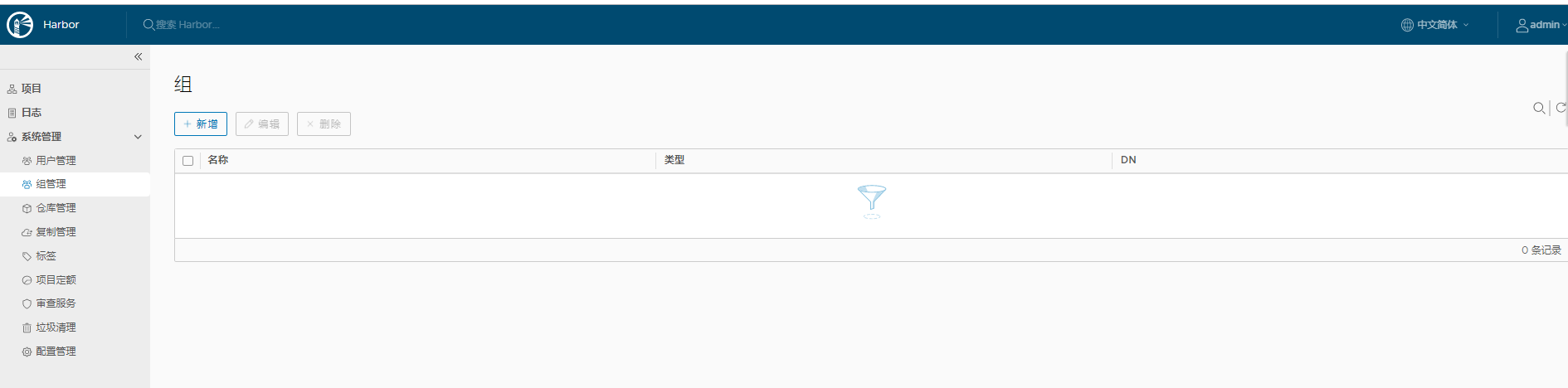

  • 组管理
    接入ldap后,组管理由ldap的域控决定,由于公司暂无现成的域控分类,所以此处不添加,如果使用数据库认证,这里可自行管理组,方便项目中统一成员管理
    组管理

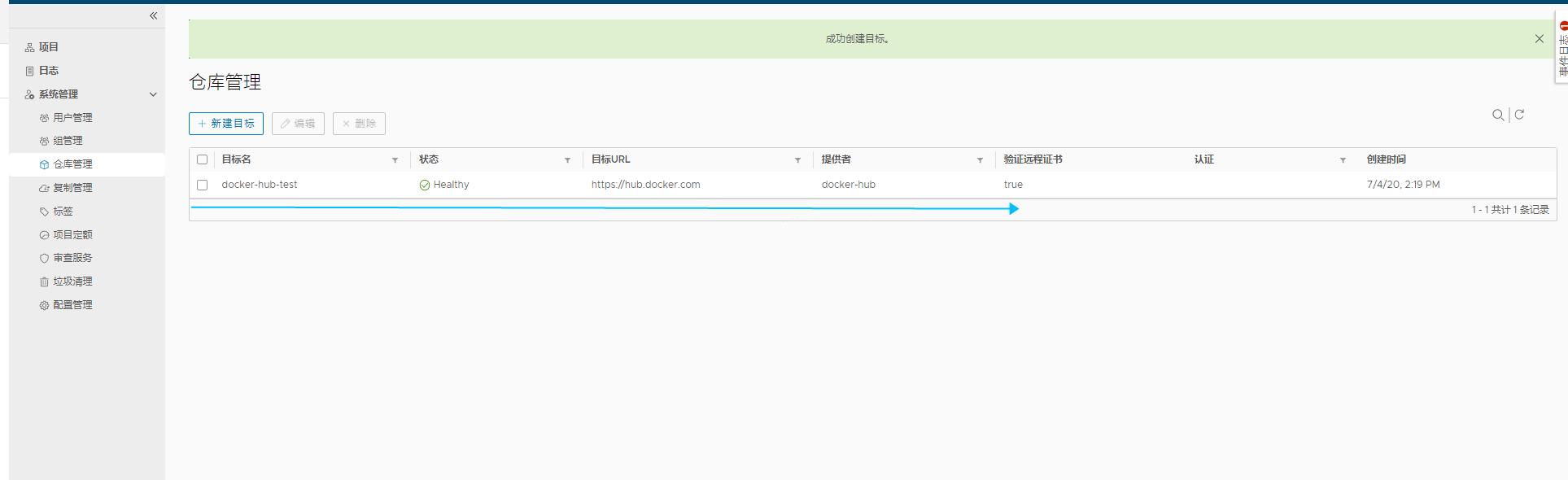

  • 仓库管理
    ldap 2.0 不仅支持 多个harbor系统之间的镜像同步,也支持向第三方docker仓库同步镜像,这个仓库可供复制管理选择
    dockerhub

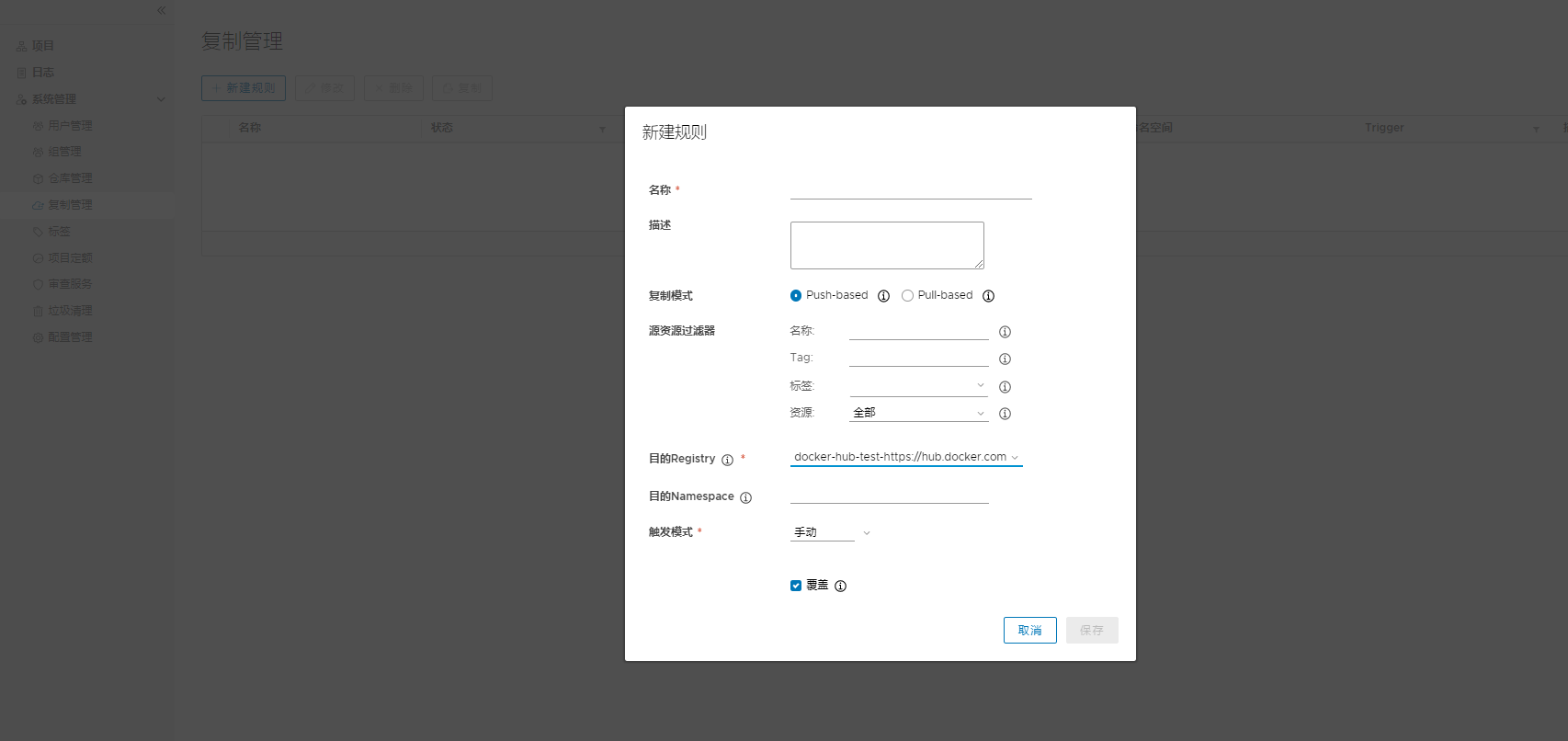

  • 复制管理
    复制管理允许通过一定的策略,向其他仓库同步镜像,比如镜像集群之间的数据同步
    复制管理

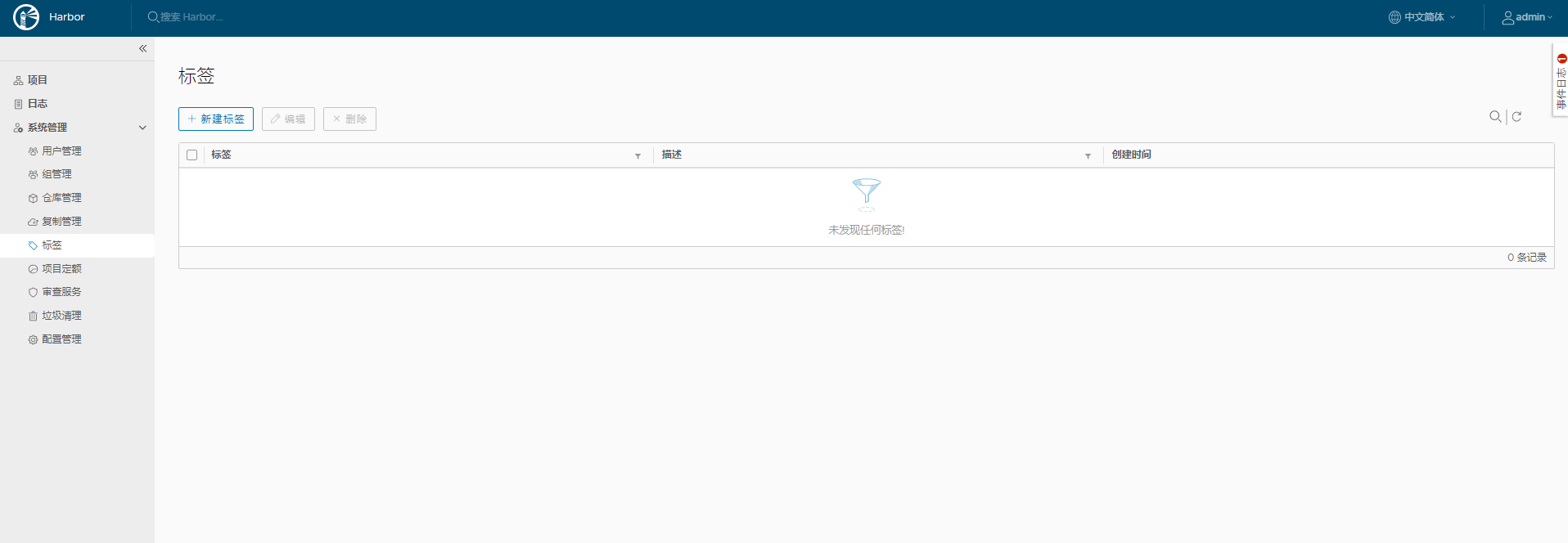

  • 标签
    这个标签是全局标签
    标签

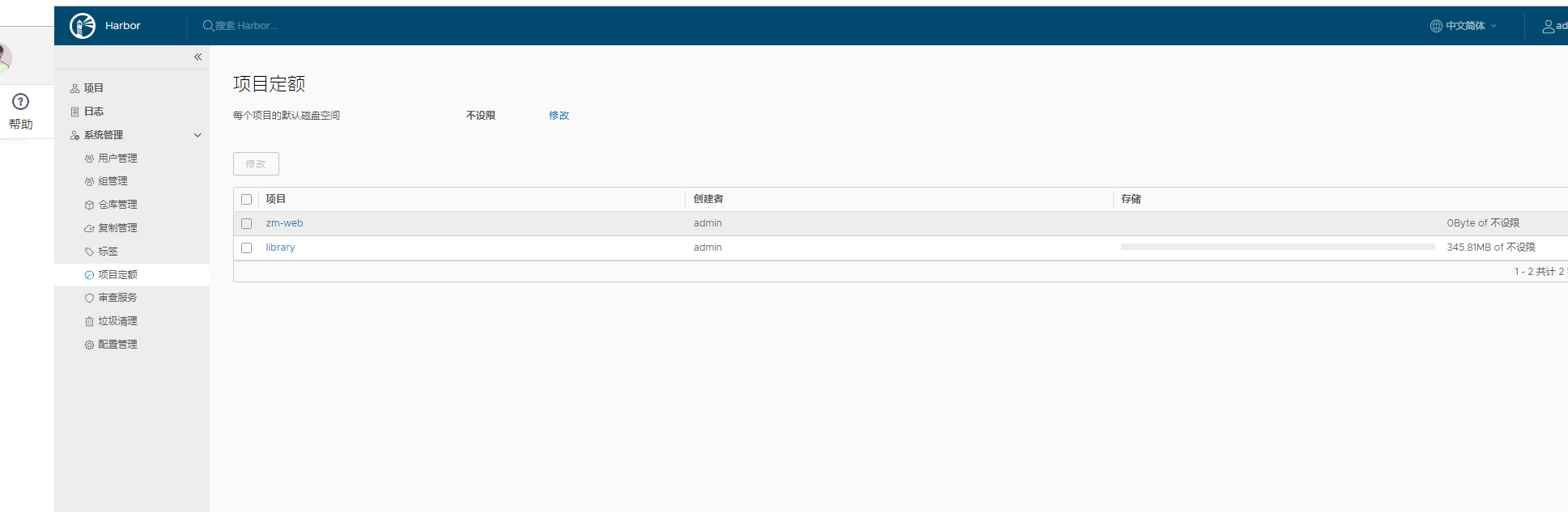

  • 项目定额
    项目定额可以设置项目可存储镜像的大小,默认不限制
    项目定额

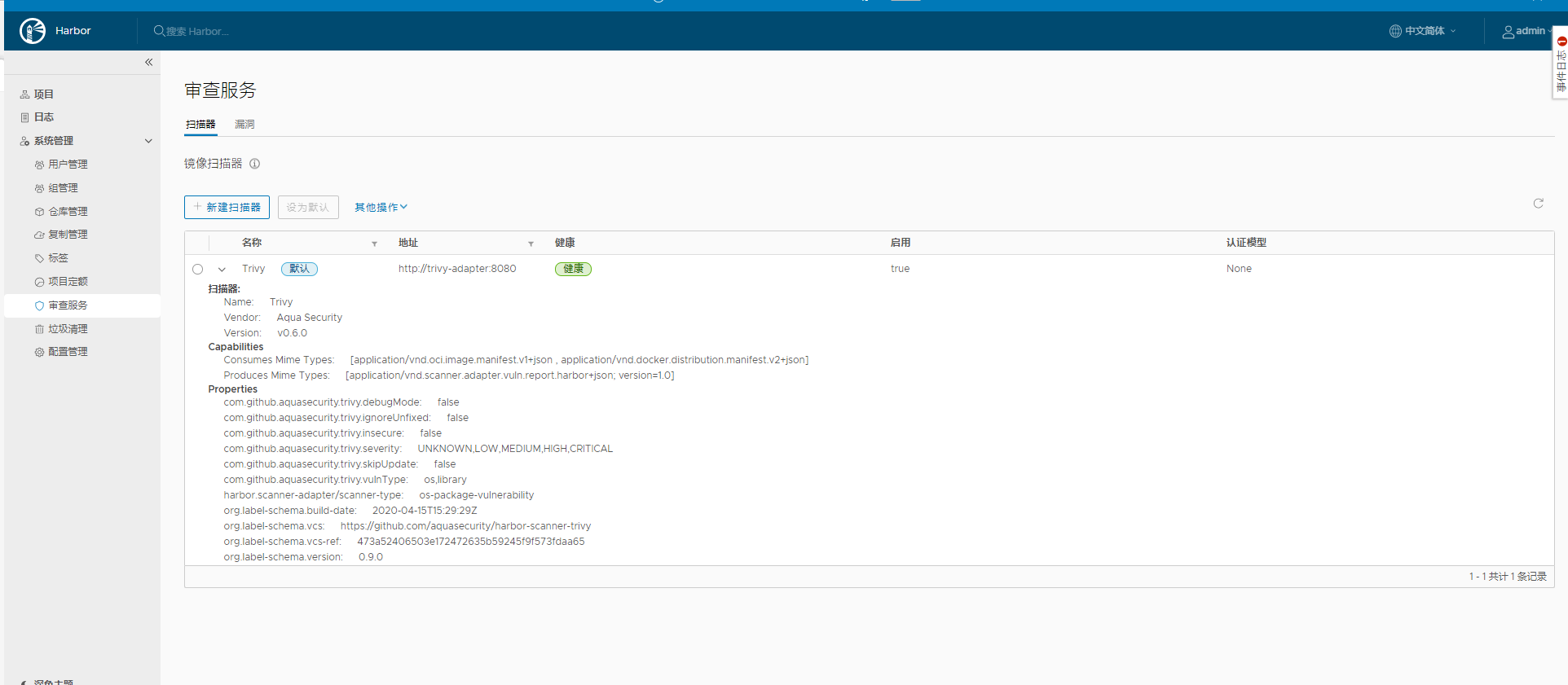

  • 审查服务
    为了镜像安全,审查服务提供了扫描器,扫描镜像是否有漏洞,2.0 以Trivy作为默认扫描器,也可以配置其他扫描器,如clair等,harbor提供prepare脚本支持一键修改
./prepare --help
prepare base dir is set to /home/admin/harbor/harbor
Usage: main.py prepare [OPTIONS]

Options:
  --conf TEXT         the path of Harbor configuration file
  --with-notary       the Harbor instance is to be deployed with notary
  --with-clair        the Harbor instance is to be deployed with clair
  --with-trivy        the Harbor instance is to be deployed with Trivy
  --with-chartmuseum  the Harbor instance is to be deployed with chart
                      repository supporting

  --help              Show this message and exit.
Clean up the input dir

扫描器

  • 垃圾清理
    垃圾清理用来删除指定规则下的镜像

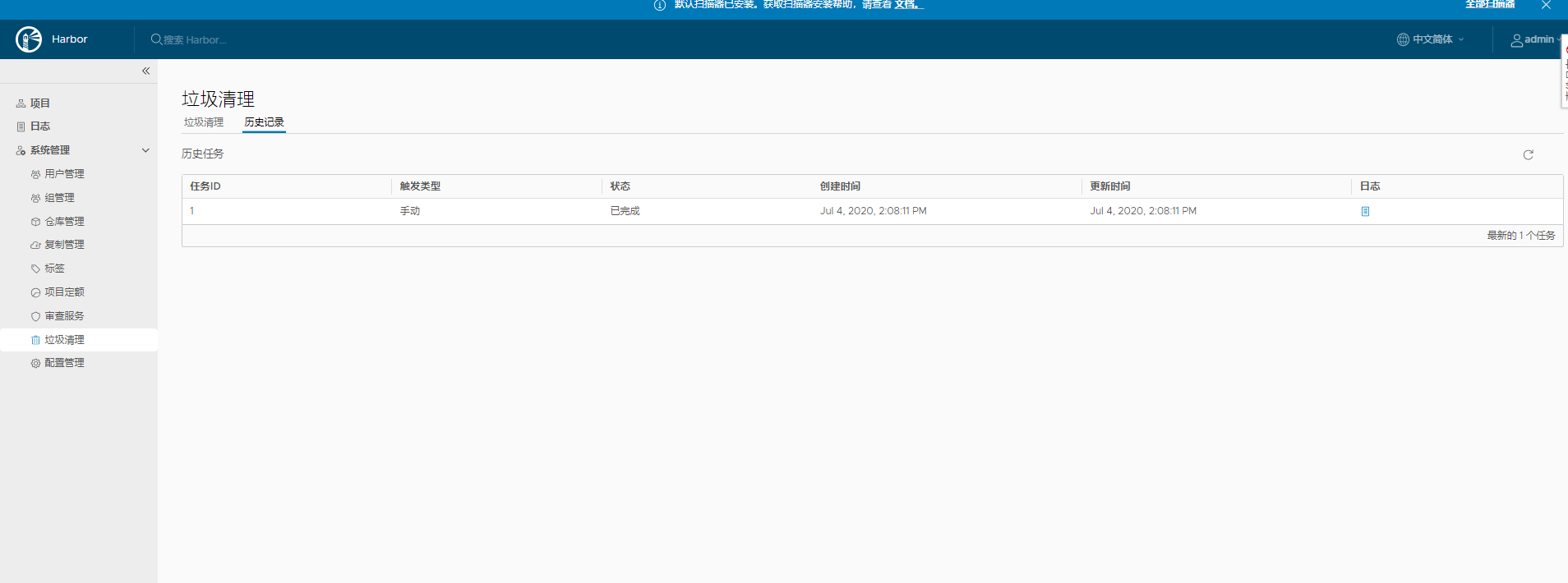

    垃圾清理

存储

Harbor支持远程挂载存储,以解决本地存储不足的情况,支持NFS,OSS,分布式存储等

docker client 配置

Harbor搭建好之后,就可以通过docker client上传镜像了,docker安装同上

  • 配置镜像加速
    配置阿里云镜像加速器
vim /etc/docker/daemon.json
{
    "data-root": "/data/docker", # docker数据目录,可不修改
    "insecure-registries": ["0.0.0.0/0"],  # 非安全地址 你的harbor地址 或者0.0.0.0/0 (由于未使用https认证)
    "registry-mirrors": ["https://xxxx.mirror.aliyuncs.com"] # 阿里云加速地址 自己找
}
  • 重启docker
service docker restart

systemd 系统使用如下命令

systemctl restart docker

上传镜像

  • login
docker login -u username http://xx.xx.xx.xx:port

登录私有镜像仓库,如果没有配置上面的非安全地址,会出现401错误

  • tag
    我们从dockerhub pull一个node镜像到本地,然后对这个镜像打tag,可直接复制此处命令做修改

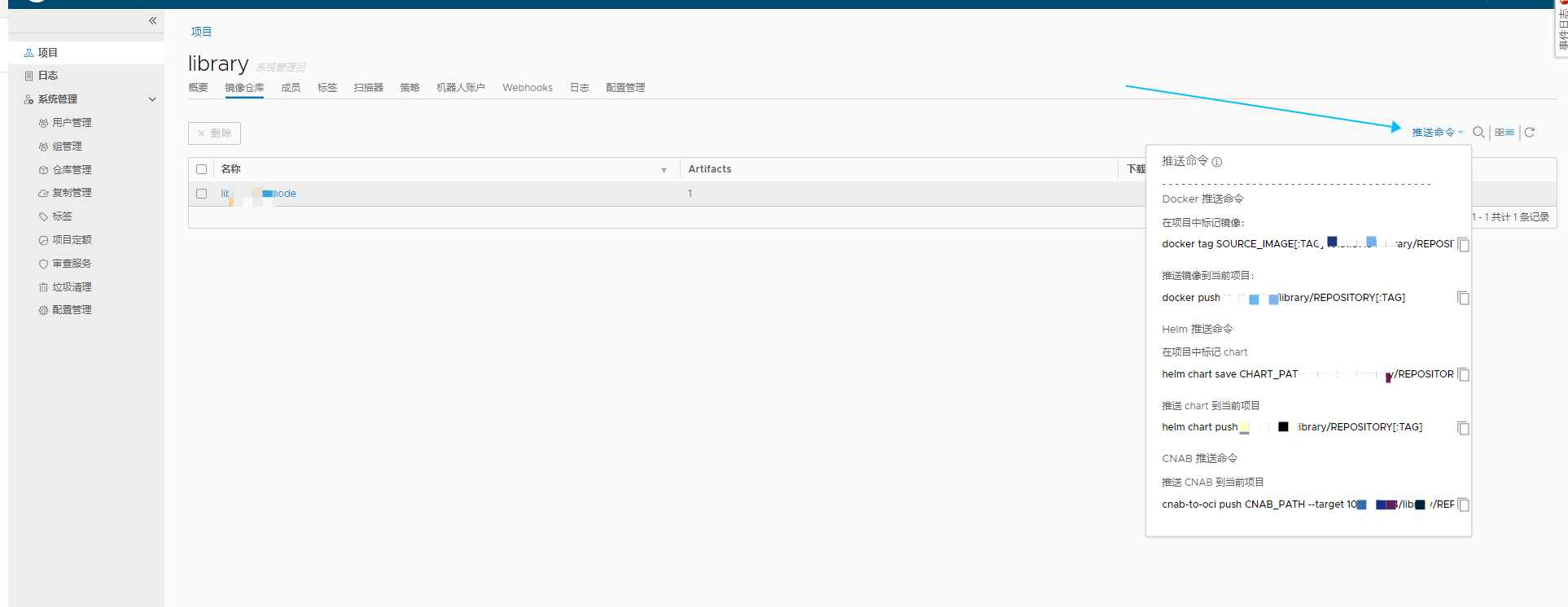

    在这里插入图片描述
    查看拉下来的官网镜像


docker images
REPOSITORY                    TAG                 IMAGE ID            CREATED             SIZE
node                          latest              37ad18cd8bd1        2 days ago          943MB

对其打 tag,私有需要在tag中加入仓库地址,如下

docker tag node:latest xx.xx.xx.xx/library/zm-node

查看镜像

docker images
REPOSITORY                    TAG                 IMAGE ID            CREATED             SIZE
xx.xx.xx.xx/library/zm-node   latest              37ad18cd8bd1        2 days ago          943MB
node                          latest              37ad18cd8bd1        2 days ago          943MB
  • 推送
docker push xx.xx.xx.xx/library/zm-node
  • 查看镜像

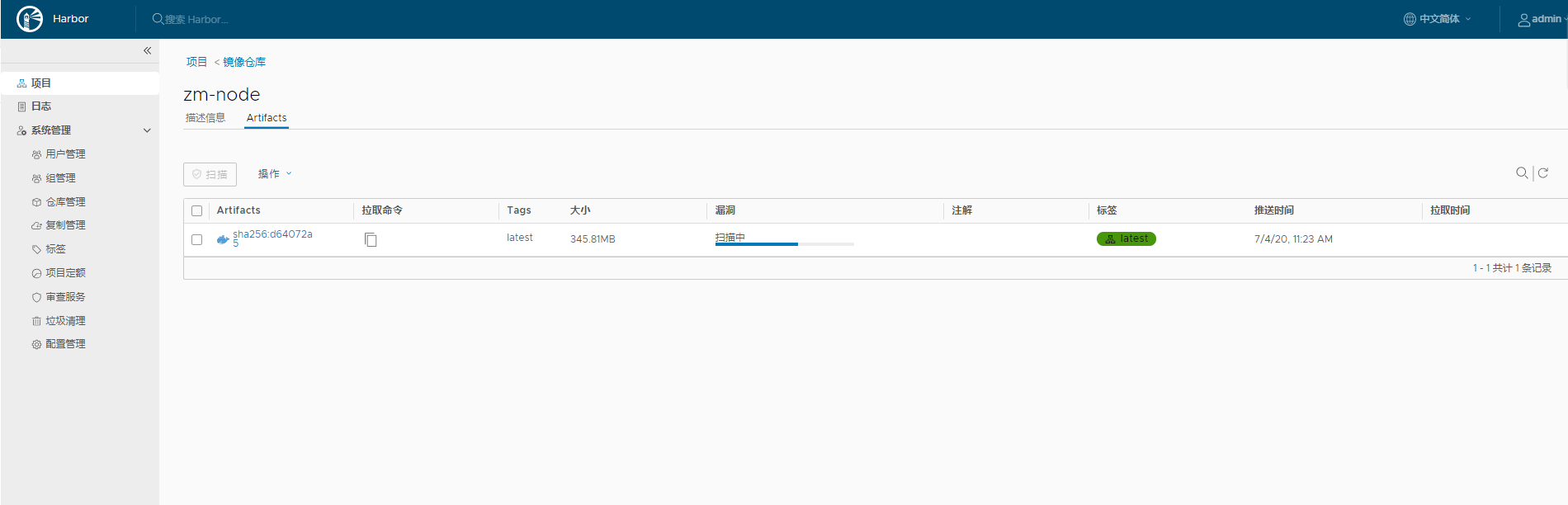

    镜像
    至此私有仓库的搭建和测试完成

问题归纳

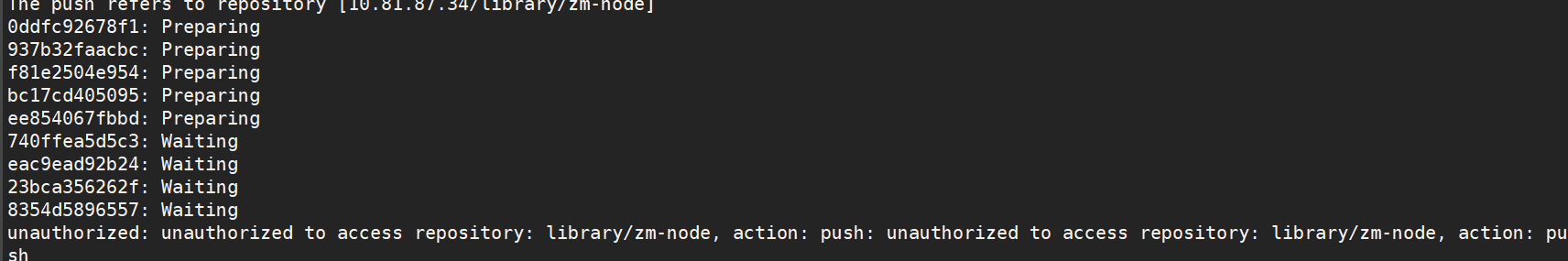

过程中在ldap 和 docker 认证问题上耗时较长,最诡异的问题是 login成功了,push有问题 ,提示
unauthorized to access repository
unauth

参考资料

harbor官方文档
harbor使用手册
k8s harbor
内网协议学习LDAP篇之组和OU介绍


易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
