这篇文章主要写 Hadoop RPC Server 的设计 与实现 . 在讲解的时候, 以 ProtobufRpcEngine为实例, 然后分步进行叙述. 为什么要拿ProtobufRpcEngine讲呢? ProtobufRpcEngine是 现有 Hadoop RpcEngine里面的默认使用方式, 因为Hadoop所有通讯99.99%都是通过proto 协议实现的. WritableRpcEngine 这个方式在hadoop3.2.1 版本已经被标识为[弃用] .
RPC 是帮助我们屏蔽网络编程细节，实现调用远程方法就跟调用本地（同一个项目中的方法）一样的体验，我们不需要因为这个方法是远程调用就需要编写很多与业务无关的代码。
概念我就不唠叨了,可以翻翻我前面写的文章或者在网上查查,这个东西一堆堆的.
一.Server端架构

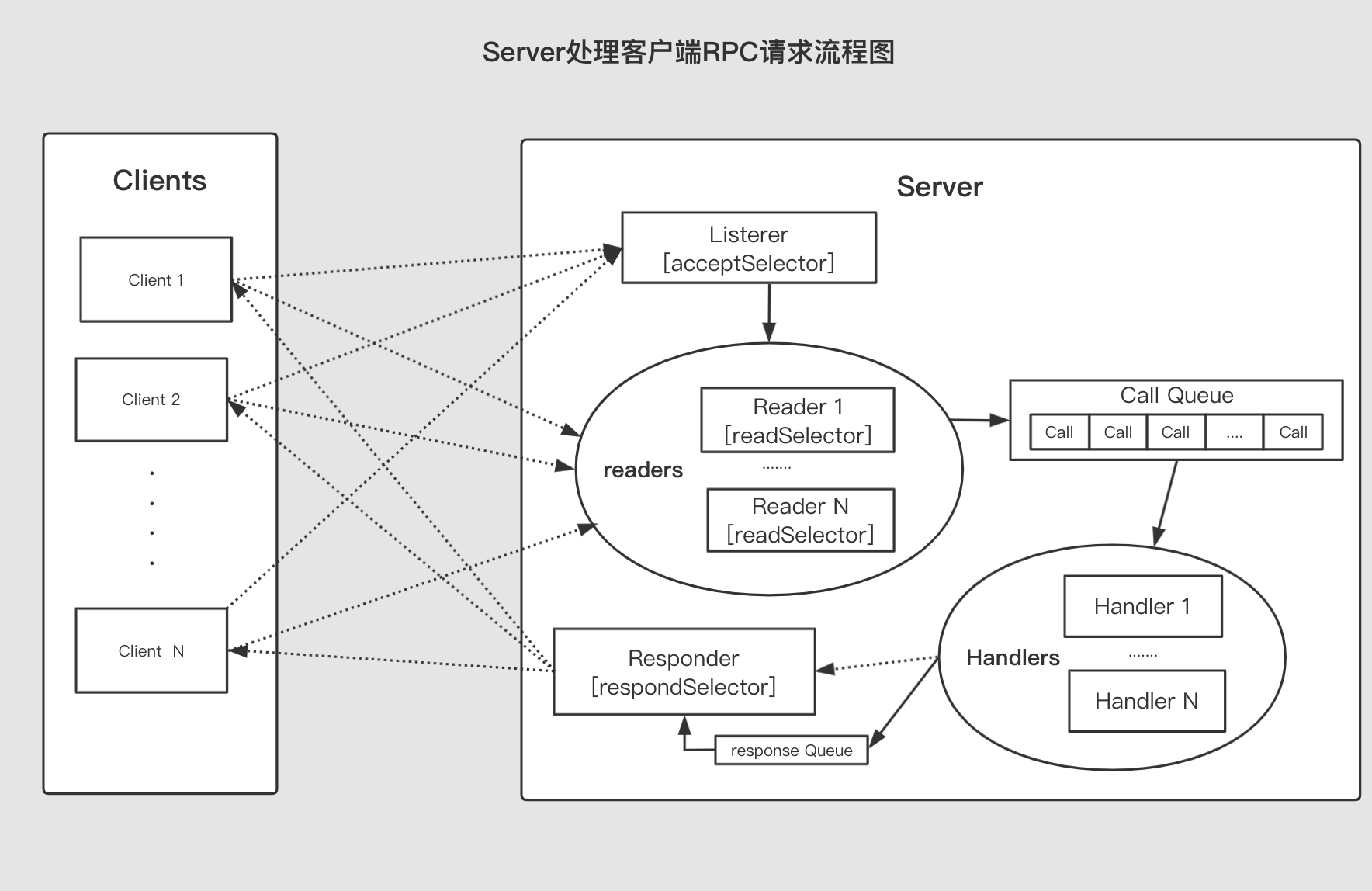

在这里,我们先说一下Server的架构. Server端, 采用Reactor架构.
Listener 负责监听服务. 当有请求进来, 会在reader pool 中 获取一个Reader 读取请求.
Reader 读取Client的请求, 将读取的数据Call 放到队列中 callQueue 中 [ CallQueueManager ]
Handler 读取callQueue中的数据进行处理, 将处理的结果, 交由Responder处理.
Server 处理流程解读如下：
整个 Server 只有一个 Listener 线程，Listener 对象中的 Selector 对象 acceptorSelector 负责监听来自客户端的 Socket 连接请求。acceptorSelector 在ServerSocketChannel 上注册 OP_ACCEPT 事件，等待客户端 Client.call() 中的 getConnection 触发该事件唤醒 Listener 线程，创建新的 SocketChannel 并创建 readers 线程池；Listener 会在 reader 线程池中选取一个线程，并在 Reader 的 readerSelector 上注册 OP_READ 事件。
readerSelector 监听 OP_READ 事件，当客户端发送 RPC 请求，触发 readerSelector 唤醒 Reader 线程；Reader 线程从 SocketChannel 中读取数据封装成 Call 对象，然后放入共享队列 callQueue。
最初，handlers 线程池都在 callQueue 上阻塞（BlockingQueue.take()），当有 Call 对象加入，其中一个 Handler 线程被唤醒。根据 Call 对象上的信息，调用 Server.call() 方法（类似 Client.call() ），反序列化并执行 RPC 请求对应的本地函数，最后将响应返回写入 SocketChannel。
Responder 线程起着缓冲作用。当有大量响应或网络不佳时，Handler 不能将完整的响应返回客户端，会在 Responder 的 respondSelector 上注册 OP_WRITE 事件，当监听到写条件时，会唤醒 Responder 返回响应。
二.Server端创建流程
下面是创建Server端的代码.协议采用proto, 所以产生的RpcEngine是 ProtobufRpcEngine. 所以接下来的文章是以ProtobufRpcEngine为蓝本进行源码分析.
我只放了Server端, 详细的代码请查看:
Hadoop3.2.1 【 HDFS 】源码分析 : RPC原理 [六] ProtobufRpcEngine 使用
public static void main(String[] args) throws Exception{
//1. 构建配置对象
Configuration conf = new Configuration();
//2. 协议对象的实例
MetaInfoServer serverImpl = new MetaInfoServer();
BlockingService blockingService =
CustomProtos.MetaInfo.newReflectiveBlockingService(serverImpl);
//3. 设置协议的RpcEngine为ProtobufRpcEngine .
RPC.setProtocolEngine(conf, MetaInfoProtocol.class,
ProtobufRpcEngine.class);
//4. 构建RPC框架
RPC.Builder builder = new RPC.Builder(conf);
//5. 绑定地址
builder.setBindAddress("localhost");
//6. 绑定端口
builder.setPort(7777);
//7. 绑定协议
builder.setProtocol(MetaInfoProtocol.class);
//8. 调用协议实现类
builder.setInstance(blockingService);
//9. 创建服务
RPC.Server server = builder.build();
//10. 启动服务
server.start();
}上面的代码, 主要是分三部分.
1.定义接口&实现.
2.设置服务的参数. 如: 协议使用的RpcEngine类型. Server发布的IP, 端口. 绑定协议&协议的实现对象.
3.根据第二条中设置的RpcEngine的参数, 构建RpcEngine 并 启动服务.
第一条和第二条,我就不细说了. 这个很简单,就是使用proto定义一个协议, 绑定到RPC.Builder的实现对象里面.
核心的是:
RPC.Server server = builder.build();
所以,我们从这里来看, 如果构建RpcEngine .
/**
* Build the RPC Server.
* @throws IOException on error
* @throws HadoopIllegalArgumentException when mandatory fields are not set
*/
public Server build() throws IOException, HadoopIllegalArgumentException {
if (this.conf == null) {
throw new HadoopIllegalArgumentException("conf is not set");
}
if (this.protocol == null) {
throw new HadoopIllegalArgumentException("protocol is not set");
}
if (this.instance == null) {
throw new HadoopIllegalArgumentException("instance is not set");
}
//调用getProtocolEngine()获取当前RPC类配置的RpcEngine对象
//在 NameNodeRpcServer的构造方法中已经将
// 当前RPC类的RpcEngine对象设置为 ProtobufRpcEngine了。
// 获取了ProtobufRpcEngine对象之后，build()方法会在
// ProtobufRpcEngine对象上调用getServer()方法获取一个RPC Server对象的引用。
return getProtocolEngine(this.protocol, this.conf).getServer(
this.protocol, this.instance, this.bindAddress, this.port,
this.numHandlers, this.numReaders, this.queueSizePerHandler,
this.verbose, this.conf, this.secretManager, this.portRangeConfig,
this.alignmentContext);
}在这里,主要的是有两个方法. 一个是getProtocolEngine 另一个是 getServer .
逻辑顺序是先获取对应协议的RpcEngine ,然后再用RpcEngine创建一个Server服务.
先看getProtocolEngine
// return the RpcEngine configured to handle a protocol
static synchronized RpcEngine getProtocolEngine(Class<?> protocol,
Configuration conf) {
//从缓存中获取RpcEngine ,
// 这个是提前设置的
// 通过 RPC.setProtocolEngine(conf, MetaInfoProtocol.class,ProtobufRpcEngine.class);
RpcEngine engine = PROTOCOL_ENGINES.get(protocol);
if (engine == null) {
//通过这里 获取RpcEngine的实现类 , 这里我们获取的是 ProtobufRpcEngine.class
Class<?> impl = conf.getClass(ENGINE_PROP+"."+protocol.getName(),
WritableRpcEngine.class);
// impl : org.apache.hadoop.ipc.ProtobufRpcEngine
engine = (RpcEngine)ReflectionUtils.newInstance(impl, conf);
PROTOCOL_ENGINES.put(protocol, engine);
}
return engine;

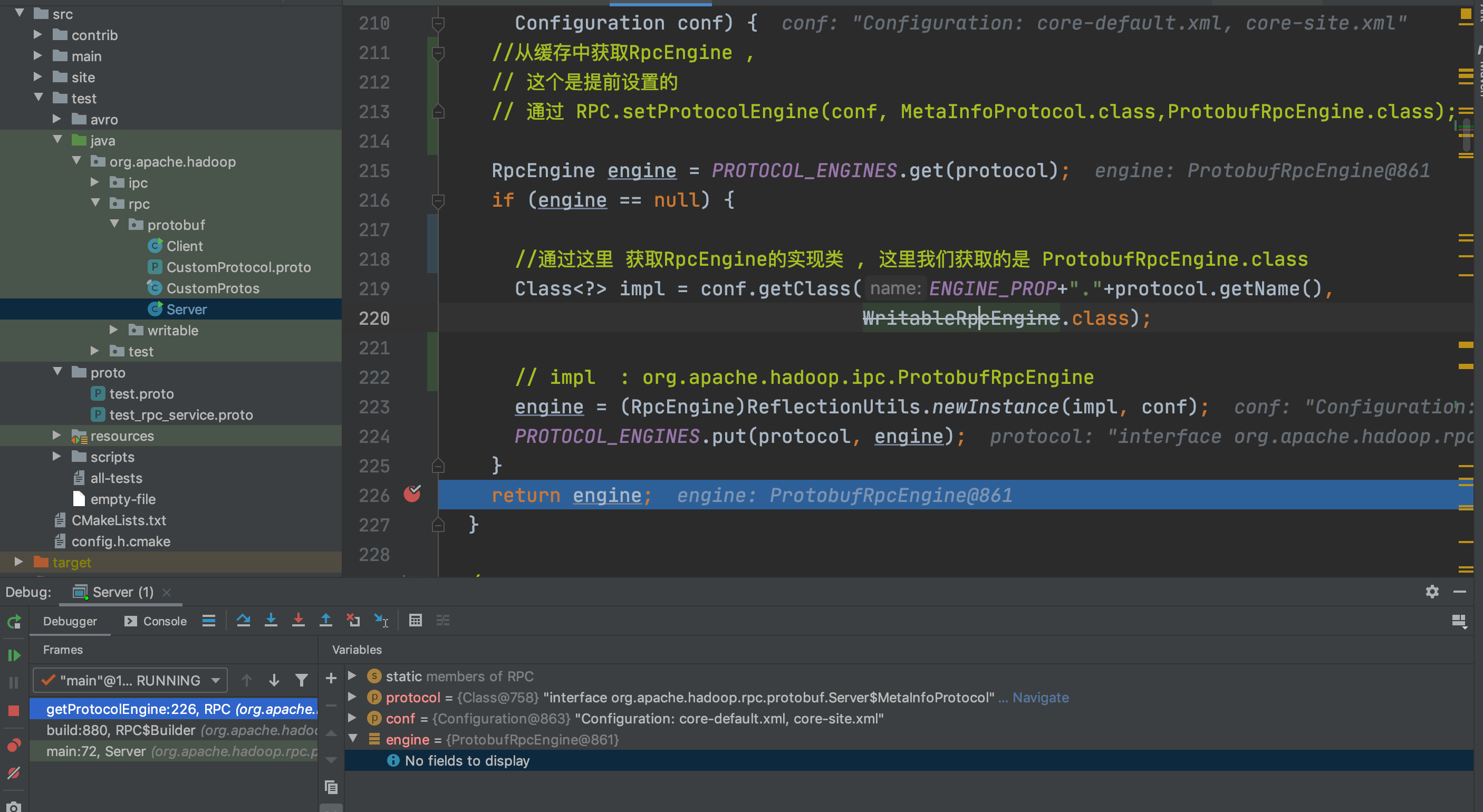

}在这里, 先通过
RpcEngine engine = PROTOCOL_ENGINES.get(protocol);
获取到协议对应的RpcEngine . 然后再通过
engine = (RpcEngine)ReflectionUtils.newInstance(impl, conf);
进行实例化, 这样我们就获取到了RpcEngine 对象的实例 ==> ProtobufRpcEngine
在获取到ProtobufRpcEngine 之后, 调用其 getServer 方法, 获取Server 实例.
@Override
public RPC.Server getServer(Class<?> protocol, Object protocolImpl,
String bindAddress, int port, int numHandlers, int numReaders,
int queueSizePerHandler, boolean verbose, Configuration conf,
SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig, AlignmentContext alignmentContext)
throws IOException {
return new Server(protocol, protocolImpl, conf, bindAddress, port,
numHandlers, numReaders, queueSizePerHandler, verbose, secretManager,
portRangeConfig, alignmentContext);
}
在整个流程中 getServer 会调用 new Server的构造方法创建Server 服务
入参有点多 在这里,我对输入的参数做一个说明, 其实你看上面的注释也可以看出来.
protocolClass : protocol协议的类
protocolImpl : protocol实现类
conf : 配置文件
bindAddress : Server绑定的ip地址
port : Server绑定的端口
numHandlers : handler的线程数量 , 默认值 1
verbose : 是否每一个请求,都需要打印日志.
portRangeConfig : A config parameter that can be used to restrict
alignmentContext : provides server state info on client responses
在Server的构建方法中, 首先会调用父类的构建方法. 然后再调用registerProtocolAndlmpl 方法注册接口类和接口的实现类
/**
* Construct an RPC server.
*
* @param protocolClass the class of protocol
* @param protocolImpl the protocolImpl whose methods will be called
* @param conf the configuration to use
* @param bindAddress the address to bind on to listen for connection
* @param port the port to listen for connections on
* @param numHandlers the number of method handler threads to run
* @param verbose whether each call should be logged
* @param portRangeConfig A config parameter that can be used to restrict
* @param alignmentContext provides server state info on client responses
*/
public Server(Class<?> protocolClass, Object protocolImpl,
Configuration conf, String bindAddress, int port, int numHandlers,
int numReaders, int queueSizePerHandler, boolean verbose,
SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig, AlignmentContext alignmentContext)
throws IOException {
super(bindAddress, port, null, numHandlers,
numReaders, queueSizePerHandler, conf,
serverNameFromClass(protocolImpl.getClass()), secretManager,
portRangeConfig);
setAlignmentContext(alignmentContext);
this.verbose = verbose;
//调用registerProtocolAndlmpl()方法
// 注册接口类protocolClass和实现类protocolImpl的映射关系
registerProtocolAndImpl(RPC.RpcKind.RPC_PROTOCOL_BUFFER, protocolClass,
protocolImpl);
}registerProtocolAndlmpl这个我们就不看了, 主要是看调用父类的构造方法,看看这里面干了什么.
RPC.Server
protected Server(String bindAddress, int port,
Class<? extends Writable> paramClass, int handlerCount,
int numReaders, int queueSizePerHandler,
Configuration conf, String serverName,
SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig) throws IOException {
//调用父类,进行Server的初始化操作
super(bindAddress, port, paramClass, handlerCount, numReaders, queueSizePerHandler,
conf, serverName, secretManager, portRangeConfig);
///在这里设置meta data 的通讯协议,已经处理的RpcEngine
initProtocolMetaInfo(conf);
}
这里一共分两步, 一个当前Server继续调用父类[org.apache.hadoop.ipc.Server]构造方法 . 另一个继续注册 元数据的通讯协议&实现类.
同样,我们只看父类[org.apache.hadoop.ipc.Server]构造方法就可以了. 注册元数据的通讯协议和实体类我们就不看了,跟上面的registerProtocolAndlmpl一样.
org.apache.hadoop.ipc.Server
到这里,才是Server端的真正构建过程.
在这里,我再把最上面的架构图拿下来,方便对比着代码看,方便理解.
protected Server(String bindAddress, int port,
Class<? extends Writable> rpcRequestClass, int handlerCount,
int numReaders, int queueSizePerHandler, Configuration conf,
String serverName, SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig)
throws IOException {
//绑定IP 地址 必填
this.bindAddress = bindAddress;
//绑定配置文件
this.conf = conf;
this.portRangeConfig = portRangeConfig;
//绑定 端口 必填
this.port = port;
// 这个值 应该是为null,
this.rpcRequestClass = rpcRequestClass;
// handlerCount 的线程数量
this.handlerCount = handlerCount;
this.socketSendBufferSize = 0;
// 服务名
this.serverName = serverName;
this.auxiliaryListenerMap = null;
// server接收的最大数据长度
// ipc.maximum.data.length 默认 : 64 * 1024 * 1024 ===> 64 MB
this.maxDataLength = conf.getInt(CommonConfigurationKeys.IPC_MAXIMUM_DATA_LENGTH,
CommonConfigurationKeys.IPC_MAXIMUM_DATA_LENGTH_DEFAULT);
// handler队列的最大数量 默认值为-1 , 即默认最大容量为 handler线程的数量 * 每个handler线程队列的数量 = 1 * 100 = 100
if (queueSizePerHandler != -1) {
//最大队列长度: 如果不是默认值为handler线程的数量 * 每个handler线程队列的数量
this.maxQueueSize = handlerCount * queueSizePerHandler;
} else {
//最大队列长度: 如果设置为 -1 的话, 默认值handler队列值为 100 , 所以最大队列长度为 : handler 线程的数量 * 100
this.maxQueueSize = handlerCount * conf.getInt(
CommonConfigurationKeys.IPC_SERVER_HANDLER_QUEUE_SIZE_KEY,
CommonConfigurationKeys.IPC_SERVER_HANDLER_QUEUE_SIZE_DEFAULT);
}
// 返回值的大小如果超过 1024*1024 = 1M ,将会有告警[WARN]级别的日志输出....
this.maxRespSize = conf.getInt(
CommonConfigurationKeys.IPC_SERVER_RPC_MAX_RESPONSE_SIZE_KEY,
CommonConfigurationKeys.IPC_SERVER_RPC_MAX_RESPONSE_SIZE_DEFAULT);
//设置 readThread的线程数量, 默认 1
if (numReaders != -1) {
this.readThreads = numReaders;
} else {
this.readThreads = conf.getInt(
CommonConfigurationKeys.IPC_SERVER_RPC_READ_THREADS_KEY,
CommonConfigurationKeys.IPC_SERVER_RPC_READ_THREADS_DEFAULT);
}
//设置reader的队列长度, 默认 100
this.readerPendingConnectionQueue = conf.getInt(
CommonConfigurationKeys.IPC_SERVER_RPC_READ_CONNECTION_QUEUE_SIZE_KEY,
CommonConfigurationKeys.IPC_SERVER_RPC_READ_CONNECTION_QUEUE_SIZE_DEFAULT);
// Setup appropriate callqueue
final String prefix = getQueueClassPrefix();
//callQueue reader 读取client端的数据之后 . 放到这个队列里面, 等到hander进行处理
//队列 : LinkedBlockingQueue<Call> 格式. 调度器默认: DefaultRpcScheduler
this.callQueue = new CallQueueManager<Call>(getQueueClass(prefix, conf),
getSchedulerClass(prefix, conf),
getClientBackoffEnable(prefix, conf), maxQueueSize, prefix, conf);
// 安全相关
this.secretManager = (SecretManager<TokenIdentifier>) secretManager;
this.authorize = conf.getBoolean(CommonConfigurationKeys.HADOOP_SECURITY_AUTHORIZATION, false);
// configure supported authentications
this.enabledAuthMethods = getAuthMethods(secretManager, conf);
this.negotiateResponse = buildNegotiateResponse(enabledAuthMethods);
// Start the listener here and let it bind to the port
//创建Listener , 绑定监听的端口, 所有client端发送的请求, 都是通过这里进行转发
listener = new Listener(port);
// set the server port to the default listener port.
this.port = listener.getAddress().getPort();
connectionManager = new ConnectionManager();
this.rpcMetrics = RpcMetrics.create(this, conf);
this.rpcDetailedMetrics = RpcDetailedMetrics.create(this.port);
//打开/关闭服务器上TCP套接字连接的Nagle算法 默认值 true
//如果设置为true，则禁用该算法，并可能会降低延迟，同时会导致更多/更小数据包的开销。
this.tcpNoDelay = conf.getBoolean(
CommonConfigurationKeysPublic.IPC_SERVER_TCPNODELAY_KEY,
CommonConfigurationKeysPublic.IPC_SERVER_TCPNODELAY_DEFAULT);
//如果当前的rpc服务比其他的rpc服务要慢的话, 记录日志, 默认 false
this.setLogSlowRPC(conf.getBoolean(
CommonConfigurationKeysPublic.IPC_SERVER_LOG_SLOW_RPC,
CommonConfigurationKeysPublic.IPC_SERVER_LOG_SLOW_RPC_DEFAULT));
// Create the responder here
// 创建响应服务
responder = new Responder();
//安全相关
if (secretManager != null || UserGroupInformation.isSecurityEnabled()) {
SaslRpcServer.init(conf);
saslPropsResolver = SaslPropertiesResolver.getInstance(conf);
}
//设置StandbyException异常处理
this.exceptionsHandler.addTerseLoggingExceptions(StandbyException.class);
}构建完Server之后, 就调用
server.start();
启动Server中创建好的各个组件.
注意一下启动顺序.
public synchronized void start() {
responder.start();
listener.start();
if (auxiliaryListenerMap != null && auxiliaryListenerMap.size() > 0) {
for (Listener newListener : auxiliaryListenerMap.values()) {
newListener.start();
}
}
handlers = new Handler[handlerCount];
for (int i = 0; i < handlerCount; i++) {
handlers[i] = new Handler(i);
handlers[i].start();
}
}
三.Server组件
Server服务里面包含多个组件, 多个组件之间相互衔接完成RPC Server端的功能.
关键组件为: Listener , Reader , callQueue , Handler , ConnectionManager , Responder,
接下来,分别进行分析.
3.1.Listener
Listener是一个线程类， 整个Server中只会有一个Listener线程， 用于监听来自客户端的Socket连接请求。 对于每一个新到达的Socket连接请求， Listener都会从readers线程池中选择一个Reader线程来处理。
Listener对象中存在一个Selector对象acceptSelector， 负责监听来自客户端的Socket连接请求。 当acceptSelector监听到连接请求后， Listener对象会初始化这个连接， 之后采用轮询的方式从readers线程池中选出一个Reader线程处理RPC请求的读取操作。
3.1.1. 构建
// Start the listener here and let it bind to the port
//创建Listener , 绑定监听的端口, 所有client端发送的请求, 都是通过这里进行转发
listener = new Listener(port);
3.1.2.常量.
主要是创建一个无阻塞的socket .
private class Listener extends Thread {
// socket 接收服务的channel 这是一个无阻塞的socker服务.
private ServerSocketChannel acceptChannel = null; //the accept channel
// 注册一个 Selector 用于服务的监控
private Selector selector = null; //the selector that we use for the server
// 注册Reader 服务的缓冲池.用于读取client的服务.
private Reader[] readers = null;
private int currentReader = 0;
// Socket 地址的实体对象
private InetSocketAddress address; //the address we bind at
// 监听的端口
private int listenPort; //the port we bind at
//服务监听队列的长度, 默认 128
private int backlogLength = conf.getInt(
CommonConfigurationKeysPublic.IPC_SERVER_LISTEN_QUEUE_SIZE_KEY,
CommonConfigurationKeysPublic.IPC_SERVER_LISTEN_QUEUE_SIZE_DEFAULT);
...........
}3.1.3.构造方法
1. 初始化Listener, 根据ip,端口 创建一个无阻塞的socket 并绑定 SelectionKey.OP_ACCEPT 事件到Selector 上
2. 根据readThreads的数量, 构建 Reader.
Listener(int port) throws IOException {
//创建InetSocketAddress 实例
address = new InetSocketAddress(bindAddress, port);
// Create a new server socket and set to non blocking mode
// 创建一个无阻塞的socket服务
acceptChannel = ServerSocketChannel.open();
acceptChannel.configureBlocking(false);
// Bind the server socket to the local host and port
// 绑定服务和端口
bind(acceptChannel.socket(), address, backlogLength, conf, portRangeConfig);
//Could be an ephemeral port
// 可能是一个临时端口
this.listenPort = acceptChannel.socket().getLocalPort();
//设置当前线程的名字
Thread.currentThread().setName("Listener at " + bindAddress + "/" + this.listenPort);
// create a selector;
// 创建一个selector
selector= Selector.open();
// 创建 Reader
readers = new Reader[readThreads];
for (int i = 0; i < readThreads; i++) {
Reader reader = new Reader(
"Socket Reader #" + (i + 1) + " for port " + port);
readers[i] = reader;
reader.start();
}
// Register accepts on the server socket with the selector.
/// 注册 SelectionKey.OP_ACCEPT 事件到 selector
acceptChannel.register(selector, SelectionKey.OP_ACCEPT);
//设置线程名字
this.setName("IPC Server listener on " + port);
//设置守护模式.
this.setDaemon(true);
}
3.1.3.run方法
Listener类中定义了一个Selector对象， 负责监听SelectionKey.OP_ACCEPT事件，Listener线程的run()方法会循环判断是否监听到了OP_ACCEPT事件， 也就是是否有新的Socket连接请求到达， 如果有则调用doAccept()方法响应。
@Override
public void run() {
LOG.info(Thread.currentThread().getName() + ": starting");
SERVER.set(Server.this);
//创建线程,定时扫描connection, 关闭超时,无效的连接
connectionManager.startIdleScan();
while (running) {
SelectionKey key = null;
try {
//如果没有请求进来的话,会阻塞.
getSelector().select();
//循环判断是否有新的连接建立请求
Iterator<SelectionKey> iter = getSelector().selectedKeys().iterator();
while (iter.hasNext()) {
key = iter.next();
iter.remove();
try {
if (key.isValid()) {
if (key.isAcceptable()){
//如果有，则调用doAccept()方法响应
doAccept(key);
}
}
} catch (IOException e) {
}
key = null;
}
} catch (OutOfMemoryError e) {
//这里可能出现内存溢出的情况，要特别注意
// 如果内存溢出了,会关闭当前连接, 休眠 60 秒
// we can run out of memory if we have too many threads
// log the event and sleep for a minute and give
// some thread(s) a chance to finish
LOG.warn("Out of Memory in server select", e);
closeCurrentConnection(key, e);
connectionManager.closeIdle(true);
try { Thread.sleep(60000); } catch (Exception ie) {}
} catch (Exception e) {
//捕获到其他异常，也关闭当前连接
closeCurrentConnection(key, e);
}
}
LOG.info("Stopping " + Thread.currentThread().getName());
// 关闭请求. 停止所有服务.
synchronized (this) {
try {
acceptChannel.close();
selector.close();
} catch (IOException e) { }
selector= null;
acceptChannel= null;
// close all connections
connectionManager.stopIdleScan();
connectionManager.closeAll();
}
}
3.1.4.doAccept(key)
doAccept()方法会接收来自客户端的Socket连接请 求并初始化Socket连接。之后doAccept()方法会从readers线程池中选出一个Reader线程读取来自这个客户端的RPC请求。每个Reader线程都会有一个自己的readSelector，用于监听是 否有新的RPC请求到达。
所以doAccept()方法在建立连接并选出 Reader对象后，会在这个 Reader 对象的 readSelector上注册OP_READ事件。doAccept()方法会通过 SelectionKey 将新构造的 Connection对象传给Reader，Connection类封装了 Server 与 Client之间的Socket连接. 这样Reader线程在被唤醒时就可以通过Connection 对象读取RPC请求了。
void doAccept(SelectionKey key) throws InterruptedException, IOException, OutOfMemoryError {
//接收请求，建立连接
ServerSocketChannel server = (ServerSocketChannel) key.channel();
SocketChannel channel;
while ((channel = server.accept()) != null) {
channel.configureBlocking(false);
channel.socket().setTcpNoDelay(tcpNoDelay);
channel.socket().setKeepAlive(true);
// 获取 reader , 通过 % 取余的方式获取reader
Reader reader = getReader();
//构造Connection对象， 添加到readKey的附件传递给Reader对象
Connection c = connectionManager.register(channel, this.listenPort);
// If the connectionManager can't take it, close the connection.
// 如果connectionManager获取不到Connection, 关闭当前连接
if (c == null) {
if (channel.isOpen()) {
IOUtils.cleanup(null, channel);
}
connectionManager.droppedConnections.getAndIncrement();
continue;
}
// so closeCurrentConnection can get the object
key.attach(c);
//reader 增加连接,处理 connection 里面的数据
reader.addConnection(c);
}
}
3.2.Reader
Reader也是一个线程类， 每个Reader线程都会负责读取若干个客户端连接发来的RPC请求。 而在Server类中会存在多个Reader线程构成一个readers线程池， readers线程池并发地读取RPC请求， 提高了Server处理RPC请求的速率。 Reader类定义了自己的readSelector字段， 用于监听SelectionKey.OP_READ事件。 Reader类还定义了adding字段标识是否有任务正在添加到Reader线程。
3.2.1.创建
Reader 是在Listener构造方法里面创建. Reader 继承Thread类. 是一个线程方法
// 创建 Reader
readers = new Reader[readThreads];
for (int i = 0; i < readThreads; i++) {
Reader reader = new Reader(
"Socket Reader #" + (i + 1) + " for port " + port);
readers[i] = reader;
reader.start();
}
3.2.2.常量
// 队列
final private BlockingQueue<Connection> pendingConnections;
//Selector 用于注册 channel
private final Selector readSelector;
3.2.3.构造方法
Reader(String name) throws IOException {
//设置线程名字
super(name);
//reader的队列长度, 默认 100
this.pendingConnections =
new LinkedBlockingQueue<Connection>(readerPendingConnectionQueue);
this.readSelector = Selector.open();
}
3.2.4 run方法
就是就是调用doRunLoop 方法
@Override
public void run() {
LOG.info("Starting " + Thread.currentThread().getName());
try {
//Reader ... 进行轮询操作...
doRunLoop();
} finally {
try {
readSelector.close();
} catch (IOException ioe) {
LOG.error("Error closing read selector in " + Thread.currentThread().getName(), ioe);
}
}
}
3.2.5. doRunLoop()
Reader线程的主循环则是在doRunLoop()方法中实现的， doRunLoop()方法会监听当前Reader对象负责的所有客户端连接中是否有新的RPC请求到达， 如果有则读取这些请求，然后将成功读取的请求用一个Call对象封装， 最后放入callQueue中等待Handler线程处理。
主要有两个步骤.
1.从队列pendingConnections中接入连接, 注册SelectionKey.OP_READ事件到Selector
2.有可读事件时，调用doRead()方法处理
private synchronized void doRunLoop() {
while (running) {
SelectionKey key = null;
try {
// consume as many connections as currently queued to avoid
// unbridled acceptance of connections that starves the select
int size = pendingConnections.size();
for (int i=size; i>0; i--) {
Connection conn = pendingConnections.take();
conn.channel.register(readSelector, SelectionKey.OP_READ, conn);
}
//等待请求接入
readSelector.select();
//在当前的readSelector上等待可读事件，也就是有客户端RPC请求到达
Iterator<SelectionKey> iter = readSelector.selectedKeys().iterator();
while (iter.hasNext()) {
key = iter.next();
iter.remove();
try {
if (key.isReadable()) {
//有可读事件时，调用doRead()方法处理
doRead(key);
}
} catch (CancelledKeyException cke) {
// something else closed the connection, ex. responder or
// the listener doing an idle scan. ignore it and let them
// clean up.
LOG.info(Thread.currentThread().getName() +
": connection aborted from " + key.attachment());
}
key = null;
}
} catch (InterruptedException e) {
if (running) { // unexpected -- log it
LOG.info(Thread.currentThread().getName() + " unexpectedly interrupted", e);
}
} catch (IOException ex) {
LOG.error("Error in Reader", ex);
} catch (Throwable re) {
LOG.error("Bug in read selector!", re);
ExitUtil.terminate(1, "Bug in read selector!");
}
}
}
3.2.6. doRead(key)
当有数据到达触发Selector 的 SelectionKey.OP_READ 的时候. 会通过 key.attachment() 方法获取, 的SelectionKey key 值上 绑定的Connection 对象. 然后调用 c.readAndProcess()读取数据. 同时会更新connetion上的 lastContact 时间戳. 当c.readAndProcess()的返回值count值小于0 或者 connetion的 shouldClose 方法返回值true时,才会关闭 connetion.
// doRead()方法负责读取RPC请求，
// 虽然readSelector监听到了RPC请求的可读事件，
// 但 是doRead()方法此时并不知道这个RPC请求是由哪个客户端发送来的，
// 所以doRead()方法首先会调用SelectionKey.attachment() 方法获取 Listener 对象构造的 Connection 对象，
// Connection对象中封装了Server与Client之间的网络连接，之后doRead()方法只需调用
// Connection.readAndProcess()方法就可以读取RPC请求了，这里的设计非常的巧妙。
void doRead(SelectionKey key) throws InterruptedException {
int count;
//通过SelectionKey获取Connection对象
// (Connection对象是 Listener#run方法中的doAccept 方法中绑定的 key.attach(c) )
Connection c = (Connection)key.attachment();
if (c == null) {
return;
}
c.setLastContact(Time.now());
try {
//调用Connection.readAndProcess处理读取请求
count = c.readAndProcess();
} catch (InterruptedException ieo) {
LOG.info(Thread.currentThread().getName() + ": readAndProcess caught InterruptedException", ieo);
throw ieo;
} catch (Exception e) {
// Any exceptions that reach here are fatal unexpected internal errors
// that could not be sent to the client.
LOG.info(Thread.currentThread().getName() +
": readAndProcess from client " + c +
" threw exception [" + e + "]", e);
count = -1; //so that the (count < 0) block is executed
}
// setupResponse will signal the connection should be closed when a
// fatal response is sent.
if (count < 0 || c.shouldClose()) {
closeConnection(c);
c = null;
} else {
c.setLastContact(Time.now());
}
}
3.3.callQueue [CallQueueManager]
这里默认就当成一个普通的阻塞式队列就行了, 如果你不配置scheduer的话. 默认的调度策略就是DefaultRpcScheduler ,
DefaultRpcScheduler就是一个摆设.啥也干不了. 使用的是调度队里的 FIFO 策略.
如果配置了其他的策略的话,需要自行去看一下对应的策略.比如: DecayRpcScheduler
默认调度策略是FIFO, 虽然FIFO在先到先服务的情况下足够公平，但如果用户执行的I/O操作较多，相比I/O操作较少的用户，将获得更多的服务。在这种情况下，FIFO有失公平并且会导致延迟增加。
FairCallQueue 队列会根据调用者的调用规模将传入的RPC调用分配至多个队列中。调度模块会跟踪最新的调用，并为调用量较小的用户分配更高的优先级。
3.3.1.创建
callQueue是在Server初始化的时候进行创建的 .
callQueue不仅仅是一个队列, 是通过CallQueueManager对象进行管理, 支持 阻塞式队列, 调度.
//队列 : LinkedBlockingQueue<Call> 格式. 调度器默认: DefaultRpcScheduler
this.callQueue = new CallQueueManager<Call>(getQueueClass(prefix, conf),
getSchedulerClass(prefix, conf),
getClientBackoffEnable(prefix, conf), maxQueueSize, prefix, conf);
3.3.2.常量
// Number of checkpoints for empty queue.
private static final int CHECKPOINT_NUM = 20;
// Interval to check empty queue.
private static final long CHECKPOINT_INTERVAL_MS = 10;
/**
*
* 启用Backoff配置参数。
* 当前，如果应用程序中包含较多的用户调用，假设没有达到操作系统的连接限制，则RPC请求将处于阻塞状态。
* 或者，当RPC或NameNode在重负载时，可以基于某些策略将一些明确定义的异常抛回给客户端，
* 客户端将理解这种异常并进行指数回退，
* 以此作为类RetryInvocationHandler的另一个实现
*/
private volatile boolean clientBackOffEnabled;
// Atomic refs point to active callQueue
// We have two so we can better control swapping
// 存放队列引用
private final AtomicReference<BlockingQueue<E>> putRef;
// 获取队列引用
private final AtomicReference<BlockingQueue<E>> takeRef;
//调度器
private RpcScheduler scheduler;
3.3.3.构造方法
public CallQueueManager(Class<? extends BlockingQueue<E>> backingClass,
Class<? extends RpcScheduler> schedulerClass,
boolean clientBackOffEnabled, int maxQueueSize, String namespace,
Configuration conf) {
int priorityLevels = parseNumLevels(namespace, conf);
//创建调度scheduler. 默认DefaultRpcScheduler
this.scheduler = createScheduler(schedulerClass, priorityLevels,
namespace, conf);
//创建queue 实例
BlockingQueue<E> bq = createCallQueueInstance(backingClass,
priorityLevels, maxQueueSize, namespace, conf);
this.clientBackOffEnabled = clientBackOffEnabled;
//放入队列引用
this.putRef = new AtomicReference<BlockingQueue<E>>(bq);
//获取队列引用
this.takeRef = new AtomicReference<BlockingQueue<E>>(bq);
LOG.info("Using callQueue: {}, queueCapacity: {}, " +
"scheduler: {}, ipcBackoff: {}.",
backingClass, maxQueueSize, schedulerClass, clientBackOffEnabled);
}
3.3.4 put(E e)
/**
* Insert e into the backing queue or block until we can. If client
* backoff is enabled this method behaves like add which throws if
* the queue overflows.
* If we block and the queue changes on us, we will insert while the
* queue is drained.
*/
@Override
public void put(E e) throws InterruptedException {
if (!isClientBackoffEnabled()) {
putRef.get().put(e);
} else if (shouldBackOff(e)) {
throwBackoff();
} else {
// No need to re-check backoff criteria since they were just checked
addInternal(e, false);
}
}3.3.5.offer(E e)
/**
* Insert e into the backing queue.
* Return true if e is queued.
* Return false if the queue is full.
*/
@Override
public boolean offer(E e) {
return putRef.get().offer(e);
}
3.4.ConnectionManager
ConnectionManager就是对Connection的一个管理类,可以对Connection进行创建,监控等操作.
3.4.1.创建
在server的构建方法中进行创建.
connectionManager = new ConnectionManager();
3.4.2.常量
// 现有Connection的数量
final private AtomicInteger count = new AtomicInteger();
final private AtomicLong droppedConnections = new AtomicLong();
//现有的Connection连接.
final private Set<Connection> connections;
/* Map to maintain the statistics per User */
final private Map<String, Integer> userToConnectionsMap;
final private Object userToConnectionsMapLock = new Object();
//Timer定时器, 定期检查/关闭 Connection
final private Timer idleScanTimer;
// 定义 空闲多久之后关闭 Connection 默认值: 4秒
final private int idleScanThreshold;
// 扫描间隔 默认 10秒
final private int idleScanInterval;
// 最大等待时间 默认值 20秒
final private int maxIdleTime;
// 定义一次断开连接的最大客户端数。 默认值 10
final private int maxIdleToClose;
// 定义最大连接数 默认值 0 , 无限制
final private int maxConnections;3.4.3.构造方法
ConnectionManager() {
this.idleScanTimer = new Timer(
"IPC Server idle connection scanner for port " + getPort(), true);
this.idleScanThreshold = conf.getInt(
CommonConfigurationKeysPublic.IPC_CLIENT_IDLETHRESHOLD_KEY,
CommonConfigurationKeysPublic.IPC_CLIENT_IDLETHRESHOLD_DEFAULT);
this.idleScanInterval = conf.getInt(
CommonConfigurationKeys.IPC_CLIENT_CONNECTION_IDLESCANINTERVAL_KEY,
CommonConfigurationKeys.IPC_CLIENT_CONNECTION_IDLESCANINTERVAL_DEFAULT);
this.maxIdleTime = 2 * conf.getInt(
CommonConfigurationKeysPublic.IPC_CLIENT_CONNECTION_MAXIDLETIME_KEY,
CommonConfigurationKeysPublic.IPC_CLIENT_CONNECTION_MAXIDLETIME_DEFAULT);
this.maxIdleToClose = conf.getInt(
CommonConfigurationKeysPublic.IPC_CLIENT_KILL_MAX_KEY,
CommonConfigurationKeysPublic.IPC_CLIENT_KILL_MAX_DEFAULT);
this.maxConnections = conf.getInt(
CommonConfigurationKeysPublic.IPC_SERVER_MAX_CONNECTIONS_KEY,
CommonConfigurationKeysPublic.IPC_SERVER_MAX_CONNECTIONS_DEFAULT);
// create a set with concurrency -and- a thread-safe iterator, add 2
// for listener and idle closer threads
this.connections = Collections.newSetFromMap(
new ConcurrentHashMap<Connection,Boolean>(
maxQueueSize, 0.75f, readThreads+2));
this.userToConnectionsMap = new ConcurrentHashMap<>();
}这里面需要注意的是;
初始化idleScanTimer 定时任务.
this.idleScanTimer = new Timer(
"IPC Server idle connection scanner for port " + getPort(), true);
还有一个
this.connections = Collections.newSetFromMap(
new ConcurrentHashMap<Connection,Boolean>(
maxQueueSize, 0.75f, readThreads+2));返回值是线程安全的 Set<Connection> .
3.4.4 scheduleIdleScanTask 方法
由Listener 的run方法进行调用 , 定时扫描connetion , 关闭超时, 无效的connetion.
private void scheduleIdleScanTask() {
if (!running) {
return;
}
//创建线程,定时扫描connection, 关闭超时,无效的连接
TimerTask idleScanTask = new TimerTask(){
@Override
public void run() {
if (!running) {
return;
}
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName()+": task running");
}
try {
closeIdle(false);
} finally {
// explicitly reschedule so next execution occurs relative
// to the end of this scan, not the beginning
scheduleIdleScanTask();
}
}
};
idleScanTimer.schedule(idleScanTask, idleScanInterval);
}
3.4.5register 注册connetion
由Listener的doAccept方法创建Connection . 并通过add(connection); 方法加入到connections 缓存中.
//注册IO读事件
Connection c = connectionManager.register(channel, this.listenPort);
Connection register(SocketChannel channel, int ingressPort) {
if (isFull()) {
return null;
}
Connection connection = new Connection(channel, Time.now(), ingressPort);
add(connection);
if (LOG.isDebugEnabled()) {
LOG.debug("Server connection from " + connection +
"; # active connections: " + size() +
"; # queued calls: " + callQueue.size());
}
return connection;
} private boolean add(Connection connection) {
boolean added = connections.add(connection);
if (added) {
count.getAndIncrement();
}
return added;
}
3.5.Connection
Connection类封装了Server与Client之间的Socket连接， doAccept()方法会通过SelectionKey将新构造的Connection对象传给Reader， 这样Reader线程在被唤醒时就可以通过Connection对象读取RPC请求了.
3.5.1.创建
当客户端接入, 触发selector 上绑定的 SelectionKey.OP_ACCEPT 事件的时候 , 会根据当时的 server.accept() 返回的SocketChannel
和 监听的端口 建立一个Connection .
//注册IO读事件
Connection c = connectionManager.register(channel, this.listenPort);Connection connection = new Connection(channel, Time.now(), ingressPort);
3.5.2.常量
private boolean connectionHeaderRead = false; // connection header is read?
private boolean connectionContextRead = false; //if connection context that
//follows connection header is read
private SocketChannel channel;
private ByteBuffer data;
private ByteBuffer dataLengthBuffer;
private LinkedList<RpcCall> responseQueue;
// number of outstanding rpcs
private AtomicInteger rpcCount = new AtomicInteger();
private long lastContact;
private int dataLength;
private Socket socket;
// Cache the remote host & port info so that even if the socket is
// disconnected, we can say where it used to connect to.
private String hostAddress;
private int remotePort;
private InetAddress addr;
IpcConnectionContextProto connectionContext;
String protocolName;
SaslServer saslServer;
private String establishedQOP;
private AuthMethod authMethod;
private AuthProtocol authProtocol;
private boolean saslContextEstablished;
private ByteBuffer connectionHeaderBuf = null;
private ByteBuffer unwrappedData;
private ByteBuffer unwrappedDataLengthBuffer;
private int serviceClass;
private boolean shouldClose = false;
private int ingressPort;
UserGroupInformation user = null;
public UserGroupInformation attemptingUser = null; // user name before auth
// Fake 'call' for failed authorization response
private final RpcCall authFailedCall =
new RpcCall(this, AUTHORIZATION_FAILED_CALL_ID);
private boolean sentNegotiate = false;
private boolean useWrap = false;
3.5.3.构造方法
public Connection(SocketChannel channel, long lastContact,
int ingressPort) {
this.channel = channel;
this.lastContact = lastContact;
this.data = null;
// the buffer is initialized to read the "hrpc" and after that to read
// the length of the Rpc-packet (i.e 4 bytes)
this.dataLengthBuffer = ByteBuffer.allocate(4);
this.unwrappedData = null;
this.unwrappedDataLengthBuffer = ByteBuffer.allocate(4);
this.socket = channel.socket();
this.addr = socket.getInetAddress();
this.ingressPort = ingressPort;
if (addr == null) {
this.hostAddress = "*Unknown*";
} else {
this.hostAddress = addr.getHostAddress();
}
this.remotePort = socket.getPort();
this.responseQueue = new LinkedList<RpcCall>();
if (socketSendBufferSize != 0) {
try {
socket.setSendBufferSize(socketSendBufferSize);
} catch (IOException e) {
LOG.warn("Connection: unable to set socket send buffer size to " +
socketSendBufferSize);
}
}
} 3.5.4 readAndProcess()方法
Reader线程会调用readAndProcess()方法从IO流中读取一个RPC请求。
/**
* This method reads in a non-blocking fashion from the channel:
* this method is called repeatedly when data is present in the channel;
* when it has enough data to process one rpc it processes that rpc.
*
* On the first pass, it processes the connectionHeader,
* connectionContext (an outOfBand RPC) and at most one RPC request that
* follows that. On future passes it will process at most one RPC request.
*
* Quirky things: dataLengthBuffer (4 bytes) is used to read "hrpc" OR
* rpc request length.
*
* @return -1 in case of error, else num bytes read so far
* @throws IOException - internal error that should not be returned to
* client, typically failure to respond to client
* @throws InterruptedException
*
* readAndProcess()方法会首先从Socket流中读取连接头域(connectionHeader)，
* 然后 读取一个完整的RPC请求，
* 最后调用processOneRpc()方法处理这个RPC请求。
* processOneRpc()方法会读取出RPC请求头域，
* 然后调用processRpcRequest()处理RPC请求 体。
*
* 这里特别注意，
* 如果在处理过程中抛出了异常，则直接通过Socket返回RPC响应(带 有Server异常信息的响应)。
*/
public int readAndProcess() throws IOException, InterruptedException {
while (!shouldClose()) { // stop if a fatal response has been sent.
// dataLengthBuffer is used to read "hrpc" or the rpc-packet length
int count = -1;
if (dataLengthBuffer.remaining() > 0) {
count = channelRead(channel, dataLengthBuffer);
if (count < 0 || dataLengthBuffer.remaining() > 0)
return count;
}
if (!connectionHeaderRead) {
// Every connection is expected to send the header;
// so far we read "hrpc" of the connection header.
if (connectionHeaderBuf == null) {
// for the bytes that follow "hrpc", in the connection header
connectionHeaderBuf = ByteBuffer.allocate(HEADER_LEN_AFTER_HRPC_PART);
}
count = channelRead(channel, connectionHeaderBuf);
if (count < 0 || connectionHeaderBuf.remaining() > 0) {
return count;
}
int version = connectionHeaderBuf.get(0);
// TODO we should add handler for service class later
this.setServiceClass(connectionHeaderBuf.get(1));
dataLengthBuffer.flip();
// Check if it looks like the user is hitting an IPC port
// with an HTTP GET - this is a common error, so we can
// send back a simple string indicating as much.
if (HTTP_GET_BYTES.equals(dataLengthBuffer)) {
setupHttpRequestOnIpcPortResponse();
return -1;
}
if(!RpcConstants.HEADER.equals(dataLengthBuffer)) {
LOG.warn("Incorrect RPC Header length from {}:{} "
+ "expected length: {} got length: {}",
hostAddress, remotePort, RpcConstants.HEADER, dataLengthBuffer);
setupBadVersionResponse(version);
return -1;
}
if (version != CURRENT_VERSION) {
//Warning is ok since this is not supposed to happen.
LOG.warn("Version mismatch from " +
hostAddress + ":" + remotePort +
" got version " + version +
" expected version " + CURRENT_VERSION);
setupBadVersionResponse(version);
return -1;
}
// this may switch us into SIMPLE
authProtocol = initializeAuthContext(connectionHeaderBuf.get(2));
dataLengthBuffer.clear(); // clear to next read rpc packet len
connectionHeaderBuf = null;
connectionHeaderRead = true;
continue; // connection header read, now read 4 bytes rpc packet len
}
if (data == null) { // just read 4 bytes - length of RPC packet
dataLengthBuffer.flip();
dataLength = dataLengthBuffer.getInt();
checkDataLength(dataLength);
// Set buffer for reading EXACTLY the RPC-packet length and no more.
data = ByteBuffer.allocate(dataLength);
}
// Now read the RPC packet
count = channelRead(channel, data);
if (data.remaining() == 0) {
dataLengthBuffer.clear(); // to read length of future rpc packets
data.flip();
ByteBuffer requestData = data;
data = null; // null out in case processOneRpc throws.
boolean isHeaderRead = connectionContextRead;
//处理这个RPC请求。
processOneRpc(requestData);
// the last rpc-request we processed could have simply been the
// connectionContext; if so continue to read the first RPC.
if (!isHeaderRead) {
continue;
}
}
return count;
}
return -1;
}3.5.5 processOneRpc()方法
processOneRpc()方法会读取出RPC请求头域， 然后调用processRpcRequest()处理RPC请求体。
/**
* Process one RPC Request from buffer read from socket stream
* - decode rpc in a rpc-Call
* - handle out-of-band RPC requests such as the initial connectionContext
* - A successfully decoded RpcCall will be deposited in RPC-Q and
* its response will be sent later when the request is processed.
*
* Prior to this call the connectionHeader ("hrpc...") has been handled and
* if SASL then SASL has been established and the buf we are passed
* has been unwrapped from SASL.
*
* @param bb - contains the RPC request header and the rpc request
* @throws IOException - internal error that should not be returned to
* client, typically failure to respond to client
* @throws InterruptedException
*/
private void processOneRpc(ByteBuffer bb)
throws IOException, InterruptedException {
// exceptions that escape this method are fatal to the connection.
// setupResponse will use the rpc status to determine if the connection
// should be closed.
int callId = -1;
int retry = RpcConstants.INVALID_RETRY_COUNT;
try {
final RpcWritable.Buffer buffer = RpcWritable.Buffer.wrap(bb);
//解析出RPC请求头域
final RpcRequestHeaderProto header =
getMessage(RpcRequestHeaderProto.getDefaultInstance(), buffer);
//从RPC请求头域中提取出callId
callId = header.getCallId();
//从RPC请求头域中提取出重试次数
retry = header.getRetryCount();
if (LOG.isDebugEnabled()) {
LOG.debug(" got #" + callId);
}
//检测头信息是否正确
checkRpcHeaders(header);
//处理RPC请求头域异常的情况
if (callId < 0) { // callIds typically used during connection setup
processRpcOutOfBandRequest(header, buffer);
} else if (!connectionContextRead) {
throw new FatalRpcServerException(
RpcErrorCodeProto.FATAL_INVALID_RPC_HEADER,
"Connection context not established");
} else {
//如果RPC请求头域正常，则直接调用processRpcRequest处理RPC请求体
processRpcRequest(header, buffer);
}
} catch (RpcServerException rse) {
// inform client of error, but do not rethrow else non-fatal
// exceptions will close connection!
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() +
": processOneRpc from client " + this +
" threw exception [" + rse + "]");
}
//通过Socket返回这个带有异常信息的RPC响应
// use the wrapped exception if there is one.
Throwable t = (rse.getCause() != null) ? rse.getCause() : rse;
final RpcCall call = new RpcCall(this, callId, retry);
setupResponse(call,
rse.getRpcStatusProto(), rse.getRpcErrorCodeProto(), null,
t.getClass().getName(),
t.getMessage() != null ? t.getMessage() : t.toString());
sendResponse(call);
}
}3.5.6.processRpcRequest 方法
processRpcRequest()会从输入流中解析出完整的请求对象(包括请求元数据以及请求 参数)， 然后根据RPC请求头的信息(包括callId)构造Call对象(Call对象保存了这次调 用的所有信息)， 最后将这个Call对象放入callQueue队列中保存，等待Handler线程处理。
/**
*
*
* Process an RPC Request
* - the connection headers and context must have been already read.
* - Based on the rpcKind, decode the rpcRequest.
* - A successfully decoded RpcCall will be deposited in RPC-Q and
* its response will be sent later when the request is processed.
* @param header - RPC request header
* @param buffer - stream to request payload
* @throws RpcServerException - generally due to fatal rpc layer issues
* such as invalid header or deserialization error. The call queue
* may also throw a fatal or non-fatal exception on overflow.
* @throws IOException - fatal internal error that should/could not
* be sent to client.
* @throws InterruptedException
*/
private void processRpcRequest(RpcRequestHeaderProto header,
RpcWritable.Buffer buffer) throws RpcServerException,
InterruptedException {
Class<? extends Writable> rpcRequestClass =
getRpcRequestWrapper(header.getRpcKind());
if (rpcRequestClass == null) {
LOG.warn("Unknown rpc kind " + header.getRpcKind() +
" from client " + getHostAddress());
final String err = "Unknown rpc kind in rpc header" +
header.getRpcKind();
throw new FatalRpcServerException(
RpcErrorCodeProto.FATAL_INVALID_RPC_HEADER, err);
}
//读取RPC请求体
Writable rpcRequest;
try { //Read the rpc request
rpcRequest = buffer.newInstance(rpcRequestClass, conf);
} catch (RpcServerException rse) { // lets tests inject failures.
throw rse;
} catch (Throwable t) { // includes runtime exception from newInstance
LOG.warn("Unable to read call parameters for client " +
getHostAddress() + "on connection protocol " +
this.protocolName + " for rpcKind " + header.getRpcKind(), t);
String err = "IPC server unable to read call parameters: "+ t.getMessage();
throw new FatalRpcServerException(
RpcErrorCodeProto.FATAL_DESERIALIZING_REQUEST, err);
}
TraceScope traceScope = null;
if (header.hasTraceInfo()) {
if (tracer != null) {
// If the incoming RPC included tracing info, always continue the
// trace
SpanId parentSpanId = new SpanId(
header.getTraceInfo().getTraceId(),
header.getTraceInfo().getParentId());
traceScope = tracer.newScope(
RpcClientUtil.toTraceName(rpcRequest.toString()),
parentSpanId);
traceScope.detach();
}
}
CallerContext callerContext = null;
if (header.hasCallerContext()) {
callerContext =
new CallerContext.Builder(header.getCallerContext().getContext())
.setSignature(header.getCallerContext().getSignature()
.toByteArray())
.build();
}
//构造Call对象封装RPC请求信息
RpcCall call = new RpcCall(this, header.getCallId(),
header.getRetryCount(), rpcRequest,
ProtoUtil.convert(header.getRpcKind()),
header.getClientId().toByteArray(), traceScope, callerContext);
// Save the priority level assignment by the scheduler
call.setPriorityLevel(callQueue.getPriorityLevel(call));
call.markCallCoordinated(false);
if(alignmentContext != null && call.rpcRequest != null &&
(call.rpcRequest instanceof ProtobufRpcEngine.RpcProtobufRequest)) {
// if call.rpcRequest is not RpcProtobufRequest, will skip the following
// step and treat the call as uncoordinated. As currently only certain
// ClientProtocol methods request made through RPC protobuf needs to be
// coordinated.
String methodName;
String protoName;
ProtobufRpcEngine.RpcProtobufRequest req =
(ProtobufRpcEngine.RpcProtobufRequest) call.rpcRequest;
try {
methodName = req.getRequestHeader().getMethodName();
protoName = req.getRequestHeader().getDeclaringClassProtocolName();
if (alignmentContext.isCoordinatedCall(protoName, methodName)) {
call.markCallCoordinated(true);
long stateId;
stateId = alignmentContext.receiveRequestState(
header, getMaxIdleTime());
call.setClientStateId(stateId);
}
} catch (IOException ioe) {
throw new RpcServerException("Processing RPC request caught ", ioe);
}
}
try {
//将Call对象放入callQueue中，等待Handler处理
internalQueueCall(call);
} catch (RpcServerException rse) {
throw rse;
} catch (IOException ioe) {
throw new FatalRpcServerException(
RpcErrorCodeProto.ERROR_RPC_SERVER, ioe);
}
incRpcCount(); // Increment the rpc count
}
3.6.Handler
用于处理RPC请求并发回响应。Handler对象会从CallQueue中不停地取出RPC请求， 然后执行RPC请求对应的本地函数， 最后封装响应并将响应发回客户端。 为了能够并发地处理RPC请求，Server中会存在多个Handler对象。
3.6.1.创建
/** Starts the service. Must be called before any calls will be handled. */
public synchronized void start() {
responder.start();
listener.start();
if (auxiliaryListenerMap != null && auxiliaryListenerMap.size() > 0) {
for (Listener newListener : auxiliaryListenerMap.values()) {
newListener.start();
}
}
handlers = new Handler[handlerCount];
for (int i = 0; i < handlerCount; i++) {
handlers[i] = new Handler(i);
handlers[i].start();
}
}3.6.2.构造方法
public Handler(int instanceNumber) {
this.setDaemon(true);
this.setName("IPC Server handler "+ instanceNumber +
" on default port " + port);
}3.6.3 run方法
Handler线程类的主方法会循环从共享队列callQueue中取出待处理的Call对象， 然后调用Server.call()方法执行RPC调用对应的本地函数， 如果在调用过程中发生异常， 则将异常信息保存下来。 接下来Handler会调用setupResponse()方法构造RPC响应， 并调用responder.doRespond()方法将响应发回
@Override
public void run() {
LOG.debug(Thread.currentThread().getName() + ": starting");
SERVER.set(Server.this);
while (running) {
TraceScope traceScope = null;
Call call = null;
long startTimeNanos = 0;
// True iff the connection for this call has been dropped.
// Set to true by default and update to false later if the connection
// can be succesfully read.
boolean connDropped = true;
try {
//从callQueue中取出请求
call = callQueue.take(); // pop the queue; maybe blocked here
startTimeNanos = Time.monotonicNowNanos();
if (alignmentContext != null && call.isCallCoordinated() &&
call.getClientStateId() > alignmentContext.getLastSeenStateId()) {
/*
* The call processing should be postponed until the client call's
* state id is aligned (<=) with the server state id.
* NOTE:
* Inserting the call back to the queue can change the order of call
* execution comparing to their original placement into the queue.
* This is not a problem, because Hadoop RPC does not have any
* constraints on ordering the incoming rpc requests.
* In case of Observer, it handles only reads, which are
* commutative.
*/
// Re-queue the call and continue
requeueCall(call);
continue;
}
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": " + call + " for RpcKind " + call.rpcKind);
}
//设置当前线程要处理的 call 任务
CurCall.set(call);
if (call.traceScope != null) {
call.traceScope.reattach();
traceScope = call.traceScope;
traceScope.getSpan().addTimelineAnnotation("called");
}
// always update the current call context
CallerContext.setCurrent(call.callerContext);
UserGroupInformation remoteUser = call.getRemoteUser();
connDropped = !call.isOpen();
//通过调用Call对象的run()方法发起本地调用，并返回结果
if (remoteUser != null) {
remoteUser.doAs(call);
} else {
// RpcCall#run()
call.run();
}
} catch (InterruptedException e) {
if (running) { // unexpected -- log it
LOG.info(Thread.currentThread().getName() + " unexpectedly interrupted", e);
if (traceScope != null) {
traceScope.getSpan().addTimelineAnnotation("unexpectedly interrupted: " +
StringUtils.stringifyException(e));
}
}
} catch (Exception e) {
LOG.info(Thread.currentThread().getName() + " caught an exception", e);
if (traceScope != null) {
traceScope.getSpan().addTimelineAnnotation("Exception: " +
StringUtils.stringifyException(e));
}
} finally {
CurCall.set(null);
IOUtils.cleanupWithLogger(LOG, traceScope);
if (call != null) {
updateMetrics(call, startTimeNanos, connDropped);
ProcessingDetails.LOG.debug(
"Served: [{}]{} name={} user={} details={}",
call, (call.isResponseDeferred() ? ", deferred" : ""),
call.getDetailedMetricsName(), call.getRemoteUser(),
call.getProcessingDetails());
}
}
}
LOG.debug(Thread.currentThread().getName() + ": exiting");
}RpcCall#run()
@Override
public Void run() throws Exception {
if (!connection.channel.isOpen()) {
Server.LOG.info(Thread.currentThread().getName() + ": skipped " + this);
return null;
}
long startNanos = Time.monotonicNowNanos();
Writable value = null;
ResponseParams responseParams = new ResponseParams();
try {
//通过call()发起本地调用，并返回结果
value = call(
rpcKind, connection.protocolName, rpcRequest, timestampNanos);
} catch (Throwable e) {
populateResponseParamsOnError(e, responseParams);
}
if (!isResponseDeferred()) {
long deltaNanos = Time.monotonicNowNanos() - startNanos;
ProcessingDetails details = getProcessingDetails();
details.set(Timing.PROCESSING, deltaNanos, TimeUnit.NANOSECONDS);
deltaNanos -= details.get(Timing.LOCKWAIT, TimeUnit.NANOSECONDS);
deltaNanos -= details.get(Timing.LOCKSHARED, TimeUnit.NANOSECONDS);
deltaNanos -= details.get(Timing.LOCKEXCLUSIVE, TimeUnit.NANOSECONDS);
details.set(Timing.LOCKFREE, deltaNanos, TimeUnit.NANOSECONDS);
startNanos = Time.monotonicNowNanos();
setResponseFields(value, responseParams);
sendResponse();
deltaNanos = Time.monotonicNowNanos() - startNanos;
details.set(Timing.RESPONSE, deltaNanos, TimeUnit.NANOSECONDS);
} else {
if (LOG.isDebugEnabled()) {
LOG.debug("Deferring response for callId: " + this.callId);
}
}
return null;
}最终会匹配到ProtobufRpcEngine里面的call方法
/**
*
*
* This is a server side method, which is invoked over RPC. On success
* the return response has protobuf response payload. On failure, the
* exception name and the stack trace are returned in the response.
* See {@link HadoopRpcResponseProto}
*
* In this method there three types of exceptions possible and they are
* returned in response as follows.
* <ol>
* <li> Exceptions encountered in this method that are returned
* as {@link RpcServerException} </li>
* <li> Exceptions thrown by the service is wrapped in ServiceException.
* In that this method returns in response the exception thrown by the
* service.</li>
* <li> Other exceptions thrown by the service. They are returned as
* it is.</li>
* </ol>
*
* call()方法首先会从请求头中提取出RPC 调用的接口名和方法名等信息，
* 然后根据调用的接口信息获取对应的BlockingService对 象，
* 再根据调用的方法信息在BlockingService对象上调用callBlockingMethod()方法
* 并将调用前转到ClientNamenodeProtocolServerSideTranslatorPB对象上，
* 最终这个请求会由 NameNodeRpcServer响应。
*/
public Writable call(RPC.Server server, String connectionProtocolName,
Writable writableRequest, long receiveTime) throws Exception {
//获取rpc调用头
RpcProtobufRequest request = (RpcProtobufRequest) writableRequest;
RequestHeaderProto rpcRequest = request.getRequestHeader();
//获得调用的接口名、方法名、版本号
String methodName = rpcRequest.getMethodName();
/**
* RPCs for a particular interface (ie protocol) are done using a
* IPC connection that is setup using rpcProxy.
* The rpcProxy's has a declared protocol name that is
* sent form client to server at connection time.
*
* Each Rpc call also sends a protocol name
* (called declaringClassprotocolName). This name is usually the same
* as the connection protocol name except in some cases.
* For example metaProtocols such ProtocolInfoProto which get info
* about the protocol reuse the connection but need to indicate that
* the actual protocol is different (i.e. the protocol is
* ProtocolInfoProto) since they reuse the connection; in this case
* the declaringClassProtocolName field is set to the ProtocolInfoProto.
*/
String declaringClassProtoName =
rpcRequest.getDeclaringClassProtocolName();
long clientVersion = rpcRequest.getClientProtocolVersion();
if (server.verbose)
LOG.info("Call: connectionProtocolName=" + connectionProtocolName +
", method=" + methodName);
//获得该接口在Server侧对应的实现类
ProtoClassProtoImpl protocolImpl = getProtocolImpl(server,
declaringClassProtoName, clientVersion);
BlockingService service = (BlockingService) protocolImpl.protocolImpl;
//获取要调用的方法的描述信息
MethodDescriptor methodDescriptor = service.getDescriptorForType()
.findMethodByName(methodName);
if (methodDescriptor == null) {
String msg = "Unknown method " + methodName + " called on "
+ connectionProtocolName + " protocol.";
LOG.warn(msg);
throw new RpcNoSuchMethodException(msg);
}
//获取调用的方法描述符以及调用参数
Message prototype = service.getRequestPrototype(methodDescriptor);
Message param = request.getValue(prototype);
Message result;
Call currentCall = Server.getCurCall().get();
try {
server.rpcDetailedMetrics.init(protocolImpl.protocolClass);
currentCallInfo.set(new CallInfo(server, methodName));
currentCall.setDetailedMetricsName(methodName);
//在实现类上调用callBlockingMethod方法，级联适配调用到NameNodeRpcServer
result = service.callBlockingMethod(methodDescriptor, null, param);
// Check if this needs to be a deferred response,
// by checking the ThreadLocal callback being set
if (currentCallback.get() != null) {
currentCall.deferResponse();
currentCallback.set(null);
return null;
}
} catch (ServiceException e) {
Exception exception = (Exception) e.getCause();
currentCall.setDetailedMetricsName(
exception.getClass().getSimpleName());
throw (Exception) e.getCause();
} catch (Exception e) {
currentCall.setDetailedMetricsName(e.getClass().getSimpleName());
throw e;
} finally {
currentCallInfo.set(null);
}
return RpcWritable.wrap(result);
}
}3.6.Responder
用于向客户端发送RPC响应，Responder也是一个线程类， Server端仅有一个Responder对象， Responder内部包含一个Selector对象responseSelector， 用于监听SelectionKey.OP_WRITE事件。 当网络环境不佳或者响应信息太大时， Handler线程可能无法发送完整的响应信息到客户端， 这时Handler会在Responder.responseSelector上注册SelectionKey.OP_WRITE事件,responseSelector会循环监听网络环境是否具备发送数据的条件， 之后responseselector会触发Responder线程发送未完成的响应结果到客户端。
3.6.1 doRunLoop
Responder是一个线程类, 所以核心的还是run方法中的doRunLoop 方法.
private void doRunLoop() {
long lastPurgeTimeNanos = 0; // last check for old calls.
while (running) {
try {
waitPending(); // If a channel is being registered, wait.
// 阻塞 15min ,如果超时的话, 会执行后面的清除长期没有发送成功的消息
writeSelector.select(
TimeUnit.NANOSECONDS.toMillis(PURGE_INTERVAL_NANOS));
Iterator<SelectionKey> iter = writeSelector.selectedKeys().iterator();
while (iter.hasNext()) {
SelectionKey key = iter.next();
iter.remove();
try {
if (key.isWritable()) {
//执行写入操作
doAsyncWrite(key);
}
} catch (CancelledKeyException cke) {
// something else closed the connection, ex. reader or the
// listener doing an idle scan. ignore it and let them clean
// up
RpcCall call = (RpcCall)key.attachment();
if (call != null) {
LOG.info(Thread.currentThread().getName() +
": connection aborted from " + call.connection);
}
} catch (IOException e) {
LOG.info(Thread.currentThread().getName() + ": doAsyncWrite threw exception " + e);
}
}
long nowNanos = Time.monotonicNowNanos();
if (nowNanos < lastPurgeTimeNanos + PURGE_INTERVAL_NANOS) {
continue;
}
lastPurgeTimeNanos = nowNanos;
//
// If there were some calls that have not been sent out for a
// long time, discard them.
//
if(LOG.isDebugEnabled()) {
LOG.debug("Checking for old call responses.");
}
ArrayList<RpcCall> calls;
// get the list of channels from list of keys.
synchronized (writeSelector.keys()) {
calls = new ArrayList<RpcCall>(writeSelector.keys().size());
iter = writeSelector.keys().iterator();
while (iter.hasNext()) {
SelectionKey key = iter.next();
RpcCall call = (RpcCall)key.attachment();
if (call != null && key.channel() == call.connection.channel) {
calls.add(call);
}
}
}
// 移除掉已经很久没有发送调的信息
for (RpcCall call : calls) {
doPurge(call, nowNanos);
}
} catch (OutOfMemoryError e) {
//
// we can run out of memory if we have too many threads
// log the event and sleep for a minute and give
// some thread(s) a chance to finish
//
LOG.warn("Out of Memory in server select", e);
try { Thread.sleep(60000); } catch (Exception ie) {}
} catch (Exception e) {
LOG.warn("Exception in Responder", e);
}
}
}
3.6.2 processResponse
异步处理请求的方法
// Processes one response. Returns true if there are no more pending
// data for this channel.
//
private boolean processResponse(LinkedList<RpcCall> responseQueue,
boolean inHandler) throws IOException {
boolean error = true;
boolean done = false; // there is more data for this channel.
int numElements = 0;
RpcCall call = null;
try {
synchronized (responseQueue) {
//
// If there are no items for this channel, then we are done
//
numElements = responseQueue.size();
if (numElements == 0) {
error = false;
return true; // no more data for this channel.
}
//
// Extract the first call
//
call = responseQueue.removeFirst();
SocketChannel channel = call.connection.channel;
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": responding to " + call);
}
//
// Send as much data as we can in the non-blocking fashion
//
int numBytes = channelWrite(channel, call.rpcResponse);
if (numBytes < 0) {
return true;
}
if (!call.rpcResponse.hasRemaining()) {
//Clear out the response buffer so it can be collected
call.rpcResponse = null;
call.connection.decRpcCount();
if (numElements == 1) { // last call fully processes.
done = true; // no more data for this channel.
} else {
done = false; // more calls pending to be sent.
}
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": responding to " + call
+ " Wrote " + numBytes + " bytes.");
}
} else {
//
// If we were unable to write the entire response out, then
// insert in Selector queue.
//
call.connection.responseQueue.addFirst(call);
if (inHandler) {
// set the serve time when the response has to be sent later
call.timestampNanos = Time.monotonicNowNanos();
incPending();
try {
// Wakeup the thread blocked on select, only then can the call
// to channel.register() complete.
writeSelector.wakeup();
channel.register(writeSelector, SelectionKey.OP_WRITE, call);
} catch (ClosedChannelException e) {
//Its ok. channel might be closed else where.
done = true;
} finally {
decPending();
}
}
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": responding to " + call
+ " Wrote partial " + numBytes + " bytes.");
}
}
error = false; // everything went off well
}
} finally {
if (error && call != null) {
LOG.warn(Thread.currentThread().getName()+", call " + call + ": output error");
done = true; // error. no more data for this channel.
closeConnection(call.connection);
}
}
return done;
}
来源：oschina
链接：https://my.oschina.net/u/4357381/blog/4411392
