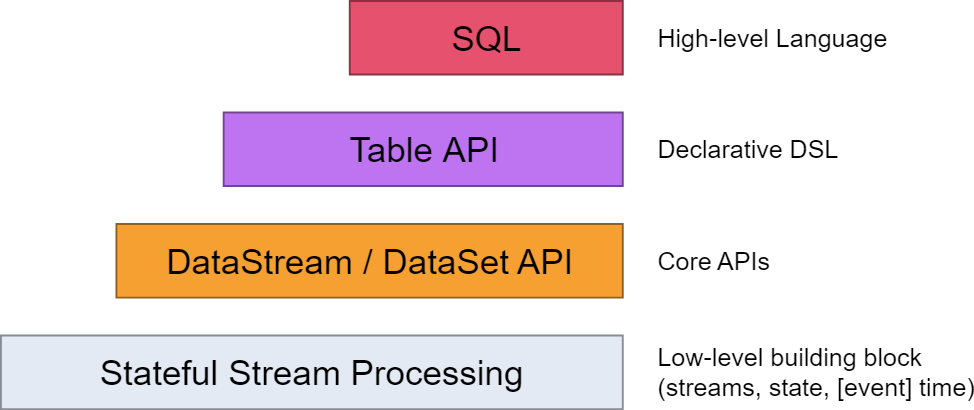

从flink的官方文档，我们知道flink的编程模型分为四层，sql层是最高层的api，Table api是中间层，DataStream/DataSet Api 是核心，stateful Streaming process层是底层实现。
其中，
flink dataset api使用及原理 介绍了DataSet Api
flink DataStream API使用及原理介绍了DataStream Api
flink中的时间戳如何使用？---Watermark使用及原理 介绍了底层实现的基础Watermark
flink window实例分析 介绍了window的概念及使用原理
Flink中的状态与容错 介绍了State的概念及checkpoint，savepoint的容错机制
上篇<使用flink Table &Sql api来构建批量和流式应用(1)Table的基本概念>介绍了Table的基本概念及使用方法
本篇主要看看Table Api有哪些功能？
org.apache.flink.table.api.Table抽象了Table Api的功能
/**
* A Table is the core component of the Table API.
* Similar to how the batch and streaming APIs have DataSet and DataStream,
* the Table API is built around {@link Table}.
*
* <p>Use the methods of {@link Table} to transform data. Use {@code TableEnvironment} to convert a
* {@link Table} back to a {@code DataSet} or {@code DataStream}.
*
* <p>When using Scala a {@link Table} can also be converted using implicit conversions.
*
* <p>Java Example:
*
* <pre>
* {@code
* ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();
* BatchTableEnvironment tEnv = BatchTableEnvironment.create(env);
*
* DataSet<Tuple2<String, Integer>> set = ...
* tEnv.registerTable("MyTable", set, "a, b");
*
* Table table = tEnv.scan("MyTable").select(...);
* ...
* Table table2 = ...
* DataSet<MyType> set2 = tEnv.toDataSet(table2, MyType.class);
* }
* </pre>
*
* <p>Scala Example:
*
* <pre>
* {@code
* val env = ExecutionEnvironment.getExecutionEnvironment
* val tEnv = BatchTableEnvironment.create(env)
*
* val set: DataSet[(String, Int)] = ...
* val table = set.toTable(tEnv, 'a, 'b)
* ...
* val table2 = ...
* val set2: DataSet[MyType] = table2.toDataSet[MyType]
* }
* </pre>
*
* <p>Operations such as {@code join}, {@code select}, {@code where} and {@code groupBy} either
* take arguments in a Scala DSL or as an expression String. Please refer to the documentation for
* the expression syntax.
*/(1) 查询select
/**
* Performs a selection operation. Similar to a SQL SELECT statement. The field expressions
* can contain complex expressions and aggregations.
*
* <p>Example:
*
* <pre>
* {@code
* tab.select("key, value.avg + ' The average' as average")
* }
* </pre>
*/
Table select(String fields);
/**
* Performs a selection operation. Similar to a SQL SELECT statement. The field expressions
* can contain complex expressions and aggregations.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.select('key, 'value.avg + " The average" as 'average)
* }
* </pre>
*/
Table select(Expression... fields);(2) 条件where
/**
* Filters out elements that don't pass the filter predicate. Similar to a SQL WHERE
* clause.
*
* <p>Example:
*
* <pre>
* {@code
* tab.where("name = 'Fred'")
* }
* </pre>
*/
Table where(String predicate);
/**
* Filters out elements that don't pass the filter predicate. Similar to a SQL WHERE
* clause.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.where('name === "Fred")
* }
* </pre>
*/
Table where(Expression predicate);(3)过滤Filter
/**
* Filters out elements that don't pass the filter predicate. Similar to a SQL WHERE
* clause.
*
* <p>Example:
*
* <pre>
* {@code
* tab.filter("name = 'Fred'")
* }
* </pre>
*/
Table filter(String predicate);
/**
* Filters out elements that don't pass the filter predicate. Similar to a SQL WHERE
* clause.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.filter('name === "Fred")
* }
* </pre>
*/
Table filter(Expression predicate);(4) distinct
/**
* Removes duplicate values and returns only distinct (different) values.
*
* <p>Example:
*
* <pre>
* {@code
* tab.select("key, value").distinct()
* }
* </pre>
*/
Table distinct();(5) group by
/**
* Groups the elements on some grouping keys. Use this before a selection with aggregations
* to perform the aggregation on a per-group basis. Similar to a SQL GROUP BY statement.
*
* <p>Example:
*
* <pre>
* {@code
* tab.groupBy("key").select("key, value.avg")
* }
* </pre>
*/
GroupedTable groupBy(String fields);
/**
* Groups the elements on some grouping keys. Use this before a selection with aggregations
* to perform the aggregation on a per-group basis. Similar to a SQL GROUP BY statement.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.groupBy('key).select('key, 'value.avg)
* }
* </pre>
*/
GroupedTable groupBy(Expression... fields);(6) order by
/**
* Sorts the given {@link Table}. Similar to SQL ORDER BY.
* The resulting Table is sorted globally sorted across all parallel partitions.
*
* <p>Example:
*
* <pre>
* {@code
* tab.orderBy("name.desc")
* }
* </pre>
*/
Table orderBy(String fields);
/**
* Sorts the given {@link Table}. Similar to SQL ORDER BY.
* The resulting Table is globally sorted across all parallel partitions.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.orderBy('name.desc)
* }
* </pre>
*/
Table orderBy(Expression... fields);(7) map
/**
* Performs a map operation with an user-defined scalar function or a built-in scalar function.
* The output will be flattened if the output type is a composite type.
*
* <p>Example:
*
* <pre>
* {@code
* ScalarFunction func = new MyMapFunction();
* tableEnv.registerFunction("func", func);
* tab.map("func(c)");
* }
* </pre>
*/
Table map(String mapFunction);
/**
* Performs a map operation with an user-defined scalar function or built-in scalar function.
* The output will be flattened if the output type is a composite type.
*
* <p>Scala Example:
*
* <pre>
* {@code
* val func = new MyMapFunction()
* tab.map(func('c))
* }
* </pre>
*/
Table map(Expression mapFunction);
/**
* Performs a flatMap operation with an user-defined table function or built-in table function.
* The output will be flattened if the output type is a composite type.
*
* <p>Example:
*
* <pre>
* {@code
* TableFunction func = new MyFlatMapFunction();
* tableEnv.registerFunction("func", func);
* table.flatMap("func(c)");
* }
* </pre>
*/
Table flatMap(String tableFunction);
/**
* Performs a flatMap operation with an user-defined table function or built-in table function.
* The output will be flattened if the output type is a composite type.
*
* <p>Scala Example:
*
* <pre>
* {@code
* val func = new MyFlatMapFunction
* table.flatMap(func('c))
* }
* </pre>
*/
Table flatMap(Expression tableFunction);(8) aggregate
/**
* Performs a global aggregate operation with an aggregate function. You have to close the
* {@link #aggregate(String)} with a select statement. The output will be flattened if the
* output type is a composite type.
*
* <p>Example:
*
* <pre>
* {@code
* AggregateFunction aggFunc = new MyAggregateFunction()
* tableEnv.registerFunction("aggFunc", aggFunc);
* table.aggregate("aggFunc(a, b) as (f0, f1, f2)")
* .select("f0, f1")
* }
* </pre>
*/
AggregatedTable aggregate(String aggregateFunction);
/**
* Performs a global aggregate operation with an aggregate function. You have to close the
* {@link #aggregate(Expression)} with a select statement. The output will be flattened if the
* output type is a composite type.
*
* <p>Scala Example:
*
* <pre>
* {@code
* val aggFunc = new MyAggregateFunction
* table.aggregate(aggFunc('a, 'b) as ('f0, 'f1, 'f2))
* .select('f0, 'f1)
* }
* </pre>
*/
AggregatedTable aggregate(Expression aggregateFunction);
/**
* Perform a global flatAggregate without groupBy. FlatAggregate takes a TableAggregateFunction
* which returns multiple rows. Use a selection after the flatAggregate.
*
* <p>Example:
*
* <pre>
* {@code
* TableAggregateFunction tableAggFunc = new MyTableAggregateFunction();
* tableEnv.registerFunction("tableAggFunc", tableAggFunc);
* tab.flatAggregate("tableAggFunc(a, b) as (x, y, z)")
* .select("x, y, z")
* }
* </pre>
*/
FlatAggregateTable flatAggregate(String tableAggregateFunction);
/**
* Perform a global flatAggregate without groupBy. FlatAggregate takes a TableAggregateFunction
* which returns multiple rows. Use a selection after the flatAggregate.
*
* <p>Scala Example:
*
* <pre>
* {@code
* val tableAggFunc = new MyTableAggregateFunction
* tab.flatAggregate(tableAggFunc('a, 'b) as ('x, 'y, 'z))
* .select('x, 'y, 'z)
* }
* </pre>
*/
FlatAggregateTable flatAggregate(Expression tableAggregateFunction);(9)列的管理
/**
* Adds additional columns. Similar to a SQL SELECT statement. The field expressions
* can contain complex expressions, but can not contain aggregations. It will throw an exception
* if the added fields already exist.
*
* <p>Example:
* <pre>
* {@code
* tab.addColumns("a + 1 as a1, concat(b, 'sunny') as b1")
* }
* </pre>
*/
Table addColumns(String fields);
/**
* Adds additional columns. Similar to a SQL SELECT statement. The field expressions
* can contain complex expressions, but can not contain aggregations. It will throw an exception
* if the added fields already exist.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.addColumns('a + 1 as 'a1, concat('b, "sunny") as 'b1)
* }
* </pre>
*/
Table addColumns(Expression... fields);
/**
* Adds additional columns. Similar to a SQL SELECT statement. The field expressions
* can contain complex expressions, but can not contain aggregations. Existing fields will be
* replaced if add columns name is the same as the existing column name. Moreover, if the added
* fields have duplicate field name, then the last one is used.
*
* <p>Example:
* <pre>
* {@code
* tab.addOrReplaceColumns("a + 1 as a1, concat(b, 'sunny') as b1")
* }
* </pre>
*/
Table addOrReplaceColumns(String fields);
/**
* Adds additional columns. Similar to a SQL SELECT statement. The field expressions
* can contain complex expressions, but can not contain aggregations. Existing fields will be
* replaced. If the added fields have duplicate field name, then the last one is used.
*
* <p>Scala Example:
* <pre>
* {@code
* tab.addOrReplaceColumns('a + 1 as 'a1, concat('b, "sunny") as 'b1)
* }
* </pre>
*/
Table addOrReplaceColumns(Expression... fields);
/**
* Renames existing columns. Similar to a field alias statement. The field expressions
* should be alias expressions, and only the existing fields can be renamed.
*
* <p>Example:
*
* <pre>
* {@code
* tab.renameColumns("a as a1, b as b1")
* }
* </pre>
*/
Table renameColumns(String fields);
/**
* Renames existing columns. Similar to a field alias statement. The field expressions
* should be alias expressions, and only the existing fields can be renamed.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.renameColumns('a as 'a1, 'b as 'b1)
* }
* </pre>
*/
Table renameColumns(Expression... fields);
/**
* Drops existing columns. The field expressions should be field reference expressions.
*
* <p>Example:
*
* <pre>
* {@code
* tab.dropColumns("a, b")
* }
* </pre>
*/
Table dropColumns(String fields);
/**
* Drops existing columns. The field expressions should be field reference expressions.
*
* <p>Scala Example:
* <pre>
* {@code
* tab.dropColumns('a, 'b)
* }
* </pre>
*/
Table dropColumns(Expression... fields);(10) window操作
/**
* Groups the records of a table by assigning them to windows defined by a time or row interval.
*
* <p>For streaming tables of infinite size, grouping into windows is required to define finite
* groups on which group-based aggregates can be computed.
*
* <p>For batch tables of finite size, windowing essentially provides shortcuts for time-based
* groupBy.
*
* <p><b>Note</b>: Computing windowed aggregates on a streaming table is only a parallel operation
* if additional grouping attributes are added to the {@code groupBy(...)} clause.
* If the {@code groupBy(...)} only references a GroupWindow alias, the streamed table will be
* processed by a single task, i.e., with parallelism 1.
*
* @param groupWindow groupWindow that specifies how elements are grouped.
* @return A windowed table.
*/
GroupWindowedTable window(GroupWindow groupWindow);
/**
* Defines over-windows on the records of a table.
*
* <p>An over-window defines for each record an interval of records over which aggregation
* functions can be computed.
*
* <p>Example:
*
* <pre>
* {@code
* table
* .window(Over partitionBy 'c orderBy 'rowTime preceding 10.seconds as 'ow)
* .select('c, 'b.count over 'ow, 'e.sum over 'ow)
* }
* </pre>
*
* <p><b>Note</b>: Computing over window aggregates on a streaming table is only a parallel
* operation if the window is partitioned. Otherwise, the whole stream will be processed by a
* single task, i.e., with parallelism 1.
*
* <p><b>Note</b>: Over-windows for batch tables are currently not supported.
*
* @param overWindows windows that specify the record interval over which aggregations are
* computed.
* @return An OverWindowedTable to specify the aggregations.
*/
OverWindowedTable window(OverWindow... overWindows);(11) 表关联
包括Inner join和OuterJoin
/**
* Joins two {@link Table}s. Similar to a SQL join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary. You can use
* where and select clauses after a join to further specify the behaviour of the join.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} .
*
* <p>Example:
*
* <pre>
* {@code
* left.join(right).where("a = b && c > 3").select("a, b, d")
* }
* </pre>
*/
Table join(Table right);
/**
* Joins two {@link Table}s. Similar to a SQL join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} .
*
* <p>Example:
*
* <pre>
* {@code
* left.join(right, "a = b")
* }
* </pre>
*/
Table join(Table right, String joinPredicate);
/**
* Joins two {@link Table}s. Similar to a SQL join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} .
*
* <p>Scala Example:
*
* <pre>
* {@code
* left.join(right, 'a === 'b).select('a, 'b, 'd)
* }
* </pre>
*/
Table join(Table right, Expression joinPredicate);
/**
* Joins two {@link Table}s. Similar to a SQL left outer join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} and its
* {@code TableConfig} must have null check enabled (default).
*
* <p>Example:
*
* <pre>
* {@code
* left.leftOuterJoin(right).select("a, b, d")
* }
* </pre>
*/
Table leftOuterJoin(Table right);
/**
* Joins two {@link Table}s. Similar to a SQL left outer join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} and its
* {@code TableConfig} must have null check enabled (default).
*
* <p>Example:
*
* <pre>
* {@code
* left.leftOuterJoin(right, "a = b").select("a, b, d")
* }
* </pre>
*/
Table leftOuterJoin(Table right, String joinPredicate);
/**
* Joins two {@link Table}s. Similar to a SQL left outer join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} and its
* {@code TableConfig} must have null check enabled (default).
*
* <p>Scala Example:
*
* <pre>
* {@code
* left.leftOuterJoin(right, 'a === 'b).select('a, 'b, 'd)
* }
* </pre>
*/
Table leftOuterJoin(Table right, Expression joinPredicate);
/**
* Joins two {@link Table}s. Similar to a SQL right outer join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} and its
* {@code TableConfig} must have null check enabled (default).
*
* <p>Example:
*
* <pre>
* {@code
* left.rightOuterJoin(right, "a = b").select("a, b, d")
* }
* </pre>
*/
Table rightOuterJoin(Table right, String joinPredicate);
/**
* Joins two {@link Table}s. Similar to a SQL right outer join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} and its
* {@code TableConfig} must have null check enabled (default).
*
* <p>Scala Example:
*
* <pre>
* {@code
* left.rightOuterJoin(right, 'a === 'b).select('a, 'b, 'd)
* }
* </pre>
*/
Table rightOuterJoin(Table right, Expression joinPredicate);
/**
* Joins two {@link Table}s. Similar to a SQL full outer join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} and its
* {@code TableConfig} must have null check enabled (default).
*
* <p>Example:
*
* <pre>
* {@code
* left.fullOuterJoin(right, "a = b").select("a, b, d")
* }
* </pre>
*/
Table fullOuterJoin(Table right, String joinPredicate);
/**
* Joins two {@link Table}s. Similar to a SQL full outer join. The fields of the two joined
* operations must not overlap, use {@code as} to rename fields if necessary.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment} and its
* {@code TableConfig} must have null check enabled (default).
*
* <p>Scala Example:
*
* <pre>
* {@code
* left.fullOuterJoin(right, 'a === 'b).select('a, 'b, 'd)
* }
* </pre>
*/
Table fullOuterJoin(Table right, Expression joinPredicate);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL inner join with ON TRUE predicate but works with a table function. Each row of the
* table is joined with all rows produced by the table function.
*
* <p>Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction<String> {
* public void eval(String str) {
* str.split("#").forEach(this::collect);
* }
* }
*
* TableFunction<String> split = new MySplitUDTF();
* tableEnv.registerFunction("split", split);
* table.joinLateral("split(c) as (s)").select("a, b, c, s");
* }
* </pre>
*/
Table joinLateral(String tableFunctionCall);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL inner join with ON TRUE predicate but works with a table function. Each row of the
* table is joined with all rows produced by the table function.
*
* <p>Scala Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction[String] {
* def eval(str: String): Unit = {
* str.split("#").foreach(collect)
* }
* }
*
* val split = new MySplitUDTF()
* table.joinLateral(split('c) as ('s)).select('a, 'b, 'c, 's)
* }
* </pre>
*/
Table joinLateral(Expression tableFunctionCall);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL inner join with ON TRUE predicate but works with a table function. Each row of the
* table is joined with all rows produced by the table function.
*
* <p>Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction<String> {
* public void eval(String str) {
* str.split("#").forEach(this::collect);
* }
* }
*
* TableFunction<String> split = new MySplitUDTF();
* tableEnv.registerFunction("split", split);
* table.joinLateral("split(c) as (s)", "a = s").select("a, b, c, s");
* }
* </pre>
*/
Table joinLateral(String tableFunctionCall, String joinPredicate);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL inner join with ON TRUE predicate but works with a table function. Each row of the
* table is joined with all rows produced by the table function.
*
* <p>Scala Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction[String] {
* def eval(str: String): Unit = {
* str.split("#").foreach(collect)
* }
* }
*
* val split = new MySplitUDTF()
* table.joinLateral(split('c) as ('s), 'a === 's).select('a, 'b, 'c, 's)
* }
* </pre>
*/
Table joinLateral(Expression tableFunctionCall, Expression joinPredicate);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL left outer join with ON TRUE predicate but works with a table function. Each row of
* the table is joined with all rows produced by the table function. If the table function does
* not produce any row, the outer row is padded with nulls.
*
* <p>Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction<String> {
* public void eval(String str) {
* str.split("#").forEach(this::collect);
* }
* }
*
* TableFunction<String> split = new MySplitUDTF();
* tableEnv.registerFunction("split", split);
* table.leftOuterJoinLateral("split(c) as (s)").select("a, b, c, s");
* }
* </pre>
*/
Table leftOuterJoinLateral(String tableFunctionCall);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL left outer join with ON TRUE predicate but works with a table function. Each row of
* the table is joined with all rows produced by the table function. If the table function does
* not produce any row, the outer row is padded with nulls.
*
* <p>Scala Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction[String] {
* def eval(str: String): Unit = {
* str.split("#").foreach(collect)
* }
* }
*
* val split = new MySplitUDTF()
* table.leftOuterJoinLateral(split('c) as ('s)).select('a, 'b, 'c, 's)
* }
* </pre>
*/
Table leftOuterJoinLateral(Expression tableFunctionCall);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL left outer join with ON TRUE predicate but works with a table function. Each row of
* the table is joined with all rows produced by the table function. If the table function does
* not produce any row, the outer row is padded with nulls.
*
* <p>Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction<String> {
* public void eval(String str) {
* str.split("#").forEach(this::collect);
* }
* }
*
* TableFunction<String> split = new MySplitUDTF();
* tableEnv.registerFunction("split", split);
* table.leftOuterJoinLateral("split(c) as (s)", "a = s").select("a, b, c, s");
* }
* </pre>
*/
Table leftOuterJoinLateral(String tableFunctionCall, String joinPredicate);
/**
* Joins this {@link Table} with an user-defined {@link TableFunction}. This join is similar to
* a SQL left outer join with ON TRUE predicate but works with a table function. Each row of
* the table is joined with all rows produced by the table function. If the table function does
* not produce any row, the outer row is padded with nulls.
*
* <p>Scala Example:
*
* <pre>
* {@code
* class MySplitUDTF extends TableFunction[String] {
* def eval(str: String): Unit = {
* str.split("#").foreach(collect)
* }
* }
*
* val split = new MySplitUDTF()
* table.leftOuterJoinLateral(split('c) as ('s), 'a === 's).select('a, 'b, 'c, 's)
* }
* </pre>
*/
Table leftOuterJoinLateral(Expression tableFunctionCall, Expression joinPredicate);(12) 集合操作
/**
* Minus of two {@link Table}s with duplicate records removed.
* Similar to a SQL EXCEPT clause. Minus returns records from the left table that do not
* exist in the right table. Duplicate records in the left table are returned
* exactly once, i.e., duplicates are removed. Both tables must have identical field types.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment}.
*
* <p>Example:
*
* <pre>
* {@code
* left.minus(right)
* }
* </pre>
*/
Table minus(Table right);
/**
* Minus of two {@link Table}s. Similar to a SQL EXCEPT ALL.
* Similar to a SQL EXCEPT ALL clause. MinusAll returns the records that do not exist in
* the right table. A record that is present n times in the left table and m times
* in the right table is returned (n - m) times, i.e., as many duplicates as are present
* in the right table are removed. Both tables must have identical field types.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment}.
*
* <p>Example:
*
* <pre>
* {@code
* left.minusAll(right)
* }
* </pre>
*/
Table minusAll(Table right);
/**
* Unions two {@link Table}s with duplicate records removed.
* Similar to a SQL UNION. The fields of the two union operations must fully overlap.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment}.
*
* <p>Example:
*
* <pre>
* {@code
* left.union(right)
* }
* </pre>
*/
Table union(Table right);
/**
* Unions two {@link Table}s. Similar to a SQL UNION ALL. The fields of the two union
* operations must fully overlap.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment}.
*
* <p>Example:
*
* <pre>
* {@code
* left.unionAll(right)
* }
* </pre>
*/
Table unionAll(Table right);
/**
* Intersects two {@link Table}s with duplicate records removed. Intersect returns records that
* exist in both tables. If a record is present in one or both tables more than once, it is
* returned just once, i.e., the resulting table has no duplicate records. Similar to a
* SQL INTERSECT. The fields of the two intersect operations must fully overlap.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment}.
*
* <p>Example:
*
* <pre>
* {@code
* left.intersect(right)
* }
* </pre>
*/
Table intersect(Table right);
/**
* Intersects two {@link Table}s. IntersectAll returns records that exist in both tables.
* If a record is present in both tables more than once, it is returned as many times as it
* is present in both tables, i.e., the resulting table might have duplicate records. Similar
* to an SQL INTERSECT ALL. The fields of the two intersect operations must fully overlap.
*
* <p>Note: Both tables must be bound to the same {@code TableEnvironment}.
*
* <p>Example:
*
* <pre>
* {@code
* left.intersectAll(right)
* }
* </pre>
*/
Table intersectAll(Table right);(13) 创建临时表
/**
* Creates {@link TemporalTableFunction} backed up by this table as a history table.
* Temporal Tables represent a concept of a table that changes over time and for which
* Flink keeps track of those changes. {@link TemporalTableFunction} provides a way how to
* access those data.
*
* <p>For more information please check Flink's documentation on Temporal Tables.
*
* <p>Currently {@link TemporalTableFunction}s are only supported in streaming.
*
* @param timeAttribute Must points to a time attribute. Provides a way to compare which
* records are a newer or older version.
* @param primaryKey Defines the primary key. With primary key it is possible to update
* a row or to delete it.
* @return {@link TemporalTableFunction} which is an instance of {@link TableFunction}.
* It takes one single argument, the {@code timeAttribute}, for which it returns
* matching version of the {@link Table}, from which {@link TemporalTableFunction}
* was created.
*/
TemporalTableFunction createTemporalTableFunction(String timeAttribute, String primaryKey);
/**
* Creates {@link TemporalTableFunction} backed up by this table as a history table.
* Temporal Tables represent a concept of a table that changes over time and for which
* Flink keeps track of those changes. {@link TemporalTableFunction} provides a way how to
* access those data.
*
* <p>For more information please check Flink's documentation on Temporal Tables.
*
* <p>Currently {@link TemporalTableFunction}s are only supported in streaming.
*
* @param timeAttribute Must points to a time indicator. Provides a way to compare which
* records are a newer or older version.
* @param primaryKey Defines the primary key. With primary key it is possible to update
* a row or to delete it.
* @return {@link TemporalTableFunction} which is an instance of {@link TableFunction}.
* It takes one single argument, the {@code timeAttribute}, for which it returns
* matching version of the {@link Table}, from which {@link TemporalTableFunction}
* was created.
*/
TemporalTableFunction createTemporalTableFunction(Expression timeAttribute, Expression primaryKey);(14) 重命名
/**
* Renames the fields of the expression result. Use this to disambiguate fields before
* joining to operations.
*
* <p>Example:
*
* <pre>
* {@code
* tab.as("a, b")
* }
* </pre>
*/
Table as(String fields);
/**
* Renames the fields of the expression result. Use this to disambiguate fields before
* joining to operations.
*
* <p>Scala Example:
*
* <pre>
* {@code
* tab.as('a, 'b)
* }
* </pre>
*/
Table as(Expression... fields);
/**
* Filters out elements that don't pass the filter predicate. Similar to a SQL WHERE
* clause.
*
* <p>Example:
*
* <pre>
* {@code
* tab.filter("name = 'Fred'")
* }
* </pre>
*/(15)插入数据表
/**
* Writes the {@link Table} to a {@link TableSink} that was registered under the specified path.
* For the path resolution algorithm see {@link TableEnvironment#useDatabase(String)}.
*
* <p>A batch {@link Table} can only be written to a
* {@code org.apache.flink.table.sinks.BatchTableSink}, a streaming {@link Table} requires a
* {@code org.apache.flink.table.sinks.AppendStreamTableSink}, a
* {@code org.apache.flink.table.sinks.RetractStreamTableSink}, or an
* {@code org.apache.flink.table.sinks.UpsertStreamTableSink}.
*
* @param tablePath The first part of the path of the registered {@link TableSink} to which the {@link Table} is
* written. This is to ensure at least the name of the {@link TableSink} is provided.
* @param tablePathContinued The remaining part of the path of the registered {@link TableSink} to which the
* {@link Table} is written.
*/
void insertInto(String tablePath, String... tablePathContinued);
/**
* Writes the {@link Table} to a {@link TableSink} that was registered under the specified name
* in the initial default catalog.
*
* <p>A batch {@link Table} can only be written to a
* {@code org.apache.flink.table.sinks.BatchTableSink}, a streaming {@link Table} requires a
* {@code org.apache.flink.table.sinks.AppendStreamTableSink}, a
* {@code org.apache.flink.table.sinks.RetractStreamTableSink}, or an
* {@code org.apache.flink.table.sinks.UpsertStreamTableSink}.
*
* @param tableName The name of the {@link TableSink} to which the {@link Table} is written.
* @param conf The {@link QueryConfig} to use.
* @deprecated use {@link #insertInto(QueryConfig, String, String...)}
*/
@Deprecated
void insertInto(String tableName, QueryConfig conf);
/**
* Writes the {@link Table} to a {@link TableSink} that was registered under the specified path.
* For the path resolution algorithm see {@link TableEnvironment#useDatabase(String)}.
*
* <p>A batch {@link Table} can only be written to a
* {@code org.apache.flink.table.sinks.BatchTableSink}, a streaming {@link Table} requires a
* {@code org.apache.flink.table.sinks.AppendStreamTableSink}, a
* {@code org.apache.flink.table.sinks.RetractStreamTableSink}, or an
* {@code org.apache.flink.table.sinks.UpsertStreamTableSink}.
*
* @param conf The {@link QueryConfig} to use.
* @param tablePath The first part of the path of the registered {@link TableSink} to which the {@link Table} is
* written. This is to ensure at least the name of the {@link TableSink} is provided.
* @param tablePathContinued The remaining part of the path of the registered {@link TableSink} to which the
* {@link Table} is written.
*/
void insertInto(QueryConfig conf, String tablePath, String... tablePathContinued);总结：
本篇抓住Table api的核心类Table来发现其拥有的功能，并提供了使用用例。Flink Table Api 主要包括了查询select，条件where，过滤filter，排序order by，分组group by，去重distinct，表关联join，重命名as等常规sql操作，也提供了flink自身特性的操作：
窗口操作window，表聚合操作，map操作，aggregate操作。
原文出处：https://www.cnblogs.com/davidwang456/p/11196675.html
来源：oschina
链接：https://my.oschina.net/u/4263785/blog/3258955
