一：SSM框架整合之登陆

1.先准备数据库

创建数据库 – db_gm, 创建表 – tb_user

2.新建项目 - maven

archetypeCatalog = internal, 作用： 加快构建maven骨架
架包存放路径：C:\当前用户.m2\repository

3.导包 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<!--
  Licensed to the Apache Software Foundation (ASF) under one
  or more contributor license agreements.  See the NOTICE file
  distributed with this work for additional information
  regarding copyright ownership.  The ASF licenses this file
  to you under the Apache License, Version 2.0 (the
  "License"); you may not use this file except in compliance
  with the License.  You may obtain a copy of the License at

   http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing,
  software distributed under the License is distributed on an
  "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
  KIND, either express or implied.  See the License for the
  specific language governing permissions and limitations
  under the License.
-->
<!-- $Id: pom.xml 642118 2008-03-28 08:04:16Z reinhard $ -->
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">

    <modelVersion>4.0.0</modelVersion>
    <packaging>war</packaging>

    <name>ssm</name>
    <groupId>com.gm</groupId>
    <artifactId>ssm</artifactId>
    <version>1.0-SNAPSHOT</version>

    <build>
        <plugins>
            <plugin>
                <groupId>org.mortbay.jetty</groupId>
                <artifactId>maven-jetty-plugin</artifactId>
                <version>6.1.7</version>
                <configuration>
                    <connectors>
                        <connector implementation="org.mortbay.jetty.nio.SelectChannelConnector">
                            <port>8888</port>
                            <maxIdleTime>30000</maxIdleTime>
                        </connector>
                    </connectors>
                    <webAppSourceDirectory>${project.build.directory}/${pom.artifactId}-${pom.version}
                    </webAppSourceDirectory>
                    <contextPath>/</contextPath>
                </configuration>
            </plugin>
        </plugins>
    </build>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
        <!-- spring版本号 -->
        <spring.version>5.0.2.RELEASE</spring.version>
        <!-- mybatis版本号 -->
        <mybatis.version>3.2.6</mybatis.version>
        <!-- log4j日志文件管理包版本 -->
        <slf4j.version>1.7.7</slf4j.version>
        <log4j.version>1.2.17</log4j.version>
        <c3p0.version>0.9.5.2</c3p0.version>
        <taglibs.version>1.1.2</taglibs.version>
    </properties>
    <dependencies>
        <!-- spring核心包 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- mybatis核心包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <!-- mybatis/spring包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.2.2</version>
        </dependency>
        <!-- 导入java ee jar 包 -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
        </dependency>

        <!-- 导入Mysql数据库链接jar包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.30</version>
        </dependency>
        <!-- 导入dbcp的jar包，用来在applicationContext.xml中配置数据库 -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.2.2</version>
        </dependency>
        <!-- JSTL标签类 -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <!-- 日志文件管理包 -->
        <!-- log start -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>${log4j.version}</version>
        </dependency>


        <!-- 数据连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>${c3p0.version}</version>
        </dependency>

        <dependency>
            <groupId>taglibs</groupId>
            <artifactId>standard</artifactId>
            <version>${taglibs.version}</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${slf4j.version}</version>
        </dependency>

        <!-- 导入servlet-api/jsp -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/javax.servlet.jsp/javax.servlet.jsp-api -->
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>javax.servlet.jsp-api</artifactId>
            <version>2.3.1</version>
            <scope>provided</scope>
        </dependency>

        <!--dependency>
          <groupId>com.gm</groupId>
          <artifactId>[the artifact id of the block to be mounted]</artifactId>
          <version>1.0-SNAPSHOT</version>
        </dependency-->
    </dependencies>

</project>

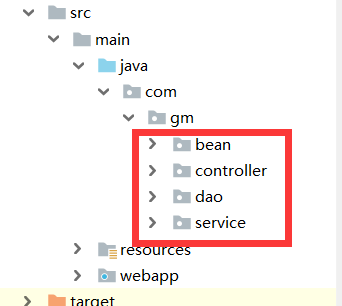

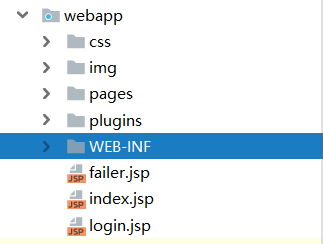

4.创建项目的目录结构 – Java、resources、webapp

5.根据mvc的项目开发思想创建包结构名 - MVC架构

MVC
M: model
V: View
C: Controller

6.根据表去创建实体类和dao层

model/bean/pojo/entity - 存放实体类
dao/mapper - 存放接口，与数据库直接交互
service - 业务逻辑层 ，大致与dao层一致
controller - 控制层/表现层

bean层

package com.gm.bean;

/**
 * @author 起风
 * @date 2020/2/19 14:34
 * userinfo   实体类  映射数据库字段
 */
public class UserInfo {
//    在实体类中为什么要进行封装
//    spring容器，去访问对象成员属性的时候必须是封装类型的，不然没办法访问

    private int id;           //用户id
    private String username;  //用户名
    private String password;  // 用户密码

    //get/set 访问器

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    //构造方法（有参，无参）

    public UserInfo(int id, String username, String password) {
        this.id = id;
        this.username = username;
        this.password = password;
    }

    public UserInfo() {
    }


    // toString方法重写
    @Override
    public String toString() {
        return "UserInfo{" +
                "id=" + id +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                '}';
    }
}

dao层

package com.gm.dao;

import com.gm.bean.UserInfo;

/**
 * @author 起风
 * @date 2020/2/19 14:43
 *
 * 接口 数据库访问层  直接可以访问数据库
 */
public interface IUserInfoDao {

    //验证登陆 （查询操作Select）
    UserInfo doLogin(String username);



}

7.整合 Spring + Mybatis – ApplicationContext.xml

配置文件全部放resources

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.3.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">

    <!-- spring 和 Mybatis 的整合   -->
    <!--  1. 配置数据库相关参数   -->
    <context:property-placeholder location="classpath:db.properties"/>
    <!-- 2. 配置数据源   -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="2"/>
    </bean>

    <!-- 3. 配置sqlSessionFactory对象   -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--   注入数据库连接池     -->
        <property name="dataSource" ref="dataSource"/>
        <!--   扫描 bean 层包 使用别名      -->
        <property name="typeAliasesPackage" value="com.gm.bean"/>
        <!--   配合加载映射文件 *mapper.xml     -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

    <!--  自动生成dao，mapper  -->
    <!--  4. 配置扫描dao接口包，将dao层注入spring容器中  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--   配置给出需要扫描的dao层路径      -->
        <property name="basePackage" value="com.gm.dao"/>
        <!--  注入 Spring容器中   -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>

    <!--  自动扫描全部包 ,注解支持  -->
    <context:component-scan base-package="com.gm"/>

    <!--   6. 配置事务注解  -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--  开启事务注解  -->
    <tx:annotation-driven></tx:annotation-driven>

</beans>

8.编写mapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.gm.dao.IUserInfoDao" >


    <!-- 登陆-->

    <select id="doLogin" parameterType="String" resultType="com.gm.bean.UserInfo">
        select * from tb_user where username=#{username}
    </select>

</mapper>

注意namespace得路径一定要对应上

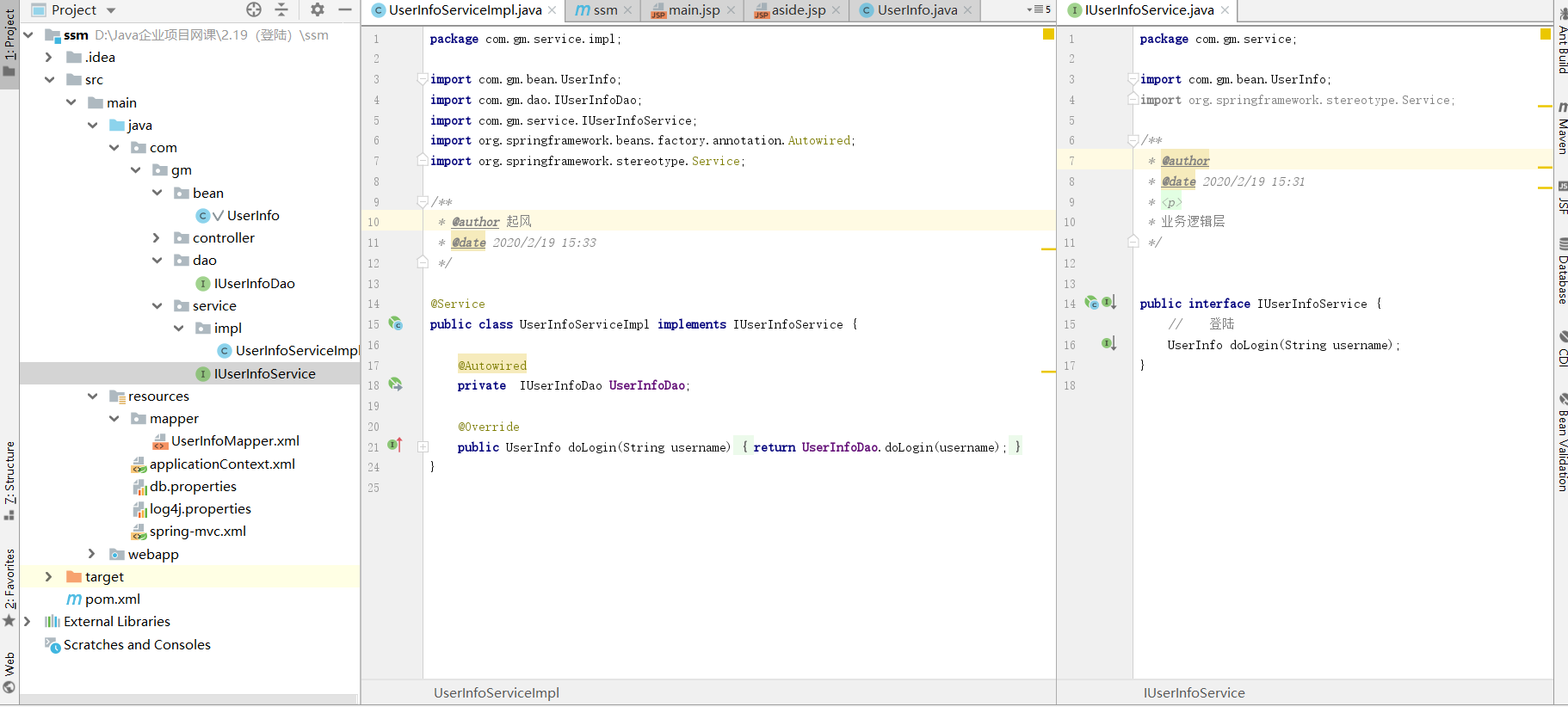

9.编写Service层

有接口类和实现类 可以不写接口类 自己习惯问题

10.整合 Spring-MVC.xml 和 web.xml

Spring-MVC.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
      http://www.springframework.org/schema/mvc
      http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context-4.3.xsd
      http://www.springframework.org/schema/aop
      http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
      http://www.springframework.org/schema/tx
      http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">

    <!--   1. 注解扫描位置/注解支持  -->
    <context:component-scan base-package="com.gm.controller"/>
    <!--    <mvc:annotation-driven></mvc:annotation-driven>-->
    <!--  2. 配置映射处理器和适配器  -->
    <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping"/>
    <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter"/>

    <!--  3.视图解析器  -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/pages/" />
        <property name="suffix" value=".jsp" />
    </bean>

</beans>

web.xml（在webapp-WEB-INF下）

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

    <!--  配置加载类路径文件   -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath*:applicationContext.xml</param-value>
    </context-param>

    <!--  监听器  -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <listener>
        <listener-class>org.springframework.web.context.request.RequestContextListener</listener-class>
    </listener>

    <!-- 配置解决中文乱码  -->
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 前端控制器，制定加载spring-mvc.xml  -->
    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <!-- 让服务器启动的时候，就进行创建servlet对象-->
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <!--
          /*, 会把用户端所有的请求都当做requestMappering指定的路径去处理，都会进controller
          /， 页面不会去拦截
          *.do
          -->
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>


</web-app>

11.导入页面/view

就是自己得jsp页面

12.编写Controller

package com.gm.controller;

import com.gm.bean.UserInfo;
import com.gm.service.IUserInfoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

/**
 * @author 起风
 * @date 2020/2/19 16:17
 * <p>
 * 前端控制器
 */
@Controller
@RequestMapping("/user")
public class UserInfoController {

    @Autowired
    private IUserInfoService userInfoService;

    @RequestMapping("/doLogin.do")
    public ModelAndView doLogin(String username, String password,ModelAndView modelAndView) {
//        调用service 查询结果
        UserInfo userInfo=userInfoService.doLogin(username);

//        判断
        if (userInfo!=null){
            if (userInfo.getPassword().equals(password)){
                System.out.println("密码正确  登陆成功");
                String name=username;
                modelAndView.addObject("name",name);
                modelAndView.setViewName("aside");
                modelAndView.setViewName("main");
            }else {
                System.out.println("密码错误，登陆失败");
                modelAndView.addObject("type","密码错误，登陆失败");
                modelAndView.setViewName("../login");

            }
        }else {
            System.out.println("用户不存在，请重新输入");
            modelAndView.addObject("type","用户不存在，请重新输入");
            modelAndView.setViewName("../login");

        }
        return modelAndView;
    }


}

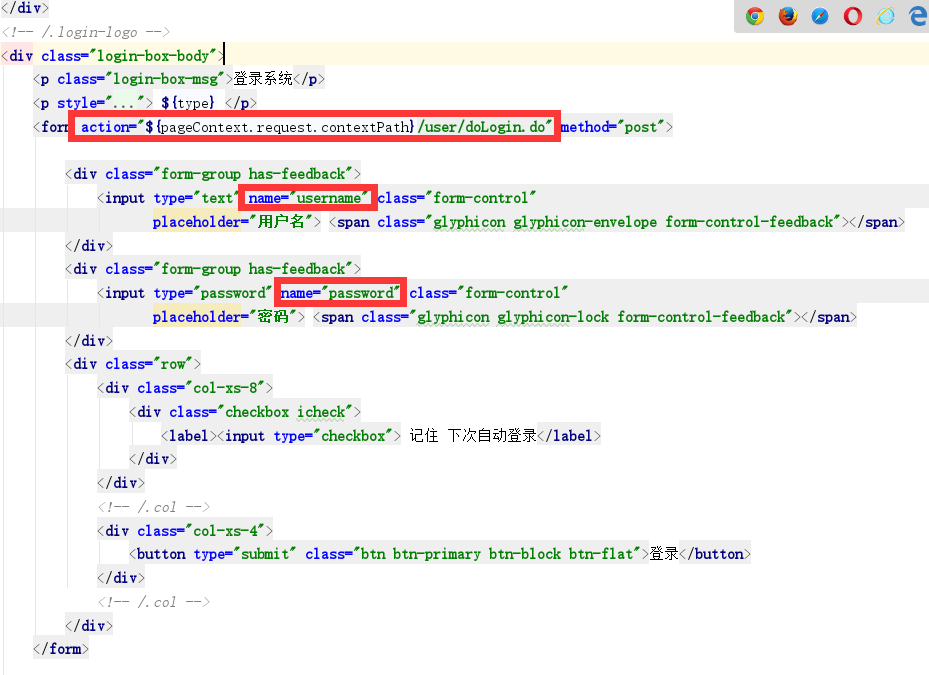

13.login.jsp

这三处一定要对应上
name得值对应你得bean类得属性名
action跳转得对应你controller方法得RequestMapping得值

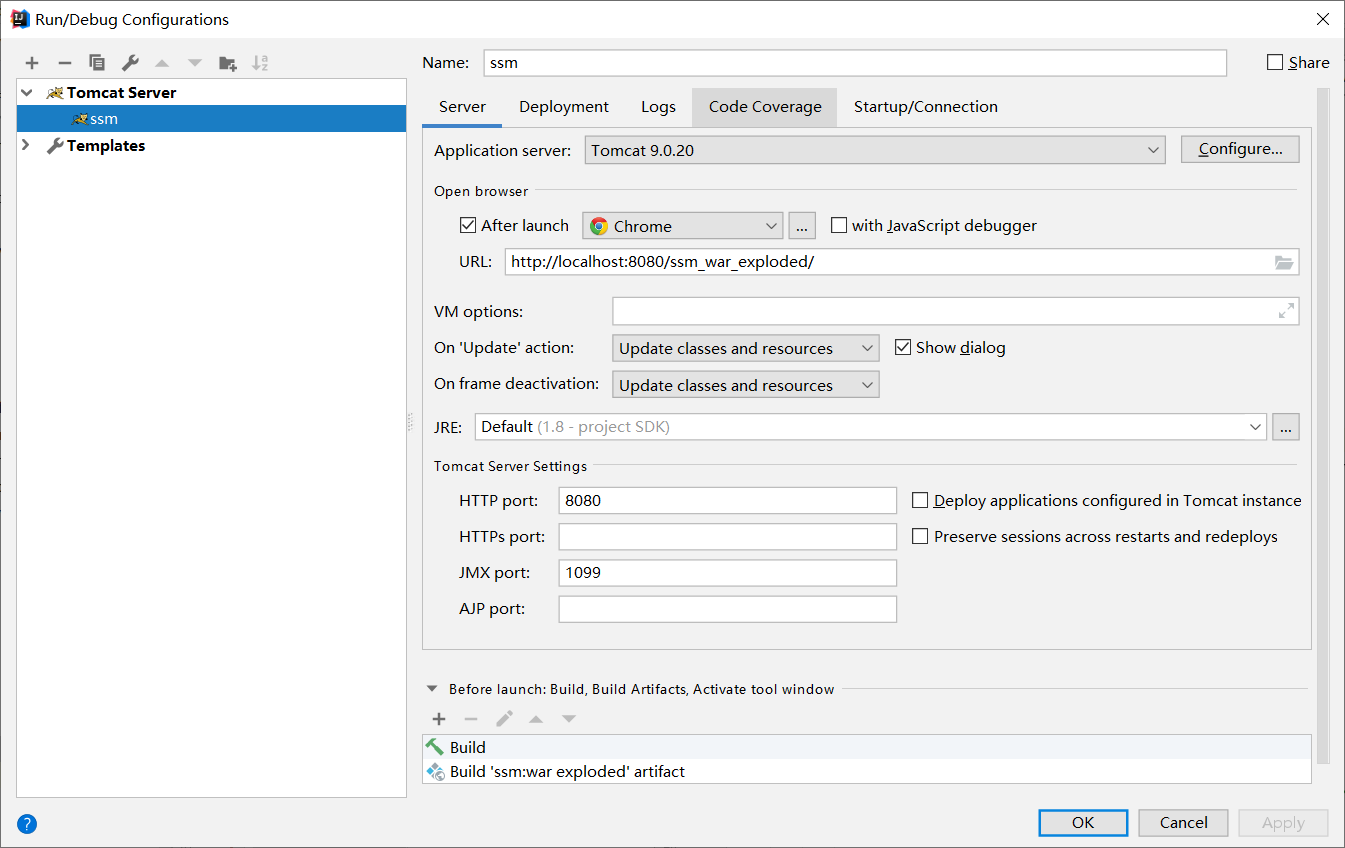

14.测试

运行看看

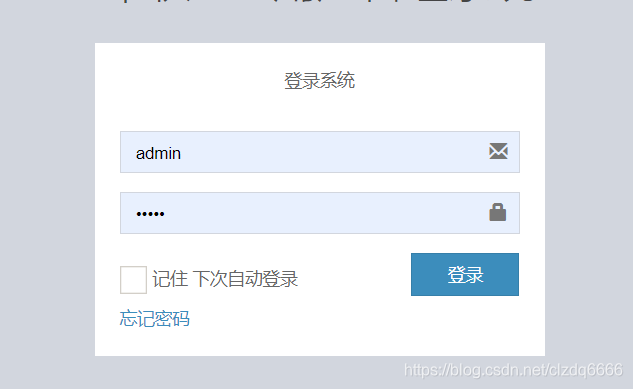

成功进入页面 输入账户密码

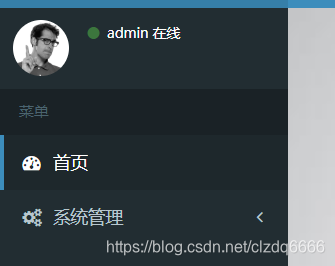

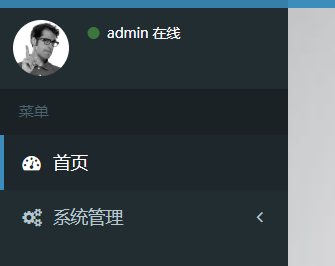

成功 登陆完成

来源：CSDN

作者：clzdq6666

链接：https://blog.csdn.net/clzdq6666/article/details/104592218
