机器学习-随机森林(Random Forest)

Section I: Brief Introduction on Random Forest

Random forests have gained huge popularity om applications of machine learning during the last decade due to their good classification performance,scalability, and ease of use. Intuitively, a random forest can be considered as an ensemble of decoson trees. The idea behind a random forest is to average multiple trees that individually suffer from high variance, to build a more robust model that has a better generalization performance and is less susceptible to overfitting. The major steps are summarized here:

Step 1: Draw a random boostrap sample for each decision tree with replacement
Step 2: Randomly select d features without replacement.

From
Sebastian Raschka, Vahid Mirjalili. Python机器学习第二版. 南京：东南大学出版社，2018.

Section II: Random Forest

import matplotlib.pyplot as plt
from sklearn import datasets
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.ensemble import RandomForestClassifier
from DecisionTrees.visualize_test_idx import plot_decision_regions

plt.rcParams['figure.dpi']=200
plt.rcParams['savefig.dpi']=200
font = {'family': 'Times New Roman',
        'weight': 'light'}
plt.rc("font", **font)

#Section 1: Load data and split it into train/test dataset
iris=datasets.load_iris()
X=iris.data[:,[2,3]]
y=iris.target
X_train,X_test,y_train,y_test=train_test_split(X,y,test_size=0.3,random_state=1,stratify=y)

#Section 2: Invoke RandomForest model
forest=RandomForestClassifier(criterion='gini',
                              n_estimators=25,
                              random_state=1,
                              n_jobs=2)
forest.fit(X_train,y_train)

X_combined=np.vstack([X_train,X_test])
y_combined=np.hstack([y_train,y_test])

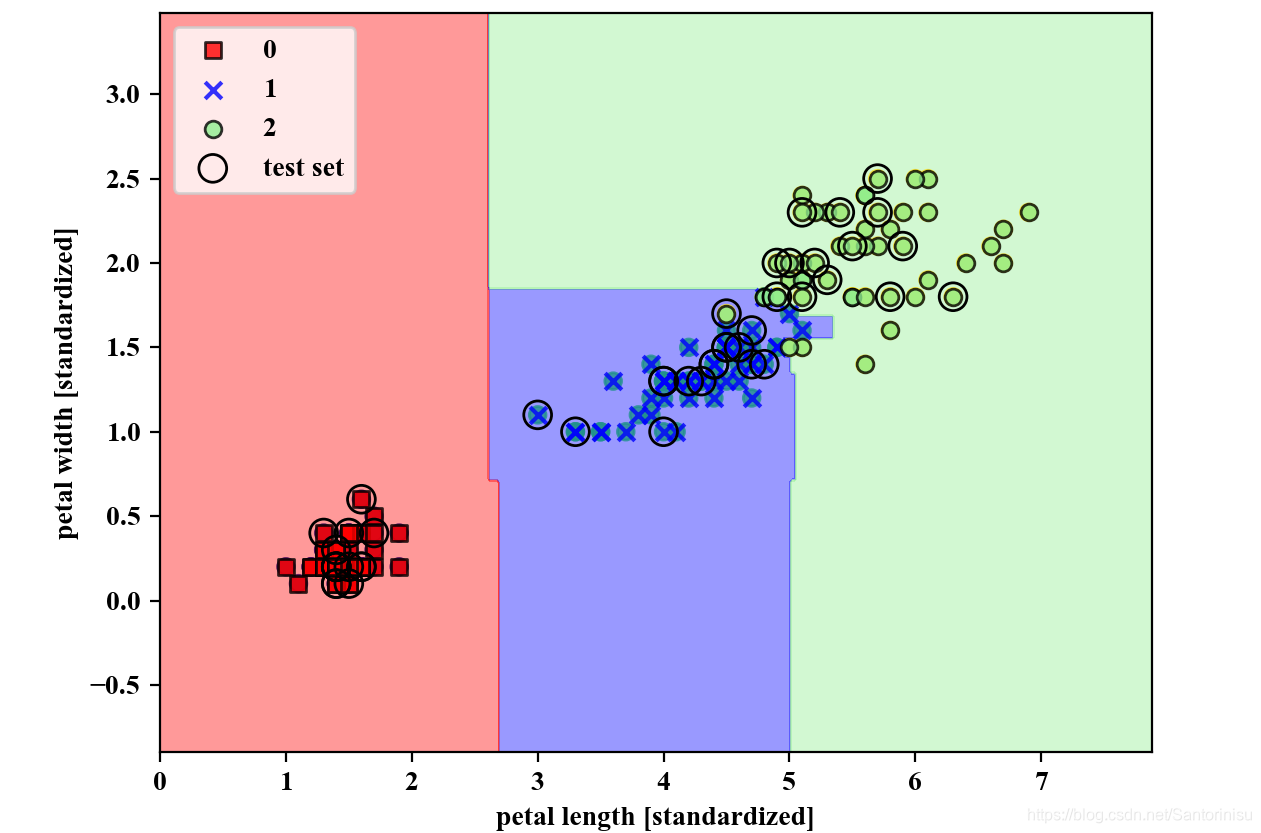

plot_decision_regions(X=X_combined,
                      y=y_combined,
                      classifier=forest,
                      test_idx=range(105,150))
plt.xlabel('petal length [standardized]')
plt.ylabel('petal width [standardized]')
plt.legend(loc='upper left')
plt.savefig('./fig3.png')
plt.show()
