0x08000000 0408 DCW 0x0408
0x08000002 2000 DCW 0x2000
0x08000004 0059 DCW 0x0059
0x08000006 0800 DCW 0x0800
0x08000008 00AF DCW 0x00AF
0x0800000A 0800 DCW 0x0800
0x0800000C 00A7 DCW 0x00A7
0x0800000E 0800 DCW 0x0800
0x08000010 00AB DCW 0x00AB
0x08000012 0800 DCW 0x0800
0x08000014 00A1 DCW 0x00A1
0x08000016 0800 DCW 0x0800
0x08000018 00C9 DCW 0x00C9
0x0800001A 0800 DCW 0x0800
0x0800001C 0000 DCW 0x0000
0x0800001E 0000 DCW 0x0000
0x08000020 0000 DCW 0x0000
0x08000022 0000 DCW 0x0000
0x08000024 0000 DCW 0x0000
0x08000026 0000 DCW 0x0000
0x08000028 0000 DCW 0x0000
0x0800002A 0000 DCW 0x0000
0x0800002C 00B3 DCW 0x00B3
0x0800002E 0800 DCW 0x0800
0x08000030 00A5 DCW 0x00A5
0x08000032 0800 DCW 0x0800
0x08000034 0000 DCW 0x0000
0x08000036 0000 DCW 0x0000
0x08000038 00B1 DCW 0x00B1
0x0800003A 0800 DCW 0x0800
0x0800003C 0071 DCW 0x0071
0x0800003E 0800 DCW 0x0800
0x08000040 0073 DCW 0x0073
0x08000042 0800 DCW 0x0800
__main:
0x08000044 F8DFD00C LDR.W sp,[pc,#12] ; @0x08000054
_main_scatterload:
0x08000048 F000F818 BL.W __scatterload (0x0800007C)
__main_after_scatterload:
0x0800004C 4800 LDR r0,[pc,#0] ; @0x08000050
0x0800004E 4700 BX r0
0x08000050 00ED DCW 0x00ED
0x08000052 0800 DCW 0x0800
__rt_final_cpp:
0x08000054 0408 DCW 0x0408
0x08000056 2000 DCW 0x2000
Reset_Handler:
0x08000058 4806 LDR r0,[pc,#24] ; @0x08000074
0x0800005A 4780 BLX r0
0x0800005C 4806 LDR r0,[pc,#24] ; @0x08000078
0x0800005E 4700 BX r0
NMI_Handler:
0x08000060 E7FE B NMI_Handler (0x08000060)
HardFault_Handler:
0x08000062 E7FE B HardFault_Handler (0x08000062)
MemManage_Handler:
0x08000064 E7FE B MemManage_Handler (0x08000064)
BusFault_Handler:
0x08000066 E7FE B BusFault_Handler (0x08000066)
UsageFault_Handler:
0x08000068 E7FE B UsageFault_Handler (0x08000068)
SVC_Handler:
0x0800006A E7FE B SVC_Handler (0x0800006A)
DebugMon_Handler:
0x0800006C E7FE B DebugMon_Handler (0x0800006C)
PendSV_Handler:
0x0800006E E7FE B PendSV_Handler (0x0800006E)
SysTick_Handler:
0x08000070 E7FE B SysTick_Handler (0x08000070)
Default_Handler:
0x08000072 E7FE B Default_Handler (0x08000072)
0x08000074 00B5 DCW 0x00B5
0x08000076 0800 DCW 0x0800
0x08000078 0045 DCW 0x0045
0x0800007A 0800 DCW 0x0800
__scatterload:
0x0800007C 4C06 LDR r4,[pc,#24] ; @0x08000098
0x0800007E 4D07 LDR r5,[pc,#28] ; @0x0800009C
0x08000080 E006 B 0x08000090
0x08000082 68E0 LDR r0,[r4,#0x0C]
0x08000084 F0400301 ORR r3,r0,#0x01
0x08000088 E8940007 LDM r4,{r0-r2}
0x0800008C 4798 BLX r3
0x0800008E 3410 ADDS r4,r4,#0x10
0x08000090 42AC CMP r4,r5
0x08000092 D3F6 BCC 0x08000082
0x08000094 F7FFFFDA BL.W __main_after_scatterload (0x0800004C)
0x08000098 0108 DCW 0x0108
0x0800009A 0800 DCW 0x0800
0x0800009C 0128 DCW 0x0128
0x0800009E 0800 DCW 0x0800
BusFault_Handler:
0x080000A0 BF00 NOP
0x080000A2 E7FE B 0x080000A2
DebugMon_Handler:
0x080000A4 4770 BX lr
HardFault_Handler:
0x080000A6 BF00 NOP
0x080000A8 E7FE B 0x080000A8
MemManage_Handler:
0x080000AA BF00 NOP
0x080000AC E7FE B 0x080000AC
NMI_Handler:
0x080000AE 4770 BX lr
PendSV_Handler:
0x080000B0 4770 BX lr
SVC_Handler:
0x080000B2 4770 BX lr
SystemInit:
0x080000B4 4803 LDR r0,[pc,#12] ; @0x080000C4
0x080000B6 6800 LDR r0,[r0,#0x00]
0x080000B8 F0400001 ORR r0,r0,#0x01
0x080000BC 4901 LDR r1,[pc,#4] ; @0x080000C4
0x080000BE 6008 STR r0,[r1,#0x00]
0x080000C0 4770 BX lr
0x080000C2 0000 DCW 0x0000
0x080000C4 1000 DCW 0x1000
0x080000C6 4002 DCW 0x4002
UsageFault_Handler:
0x080000C8 BF00 NOP
0x080000CA E7FE B 0x080000CA
__scatterload_copy:
0x080000CC E002 B 0x080000D4
0x080000CE C808 LDM r0!,{r3}
0x080000D0 1F12 SUBS r2,r2,#4
0x080000D2 C108 STM r1!,{r3}
0x080000D4 2A00 CMP r2,#0x00
0x080000D6 D1FA BNE 0x080000CE
0x080000D8 4770 BX lr
__scatterload_null:
0x080000DA 4770 BX lr
__scatterload_zeroinit:
0x080000DC 2000 MOVS r0,#0x00
0x080000DE E001 B 0x080000E4
0x080000E0 C101 STM r1!,{r0}
0x080000E2 1F12 SUBS r2,r2,#4
0x080000E4 2A00 CMP r2,#0x00
0x080000E6 D1FB BNE 0x080000E0
0x080000E8 4770 BX lr
0x080000EA 0000 MOVS r0,r0
main:
0x080000EC 4805 LDR r0,[pc,#20] ; @0x08000104
0x080000EE 6800 LDR r0,[r0,#0x00]
0x080000F0 1C40 ADDS r0,r0,#1
0x080000F2 4904 LDR r1,[pc,#16] ; @0x08000104
0x080000F4 6008 STR r0,[r1,#0x00]
0x080000F6 E004 B 0x08000102
0x080000F8 4802 LDR r0,[pc,#8] ; @0x08000104
0x080000FA 6800 LDR r0,[r0,#0x00]
0x080000FC 1C40 ADDS r0,r0,#1
0x080000FE 4901 LDR r1,[pc,#4] ; @0x08000104
0x08000100 6008 STR r0,[r1,#0x00]
0x08000102 E7F9 B 0x080000F8
0x08000104 0000 DCW 0x0000
0x08000106 2000 DCW 0x2000
0x08000108 0128 DCW 0x0128
0x0800010A 0800 DCW 0x0800
0x0800010C 0000 DCW 0x0000
0x0800010E 2000 DCW 0x2000
0x08000110 0004 DCW 0x0004
0x08000112 0000 DCW 0x0000
0x08000114 00CC DCW 0x00CC
0x08000116 0800 DCW 0x0800
0x08000118 012C DCW 0x012C
0x0800011A 0800 DCW 0x0800
0x0800011C 0004 DCW 0x0004
0x0800011E 2000 DCW 0x2000
0x08000120 0404 DCW 0x0404
0x08000122 0000 DCW 0x0000
0x08000124 00DC DCW 0x00DC
0x08000126 0800 DCW 0x0800
Rebuild target 'prj'
compiling core_cm3.c...
compiling stm32f10x_it.c...
compiling system_stm32f10x.c...
user\system_stm32f10x.c(76): warning: #111-D: statement is unreachable
RCC->CFGR &= (uint32_t)0xF8FF0000;
user\system_stm32f10x.c: 1 warning, 0 errors
assembling mystartup.s...
compiling main.c...
compiling go.c...
linking...
Program Size: Code=196 RO-data=100 RW-data=4 ZI-data=1028
FromELF: creating hex file...
".\OBJ\output.axf" - 0 Error(s), 1 Warning(s).
ARM Linker, 5.03 [Build 76] [MDK-ARM Standard]
==============================================================================
Section Cross References
system_stm32f10x.o(i.SetSysClock) refers to system_stm32f10x.o(i.SetSysClockTo72) for SetSysClockTo72
system_stm32f10x.o(i.SystemCoreClockUpdate) refers to system_stm32f10x.o(.data) for SystemCoreClock
mystartup.o(RESET) refers to mystartup.o(STACK) for __initial_sp
mystartup.o(RESET) refers to mystartup.o(.text) for Reset_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.NMI_Handler) for NMI_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.HardFault_Handler) for HardFault_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.MemManage_Handler) for MemManage_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.BusFault_Handler) for BusFault_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.UsageFault_Handler) for UsageFault_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.SVC_Handler) for SVC_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.DebugMon_Handler) for DebugMon_Handler
mystartup.o(RESET) refers to stm32f10x_it.o(i.PendSV_Handler) for PendSV_Handler
mystartup.o(.text) refers to system_stm32f10x.o(i.SystemInit) for SystemInit
mystartup.o(.text) refers to entry.o(.ARM.Collect$$$$00000000) for __main
main.o(i.main) refers to main.o(.data) for var_m
entry.o(.ARM.Collect$$$$00000000) refers (Special) to entry10a.o(.ARM.Collect$$$$0000000D) for __rt_final_cpp
entry.o(.ARM.Collect$$$$00000000) refers (Special) to entry11a.o(.ARM.Collect$$$$0000000F) for __rt_final_exit
entry.o(.ARM.Collect$$$$00000000) refers (Special) to entry7b.o(.ARM.Collect$$$$00000008) for _main_clock
entry.o(.ARM.Collect$$$$00000000) refers (Special) to entry8b.o(.ARM.Collect$$$$0000000A) for _main_cpp_init
entry.o(.ARM.Collect$$$$00000000) refers (Special) to entry9a.o(.ARM.Collect$$$$0000000B) for _main_init
entry.o(.ARM.Collect$$$$00000000) refers (Special) to entry5.o(.ARM.Collect$$$$00000004) for _main_scatterload
entry.o(.ARM.Collect$$$$00000000) refers (Special) to entry2.o(.ARM.Collect$$$$00000001) for _main_stk
entry2.o(.ARM.Collect$$$$00000001) refers to entry2.o(.ARM.Collect$$$$00002712) for __lit__00000000
entry2.o(.ARM.Collect$$$$00002712) refers to mystartup.o(STACK) for __initial_sp
entry2.o(__vectab_stack_and_reset_area) refers to mystartup.o(STACK) for __initial_sp
entry2.o(__vectab_stack_and_reset_area) refers to entry.o(.ARM.Collect$$$$00000000) for __main
entry5.o(.ARM.Collect$$$$00000004) refers to init.o(.text) for __scatterload
entry9a.o(.ARM.Collect$$$$0000000B) refers to main.o(i.main) for main
entry9b.o(.ARM.Collect$$$$0000000C) refers to main.o(i.main) for main
init.o(.text) refers to entry5.o(.ARM.Collect$$$$00000004) for __main_after_scatterload
==============================================================================
Removing Unused input sections from the image.
Removing core_cm3.o(.emb_text), (32 bytes).
Removing system_stm32f10x.o(i.SetSysClock), (8 bytes).
Removing system_stm32f10x.o(i.SetSysClockTo72), (220 bytes).
Removing system_stm32f10x.o(i.SystemCoreClockUpdate), (164 bytes).
Removing system_stm32f10x.o(.data), (20 bytes).
Removing mystartup.o(HEAP), (512 bytes).
Removing go.o(.data), (4 bytes).
7 unused section(s) (total 960 bytes) removed from the image.
==============================================================================
Image Symbol Table
Local Symbols
Symbol Name Value Ov Type Size Object(Section)
../clib/microlib/init/entry.s 0x00000000 Number 0 entry11a.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry11b.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry10b.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry10a.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry9b.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry9a.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry8b.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry8a.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry7a.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry5.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry7b.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry.o ABSOLUTE
../clib/microlib/init/entry.s 0x00000000 Number 0 entry2.o ABSOLUTE
dc.s 0x00000000 Number 0 dc.o ABSOLUTE
handlers.s 0x00000000 Number 0 handlers.o ABSOLUTE
init.s 0x00000000 Number 0 init.o ABSOLUTE
user\\core_cm3.c 0x00000000 Number 0 core_cm3.o ABSOLUTE
user\core_cm3.c 0x00000000 Number 0 core_cm3.o ABSOLUTE
user\go.c 0x00000000 Number 0 go.o ABSOLUTE
user\main.c 0x00000000 Number 0 main.o ABSOLUTE
user\mystartup.s 0x00000000 Number 0 mystartup.o ABSOLUTE
user\stm32f10x_it.c 0x00000000 Number 0 stm32f10x_it.o ABSOLUTE
user\system_stm32f10x.c 0x00000000 Number 0 system_stm32f10x.o ABSOLUTE
RESET 0x08000000 Section 68 mystartup.o(RESET)
.ARM.Collect$$$$00000000 0x08000044 Section 0 entry.o(.ARM.Collect$$$$00000000)
.ARM.Collect$$$$00000001 0x08000044 Section 4 entry2.o(.ARM.Collect$$$$00000001)
.ARM.Collect$$$$00000004 0x08000048 Section 4 entry5.o(.ARM.Collect$$$$00000004)
.ARM.Collect$$$$00000008 0x0800004c Section 0 entry7b.o(.ARM.Collect$$$$00000008)
.ARM.Collect$$$$0000000A 0x0800004c Section 0 entry8b.o(.ARM.Collect$$$$0000000A)
.ARM.Collect$$$$0000000B 0x0800004c Section 8 entry9a.o(.ARM.Collect$$$$0000000B)
.ARM.Collect$$$$0000000D 0x08000054 Section 0 entry10a.o(.ARM.Collect$$$$0000000D)
.ARM.Collect$$$$0000000F 0x08000054 Section 0 entry11a.o(.ARM.Collect$$$$0000000F)
.ARM.Collect$$$$00002712 0x08000054 Section 4 entry2.o(.ARM.Collect$$$$00002712)
__lit__00000000 0x08000054 Data 4 entry2.o(.ARM.Collect$$$$00002712)
.text 0x08000058 Section 36 mystartup.o(.text)
.text 0x0800007c Section 36 init.o(.text)
i.BusFault_Handler 0x080000a0 Section 0 stm32f10x_it.o(i.BusFault_Handler)
i.DebugMon_Handler 0x080000a4 Section 0 stm32f10x_it.o(i.DebugMon_Handler)
i.HardFault_Handler 0x080000a6 Section 0 stm32f10x_it.o(i.HardFault_Handler)
i.MemManage_Handler 0x080000aa Section 0 stm32f10x_it.o(i.MemManage_Handler)
i.NMI_Handler 0x080000ae Section 0 stm32f10x_it.o(i.NMI_Handler)
i.PendSV_Handler 0x080000b0 Section 0 stm32f10x_it.o(i.PendSV_Handler)
i.SVC_Handler 0x080000b2 Section 0 stm32f10x_it.o(i.SVC_Handler)
i.SystemInit 0x080000b4 Section 0 system_stm32f10x.o(i.SystemInit)
i.UsageFault_Handler 0x080000c8 Section 0 stm32f10x_it.o(i.UsageFault_Handler)
i.__scatterload_copy 0x080000cc Section 14 handlers.o(i.__scatterload_copy)
i.__scatterload_null 0x080000da Section 2 handlers.o(i.__scatterload_null)
i.__scatterload_zeroinit 0x080000dc Section 14 handlers.o(i.__scatterload_zeroinit)
i.main 0x080000ec Section 0 main.o(i.main)
.data 0x20000000 Section 4 main.o(.data)
STACK 0x20000008 Section 1024 mystartup.o(STACK)
Global Symbols
Symbol Name Value Ov Type Size Object(Section)
BuildAttributes$$THM_ISAv4$P$D$K$B$S$PE$A:L22UL41UL21$X:L11$S22US41US21$IEEE1$IW$USESV6$~STKCKD$USESV7$~SHL$OSPACE$EBA8$MICROLIB$REQ8$PRES8$EABIv2 0x00000000 Number 0 anon$$obj.o ABSOLUTE
__ARM_use_no_argv 0x00000000 Number 0 main.o ABSOLUTE
__cpp_initialize__aeabi_ - Undefined Weak Reference
__cxa_finalize - Undefined Weak Reference
__decompress - Undefined Weak Reference
_clock_init - Undefined Weak Reference
_microlib_exit - Undefined Weak Reference
__Vectors_Size 0x00000044 Number 0 mystartup.o ABSOLUTE
__Vectors 0x08000000 Data 4 mystartup.o(RESET)
__Vectors_End 0x08000044 Data 0 mystartup.o(RESET)
__main 0x08000045 Thumb Code 0 entry.o(.ARM.Collect$$$$00000000)
_main_stk 0x08000045 Thumb Code 0 entry2.o(.ARM.Collect$$$$00000001)
_main_scatterload 0x08000049 Thumb Code 0 entry5.o(.ARM.Collect$$$$00000004)
__main_after_scatterload 0x0800004d Thumb Code 0 entry5.o(.ARM.Collect$$$$00000004)
_main_clock 0x0800004d Thumb Code 0 entry7b.o(.ARM.Collect$$$$00000008)
_main_cpp_init 0x0800004d Thumb Code 0 entry8b.o(.ARM.Collect$$$$0000000A)
_main_init 0x0800004d Thumb Code 0 entry9a.o(.ARM.Collect$$$$0000000B)
__rt_final_cpp 0x08000055 Thumb Code 0 entry10a.o(.ARM.Collect$$$$0000000D)
__rt_final_exit 0x08000055 Thumb Code 0 entry11a.o(.ARM.Collect$$$$0000000F)
Reset_Handler 0x08000059 Thumb Code 8 mystartup.o(.text)
SysTick_Handler 0x08000071 Thumb Code 2 mystartup.o(.text)
WWDG_IRQHandler 0x08000073 Thumb Code 0 mystartup.o(.text)
__scatterload 0x0800007d Thumb Code 28 init.o(.text)
__scatterload_rt2 0x0800007d Thumb Code 0 init.o(.text)
BusFault_Handler 0x080000a1 Thumb Code 4 stm32f10x_it.o(i.BusFault_Handler)
DebugMon_Handler 0x080000a5 Thumb Code 2 stm32f10x_it.o(i.DebugMon_Handler)
HardFault_Handler 0x080000a7 Thumb Code 4 stm32f10x_it.o(i.HardFault_Handler)
MemManage_Handler 0x080000ab Thumb Code 4 stm32f10x_it.o(i.MemManage_Handler)
NMI_Handler 0x080000af Thumb Code 2 stm32f10x_it.o(i.NMI_Handler)
PendSV_Handler 0x080000b1 Thumb Code 2 stm32f10x_it.o(i.PendSV_Handler)
SVC_Handler 0x080000b3 Thumb Code 2 stm32f10x_it.o(i.SVC_Handler)
SystemInit 0x080000b5 Thumb Code 14 system_stm32f10x.o(i.SystemInit)
UsageFault_Handler 0x080000c9 Thumb Code 4 stm32f10x_it.o(i.UsageFault_Handler)
__scatterload_copy 0x080000cd Thumb Code 14 handlers.o(i.__scatterload_copy)
__scatterload_null 0x080000db Thumb Code 2 handlers.o(i.__scatterload_null)
__scatterload_zeroinit 0x080000dd Thumb Code 14 handlers.o(i.__scatterload_zeroinit)
main 0x080000ed Thumb Code 24 main.o(i.main)
Region$$Table$$Base 0x08000108 Number 0 anon$$obj.o(Region$$Table)
Region$$Table$$Limit 0x08000128 Number 0 anon$$obj.o(Region$$Table)
var_m 0x20000000 Data 4 main.o(.data)
__initial_sp 0x20000408 Data 0 mystartup.o(STACK)
==============================================================================
Memory Map of the image
Image Entry point : 0x08000045
Load Region LR_IROM1 (Base: 0x08000000, Size: 0x0000012c, Max: 0x00100000, ABSOLUTE)
Execution Region ER_IROM1 (Base: 0x08000000, Size: 0x00000128, Max: 0x00100000, ABSOLUTE)
Base Addr Size Type Attr Idx E Section Name Object
0x08000000 0x00000044 Data RO 117 RESET mystartup.o
0x08000044 0x00000000 Code RO 140 * .ARM.Collect$$$$00000000 mc_w.l(entry.o)
0x08000044 0x00000004 Code RO 143 .ARM.Collect$$$$00000001 mc_w.l(entry2.o)
0x08000048 0x00000004 Code RO 146 .ARM.Collect$$$$00000004 mc_w.l(entry5.o)
0x0800004c 0x00000000 Code RO 148 .ARM.Collect$$$$00000008 mc_w.l(entry7b.o)
0x0800004c 0x00000000 Code RO 150 .ARM.Collect$$$$0000000A mc_w.l(entry8b.o)
0x0800004c 0x00000008 Code RO 151 .ARM.Collect$$$$0000000B mc_w.l(entry9a.o)
0x08000054 0x00000000 Code RO 153 .ARM.Collect$$$$0000000D mc_w.l(entry10a.o)
0x08000054 0x00000000 Code RO 155 .ARM.Collect$$$$0000000F mc_w.l(entry11a.o)
0x08000054 0x00000004 Code RO 144 .ARM.Collect$$$$00002712 mc_w.l(entry2.o)
0x08000058 0x00000024 Code RO 118 .text mystartup.o
0x0800007c 0x00000024 Code RO 157 .text mc_w.l(init.o)
0x080000a0 0x00000004 Code RO 17 i.BusFault_Handler stm32f10x_it.o
0x080000a4 0x00000002 Code RO 18 i.DebugMon_Handler stm32f10x_it.o
0x080000a6 0x00000004 Code RO 19 i.HardFault_Handler stm32f10x_it.o
0x080000aa 0x00000004 Code RO 20 i.MemManage_Handler stm32f10x_it.o
0x080000ae 0x00000002 Code RO 21 i.NMI_Handler stm32f10x_it.o
0x080000b0 0x00000002 Code RO 22 i.PendSV_Handler stm32f10x_it.o
0x080000b2 0x00000002 Code RO 23 i.SVC_Handler stm32f10x_it.o
0x080000b4 0x00000014 Code RO 71 i.SystemInit system_stm32f10x.o
0x080000c8 0x00000004 Code RO 24 i.UsageFault_Handler stm32f10x_it.o
0x080000cc 0x0000000e Code RO 161 i.__scatterload_copy mc_w.l(handlers.o)
0x080000da 0x00000002 Code RO 162 i.__scatterload_null mc_w.l(handlers.o)
0x080000dc 0x0000000e Code RO 163 i.__scatterload_zeroinit mc_w.l(handlers.o)
0x080000ea 0x00000002 PAD
0x080000ec 0x0000001c Code RO 122 i.main main.o
0x08000108 0x00000020 Data RO 159 Region$$Table anon$$obj.o
Execution Region RW_IRAM1 (Base: 0x20000000, Size: 0x00000408, Max: 0x00017f00, ABSOLUTE)
Base Addr Size Type Attr Idx E Section Name Object
0x20000000 0x00000004 Data RW 123 .data main.o
0x20000004 0x00000004 PAD
0x20000008 0x00000400 Zero RW 115 STACK mystartup.o
==============================================================================
Image component sizes
Code (inc. data) RO Data RW Data ZI Data Debug Object Name
0 0 0 0 0 1476 core_cm3.o
28 4 0 4 0 499 main.o
36 8 68 0 1024 692 mystartup.o
24 0 0 0 0 2788 stm32f10x_it.o
20 6 0 0 0 357 system_stm32f10x.o
----------------------------------------------------------------------
108 18 100 4 1028 5812 Object Totals
0 0 32 0 0 0 (incl. Generated)
0 0 0 0 4 0 (incl. Padding)
----------------------------------------------------------------------
Code (inc. data) RO Data RW Data ZI Data Debug Library Member Name
0 0 0 0 0 0 entry.o
0 0 0 0 0 0 entry10a.o
0 0 0 0 0 0 entry11a.o
8 4 0 0 0 0 entry2.o
4 0 0 0 0 0 entry5.o
0 0 0 0 0 0 entry7b.o
0 0 0 0 0 0 entry8b.o
8 4 0 0 0 0 entry9a.o
30 0 0 0 0 0 handlers.o
36 8 0 0 0 68 init.o
----------------------------------------------------------------------
88 16 0 0 0 68 Library Totals
2 0 0 0 0 0 (incl. Padding)
----------------------------------------------------------------------
Code (inc. data) RO Data RW Data ZI Data Debug Library Name
86 16 0 0 0 68 mc_w.l
----------------------------------------------------------------------
88 16 0 0 0 68 Library Totals
----------------------------------------------------------------------
==============================================================================
Code (inc. data) RO Data RW Data ZI Data Debug
196 34 100 4 1028 5412 Grand Totals
196 34 100 4 1028 5412 ELF Image Totals
196 34 100 4 0 0 ROM Totals
==============================================================================
Total RO Size (Code + RO Data) 296 ( 0.29kB)
Total RW Size (RW Data + ZI Data) 1032 ( 1.01kB)
Total ROM Size (Code + RO Data + RW Data) 300 ( 0.29kB)
==============================================================================
;******************** (C) COPYRIGHT 2011 STMicroelectronics ********************
;* File Name : startup_stm32f10x_xl.s
;* Author : MCD Application Team
;* Version : V3.5.0
;* Date : 11-March-2011
;* Description : STM32F10x XL-Density Devices vector table for MDK-ARM
;* toolchain.
;* This module performs:
;* - Set the initial SP
;* - Set the initial PC == Reset_Handler
;* - Set the vector table entries with the exceptions ISR address
;* - Configure the clock system and also configure the external
;* SRAM mounted on STM3210E-EVAL board to be used as data
;* memory (optional, to be enabled by user)
;* - Branches to __main in the C library (which eventually
;* calls main()).
;* After Reset the CortexM3 processor is in Thread mode,
;* priority is Privileged, and the Stack is set to Main.
;* <<< Use Configuration Wizard in Context Menu >>>
;*******************************************************************************
; THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS
; WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME.
; AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT,
; INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE
; CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING
; INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.
;*******************************************************************************
; Amount of memory (in bytes) allocated for Stack
; Tailor this value to your application needs
; <h> Stack Configuration
; <o> Stack Size (in Bytes) <0x0-0xFFFFFFFF:8>
; </h>
Stack_Size EQU 0x00000400
AREA STACK, NOINIT, READWRITE, ALIGN=3
Stack_Mem SPACE Stack_Size
__initial_sp
; <h> Heap Configuration
; <o> Heap Size (in Bytes) <0x0-0xFFFFFFFF:8>
; </h>
Heap_Size EQU 0x00000200
AREA HEAP, NOINIT, READWRITE, ALIGN=3
__heap_base
Heap_Mem SPACE Heap_Size
__heap_limit
PRESERVE8
THUMB
; Vector Table Mapped to Address 0 at Reset
AREA RESET, DATA, READONLY
EXPORT __Vectors
EXPORT __Vectors_End
EXPORT __Vectors_Size
__Vectors DCD __initial_sp ; Top of Stack
DCD Reset_Handler ; Reset Handler
DCD NMI_Handler ; NMI Handler 1;
DCD HardFault_Handler ; Hard Fault Handler 2;
DCD MemManage_Handler ; MPU Fault Handler 3;
DCD BusFault_Handler ; Bus Fault Handler 4;
DCD UsageFault_Handler ; Usage Fault Handler 5;
DCD 0 ; Reserved 6;
DCD 0 ; Reserved 7;
DCD 0 ; Reserved 8;
DCD 0 ; Reserved 9;
DCD SVC_Handler ; SVCall Handler 10;
DCD DebugMon_Handler ; Debug Monitor Handler 11;
DCD 0 ; Reserved 12;
DCD PendSV_Handler ; PendSV Handler 13;
DCD SysTick_Handler ; SysTick Handler 14;
; External Interrupts
DCD WWDG_IRQHandler ; Window Watchdog
;DCD PVD_IRQHandler ; PVD through EXTI Line detect
__Vectors_End
__Vectors_Size EQU __Vectors_End - __Vectors
AREA |.text|, CODE, READONLY
; Reset handler
Reset_Handler PROC
EXPORT Reset_Handler [WEAK]
IMPORT __main
IMPORT SystemInit
LDR R0, =SystemInit
BLX R0
LDR R0, =__main
BX R0
ENDP
; Dummy Exception Handlers (infinite loops which can be modified)
NMI_Handler PROC
EXPORT NMI_Handler [WEAK]
B .
ENDP
HardFault_Handler\
PROC
EXPORT HardFault_Handler [WEAK]
B .
ENDP
MemManage_Handler\
PROC
EXPORT MemManage_Handler [WEAK]
B .
ENDP
BusFault_Handler\
PROC
EXPORT BusFault_Handler [WEAK]
B .
ENDP
UsageFault_Handler\
PROC
EXPORT UsageFault_Handler [WEAK]
B .
ENDP
SVC_Handler PROC
EXPORT SVC_Handler [WEAK]
B .
ENDP
DebugMon_Handler\
PROC
EXPORT DebugMon_Handler [WEAK]
B .
ENDP
PendSV_Handler PROC
EXPORT PendSV_Handler [WEAK]
B .
ENDP
SysTick_Handler PROC
EXPORT SysTick_Handler [WEAK]
B .
ENDP
Default_Handler PROC
EXPORT WWDG_IRQHandler [WEAK]
;EXPORT PVD_IRQHandler [WEAK]
WWDG_IRQHandler
;PVD_IRQHandler
B .
ENDP
ALIGN
;*******************************************************************************
; User Stack and Heap initialization
;*******************************************************************************
IF :DEF:__MICROLIB
EXPORT __initial_sp
EXPORT __heap_base
EXPORT __heap_limit
ELSE
IMPORT __use_two_region_memory
EXPORT __user_initial_stackheap
__user_initial_stackheap
LDR R0, = Heap_Mem
LDR R1, =(Stack_Mem + Stack_Size)
LDR R2, = (Heap_Mem + Heap_Size)
LDR R3, = Stack_Mem
BX LR
ALIGN
ENDIF
END
;******************* (C) COPYRIGHT 2011 STMicroelectronics *****END OF FILE*****
知识点

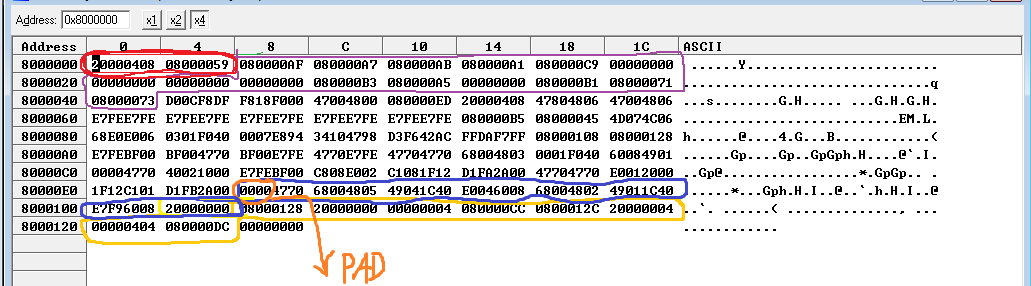

1/问：MAP发现仅仅定义一个变量，这个变量占用4个字节，那么为什么HEX刚开始显示SP值0X20000408？
答：看启动代码ALIGN=3 就是说8字节对齐。就是说即便定义两个4字节的变量，SP值仍然会是0X20000408，倘若定义三个4字节的变量，则SP值0X2000040C.
2/问：RWdata会占用ROM么？举例说明？
答：因为RW就是含有初值的变量。那么初值会放在哪里呢？一定是在编译阶段，编译器会安排在ROM里啊。然后运行的时候取出来。所以答案是会占用。如HEX文件的最后一行 0X800128的位置就是本程序唯一的变量的初值。
3/问：用MDK查看汇编时候要注意什么？
答：用ASSEMBLY MODE
4/问：buid output界面的CODE =196是怎么算出来的?
答：能口算出ZI RO RW就可以了。由于涉及到microlib库，口算出CODE SIZE还是比较困难的。没必要纠结！
5：/问：执行流程？
答：如下
（01）读取可执行文件HEX的刚开始8个字节，分别赋值给SP和PC。这个PC值就是Reset_HandLer所在的位置。
（02）SystemInit
（03）__main
(04) _main_scatterload
(05) __scatterload
(06) __scatterload_copy
(07) __scatterload
(08) __scaatterload_zeroinit
(09）__scatterload
（10）__main_after_scatterload
(11) main
6/问：工程在哪里MDK工程呢?
答:https://download.csdn.net/download/unsv29/12131763
来源：CSDN
作者：unsv29
链接：https://blog.csdn.net/unsv29/article/details/104150330
