环境准备：
rancher2.3管理的k8s环境（自己搭）
jenkins（可使用docker搭建，也可直接安装，如果k8s的不是特别熟悉不建议使用helm安装jenkins,很多配置不方便改。我是用的docker搭建的，但要记录挂载docker命令。建议直接在主机上安装，可避免发布是的ssh免key的问题）
阿里镜像仓库（自己可注册阿里云账号就有了免费的）
maven的本地nexus代理服务器（方便公司内部的jar管理）
1.maven打包并docker编译发布我使用的是：
<groupId>com.spotify</groupId> <artifactId>docker-maven-plugin</artifactId> <version>1.2.0</version>
此插件已有代替：dockerfile-maven-plugin，不过我没用这个，因为我本机开发机并没有装docker客户端之类的软件，而这个好像是要求本机至少得有docker客户端环境，还得配置docker环境变量。所以我没有使用。这样本机也可以直接使用maven打包docker build：push代码到阿里仓库。方便开发环境应用升级。
使用此docker-maven-plugin发现一个bug：
由于我拿的是docker安装的jenkins,启动容器前没有挂载docker命令，而后我又依赖此容器，重新生成了镜像，后来也把阿里镜像仓库的登陆认证信息给加入到用户根目录下（就是docker的config.json放到/root/.docker/下，不知道百度）后，导致docker-maven-plugin插件里的serverId与此config.json冲突，无法把镜像推送到阿里镜像仓库。
也调了我2天，逼的我拿源码来研究了都。最后发现问题所在。
解决方法：
如何要直接使用docker命令时，直接使用pipeline指定用户也密码。然后我是用pipeline部署的。

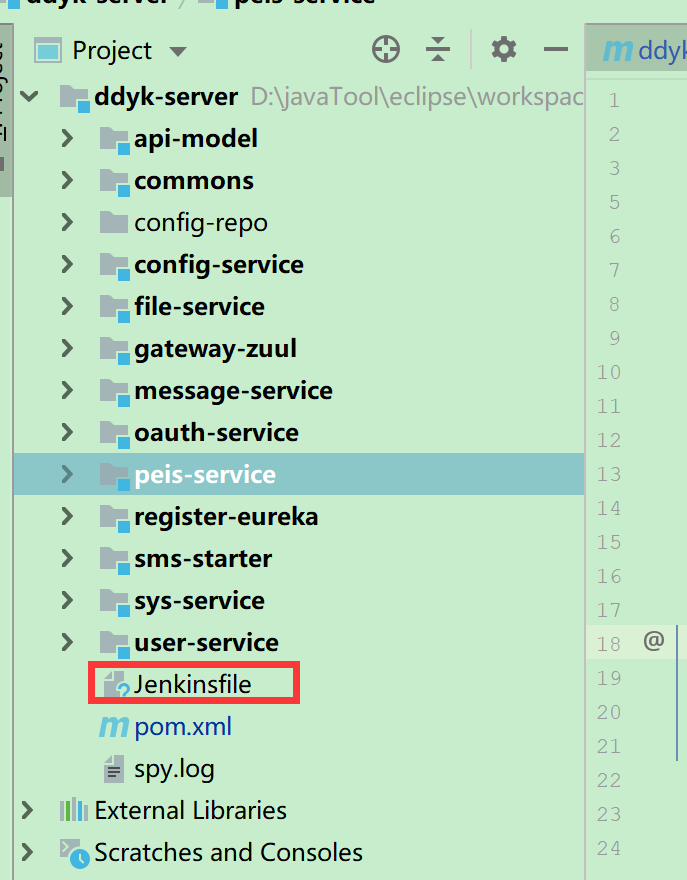

2.首先在项目根目录(注意不是maven的模块目录)下放置jenkinsfile如图：
jenkinsfile内容参照：
properties([
parameters([
string(name: 'PORT', defaultValue: '1111', description: '程序运行端口'),
choice(name: 'ACTIVE_TYPE', choices: ['local', 'dev', 'test', 'prod'], description: '程序打包环境'),
choice(name: 'ENV_TYPE', choices: ['offline', 'online'], description: '还是线下、线上环境'),
booleanParam(name: 'All_COMPILE', defaultValue: false, description: '是否需要重新编译全模块'),
booleanParam(name: 'DEPLOYMENT', defaultValue: true, description: '是否部署'),
booleanParam(name: 'ON_PINPOINT', defaultValue: false, description: '是否添加Pinpoint监控'),
booleanParam(name: 'ON_PROMETHEUS', defaultValue: false, description: '是否添加Prometheus监控'),
string(name: 'EMAIL', defaultValue: '******@tintinhealth.com', description: '打包结果通知')
])
])
node {
stage('Prepare') {
echo "1.Prepare Stage"
def MVNHOME = tool 'maven-3.6.3'
// 再把变量加入到环境变量中
//env.PATH = "${jdk77}/bin:${MVNHOME}/bin:${env.PATH}"
env.PATH = "${MVNHOME}/bin:${env.PATH}"
MVNCONFIG= '/var/jenkins_home/maven/settings.xml'
//echo "UUID=${UUID.randomUUID().toString()}"
checkout scm
//需要处理的项目多项目时先进入子项目
projectwk = "."
mainpom = readMavenPom file: 'pom.xml'
repostory = "${mainpom.properties['docker.repostory']}"
//存在多个模块时，选择其中一个进行编译
// if(mainpom.modules.size() > 0 ) {
// echo "项目拥有模块==${mainpom.modules}"
// timeout(time: 10, unit: 'MINUTES') {
// def selproj = input message: '请选择需要处理的项目', parameters: [choice(choices: mainpom.modules, description: '请选择需要处理的项目', name: 'selproj')] //, submitterParameter: 'project'
// projectwk = selproj
// echo "选择项目=${projectwk}"
// }
// }
projectwk="${JOB_NAME}"
dir("${projectwk}") {
pom = readMavenPom file: 'pom.xml'
echo "group: ${pom.groupId}, artifactId: ${pom.artifactId}, version: ${pom.version} ,description: ${pom.description}"
artifactId = "${pom.artifactId}"
version = "${pom.version}"
description = "${pom.description}"
}
if(version == 'null'){
version = "${mainpom.version}"
echo "使用父version:${version}"
}
script {
GIT_TAG = sh(returnStdout: true, script: 'git rev-parse --short HEAD').trim()
echo "GIT_TAG== ${GIT_TAG}"
}
image = "registry.cn-hangzhou.aliyuncs.com/ddyk/${artifactId}:${version}"
// if (params.ENV_TYPE == 'offline' || params.ENV_TYPE == null) {
//sh "sed -i 's#39.95.40.97:5000#10.3.80.50:5000#g' pom.xml"
// image = "registry.cn-hangzhou.aliyuncs.com/ddyk/${artifactId}:${version}"
// }
}
if(params.All_COMPILE){
if(mainpom.modules.size() > 0 ) {
stage('编译总项目') {
sh "mvn -s ${MVNCONFIG} -DskipTests clean install"
}
}
}
dir("${projectwk}") {
stage('编译模块') {
echo "2.编译模块 ${artifactId}"
def jarparam=''
def pinname = artifactId
if( pinname.length() > 23) {
pinname = artifactId.substring(0,23)
}
//添加pinpoint
if(params.ON_PINPOINT) {
jarparam = '"-javaagent:/app/pinpoint-agent/pinpoint-bootstrap-1.8.0.jar","-Dpinpoint.agentId={pinname}", "-Dpinpoint.applicationName={pinname}",'
}
//添加prometheus
if(params.ON_PROMETHEUS) {
jarparam = jarparam + '"-javaagent:/app/prometheus/jmx_prometheus_javaagent-0.11.0.jar=1234:/app/prometheus/jmx.yaml",'
}
sh "sed -i 's#{jarparam}#${jarparam}#g;s#{port}#${params.PORT}#g' Dockerfile"
sh "sed -i 's#{description}#${description}#g;s#{artifactId}#${artifactId}#g;s#{version}#${version}#g;s#{active}#${params.ACTIVE_TYPE}#g;s#{pinname}#${pinname}#g' Dockerfile"
sh "sed -i 's#{artifactId}#${artifactId}#g;s#{version}#${version}#g;s#{port}#${params.PORT}#g;s#{image}#${image}#g' Deployment.yaml"
sh "mvn -s ${MVNCONFIG} -DskipTests clean package"
stash includes: 'target/*.jar', name: 'app'
}
stage('Docker打包') {
echo "3.Docker打包"
unstash 'app'
sh "mvn -s ${MVNCONFIG} docker:build"
}
stage('推送镜像') {
echo "4.Push Docker Image Stage"
sh "mvn -s ${MVNCONFIG} docker:push"
}
// timeout(time: 10, unit: 'MINUTES') {
// input '确认要部署吗？'
// }
if(params.DEPLOYMENT){
stage('发布') {
if (params.ENV_TYPE == 'offline' || params.ENV_TYPE == null) {
sshagent(credentials: ['deploy_ssh_key_dev']) {
sh "scp -r Deployment.yaml root@192.168.1.108:/home/sam/devops/kubernetes/manifests/workTools/ddyk/Deployment-${artifactId}.yaml"
sh "ssh root@192.168.1.108 'kubectl apply -f /home/sam/devops/kubernetes/manifests/workTools/ddyk/Deployment-${artifactId}.yaml && kubectl set env deploy/${artifactId} DEPLOY_DATE=${env.BUILD_ID}'"
}
} else {
sshagent(credentials: ['deploy_ssh_key_238']) {
sh "scp -P 22 -r Deployment.yaml root@192.168.1.108:/home/sam/devops/kubernetes/manifests/workTools/ddyk/Deployment-${artifactId}.yaml"
sh "ssh -p 22 root@192.168.1.108 'kubectl apply -f /home/sam/devops/kubernetes/manifests/workTools/ddyk/Deployment-${artifactId}.yaml && kubectl set env deploy/${artifactId} DEPLOY_DATE=${env.BUILD_ID}'"
}
}
echo "发布完成"
}
}
}
stage('通知负责人'){
// emailext body: "构建项目:${artifactId}\r\n构建完成", subject: '构建结果通知【成功】', to: "${EMAIL}"
// echo "构建项目:${description}\r\n构建完成"
echo "构建项目:${artifactId}\r\n构建完成"
}
}以上内容可自己根据需要更改删除。

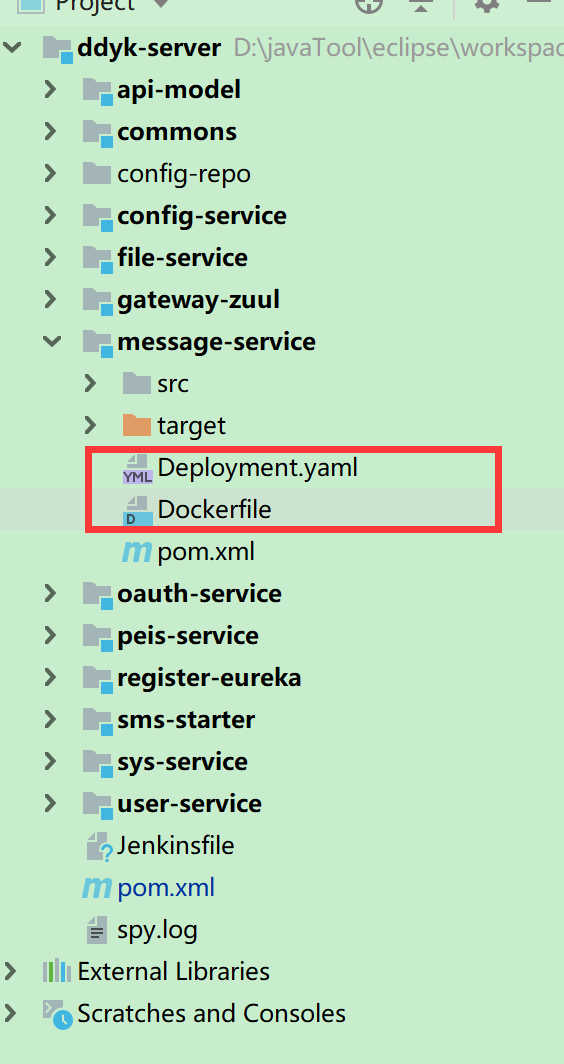

3.maven模块下放如下文件：
Dockerfile内容参照说明：
FROM openjdk:8-alpine
MAINTAINER ddyk gsj "*****@tintinhealth.com"
ENV WORK_PATH /app
#ENV APP_NAME @project.build.finalName@.@project.packaging@
EXPOSE 9108
#统一时区
RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
COPY /app/message-service*.jar $WORK_PATH/app.jar
WORKDIR $WORK_PATH
ENTRYPOINT ["java", "-Xmx512m","-Dspring.profiles.active={active}","-Dserver.port={port}",{jarparam} "-jar", "/app/app.jar"]Deployment.yaml内容参照：
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: {artifactId}
namespace: default
labels:
app: {artifactId}
version: {version}
spec:
selector:
matchLabels:
app: {artifactId}
replicas: 1
template:
metadata:
labels:
app: {artifactId}
annotations:
prometheus.io.jmx: "true"
prometheus.io.jmx.port: "1234"
spec:
hostAliases:
- ip: "172.20.246.2"
hostnames:
- "node-1"
- ip: "172.20.246.3"
hostnames:
- "node-2"
containers:
- name: {artifactId}
image: {image}
# IfNotPresent\Always
imagePullPolicy: Always
ports:
- name: prometheusjmx
containerPort: 1234
livenessProbe: #kubernetes认为该pod是存活的,不存活则需要重启
httpGet:
path: /actuator/health
port: {port}
scheme: HTTP
initialDelaySeconds: 60 ## 设置为系统完全启动起来所需的最大时间+若干秒
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 5
readinessProbe: #kubernetes认为该pod是启动成功的
httpGet:
path: /actuator/health
port: {port}
scheme: HTTP
initialDelaySeconds: 40 ## 设置为系统完全启动起来所需的最少时间
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 5
env:
- name: register-eureka
value: "register-eureka.default.svc.cluster.local"
- name: register-eureka-replica
value: "register-eureka-replica.default.svc.cluster.local"
resources:
# 5%的CPU时间和700MiB的内存
requests:
# cpu: 50m
memory: 250Mi
# 最多允许它使用
limits:
# cpu: 100m
memory: 1000Mi
# 指定在容器中挂载路径
volumeMounts:
- name: logs-volume
mountPath: /logs
- name: host-time
mountPath: /etc/localtime
readOnly: true
- name: host-timezone
mountPath: /etc/timezone
readOnly: true
# - name: pinpoint-config
# mountPath: /app/pinpoint-agent/pinpoint.config
imagePullSecrets:
- name: registrykey-m2-1
volumes:
- name: logs-volume
hostPath:
# 宿主机上的目录
path: /logs
- name: host-time
hostPath:
path: /etc/localtime
- name: host-timezone
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
#
# 运行在指定标签的节点，前提是先给节点打标 kubectl label nodes 192.168.0.113 edgenode=flow
# nodeSelector:
# edgenode: flow
---
apiVersion: v1
kind: Service
metadata:
name: {artifactId}
namespace: default
labels:
app: {artifactId}
version: {version}
spec:
selector:
app: {artifactId}
# type: NodePort
ports:
- name: tcp-{port}-{port}
protocol: TCP
port: {port}
targetPort: {port}
# nodePort: 31111
注意：prometheus我还没用上，你们可以自行修改部署文件调试。

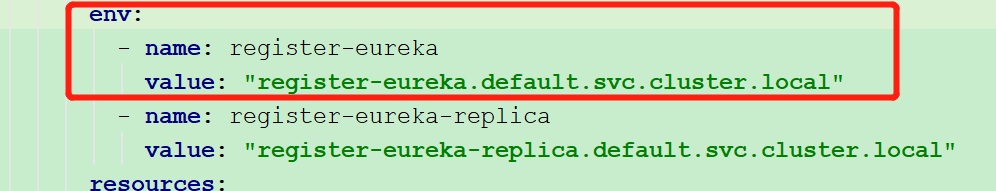

关于register-eureka的部署：服务名与register-eureka一样。
注意事项：jenkins中建的项目名要和maven的模块名一样，不然需要修改jenkinsfile文件的部署相关的脚本 。
有不懂的欢迎咨询，其实这套部署主要就是这些个脚本文件。
对了，自动部署（git提交代码后自动触发）只能实现在开发环境，因为毕竟程序没有能通知什么时候发送正式环境（当前也可以根据版本判断加release与开发版区别），可自己看我前一篇文件。
