简介
Single Shot MultiBox Detector (SSD) 是一种单阶段的目标检测器。与两阶段的检测方法不同，单阶段目标检测并不进行区域推荐，而是直接从特征图回归出目标的边界框和分类概率。SSD 运用了这种单阶段检测的思想，并且对其进行改进：在不同尺度的特征图上检测对应尺度的目标。如下图所示，SSD 在六个尺度的特征图上进行了不同层级的预测。每个层级由两个3x3卷积分别对目标类别和边界框偏移进行回归。因此对于每个类别，SSD 的六个层级一共会产生 38x38x4 + 19x19x6 + 10x10x6 + 5x5x6 + 3x3x4 + 1x1x4 = 8732 个检测结果。

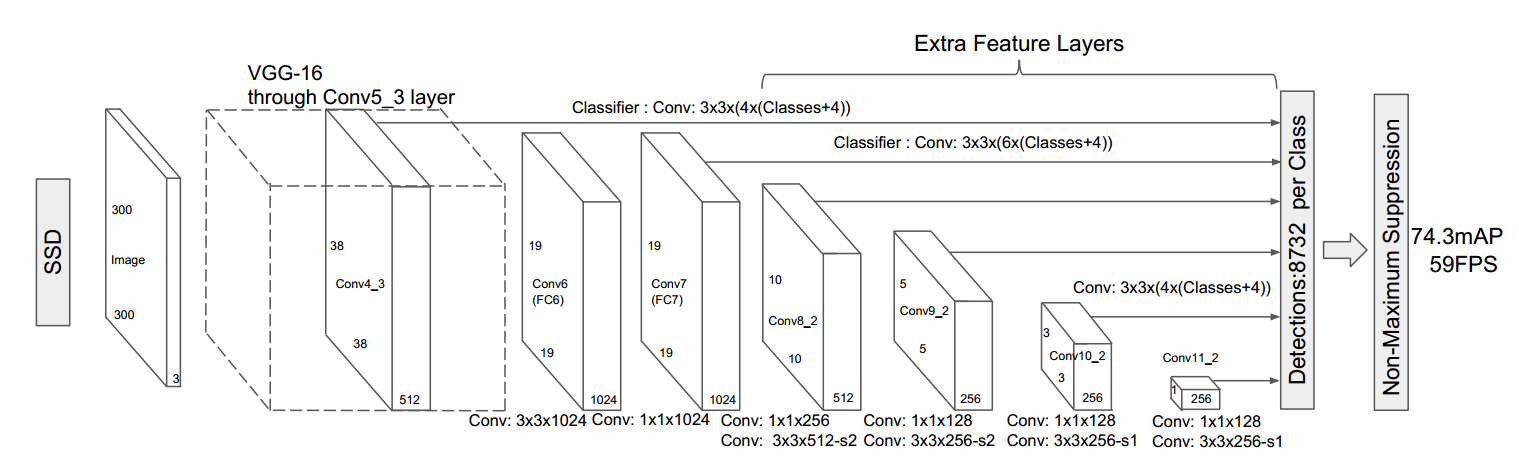

SSD 可以方便地插入到任何一种标准卷积网络中，比如 VGG、ResNet 或者 MobileNet，这些网络被称作检测器的基网络。在这个示例中我们使用 MobileNet。
在训练时还会对图片进行数据增强，包括随机扰动、扩张、翻转和裁剪:
扰动: 扰动图片亮度、对比度、饱和度和色相。
扩张: 将原始图片放进一张使用像素均值填充(随后会在减均值操作中减掉)的扩张图中，再对此图进行裁剪、缩放和翻转。
翻转: 水平翻转。
裁剪: 根据缩放比例、长宽比例两个参数生成若干候选框，再依据这些候选框和标注框的面积交并比(IoU)挑选出符合要求的裁剪结果。
参考链接
参考论文：https://arxiv.org/pdf/1512.02325.pdf
推荐博客：https://blog.csdn.net/xiaohu2022/article/details/79833786
注意

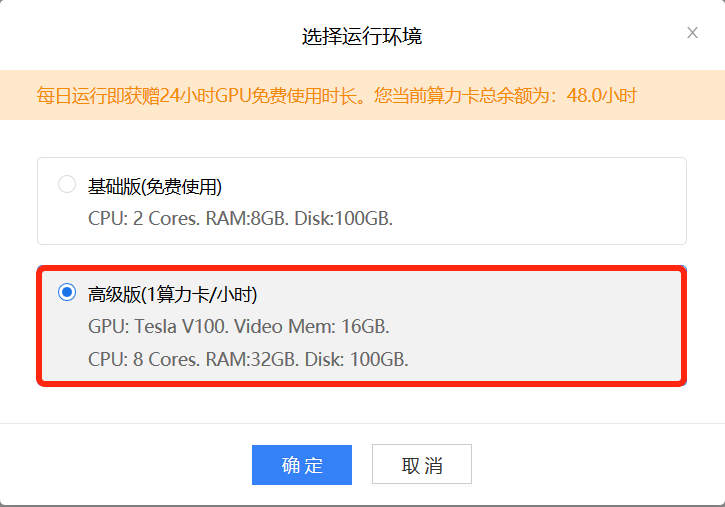

本项目代码需要使用GPU环境来运行:
并且检查相关参数设置, 例如use_gpu, fluid.CUDAPlace(0)等处是否设置正确.
引入 pascal-voc 数据集，解压，然后删除不必要的图片
# 查看当前挂载的数据集目录
!cd /home/aistudio/data/data4379 && unzip -q pascalvoc.zip
处理预训练的模型，创建pretrained-model目录，解压模型后移动到该目录下
!cp data/data5389/mobilenet_v1_imagenet.zip pretrained-model/
!cd pretrained-model && unzip -qo mobilenet_v1_imagenet.zip
!cd pretrained-model && mv mobilenet_v1_imagenet/* . && rm -r mobilenet_v1_imagenet && rm mobilenet_v1_imagenet.zip
定义训练ssd相关的配置
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function
import os
import uuid
import numpy as np
import time
import six
import math
import paddle
import paddle.fluid as fluid
import logging
import xml.etree.ElementTree
import codecs
from paddle.fluid.initializer import MSRA
from paddle.fluid.param_attr import ParamAttr
from PIL import Image, ImageEnhance, ImageDraw
logger = None
train_parameters = {
"input_size": [3, 300, 300],
"class_dim": -1,
"label_dict": {},
"image_count": -1,
"log_feed_image": False,
"pretrained": True,
"pretrained_model_dir": "./pretrained-model",
"continue_train": False,
"save_model_dir": "./ssd-model",
"model_prefix": "mobilenet-ssd",
#"data_dir": "/home/work/xiangyubo/common_resource/pascalvoc/pascalvoc",
"data_dir": "/home/aistudio/data/data4379/pascalvoc",
"mean_rgb": [127.5, 127.5, 127.5],
"file_list": "train.txt",
"mode": "train",
"multi_data_reader_count": 5,
"num_epochs": 120,
"train_batch_size": 64,
"use_gpu": True,
"apply_distort": True,
"apply_expand": True,
"apply_corp": True,
"image_distort_strategy": {
"expand_prob": 0.5,
"expand_max_ratio": 4,
"hue_prob": 0.5,
"hue_delta": 18,
"contrast_prob": 0.5,
"contrast_delta": 0.5,
"saturation_prob": 0.5,
"saturation_delta": 0.5,
"brightness_prob": 0.5,
"brightness_delta": 0.125
},
"rsm_strategy": {
"learning_rate": 0.001,
"lr_epochs": [20, 40, 60, 80, 100],
"lr_decay": [1, 0.5, 0.25, 0.1, 0.05, 0.01],
},
"momentum_strategy": {
"learning_rate": 0.1,
"decay_steps": 2 ** 7,
"decay_rate": 0.8
},
"early_stop": {
"sample_frequency": 50,
"successive_limit": 3,
"min_loss": 1.28,
"min_curr_map": 0.86
}
}
定义基于 mobile-net 的SSD网络结构
class MobileNetSSD:
def __init__(self):
pass
def conv_bn(self,
input,
filter_size,
num_filters,
stride,
padding,
num_groups=1,
act='relu',
use_cudnn=True):
parameter_attr = ParamAttr(learning_rate=0.1, initializer=MSRA())
conv = fluid.layers.conv2d(
input=input,
num_filters=num_filters,
filter_size=filter_size,
stride=stride,
padding=padding,
groups=num_groups,
act=None,
use_cudnn=use_cudnn,
param_attr=parameter_attr,
bias_attr=False)
return fluid.layers.batch_norm(input=conv, act=act)
def depthwise_separable(self, input, num_filters1, num_filters2, num_groups, stride, scale):
depthwise_conv = self.conv_bn(
input=input,
filter_size=3,
num_filters=int(num_filters1 * scale),
stride=stride,
padding=1,
num_groups=int(num_groups * scale),
use_cudnn=False)
pointwise_conv = self.conv_bn(
input=depthwise_conv,
filter_size=1,
num_filters=int(num_filters2 * scale),
stride=1,
padding=0)
return pointwise_conv
def extra_block(self, input, num_filters1, num_filters2, num_groups, stride, scale):
# 1x1 conv
pointwise_conv = self.conv_bn(
input=input,
filter_size=1,
num_filters=int(num_filters1 * scale),
stride=1,
num_groups=int(num_groups * scale),
padding=0)
# 3x3 conv
normal_conv = self.conv_bn(
input=pointwise_conv,
filter_size=3,
num_filters=int(num_filters2 * scale),
stride=2,
num_groups=int(num_groups * scale),
padding=1)
return normal_conv
def net(self, num_classes, img, img_shape, scale=1.0):
# 300x300
tmp = self.conv_bn(img, 3, int(32 * scale), 2, 1)
# 150x150
tmp = self.depthwise_separable(tmp, 32, 64, 32, 1, scale)
tmp = self.depthwise_separable(tmp, 64, 128, 64, 2, scale)
# 75x75
tmp = self.depthwise_separable(tmp, 128, 128, 128, 1, scale)
tmp = self.depthwise_separable(tmp, 128, 256, 128, 2, scale)
# 38x38
tmp = self.depthwise_separable(tmp, 256, 256, 256, 1, scale)
tmp = self.depthwise_separable(tmp, 256, 512, 256, 2, scale)
# 19x19
for i in range(5):
tmp = self.depthwise_separable(tmp, 512, 512, 512, 1, scale)
module11 = tmp
tmp = self.depthwise_separable(tmp, 512, 1024, 512, 2, scale)
# 10x10
module13 = self.depthwise_separable(tmp, 1024, 1024, 1024, 1, scale)
module14 = self.extra_block(module13, 256, 512, 1, 2, scale)
# 5x5
module15 = self.extra_block(module14, 128, 256, 1, 2, scale)
# 3x3
module16 = self.extra_block(module15, 128, 256, 1, 2, scale)
# 2x2
module17 = self.extra_block(module16, 64, 128, 1, 2, scale)
mbox_locs, mbox_confs, box, box_var = fluid.layers.multi_box_head(
inputs=[module11, module13, module14, module15, module16, module17],
image=img,
num_classes=num_classes,
min_ratio=20,
max_ratio=90,
min_sizes=[60.0, 105.0, 150.0, 195.0, 240.0, 285.0],
max_sizes=[[], 150.0, 195.0, 240.0, 285.0, 300.0],
aspect_ratios=[[2.], [2., 3.], [2., 3.], [2., 3.], [2., 3.], [2., 3.]],
base_size=img_shape[2],
offset=0.5,
flip=True)
return mbox_locs, mbox_confs, box, box_var
定义训练时候，数据增强需要的辅助类，例如外接矩形框、采样器
class sampler:
def __init__(self, max_sample, max_trial, min_scale, max_scale,
min_aspect_ratio, max_aspect_ratio, min_jaccard_overlap,
max_jaccard_overlap):
self.max_sample = max_sample
self.max_trial = max_trial
self.min_scale = min_scale
self.max_scale = max_scale
self.min_aspect_ratio = min_aspect_ratio
self.max_aspect_ratio = max_aspect_ratio
self.min_jaccard_overlap = min_jaccard_overlap
self.max_jaccard_overlap = max_jaccard_overlap
class bbox:
def __init__(self, xmin, ymin, xmax, ymax):
self.xmin = xmin
self.ymin = ymin
self.xmax = xmax
self.ymax = ymax
初始化参数、初始化日志记录相关的函数，训练最开始需要调用哟
def init_train_parameters():
file_list = os.path.join(train_parameters['data_dir'], "train.txt")
label_list = os.path.join(train_parameters['data_dir'], "label_list")
index = 0
with codecs.open(label_list, encoding='utf-8') as flist:
lines = [line.strip() for line in flist]
for line in lines:
train_parameters['label_dict'][line.strip()] = index
index += 1
train_parameters['class_dim'] = index
with codecs.open(file_list, encoding='utf-8') as flist:
lines = [line.strip() for line in flist]
train_parameters['image_count'] = len(lines)
def init_log_config():
global logger
logger = logging.getLogger()
logger.setLevel(logging.INFO)
log_path = os.path.join(os.getcwd(), 'logs')
if not os.path.exists(log_path):
os.makedirs(log_path)
log_name = os.path.join(log_path, 'train.log')
fh = logging.FileHandler(log_name, mode='w')
fh.setLevel(logging.DEBUG)
formatter = logging.Formatter("%(asctime)s - %(filename)s[line:%(lineno)d] - %(levelname)s: %(message)s")
fh.setFormatter(formatter)
logger.addHandler(fh)
为了更直观的看到训练样本的形态，增加打印图片，并画出bbox的函数
def log_feed_image(img, sampled_labels):
draw = ImageDraw.Draw(img)
target_h = train_parameters['input_size'][1]
target_w = train_parameters['input_size'][2]
for label in sampled_labels:
print(label)
draw.rectangle((label[1] * target_w, label[2] * target_h, label[3] * target_w, label[4] * target_h), None,
'red')
img.save(str(uuid.uuid1()) + '.jpg')
训练数据增强，主要是采样。利用随机截取训练图上的框来生成新的训练样本。同时要保证采样的样本能包含真实的目标。采样之后，为了保持训练数据格式的一致性，还需要对标注的坐标信息做变换
def bbox_area(src_bbox):
width = src_bbox.xmax - src_bbox.xmin
height = src_bbox.ymax - src_bbox.ymin
return width * height
def generate_sample(sampler):
scale = np.random.uniform(sampler.min_scale, sampler.max_scale)
aspect_ratio = np.random.uniform(sampler.min_aspect_ratio, sampler.max_aspect_ratio)
aspect_ratio = max(aspect_ratio, (scale ** 2.0))
aspect_ratio = min(aspect_ratio, 1 / (scale ** 2.0))
bbox_width = scale * (aspect_ratio ** 0.5)
bbox_height = scale / (aspect_ratio ** 0.5)
xmin_bound = 1 - bbox_width
ymin_bound = 1 - bbox_height
xmin = np.random.uniform(0, xmin_bound)
ymin = np.random.uniform(0, ymin_bound)
xmax = xmin + bbox_width
ymax = ymin + bbox_height
sampled_bbox = bbox(xmin, ymin, xmax, ymax)
return sampled_bbox
def jaccard_overlap(sample_bbox, object_bbox):
if sample_bbox.xmin >= object_bbox.xmax or \
sample_bbox.xmax <= object_bbox.xmin or \
sample_bbox.ymin >= object_bbox.ymax or \
sample_bbox.ymax <= object_bbox.ymin:
return 0
intersect_xmin = max(sample_bbox.xmin, object_bbox.xmin)
intersect_ymin = max(sample_bbox.ymin, object_bbox.ymin)
intersect_xmax = min(sample_bbox.xmax, object_bbox.xmax)
intersect_ymax = min(sample_bbox.ymax, object_bbox.ymax)
intersect_size = (intersect_xmax - intersect_xmin) * (intersect_ymax - intersect_ymin)
sample_bbox_size = bbox_area(sample_bbox)
object_bbox_size = bbox_area(object_bbox)
overlap = intersect_size / (sample_bbox_size + object_bbox_size - intersect_size)
return overlap
def satisfy_sample_constraint(sampler, sample_bbox, bbox_labels):
if sampler.min_jaccard_overlap == 0 and sampler.max_jaccard_overlap == 0:
return True
for i in range(len(bbox_labels)):
object_bbox = bbox(bbox_labels[i][1], bbox_labels[i][2], bbox_labels[i][3], bbox_labels[i][4])
overlap = jaccard_overlap(sample_bbox, object_bbox)
if sampler.min_jaccard_overlap != 0 and overlap < sampler.min_jaccard_overlap:
continue
if sampler.max_jaccard_overlap != 0 and overlap > sampler.max_jaccard_overlap:
continue
return True
return False
def generate_batch_samples(batch_sampler, bbox_labels):
sampled_bbox = []
index = []
c = 0
for sampler in batch_sampler:
found = 0
for i in range(sampler.max_trial):
if found >= sampler.max_sample:
break
sample_bbox = generate_sample(sampler)
if satisfy_sample_constraint(sampler, sample_bbox, bbox_labels):
sampled_bbox.append(sample_bbox)
found = found + 1
index.append(c)
c = c + 1
return sampled_bbox
def clip_bbox(src_bbox):
src_bbox.xmin = max(min(src_bbox.xmin, 1.0), 0.0)
src_bbox.ymin = max(min(src_bbox.ymin, 1.0), 0.0)
src_bbox.xmax = max(min(src_bbox.xmax, 1.0), 0.0)
src_bbox.ymax = max(min(src_bbox.ymax, 1.0), 0.0)
return src_bbox
def meet_emit_constraint(src_bbox, sample_bbox):
center_x = (src_bbox.xmax + src_bbox.xmin) / 2
center_y = (src_bbox.ymax + src_bbox.ymin) / 2
if center_x >= sample_bbox.xmin and \
center_x <= sample_bbox.xmax and \
center_y >= sample_bbox.ymin and \
center_y <= sample_bbox.ymax:
return True
return False
def transform_labels(bbox_labels, sample_bbox):
proj_bbox = bbox(0, 0, 0, 0)
sample_labels = []
for i in range(len(bbox_labels)):
sample_label = []
object_bbox = bbox(bbox_labels[i][1], bbox_labels[i][2], bbox_labels[i][3], bbox_labels[i][4])
if not meet_emit_constraint(object_bbox, sample_bbox):
continue
sample_width = sample_bbox.xmax - sample_bbox.xmin
sample_height = sample_bbox.ymax - sample_bbox.ymin
proj_bbox.xmin = (object_bbox.xmin - sample_bbox.xmin) / sample_width
proj_bbox.ymin = (object_bbox.ymin - sample_bbox.ymin) / sample_height
proj_bbox.xmax = (object_bbox.xmax - sample_bbox.xmin) / sample_width
proj_bbox.ymax = (object_bbox.ymax - sample_bbox.ymin) / sample_height
proj_bbox = clip_bbox(proj_bbox)
if bbox_area(proj_bbox) > 0:
sample_label.append(bbox_labels[i][0])
sample_label.append(float(proj_bbox.xmin))
sample_label.append(float(proj_bbox.ymin))
sample_label.append(float(proj_bbox.xmax))
sample_label.append(float(proj_bbox.ymax))
sample_label.append(bbox_labels[i][5])
sample_labels.append(sample_label)
return sample_labels
def crop_image(img, bbox_labels, sample_bbox, image_width, image_height):
sample_bbox = clip_bbox(sample_bbox)
xmin = int(sample_bbox.xmin * image_width)
xmax = int(sample_bbox.xmax * image_width)
ymin = int(sample_bbox.ymin * image_height)
ymax = int(sample_bbox.ymax * image_height)
sample_img = img.crop((xmin, ymin, xmax, ymax))
sample_labels = transform_labels(bbox_labels, sample_bbox)
return sample_img, sample_labels
图像增强相关的函数：
- 对比度
- 饱和度
- 色彩明暗
- 保持长宽比例的缩放
def resize_img(img, sampled_labels):
target_size = train_parameters['input_size']
ret = img.resize((target_size[1], target_size[2]), Image.ANTIALIAS)
return ret
def random_brightness(img):
prob = np.random.uniform(0, 1)
if prob < train_parameters['image_distort_strategy']['brightness_prob']:
brightness_delta = train_parameters['image_distort_strategy']['brightness_delta']
delta = np.random.uniform(-brightness_delta, brightness_delta) + 1
img = ImageEnhance.Brightness(img).enhance(delta)
return img
def random_contrast(img):
prob = np.random.uniform(0, 1)
if prob < train_parameters['image_distort_strategy']['contrast_prob']:
contrast_delta = train_parameters['image_distort_strategy']['contrast_delta']
delta = np.random.uniform(-contrast_delta, contrast_delta) + 1
img = ImageEnhance.Contrast(img).enhance(delta)
return img
def random_saturation(img):
prob = np.random.uniform(0, 1)
if prob < train_parameters['image_distort_strategy']['saturation_prob']:
saturation_delta = train_parameters['image_distort_strategy']['saturation_delta']
delta = np.random.uniform(-saturation_delta, saturation_delta) + 1
img = ImageEnhance.Color(img).enhance(delta)
return img
def random_hue(img):
prob = np.random.uniform(0, 1)
if prob < train_parameters['image_distort_strategy']['hue_prob']:
hue_delta = train_parameters['image_distort_strategy']['hue_delta']
delta = np.random.uniform(-hue_delta, hue_delta)
img_hsv = np.array(img.convert('HSV'))
img_hsv[:, :, 0] = img_hsv[:, :, 0] + delta
img = Image.fromarray(img_hsv, mode='HSV').convert('RGB')
return img
def distort_image(img):
prob = np.random.uniform(0, 1)
# Apply different distort order
if prob > 0.5:
img = random_brightness(img)
img = random_contrast(img)
img = random_saturation(img)
img = random_hue(img)
else:
img = random_brightness(img)
img = random_saturation(img)
img = random_hue(img)
img = random_contrast(img)
return img
def expand_image(img, bbox_labels, img_width, img_height):
prob = np.random.uniform(0, 1)
if prob < train_parameters['image_distort_strategy']['expand_prob']:
expand_max_ratio = train_parameters['image_distort_strategy']['expand_max_ratio']
if expand_max_ratio - 1 >= 0.01:
expand_ratio = np.random.uniform(1, expand_max_ratio)
height = int(img_height * expand_ratio)
width = int(img_width * expand_ratio)
h_off = math.floor(np.random.uniform(0, height - img_height))
w_off = math.floor(np.random.uniform(0, width - img_width))
expand_bbox = bbox(-w_off / img_width, -h_off / img_height,
(width - w_off) / img_width,
(height - h_off) / img_height)
expand_img = np.uint8(np.ones((height, width, 3)) * np.array([127.5, 127.5, 127.5]))
expand_img = Image.fromarray(expand_img)
expand_img.paste(img, (int(w_off), int(h_off)))
bbox_labels = transform_labels(bbox_labels, expand_bbox)
return expand_img, bbox_labels, width, height
return img, bbox_labels, img_width, img_height
def preprocess(img, bbox_labels, mode):
img_width, img_height = img.size
sampled_labels = bbox_labels
if mode == 'train':
if train_parameters['apply_distort']:
img = distort_image(img)
if train_parameters['apply_expand']:
img, bbox_labels, img_width, img_height = expand_image(img, bbox_labels, img_width, img_height)
if train_parameters['apply_corp']:
batch_sampler = []
# hard-code here
batch_sampler.append(sampler(1, 1, 1.0, 1.0, 1.0, 1.0, 0.0, 0.0))
batch_sampler.append(sampler(1, 50, 0.3, 1.0, 0.5, 2.0, 0.1, 0.0))
batch_sampler.append(sampler(1, 50, 0.3, 1.0, 0.5, 2.0, 0.3, 0.0))
batch_sampler.append(sampler(1, 50, 0.3, 1.0, 0.5, 2.0, 0.5, 0.0))
batch_sampler.append(sampler(1, 50, 0.3, 1.0, 0.5, 2.0, 0.7, 0.0))
batch_sampler.append(sampler(1, 50, 0.3, 1.0, 0.5, 2.0, 0.9, 0.0))
batch_sampler.append(sampler(1, 50, 0.3, 1.0, 0.5, 2.0, 0.0, 1.0))
sampled_bbox = generate_batch_samples(batch_sampler, bbox_labels)
if len(sampled_bbox) > 0:
idx = int(np.random.uniform(0, len(sampled_bbox)))
img, sampled_labels = crop_image(img, bbox_labels, sampled_bbox[idx], img_width, img_height)
mirror = int(np.random.uniform(0, 2))
if mirror == 1:
img = img.transpose(Image.FLIP_LEFT_RIGHT)
for i in six.moves.xrange(len(sampled_labels)):
tmp = sampled_labels[i][1]
sampled_labels[i][1] = 1 - sampled_labels[i][3]
sampled_labels[i][3] = 1 - tmp
img = resize_img(img, sampled_labels)
if train_parameters['log_feed_image']:
log_feed_image(img, sampled_labels)
img = np.array(img).astype('float32')
img -= train_parameters['mean_rgb']
img = img.transpose((2, 0, 1)) # HWC to CHW
img *= 0.007843
return img, sampled_labels
自定义用户数据读取器。因为图像处理比较多，批处理时会很慢，可能导致数据处理时间比真实计算模型的时间还要长！为了尽量避免这种情况，训练时使用并行化的数据读取器。
同时，为了方便训练中能够验证当前的效果，中间验证的时候使用同步数据读取器
原本验证的数据不应该和训练数据混着用，此处仅仅为了示例，真实训练，建议将两批数据分开
def custom_reader(file_list, data_dir, mode):
def reader():
np.random.shuffle(file_list)
for line in file_list:
if mode == 'train' or mode == 'eval':
image_path, label_path = line.split()
image_path = os.path.join(data_dir, image_path)
label_path = os.path.join(data_dir, label_path)
img = Image.open(image_path)
if img.mode != 'RGB':
img = img.convert('RGB')
im_width, im_height = img.size
# layout: label | xmin | ymin | xmax | ymax | difficult
bbox_labels = []
root = xml.etree.ElementTree.parse(label_path).getroot()
for object in root.findall('object'):
bbox_sample = []
# start from 1
bbox_sample.append(float(train_parameters['label_dict'][object.find('name').text]))
bbox = object.find('bndbox')
difficult = float(object.find('difficult').text)
bbox_sample.append(float(bbox.find('xmin').text) / im_width)
bbox_sample.append(float(bbox.find('ymin').text) / im_height)
bbox_sample.append(float(bbox.find('xmax').text) / im_width)
bbox_sample.append(float(bbox.find('ymax').text) / im_height)
bbox_sample.append(difficult)
bbox_labels.append(bbox_sample)
img, sample_labels = preprocess(img, bbox_labels, mode)
sample_labels = np.array(sample_labels)
if len(sample_labels) == 0: continue
boxes = sample_labels[:, 1:5]
lbls = sample_labels[:, 0].astype('int32')
difficults = sample_labels[:, -1].astype('int32')
yield img, boxes, lbls, difficults
elif mode == 'test':
img_path = os.path.join(data_dir, line)
yield Image.open(img_path)
return reader
def multi_process_custom_reader(file_path, data_dir, num_workers, mode):
file_path = os.path.join(data_dir, file_path)
readers = []
images = [line.strip() for line in open(file_path)]
n = int(math.ceil(len(images) // num_workers))
image_lists = [images[i: i + n] for i in range(0, len(images), n)]
for l in image_lists:
readers.append(paddle.batch(custom_reader(l, data_dir, mode),
batch_size=train_parameters['train_batch_size'],
drop_last=True))
return paddle.reader.multiprocess_reader(readers, False)
def create_eval_reader(file_path, data_dir, mode):
file_path = os.path.join(data_dir, file_path)
images = [line.strip() for line in open(file_path)]
return paddle.batch(custom_reader(images, data_dir, mode),
batch_size=train_parameters['train_batch_size'],
drop_last=True)
配合两种不同数据读取器，定义两种网络构建方法。注意两种定义的时候要共享参数，同时验证网络需要设置为 for_test
def build_train_program_with_async_reader(main_prog, startup_prog):
with fluid.program_guard(main_prog, startup_prog):
img = fluid.layers.data(name='img', shape=train_parameters['input_size'], dtype='float32')
gt_box = fluid.layers.data(name='gt_box', shape=[4], dtype='float32', lod_level=1)
gt_label = fluid.layers.data(name='gt_label', shape=[1], dtype='int32', lod_level=1)
difficult = fluid.layers.data(name='difficult', shape=[1], dtype='int32', lod_level=1)
data_reader = fluid.layers.create_py_reader_by_data(capacity=64,
feed_list=[img, gt_box, gt_label, difficult],
name='train')
multi_reader = multi_process_custom_reader(train_parameters['file_list'],
train_parameters['data_dir'],
train_parameters['multi_data_reader_count'],
'train')
data_reader.decorate_paddle_reader(multi_reader)
with fluid.unique_name.guard():
img, gt_box, gt_label, difficult = fluid.layers.read_file(data_reader)
model = MobileNetSSD()
locs, confs, box, box_var = model.net(train_parameters['class_dim'], img, train_parameters['input_size'])
with fluid.unique_name.guard('train'):
loss = fluid.layers.ssd_loss(locs, confs, gt_box, gt_label, box, box_var)
loss = fluid.layers.reduce_sum(loss)
optimizer = optimizer_rms_setting()
optimizer.minimize(loss)
return data_reader, img, loss, locs, confs, box, box_var
def build_eval_program_with_feeder(main_prog, startup_prog):
with fluid.program_guard(main_prog, startup_prog):
img = fluid.layers.data(name='img', shape=train_parameters['input_size'], dtype='float32')
gt_box = fluid.layers.data(name='gt_box', shape=[4], dtype='float32', lod_level=1)
gt_label = fluid.layers.data(name='gt_label', shape=[1], dtype='int32', lod_level=1)
difficult = fluid.layers.data(name='difficult', shape=[1], dtype='int32', lod_level=1)
feeder = fluid.DataFeeder(feed_list=[img, gt_box, gt_label, difficult], place=place, program=main_prog)
reader = create_eval_reader(train_parameters['file_list'], train_parameters['data_dir'], 'eval')
with fluid.unique_name.guard():
model = MobileNetSSD()
locs, confs, box, box_var = model.net(train_parameters['class_dim'], img, train_parameters['input_size'])
with fluid.unique_name.guard('eval'):
nmsed_out = fluid.layers.detection_output(locs, confs, box, box_var, nms_threshold=0.45)
map_eval = fluid.metrics.DetectionMAP(nmsed_out, gt_label, gt_box, difficult,
train_parameters['class_dim'], overlap_threshold=0.5,
evaluate_difficult=False, ap_version='11point')
cur_map, accum_map = map_eval.get_map_var()
return feeder, reader, cur_map, accum_map, nmsed_out
定义优化器。对于训练这种比较大的网络结构，尽量使用阶段性调整学习率的方式
def optimizer_momentum_setting():
learning_strategy = train_parameters['momentum_strategy']
learning_rate = fluid.layers.exponential_decay(learning_rate=learning_strategy['learning_rate'],
decay_steps=learning_strategy['decay_steps'],
decay_rate=learning_strategy['decay_rate'])
optimizer = fluid.optimizer.MomentumOptimizer(learning_rate=learning_rate, momentum=0.1)
return optimizer
def optimizer_rms_setting():
batch_size = train_parameters["train_batch_size"]
iters = train_parameters["image_count"] // batch_size
learning_strategy = train_parameters['rsm_strategy']
lr = learning_strategy['learning_rate']
boundaries = [i * iters for i in learning_strategy["lr_epochs"]]
values = [i * lr for i in learning_strategy["lr_decay"]]
optimizer = fluid.optimizer.RMSProp(
learning_rate=fluid.layers.piecewise_decay(boundaries, values),
regularization=fluid.regularizer.L2Decay(0.00005))
return optimizer
保存和加载模型。保存时候注意先保存读写参数，可重训练的方式；后保存固化参数，可用于重训练的方式。
加载模型有两种，一种是用之前训练的参数，接着全网络继续训练；一种是加载预训练的 mobile-net
def save_model(base_dir, base_name, feed_var_list, target_var_list, train_program, infer_program, exe):
fluid.io.save_persistables(dirname=base_dir,
filename=base_name + '-retrain',
main_program=train_program,
executor=exe)
fluid.io.save_inference_model(dirname=base_dir,
params_filename=base_name + '-params',
model_filename=base_name + '-model',
feeded_var_names=feed_var_list,
target_vars=target_var_list,
main_program=infer_program,
executor=exe)
def load_pretrained_params(exe, program):
retrain_param_file = os.path.join(train_parameters['save_model_dir'],
train_parameters['model_prefix'] + '-retrain')
if os.path.exists(retrain_param_file) and train_parameters['continue_train']:
logger.info('load param from retrain model')
print('load param from retrain model')
fluid.io.load_persistables(executor=exe,
dirname=train_parameters['save_model_dir'],
main_program=program,
filename=train_parameters['model_prefix'] + '-retrain')
elif train_parameters['pretrained'] and os.path.exists(train_parameters['pretrained_model_dir']):
logger.info('load param from pretrained model')
print('load param from pretrained model')
def if_exist(var):
return os.path.exists(os.path.join(train_parameters['pretrained_model_dir'], var.name))
fluid.io.load_vars(exe, train_parameters['pretrained_model_dir'], main_program=program,
predicate=if_exist)
训练主体，配合了一些提前停止策略。开始愉快的炼丹吧~
init_log_config()
init_train_parameters()
print("start ssd, train params:", str(train_parameters))
logger.info("start ssd, train params: %s", str(train_parameters))
logger.info("create place, use gpu:" + str(train_parameters['use_gpu']))
place = fluid.CUDAPlace(0) if train_parameters['use_gpu'] else fluid.CPUPlace()
logger.info("build network and program")
train_program = fluid.Program()
start_program = fluid.Program()
eval_program = fluid.Program()
start_program = fluid.Program()
train_reader, img, loss, locs, confs, box, box_var = build_train_program_with_async_reader(train_program, start_program)
eval_feeder, eval_reader, cur_map, accum_map, nmsed_out = build_eval_program_with_feeder(eval_program, start_program)
eval_program = eval_program.clone(for_test=True) # 注意设置 test，不然 batch_normal 之类的参数会不固化
logger.info("build executor and init params")
exe = fluid.Executor(place)
exe.run(start_program)
train_fetch_list = [loss.name]
eval_fetch_list = [cur_map.name, accum_map.name]
load_pretrained_params(exe, train_program)
stop_strategy = train_parameters['early_stop']
successive_limit = stop_strategy['successive_limit']
sample_freq = stop_strategy['sample_frequency']
min_curr_map = stop_strategy['min_curr_map']
min_loss = stop_strategy['min_loss']
stop_train = False
total_batch_count = 0
successive_count = 0
for pass_id in range(train_parameters["num_epochs"]):
logger.info("current pass: %d, start read image", pass_id)
batch_id = 0
train_reader.start()
try:
while True:
t1 = time.time()
loss = exe.run(train_program, fetch_list=train_fetch_list)
period = time.time() - t1
loss = np.mean(np.array(loss))
batch_id += 1
total_batch_count += 1
if batch_id % 10 == 0:
logger.info(
"Pass {0}, trainbatch {1}, loss {2} time {3}".format(pass_id, batch_id, loss, "%2.2f sec" % period))
print(
"Pass {0}, trainbatch {1}, loss {2} time {3}".format(pass_id, batch_id, loss, "%2.2f sec" % period))
if total_batch_count % 400 == 0:
logger.info("temp save {0} batch train result".format(total_batch_count))
print("temp save {0} batch train result".format(total_batch_count))
fluid.io.save_persistables(dirname=train_parameters['save_model_dir'],
filename=train_parameters['model_prefix'] + '-retrain',
main_program=train_program,
executor=exe)
if total_batch_count == 1 or total_batch_count % sample_freq == 0:
for data in eval_reader():
cur_map_v, accum_map_v = exe.run(eval_program, feed=eval_feeder.feed(data), fetch_list=eval_fetch_list)
break
logger.info("{0} batch train, cur_map:{1} accum_map_v:{2} loss:{3}".format(total_batch_count, cur_map_v[0],
accum_map_v[0], loss))
print("{0} batch train, cur_map:{1} accum_map_v:{2} loss:{3}".format(total_batch_count, cur_map_v[0],
accum_map_v[0], loss))
if cur_map_v[0] > min_curr_map or loss <= min_loss:
successive_count += 1
print("successive_count: ", successive_count)
fluid.io.save_inference_model(dirname=train_parameters['save_model_dir'],
params_filename=train_parameters['model_prefix'] + '-params',
model_filename=train_parameters['model_prefix'] + '-model',
feeded_var_names=['img'],
target_vars=[nmsed_out],
main_program=eval_program,
executor=exe)
if successive_count >= successive_limit:
logger.info("early stop, end training")
print("early stop, end training")
stop_train = True
break
else:
successive_count = 0
if stop_train:
break
except fluid.core.EOFException:
train_reader.reset()
logger.info("training till last epcho, end training")
print("training till last epcho, end training")
save_model(train_parameters['save_model_dir'], train_parameters['model_prefix'] + '-final',
['img'], [nmsed_out], train_program, eval_program, exe)
推理部分代码示例，用来检测一张图片上的猫猫和狗狗
# -*- coding: UTF-8 -*-
"""
使用训练完成的模型进行预测
"""
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function
import numpy as np
import sys
import time
import paddle.fluid as fluid
from PIL import Image
from PIL import ImageDraw
target_size = [3, 224, 224]
nms_threshold = 0.45
confs_threshold = 0.5
place = fluid.CPUPlace()
exe = fluid.Executor(place)
path = "./ssd-model"
[inference_program, feed_target_names, fetch_targets] = \
fluid.io.load_inference_model(dirname=path,
params_filename='mobilenet-ssd-params',
model_filename='mobilenet-ssd-model',
executor=exe)
print(fetch_targets)
def draw_bbox_image(img, nms_out, save_name):
"""
给图片画上外接矩形框
:param img:
:param nms_out:
:param save_name:
:return:
"""
img_width, img_height = img.size
draw = ImageDraw.Draw(img)
for dt in nms_out:
if dt[1] < confs_threshold:
continue
category_id = dt[0]
bbox = dt[2:]
xmin, ymin, xmax, ymax = clip_bbox(dt[2:])
draw.rectangle((xmin * img_width, ymin * img_height, xmax * img_width, ymax * img_height), None, 'red')
img.save(save_name)
def clip_bbox(bbox):
"""
截断矩形框
:param bbox:
:return:
"""
xmin = max(min(bbox[0], 1.), 0.)
ymin = max(min(bbox[1], 1.), 0.)
xmax = max(min(bbox[2], 1.), 0.)
ymax = max(min(bbox[3], 1.), 0.)
return xmin, ymin, xmax, ymax
def resize_img(img, target_size):
"""
保持比例的缩放图片
:param img:
:param target_size:
:return:
"""
percent_h = float(target_size[1]) / img.size[1]
percent_w = float(target_size[2]) / img.size[0]
percent = min(percent_h, percent_w)
resized_width = int(round(img.size[0] * percent))
resized_height = int(round(img.size[1] * percent))
w_off = (target_size[1] - resized_width) / 2
h_off = (target_size[2] - resized_height) / 2
img = img.resize((target_size[1], target_size[2]), Image.ANTIALIAS)
return img
def read_image(img_path):
"""
读取图片
:param img_path:
:return:
"""
img = Image.open(img_path)
resized_img = img.copy()
img = resize_img(img, target_size)
if img.mode != 'RGB':
img = img.convert('RGB')
img = np.array(img).astype('float32').transpose((2, 0, 1)) # HWC to CHW
img -= 127.5
img *= 0.007843
img = img[np.newaxis, :]
return img, resized_img
def infer(image_path):
"""
预测，将结果保存到一副新的图片中
:param image_path:
:return:
"""
tensor_img, resized_img = read_image(image_path)
t1 = time.time()
nmsed_out = exe.run(inference_program,
feed={feed_target_names[0]: tensor_img},
fetch_list=fetch_targets,
return_numpy=False)
period = time.time() - t1
print("predict result:{0} cost time:{1}".format(nmsed_out, "%2.2f sec" % period))
nmsed_out = np.array(nmsed_out[0])
last_dot_index = image_path.rfind('.')
out_path = image_path[:last_dot_index]
out_path += '-reslut.jpg'
print("result save to:", out_path)
draw_bbox_image(resized_img, nmsed_out, out_path)
image_path = 'dog-cat.jpg'
infer(image_path)
[name: “save_infer_model/scale_0”
type {
type: LOD_TENSOR
lod_tensor {
tensor {
data_type: FP32
dims: 1917
dims: 6
}
lod_level: 0
}
}
persistable: false
]
predict result:[<paddle.fluid.core.LoDTensor object at 0x7f52d02a6458>] cost time:0.08 sec
result save to: dog-cat-reslut.jpg
来源：CSDN
作者：PaddlePaddle开发者
链接：https://blog.csdn.net/PaddleLover/article/details/103506090
