Dragon绘制

import shutil import tarfile from mayavi import mlab from os.path import join  # 读取tar压缩文件 dragon_tar_file = tarfile.open('Data/dragon.tar.gz') dragon_tar_file.extractall('dragon_data') dragon_tar_file.close() dragon_ply_file = join('dragon_data', 'dragon_recon', 'dragon_vrip.ply')  # 渲染dragon ply文件 mlab.pipeline.surface(mlab.pipeline.open(dragon_ply_file)) mlab.show()  # 删除解压的文件夹 shutil.rmtree('Data/dragon_data')

Canyon地形可视化

import zipfile import numpy as np from mayavi import mlab  # 读取压缩文件 # N36W113.hgt：北纬36-37度，西经113-114度 地形高程数据。 hgt = zipfile.ZipFile('Data/N36W113.hgt.zip').read('N36W113.hgt') data = np.fromstring(hgt, '>i2') # 转换数据类型 data.shape = (3601, 3601) data = data.astype(np.float32) # 选取一部分数据 data = data[:1000, 900:1900] # data == -32768代表空缺值 # 令空缺值等于最小值 data[data == -32768] = data[data > 0].min()  # 渲染地形hgt的数据data mlab.figure(size=(400, 320), bgcolor=(0.16, 0.28, 0.46)) mlab.surf(data, colormap='gist_earth', warp_scale=0.2,           vmin=1200, vmax=1610)  # 清空内存 del data # 创建交互式的可视化窗口 mlab.view(-5.9, 83, 570, [5.3, 20, 238]) mlab.show()

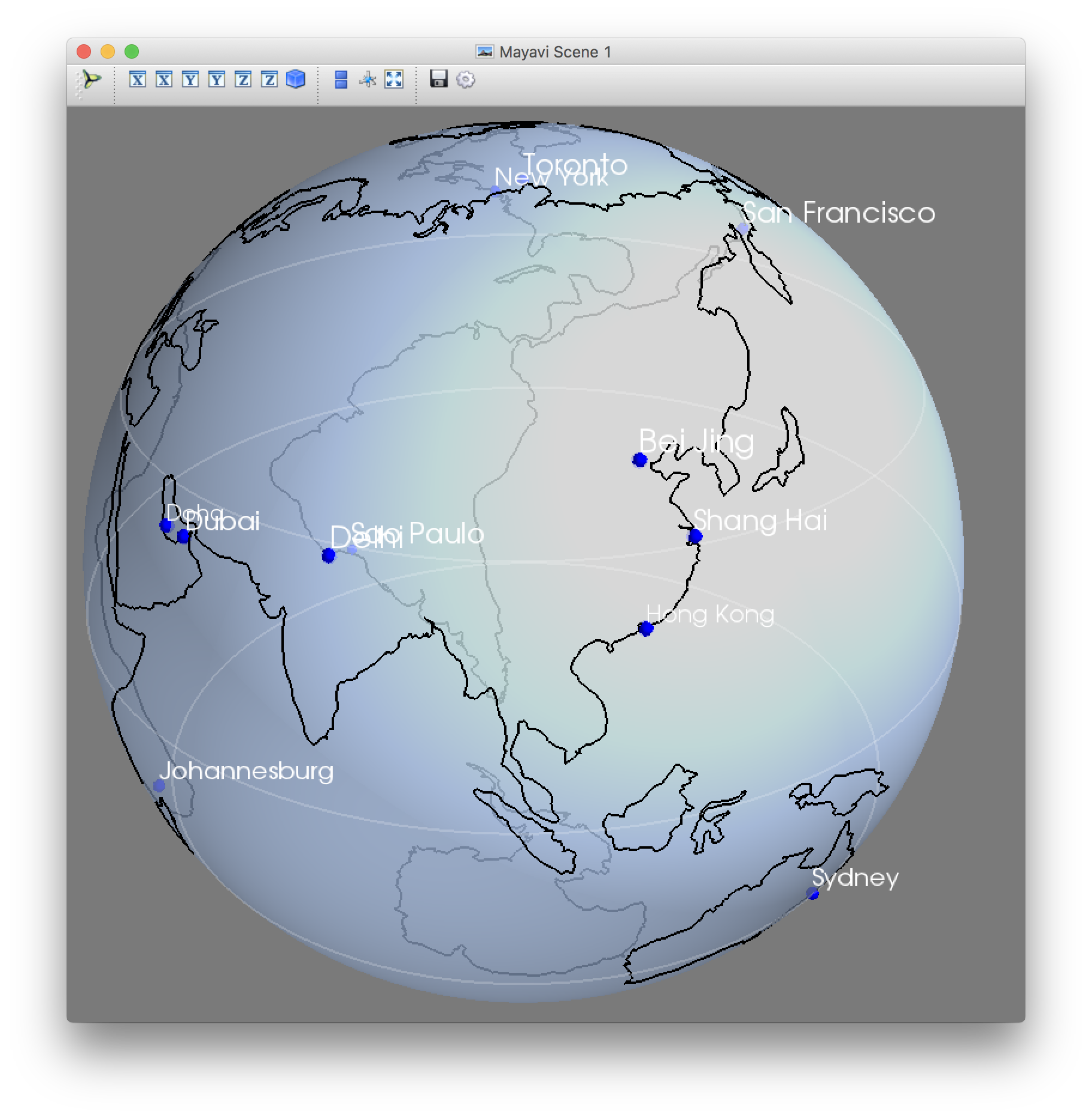

Earth Graph

import csv import math import numpy as np from mayavi import mlab from mayavi.sources.builtin_surface import BuiltinSurface  '''读取数据''' # 建立城市-城索引的字典、城市经纬度的列表 cities = dict() coords = list() data = csv.reader(open('Data/cities.csv')) for line in data:     name, longitude, latitude = line     cities[name] = len(coords)     coords.append((float(longitude), float(latitude)))  '''坐标转换''' # 将经纬度的位置转换为三维坐标 coords = np.array(coords) latitude, long = coords.T * np.pi / 180 x = np.cos(long) * np.cos(latitude) y = np.cos(long) * np.sin(latitude) z = np.sin(long)  '''建立窗口''' mlab.figure(bgcolor=(0.48, 0.48, 0.48), size=(800, 800))  '''绘制地图''' # 绘制半透明球体表示地球 sphere = mlab.points3d(0, 0, 0, scale_factor=2,                        color=(0.67, 0.77, 0.93),                        resolution=1024,                        opacity=0.7,                        name='Earth') # 调整镜面反射参数 sphere.actor.property.specular = 0.45 sphere.actor.property.specular_power = 5 # 设置背面剔除，以更好的显示透明效果 sphere.actor.property.backface_culling = True  '''绘制城市''' # 绘制城市位置 points = mlab.points3d(x, y, z, scale_mode='none', scale_factor=0.03, color=(0, 0, 1)) # 绘制城市名称 for city, index in cities.items():     label = mlab.text(x[index], y[index], city,                       z=z[index], color=(1, 1, 1),                       width=0.016 * len(city), name=city)  '''绘制大洲边界''' continents_src = BuiltinSurface(source='earth', name='Continents') # 设置LOD为2 # LOD: Levels-of-details continents_src.data_source.on_ratio = 2 continents = mlab.pipeline.surface(continents_src, color=(0, 0, 0))  '''绘制赤道''' # 构造组成赤道线的数组 theta = np.linspace(0, 2 * np.pi, 100)  # 平分360为100份 x = np.cos(theta) y = np.sin(theta) z = np.zeros_like(theta) # 绘制 mlab.plot3d(x, y, z, color=(1, 1, 1), opacity=0.2, tube_radius=None)  '''绘制两条纬线''' alpha = math.sqrt(3)/2 mlab.plot3d(x * alpha, y * alpha, z + 0.5, color=(1, 1, 1), opacity=0.2, tube_radius=None) mlab.plot3d(x * alpha, y * alpha, z - 0.5, color=(1, 1, 1), opacity=0.2, tube_radius=None)  '''显示可交互窗口''' # 设置相机及焦点位置 mlab.view(100, 60, 4, [-0.05, 0, 0]) # 显示窗口 mlab.show()
