kubernetes集群（k8s）二进制安装（centos7环境）

1.环境准备与规划

本文使用的centos7,docker 1.13.1

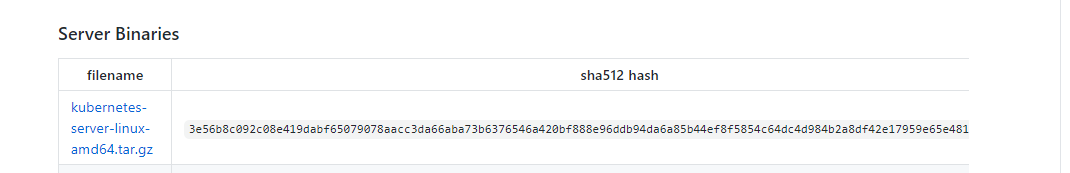

1.1 k8s,etcd下载

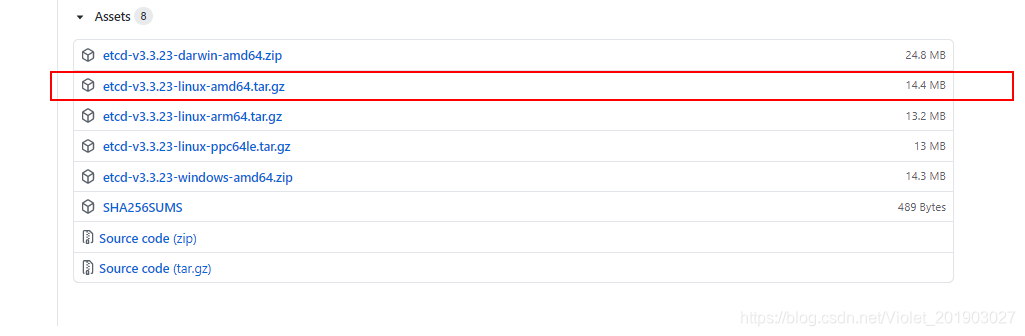

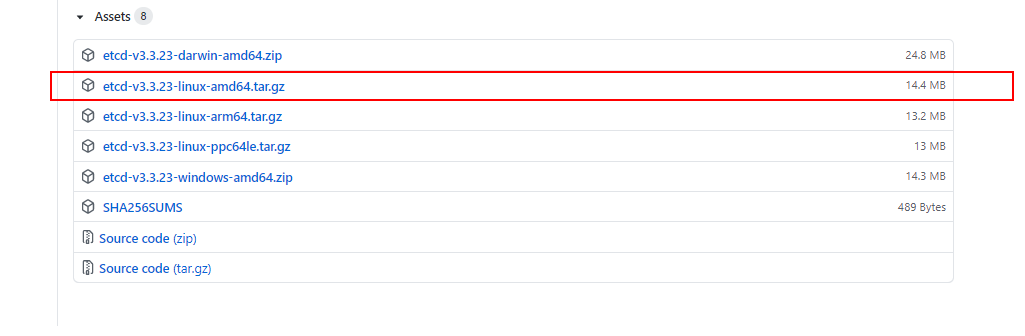

etcd-v版本3.3.10，点击下载

在这里插入图片描述

1.2虚拟机设置master和node节点

角色	ip	组件安装
master	192.168.100.100	etcd、kube-apiserver、kube-controller-manager、 kube-scheduler、docker
node01	192.168.100.101	kube-proxy、kubelet、docker
node02	192.168.100.102	kube-proxy、kubelet、docker

2.三台机器操作

2.1关闭防火墙，更新yum

#关闭CentOS防火墙
systemctl disable firewalld
systemctl stop firewalld
##更新yum
yum -y  update
# 安装Docker( 参数-y  默认安装时 自动选择Y)
yum -y install docker
#启动docker
service docker start
#要求服务器重启自动启动docker  可输入该命令systemctl enable docker 实现
#创建改目录，将k8s相关文件都放在这里
mkdir /var/local/k8s
cd /var/local/k8s

2.2如果出现问题可以查看系统日志命令：tail -f /var/log/messages或者journalctl -f -u serviceName

3.master安装

上传etcd-v3.3.23-linux-amd64.tar.gz kubernetes-server-linux-amd64.tar.gz到k8s目录

3.1 etcd服务

#解压etcd
tar -zxvf etcd-v3.3.10-linux-amd64.tar.gz
#进入目录 etcd-v3.3.23-linux-amd64 目录   并且将etcd和etcdctl文件复制到/usr/bin目录
cd etcd-v3.3.10-linux-amd64
cp etcd etcdctl  /usr/bin/

3.1.1 配置etcd.service

#配置systemd服务文件
vi /usr/lib/systemd/system/etcd.service

#添加如下内容
[Unit]
Description=Etcd Server

[Service]
Type=notify
TimeoutStartSec=0
Restart=always
WorkingDirectory=/var/lib/etcd/
EnvironmentFile=-/etc/etcd/etcd.conf
ExecStart=/usr/bin/etcd

[Install]
WantedBy=multi-user.target

3.1.2创建配置文件

mkdir -p /var/lib/etcd/

mkdir -p /var/lib/etcd/

vi /etc/etcd/etcd.conf

ETCD_NAME=ETCD Server
ETCD_DATA_DIR="/var/lib/etcd/"
ETCD_LISTEN_CLIENT_URLS="http://0.0.0.0:2379"
ETCD_ADVERTISE_CLIENT_URLS="http://127.0.0.1:2379"

3.1.3 启动与测试etcd服务


#重新加载服务的配置文件
systemctl daemon-reload
#添加开机自启动
systemctl enable etcd.service
systemctl start etcd.service
systemctl status etcd.service

[root@localhost ~]# etcdctl cluster-health
member 8e9e05c52164694d is healthy: got healthy result from http://localhost:2379
cluster is healthy

etcd 到这里就搭建完成了

执行下面操作前，先解压kubernetes-server-linux-amd64.tar.gz

tar -zxvf kubernetes-server-linux-amd64.tar.gz
#进入 解压后将kube-apiserver、kube-controller-manager、kube-scheduler以及管理要使用的kubectl二进制命令文件
cd kubernetes/server/bin/
cp kube-apiserver kube-controller-manager kube-scheduler kubectl /usr/bin/

3.2 kube-apiserver服务搭建

#编辑systemd服务文件
vi /usr/lib/systemd/system/kube-apiserver.service

#添加如下内容
[Unit]
Description=Kubernetes API Server
After=etcd.service
Wants=etcd.service

[Service]
EnvironmentFile=/etc/kubernetes/apiserver
ExecStart=/usr/bin/kube-apiserver  \
        $KUBE_ETCD_SERVERS \
        $KUBE_API_ADDRESS \
        $KUBE_API_PORT \
        $KUBE_SERVICE_ADDRESSES \
        $KUBE_ADMISSION_CONTROL \
        $KUBE_API_LOG \
        $KUBE_API_ARGS
Restart=on-failure
Type=notify
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

添加apiservice的配置文件

mkdir /etc/kubernetes
vi /etc/kubernetes/apiserver

#添加如下内容
KUBE_API_ADDRESS="--insecure-bind-address=0.0.0.0"
KUBE_API_PORT="--insecure-port=8080"
KUBE_ETCD_SERVERS="--etcd-servers=http://127.0.0.1:2379"
KUBE_SERVICE_ADDRESSES="--service-cluster-ip-range=192.168.0.0/16"
KUBE_ADMISSION_CONTROL="--admission-control=NamespaceLifecycle,LimitRanger,SecurityContextDeny,ServiceAccount,ResourceQuota"
KUBE_API_LOG="--logtostderr=false --log-dir=/var/log/kubernets/apiserver --v=2"
KUBE_API_ARGS=" "

3.2.1 测试kube-apiserver环境配置

systemctl daemon-reload
systemctl start kube-apiserver.service
#加入开机自启动
systemctl enable kube-apiserver.service

# systemctl status kube-apiserver.service
● kube-apiserver.service - Kubernetes API Server
   Loaded: loaded (/usr/lib/systemd/system/kube-apiserver.service; enabled; vendor preset: disabled)
   Active: active (running) since 三 2021-01-13 13:42:06 CST; 14min ago
 Main PID: 1577 (kube-apiserver)

3.3 kube-controller-manager服务搭建

kube-controller-manager服务依赖于kube-apiserver服务

配置systemd服务文件：vi /usr/lib/systemd/system/kube-controller-manager.service

[Unit]
Description=Kubernetes Scheduler
After=kube-apiserver.service
Requires=kube-apiserver.service

[Service]
EnvironmentFile=-/etc/kubernetes/controller-manager
ExecStart=/usr/bin/kube-controller-manager \
        $KUBE_MASTER \
        $KUBE_CONTROLLER_MANAGER_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

配置文件 vi /etc/kubernetes/controller-manager

KUBE_MASTER="--master=http://127.0.0.1:8080"
KUBE_CONTROLLER_MANAGER_ARGS=" "

3.3.1 测试 kube-controller-manager环境搭建

systemctl daemon-reload
systemctl start kube-controller-manager.service
#同上出现 running 就说明搭建成功
systemctl status kube-controller-manager.service
#加入开机自启动
systemctl enable kube-controller-manager.service

3.4 kube-scheduler服务

kube-scheduler服务也依赖于kube-apiserver服务。

配置systemd服务文件：vi /usr/lib/systemd/system/kube-scheduler.service

[Unit]
Description=Kubernetes Scheduler
After=kube-apiserver.service
Requires=kube-apiserver.service

[Service]
User=root
EnvironmentFile=-/etc/kubernetes/scheduler
ExecStart=/usr/bin/kube-scheduler \
        $KUBE_MASTER \
        $KUBE_SCHEDULER_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

配置文件：vi /etc/kubernetes/scheduler

KUBE_MASTER="--master=http://127.0.0.1:8080"
KUBE_SCHEDULER_ARGS="--logtostderr=true --log-dir=/var/log/kubernetes/scheduler --v=2"

3.5统一开机自启测试命令

#完成以上配置后，按顺序启动服务
systemctl daemon-reload
systemctl enable kube-apiserver.service
systemctl start kube-apiserver.service
systemctl enable kube-controller-manager.service
systemctl start kube-controller-manager.service
systemctl enable kube-scheduler.service
systemctl start kube-scheduler.service
#检查每个服务的健康状态：
systemctl status kube-apiserver.service
systemctl status kube-controller-manager.service
systemctl status kube-scheduler.service

3.6.健康查看

#查看主键状态
[root@localhost ~]# kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {

   "health":"true"}

4.node安装

4.1环境准备

Node节点上安装组件有：

docker（之前已经在机器上面部署了docker，不知情可查看2.1步骤）
kube-proxy
kubelet

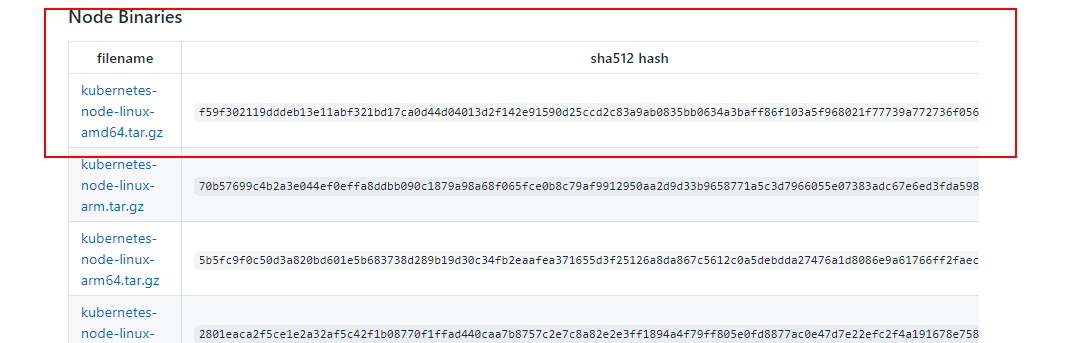

这里可以选择下载kubernetes-node-linux-amd64.tar.gz，也可以用直接的kubernetes-server-linux-amd64.tar.gz。

server里面包含了 node节点需要的东西（这里使用 kubernetes-node-linux-amd64.tar.gz操作）

在这里插入图片描述

#切换到该目录并且上传node包
cd /var/local/k8s
#解压
tar -zxvf kubernetes-node-linux-amd64.tar.gz
cd kubernetes/node/bin
#复制kubelet kube-proxy放到/usr/bin目录中
cp kubelet kube-proxy /usr/bin/

4.2kube-proxy安装

vi /usr/lib/systemd/system/kube-proxy.service

[Unit]
Description=Kubernetes Kube-Proxy Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target

[Service]
EnvironmentFile=/etc/kubernetes/config
EnvironmentFile=/etc/kubernetes/proxy
ExecStart=/usr/bin/kube-proxy \
            $KUBE_LOGTOSTDERR \
            $KUBE_LOG_LEVEL \
            $KUBE_MASTER \
            $KUBE_PROXY_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

创建配置目录，并添加配置文件

mkdir -p /etc/kubernetes
vi /etc/kubernetes/proxy
#添加如下内容
KUBE_PROXY_ARGS=""

vi /etc/kubernetes/config

KUBE_LOGTOSTDERR="--logtostderr=true"
KUBE_LOG_LEVEL="--v=0"
KUBE_ALLOW_PRIV="--allow_privileged=false"
#指定你的master地址
KUBE_MASTER="--master=http://192.168.100.100:8080"

4.2.1 proxy验证

# systemctl daemon-reload
# systemctl start kube-proxy
# netstat -lntp | grep kube-proxy
tcp        0      0 127.0.0.1:10249         0.0.0.0:*               LISTEN      8954/kube-proxy
tcp6       0      0 :::10256                :::*                    LISTEN      8954/kube-proxy

4.4 kubelet安装

vi /usr/lib/systemd/system/kubelet.service

[Unit]
Description=Kubernetes Kubelet Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service

[Service]
WorkingDirectory=/var/lib/kubelet
EnvironmentFile=/etc/kubernetes/kubelet
ExecStart=/usr/bin/kubelet $KUBELET_ARGS
Restart=on-failure
KillMode=process

[Install]
WantedBy=multi-user.target

 mkdir -p /var/lib/kubelet
 vi /etc/kubernetes/kubelet

KUBELET_ADDRESS="--address=0.0.0.0"
#你的nodeip，这里填写本机ip
KUBELET_HOSTNAME="--hostname-override=192.168.100.101"
#你的masterIp
KUBELET_API_SERVER="--api-servers=http://192.168.100.100:8080"
KUBELET_POD_INFRA_CONTAINER="--pod-infra-container-image=reg.docker.tb/harbor/pod-infrastructure:latest"
KUBELET_ARGS=" --cluster-dns=192.168.100.101 --cluster-domain=cluster.node1  --enable-server=true --feature-gates=AttachVolumeLimit=false --enable-debugging-handlers=true --fail-swap-on=false --kubeconfig=/var/lib/kubelet/kubeconfig"

创建配置文件 vi /var/lib/kubelet/kubeconfig 向master进行注册

apiVersion: v1
kind: Config
users:
- name: kubelet
clusters:
- name: kubernetes
  cluster:
    server: http://192.168.100.100:8080 #你的masterIp
contexts:
- context:
    cluster: kubernetes
    user: kubelet
  name: service-account-context
current-context: service-account-context

4.5 节点效验

systemctl daemon-reload
systemctl start kubelet.service
# netstat -tnlp | grep kubelet  ##正常情况应该出现，如果没有出现请查看 5步骤
tcp        0      0 127.0.0.1:10248         0.0.0.0:*               LISTEN      9812/kubelet
tcp        0      0 127.0.0.1:44458         0.0.0.0:*               LISTEN      9812/kubelet
tcp6       0      0 :::10255                :::*                    LISTEN      9812/kubelet
tcp6       0      0 :::10250                :::*                    LISTEN      9812/kubelet

#然后将kubelet丶kube-proxy加入开机自动启动
systemctl daemon-reload
systemctl enable kubelet
systemctl start kubelet
systemctl status kubelet
systemctl enable kube-proxy
systemctl start kube-proxy
systemctl status kube-proxy

5.node注册不成功问题

# tail -f /var/log/messages
Jan 13 14:04:19 localhost kubelet: F0113 14:04:19.645151    9505 server.go:262] failed to run Kubelet: failed to create kubelet: misconfiguration: kubelet cgroup driver: "cgroupfs" is different from docker cgroup driver: "systemd"

如果出现上述问题，问题原因在于 kubelet 的cgroup 与 docker 的不符合，解决方法如下

vi /usr/lib/systemd/system/kubelet.service

[Unit]
Description=Kubernetes Kubelet Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service

[Service]
WorkingDirectory=/var/lib/kubelet
EnvironmentFile=/etc/kubernetes/kubelet
ExecStart=/usr/bin/kubelet --cgroup-driver=systemd --runtime-cgroups=/systemd/system.slice --kubelet-cgroups=/systemd/system.slice  $KUBELET_ARGS
Restart=on-failure
KillMode=process

[Install]
WantedBy=multi-user.target

然后重新执行4.5步骤

6.查看master是否获取到node节点

[root@localhost ~]# kubectl get node
NAME                    STATUS   ROLES    AGE     VERSION
localhost.localdomain   Ready    <none>   2m25s   v1.12.1

到这里就全部完成了,其他node安装相同的方式搭建，或者复制node虚拟机修改/etc/kubernetes/kubelet里面的本机Ip
localhost.localdomain 为本机名字，修改命令为： hostnamectl set-hostname yourName
