C#自定义Button按钮控件

  在实际项目开发中经常可以遇到.net自带控件并不一定可以满足需要,因此需要自定义开发一些新的控件,自定义控件的办法也有多种,可以自己绘制线条颜色图形等进行重绘,也可以采用已有的控件作为控件的一个组成部分从而组成新的控件,本例中使用后者这里做了一个简单的按钮控件,特意帖上来,如有不足之处请见谅!

按钮素材:

 这里的小图标是从V2013标题栏截取的

 截图图标如下,有需要的可以自行:images下载

Button按钮控件设计

1.添加一个用户自定义控件ButtonEX

按钮组成:lable标签一个,Dock设置为填充

 2.添加控件属性

  1  /// <summary>
  2         /// 控件的默认图片
  3         /// </summary>
  4         private Image _imageDefault = null;
  5
  6         [Description("控件的默认图片")]
  7         public Image ImageDefault
  8         {
  9             get { return _imageDefault; }
 10             set
 11             {
 12                 _imageDefault = value;
 13                 label.Image = _imageDefault;
 14             }
 15         }
 16         /// <summary>
 17         /// 光标移动到控件上方显示的图片
 18         /// </summary>
 19         private Image _imageMove = null;
 20         [Description("光标移动到控件上方显示的图片")]
 21         public Image ImageMove
 22         {
 23             get { return _imageMove; }
 24             set { _imageMove = value; }
 25         }
 26         /// <summary>
 27         /// 光标离开控件显示的图片
 28         /// </summary>
 29         private Image _imageLeave = null;
 30         [Description("光标离开控件显示的图片")]
 31         public Image ImageLeave
 32         {
 33             get { return _imageLeave; }
 34             set { _imageLeave = value; }
 35         }
 36         /// <summary>
 37         /// 控件的背景色
 38         /// </summary>
 39         private Color _backColorEX = Color.Transparent;
 40
 41         [Description("控件的背景色")]
 42         public Color BackColorEX
 43         {
 44             get { return _backColorEX; }
 45             set
 46             {
 47                 _backColorEX = value;
 48                 label.BackColor = _backColorEX;
 49             }
 50         }
 51
 52         /// <summary>
 53         /// 鼠标移动到控件上方显示的颜色
 54         /// </summary>
 55         private Color backColorMove = Color.Transparent;
 56         [Description("鼠标移动到控件上方显示的颜色")]
 57         public Color BackColorMove
 58         {
 59             get { return backColorMove; }
 60             set { backColorMove = value; }
 61         }
 62         /// <summary>
 63         /// 鼠标离开控件显示的背景色
 64         /// </summary>
 65         private Color backColorLeave = Color.Transparent;
 66         [Description("鼠标离开控件显示的背景色")]
 67         public Color BackColorLeave
 68         {
 69             get { return backColorLeave; }
 70             set { backColorLeave = value; }
 71         }
 72         /// <summary>
 73         /// 控件的文字显示
 74         /// </summary>
 75         private string textEX = "";
 76         [Description("显示的文字")]
 77         public string TextEX
 78         {
 79             get { return textEX; }
 80             set
 81             {
 82                 textEX = value;
 83                 label.Text = textEX;
 84             }
 85         }
 86         /// <summary>
 87         /// 文字的颜色
 88         /// </summary>
 89         private Color textColor = Color.Black;
 90         [Description("文字的颜色")]
 91         public Color TextColor
 92         {
 93             get { return textColor; }
 94             set
 95             {
 96                 textColor = value;
 97                 label.ForeColor = textColor;
 98             }
 99         }
100         /// <summary>
101         /// 用于显示文本的字体
102         /// </summary>
103         private Font fontM = new System.Drawing.Font("宋体", 12F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
104         [Description("用于显示文本的字体")]
105         public Font FontM
106         {
107             get { return fontM; }
108             set
109             {
110                 fontM = value;
111                 label.Font = fontM;
112             }
113         }
114

3.添加事件

1         /// <summary>
2         /// 鼠标单击事件
3         /// </summary>
4         public event EventHandler ButtonClick;

4.添加鼠标响应事件

 1  /// <summary>
 2         /// 鼠标单击事件
 3         /// </summary>
 4         /// <param name="sender"></param>
 5         /// <param name="e"></param>
 6         private void label_Click(object sender, EventArgs e)
 7         {
 8             if (ButtonClick != null)
 9             {
10                 ButtonClick(sender, e);
11             }
12         }
13
14         /// <summary>
15         /// 鼠标移动到控件上显示的背景色和背景图
16         /// </summary>
17         /// <param name="sender"></param>
18         /// <param name="e"></param>
19         private void label_MouseMove(object sender, MouseEventArgs e)
20         {
21             if (backColorMove != Color.Transparent)
22             {
23                 BackColorEX = backColorMove;
24             }
25             if (_imageMove != null)
26             {
27                 _imageDefault = _imageMove;
28             }
29         }
30
31         /// <summary>
32         /// 鼠标离开控件后显示的背景色和背景图
33         /// </summary>
34         /// <param name="sender"></param>
35         /// <param name="e"></param>
36         private void label_MouseLeave(object sender, EventArgs e)
37         {
38             if (backColorLeave != Color.Transparent)
39             {
40                 BackColorEX = backColorLeave;
41             }
42             if (_imageLeave != null)
43             {
44                 _imageDefault = _imageLeave;
45             }
46         }

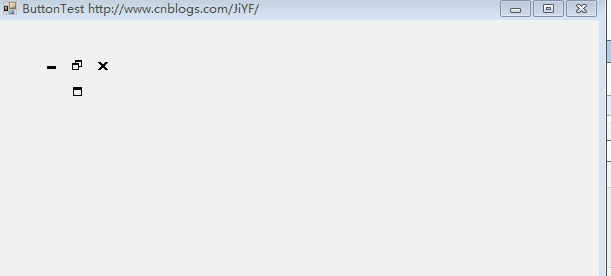

按钮效果:



工程源程序下载
