Measure, don’t guess!

JMH适用场景

　　JMH只适合细粒度的方法测试

原理

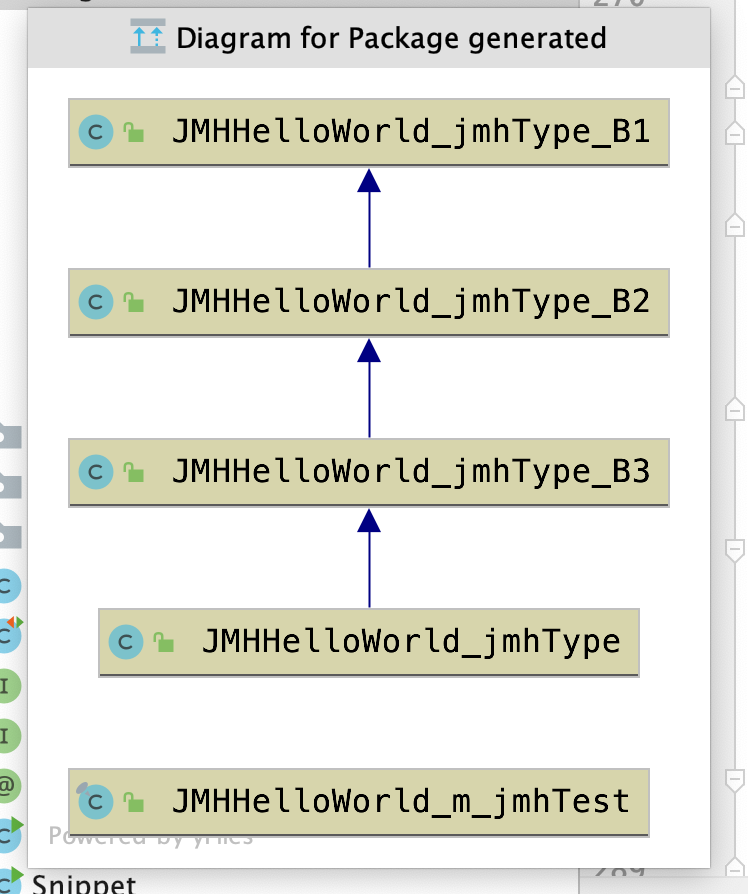

　　编译时会生成一些测试代码，一般都会继承你的类

maven依赖

<dependencies>
        <dependency>
            <groupId>org.openjdk.jmh</groupId>
            <artifactId>jmh-core</artifactId>
            <version>${jmh.version}</version>
        </dependency>
        <dependency>
            <groupId>org.openjdk.jmh</groupId>
            <artifactId>jmh-generator-annprocess</artifactId>
            <version>${jmh.version}</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <jmh.version>1.0</jmh.version>
        <javac.target>1.6</javac.target>
        <uberjar.name>benchmarks</uberjar.name>
    </properties>

命令行方式：

　　生成测试项目

mvn archetype:generate \
          -DinteractiveMode=false \
          -DarchetypeGroupId=org.openjdk.jmh \
          -DarchetypeArtifactId=jmh-java-benchmark-archetype \
          -DgroupId=org.sample \
          -DartifactId=test \
          -Dversion=1.0

　　打包

$ cd test/
$ mvn clean install

　　执行，

java -jar target/benchmarks.jar

java -jar target/benchmarks.jar -h //查看帮助信息

插件方式

　　 idea插件

　　插件会影响执行效果，但最多不会超过 2.2%

A brief research shows that benchmark results are affected, but not that much. The whole research is described in Research results.
Long story short, the maximum means difference observed was 2.2%.

main函数

package org.openjdk.jmh.samples;

import org.openjdk.jmh.annotations.Benchmark;
import org.openjdk.jmh.runner.Runner;
import org.openjdk.jmh.runner.RunnerException;
import org.openjdk.jmh.runner.options.Options;
import org.openjdk.jmh.runner.options.OptionsBuilder;

public class JMHSample_01_HelloWorld {

    /*
     * This is our first benchmark method.
     *
     * JMH works as follows: users annotate the methods with @Benchmark, and
     * then JMH produces the generated code to run this particular benchmark as
     * reliably as possible. In general one might think about @Benchmark methods
     * as the benchmark "payload", the things we want to measure. The
     * surrounding infrastructure is provided by the harness itself.
     *
     * Read the Javadoc for @Benchmark annotation for complete semantics and
     * restrictions. At this point we only note that the methods names are
     * non-essential, and it only matters that the methods are marked with
     * @Benchmark. You can have multiple benchmark methods within the same
     * class.
     *
     * Note: if the benchmark method never finishes, then JMH run never finishes
     * as well. If you throw an exception from the method body the JMH run ends
     * abruptly for this benchmark and JMH will run the next benchmark down the
     * list.
     *
     * Although this benchmark measures "nothing" it is a good showcase for the
     * overheads the infrastructure bear on the code you measure in the method.
     * There are no magical infrastructures which incur no overhead, and it is
     * important to know what are the infra overheads you are dealing with. You
     * might find this thought unfolded in future examples by having the
     * "baseline" measurements to compare against.
     */

    @Benchmark
    public void wellHelloThere() {
        // this method was intentionally left blank.
    }

    /*
     * ============================== HOW TO RUN THIS TEST: ====================================
     *
     * You are expected to see the run with large number of iterations, and
     * very large throughput numbers. You can see that as the estimate of the
     * harness overheads per method call. In most of our measurements, it is
     * down to several cycles per call.
     *
     * a) Via command-line:
     *    $ mvn clean install
     *    $ java -jar target/benchmarks.jar JMHSample_01
     *
     * JMH generates self-contained JARs, bundling JMH together with it.
     * The runtime options for the JMH are available with "-h":
     *    $ java -jar target/benchmarks.jar -h
     *
     * b) Via the Java API:
     *    (see the JMH homepage for possible caveats when running from IDE:
     *      http://openjdk.java.net/projects/code-tools/jmh/)
     */

    public static void main(String[] args) throws RunnerException {
        Options opt = new OptionsBuilder()
                .include(JMHSample_01_HelloWorld.class.getSimpleName())
                .forks(1)
                .build();

        new Runner(opt).run();
    }

}

测试类

@BenchmarkMode(Mode.AverageTime) //测试平均执行时间
// iterations：预热迭代次数，time每次迭代用时（原理：任务丢到线程池后，sleep指定的time，isDone = true,线程来判断isDone）
@Warmup(iterations = 1, time = 4)
//iterations：测量迭代次数，time每次迭代用时，batchSize：相当于给函数加了一个for循环（整个for循环完成的时间要>time），整个for循环算一个operation
@Measurement(iterations = 3, time = 3, batchSize = 3)
@Fork(2) //总执行两轮
@Threads(1) //线程池线程数
@OutputTimeUnit(TimeUnit.MILLISECONDS) //结果输出单位
public class JMH {

    @Benchmark
    public void testStringAdd() {

        System.out.println(TimeUtils.CurrentTimeString());
        try { Thread.sleep(1000 * 1); } catch (InterruptedException e) { e.printStackTrace(); }

    }

}

# JMH version: 1.21
# VM version: JDK 1.8.0_181, Java HotSpot(TM) 64-Bit Server VM, 25.181-b13
# VM invoker: /Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/bin/java
# VM options: -Dfile.encoding=UTF-8
# Warmup: 1 iterations, 4 s each, 3 calls per op
# Measurement: 3 iterations, 3 s each
# Timeout: 10 min per iteration
# Threads: 1 thread, will synchronize iterations
# Benchmark mode: Average time, time/op
# Benchmark: test.JMH.testStringAdd

# Run progress: 0.00% complete, ETA 00:00:26
# Fork: 1 of 2
# Warmup Iteration   1: 14-12-2019 18:33:15.233
14-12-2019 18:33:16.262
14-12-2019 18:33:17.264
14-12-2019 18:33:18.268
4041.154 ms/op
Iteration   1: 14-12-2019 18:33:19.283
14-12-2019 18:33:20.288
14-12-2019 18:33:21.289
1002.735 ms/op
Iteration   2: 14-12-2019 18:33:22.293
14-12-2019 18:33:23.296
14-12-2019 18:33:24.301
1003.472 ms/op
Iteration   3: 14-12-2019 18:33:25.305
14-12-2019 18:33:26.311
14-12-2019 18:33:27.312
1002.975 ms/op

# Run progress: 50.00% complete, ETA 00:00:13
# Fork: 2 of 2
# Warmup Iteration   1: 14-12-2019 18:33:28.694
14-12-2019 18:33:29.717
14-12-2019 18:33:30.720
14-12-2019 18:33:31.722
4036.272 ms/op
Iteration   1: 14-12-2019 18:33:32.752
14-12-2019 18:33:33.757
14-12-2019 18:33:34.763
1003.982 ms/op
Iteration   2: 14-12-2019 18:33:35.767
14-12-2019 18:33:36.770
14-12-2019 18:33:37.774
1003.988 ms/op
Iteration   3: 14-12-2019 18:33:38.780
14-12-2019 18:33:39.789
14-12-2019 18:33:40.792
1005.623 ms/op


Result "test.JMH.testStringAdd":
  1003.796 ±(99.9%) 2.891 ms/op [Average]
  (min, avg, max) = (1002.735, 1003.796, 1005.623), stdev = 1.031
  CI (99.9%): [1000.905, 1006.687] (assumes normal distribution)


# Run complete. Total time: 00:00:27

REMEMBER: The numbers below are just data. To gain reusable insights, you need to follow up on
why the numbers are the way they are. Use profilers (see -prof, -lprof), design factorial
experiments, perform baseline and negative tests that provide experimental control, make sure
the benchmarking environment is safe on JVM/OS/HW level, ask for reviews from the domain experts.
Do not assume the numbers tell you what you want them to tell.

Benchmark          Mode  Cnt     Score   Error  Units
JMH.testStringAdd  avgt    6  1003.796 ± 2.891  ms/op

Process finished with exit code 0

　　默认配置

public class SongTest {

    @Benchmark
    public void testDefault(){

    }

}

# VM version: JDK 1.8.0_181, Java HotSpot(TM) 64-Bit Server VM, 25.181-b13
# VM invoker: /Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/bin/java
# VM options: -Dfile.encoding=UTF-8
# Warmup: 5 iterations, 10 s each （默认预热迭代5次，每次10秒）
# Measurement: 5 iterations, 10 s each （默认测量迭代5次，每次10秒）
# Timeout: 10 min per iteration （每个操作的超时时间10s）
# Threads: 1 thread, will synchronize iterations（默认一个线程）
# Benchmark mode: Throughput, ops/time（默认计算吞吐量）
# Benchmark: test.SongTest.test33

易错点：

　　不要编写无用代码，对于无用的代码编译器会进行优化，测试方法避免时候用void

public class JMHUnused {

    @Benchmark
    @OutputTimeUnit(TimeUnit.MICROSECONDS)
    public void test() {
    }

    @Benchmark
    @OutputTimeUnit(TimeUnit.MICROSECONDS)
    public void test1() {
        int a = 1;
        int b = 2;
        int sum = a + b; //没有返回值，认为是无用的代码，可以使用 blackhole.consume(sum);
    }

    @Benchmark
    @OutputTimeUnit(TimeUnit.MICROSECONDS)
    public int test2() {
        int a = 1;
        int b = 2;
        int sum = a + b;
        return sum;
    }

}

1:返回测试结果，防止编译器优化
@Benchmark
public double measureRight_1() {
    return Math.log(x1) + Math.log(x2);
}

2.通过Blackhole消费中间结果，防止编译器优化
@Benchmark
public void measureRight_2(Blackhole bh) {
    bh.consume(Math.log(x1));
    bh.consume(Math.log(x2));
}

循环处理

　　编译器可能会将我们的循环进行展开或者做一些其他方面的循环优化

　　可以结合@BenchmarkMode(Mode.SingleShotTime)和@Measurement(batchSize = N)来达到同样的效果 \

　　@BenchmarkMode(Mode.SingleShotTime)：禁用warmup，只执行一次代码

　　@Measurement(batchSize = N)：循环指定的方法N次，最后当成一个operation

@State(Scope.Thread)
public class JMHSample_26_BatchSize {

    List<String> list = new LinkedList<>();

    // 每个iteration中做5000次Invocation
    @Benchmark
    @Warmup(iterations = 5, batchSize = 5000)
    @Measurement(iterations = 5, batchSize = 5000)
    @BenchmarkMode(Mode.SingleShotTime)
    public List<String> measureRight() {
        list.add(list.size() / 2, "something");
        return list;
    }

    @Setup(Level.Iteration)
    public void setup(){
        list.clear();
    }

    public static void main(String[] args) throws RunnerException {
        Options opt = new OptionsBuilder()
                .include(JMHSample_26_BatchSize.class.getSimpleName())
                .forks(1)
                .build();

        new Runner(opt).run();
    }

}

方法内联

如果JVM监测到一些小方法被频繁的执行，它会把方法的调用替换成方法体本身。比如说下面这个：

CompilerControl.Mode.DONT_INLINE：强制限制不能使用内联
CompilerControl.Mode.INLINE：强制使用内联

@State(Scope.Thread)
@BenchmarkMode(Mode.AverageTime)
@OutputTimeUnit(TimeUnit.NANOSECONDS)
public class JMHSample_16_CompilerControl {

    public void target_blank() {

    }

    @CompilerControl(CompilerControl.Mode.DONT_INLINE)
    public void target_dontInline() {

    }

    @CompilerControl(CompilerControl.Mode.INLINE)
    public void target_inline() {

    }

    @Benchmark
    public void baseline() {

    }

    @Benchmark
    public void dontinline() {
        target_dontInline();
    }

    @Benchmark
    public void inline() {
        target_inline();
    }

    public static void main(String[] args) throws RunnerException {
        Options opt = new OptionsBuilder()
                .include(JMHSample_16_CompilerControl.class.getSimpleName())
                .warmupIterations(0)
                .measurementIterations(3)
                .forks(1)
                .build();

        new Runner(opt).run();
    }
}

注解含义：

@Fork
　　表示需要测几轮，每轮都包括预热和正式测试
@Warmup
　　进行benchmark前的预热,因为JVM 的 JIT 机制会把执行频率高的函数编译成机器码，从而提高速度

　　iterations：预热的次数
　　time：每次预热的时间，
　　timeUnit：时间单位，默认是s，默认是sec。
　　batchSize：批处理大小，每次操作调用几次方法(看做一次调用)。
@Mode
　　Throughput：吞吐量，单位时间执行次数（ops/time）
　　AverageTime：平均时间，每次操作的执行时间（time/op）
　　SampleTime：随机取样，最后输出取样结果的分布
　　SingleShotTime：每次迭代只运行一次，可以测试冷启动的性能，此时会禁用warmup
　　All：所有都测一下

@Benchmark
　　表示该方法是需要进行 benchmark 的对象，用法和 JUnit 的 @Test 类似。

@State
　　State定义了一个类实例的生命周期
　　由于JMH允许多线程同时执行测试，不同的选项含义如下
　　Scope.Thread：默认的State，每个测试线程分配一个实例；
　　Scope.Benchmark：所有测试线程共享一个实例，用于测试有状态实例在多线程共享下的性能；
　　Scope.Group：每个线程组共享一个实例；
@Setup
　　方法注解，会在执行 benchmark 之前被执行，正如其名，主要用于初始化。
@TearDown
　　方法注解，与@Setup 相对的，会在所有 benchmark 执行结束以后执行，主要用于资源的回收等。

@Threads
　　每个fork进程使用多少条线程去执行你的测试方法，默认值是Runtime.getRuntime().availableProcessors()。

@Level
　　用于控制 @Setup，@TearDown 的调用时机，默认是 Level.Trial。
　　Trial：每个benchmark方法前后；
　　Iteration：每个benchmark方法每次迭代前后；
　　Invocation：每个benchmark方法每次调用前后，谨慎使用，需留意javadoc注释；

@Param
　　成员注解，可以用来指定某项参数的多种情况。特别适合用来测试一个函数在不同的参数输入的情况下的性能。
　　@Param注解接收一个String数组，
　　在@setup方法执行前转化为为对应的数据类型。多个@Param注解的成员之间是乘积关系，譬如有两个用@Param注解的字段，第一个有5个值，第二个字段有2个值，那么每个测试方法会跑5*2=10次。
