Flink:RetractStreamTableSink 自定义sink写数据到Phoenix

文章目录

目标
Sink定义
使用自定义Sink
测试

目标

两张表left join的结果更新写入Phoenix
数据样例：

(true,12,2,3,2020-06-18T00:00,2020-06-18T00:00)
(true,12,2,5,2020-06-18T00:00,2020-06-18T00:00)
(true,12,2,2,2020-06-18T00:00,2020-06-18T00:00)
(true,12,2,4,2020-06-18T00:00,2020-06-18T00:00)
(true,13,2,null,2020-06-18T00:00,null)
(false,13,2,null,2020-06-18T00:00,null)
(true,13,2,2,2020-06-18T00:00,2020-06-18T00:00)

Sink定义

由于数据Phoenix可以不考虑删除的操作，所以只用处理Boolean为ture的数据，示例如下：

class PhoenixSinkFunction<IN> extends RichSinkFunction<IN> {

    final JDBCUpsertOutputFormat outputFormat;

    PhoenixSinkFunction(JDBCUpsertOutputFormat outputFormat) {
        this.outputFormat = outputFormat;
    }

    @Override
    public void invoke(IN value) throws Exception {
    }

    @Override
    public void open(Configuration parameters) throws Exception {
        super.open(parameters);
        RuntimeContext ctx = getRuntimeContext();
        outputFormat.setRuntimeContext(ctx);
        outputFormat.open(ctx.getIndexOfThisSubtask(), ctx.getNumberOfParallelSubtasks());
    }

    @Override
    public void close() throws Exception {
        super.close();
    }

}

public class PhoenixJDBCRetractStreamTableSink implements RetractStreamTableSink<Row>, Serializable {
    private TableSchema tableSchema;
    private JDBCUpsertOutputFormat outputformat;
    public PhoenixJDBCRetractStreamTableSink(){}

    public PhoenixJDBCRetractStreamTableSink(String[] fieldNames, TypeInformation[] typeInformations, JDBCUpsertOutputFormat outputformat){
        this.tableSchema=new TableSchema(fieldNames,typeInformations);
        this.outputformat = outputformat;
    }
    //重载
    public PhoenixJDBCRetractStreamTableSink(String[] fieldNames, DataType[] dataTypes){
        this.tableSchema=TableSchema.builder().fields(fieldNames,dataTypes).build();
    }

    //Table sink must implement a table schema.
    @Override
    public TableSchema getTableSchema() {
        return tableSchema;
    }
    @Override
    public DataStreamSink<?> consumeDataStream(DataStream<Tuple2<Boolean, Row>> dataStream) {
        JDBCUpsertOutputFormat phoenixOutputformat = this.outputformat;

        return dataStream.addSink(new PhoenixSinkFunction<Tuple2<Boolean, Row>>(phoenixOutputformat) {
            @Override
            public void invoke(Tuple2<Boolean, Row> value) throws Exception {
                //自定义Sink
                // f0==true :插入新数据
                // f0==false:删除旧数据
                if(value.f0){
                    //数据写入phoenix
                    phoenixOutputformat.writeRecord(value);
                }
            }
        });
    }

    //接口定义的方法
    @Override
    public TypeInformation<Row> getRecordType() {
        return new RowTypeInfo(tableSchema.getFieldTypes(),tableSchema.getFieldNames());
    }
    //接口定义的方法
    @Override
    public TableSink<Tuple2<Boolean, Row>> configure(String[] strings, TypeInformation<?>[] typeInformations) {
        return null;
    }
    //接口定义的方法
    @Override
    public void emitDataStream(DataStream<Tuple2<Boolean, Row>> dataStream) {
    }

}

使用自定义Sink

代码示例：

package flinkDatawarehouse.entiy.join


import java.util.Properties

import org.apache.flink.api.common.typeinfo.TypeInformation
import org.apache.flink.api.java.io.jdbc.{JDBCOptions, JDBCUpsertOutputFormat}
import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment
import org.apache.flink.table.api.scala.StreamTableEnvironment
import org.apache.flink.table.api.{DataTypes, EnvironmentSettings, TableSchema, Types}
import org.apache.flink.table.descriptors.{Csv, Kafka, Schema}

/*
* 1、结果数据写到phoenix
* 2、数据源：kafka
*
*
* */
object LeftJoinTest {
  def main(args: Array[String]): Unit = {
    val senv = StreamExecutionEnvironment.getExecutionEnvironment
    val fsSettings = EnvironmentSettings.newInstance().useBlinkPlanner().inStreamingMode().build()
    val tblEnv = StreamTableEnvironment.create(senv, fsSettings)

    val properties = new Properties()
    properties.setProperty("bootstrap.servers", "bigdata-dev1:9092,bigdata-dev2:9092,bigdata-dev3:9092")
    properties.setProperty("zookeeper.connect", "bigdata-dev1:2181,bigdata-dev2:2181,bigdata-dev3:2181")


    /*
    * kafka topic:
    * action_log,action_log_detail
    *
    * 读取两张数据表:
    * action_log action_log_detail
    * */
    tblEnv.connect(
      new Kafka()
        .version("universal")
        .topic("action.log")
        .startFromEarliest()
        .property("bootstrap.servers", properties.getProperty("bootstrap.servers"))
        .property("zookeeper.connect", properties.getProperty("zookeeper.connect"))
    ).withFormat(
      new Csv()
        .deriveSchema()
        .fieldDelimiter(',')
        .lineDelimiter("\n")
        .ignoreParseErrors()
    ).withSchema(
      new Schema()
        .field("id", Types.STRING())
        .field("write_date",Types.SQL_TIMESTAMP())
        .field("name", Types.STRING())
    ).inAppendMode().registerTableSource("action_log")

    tblEnv.connect(
      new Kafka()
        .version("universal")
        .topic("action.log.detail")
        .property("bootstrap.servers", properties.getProperty("bootstrap.servers"))
        .property("zookeeper.connect", properties.getProperty("zookeeper.connect"))
    ).withFormat(
      new Csv()
        .deriveSchema()
        .fieldDelimiter(',')
        .lineDelimiter("\n")
        .ignoreParseErrors()
    ).withSchema(
      new Schema()
        .field("id", Types.STRING())
        .field("create_date", Types.SQL_TIMESTAMP())
        .field("content", Types.STRING())
    ).inAppendMode().registerTableSource("action_log_detail")


    /*
    * 1、action_log_detail left join action_log
    *
    * 2、数据延迟区间一个小时
    *
    * */
    var sqlQuery =
      """
        |SELECT id,content,name,create_date,write_date from(
        |SELECT
        |  o.id,
        |  o.content,
        |  p.name,
        |  o.create_date,
        |  p.write_date
        |FROM
        |  action_log_detail AS o LEFT JOIN action_log AS p ON o.id = p.id AND
        | p.write_date BETWEEN create_date - INTERVAL '1' HOUR AND create_date + INTERVAL '1' HOUR) a
        |""".stripMargin

	//执行sql
    val res = tblEnv.sqlQuery(sqlQuery)

	//使用phoenix sink
    val options = JDBCOptions.builder()
      .setDBUrl("jdbc:phoenix:192.168.10.16:2181:/hbase-unsecure;autocommit=true")
      .setDriverName("org.apache.phoenix.jdbc.PhoenixDriver")
      .setTableName("DWR_ACTION_LOG")
      .build

    val tableSche:TableSchema = TableSchema.builder()
      .field("id",DataTypes.STRING().notNull())
      .field("cnt",DataTypes.BIGINT()).build()


    val outputformat = JDBCUpsertOutputFormat.builder()
      .setOptions(options)
      .setFieldNames(Array[String]("id","CONTENT","NAME","CREATE_DATE","WRITE_DATE"))
      .setFieldTypes(Array[Int](java.sql.Types.VARCHAR,java.sql.Types.VARCHAR,java.sql.Types.VARCHAR,java.sql.Types.TIMESTAMP,java.sql.Types.TIMESTAMP))
      .setMaxRetryTimes(5)
      .setFlushMaxSize(1000)
      .setFlushIntervalMills(1000)
      .setKeyFields(Array[String]("id"))
      .build()

    val sink = new PhoenixJDBCRetractStreamTableSink(Array[String]("id","CONTENT","NAME","CREATE_DATE","WRITE_DATE"),
            Array[TypeInformation[_]](Types.STRING,Types.STRING,Types.STRING,Types.SQL_TIMESTAMP,Types.SQL_TIMESTAMP),outputformat)

    tblEnv.registerTableSink("LeftJoinSink",sink)
    res.insertInto("LeftJoinSink")
    senv.execute()

  }
}

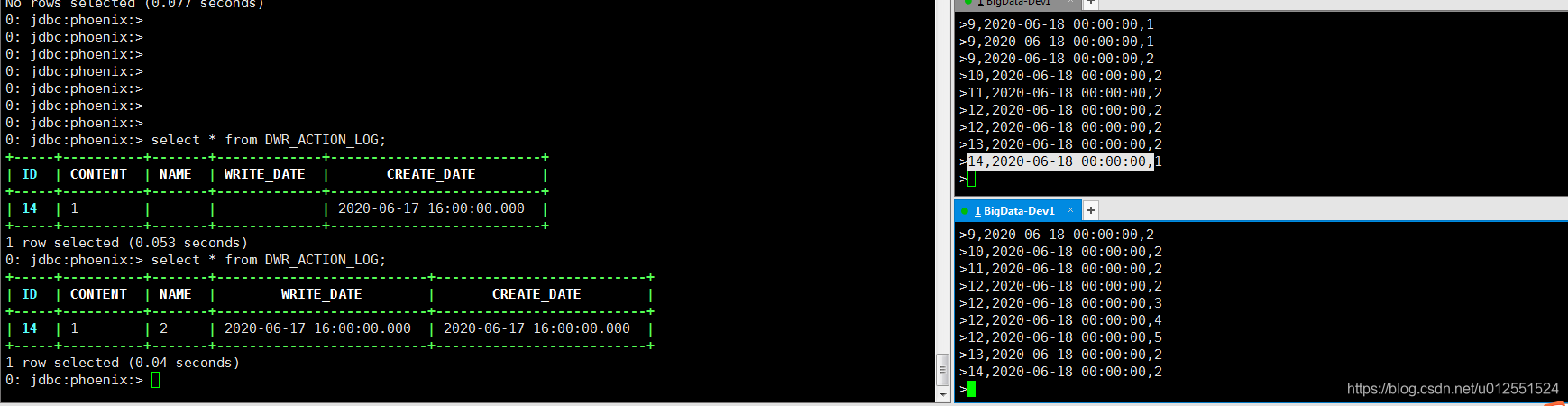

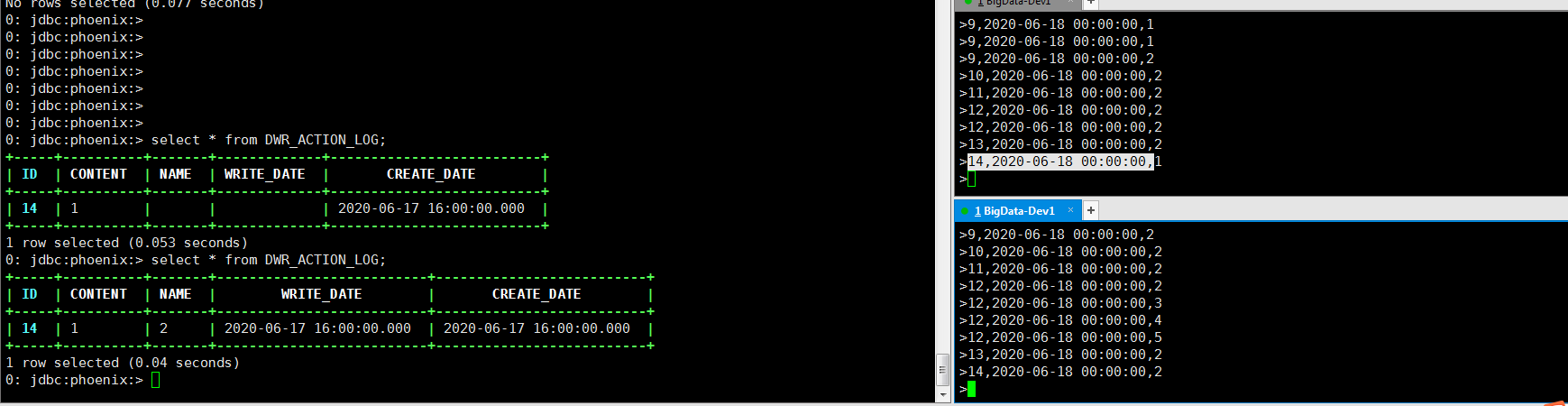

测试

在这里插入图片描述
