JavaFX初探(菜单)

本节我们介绍如何创建菜单、菜单栏、增加菜单项、为菜单分类,创建子菜单、设置菜单上下文。你可以使用下面的类来创建菜单。

  • MenuBar
  • MenuItem
    • Menu
    • CheckMenuItem
    • RadioMenuItem
    • CustomMenuItem
      • SeparatorMenuItem
  • ContextMenu

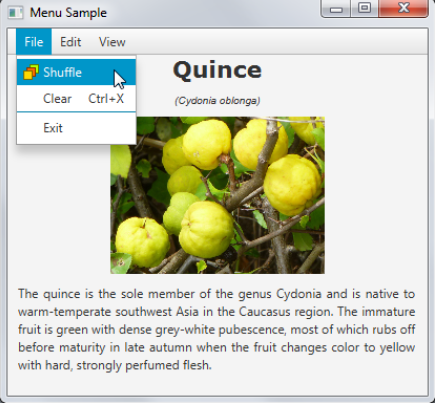

下图是一个典型的菜单的使用:
菜单实例

在应用中构建菜单

一个菜单就是一系列可操作的项目,可以根据用户的需要来表现。当一个菜单可见的时候,用户可以在某一时刻选中其中一个,在用户选中某一项时,这个菜单变成隐藏模式。通过使用菜单,我们可以节省用户界面的空间,因为有一些功能某些时间并不是总要现实出来的。
菜单在菜单栏中被分组,你需要使用下面的菜单项类,当你构建一个菜单的时候。

  • MenuItem 创建可选项
  • Menu 创建子菜单
  • RadioButtonItem 创建一个单选项
  • CheckMenuItem 这个菜单项可以在选择被无选择之间转换。

为了给菜单分类,可以使用SeparatorMenuItem 类。
菜单通常在窗口的顶部,并且这些菜单是隐藏的,我们可以通过鼠标点击上下文来打开菜单。

创建菜单栏

尽管菜单栏可以放在用户界面的任何地方,但是一般情况我们放到窗口的顶部。并且菜单栏可已自动的改变自己的大小。默认情况下,每一个菜单栏中的菜单像一个按钮一样呈现出来。
想想一个这样的一个应用,他显示植物的名称,图片,以及简单的描述信息。我们创建3个菜单项,:File,Edit,View.并给这三项添加菜单项。代码如下所示:

import java.util.AbstractMap.SimpleEntry;
import java.util.Map.Entry;
import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.control.*;
import javafx.scene.effect.DropShadow;
import javafx.scene.effect.Effect;
import javafx.scene.effect.Glow;
import javafx.scene.effect.SepiaTone;
import javafx.scene.image.Image;
import javafx.scene.image.ImageView;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class MenuSample extends Application {

    final PageData[] pages = new PageData[] {
        new PageData("Apple",
            "The apple is the pomaceous fruit of the apple tree, species Malus "
            + "domestica in the rose family (Rosaceae). It is one of the most "
            + "widely cultivated tree fruits, and the most widely known of "
            + "the many members of genus Malus that are used by humans. "
            + "The tree originated in Western Asia, where its wild ancestor, "
            + "the Alma, is still found today.",
            "Malus domestica"),
        new PageData("Hawthorn",
            "The hawthorn is a large genus of shrubs and trees in the rose "
            + "family, Rosaceae, native to temperate regions of the Northern "
            + "Hemisphere in Europe, Asia and North America. "
            + "The name hawthorn was "
            + "originally applied to the species native to northern Europe, "
            + "especially the Common Hawthorn C. monogyna, and the unmodified "
            + "name is often so used in Britain and Ireland.",
            "Crataegus monogyna"),
        new PageData("Ivy",
            "The ivy is a flowering plant in the grape family (Vitaceae) native to"
            + " eastern Asia in Japan, Korea, and northern and eastern China. "
            + "It is a deciduous woody vine growing to 30 m tall or more given "
            + "suitable support,  attaching itself by means of numerous small "
            + "branched tendrils tipped with sticky disks.",
            "Parthenocissus tricuspidata"),
        new PageData("Quince",
            "The quince is the sole member of the genus Cydonia and is native to "
            + "warm-temperate southwest Asia in the Caucasus region. The "
            + "immature fruit is green with dense grey-white pubescence, most "
            + "of which rubs off before maturity in late autumn when the fruit "
            + "changes color to yellow with hard, strongly perfumed flesh.",
            "Cydonia oblonga")
    };

    final String[] viewOptions = new String[] {
        "Title",
        "Binomial name",
        "Picture",
        "Description"
    };

    final Entry<String, Effect>[] effects = new Entry[] {
        new SimpleEntry<>("Sepia Tone", new SepiaTone()),
        new SimpleEntry<>("Glow", new Glow()),
        new SimpleEntry<>("Shadow", new DropShadow())
    };

    final ImageView pic = new ImageView();
    final Label name = new Label();
    final Label binName = new Label();
    final Label description = new Label();

    public static void main(String[] args) {
        launch(args);
    }

    @Override
    public void start(Stage stage) {
        stage.setTitle("Menu Sample");
        Scene scene = new Scene(new VBox(), 400, 350);

        MenuBar menuBar = new MenuBar();

        // --- Menu File
        Menu menuFile = new Menu("File");

        // --- Menu Edit
        Menu menuEdit = new Menu("Edit");

        // --- Menu View
        Menu menuView = new Menu("View");

        menuBar.getMenus().addAll(menuFile, menuEdit, menuView);


        ((VBox) scene.getRoot()).getChildren().addAll(menuBar);

        stage.setScene(scene);
        stage.show();
    }


    private class PageData {
        public String name;
        public String description;
        public String binNames;
        public Image image;
        public PageData(String name, String description, String binNames) {
            this.name = name;
            this.description = description;
            this.binNames = binNames;
            image = new Image(getClass().getResourceAsStream(name + ".jpg"));
        }
    }
}
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112

和其他的UI控件不同,Menu类和其他的扩展MenuItem的类都不是扩展自Node类。所以他们不能直接添加到场景中,需要先添加到MenuBar中然后在添加到场景中。运行如下图所示:
这里写图片描述
你可以使用键盘的方向键来浏览菜单,然而当你选中一个菜单的时候,什么都没有发生,那是因为我们还没有指定行为。

添加菜单项

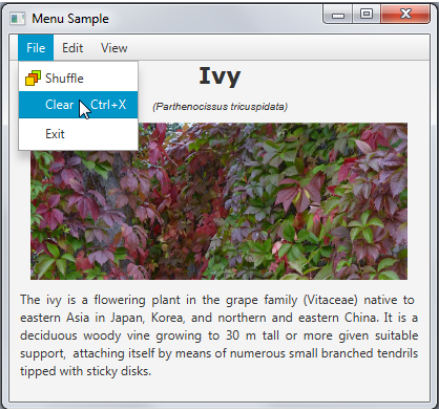

为文件菜单添加功能。

  • Shuffle 加载植物的参考信息
  • Clear 删除参考信息并清空场景
  • Separator 分离菜单项
  • Exit 退出应用

使用MenuItem创建了一个Shuffle菜单,并添加了一个图片组件。我们可以为MenuItem指定文本和图片。我们可以通过setAction方法来指定该菜单被点击时候的事件,这个Button是一样的。代码如下:

import java.util.AbstractMap.SimpleEntry;
import java.util.Map.Entry;
import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.*;
import javafx.scene.effect.DropShadow;
import javafx.scene.effect.Effect;
import javafx.scene.effect.Glow;
import javafx.scene.effect.SepiaTone;
import javafx.scene.image.Image;
import javafx.scene.image.ImageView;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;
import javafx.scene.text.Font;
import javafx.scene.text.TextAlignment;
import javafx.stage.Stage;

public class MenuSample extends Application {

    final PageData[] pages = new PageData[] {
        new PageData("Apple",
            "The apple is the pomaceous fruit of the apple tree, species Malus "
            +"domestica in the rose family (Rosaceae). It is one of the most "
            +"widely cultivated tree fruits, and the most widely known of "
            +"the many members of genus Malus that are used by humans. "
            +"The tree originated in Western Asia, where its wild ancestor, "
            +"the Alma, is still found today.",
            "Malus domestica"),
        new PageData("Hawthorn",
            "The hawthorn is a large genus of shrubs and trees in the rose "
            + "family, Rosaceae, native to temperate regions of the Northern "
            + "Hemisphere in Europe, Asia and North America. "
            + "The name hawthorn was "
            + "originally applied to the species native to northern Europe, "
            + "especially the Common Hawthorn C. monogyna, and the unmodified "
            + "name is often so used in Britain and Ireland.",
            "Crataegus monogyna"),
        new PageData("Ivy",
            "The ivy is a flowering plant in the grape family (Vitaceae) native"
            +" to eastern Asia in Japan, Korea, and northern and eastern China."
            +" It is a deciduous woody vine growing to 30 m tall or more given "
            +"suitable support,  attaching itself by means of numerous small "
            +"branched tendrils tipped with sticky disks.",
            "Parthenocissus tricuspidata"),
        new PageData("Quince",
            "The quince is the sole member of the genus Cydonia and is native"
            +" to warm-temperate southwest Asia in the Caucasus region. The "
            +"immature fruit is green with dense grey-white pubescence, most "
            +"of which rubs off before maturity in late autumn when the fruit "
            +"changes color to yellow with hard, strongly perfumed flesh.",
            "Cydonia oblonga")
    };

    final String[] viewOptions = new String[] {
        "Title",
        "Binomial name",
        "Picture",
        "Description"
    };

    final Entry<String, Effect>[] effects = new Entry[] {
        new SimpleEntry<>("Sepia Tone", new SepiaTone()),
        new SimpleEntry<>("Glow", new Glow()),
        new SimpleEntry<>("Shadow", new DropShadow())
    };

    final ImageView pic = new ImageView();
    final Label name = new Label();
    final Label binName = new Label();
    final Label description = new Label();
    private int currentIndex = -1;

    public static void main(String[] args) {
        launch(args);
    }

    @Override
    public void start(Stage stage) {
        stage.setTitle("Menu Sample");
        Scene scene = new Scene(new VBox(), 400, 350);
        scene.setFill(Color.OLDLACE);

        name.setFont(new Font("Verdana Bold", 22));
        binName.setFont(new Font("Arial Italic", 10));
        pic.setFitHeight(150);
        pic.setPreserveRatio(true);
        description.setWrapText(true);
        description.setTextAlignment(TextAlignment.JUSTIFY);

        shuffle();

        MenuBar menuBar = new MenuBar();

        final VBox vbox = new VBox();
        vbox.setAlignment(Pos.CENTER);
        vbox.setSpacing(10);
        vbox.setPadding(new Insets(0, 10, 0, 10));
        vbox.getChildren().addAll(name, binName, pic, description);

        // --- Menu File
        Menu menuFile = new Menu("File");
        MenuItem add = new MenuItem("Shuffle",
            new ImageView(new Image("menusample/new.png")));
        add.setOnAction((ActionEvent t) -> {
            shuffle();
            vbox.setVisible(true);
        });

        menuFile.getItems().addAll(add);

        // --- Menu Edit
        Menu menuEdit = new Menu("Edit");

        // --- Menu View
        Menu menuView = new Menu("View");

        menuBar.getMenus().addAll(menuFile, menuEdit, menuView);
        ((VBox) scene.getRoot()).getChildren().addAll(menuBar, vbox);
        stage.setScene(scene);
        stage.show();
    }

    private void shuffle() {
        int i = currentIndex;
        while (i == currentIndex) {
            i = (int) (Math.random() * pages.length);
        }
        pic.setImage(pages[i].image);
        name.setText(pages[i].name);
        binName.setText("(" + pages[i].binNames + ")");
        description.setText(pages[i].description);
        currentIndex = i;
    }


    private class PageData {
        public String name;
        public String description;
        public String binNames;
        public Image image;
        public PageData(String name, String description, String binNames) {
            this.name = name;
            this.description = description;
            this.binNames = binNames;
            image = new Image(getClass().getResourceAsStream(name + ".jpg"));
        }
    }
}
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152

当用户选择Shuffle菜单的时候,会就调用我们指定的setOnAction方法,显示出植物的名字、图片和简单描述。
Clear菜单用来抹除场景中的内容。我们可以使用下面的方法:

MenuItem clear = new MenuItem("Clear");
clear.setAccelerator(KeyCombination.keyCombination("Ctrl+X"));
clear.setOnAction((ActionEvent t) -> {
    vbox.setVisible(false);
});
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6

Exit菜单实现如下:

MenuItem exit = new MenuItem("Exit");
exit.setOnAction((ActionEvent t) -> {
    System.exit(0);
});
  • 1
  • 2
  • 3
  • 4
  • 5

我们使用getItems方法来添加这些菜单项,如下:

menuFile.getItems().addAll(add, clear, new SeparatorMenuItem(), exit);
  • 1
  • 2

编译运行应用,如下图所示:
这里写图片描述
View菜单可以来用指定,显示植物的部分信息,

// --- Creating four check menu items within the start method
CheckMenuItem titleView = createMenuItem ("Title", name);
CheckMenuItem binNameView = createMenuItem ("Binomial name", binName);
CheckMenuItem picView = createMenuItem ("Picture", pic);
CheckMenuItem descriptionView = createMenuItem ("Description", description);
menuView.getItems().addAll(titleView, binNameView, picView, descriptionView);

...

// The createMenuItem method
private static CheckMenuItem createMenuItem (String title, final Node node){
    CheckMenuItem cmi = new CheckMenuItem(title);
    cmi.setSelected(true);
    cmi.selectedProperty().addListener(
        (ObservableValue<? extends Boolean> ov, Boolean old_val,
        Boolean new_val) -> {
            node.setVisible(new_val);
    });
    return cmi;
}
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21

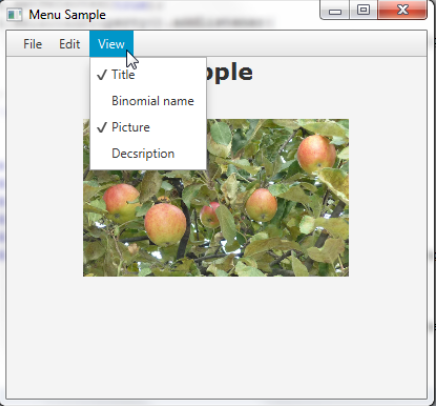

CheckMenuItem 是MenuItem类的扩展,他可以选中和非选中,如果被选中了,会显示出一个标记。编译运行如下图所示:
这里写图片描述

创建子菜单

Edit菜单中定义了两个菜单项:图片效果和无效果。图片效果菜单项有子菜单项。
使用RadioMenuItem 来创建子菜单,代码如下:

//Picture Effect menu
Menu menuEffect = new Menu("Picture Effect");
final ToggleGroup groupEffect = new ToggleGroup();
for (Entry<String, Effect> effect : effects) {
    RadioMenuItem itemEffect = new RadioMenuItem(effect.getKey());
    itemEffect.setUserData(effect.getValue());
    itemEffect.setToggleGroup(groupEffect);
    menuEffect.getItems().add(itemEffect);
}
//No Effects menu
final MenuItem noEffects = new MenuItem("No Effects");

noEffects.setOnAction((ActionEvent t) -> {
    pic.setEffect(null);
    groupEffect.getSelectedToggle().setSelected(false);
});

//Processing menu item selection
groupEffect.selectedToggleProperty().addListener(new ChangeListener<Toggle>() {
    public void changed(ObservableValue<? extends Toggle> ov,
        Toggle old_toggle, Toggle new_toggle) {
            if (groupEffect.getSelectedToggle() != null) {
                Effect effect =
                    (Effect) groupEffect.getSelectedToggle().getUserData();
                pic.setEffect(effect);
            }
        }
 });
groupEffect.selectedToggleProperty().addListener(
    (ObservableValue<? extends Toggle> ov, Toggle old_toggle,
    Toggle new_toggle) -> {
        if (groupEffect.getSelectedToggle() != null) {
             Effect effect =
                 (Effect) groupEffect.getSelectedToggle().getUserData();
             pic.setEffect(effect);
        }
});

//Adding items to the Edit menu
menuEdit.getItems().addAll(menuEffect, noEffects);
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41

如下所示:
这里写图片描述
我们可以使用setDisable来禁用某一个菜单。

Menu menuEffect = new Menu("Picture Effect");
final ToggleGroup groupEffect = new ToggleGroup();
for (Entry<String, Effect> effect : effects) {
     RadioMenuItem itemEffect = new RadioMenuItem(effect.getKey());
     itemEffect.setUserData(effect.getValue());
     itemEffect.setToggleGroup(groupEffect);
     menuEffect.getItems().add(itemEffect);
}
final MenuItem noEffects = new MenuItem("No Effects");
noEffects.setDisable(true);
noEffects.setOnAction((ActionEvent t) -> {
    pic.setEffect(null);
    groupEffect.getSelectedToggle().setSelected(false);
    noEffects.setDisable(true);
});

groupEffect.selectedToggleProperty().addListener(
    (ObservableValue<? extends Toggle> ov, Toggle old_toggle,
    Toggle new_toggle) -> {
        if (groupEffect.getSelectedToggle() != null) {
            Effect effect =
                (Effect) groupEffect.getSelectedToggle().getUserData();
            pic.setEffect(effect);
            noEffects.setDisable(false);
        } else {
                noEffects.setDisable(true);
            }
});

menuEdit.getItems().addAll(menuEffect, noEffects);
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31

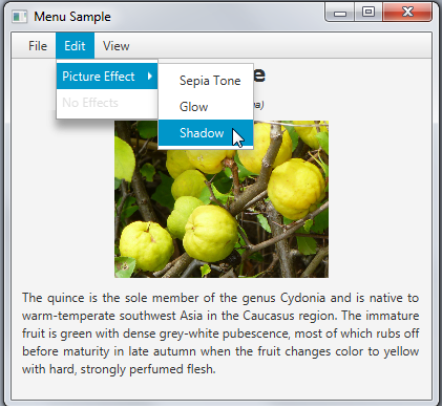

这里写图片描述

添加上下文菜单

如果你的界面中没有为菜单的控件,那么你可以使用上下文菜单。当点击鼠标的时候,弹出上下文菜单。

final ContextMenu cm = new ContextMenu();
MenuItem cmItem1 = new MenuItem("Copy Image");
cmItem1.setOnAction((ActionEvent e) -> {
    Clipboard clipboard = Clipboard.getSystemClipboard();
    ClipboardContent content = new ClipboardContent();
    content.putImage(pic.getImage());
    clipboard.setContent(content);
});

cm.getItems().add(cmItem1);
pic.addEventHandler(MouseEvent.MOUSE_CLICKED, (MouseEvent e) -> {
    if (e.getButton() == MouseButton.SECONDARY)
       cm.show(pic, e.getScreenX(), e.getScreenY());
});
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15

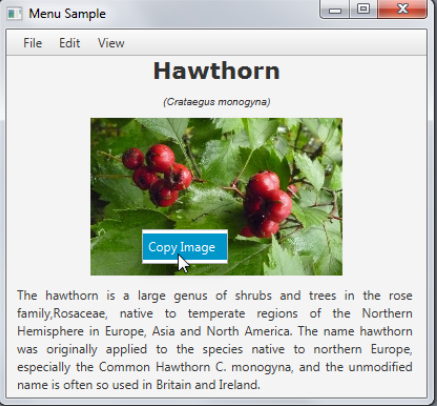

这里写图片描述

易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
