.net core下，Ocelot网关与Spring Cloud Gateway网关的对比测试

有感于 myzony 发布的针对 Ocelot 网关的性能测试，并且公司下一步也需要对.net和java的应用做一定的整合，于是对Ocelot网关、Spring Cloud Gateway网关做个了对比测试，使用了wrk进行测试

.net core + Spring Cloud Gateway 是使用 steeltoe 工具接入注册中心Spring Cloud Eureka，共Spring Cloud Gateway调用

应用服务器环境 windows server 2008 .net core 2.2 java 1.8

172.16.1.65 部署 Ocelot的.net core接口-6002、Spring Cloud Gateway的spring boot接口-9004、Spring Cloud Gateway的.net core接口-9001

172.16.1.68 部署 Ocelot的.net core接口-6004、Spring Cloud Gateway的spring boot接口-9004、Spring Cloud Gateway的.net core接口-9001

172.16.1.120 部署 Ocelot网关-6000、Spring Cloud Eureka注册中心-7000 + Spring Cloud Gateway网关-8000

测试工具 wrk 参数统一为 -t 50 -c 10000 -d 60s --latency --timeout 3s

测试服务器环境 centos 7.5 172.16.1.144，并根据 wrk的报错修改了最大打开文件数限制

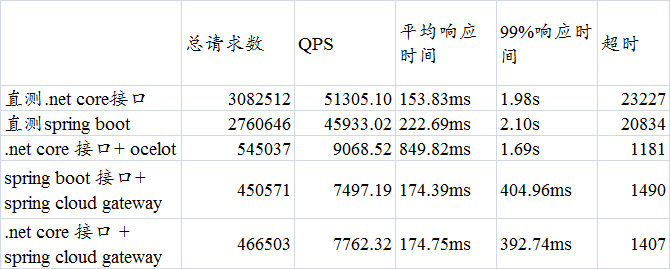

测试结果汇总如下图

可以看出Ocelot的总请求数、QPS比Gateway高不少，而且超时数也少，但是平均响应时间要比Gateway高不少。

总体上来说，两者基本上处于同一水平，对于一般的企业业务系统足够了，因为上面的测试的都没有涉及业务处理，系统瓶颈不应该是在网关。

考虑我们公司的实际情况，倾向使用 .net core+spring cloud gateway，这样大家各自做各自的，只需要做好接入就好了。

测试结果明细

1. 直测.net core接口  QPS: 51305.10

wrk -t 50 -c 10000 -d 60s --latency --timeout 3s http://172.16.1.65:9001/user/get
  50 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   153.83ms  390.10ms   3.00s    90.15%
    Req/Sec     1.04k   495.03    28.76k    78.30%
  Latency Distribution
     50%    4.64ms
     75%    5.33ms
     90%  534.34ms
     99%    1.98s
  3082512 requests in 1.00m, 440.96MB read
  Socket errors: connect 0, read 4777, write 4800, timeout 23227
Requests/sec:  51305.10
Transfer/sec:      7.34MB

　2. 直测spring boot 接口 QPS: 45933.02

wrk -t 50 -c 10000 -d 60s --latency --timeout 3s http://172.16.1.65:9004/user/get
  50 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   222.69ms  439.08ms   3.00s    87.63%
    Req/Sec     0.93k   320.20     4.28k    69.47%
  Latency Distribution
     50%    6.25ms
     75%  306.19ms
     90%  776.66ms
     99%    2.10s
  2760646 requests in 1.00m, 342.67MB read
  Socket errors: connect 0, read 2169, write 5481, timeout 20834
Requests/sec:  45933.02
Transfer/sec:      5.70MB

3. .net core 接口(65:6002、68:6004) + ocelot QPS:9068.52

wrk -t 50 -c 10000 -d 60s --latency --timeout 3s http://172.16.1.120:6000/api/values/
  50 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   849.82ms  287.67ms   3.00s    74.12%
    Req/Sec   190.05    119.66     5.26k    67.26%
  Latency Distribution
     50%  840.16ms
     75%  999.96ms
     90%    1.18s
     99%    1.69s
  545037 requests in 1.00m, 90.96MB read
  Socket errors: connect 0, read 11, write 2905, timeout 1181
  Non-2xx or 3xx responses: 3
Requests/sec:   9068.52
Transfer/sec:      1.51MB

4. spring boot 接口(65:9004、68:9004) + spring cloud gateway QPS：7497.19

wrk -t 50 -c 10000 -d 60s --latency --timeout 3s http://172.16.1.120:8000/user-service/user/get
  50 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   174.39ms   96.40ms   2.98s    68.88%
    Req/Sec   220.62    288.26     4.25k    92.94%
  Latency Distribution
     50%  163.92ms
     75%  236.53ms
     90%  297.77ms
     99%  404.96ms
  450571 requests in 1.00m, 56.72MB read
  Socket errors: connect 0, read 0, write 279597, timeout 1490
Requests/sec:   7497.19
Transfer/sec:      0.94MB

5. .net core 接口(65:9001、68:9001) + spring cloud gateway QPS：7762.32

wrk -t 50 -c 10000 -d 60s --latency --timeout 3s http://172.16.1.120:8000/user-service/user/get
  50 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   174.75ms   85.90ms   2.98s    74.25%
    Req/Sec   211.85    244.15     2.78k    93.53%
  Latency Distribution
     50%  165.13ms
     75%  220.84ms
     90%  276.64ms
     99%  392.74ms
  466503 requests in 1.00m, 66.73MB read
  Socket errors: connect 0, read 0, write 250560, timeout 1407
Requests/sec:   7762.32
Transfer/sec:      1.11MB

.net core 所有应用，在Startup中关闭日志

public void ConfigureServices(IServiceCollection services)
        {
            services.AddLogging(op => op.ClearProviders());
            services.AddMvc().SetCompatibilityVersion(CompatibilityVersion.Version_2_1);
        }

Ocelot 网关，在Startup中关闭日志，注释掉mvc的注入和使用

public void ConfigureServices(IServiceCollection services)
        {
            services.AddLogging(op => op.ClearProviders());
            services.AddOcelot(Configuration);

            //services.AddMvc().SetCompatibilityVersion(CompatibilityVersion.Version_2_2);
        }

        // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
        public void Configure(IApplicationBuilder app, IHostingEnvironment env)
        {
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }
            app.UseOcelot().Wait();

            //app.UseMvc(routes => {
            //    routes.MapRoute(
            //        name: "default",
            //        template: "{controller=Home}/{action=Index}/{id?}");
            //});

        }

来源：oschina

链接：https://my.oschina.net/u/4294668/blog/3630411
