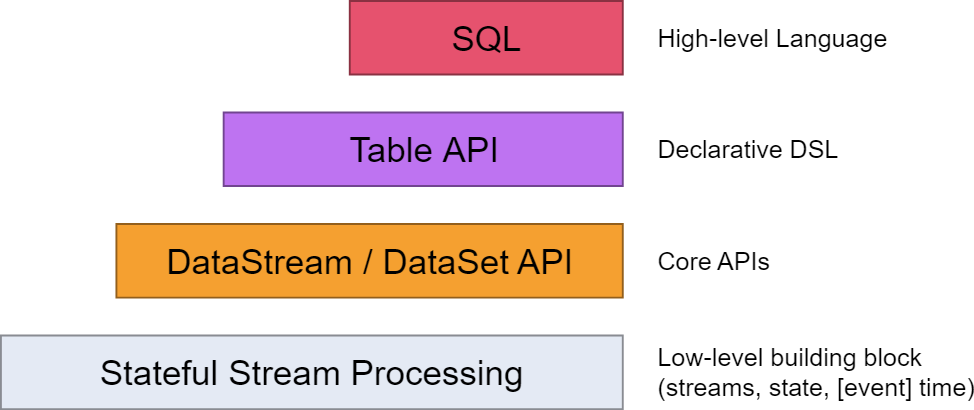

从flink的官方文档，我们知道flink的编程模型分为四层，sql层是最高层的api，Table api是中间层，DataStream/DataSet Api 是核心，stateful Streaming process层是底层实现。
其中，
flink dataset api使用及原理 介绍了DataSet Api
flink DataStream API使用及原理介绍了DataStream Api
flink中的时间戳如何使用？---Watermark使用及原理 介绍了底层实现的基础Watermark
flink window实例分析 介绍了window的概念及使用原理
Flink中的状态与容错 介绍了State的概念及checkpoint，savepoint的容错机制
上上篇<使用flink Table &Sql api来构建批量和流式应用(1)Table的基本概念>介绍了Table的基本概念及使用方法
上篇<使用flink Table &Sql api来构建批量和流式应用(2)Table API概述>
本篇主要看看Flink Sql 有哪些功能及背后的原理
1. sql功能
体现在org.apache.flink.table.api.TableEnvironment，目前flink仅支持select和insert操作
(1) select
/**
* Evaluates a SQL query on registered tables and retrieves the result as a {@link Table}.
*
* <p>All tables referenced by the query must be registered in the TableEnvironment.
* A {@link Table} is automatically registered when its {@link Table#toString()} method is
* called, for example when it is embedded into a String.
* Hence, SQL queries can directly reference a {@link Table} as follows:
*
* <pre>
* {@code
* Table table = ...;
* String tableName = table.toString();
* // the table is not registered to the table environment
* tEnv.sqlQuery("SELECT * FROM tableName");
* }
* </pre>
*
* @param query The SQL query to evaluate.
* @return The result of the query as Table
*/
Table sqlQuery(String query);(2) update（当前仅支持insert）
/**
* Evaluates a SQL statement such as INSERT, UPDATE or DELETE; or a DDL statement;
* NOTE: Currently only SQL INSERT statements are supported.
*
* <p>All tables referenced by the query must be registered in the TableEnvironment.
* A {@link Table} is automatically registered when its {@link Table#toString()} method is
* called, for example when it is embedded into a String.
* Hence, SQL queries can directly reference a {@link Table} as follows:
*
* <pre>
* {@code
* // register the configured table sink into which the result is inserted.
* tEnv.registerTableSink("sinkTable", configuredSink);
* Table sourceTable = ...
* String tableName = sourceTable.toString();
* // sourceTable is not registered to the table environment
* tEnv.sqlUpdate(s"INSERT INTO sinkTable SELECT * FROM tableName");
* }
* </pre>
*
* @param stmt The SQL statement to evaluate.
*/
void sqlUpdate(String stmt);
/**
* Evaluates a SQL statement such as INSERT, UPDATE or DELETE; or a DDL statement;
* NOTE: Currently only SQL INSERT statements are supported.
*
* <p>All tables referenced by the query must be registered in the TableEnvironment.
* A {@link Table} is automatically registered when its {@link Table#toString()} method is
* called, for example when it is embedded into a String.
* Hence, SQL queries can directly reference a {@link Table} as follows:
*
* <pre>
* {@code
* // register the configured table sink into which the result is inserted.
* tEnv.registerTableSink("sinkTable", configuredSink);
* Table sourceTable = ...
* String tableName = sourceTable.toString();
* // sourceTable is not registered to the table environment
* tEnv.sqlUpdate(s"INSERT INTO sinkTable SELECT * FROM tableName", config);
* }
* </pre>
*
* @param stmt The SQL statement to evaluate.
* @param config The {@link QueryConfig} to use.
*/
void sqlUpdate(String stmt, QueryConfig config);2. sql解析原理
Apache Calcite面向Hadoop新的sql引擎，它提供了标准的SQL语言、多种查询优化和连接各种数据源的能力。除此之外，Calcite还提供了OLAP和流处理的查询引擎。它2013年成为了Apache孵化项目以来，在Hadoop中越来越引人注目，并被众多项目集成。比如Flink/Storm/Drill/Phoenix都依赖它做sql解析和优化。
先从demo跑起来，看看sql 解析都经历了什么工程？
(1) select
package org.apache.flink.table.examples.java;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.java.StreamTableEnvironment;
import java.util.Arrays;
/**
* Simple example for demonstrating the use of SQL on a Stream Table in Java.
*
* <p>This example shows how to:
* - Convert DataStreams to Tables
* - Register a Table under a name
* - Run a StreamSQL query on the registered Table
*
*/
public class StreamSQLExample {
// *************************************************************************
// PROGRAM
// *************************************************************************
public static void main(String[] args) throws Exception {
// set up execution environment
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
StreamTableEnvironment tEnv = StreamTableEnvironment.create(env);
DataStream<Order> orderA = env.fromCollection(Arrays.asList(
new Order(1L, "beer", 3),
new Order(1L, "diaper", 4),
new Order(3L, "rubber", 2)));
DataStream<Order> orderB = env.fromCollection(Arrays.asList(
new Order(2L, "pen", 3),
new Order(2L, "rubber", 3),
new Order(4L, "beer", 1)));
// convert DataStream to Table
Table tableA = tEnv.fromDataStream(orderA, "user, product, amount");
// register DataStream as Table
tEnv.registerDataStream("OrderB", orderB, "user, product, amount");
// union the two tables
Table result = tEnv.sqlQuery("SELECT * FROM " + tableA + " WHERE amount > 2 UNION ALL " +
"SELECT * FROM OrderB WHERE amount < 2");
tEnv.toAppendStream(result, Order.class).print();
env.execute();
}
// *************************************************************************
// USER DATA TYPES
// *************************************************************************
/**
* Simple POJO.
*/
public static class Order {
public Long user;
public String product;
public int amount;
public Order() {
}
public Order(Long user, String product, int amount) {
this.user = user;
this.product = product;
this.amount = amount;
}
@Override
public String toString() {
return "Order{" +
"user=" + user +
", product='" + product + '\'' +
", amount=" + amount +
'}';
}
}
}实现代码如下
override def sqlQuery(query: String): Table = {
val planner = getFlinkPlanner
// parse the sql query
val parsed = planner.parse(query)
if (null != parsed && parsed.getKind.belongsTo(SqlKind.QUERY)) {
// validate the sql query
val validated = planner.validate(parsed)
// transform to a relational tree
val relational = planner.rel(validated)
new TableImpl(this, new PlannerQueryOperation(relational.rel))
} else {
throw new TableException(
"Unsupported SQL query! sqlQuery() only accepts SQL queries of type " +
"SELECT, UNION, INTERSECT, EXCEPT, VALUES, and ORDER_BY.")
}
}>>parse the sql query
在calcite中用SqlNode表示
public SqlSelect(SqlParserPos pos,
SqlNodeList keywordList,
SqlNodeList selectList,
SqlNode from,
SqlNode where,
SqlNodeList groupBy,
SqlNode having,
SqlNodeList windowDecls,
SqlNodeList orderBy,
SqlNode offset,
SqlNode fetch) {
super(pos);
this.keywordList = Objects.requireNonNull(keywordList != null
? keywordList : new SqlNodeList(pos));
this.selectList = selectList;
this.from = from;
this.where = where;
this.groupBy = groupBy;
this.having = having;
this.windowDecls = Objects.requireNonNull(windowDecls != null
? windowDecls : new SqlNodeList(pos));
this.orderBy = orderBy;
this.offset = offset;
this.fetch = fetch;
}>>validate the sql query
SqlValidatorImpl验证sqlNode
public SqlNode validate(SqlNode topNode) {
SqlValidatorScope scope = new EmptyScope(this);
scope = new CatalogScope(scope, ImmutableList.of("CATALOG"));
final SqlNode topNode2 = validateScopedExpression(topNode, scope);
final RelDataType type = getValidatedNodeType(topNode2);
Util.discard(type);
return topNode2;
}>>transform to a relational tree
SqlToRelConverter.java
/**
* Converts an unvalidated query's parse tree into a relational expression.
*
* @param query Query to convert
* @param needsValidation Whether to validate the query before converting;
* <code>false</code> if the query has already been
* validated.
* @param top Whether the query is top-level, say if its result
* will become a JDBC result set; <code>false</code> if
* the query will be part of a view.
*/
public RelRoot convertQuery(
SqlNode query,
final boolean needsValidation,
final boolean top) {
if (needsValidation) {
query = validator.validate(query);
}
RelMetadataQuery.THREAD_PROVIDERS.set(
JaninoRelMetadataProvider.of(cluster.getMetadataProvider()));
RelNode result = convertQueryRecursive(query, top, null).rel;
if (top) {
if (isStream(query)) {
result = new LogicalDelta(cluster, result.getTraitSet(), result);
}
}
RelCollation collation = RelCollations.EMPTY;
if (!query.isA(SqlKind.DML)) {
if (isOrdered(query)) {
collation = requiredCollation(result);
}
}
checkConvertedType(query, result);
if (SQL2REL_LOGGER.isDebugEnabled()) {
SQL2REL_LOGGER.debug(
RelOptUtil.dumpPlan("Plan after converting SqlNode to RelNode",
result, SqlExplainFormat.TEXT,
SqlExplainLevel.EXPPLAN_ATTRIBUTES));
}
final RelDataType validatedRowType = validator.getValidatedNodeType(query);
return RelRoot.of(result, validatedRowType, query.getKind())
.withCollation(collation);
}
(2)update
代码实现
override def sqlUpdate(stmt: String): Unit = {
sqlUpdate(stmt, this.queryConfig)
}
override def sqlUpdate(stmt: String, config: QueryConfig): Unit = {
val planner = getFlinkPlanner
// parse the sql query
val parsed = planner.parse(stmt)
parsed match {
case insert: SqlInsert =>
// validate the SQL query
val query = insert.getSource
val validatedQuery = planner.validate(query)
// get query result as Table
val queryResult = new TableImpl(this,
new PlannerQueryOperation(planner.rel(validatedQuery).rel))
// get name of sink table
val targetTablePath = insert.getTargetTable.asInstanceOf[SqlIdentifier].names
// insert query result into sink table
insertInto(queryResult, config, targetTablePath.asScala:_*)
case _ =>
throw new TableException(
"Unsupported SQL query! sqlUpdate() only accepts SQL statements of type INSERT.")
}
}步骤类似，不再赘述。
3. 总结
Flink Table API&SQL 为流式数据和静态数据的关系查询保留统一的接口，而且利用了Calcite的查询优化框架和SQL parser。该设计是基于Flink已构建好的API构建的，DataStream API 提供低延时高吞吐的流处理能力而且就有exactly-once语义而且可以基于event-time进行处理。而且DataSet拥有稳定高效的内存算子和流水线式的数据交换。Flink的core API和引擎的所有改进都会自动应用到Table API和SQL上。
