采样：利用纹理坐标取得纹理颜色
采样器： 片段着色器也应该能访问纹理对象，但是怎样能把纹理对象传给片段着色器呢？GLSL有一个供纹理对象使用的内建数据类型，叫做采样器(Sampler)，它以纹理类型作为后缀，比如
sampler1D、sampler3D，或sampler2D。可以简单声明一个uniform sampler2D把一个纹理添加到片段着色器中，稍后把纹理赋值给这个uniform。 OpenGL至少保证有16个纹理单元供你使用，也就是说你可以激活从GL_TEXTURE0到GL_TEXTRUE15。它们都是按顺序定义的，所以也可以通过GL_TEXTURE0 + 8的方式获得GL_TEXTURE8，这在当我们需要循环一些纹理单元的时候会很有用。
#version 330 core
out vec4 FragColor;
in vec3 ourColor;
in vec2 TexCoord;
uniform float mixValue;
// 采样器：解决了如何将纹理对象传给片段着色器
//纹理单元·
uniform sampler2D texture1;
//这个片段着色器的输出就是纹理的（插值）纹理坐标上的(过滤后的)颜色。
void main()
{
FragColor = texture(texture1, TexCoord) * vec4(ourColor, 1.0f);
}
纹理单元 ：一个片段着色器中可以有多个纹理，一个纹理的位置值通常称为纹理单元，只有一个纹理的默认纹理单元为0，默认是激活的纹理单元，多个时要先激活纹理单元， 激活纹理单元之后，接下来的glBindTexture函数调用会绑定这个纹理到当前激活的纹理单元，在绑定时，会自动把纹理赋值给片段着色器顶点采样器，纹理单元GL_TEXTURE0默认总是被激活 。
片段着色器程序：
#version 330 core
out vec4 FragColor;
in vec3 ourColor;
in vec2 TexCoord;
uniform float mixValue;
// 采样器：解决了如何将纹理对象传给片段着色器
//纹理单元·
uniform sampler2D texture1;
uniform sampler2D texture2;
//这个片段着色器的输出就是纹理的（插值）纹理坐标上的(过滤后的)颜色。
void main()
{
FragColor = mix(texture(texture1, TexCoord), texture(texture2, vec2(1.0 - TexCoord.x, TexCoord.y)), mixValue);
}激活纹理程序：
glActiveTexture(GL_TEXTURE0);
//会绑定这个纹理到当前激活的纹理单元，于是就将纹理和纹理单元联系在一起了
glBindTexture(GL_TEXTURE_2D, texture1);
glActiveTexture(GL_TEXTURE1);
glBindTexture(GL_TEXTURE_2D, texture2);
图片和纹理坐标系：

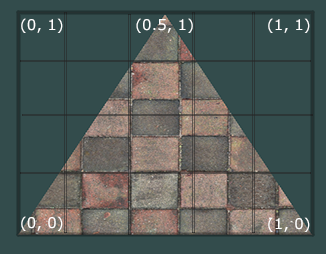

纹理坐标：在x和y轴上，范围为0到1之间（注意我们使用的是2D纹理图像）。使用纹理坐标获取纹理颜色叫做采样(Sampling)。
纹理坐标起始于(0, 0)，也就是纹理图片的左下角，终始于(1, 1)，即纹理图片的右上角。

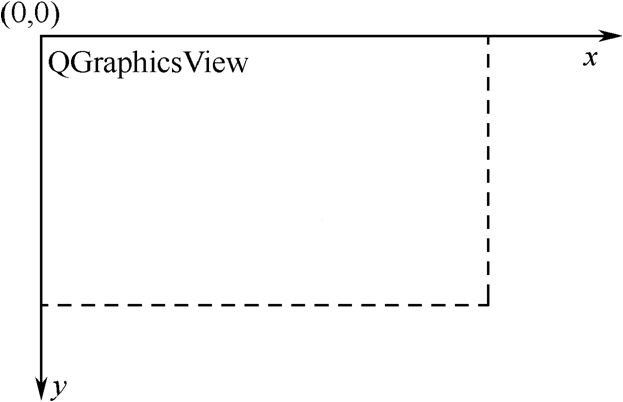

图片坐标：在OpenGL要求y轴
0.0坐标是在图片的底部的，但是图片的y轴0.0坐标通常在顶部。stb_image.h能够在图像加载时帮助我们翻转y轴，只需要在加载任何图像前加入以下语句即可：stbi_set_flip_vertically_on_load(true);
也可以通过在顶点着色器中，将纹理坐标的y轴处理：TexCoord = vec2(aTexCoord.x,1- aTexCoord.y);

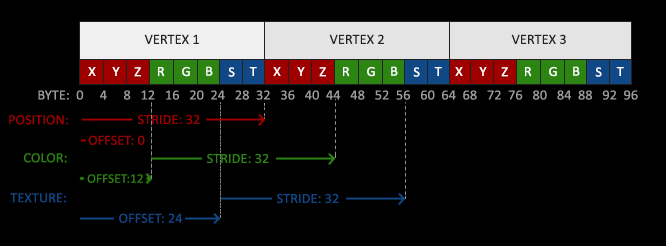

顶点属性分布：
着色器头文件：
#ifndef SHADER_H
#define SHADER_H
#include <glad/glad.h>
#include <glm/glm.hpp>
#include <string>
#include <fstream>
#include <sstream>
#include <iostream>
class ShaderTest
{
public:
unsigned int ID;
// constructor generates the shader on the fly
// ------------------------------------------------------------------------
ShaderTest(const char* vertexPath, const char* fragmentPath, const char* geometryPath = nullptr)
{
// 1. retrieve the vertex/fragment source code from filePath
std::string vertexCode;
std::string fragmentCode;
std::string geometryCode;
std::ifstream vShaderFile;
std::ifstream fShaderFile;
std::ifstream gShaderFile;
// ensure ifstream objects can throw exceptions:
vShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
fShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
gShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
try
{
// open files
vShaderFile.open(vertexPath);
fShaderFile.open(fragmentPath);
std::stringstream vShaderStream, fShaderStream;
// read file's buffer contents into streams
vShaderStream << vShaderFile.rdbuf();
fShaderStream << fShaderFile.rdbuf();
// close file handlers
vShaderFile.close();
fShaderFile.close();
// convert stream into string
vertexCode = vShaderStream.str();
fragmentCode = fShaderStream.str();
// if geometry shader path is present, also load a geometry shader
if (geometryPath != nullptr)
{
gShaderFile.open(geometryPath);
std::stringstream gShaderStream;
gShaderStream << gShaderFile.rdbuf();
gShaderFile.close();
geometryCode = gShaderStream.str();
}
}
catch (std::ifstream::failure e)
{
std::cout << "ERROR::SHADER::FILE_NOT_SUCCESFULLY_READ" << std::endl;
}
const char* vShaderCode = vertexCode.c_str();
const char * fShaderCode = fragmentCode.c_str();
// 2. compile shaders
unsigned int vertex, fragment;
// vertex shader
vertex = glCreateShader(GL_VERTEX_SHADER);
glShaderSource(vertex, 1, &vShaderCode, NULL);
glCompileShader(vertex);
checkCompileErrors(vertex, "VERTEX");
// fragment Shader
fragment = glCreateShader(GL_FRAGMENT_SHADER);
glShaderSource(fragment, 1, &fShaderCode, NULL);
glCompileShader(fragment);
checkCompileErrors(fragment, "FRAGMENT");
// if geometry shader is given, compile geometry shader
unsigned int geometry;
if (geometryPath != nullptr)
{
const char * gShaderCode = geometryCode.c_str();
geometry = glCreateShader(GL_GEOMETRY_SHADER);
glShaderSource(geometry, 1, &gShaderCode, NULL);
glCompileShader(geometry);
checkCompileErrors(geometry, "GEOMETRY");
}
// shader Program
ID = glCreateProgram();
glAttachShader(ID, vertex);
glAttachShader(ID, fragment);
if (geometryPath != nullptr)
glAttachShader(ID, geometry);
glLinkProgram(ID);
checkCompileErrors(ID, "PROGRAM");
// delete the shaders as they're linked into our program now and no longer necessery
glDeleteShader(vertex);
glDeleteShader(fragment);
if (geometryPath != nullptr)
glDeleteShader(geometry);
}
// activate the shader
// ------------------------------------------------------------------------
void use()
{
glUseProgram(ID);
}
void deleteProgram()
{
glDeleteProgram(ID);
}
// utility uniform functions
// ------------------------------------------------------------------------
void setBool(const std::string &name, bool value) const
{
glUniform1i(glGetUniformLocation(ID, name.c_str()), (int)value);
}
// ------------------------------------------------------------------------
void setInt(const std::string &name, int value) const
{
glUniform1i(glGetUniformLocation(ID, name.c_str()), value);
}
// ------------------------------------------------------------------------
void setFloat(const std::string &name, float value) const
{
glUniform1f(glGetUniformLocation(ID, name.c_str()), value);
}
// ------------------------------------------------------------------------
void setVec2(const std::string &name, const glm::vec2 &value) const
{
glUniform2fv(glGetUniformLocation(ID, name.c_str()), 1, &value[0]);
}
void setVec2(const std::string &name, float x, float y) const
{
glUniform2f(glGetUniformLocation(ID, name.c_str()), x, y);
}
// ------------------------------------------------------------------------
void setVec3(const std::string &name, const glm::vec3 &value) const
{
glUniform3fv(glGetUniformLocation(ID, name.c_str()), 1, &value[0]);
}
void setVec3(const std::string &name, float x, float y, float z) const
{
glUniform3f(glGetUniformLocation(ID, name.c_str()), x, y, z);
}
// ------------------------------------------------------------------------
void setVec4(const std::string &name, const glm::vec4 &value) const
{
glUniform4fv(glGetUniformLocation(ID, name.c_str()), 1, &value[0]);
}
void setVec4(const std::string &name, float x, float y, float z, float w)
{
glUniform4f(glGetUniformLocation(ID, name.c_str()), x, y, z, w);
}
// ------------------------------------------------------------------------
void setMat2(const std::string &name, const glm::mat2 &mat) const
{
glUniformMatrix2fv(glGetUniformLocation(ID, name.c_str()), 1, GL_FALSE, &mat[0][0]);
}
// ------------------------------------------------------------------------
void setMat3(const std::string &name, const glm::mat3 &mat) const
{
glUniformMatrix3fv(glGetUniformLocation(ID, name.c_str()), 1, GL_FALSE, &mat[0][0]);
}
// ------------------------------------------------------------------------
void setMat4(const std::string &name, const glm::mat4 &mat) const
{
glUniformMatrix4fv(glGetUniformLocation(ID, name.c_str()), 1, GL_FALSE, &mat[0][0]);
}
private:
// utility function for checking shader compilation/linking errors.
// ------------------------------------------------------------------------
void checkCompileErrors(GLuint shader, std::string type)
{
GLint success;
GLchar infoLog[1024];
if (type != "PROGRAM")
{
glGetShaderiv(shader, GL_COMPILE_STATUS, &success);
if (!success)
{
glGetShaderInfoLog(shader, 1024, NULL, infoLog);
std::cout << "ERROR::SHADER_COMPILATION_ERROR of type: " << type << "\n" << infoLog << "\n -- --------------------------------------------------- -- " << std::endl;
}
}
else
{
glGetProgramiv(shader, GL_LINK_STATUS, &success);
if (!success)
{
glGetProgramInfoLog(shader, 1024, NULL, infoLog);
std::cout << "ERROR::PROGRAM_LINKING_ERROR of type: " << type << "\n" << infoLog << "\n -- --------------------------------------------------- -- " << std::endl;
}
}
}
};
#endif主程序：
#define STB_IMAGE_IMPLEMENTATION
#include"STB_IMAGE/stb_image.h"
#include<glad/glad.h>
#include<GLFW/glfw3.h>
#include <ShaderTest.h>
#include <iostream>
void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);
const unsigned int WINDOW_WIDTH = 800;
const unsigned int WINDOW_HEIGHT = 600;
int main()
{
//1实例化GLFW窗户
glfwInit();
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);
//创建窗口对象
GLFWwindow* window = glfwCreateWindow(WINDOW_WIDTH, WINDOW_HEIGHT, "TestWindows", NULL, NULL);
if (!window)
{
std::cout << "Failed to create Windows" << std::endl;
//释放资源
glfwTerminate();
return -1;
}
//保留上下文
glfwMakeContextCurrent(window);
glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);
//初始化GLAD
if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
{
std::cout << "Failed to initialize GLAD" << std::endl;
return -1;
}
//顶点数据
float vertexDatas[] = {
//----位置---- ----颜色---- - 纹理坐标 -
0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f, // 右上
0.5f, -0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f, // 右下
-0.5f, -0.5f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, // 左下
-0.5f, 0.5f, 0.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f // 左上
};
unsigned int indices[] = { // 注意索引从0开始!
0, 1, 3, // 第一个三角形
1, 2, 3 // 第二个三角形
};
//2创建VAO,VBO,EBO
unsigned int VAOID, VBOId, EBOID;
glGenVertexArrays(1, &VAOID); //第一个参数是对象的数量
glGenBuffers(1, &VBOId);
glGenBuffers(1, &EBOID);
//绑定VAO
glBindVertexArray(VAOID);
//绑定到顶点缓冲对象上
glBindBuffer(GL_ARRAY_BUFFER, VBOId);
//将顶点数据copy到缓冲内存中
glBufferData(GL_ARRAY_BUFFER, sizeof(vertexDatas), vertexDatas, GL_STATIC_COPY);
//复制索引数组到一个索引缓冲中，供OpenGL使用
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, EBOID);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);
//解析顶点数据,给对应1的顶点属性数组指定数据
//第一个参数是顶点属性，与着色器程序location相对
//位置属性
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)0);
//启用顶点属性，默认是禁用的 //
glEnableVertexAttribArray(0); //参数：顶点属性值
//颜色属性
glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)(3 * sizeof(float)));
//启用属性，默认是禁用的 //
glEnableVertexAttribArray(1); //参数：顶点属性值
//纹理属性
glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)(6 * sizeof(float)));
glEnableVertexAttribArray(2);
//解绑VBO,VAO，不需要解绑EBO(当VAO被绑定时，EBO不能解绑
glBindBuffer(GL_ARRAY_BUFFER, 0); //unbind VBO ，第二个参数是解除绑定，回归原始值
glBindVertexArray(0); // unbind VAO 第一个参数是解除绑定，回归原始值
//3.创建着色器
ShaderTest shaderTest("vertexshader_Shader.vs", "fragementShader_Shader.fs");
//4.加载纹理
unsigned int textureId;
glGenTextures(1, &textureId);
glBindTexture(GL_TEXTURE_2D, textureId);
//设置纹理环绕方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
//载入图片信息
int width, height, channels;
unsigned char* data = stbi_load("F:/C++项目/LibsInclude/src/face1.jpeg", &width, &height, &channels, 0);
if (data)
{
//生成纹理
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, width, height, 0, GL_RGB, GL_UNSIGNED_BYTE, data);
//设置多级渐远方式
glGenerateMipmap(GL_TEXTURE_2D);
}
else
{
std::cout << "Failed to load texture" << std::endl;
}
//释放内存
stbi_image_free(data);
//循环渲染
while (!glfwWindowShouldClose(window))
{
//input
processInput(window);
//rending
glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
glClear(GL_COLOR_BUFFER_BIT);
glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, textureId);
//激活着色器程序
shaderTest.use();
glBindVertexArray(VAOID);
glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0);
//交换颜色缓冲
glfwSwapBuffers(window);
//检查是否触发事件
glfwPollEvents();
}
//删除VBO，VAO
glDeleteVertexArrays(1, &VAOID);
glDeleteBuffers(1, &VBOId);
glDeleteBuffers(1, &EBOID);
//删除程序对象
shaderTest.deleteProgram();
//释放资源
glfwTerminate();
return 0;
}
//回调函数，窗口改变时视口改变
void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
glViewport(0, 0, width, height);
}
//输入控制
void processInput(GLFWwindow* window)
{
if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
{
glfwSetWindowShouldClose(window, true);
}

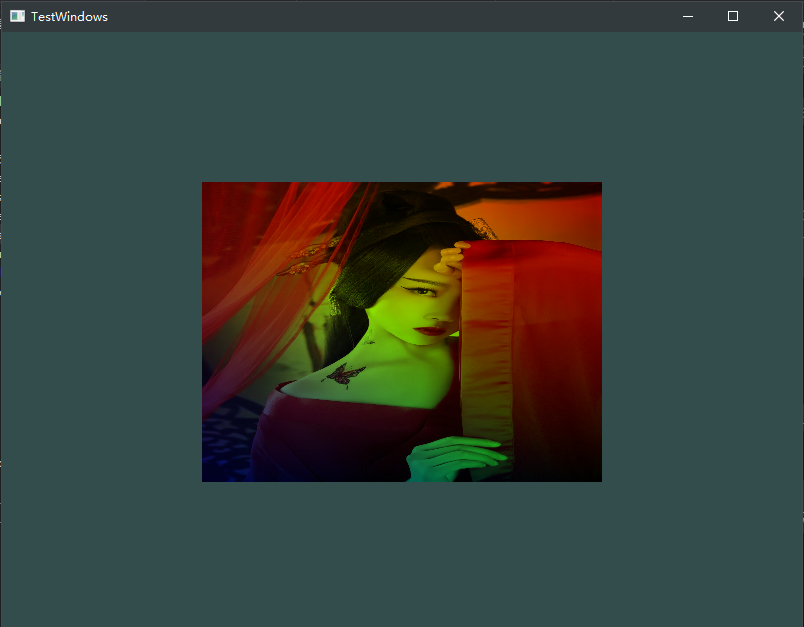

}结果：
