【Spring Security + OAuth2 + JWT入门到实战】1. 项目介绍和创建

简介

本项目使用多模块实现安全模块和接口直接的调用，达到安全模块在其他项目可以复制过去就使用。

项目结构

• spring-security # 主模块
• spring-security-core # 核心业务逻辑
• spring-security-browser # 浏览器完全特定代码
• spring-security-app # app相关特定代码
• spring-security-demo # 样例程序  用来写例子



项目依赖关系

spring-security-demo 依赖 spring-security-browser和spring-security-app

spring-security-browser 依赖 spring-security-core

pring-security-app 依赖 spring-security-core



创建项目

按照上面的依赖关系去创建项目，本项目使用IDEA开发工具

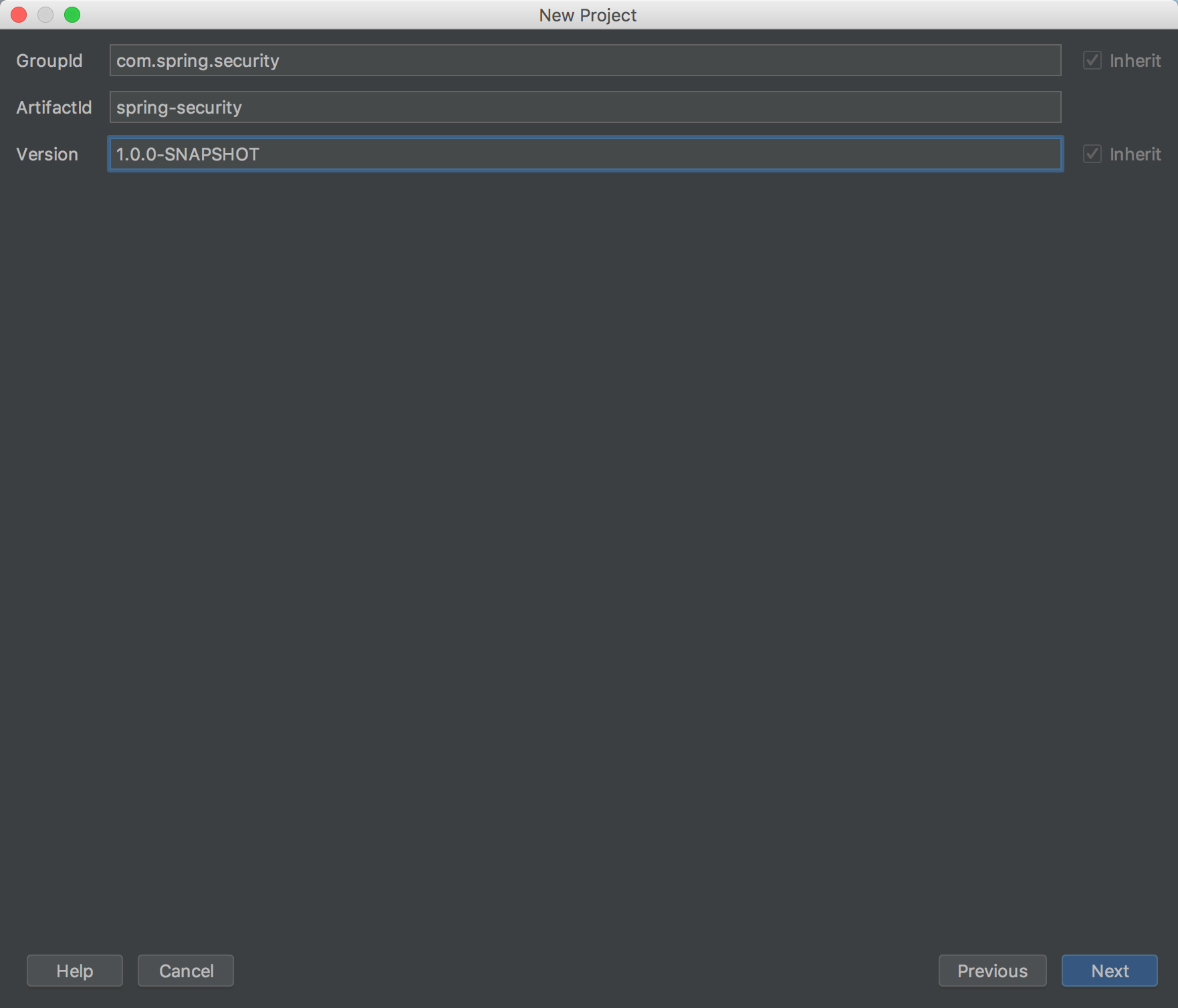

创建spring-security主项目

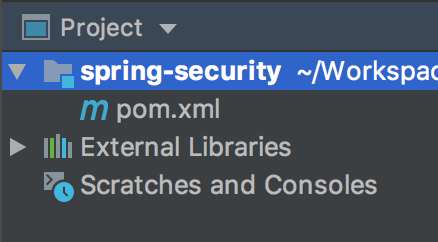

删除其他无用目录只留pom文件

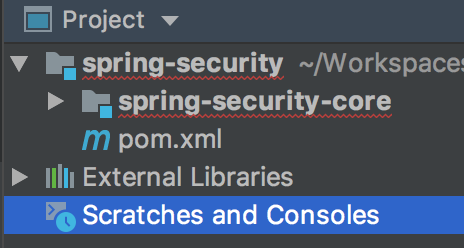

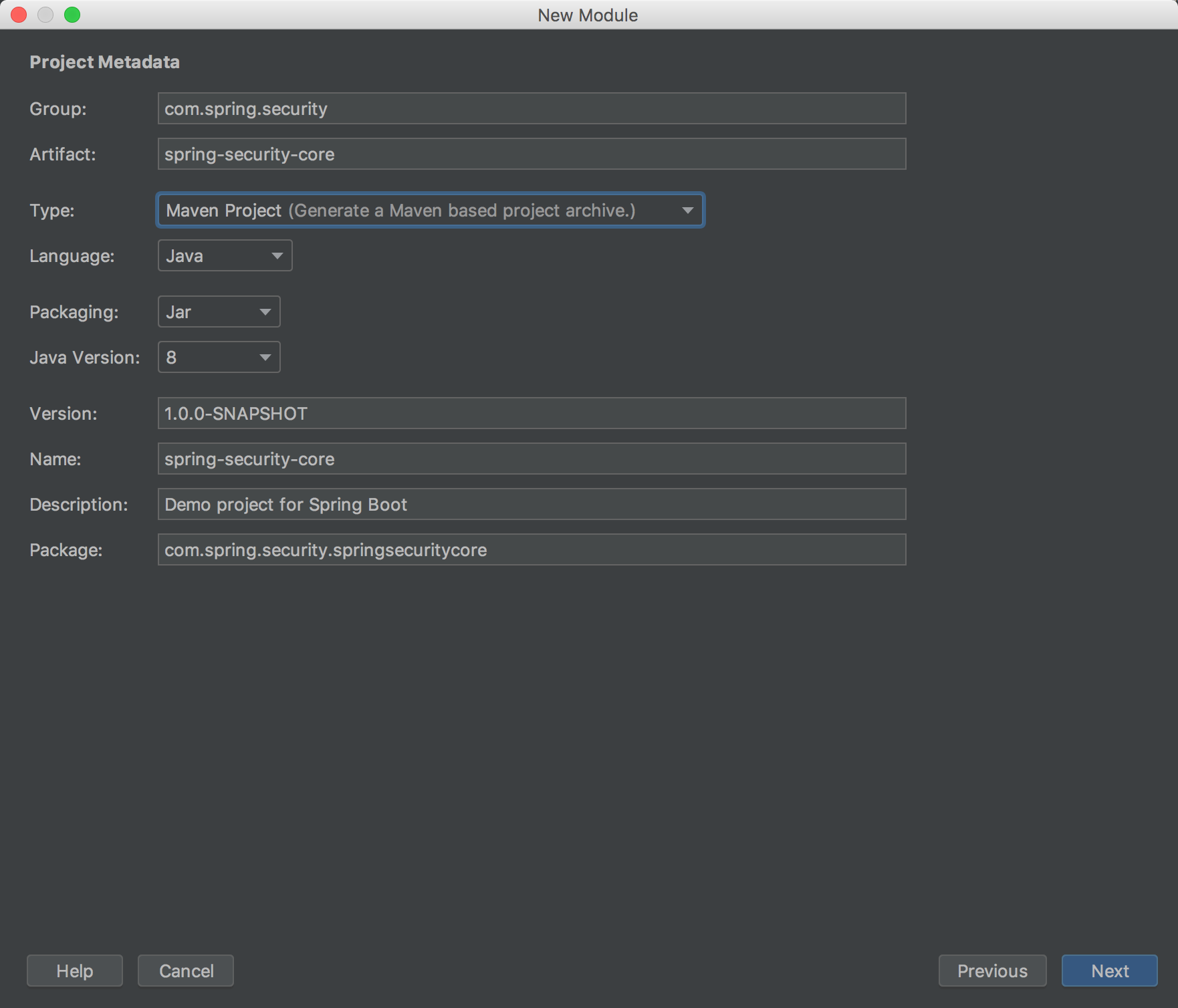

创建spring-security-core核心业务逻辑项目

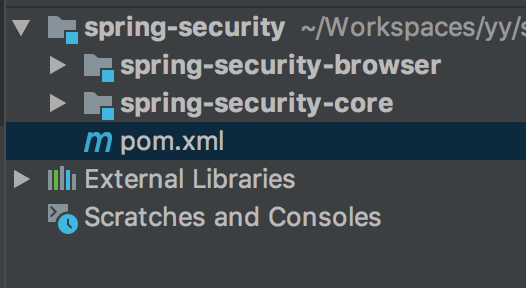

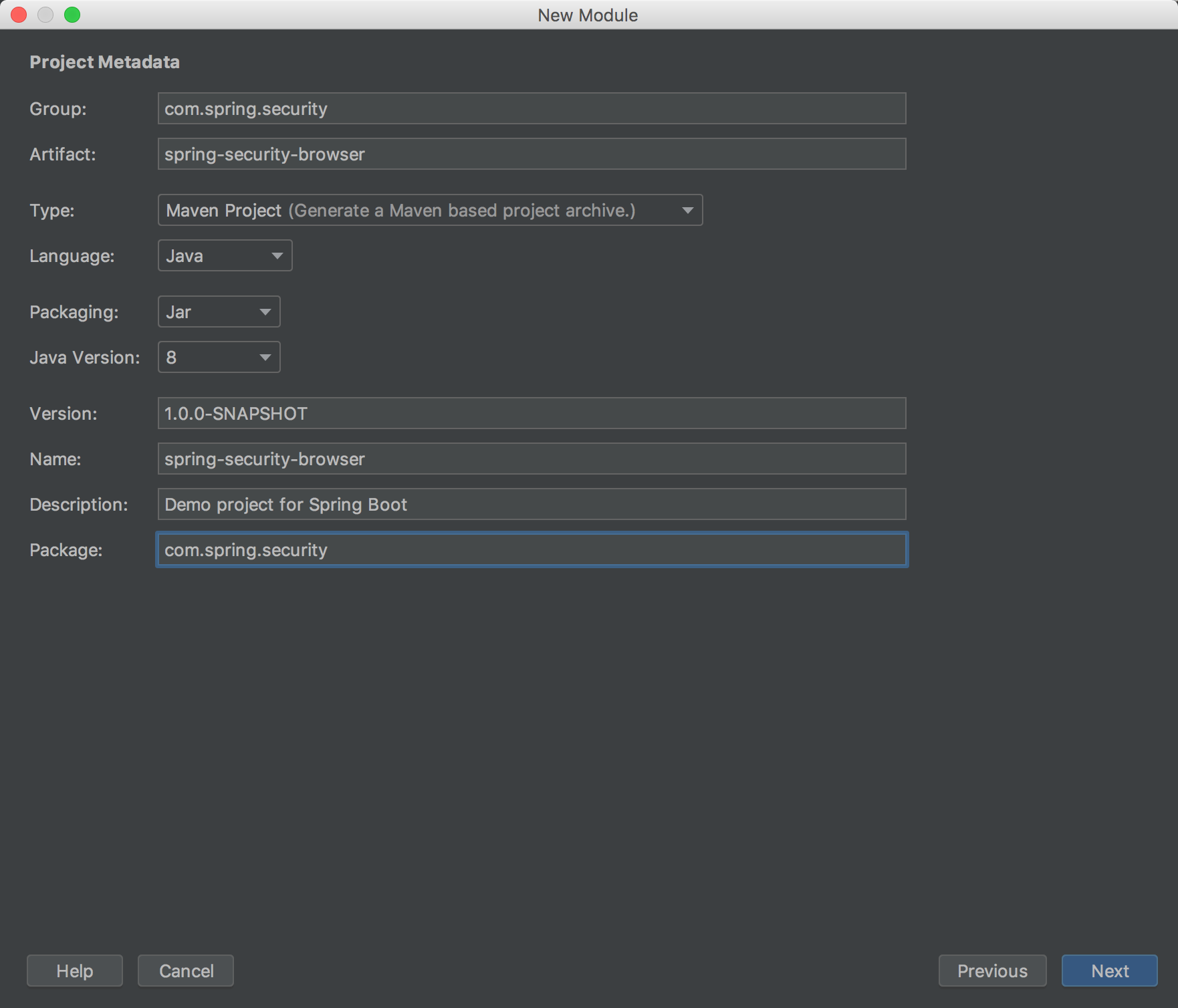

创建spring-security-browser浏览器完全特定代码项目

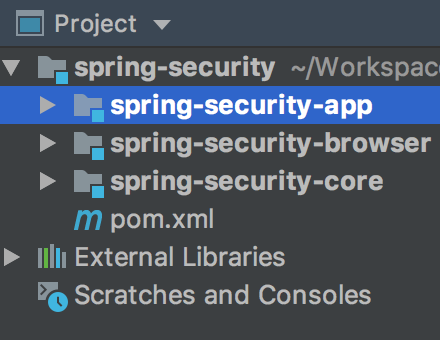

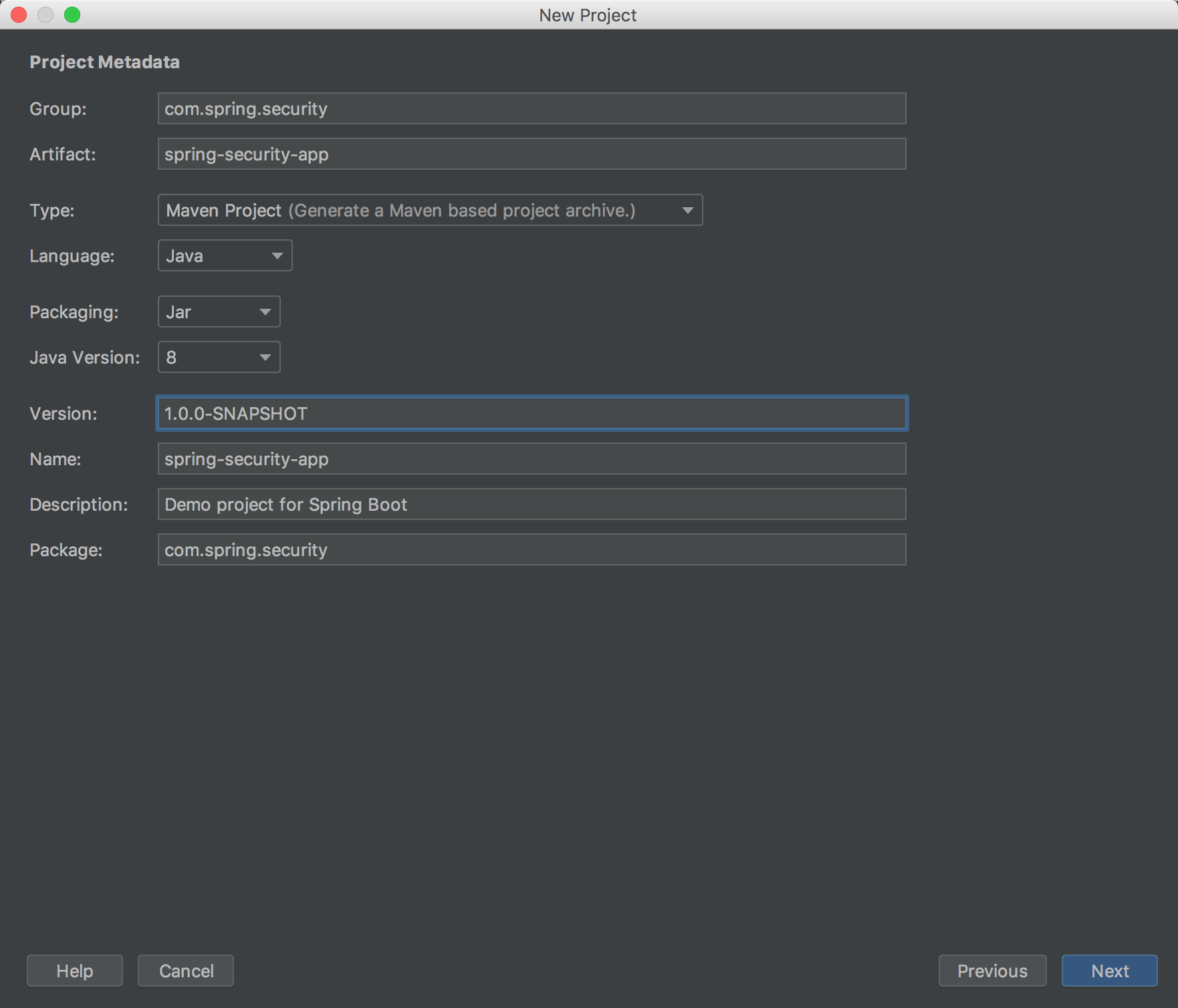

创建spring-security-app  相关特定代码项目

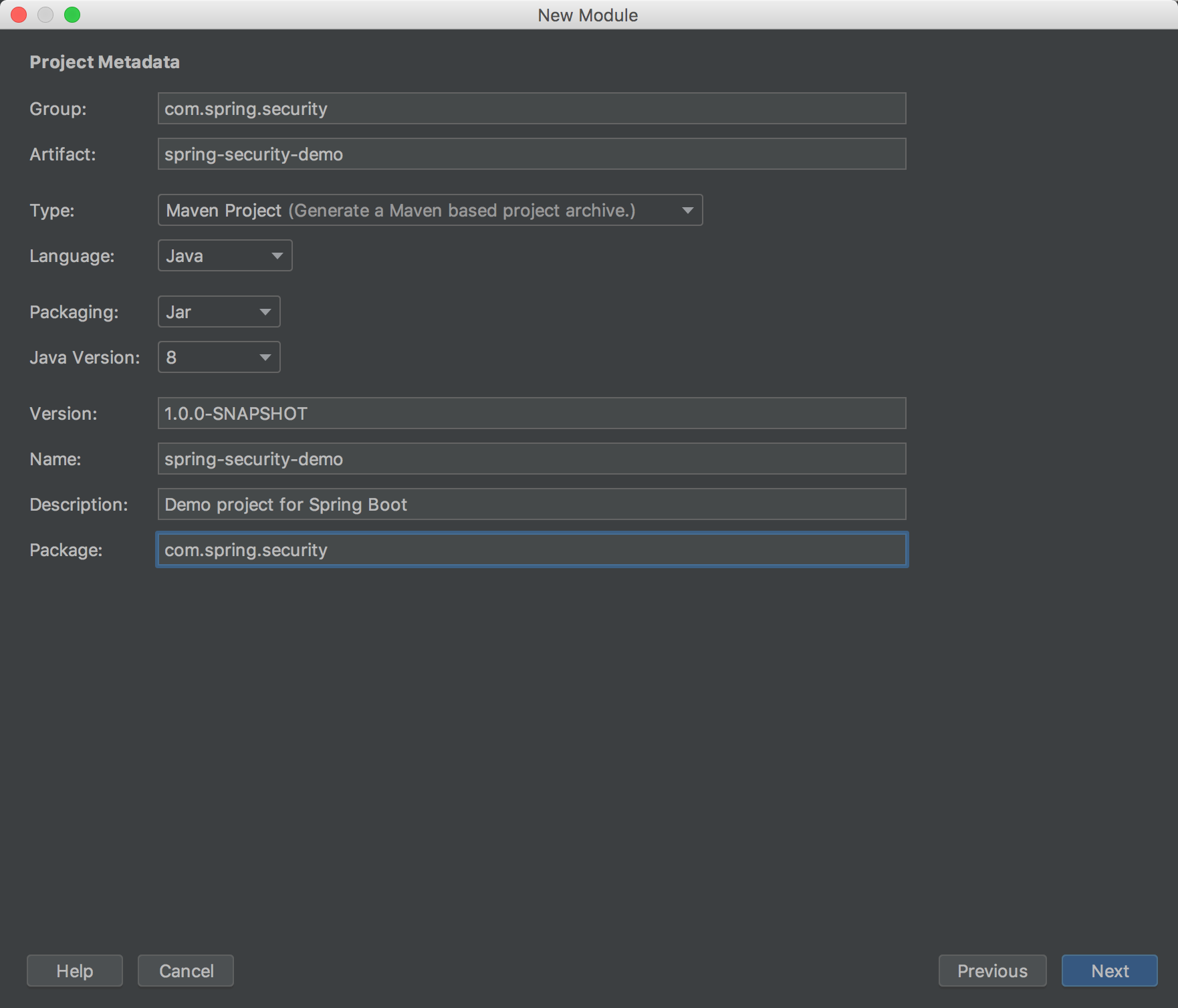

创建spring-security-demo  样例程序项目

到此项目全部创建完成。



项目依赖

spring-security项目pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.spring.security</groupId>
    <artifactId>spring-security</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <packaging>pom</packaging>

    <name>security</name>
    <description>权限认证系统</description>

    <properties>
        <spring.security>1.0.0-SNAPSHOT</imooc.security>
        <spring-boot.version>2.2.2.RELEASE</spring-boot.version>
        <spring-platform.version>Cairo-SR8</spring-platform.version>
        <spring-cloud.version>Hoxton.SR1</spring-cloud.version>
        <security.oauth.version>2.3.6.RELEASE</security.oauth.version>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>


    <dependencies>
        <!--Lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <scope>provided</scope>
        </dependency>
        <!--测试依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <!--io管理-->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>io.spring.platform</groupId>
                <artifactId>platform-bom</artifactId>
                <version>${spring-platform.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--稳定版本，替代spring security bom内置-->
            <dependency>
                <groupId>org.springframework.security.oauth</groupId>
                <artifactId>spring-security-oauth2</artifactId>
                <version>${security.oauth.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>


    <!--打包工具-->
    <build>
        <finalName>${project.name}</finalName>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
        </resources>
        <pluginManagement>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <version>${spring-boot.version}</version>
                    <executions>
                        <execution>
                            <goals>
                                <goal>repackage</goal>
                            </goals>
                        </execution>
                    </executions>
                </plugin>
            </plugins>
        </pluginManagement>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.0</version>
                <configuration>
                    <target>${maven.compiler.target}</target>
                    <source>${maven.compiler.source}</source>
                    <encoding>UTF-8</encoding>
                    <skip>true</skip>
                </configuration>
            </plugin>
            <plugin>
                <groupId>pl.project13.maven</groupId>
                <artifactId>git-commit-id-plugin</artifactId>
                <version>2.2.5</version>
            </plugin>
        </plugins>
    </build>



    <!--子项目-->
    <modules>
        <module>spring-security-app</module>
        <module>spring-security-core</module>
        <module>spring-security-browser</module>
        <module>spring-security-demo</module>
    </modules>

    <repositories>
        <!--阿里云代理-->
        <repository>
            <id>aliyun</id>
            <name>aliyun</name>
            <url>http://maven.aliyun.com/nexus/content/groups/public</url>
        </repository>
    </repositories>

</project>



spring-security-core项目pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<parent>
		<groupId>com.spring.security</groupId>
		<artifactId>spring-security</artifactId>
		<version>1.0.0-SNAPSHOT</version>
	</parent>

	<artifactId>spring-security-core</artifactId>
	<packaging>jar</packaging>

	<description>核心业务逻辑</description>

	<dependencies>
		<!--安全模块 -->
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-oauth2</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-redis</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>

		<!--第三方登录-->
		<dependency>
			<groupId>org.springframework.social</groupId>
			<artifactId>spring-social-config</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.social</groupId>
			<artifactId>spring-social-core</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.social</groupId>
			<artifactId>spring-social-security</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.social</groupId>
			<artifactId>spring-social-web</artifactId>
		</dependency>

		<!--工具包-->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
		</dependency>

		<!--server-api-->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
		</dependency>
	</dependencies>

</project>



spring-security-browser项目pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>com.spring.security</groupId>
        <artifactId>spring-security</artifactId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>

    <artifactId>spring-security-browser</artifactId>
    <packaging>jar</packaging>

    <description>浏览器安全特定代码</description>


    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.spring.security</groupId>
            <artifactId>spring-security-core</artifactId>
            <version>${spring.security}</version>
        </dependency>
    </dependencies>

</project>



spring-security-app项目pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>com.spring.security</groupId>
        <artifactId>spring-security</artifactId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>


    <artifactId>spring-security-app</artifactId>
    <packaging>jar</packaging>

    <description>APP相关特定代码</description>

    <dependencies>
        <dependency>
            <groupId>com.spring.security</groupId>
            <artifactId>spring-security-core</artifactId>
            <version>${spring.security}</version>
        </dependency>
    </dependencies>

</project>



spring-security-demo项目pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>com.spring.security</groupId>
        <artifactId>spring-security</artifactId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>

    <artifactId>spring-security-demo</artifactId>
    <packaging>jar</packaging>

    <description>样例程序</description>

    <dependencies>
        <dependency>
            <groupId>com.spring.security</groupId>
            <artifactId>spring-security-browser</artifactId>
            <version>${spring.security}</version>
        </dependency>
        <!--web 模块-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

    <!--打包-->
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>com.spotify</groupId>
                <artifactId>docker-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>
