1、全局流程解析
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// Prepare this context for refreshing.
prepareRefresh();
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
prepareBeanFactory(beanFactory);
try {
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
// 这里面走进去会调用所有的BeanFactoryPostProcessor.postProcessBeanDefinitionRegistry方法
// 其中有一个是ConfigurationClassPostProcessor,这个很关键
invokeBeanFactoryPostProcessors(beanFactory);
// 删掉后面方法
}
}
}
@Override
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
int registryId = System.identityHashCode(registry);
if (this.registriesPostProcessed.contains(registryId)) {
// 抛异常
}
if (this.factoriesPostProcessed.contains(registryId)) {
// 抛异常
}
this.registriesPostProcessed.add(registryId);
processConfigBeanDefinitions(registry);
}
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
List<beandefinitionholder> configCandidates = new ArrayList<>();

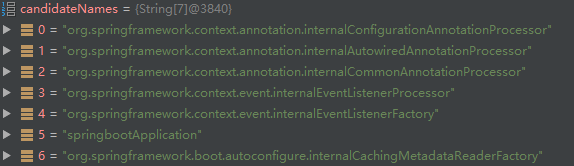

// 获取容器中已注册的bean名字,见下图,注意,这里容器中这些BeanDefinition都是容器初始化过程中容器添加进去的
// 不是我们业务代码的beanDefinition,这段代码其实是连贯的,为了注释图片方便才分开
String[] candidateNames = registry.getBeanDefinitionNames();
for (String beanName : candidateNames) {
// 获取BeanDefinition
BeanDefinition beanDef = registry.getBeanDefinition(beanName);
// 判断这个BeanDefinition的configurationClass属性是不是full或者lite,如果是认为已经处理过了,第一次时默认为空,
// 走下面分支
if (ConfigurationClassUtils.isFullConfigurationClass(beanDef) ||
ConfigurationClassUtils.isLiteConfigurationClass(beanDef)) {
// 打印日志记录下
} else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
// 1) 下面先分析下这个checkConfigurationClassCandidate方法
// 构造一个BeanDefinitionHolder,放入configCandidates中
configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
}
}
// Return immediately if no @Configuration classes were found
if (configCandidates.isEmpty()) {
return;
}
// Sort by previously determined @Order value, if applicable
// 排序
configCandidates.sort((bd1, bd2) -> {
int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
return Integer.compare(i1, i2);
});
// Detect any custom bean name generation strategy supplied through the enclosing application context
SingletonBeanRegistry sbr = null;
// 我们传进来的registry是这个子类
if (registry instanceof SingletonBeanRegistry) {
sbr = (SingletonBeanRegistry) registry;
// 这边默认值false,所以会进去
if (!this.localBeanNameGeneratorSet) {
BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(CONFIGURATION_BEAN_NAME_GENERATOR);
// 默认是null
if (generator != null) {
this.componentScanBeanNameGenerator = generator;
this.importBeanNameGenerator = generator;
}
}
}
// 前面已经创建过这个环境了,不为null
if (this.environment == null) {
this.environment = new StandardEnvironment();
}
// Parse each @Configuration class
// 配置类解析工具
ConfigurationClassParser parser = new ConfigurationClassParser(
this.metadataReaderFactory, this.problemReporter, this.environment,
this.resourceLoader, this.componentScanBeanNameGenerator, registry);
// 待处理集合
Set<beandefinitionholder> candidates = new LinkedHashSet<>(configCandidates);
// 已处理集合
Set<configurationclass> alreadyParsed = new HashSet<>(configCandidates.size());
// 循环处理直到candidates.isEmpty()
do {
// 这边开始解析,单独放到第二节分析
parser.parse(candidates);
parser.validate();
Set<configurationclass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
configClasses.removeAll(alreadyParsed);
// Read the model and create bean definitions based on its content
if (this.reader == null) {
this.reader = new ConfigurationClassBeanDefinitionReader(registry, this.sourceExtractor,
this.resourceLoader, this.environment,this.importBeanNameGenerator, parser.getImportRegistry());
}
this.reader.loadBeanDefinitions(configClasses);
alreadyParsed.addAll(configClasses);
candidates.clear();
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<string> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
Set<string> alreadyParsedClasses = new HashSet<>();
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory)
&& !alreadyParsedClasses.contains(bd.getBeanClassName())) {
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
candidateNames = newCandidateNames;
}
}
while (!candidates.isEmpty());
// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
}
// 清空缓存
if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
// Clear cache in externally provided MetadataReaderFactory; this is a no-op
// for a shared cache since it'll be cleared by the ApplicationContext.
((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
}
}
ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory);
public static boolean checkConfigurationClassCandidate(BeanDefinition beanDef,
MetadataReaderFactory metadataReaderFactory) {
String className = beanDef.getBeanClassName();
// 获取下类名,如果类名为空或者该类为工厂类
if (className == null || beanDef.getFactoryMethodName() != null) {
return false;
}
// 获取类的元数据信息
AnnotationMetadata metadata;
// 上图的7个candidateNames中只有一个springbootApplication是AnnotatedBeanDefinition,其余全返回false
if (beanDef instanceof AnnotatedBeanDefinition &&
className.equals(((AnnotatedBeanDefinition) beanDef).getMetadata().getClassName())) {
// Can reuse the pre-parsed metadata from the given BeanDefinition...
// springbootApplication走到这里
metadata = ((AnnotatedBeanDefinition) beanDef).getMetadata();
}
else if (beanDef instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) beanDef).hasBeanClass()) {
// Check already loaded Class if present...
// since we possibly can't even load the class file for this Class.
Class<?> beanClass = ((AbstractBeanDefinition) beanDef).getBeanClass();
metadata = new StandardAnnotationMetadata(beanClass, true);
}
else {
try {
MetadataReader metadataReader = metadataReaderFactory.getMetadataReader(className);
// 读取类的元数据信息,这里面包括注解等信息
metadata = metadataReader.getAnnotationMetadata();
}
catch (IOException ex) {
return false;
}
}
// metadata.isAnnotated(Configuration.class.getName()),这个就是判断类上面有没有@Configuration注解
if (isFullConfigurationCandidate(metadata)) {
// 如果true的话设置下这个属性,那么就标记为处理过了
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_FULL);
} else if (isLiteConfigurationCandidate(metadata)) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_LITE);
}
else {
// 其余6个返回false
return false;
}
// It's a full or lite configuration candidate... Let's determine the order value, if any.
Integer order = getOrder(metadata);
if (order != null) {
// 获取下类上的@Order信息
beanDef.setAttribute(ORDER_ATTRIBUTE, order);
}
return true;
}
public static boolean isLiteConfigurationCandidate(AnnotationMetadata metadata) {
// Do not consider an interface or an annotation...
if (metadata.isInterface()) {
return false;
}
// Any of the typical annotations found?
for (String indicator : candidateIndicators) {
// 判断下类上面有没有这几个注解
if (metadata.isAnnotated(indicator)) {
return true;
}
}
// Finally, let's look for @Bean methods...
try {
// 判断有没有@Bean的方法
return metadata.hasAnnotatedMethods(Bean.class.getName());
}
return false;
}
}
private static final Set<string> candidateIndicators = new HashSet<>();
static {
candidateIndicators.add(Component.class.getName());
candidateIndicators.add(ComponentScan.class.getName());
candidateIndicators.add(Import.class.getName());
candidateIndicators.add(ImportResource.class.getName());
}
1.2、执行逻辑解析
// 通过上一小节,我们已经知道了SpringBoot解析配置类的入口及大体流程,下面我们看下具体的解析过程
do {
// a) 这边开始解析,下面先分析这个方法
parser.parse(candidates);
// 校验下配置类是否有问题,不复杂,例如检测@Configuration标注的类不能是final,
// @Configuration下面的@Bean标注的method必须可以复写
parser.validate();
// 构造一个configClasses集合,数据就是我们刚刚parser.parse解析到的,并去除掉已经解析过的
Set<configurationclass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
configClasses.removeAll(alreadyParsed);
// Read the model and create bean definitions based on its content
// 判断reader是否为null,是的话创建一个,它是用来loadBeanDefinition的,默认是null
if (this.reader == null) {
this.reader = new ConfigurationClassBeanDefinitionReader(registry, this.sourceExtractor,
this.resourceLoader, this.environment,this.importBeanNameGenerator, parser.getImportRegistry());
}
// 读取BeanDefinition,后面分析
this.reader.loadBeanDefinitions(configClasses);
// 添加到已处理集合
alreadyParsed.addAll(configClasses);
candidates.clear();
// 虽然长,但是逻辑比较简单
// 判断下容器中的BeanDefinition数量是否大于一开始的数量,什么情况下会大于?就是在解析配置类的过程中
// 有@Bean注解的方法,会引入新的BeanDefinition,这样会继续处理下新引入的这些
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<string> oldCandidateNames = new HashSe<>(Arrays.asList(candidateNames));
Set<string> alreadyParsedClasses = new HashSet<>();
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory)
&& !alreadyParsedClasses.contains(bd.getBeanClassName())) {
// 判断没有处理过就加入到candidates
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
candidateNames = newCandidateNames;
}
}
while (!candidates.isEmpty());
// 校验下配置类是否有问题,不复杂,例如检测@Configuration标注的类不能是final,
// @Configuration下面的@Bean标注的method必须可以复写
parser.validate();
public void validate() {
for (ConfigurationClass configClass : this.configurationClasses.keySet()) {
configClass.validate(this.problemReporter);
}
}
public void validate(ProblemReporter problemReporter) {
// A configuration class may not be final (CGLIB limitation)
if (getMetadata().isAnnotated(Configuration.class.getName())) {
if (getMetadata().isFinal()) {
problemReporter.error(new FinalConfigurationProblem());
}
}
for (BeanMethod beanMethod : this.beanMethods) {
beanMethod.validate(problemReporter);
}
}
public void validate(ProblemReporter problemReporter) {
if (getMetadata().isStatic()) {
// static @Bean methods have no constraints to validate -> return immediately
return;
}
if (this.configurationClass.getMetadata().isAnnotated(Configuration.class.getName())) {
if (!getMetadata().isOverridable()) {
// instance @Bean methods within @Configuration classes must be overridable to accommodate CGLIB
problemReporter.error(new NonOverridableMethodError());
}
}
}
1.2.1、parse方法
// a) 这边开始解析,下面先分析这个方法
public void parse(Set<beandefinitionholder> configCandidates) {
for (BeanDefinitionHolder holder : configCandidates) {
// 获取BeanDefinition
BeanDefinition bd = holder.getBeanDefinition();
try {
if (bd instanceof AnnotatedBeanDefinition) {
// 我们的SpringBootApplication会走到这边,下面先分析这边
parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
}
else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
}
else {
parse(bd.getBeanClassName(), holder.getBeanName());
}
}
}
// (**)处这边也要留意下,这边会处理@Import注解导入的配置类
this.deferredImportSelectorHandler.process();
}
protected final void parse(AnnotationMetadata metadata, String beanName) throws IOException {
processConfigurationClass(new ConfigurationClass(metadata, beanName));
}
protected void processConfigurationClass(ConfigurationClass configClass) throws IOException {
// 根据当前类上面的@Conditional注解标注的条件判断是否要解析这个配置类
if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
return;
}
// 以configClass作为key去获取,第一次来肯定是获取不到的,走下面逻辑
ConfigurationClass existingClass = this.configurationClasses.get(configClass);
if (existingClass != null) {
if (configClass.isImported()) {
if (existingClass.isImported()) {
existingClass.mergeImportedBy(configClass);
}
// Otherwise ignore new imported config class; existing non-imported class overrides it.
return;
}
else {
// Explicit bean definition found, probably replacing an import.
// Let's remove the old one and go with the new one. this.configurationClasses.remove(configClass);
this.knownSuperclasses.values().removeIf(configClass::equals);
}
}
// Recursively process the configuration class and its superclass hierarchy.
// 这一步其实没有做啥,重点还是看下一步骤
SourceClass sourceClass = asSourceClass(configClass);
do {
// 这里是重点,里面具体分为8大步骤,单独拿一小节分析
// b) doProcessConfigurationClass
sourceClass = doProcessConfigurationClass(configClass, sourceClass);
}
while (sourceClass != null);
// 放入configurationClasses中
this.configurationClasses.put(configClass, configClass);
}
// 上面的asSourceClass最终其实就是封装了一个SourceClass对象
public SourceClass(Object source) {
this.source = source;
if (source instanceof Class) {
this.metadata = new StandardAnnotationMetadata((Class<?>) source, true);
}
else {
this.metadata = ((MetadataReader) source).getAnnotationMetadata();
}
}
1.2.2、doProcessConfigurationClass
protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass)
throws IOException {
// 判断这个类上面有没有@Component注解
if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
// Recursively process any member (nested) classes first
// 如果有的话,遍历其内部类,然后也是调用doProcessConfigurationClass递归处理
processMemberClasses(configClass, sourceClass);
}
// Process any @PropertySource annotations
// 处理PropertySource注解,之前讲解属性配置也分析过,就是将该注解对应的属性文件加载到Environment中
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), PropertySources.class,
org.springframework.context.annotation.PropertySource.class)) {
if (this.environment instanceof ConfigurableEnvironment) {
processPropertySource(propertySource);
}
}
// Process any @ComponentScan annotations
// 处理@ComponentScan注解,将其指定的包下的bean注册到框架中
Set<annotationattributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
for (AnnotationAttributes componentScan : componentScans) {
// The config class is annotated with @ComponentScan -> perform the scan immediately
Set<beandefinitionholder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
// Check the set of scanned definitions for any further config classes and parse recursively if needed
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
// Process any @Import annotations
// 处理Import注解

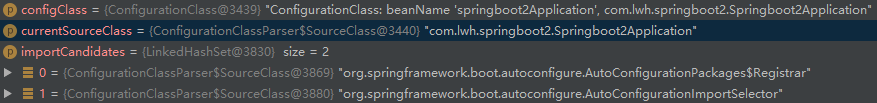

processImports(configClass, sourceClass, getImports(sourceClass), true);
// Process any @ImportResource annotations
// 处理@ImportResource注解,可以通过它来指定xml文件,BeanFactory就会读取这个xml文件将bean注册进去
AnnotationAttributes importResource =
AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
if (importResource != null) {
String[] resources = importResource.getStringArray("locations");
Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
for (String resource : resources) {
String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
configClass.addImportedResource(resolvedResource, readerClass);
}
}
// Process individual @Bean methods
// 处理我们的类中使用@Bean注解的方法,添加到configClass的beanMethod中
Set<methodmetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
// Process default methods on interfaces
// 处理接口的默认方法,遍历这个类的接口,判断有没有使用@Bean注解的非抽象方法,添加到configClass的beanMethod中
processInterfaces(configClass, sourceClass);
// Process superclass, if any
// 递归处理父类,这边返回父类上层方法会递归处理
if (sourceClass.getMetadata().hasSuperClass()) {
// 判断父类不为null且不在knownSuperclasses中且不以Java开头
String superclass = sourceClass.getMetadata().getSuperClassName();
if (superclass != null && !superclass.startsWith("java") &&
!this.knownSuperclasses.containsKey(superclass)) {
this.knownSuperclasses.put(superclass, configClass);
// Superclass found, return its annotation metadata and recurse
return sourceClass.getSuperClass();
}
}
// No superclass -> processing is complete
return null;
}
1.3、doProcessConfigurationClass
下面分8个步骤来解析下doProcessConfigurationClass方法
1.3.1、处理内部类
if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
// Recursively process any member (nested) classes first
processMemberClasses(configClass, sourceClass);
}
// Register member (nested) classes that happen to be configuration classes themselves.
private void processMemberClasses(ConfigurationClass configClass, SourceClass sourceClass) throws IOException {
Collection<SourceClass> memberClasses = sourceClass.getMemberClasses();
// 判断是否有内部类,没有的话直接不处理
if (!memberClasses.isEmpty()) {
List<SourceClass> candidates = new ArrayList<>(memberClasses.size());
for (SourceClass memberClass : memberClasses) {
// 判断是否是配置类,判断也很简单,之前分析过,判断类上面有没有@Configuration注解、@Import、@ImportResource
// @Component、@ComponentScan以及@Bean标注的方法
if (ConfigurationClassUtils.isConfigurationCandidate(memberClass.getMetadata()) &&
!memberClass.getMetadata().getClassName().equals(configClass.getMetadata().getClassName())) {
// 加入到candidates中然后排个序
candidates.add(memberClass);
}
}
OrderComparator.sort(candidates);
for (SourceClass candidate : candidates) {
// 防止A引入防止A引入B,B引入A
if (this.importStack.contains(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
// 放入栈中并遍历处理这些配置类,也是递归处理,调用之前的doProcessConfigurationClass处理这个配置类
processConfigurationClass(candidate.asConfigClass(configClass));
}
finally {
this.importStack.pop();
}
}
}
}
}
1.3.2、处理@PropertySource注解
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), PropertySources.class,
org.springframework.context.annotation.PropertySource.class)) {
if (this.environment instanceof ConfigurableEnvironment) {
// 这边就不进去看了,主要是读取@PropertySource注解指定的文件,将其封装成一个属性集放入到环境中
processPropertySource(propertySource);
}
}
1.3.3、处理@ComponentScan注解
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
for (AnnotationAttributes componentScan : componentScans) {
// The config class is annotated with @ComponentScan -> perform the scan immediately
// 下面先分析这个parse方法
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
// Check the set of scanned definitions for any further config classes and parse recursively if needed
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
// 如果是配置类,再递归处理
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
public Set<BeanDefinitionHolder> parse(AnnotationAttributes componentScan, final String declaringClass) {
ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(this.registry,
componentScan.getBoolean("useDefaultFilters"), this.environment, this.resourceLoader);
Class<? extends BeanNameGenerator> generatorClass = componentScan.getClass("nameGenerator");
boolean useInheritedGenerator = (BeanNameGenerator.class == generatorClass);
// 设置一个bean名字生成器,默认就是使用org.springframework.beans.factory.support.BeanNameGenerator
scanner.setBeanNameGenerator(useInheritedGenerator ? this.beanNameGenerator :
BeanUtils.instantiateClass(generatorClass));
// 就是默认的
ScopedProxyMode scopedProxyMode = componentScan.getEnum("scopedProxy");
if (scopedProxyMode != ScopedProxyMode.DEFAULT) {
scanner.setScopedProxyMode(scopedProxyMode);
}
else {
Class<? extends ScopeMetadataResolver> resolverClass = componentScan.getClass("scopeResolver");
// 理解是元数据解析器
scanner.setScopeMetadataResolver(BeanUtils.instantiateClass(resolverClass));
}
// 设置下扫描的资源模式,是**/*.class
scanner.setResourcePattern(componentScan.getString("resourcePattern"));
// 添加IncludeFilter和ExcludeFilter
for (AnnotationAttributes filter : componentScan.getAnnotationArray("includeFilters")) {
for (TypeFilter typeFilter : typeFiltersFor(filter)) {
scanner.addIncludeFilter(typeFilter);
}
}
for (AnnotationAttributes filter : componentScan.getAnnotationArray("excludeFilters")) {
for (TypeFilter typeFilter : typeFiltersFor(filter)) {
scanner.addExcludeFilter(typeFilter);
}
}
// 设置是否懒加载
boolean lazyInit = componentScan.getBoolean("lazyInit");
if (lazyInit) {
scanner.getBeanDefinitionDefaults().setLazyInit(true);
}
// 解析扫描的包路径加入到basePackages中
Set<String> basePackages = new LinkedHashSet<>();
String[] basePackagesArray = componentScan.getStringArray("basePackages");
for (String pkg : basePackagesArray) {
String[] tokenized = StringUtils.tokenizeToStringArray(this.environment.resolvePlaceholders(pkg),
ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
Collections.addAll(basePackages, tokenized);
}
for (Class<?> clazz : componentScan.getClassArray("basePackageClasses")) {
// 解析basePackageClasses所在的包并加入到basePackages
basePackages.add(ClassUtils.getPackageName(clazz));
}
// 如果是空的,将声明该注解所在的类的包加入到basePackages
if (basePackages.isEmpty()) {
// 通常我们的主配置类是没有声明包扫描的路径的,所以这里会将主配置类所在的包加到这里面
basePackages.add(ClassUtils.getPackageName(declaringClass));
}
// 添加一个ExcludeFilter,跳过声明该注解的类
scanner.addExcludeFilter(new AbstractTypeHierarchyTraversingFilter(false, false) {
@Override
protected boolean matchClassName(String className) {
return declaringClass.equals(className);
}
});
return scanner.doScan(StringUtils.toStringArray(basePackages));
}
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
// 遍历所有的包路径
for (String basePackage : basePackages) {

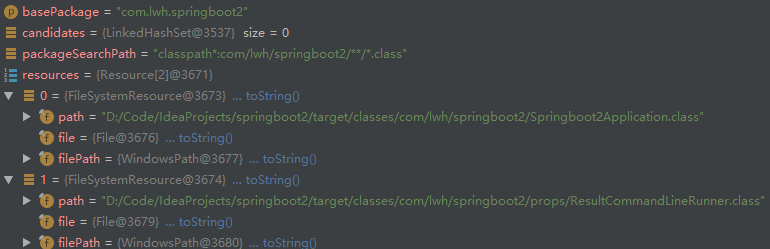

// 获取该包下面所有符合条件的BeanDefinition,然后遍历处理,下面会分析
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
for (BeanDefinition candidate : candidates) {
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
// 通过beanNameGenerator生成beanName
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
// 这两个if判断逻辑比较简单,就是设置一些Lazy、DependsOn属性
if (candidate instanceof AbstractBeanDefinition) {
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
}
if (candidate instanceof AnnotatedBeanDefinition) {
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
}
// 这边是检查下有没有之前定义过这个BeanDefinition
if (checkCandidate(beanName, candidate)) {
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata,
definitionHolder, this.registry);
// 将该beanDefinition加入到集合中,并注册到容器中
beanDefinitions.add(definitionHolder);
registerBeanDefinition(definitionHolder, this.registry);
}
}
}
return beanDefinitions;
}
private Set<BeanDefinition> scanCandidateComponents(String basePackage) {
Set<BeanDefinition> candidates = new LinkedHashSet<>();
try {
// 扫描指定包路径及其子包下面的class文件,将其封装成Resource对象
String packageSearchPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
resolveBasePackage(basePackage) + '/' \+ this.resourcePattern;
Resource[] resources = getResourcePatternResolver().getResources(packageSearchPath);
for (Resource resource : resources) {
if (resource.isReadable()) {
try {
MetadataReader metadataReader = getMetadataReaderFactory().getMetadataReader(resource);
if (isCandidateComponent(metadataReader)) {
ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
sbd.setResource(resource);
sbd.setSource(resource);
if (isCandidateComponent(sbd)) {
candidates.add(sbd);
}
}
}
}
}
}
return candidates;
}
// 通过之前设置的几个filter进行过滤
protected boolean isCandidateComponent(MetadataReader metadataReader) throws IOException {
for (TypeFilter tf : this.excludeFilters) {
if (tf.match(metadataReader, getMetadataReaderFactory())) {
return false;
}
}
for (TypeFilter tf : this.includeFilters) {
if (tf.match(metadataReader, getMetadataReaderFactory())) {
return isConditionMatch(metadataReader);
}
}
return false;
}
1.3.4、处理@Import注解
// Process any @Import annotations
// getImports方法就是去递归扫描configClass上面所有的注解,将@Import注解标注的值放入importCandidates中,见下图
processImports(configClass, sourceClass, getImports(sourceClass), true);
private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
Collection<SourceClass> importCandidates, boolean checkForCircularImports) {
if (importCandidates.isEmpty()) {
return;
}
if (checkForCircularImports && isChainedImportOnStack(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
for (SourceClass candidate : importCandidates) {
// 依次遍历判断类型
// 第二个是这个类型,@Import(AutoConfigurationImportSelector.class)
// 这个就是自动配置原理,导入xxxAutoConfiguration这些类
if (candidate.isAssignable(ImportSelector.class)) {
// Candidate class is an ImportSelector -> delegate to it to determine imports
Class<?> candidateClass = candidate.loadClass();
// 实例化并调用xxxAware的方法并注入相关属性
ImportSelector selector = BeanUtils.instantiateClass(candidateClass, ImportSelector.class);
ParserStrategyUtils.invokeAwareMethods(
selector, this.environment, this.resourceLoader, this.registry);
// 它是DeferredImportSelector类型的
if (selector instanceof DeferredImportSelector) {
// deferredImportSelectors = new ArrayList<>()
// 这边会将两个参数封装下加入到deferredImportSelectors中,后面处理
// 加入到deferredImportSelectors中后,具体的处理是在1.2.1的(**)处的
// this.deferredImportSelectorHandler.process()方法处,这个具体解析放到第八篇文章中分析
this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
}
else {
// 不是的话获取@Import导入的类名数组
String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames);
// 然后再递归处理
processImports(configClass, currentSourceClass, importSourceClasses, false);
}
}
// @Import(AutoConfigurationPackages.Registrar.class),我们的主配置类上面的注解就是这个类型
// 这个是用于导入主配置类所在包及其子包下的BeanDefinition
else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
// Candidate class is an ImportBeanDefinitionRegistrar ->
// delegate to it to register additional bean definitions
Class<?> candidateClass = candidate.loadClass();
ImportBeanDefinitionRegistrar registrar =
BeanUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class);
ParserStrategyUtils.invokeAwareMethods(
registrar, this.environment, this.resourceLoader, this.registry);
// 这边就是将这两个参数作为key,value放入了一个map中
// this.importBeanDefinitionRegistrars.put(registrar, importingClassMetadata);
configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
}
else {
// Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
// process it as an @Configuration class
this.importStack.registerImport(
currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
// 当做一个普通类处理,判断是不是配置类,递归处理
processConfigurationClass(candidate.asConfigClass(configClass));
}
}
}
finally {
this.importStack.pop();
}
}
}
1.3.5、处理@ImportSource注解
@SpringBootApplication
@PropertySource({"demo.properties"})
@ImportResource("test.xml")
public class Springboot2Application {
// Process any @ImportResource annotations
// 可以使用@ImportResource注解指定xml文件,导入BeanDefinition
AnnotationAttributes importResource =
AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
if (importResource != null) {
String[] resources = importResource.getStringArray("locations");
Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
for (String resource : resources) {
// 就是test.xml
String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
configClass.addImportedResource(resolvedResource, readerClass);
}
}
public void addImportedResource(String importedResource, Class<? extends BeanDefinitionReader> readerClass) {
// 这边就是放入到了map中
this.importedResources.put(importedResource, readerClass);
}
private final Map<String, Class<? extends BeanDefinitionReader>> importedResources = new LinkedHashMap<>();
1.3.6、处理@Bean标注的方法
// Process individual @Bean methods
// 获取当前类中的Bean方法
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
for (MethodMetadata methodMetadata : beanMethods) {
// 这边也是加入到set中,见下面代码
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
private final Set<BeanMethod> beanMethods = new LinkedHashSet<>();
1.3.7、处理默认方法
// 默认方法举例,1.3.6中的@Bean方法也可以参考这个例子
public interface SuperConfiguration {
@Bean
default User user(){
return new User();
}
}
@SpringBootApplication
@PropertySource({"demo.properties"})
@ImportResource("test.xml")
public class Springboot2Application implements SuperConfiguration {
public static void main(String[] args) {
SpringApplication.run(Springboot2Application.class, args);
}
@Bean
public User anthoerUser(){
return new User();
}
}
// Process default methods on interfaces
processInterfaces(configClass, sourceClass);
// Register default methods on interfaces implemented by the configuration class.
// 这边也是递归处理其父接口,判断父接口中默认方法是不是@Bean方法
private void processInterfaces(ConfigurationClass configClass, SourceClass sourceClass) throws IOException {
for (SourceClass ifc : sourceClass.getInterfaces()) {
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(ifc);
for (MethodMetadata methodMetadata : beanMethods) {
if (!methodMetadata.isAbstract()) {
// A default method or other concrete method on a Java 8+ interface...
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
}
processInterfaces(configClass, ifc);
}
}
1.3.8、递归处理父类
// Process superclass, if any
if (sourceClass.getMetadata().hasSuperClass()) {
String superclass = sourceClass.getMetadata().getSuperClassName();
if (superclass != null && !superclass.startsWith("java") &&
!this.knownSuperclasses.containsKey(superclass)) {
this.knownSuperclasses.put(superclass, configClass);
// Superclass found, return its annotation metadata and recurse
return sourceClass.getSuperClass();
}
}
来源：oschina
链接：https://my.oschina.net/liwanghong/blog/3168003
