前端制作百分比圆环

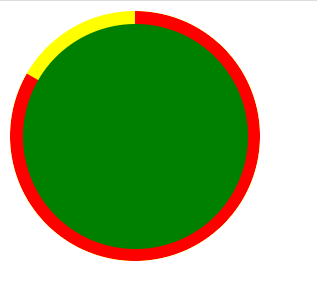

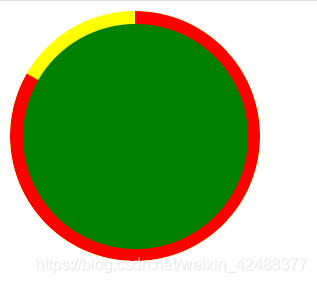

5/6的圆环效果如下

原理是左右两边分开制作，左右两边各有两层盒子，外层负责遮挡溢出的部分，里层旋转表示百分比

下面代码见，改变count和totalcount就可以画出你想要的百分比圆环

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
    <style>
        .left,
        .right {
            width: 100px;
            height: 200px;
            background: yellow;
            overflow: hidden;
        }

        .row {
            display: flex;
            flex-direction: row;
        }

        .left {
            border-radius: 100px 0 0 100px;
        }

        .right {
            border-radius: 0 100px 100px 0;

        }

        .rightCon {
            width: 100px;
            height: 200px;
            background: red;
            border-radius: 0 100px 100px 0;
            transform: rotate(-120deg);
            transform-origin: left center;
        }

        .leftCon {
            width: 100px;
            height: 200px;
            background: red;
            border-radius: 100px 0px 0px 100px;
            transform: rotate(20deg);
            transform-origin: right center;
        }

        .circle {
            width: 180px;
            height: 180px;
            position: absolute;
            left: 10px;
            top: 10px;
            border-radius: 90px;
            background: green;

        }

        .rel {
            position: relative;
        }
    </style>
</head>

<body>
    <div class="row rel">
        <div class="left">
            <div id="left" class="leftCon"></div>
        </div>
        <div class="right">
            <div id="right" class="rightCon"></div>
        </div>
        <div class="circle"></div>
    </div>
</body>

</html>
<script>
    function getLeftPercent(count, totalcount) {
        if (totalcount == 0 || count == 0 || count / totalcount <= 0.5) {
            return -180;
        } else {
            return 180 * (((count / totalcount - 0.5) * 2) - 1);
        }
    }
    function getRightPercent(count, totalcount) {
        if (totalcount == 0 || count == 0) {
            return -180;
        } else if (count / totalcount >= 0.5) {
            return 0;
        } else {
            // -(180 - 180 * (percent*2))
            return 180 * (((count / totalcount) * 2) - 1);
        }
    }
    var left = document.getElementById('left');
    var right = document.getElementById('right');
    var count = 5;
    var totalcount = 6;
    left.style.transform = "rotate(" + getLeftPercent(count, totalcount) + "deg)";
    right.style.transform = "rotate(" + getRightPercent(count, totalcount) + "deg)";

</script>

github地址：https://github.com/lianxiHub/percentage_circle.git

来源：CSDN

作者：蒲公英的种子，飘吧

链接：https://blog.csdn.net/weixin_42488377/article/details/104441113
