假期 2020.01.24

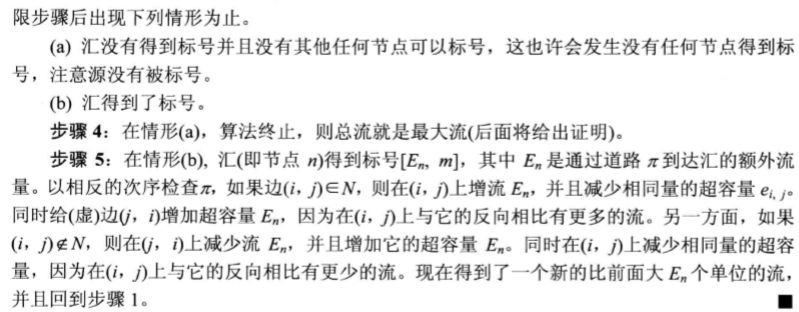

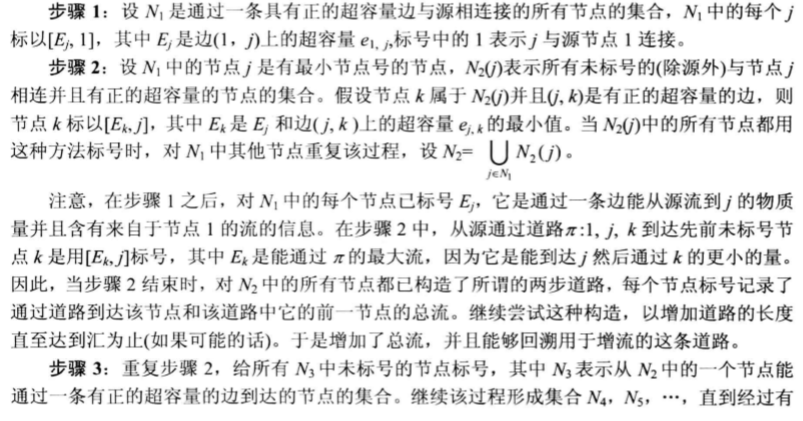

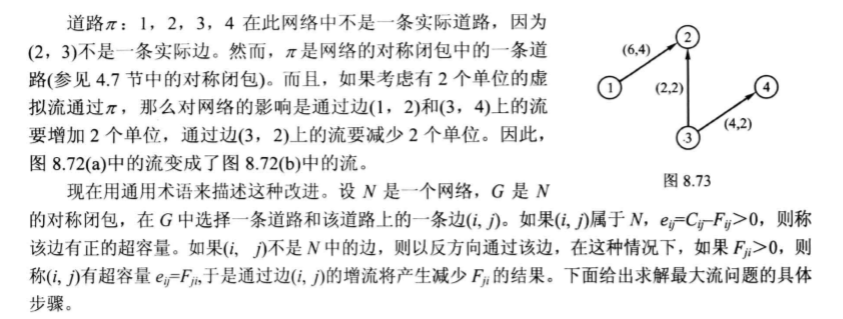

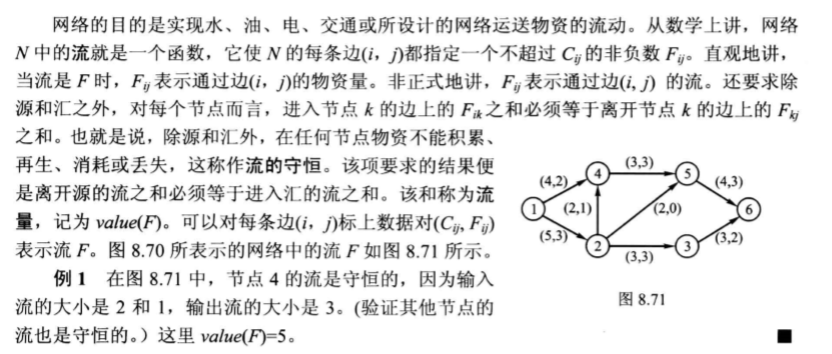

问题分析(内容摘自离散数学结构)
算法分析(内容摘自离散数学结构)
其实该问题是离散数学中了解到的最大网络流问题,借助最短增广路算法即可解决该问题。
而最短增广路算法实现是:
代码解析
#include<iostream>
#include<algorithm>
#include<iomanip>
#include<queue>
using namespace std;
constexpr auto Max_size = 0x7fffffff;
int point_count, edge_count;//节点数,边数
int left_map[100][100];//实邻接关系
int ok_map[100][100];//虚邻接关系
int pre_map[100];//前驱
int visited[100];//访问数组
int Search_current();//寻找路径
int best_ability();//寻找最优路径
int main()
{
int i, j,v,w,flow;
cout << "请输入节点个数与网络连接边数:";
cin >> point_count >> edge_count;
cout << "请输入邻接关系与网络流:" << endl;
memset(left_map, 0, sizeof(left_map));//初始化
memset(ok_map, 0, sizeof(ok_map));
for (i = 1; i <= edge_count; i++) {
cin >> v >> w >> flow;
left_map[v][w] = flow;
}
cout << "最大网络流是:" << best_ability() << endl;
cout << "最优方案如下所示:" << endl;
for (i = 1; i <= point_count; i++)
cout << setw(5) << "v" << i;
cout << endl;
for (i = 1; i <= point_count; i++)
{
cout << "v" << i;
for (j = 1; j <= point_count; j++)
cout << setw(5) << ok_map[i][j] << " ";
cout << endl;
}
return 0;
}
int best_ability()
{
int k, maxflow = 0,temp,now_current;
while (Search_current()){//存在路径时
temp = point_count;
now_current = Max_size;
while (temp != 1){
k = pre_map[temp];//获得前驱
if (now_current > left_map[k][temp])//寻找当前路径中的最小流
now_current = left_map[k][temp];
temp = k;//向前搜索
}
maxflow += now_current;//最大流增加
temp = point_count;
while (temp != 1)//修改网络流
{
k = pre_map[temp];//前驱
left_map[k][temp] -= now_current;//正向减少
left_map[temp][k] += now_current;//反向增加
if (ok_map[temp][k] > 0)
ok_map[temp][k] -= now_current;
else
ok_map[k][temp] += now_current;
temp = k;
}
}
return maxflow;
}
int Search_current()
{
memset(pre_map, -1, sizeof(pre_map));
memset(visited, 0, sizeof(visited));
queue<int> q;
visited[1] = 1;
q.push(1);//头节点放入队列
while (!q.empty())
{
int here = q.front();//拿头元素
q.pop();//出队列
for (int i = 1; i <= point_count; i++) {
if (visited[i] == 0 && left_map[here][i] > 0)
{
visited[i] = 1;
pre_map[i] = here;
if (i == point_count)
return 1;//已经找到一条路径
q.push(i);
}
}
}
return 0;
}
/*
1 2 12
1 3 10
2 4 8
3 2 2
3 5 13
4 3 5
4 6 18
5 4 6
5 6 4
*/

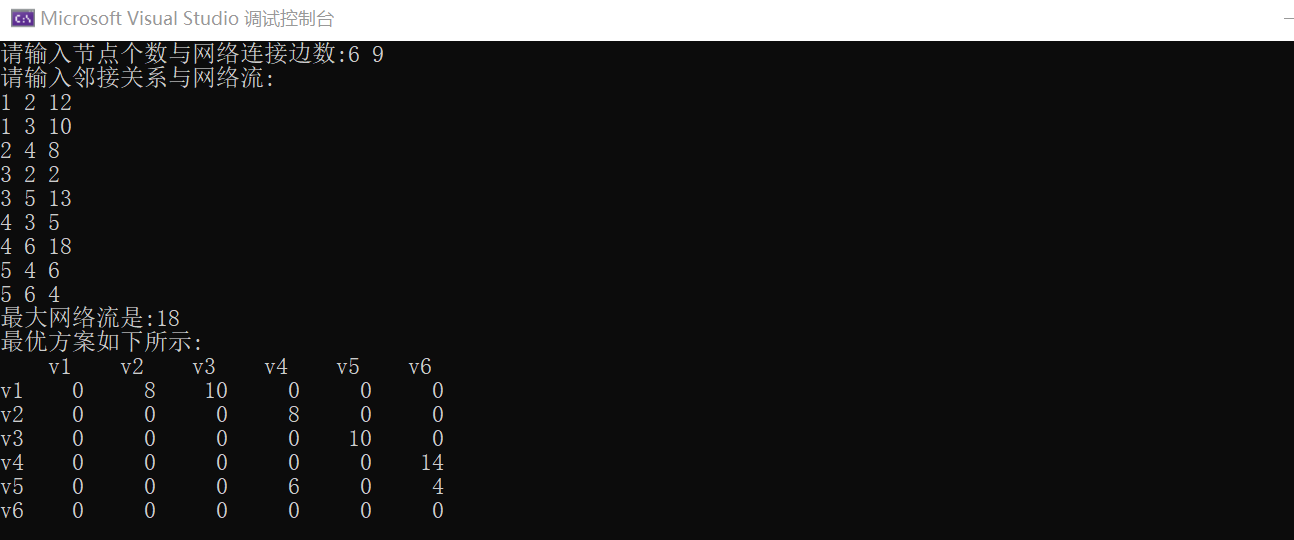

运行结果
