Maven集成Docker+ Spock + jacoco + sonar

1.执行maven 命令：clean package sonar:sonar 即可上传镜像并将测试报告上传到sonar
2. 如果没有配置环境变量：SONAR_URL ,则执行命令：
clean package sonar:sonar -D sonar.host.url=http://10.102.129.22:9000

1. pom.xml 文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.8.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.excep.demo</groupId>
    <artifactId>project-name</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <name>project-name</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
        <lombok.version>1.18.8</lombok.version>
        <docker.image.prefix>prime</docker.image.prefix>
        <version.powermock>2.0.0</version.powermock>
        <git.version></git.version>
        <git.branch></git.branch>
        <timestamp>${maven.build.timestamp}</timestamp>
        <maven.build.timestamp.format>yyyy-MM-dd'T'HH:mm:ss.SSSXXX</maven.build.timestamp.format>

        <sonar.tests>src/test/groovy,src/test/java</sonar.tests>
        <sonar.exclusions>**/baseconfig/**,**/enums/**,**/constants/**,**/model/**,**/dao/**</sonar.exclusions>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-mail</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-bean-validators</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-api</artifactId>
            <version>0.10.5</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-impl</artifactId>
            <version>0.10.5</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-jackson</artifactId>
            <version>0.10.5</version>
        </dependency>
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>27.1-jre</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.codehaus.groovy</groupId>
            <artifactId>groovy-all</artifactId>
            <version>2.4.15</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.spockframework</groupId>
            <artifactId>spock-core</artifactId>
            <version>1.2-groovy-2.4</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>net.bytebuddy</groupId>
            <artifactId>byte-buddy</artifactId>
            <version>1.8.21</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.objenesis</groupId>
            <artifactId>objenesis</artifactId>
            <version>2.6</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.58</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.8</version>
        </dependency>
        <dependency>
            <groupId>javax.jms</groupId>
            <artifactId>javax.jms-api</artifactId>
            <version>2.0.1</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.2.10</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-typehandlers-jsr310</artifactId>
            <version>1.0.2</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.8</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jms</artifactId>
            <version>5.1.10.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.apache.activemq</groupId>
            <artifactId>activemq-client</artifactId>
            <version>5.15.11</version>
        </dependency>
        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
            <version>2.0.1.Final</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
            <version>2.1.3.RELEASE</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <!-- 这个文件必须在dockerfile 文件之前，因为pom是顺序扫描，如果放在之后，会导致镜像启动时，提示找不到启动类 -->
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.1.8.RELEASE</version>
                <configuration>
                    <mainClass>com.primerobotics.primemanagementconsole.PrimeManagementConsoleApplication</mainClass>
                    <layout>JAR</layout>
                    <fork>true</fork>
                    <addResources>true</addResources>
                </configuration>
            </plugin>

            <plugin>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.21.0</version>
                <configuration>
                    <useFile>false</useFile>
                    <!-- maven 的 test 命令默认扫描命名规范以Test结尾的测试类，为了支持Spock 测试框架，必须添加 **/*Spec.java  ，注意是*.java文件-->
                    <includes>
                        <include>**/*Test.java</include>
                        <include>**/*Spec.java</include>
                    </includes>
                </configuration>
            </plugin>

            <!-- Docker maven plugin -->

            <plugin>
                <groupId>com.spotify</groupId>
                <artifactId>dockerfile-maven-plugin</artifactId>
                <version>1.4.6</version>
                <executions>
                    <execution>
                        <id>default</id>
                        <goals>
                            <goal>build</goal>
                            <goal>push</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <repository>${docker.image.prefix}/${project.name}</repository>
                    <tag>${project.version}</tag>
                    <buildArgs>
                        <JAR_FILE>${project.build.finalName}.jar</JAR_FILE>
                    </buildArgs>
                </configuration>
            </plugin>


            <!-- sonar -->


            <!-- Mandatory plugins for using Spock -->
            <plugin>
                <!-- The gmavenplus plugin is used to compile Groovy code. To learn more about this plugin,
                visit https://github.com/groovy/GMavenPlus/wiki -->
                <groupId>org.codehaus.gmavenplus</groupId>
                <artifactId>gmavenplus-plugin</artifactId>
                <version>1.4</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>


            <!-- Jacoco-->
            <plugin>
                <groupId>org.jacoco</groupId>
                <artifactId>jacoco-maven-plugin</artifactId>
                <version>0.8.5</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>prepare-agent</goal>
                        </goals>
                        <configuration>
                            <destFile>
                                ${project.build.directory}/jacoco.exec
                            </destFile>
                        </configuration>
                    </execution>
                    <execution>
                        <id>report</id>
                        <phase>prepare-package</phase>
                        <goals>
                            <goal>report</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>
<profiles>
        <profile>
            <id>sonar</id>
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
            <properties>
                <sonar.host.url>${env.SONAR_URL}</sonar.host.url>
                <sonar.sources>src/main/java</sonar.sources>
                <sonar.tests>src/test/java</sonar.tests>
                <sonar.java.binaries>target</sonar.java.binaries>
                <sonar.core.codeCoveragePlugin>jacoco</sonar.core.codeCoveragePlugin>
                <sonar.jacoco.reportPaths>target/coverage-reports/jacoco.exec</sonar.jacoco.reportPaths>
                <sonar.sourceEncoding>UTF-8</sonar.sourceEncoding>
                <sonar.exclusions>**/baseconfig/**,**/enums/**,**/constants/**,**/model/**,**/dao/**</sonar.exclusions>
            </properties>
        </profile>

    </profiles>
</project>

2. dockfile 文件内容：

1. 文件名：Dockerfile
2. 位于根目录下

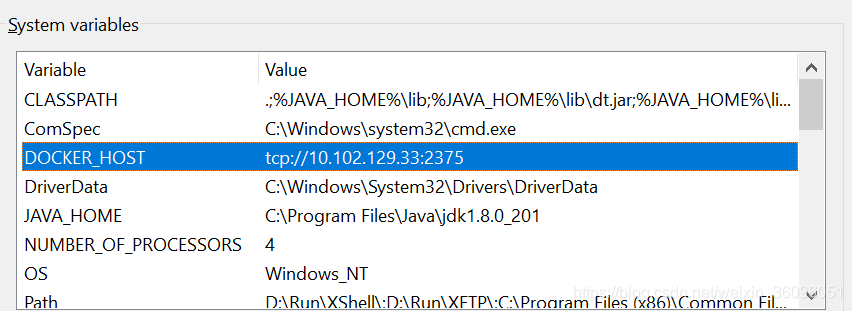

3. 配置环境变量：
   DOCKER_HOST : tcp://ip:port
4. 只需要运行maven 的package就可以打包镜像，上传到指定的docker仓库

FROM openjdk:8-jre

# Add the service itself
ARG JAR_FILE

ADD target/${JAR_FILE} /config/project-name.jar
WORKDIR /config

EXPOSE 8283

ENTRYPOINT ["java", "-jar", "project-name.jar"]

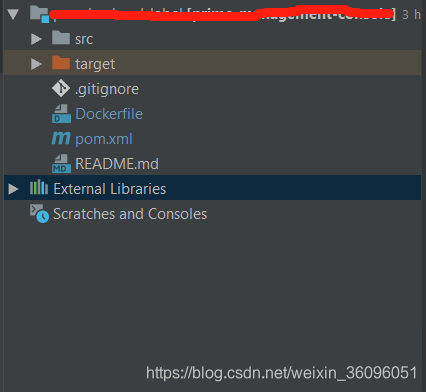

3. 项目目录结构
