OpenCV图像分割Grabcut算法

前言

1.OpenCV图像分割Grabcut算法主要功能是分割和抠图，就是把框着的目标抠出来，比如要分割出一个证件照的人的图像，只需要在目标外面画一个框，把目标框住，它就可以完成良好的分割。

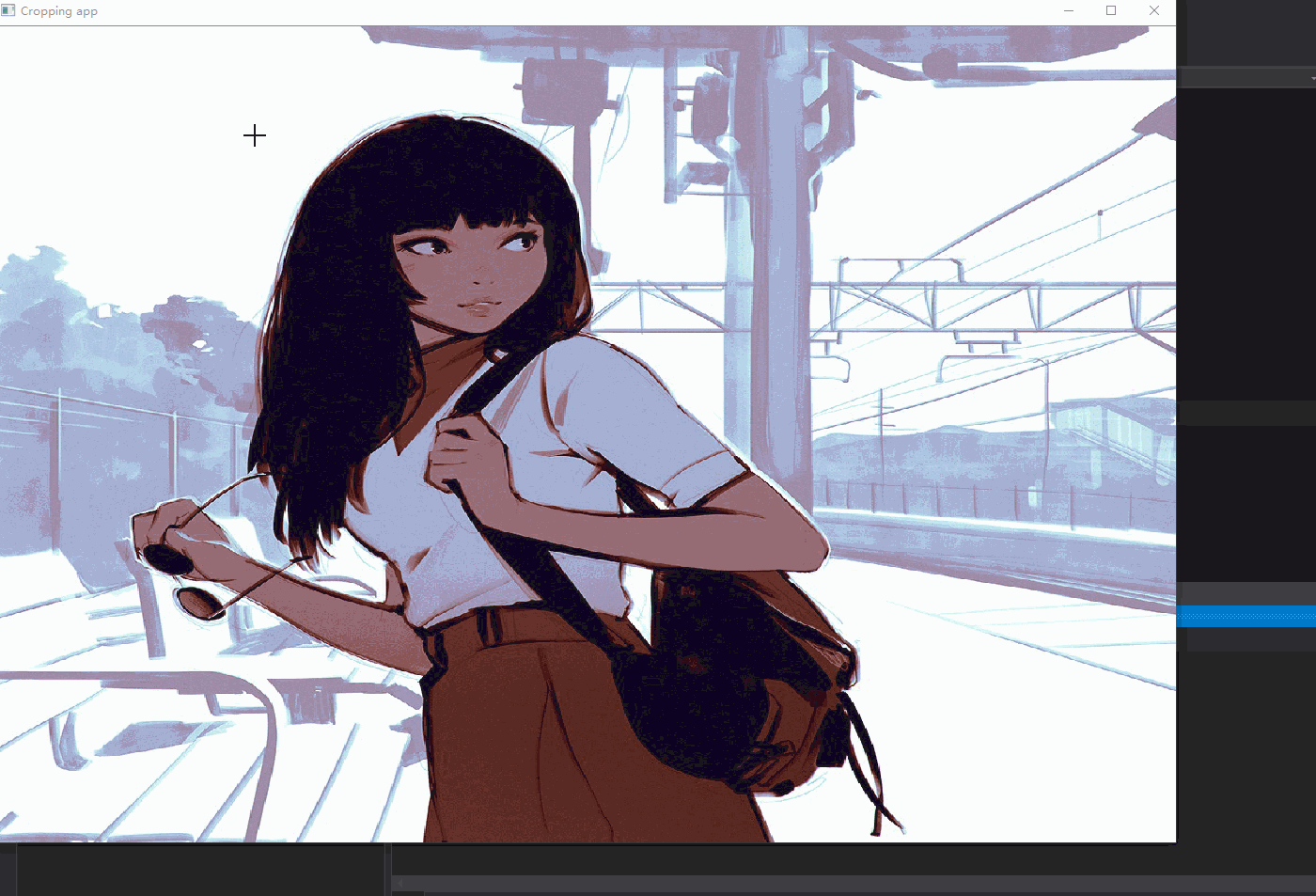

2.算法运行的效果如下，如果想

代码

#include <iostream>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/imgproc/imgproc.hpp>

bool mouse_down = false, mouse_up = false;
cv::Point corner1, corner2;
cv::Rect rect;
cv::Mat src;

static void mouseCallback(int event, int x, int y, int, void*)
{
	cv::Mat bg_model, fg_model, mask;

	if (event == cv::EVENT_LBUTTONDOWN)
	{
		mouse_down = true;
		corner1.x = x;
		corner1.y = y;
	}

	if (event == cv::EVENT_LBUTTONUP)
	{

		if (abs(x - corner1.x) > 10 && abs(y - corner1.y) > 10)
		{
			mouse_up = true;
			mouse_down = false;
			corner2.x = x;
			corner2.y = y;
		}
		else
		{
			mouse_down = false;
		}
	}

	if (mouse_down == true && mouse_up == false)
	{
		cv::Point pt;
		pt.x = x;
		pt.y = y;
		cv::Mat local_img = src.clone();
		rectangle(local_img, corner1, pt, cv::Scalar(0, 0, 255), 3);
		imshow("Cropping app", local_img);
	}

	if (mouse_down == false && mouse_up == true)
	{
		rect.width = abs(corner1.x - corner2.x);
		rect.height = abs(corner1.y - corner2.y);
		rect.x = std::min(corner1.x, corner2.x);
		rect.y = std::min(corner1.y, corner2.y);

		grabCut(src, mask, rect, bg_model, fg_model, 5, cv::GC_INIT_WITH_RECT);
		compare(mask, cv::GC_PR_FGD, mask, cv::CMP_EQ);
		cv::namedWindow("crop",0);
		cv::Mat image_roi;
		image_roi.create(src.size(), src.type());

		image_roi.setTo(cv::Scalar(255, 255, 255));
		src.copyTo(image_roi, mask);
		cv::Mat crop(image_roi, rect);
		cv::imshow("crop", crop);

		mouse_down = false;
		mouse_up = false;
	}
}
int main()
{
	src = cv::imread("12.jpg");

	cv::namedWindow("cropping",0);
	cv::imshow("cropping", src);

	cv::setMouseCallback("cropping", mouseCallback);
	cvWaitKey(0);
	return 0;
}

来源：CSDN

作者：知来者逆

链接：https://blog.csdn.net/matt45m/article/details/103778232
