前言
Bert (Bi-directional Encoder Representations from Transfromers) 预训练语言模型可谓是2018年 NLP 领域最耀眼的模型，看过很多对 Bert 论文和原理解读的文章，但是对 Bert 源码进行解读的文章较少，这篇博客 有一份 TensorFlow 版本的 Bert 源码解读，这里来对 Pytorch 版本的 Bert 源码记录一份 “详细” 注释。
这份基于 Pytorch 的 Bert 源码由 Espresso大神提供，地址在这 https://github.com/aespresso/a_journey_into_math_of_ml ，大家也可以在 Espresso大神 的 B站 观看他的视频，讲得非常不错。
今天记录的这一部分是 bert_model.py 文件，主要实现了 bert 的预训练模型搭建部分。
开始
1. 定义激活函数
def gelu(x):
"""Implementation of the gelu activation function.
For information: OpenAI GPT's gelu is slightly different (and gives slightly different results):
0.5 * x * (1 + torch.tanh(math.sqrt(2 / math.pi) * (x + 0.044715 * torch.pow(x, 3))))
Also see https://arxiv.org/abs/1606.08415
"""
return x * 0.5 * (1.0 + torch.erf(x / math.sqrt(2.0)))
ACT2FN = {"gelu": gelu, "relu": torch.nn.functional.relu}
首先就是定义了 gelu 激活函数，Bert 中不同于传统 Transformer，Bert 中的某些层的激活函数使用了 gelu 来代替 relu，使得具备了更多的随机因素，在 gelu的论文 中，gelu 的实验效果也要优于 relu。
这里是论文中提出的 GELUs(x) 的近似计算的数学公式：
其次定义了 activate function 字典，方便激活函数的使用。
2. 配置参数
class BertConfig(object):
"""Configuration class to store the configuration of a `BertModel`.
"""
def __init__(self,
vocab_size,
hidden_size=384,
num_hidden_layers=6,
num_attention_heads=12,
intermediate_size=384*4,
hidden_act="gelu",
hidden_dropout_prob=0.4,
attention_probs_dropout_prob=0.4,
max_position_embeddings=512*2,
type_vocab_size=256,
initializer_range=0.02
):
self.vocab_size = vocab_size
self.hidden_size = hidden_size
self.num_hidden_layers = num_hidden_layers
self.num_attention_heads = num_attention_heads
self.hidden_act = hidden_act
self.intermediate_size = intermediate_size
self.hidden_dropout_prob = hidden_dropout_prob
self.attention_probs_dropout_prob = attention_probs_dropout_prob
self.max_position_embeddings = max_position_embeddings
self.type_vocab_size = type_vocab_size
self.initializer_range = initializer_range
接下来，定义 BertConfig 类，对 Bert 中的一些参数进行设置，具体的设置项为：
vocab_size : 词典大小
hidden_size : 隐藏层维度 & 字向量维度
num_hidden_layers : Transformer Block 的个数
num_attention_heads : Multi-head Self-Attention 的头数
intermediate_size : Feedforword 线性映射层的维度
hidden_act : 隐藏层激活函数
hidden_dropout_prob : 隐藏层 dropout 概率
attention_probs_dropout_prob : Attention 中使用的 dropout 概率
max_position_embedding : 位置编码的最大长度
type_vocab_size : 用来做 next sentence预测时的分类类别数量，这里预留了256个类别，但用到的只有0，1
initializer_range : 初始化模型参数的标准差
3. Embedding部分
class BertEmbeddings(nn.Module):
def __init__(self, config):
super(BertEmbeddings, self).__init__()
self.word_embeddings = nn.Embedding(config.vocab_size, config.hidden_size, padding_idx=0)
self.token_type_embeddings = nn.Embedding(config.type_vocab_size, config.hidden_size)
# embedding矩阵初始化
nn.init.orthogonal_(self.word_embeddings.weight)
nn.init.orthogonal_(self.token_type_embeddings.weight)
# embedding矩阵进行归一化
epsilon = 1e-8
self.word_embeddings.weight.data = \
self.word_embeddings.weight.data.div(torch.norm(self.word_embeddings.weight, p=2, dim=1, keepdim=True).data + epsilon)
self.token_type_embeddings.weight.data = \
self.token_type_embeddings.weight.data.div(torch.norm(self.token_type_embeddings.weight, p=2, dim=1, keepdim=True).data + epsilon)
# self.LayerNorm is not snake-cased to stick with TensorFlow model variable name and be able to load
# any TensorFlow checkpoint file
self.LayerNorm = BertLayerNorm(config.hidden_size, eps=1e-12)
self.dropout = nn.Dropout(config.hidden_dropout_prob)
def forward(self, input_ids, positional_enc, token_type_ids=None):
"""
:param input_ids: 维度 [batch_size, sequence_length]
:param positional_enc: 位置编码 [sequence_length, embedding_dimension]
:param token_type_ids: BERT训练的时候, 第一句是0, 第二句是1
:return: 维度 [batch_size, sequence_length, embedding_dimension]
"""
# 字向量查表
words_embeddings = self.word_embeddings(input_ids)
if token_type_ids is None:
token_type_ids = torch.zeros_like(input_ids)
token_type_embeddings = self.token_type_embeddings(token_type_ids)
embeddings = words_embeddings + positional_enc + token_type_embeddings
# embeddings: [batch_size, sequence_length, embedding_dimension]
embeddings = self.LayerNorm(embeddings)
embeddings = self.dropout(embeddings)
return embeddings
__init__ 部分中，主要是对 Embedding 向量的初始化以及标准化，positional encoding 由于是公式计算得出，所以不用初始化。
forward 函数中，主要实现了 input_ids 与 token_type_ids 由 index token 到 embedding 的转化，以及 将 words embedding、positional encoding、token type embedding 相加生成最终输入 tansformer block 的 embedding，这里在相加后还进行了 Layer normal 和 dropout 的操作，在 embedding 输入的部分做 layer normal 同样是为了加快loss收敛，加快训练速度，但这里不太明白为什么要在输入时就进行 dropout 的操作。
4. Self-Attention机制
class BertSelfAttention(nn.Module):
"""自注意力机制层, 见Transformer(一), 讲编码器(encoder)的第2部分"""
def __init__(self, config):
super(BertSelfAttention, self).__init__()
# 判断embedding dimension是否可以被num_attention_heads整除
if config.hidden_size % config.num_attention_heads != 0:
raise ValueError(
"The hidden size (%d) is not a multiple of the number of attention "
"heads (%d)" % (config.hidden_size, config.num_attention_heads))
self.num_attention_heads = config.num_attention_heads
self.attention_head_size = int(config.hidden_size / config.num_attention_heads)
self.all_head_size = self.num_attention_heads * self.attention_head_size
# Q, K, V线性映射
self.query = nn.Linear(config.hidden_size, self.all_head_size)
self.key = nn.Linear(config.hidden_size, self.all_head_size)
self.value = nn.Linear(config.hidden_size, self.all_head_size)
self.dropout = nn.Dropout(config.attention_probs_dropout_prob)
def transpose_for_scores(self, x):
# 输入x为QKV中的一个, 维度: [batch_size, seq_length, embedding_dim]
# 输出的维度经过reshape和转置: [batch_size, num_heads, seq_length, embedding_dim / num_heads]
new_x_shape = x.size()[:-1] + (self.num_attention_heads, self.attention_head_size)
x = x.view(*new_x_shape)
return x.permute(0, 2, 1, 3)
def forward(self, hidden_states, attention_mask, get_attention_matrices=False):
# Q, K, V线性映射
# Q, K, V的维度为[batch_size, seq_length, num_heads * embedding_dim]
mixed_query_layer = self.query(hidden_states)
mixed_key_layer = self.key(hidden_states)
mixed_value_layer = self.value(hidden_states)
# 把QKV分割成num_heads份
# 把维度转换为[batch_size, num_heads, seq_length, embedding_dim / num_heads]
query_layer = self.transpose_for_scores(mixed_query_layer)
key_layer = self.transpose_for_scores(mixed_key_layer)
value_layer = self.transpose_for_scores(mixed_value_layer)
# Take the dot product between "query" and "key" to get the raw attention scores.
# Q与K求点积
attention_scores = torch.matmul(query_layer, key_layer.transpose(-1, -2))
# attention_scores: [batch_size, num_heads, seq_length, seq_length]
# 除以K的dimension, 开平方根以归一为标准正态分布
attention_scores = attention_scores / math.sqrt(self.attention_head_size)
# Apply the attention mask is (precomputed for all layers in BertModel forward() function)
attention_scores = attention_scores + attention_mask
# attention_mask 注意力矩阵mask: [batch_size, 1, 1, seq_length]
# 元素相加后, 会广播到维度: [batch_size, num_heads, seq_length, seq_length]
# softmax归一化, 得到注意力矩阵
# Normalize the attention scores to probabilities.
attention_probs_ = nn.Softmax(dim=-1)(attention_scores)
# This is actually dropping out entire tokens to attend to, which might
# seem a bit unusual, but is taken from the original Transformer paper.
attention_probs = self.dropout(attention_probs_)
# 用注意力矩阵加权V
context_layer = torch.matmul(attention_probs, value_layer)
# 把加权后的V reshape, 得到[batch_size, length, embedding_dimension]
context_layer = context_layer.permute(0, 2, 1, 3).contiguous()
new_context_layer_shape = context_layer.size()[:-2] + (self.all_head_size,)
context_layer = context_layer.view(*new_context_layer_shape)
# 输出attention矩阵用来可视化
if get_attention_matrices:
return context_layer, attention_probs_
return context_layer, None
__init__ 部分，首先会进行判断 config 中设置的 multi-head self-attention 的头数是否能够被 hidden_size 整除。接下来会计算出每个 head 的维度，然后定义由 hidden layer 到 Q，K，V 向量的线性映射。
transpose_for_scores 方法，实现了 Q，K，V 向量的维度转换，以及多头分割，将 Q，K，V 原始的维度 [ batch_size, seq_length, hidden_size ]，转换为 [ batch_size, num_heads, seq_length, attention_head_size ]。由于在做Multi-head Self-attention时，是通过矩阵乘法的方式实现并行化的计算，所以需要在计算之初对多个头的 Q，K，V 向量进行分割并组成矩阵。
forward 方法具体实现了 Multi-head Self-attention 的操作，首先将隐藏层向量 hidden_states 通过不同的权重参数线性映射为 Q，K，V 向量，然后进行 Mutli-head 的划分，组成矩阵。Transformer 中计算 attention 权重值的公式如下：
代码中，第一步的 attention_scores 通过计算 Q Muti-head 矩阵与 K Muti-head 矩阵的矩阵乘乘积，实现了所有 Q 与 K 向量的点积的同步计算。由于 Q Muti-head 与 K Multi-head 矩阵的 shape 相同，所以在做矩阵乘法之前先要对每一个 head 的 K 向量矩阵进行转置的操作。经过计算后第一步的 attention_scores 的 shape 为：[ batch_size, num_heads, seq_length, seq_length ]。
第二步的 attention_scores 主要为公式中，计算点积值除以

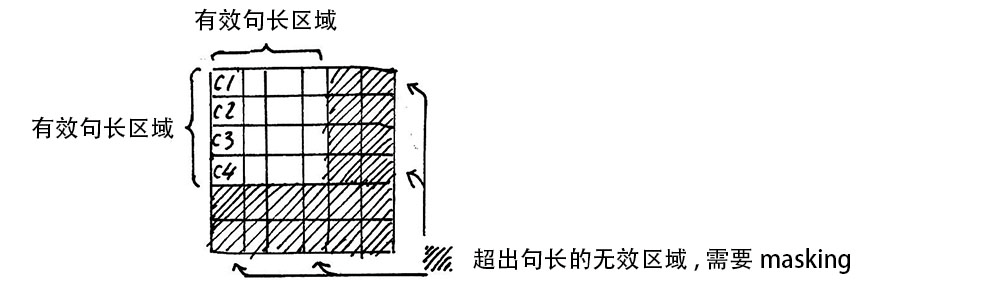

的部分，接下来将计算出的值，与 attention_mask 相加，会将 padding 时补充的占位符位置的相似度值置为负无穷大，以减小 padding 操作在后续 Softmax 中的影响。attention_mask 的 shape 为：[batch_size, 1, 1, seq_length ]，在元素相加时，会自动广播到所有维度。
接下来，在最后一维 seq_length 的维度上，完成 Softmax 的操作，再经过 dropout ，得到最终的注意力权重矩阵 attention_probs。其维度为：[ batch_size, num_heads, seq_length, seq_length ]。
最后将注意权重矩阵与 V Multi-head 矩阵做矩阵乘法，实现方程中的最后一步。相乘后的 context_layer 维度为：[ batch_size, num_heads, seq_length, attention_head_size ]。此时就完成了所有 Multi-head attention 的并行计算，然后再将所有 head 的计算结果进行拼接，也就是将 context_layer 重新 reshape 为 hidden layer 的维度。最终经过 Self-attention 后的输出的维度仍为：[ batch_size, seq_length, embedding_size ]。

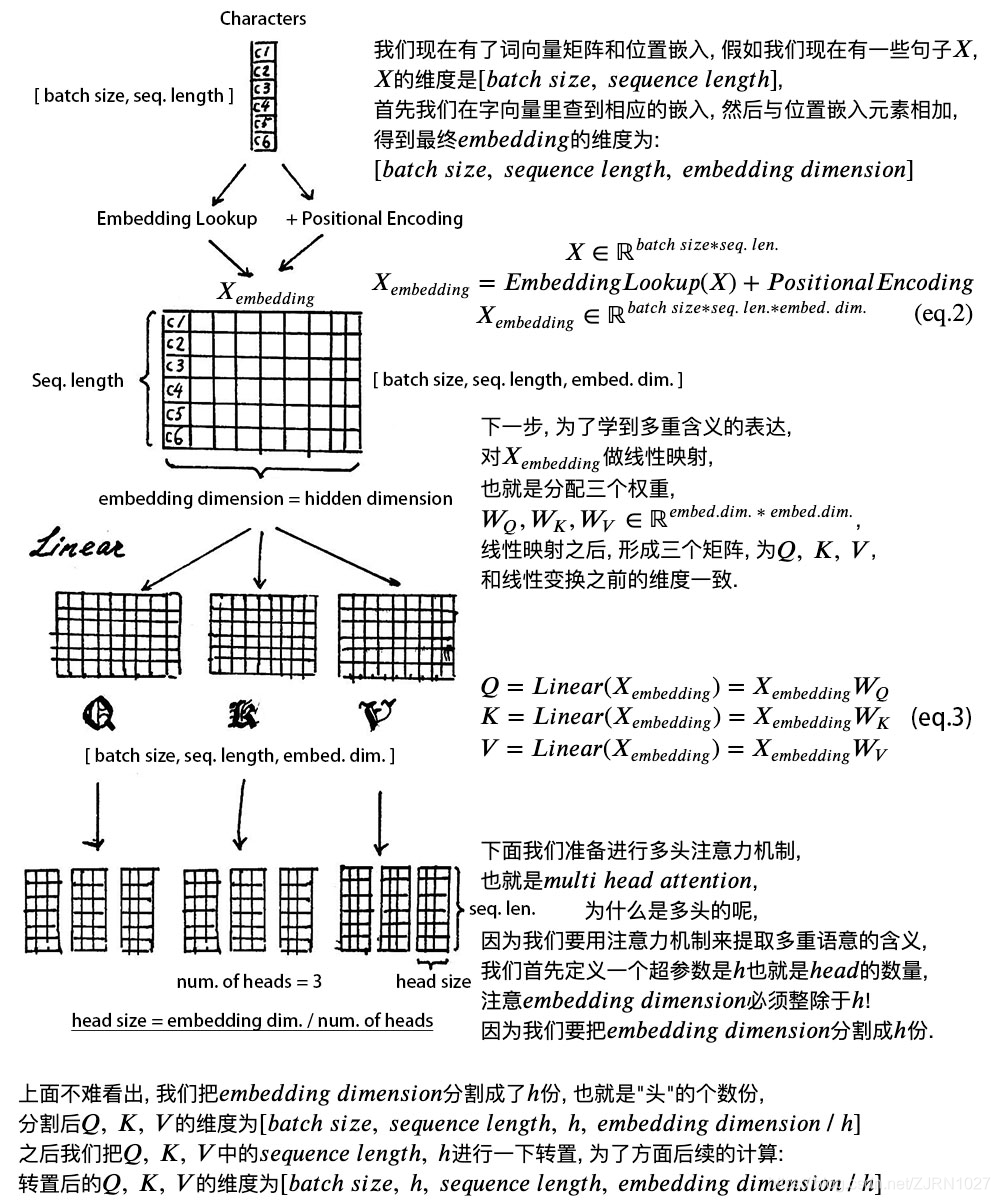

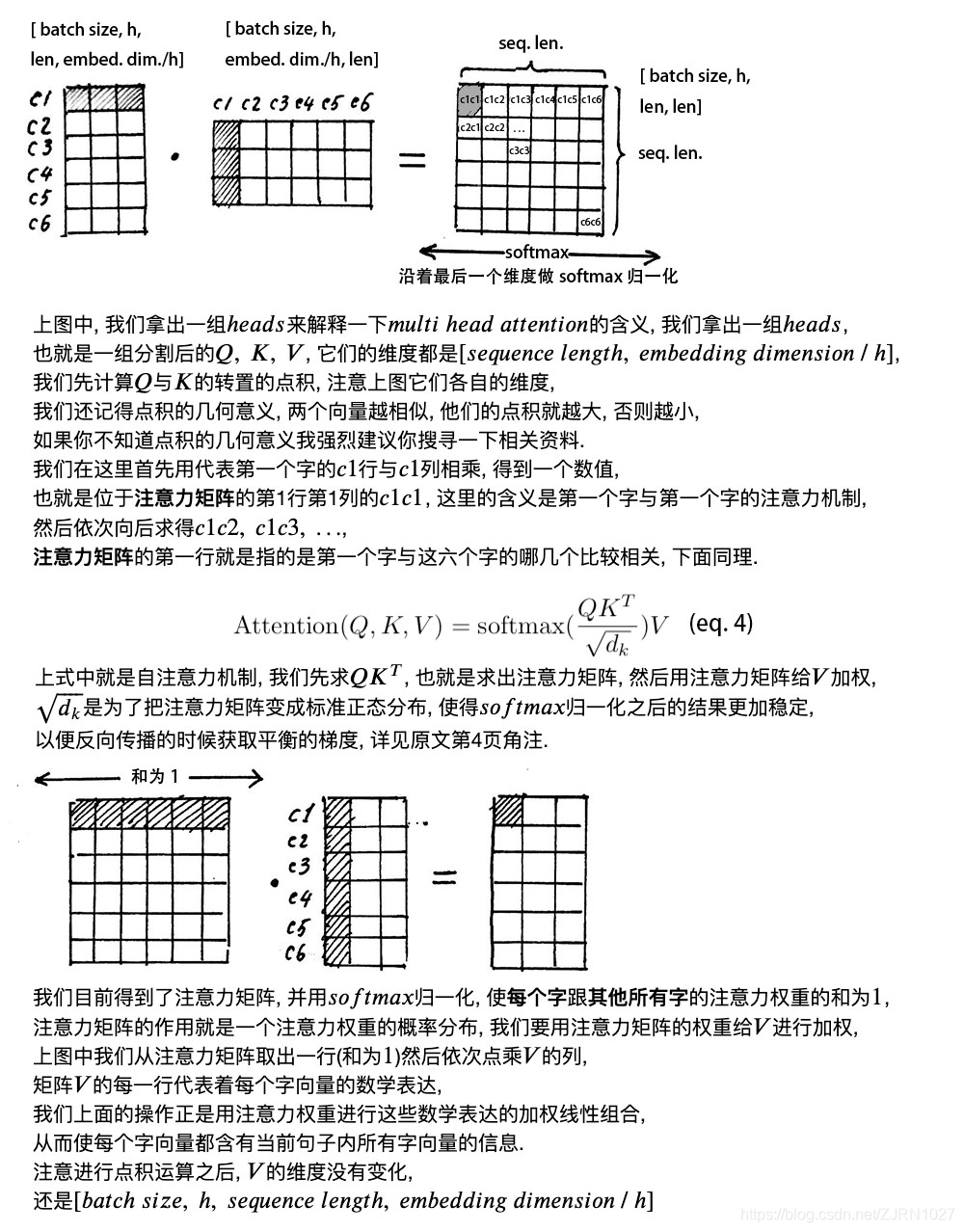

整个计算过程中，将所有 Multi-head 的 Q，K，V 向量拼接为矩阵，通过矩阵乘法实现了高效率的并行计算，为了更加直观的理解这个过程，这里贴上 Espresso大神 的图示说明：
5. Layer Normalization
class BertLayerNorm(nn.Module):
def __init__(self, hidden_size, eps=1e-12):
"""Construct a layernorm module in the TF style (epsilon inside the square root).
"""
super(BertLayerNorm, self).__init__()
self.weight = nn.Parameter(torch.ones(hidden_size))
self.bias = nn.Parameter(torch.zeros(hidden_size))
self.variance_epsilon = eps
def forward(self, x):
u = x.mean(-1, keepdim=True)
s = (x - u).pow(2).mean(-1, keepdim=True)
x = (x - u) / torch.sqrt(s + self.variance_epsilon)
return self.weight * x + self.bias
Bert 中有许多地方使用了 Layer Normalization 的操作，对每一层的输出向量进行分布调整，以加快网络的训练速度。Layer Normalization 的方程如下：
forward 方法实现了 Layer Normalization 的操作。
6. Attention 与 Add & Normal 的封装
class BertSelfOutput(nn.Module):
# 封装的LayerNorm和残差连接, 用于处理SelfAttention的输出
def __init__(self, config):
super(BertSelfOutput, self).__init__()
self.dense = nn.Linear(config.hidden_size, config.hidden_size)
self.LayerNorm = BertLayerNorm(config.hidden_size, eps=1e-12)
self.dropout = nn.Dropout(config.hidden_dropout_prob)
def forward(self, hidden_states, input_tensor):
hidden_states = self.dense(hidden_states)
hidden_states = self.dropout(hidden_states)
hidden_states = self.LayerNorm(hidden_states + input_tensor)
return hidden_states
class BertAttention(nn.Module):
# 封装的多头注意力机制部分, 包括LayerNorm和残差连接
def __init__(self, config):
super(BertAttention, self).__init__()
self.self = BertSelfAttention(config)
self.output = BertSelfOutput(config)
def forward(self, input_tensor, attention_mask, get_attention_matrices=False):
self_output, attention_matrices = self.self(input_tensor, attention_mask, get_attention_matrices=get_attention_matrices)
attention_output = self.output(self_output, input_tensor)
return attention_output, attention_matrices
这两部分代码主要将 Transformer 中的 Muti-head 操作和 Add & Normal 操作进行封装。
BertSelfOutput 类实现了Add & Normal 操作，先相加，再做 Layer Normalization。
BertAttention 类将 Multi-head Self-attention 与 Add & Normal 操作进行合并封装。
7. FeedForward 与 第二个 Add & Normal
class BertIntermediate(nn.Module):
# 封装的FeedForward层和激活层
def __init__(self, config):
super(BertIntermediate, self).__init__()
self.dense = nn.Linear(config.hidden_size, config.intermediate_size)
self.intermediate_act_fn = ACT2FN[config.hidden_act]
def forward(self, hidden_states):
hidden_states = self.dense(hidden_states)
hidden_states = self.intermediate_act_fn(hidden_states)
return hidden_states
class BertOutput(nn.Module):
# 封装的LayerNorm和残差连接, 用于处理FeedForward层的输出
def __init__(self, config):
super(BertOutput, self).__init__()
self.dense = nn.Linear(config.intermediate_size, config.hidden_size)
self.LayerNorm = BertLayerNorm(config.hidden_size, eps=1e-12)
self.dropout = nn.Dropout(config.hidden_dropout_prob)
def forward(self, hidden_states, input_tensor):
hidden_states = self.dense(hidden_states)
hidden_states = self.dropout(hidden_states)
hidden_states = self.LayerNorm(hidden_states + input_tensor)
return hidden_states
传统 Transformer 中的 FeedForward 的公式如下:
BertIntermediate 类主要进行了 FeedForward 中第一次线性变换的操作。 这里 Bert 与传统 Transformer 的不同在于，传统 Transformer 的 FeedForwrad 层使用的激活函数为 Relu，而 Bert 中使用的激活函数为 Gelu。
其次 FeedForward 层在进行第一次线性变换时，会将 hidden_size 转换为 intermediate_size，也就是说，根据官方的参数，会将intermediate_size 的 大小为 hidden_size 的4倍。这样做的原因是：将提炼好的向量投射到一个维度更高的特征空间，增强其表达能力和携带特征的能力，类似于 SVM 的核函数的作用，低维度的复杂问题或许投射到高纬度就可以用一个超平面来简单的解决。
BertOutput 类主要进行了 FeedForward 中的第二次线性变换，以及 FeedForward 后的 Add&Normal 的操作。
8. 封装Transformer Block
class BertLayer(nn.Module):
# 一个transformer block
def __init__(self, config):
super(BertLayer, self).__init__()
self.attention = BertAttention(config)
self.intermediate = BertIntermediate(config)
self.output = BertOutput(config)
def forward(self, hidden_states, attention_mask, get_attention_matrices=False):
# Attention层(包括LayerNorm和残差连接)
attention_output, attention_matrices = self.attention(hidden_states, attention_mask, get_attention_matrices=get_attention_matrices)
# FeedForward层
intermediate_output = self.intermediate(attention_output)
# LayerNorm与残差连接输出层
layer_output = self.output(intermediate_output, attention_output)
return layer_output, attention_matrices
通过前面的源码解读，这一部分就很清楚明了了，forward 方法将 Multi-head Self-attention，Add&Noraml，FeedForward，Add&Normal 依次串联起来，形成一个 Transformer Block。
9. BertEncoder
class BertEncoder(nn.Module):
# transformer blocks * N
def __init__(self, config):
super(BertEncoder, self).__init__()
layer = BertLayer(config)
# 复制N个transformer block
self.layer = nn.ModuleList([copy.deepcopy(layer) for _ in range(config.num_hidden_layers)])
def forward(self, hidden_states, attention_mask, output_all_encoded_layers=True, get_attention_matrices=False):
"""
:param output_all_encoded_layers: 是否输出每一个transformer block的隐藏层计算结果
:param get_attention_matrices: 是否输出注意力矩阵, 可用于可视化
"""
all_attention_matrices = []
all_encoder_layers = []
for layer_module in self.layer:
hidden_states, attention_matrices = layer_module(hidden_states, attention_mask, get_attention_matrices=get_attention_matrices)
if output_all_encoded_layers:
all_encoder_layers.append(hidden_states)
all_attention_matrices.append(attention_matrices)
if not output_all_encoded_layers:
all_encoder_layers.append(hidden_states)
all_attention_matrices.append(attention_matrices)
return all_encoder_layers, all_attention_matrices
这一部分源码实现 Transformer Block 的堆叠。
__init__ 方法将要拼装的 Transformer 放到一个 list 中。
forward 方法主要完成依次堆叠工作，同时返回每一层 Block 的输出与每一层 Attention 权重矩阵的输出，用于做 Attention 可视化。
10. 取出第一条特征向量
class BertPooler(nn.Module):
"""Pooler是把隐藏层(hidden state)中对应#CLS#的token的一条提取出来的功能"""
def __init__(self, config):
super(BertPooler, self).__init__()
self.dense = nn.Linear(config.hidden_size, config.hidden_size)
self.activation = nn.Tanh()
def forward(self, hidden_states):
# We "pool" the model by simply taking the hidden state corresponding
# to the first token.
first_token_tensor = hidden_states[:, 0]
pooled_output = self.dense(first_token_tensor)
pooled_output = self.activation(pooled_output)
return pooled_output
BertPooler 类会将 hidden state 的第一条特征向量，也就是 #CLS# 所对应的特征向量取出，用于进行 next sentence classification 任务。这里使用了 Tanh 作为激活函数。
11. sequence length to vocabulary size
class BertPredictionHeadTransform(nn.Module):
def __init__(self, config):
super(BertPredictionHeadTransform, self).__init__()
self.dense = nn.Linear(config.hidden_size, config.hidden_size)
self.transform_act_fn = ACT2FN[config.hidden_act]
self.LayerNorm = BertLayerNorm(config.hidden_size, eps=1e-12)
def forward(self, hidden_states):
hidden_states = self.dense(hidden_states)
hidden_states = self.transform_act_fn(hidden_states)
hidden_states = self.LayerNorm(hidden_states)
return hidden_states
class BertLMPredictionHead(nn.Module):
def __init__(self, config, bert_model_embedding_weights):
super(BertLMPredictionHead, self).__init__()
# 线性映射, 激活, LayerNorm
self.transform = BertPredictionHeadTransform(config)
# The output weights are the same as the input embeddings, but there is
# an output-only bias for each token.
self.decoder = nn.Linear(bert_model_embedding_weights.size(1),
bert_model_embedding_weights.size(0),
bias=False)
"""上面是创建一个线性映射层, 把transformer block输出的[batch_size, seq_len, embed_dim]
映射为[batch_size, seq_len, vocab_size], 也就是把最后一个维度映射成字典中字的数量,
获取MaskedLM的预测结果, 注意这里其实也可以直接矩阵成embedding矩阵的转置,
但一般情况下我们要随机初始化新的一层参数
"""
self.decoder.weight = bert_model_embedding_weights
self.bias = nn.Parameter(torch.zeros(bert_model_embedding_weights.size(0)))
def forward(self, hidden_states):
hidden_states = self.transform(hidden_states)
hidden_states = self.decoder(hidden_states) + self.bias
return hidden_states
上面两部分代码中，BertPredictionHeadTransform 类封装了一个顺序为：线性变换，激活，Layer Normal 的变换流程，为后续的 Masked language modeling 任务做准备。
BertLMPredictionHead 类中，实现了将 hidden layer 的输出由 [ batch_size, seq_length, hidden_size ] 转化为 [ batch_size, seq_length, vocab_size ] 的维度变换。这样就可以通过 Softmax 归一化 vocab_size 的概率，对 sequence 中被 mask 调的字进行预测了。
12. 获得多任务输出
class BertPreTrainingHeads(nn.Module):
"""
BERT的训练中通过隐藏层输出Masked LM的预测和Next Sentence的预测
"""
def __init__(self, config, bert_model_embedding_weights):
super(BertPreTrainingHeads, self).__init__()
self.predictions = BertLMPredictionHead(config, bert_model_embedding_weights)
# 把transformer block输出的[batch_size, seq_len, embed_dim]
# 映射为[batch_size, seq_len, vocab_size]
# 用来进行MaskedLM的预测
self.seq_relationship = nn.Linear(config.hidden_size, 2)
# 用来把pooled_output也就是对应#CLS#的那一条向量映射为2分类
# 用来进行Next Sentence的预测
def forward(self, sequence_output, pooled_output):
prediction_scores = self.predictions(sequence_output)
seq_relationship_score = self.seq_relationship(pooled_output)
return prediction_scores, seq_relationship_score
BertPreTrainingHeads 类的作用是获得预训练 Bert 时，进行的两个任务的输出向量，prediction_scores 用于 mask language modeling 任务，seq_relationship_scre 用于 next sentence classfifcation 任务。
13. 参数初始化
class BertPreTrainedModel(nn.Module):
""" An abstract class to handle weights initialization and
a simple interface for dowloading and loading pretrained models.
用来初始化模型参数
"""
def __init__(self, config, *inputs, **kwargs):
super(BertPreTrainedModel, self).__init__()
if not isinstance(config, BertConfig):
raise ValueError(
"Parameter config in `{}(config)` should be an instance of class `BertConfig`. "
"To create a model from a Google pretrained model use "
"`model = {}.from_pretrained(PRETRAINED_MODEL_NAME)`".format(
self.__class__.__name__, self.__class__.__name__
))
self.config = config
def init_bert_weights(self, module):
""" Initialize the weights.
"""
if isinstance(module, (nn.Linear)):
# 初始线性映射层的参数为正态分布
module.weight.data.normal_(mean=0.0, std=self.config.initializer_range)
elif isinstance(module, BertLayerNorm):
# 初始化LayerNorm中的alpha为全1, beta为全0
module.bias.data.zero_()
module.weight.data.fill_(1.0)
if isinstance(module, nn.Linear) and module.bias is not None:
# 初始化偏置为0
module.bias.data.zero_()
BertPreTrainedModel 类，初始化训练参数。
14. Bert Model
class BertModel(BertPreTrainedModel):
"""BERT model ("Bidirectional Embedding Representations from a Transformer").
Params:
config: a BertConfig class instance with the configuration to build a new model
Inputs:
`input_ids`: a torch.LongTensor of shape [batch_size, sequence_length]
with the word token indices in the vocabulary(see the tokens preprocessing logic in the scripts
`extract_features.py`, `run_classifier.py` and `run_squad.py`)
`token_type_ids`: an optional torch.LongTensor of shape [batch_size, sequence_length] with the token
types indices selected in [0, 1]. Type 0 corresponds to a `sentence A` and type 1 corresponds to
a `sentence B` token (see BERT paper for more details).
`attention_mask`: an optional torch.LongTensor of shape [batch_size, sequence_length] with indices
selected in [0, 1]. It's a mask to be used if the input sequence length is smaller than the max
input sequence length in the current batch. It's the mask that we typically use for attention when
a batch has varying length sentences.
`output_all_encoded_layers`: boolean which controls the content of the `encoded_layers` output as described below. Default: `True`.
Outputs: Tuple of (encoded_layers, pooled_output)
`encoded_layers`: controled by `output_all_encoded_layers` argument:
- `output_all_encoded_layers=True`: outputs a list of the full sequences of encoded-hidden-states at the end
of each attention block (i.e. 12 full sequences for BERT-base, 24 for BERT-large), each
encoded-hidden-state is a torch.FloatTensor of size [batch_size, sequence_length, hidden_size],
- `output_all_encoded_layers=False`: outputs only the full sequence of hidden-states corresponding
to the last attention block of shape [batch_size, sequence_length, hidden_size],
`pooled_output`: a torch.FloatTensor of size [batch_size, hidden_size] which is the output of a
classifier pretrained on top of the hidden state associated to the first character of the
input (`CLS`) to train on the Next-Sentence task (see BERT's paper).
Example usage:
```python
# Already been converted into WordPiece token ids
input_ids = torch.LongTensor([[31, 51, 99], [15, 5, 0]])
input_mask = torch.LongTensor([[1, 1, 1], [1, 1, 0]])
token_type_ids = torch.LongTensor([[0, 0, 1], [0, 1, 0]])
config = modeling.BertConfig(vocab_size_or_config_json_file=32000, hidden_size=768,
num_hidden_layers=12, num_attention_heads=12, intermediate_size=3072)
model = modeling.BertModel(config=config)
all_encoder_layers, pooled_output = model(input_ids, token_type_ids, input_mask)
```
"""
def __init__(self, config):
super(BertModel, self).__init__(config)
self.embeddings = BertEmbeddings(config)
self.encoder = BertEncoder(config)
self.pooler = BertPooler(config)
self.apply(self.init_bert_weights)
def forward(self, input_ids, positional_enc, token_type_ids=None, attention_mask=None,
output_all_encoded_layers=True, get_attention_matrices=False):
if attention_mask is None:
# torch.LongTensor
# attention_mask = torch.ones_like(input_ids)
attention_mask = (input_ids > 0)
# attention_mask [batch_size, length]
if token_type_ids is None:
token_type_ids = torch.zeros_like(input_ids)
# We create a 3D attention mask from a 2D tensor mask.
# Sizes are [batch_size, 1, 1, to_seq_length]
# So we can broadcast to [batch_size, num_heads, from_seq_length, to_seq_length]
# this attention mask is more simple than the triangular masking of causal attention
# used in OpenAI GPT, we just need to prepare the broadcast dimension here.
extended_attention_mask = attention_mask.unsqueeze(1).unsqueeze(2)
# 注意力矩阵mask: [batch_size, 1, 1, seq_length]
# Since attention_mask is 1.0 for positions we want to attend and 0.0 for
# masked positions, this operation will create a tensor which is 0.0 for
# positions we want to attend and -10000.0 for masked positions.
# Since we are adding it to the raw scores before the softmax, this is
# effectively the same as removing these entirely.
extended_attention_mask = extended_attention_mask.to(dtype=next(self.parameters()).dtype) # fp16 compatibility
extended_attention_mask = (1.0 - extended_attention_mask) * -10000.0
# 给注意力矩阵里padding的无效区域加一个很大的负数的偏置, 为了使softmax之后这些无效区域仍然为0, 不参与后续计算
# embedding层
embedding_output = self.embeddings(input_ids, positional_enc, token_type_ids)
# 经过所有定义的transformer block之后的输出
encoded_layers, all_attention_matrices = self.encoder(embedding_output,
extended_attention_mask,
output_all_encoded_layers=output_all_encoded_layers,
get_attention_matrices=get_attention_matrices)
# 可输出所有层的注意力矩阵用于可视化
if get_attention_matrices:
return all_attention_matrices
# [-1]为最后一个transformer block的隐藏层的计算结果
sequence_output = encoded_layers[-1]
# pooled_output为隐藏层中#CLS#对应的token的一条向量
pooled_output = self.pooler(sequence_output)
if not output_all_encoded_layers:
encoded_layers = encoded_layers[-1]
return encoded_layers, pooled_output
讲完了之前的源码，这一部分源码就变得很简单了。 __inint__ 方法实例化了前面的三大模块，分别是：
1.处理 word embedding、positional encoding、和 token_type_embedding 的 BertEmbeddings 模块。
2.经过N个 Transformer Block 堆叠好的 BertEncoder 模块。
3.用于提取 hidden state 中，对应 #CLS# 的 token 的 vector 的 BertPooler 模块。
forward 方法中，首先处理attention_mask 矩阵，用于在计算 attention 权重值时，减少 padding 带来的影响。接下来将 embedding 层的输出和 attention_mask 矩阵传入 BertEncoder 部分，再对 output_all_encoded_layers 标识位进行判断，决定返回每一层 Transformer Block 的输出，还是只返回最后一层的最终结果。同时返回 #CLS# 对应的 hidden state。
15.最终的Bert Pre-train model
class BertForPreTraining(BertPreTrainedModel):
"""BERT model with pre-training heads.
This module comprises the BERT model followed by the two pre-training heads:
- the masked language modeling head, and
- the next sentence classification head.
Params:
config: a BertConfig class instance with the configuration to build a new model.
Inputs:
`input_ids`: a torch.LongTensor of shape [batch_size, sequence_length]
with the word token indices in the vocabulary(see the tokens preprocessing logic in the scripts
`extract_features.py`, `run_classifier.py` and `run_squad.py`)
`token_type_ids`: an optional torch.LongTensor of shape [batch_size, sequence_length] with the token
types indices selected in [0, 1]. Type 0 corresponds to a `sentence A` and type 1 corresponds to
a `sentence B` token (see BERT paper for more details).
`attention_mask`: an optional torch.LongTensor of shape [batch_size, sequence_length] with indices
selected in [0, 1]. It's a mask to be used if the input sequence length is smaller than the max
input sequence length in the current batch. It's the mask that we typically use for attention when
a batch has varying length sentences.
`masked_lm_labels`: optional masked language modeling labels: torch.LongTensor of shape [batch_size, sequence_length]
with indices selected in [-1, 0, ..., vocab_size]. All labels set to -1 are ignored (masked), the loss
is only computed for the labels set in [0, ..., vocab_size]
`next_sentence_label`: optional next sentence classification loss: torch.LongTensor of shape [batch_size]
with indices selected in [0, 1].
0 => next sentence is the continuation, 1 => next sentence is a random sentence.
Outputs:
if `masked_lm_labels` and `next_sentence_label` are not `None`:
Outputs the total_loss which is the sum of the masked language modeling loss and the next
sentence classification loss.
if `masked_lm_labels` or `next_sentence_label` is `None`:
Outputs a tuple comprising
- the masked language modeling logits of shape [batch_size, sequence_length, vocab_size], and
- the next sentence classification logits of shape [batch_size, 2].
Example usage:
```python
# Already been converted into WordPiece token ids
input_ids = torch.LongTensor([[31, 51, 99], [15, 5, 0]])
input_mask = torch.LongTensor([[1, 1, 1], [1, 1, 0]])
token_type_ids = torch.LongTensor([[0, 0, 1], [0, 1, 0]])
config = BertConfig(vocab_size_or_config_json_file=32000, hidden_size=768,
num_hidden_layers=12, num_attention_heads=12, intermediate_size=3072)
model = BertForPreTraining(config)
masked_lm_logits_scores, seq_relationship_logits = model(input_ids, token_type_ids, input_mask)
```
"""
def __init__(self, config):
super(BertForPreTraining, self).__init__(config)
self.bert = BertModel(config)
self.cls = BertPreTrainingHeads(config, self.bert.embeddings.word_embeddings.weight)
self.apply(self.init_bert_weights)
self.vocab_size = config.vocab_size
self.next_loss_func = CrossEntropyLoss()
self.mlm_loss_func = CrossEntropyLoss(ignore_index=0)
def compute_loss(self, predictions, labels, num_class=2, ignore_index=-100):
loss_func = CrossEntropyLoss(ignore_index=ignore_index)
return loss_func(predictions.view(-1, num_class), labels.view(-1))
def forward(self, input_ids, positional_enc, token_type_ids=None, attention_mask=None,
masked_lm_labels=None, next_sentence_label=None):
sequence_output, pooled_output = self.bert(input_ids, positional_enc, token_type_ids, attention_mask,
output_all_encoded_layers=False)
mlm_preds, next_sen_preds = self.cls(sequence_output, pooled_output)
return mlm_preds, next_sen_preds
终于到了最后一个模块，BertForPreTraining 类。这是最终在预训练 Bert 时调用的类。
__init__ 方法中，实例化 BertModel 类，得到 bert 模型。实例化 BertPreTrainingHeads 类，用于获得预训练 Bert 时，进行的两个任务的输出向量。模型参数初始化，获得词表大小，以及定义两个任务所用到的损失函数，都为 Cross-Entropy。
compute_loss 方法主要定义了 next_sentence_classification 任务中用到的 loss 计算。
forward 方法中，通过之前实例化好的 bert 模型计算得到 hidden state 的输出及 #CLS# 对应 token 的输出，在将他们进行线性变换，转化为可以直接计算 loss 的形式。
总结
以上就是 Pytorch 版本的 Bert 源码模型构建部分的全部内容，相较于 TensorFlow 版本而言，在最后的最终预训练模型的组装，以及模型预测向量输出部分，Pytorch使用了多个类来封装结合，这样虽然在结构上更为清晰，但还是显得较为冗长。后续会再对模型预训练部分的源码及数据处理和 Embedding 部分的源码进行解读记录。
来源：CSDN
作者：zjrn
链接：https://blog.csdn.net/ZJRN1027/article/details/103685696
