基于信息增益的决策树算法（附MATLAB代码）

最近在学机器学习，本篇文章的内容正好是作业内容，所以拿来分享一下，顺便捋一下思路。下面内容只涉及到决策树学习基本算法(伪代码)、信息增益的计算和matlab代码实现。决策树算法原理不再赘述，请自行百度。水平有限，如有错误，欢迎指正！

一、决策树学习基本算法

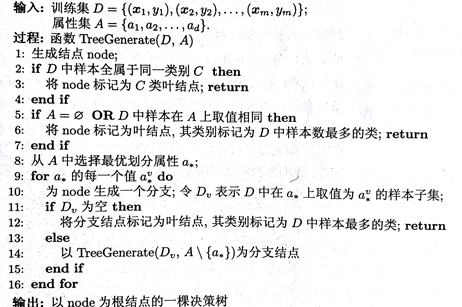

在这里插入图片描述

二、信息增益的计算

1.信息熵

“信息熵”（information entropy）是度量样本集合纯度最常用的一种指标，假定当前样本集合D中第k类样本所占的比例为Pk（k = 1,2,…,|Y|），则D的信息熵定义为

Ent(D)的值越小，D的纯度越高。

2.信息增益

假定离散属性a有V个可能的值a1,a2,…,aV，若使用a来对样本集D进行划分，则会产生V个分支节点，其中第v个分支节点包含了D中所有在属性a上取值为av的样本，记为Dv，这时可以计算出Dv的信息熵，同时考虑到不同的分支结点所包含的样本数不同，给分支结点赋予权重|Dv|/|D|，即样本数越多的分支结点的影响越大，于是可计算出用属性a对样本集D进行划分所获得的“信息增益”（information gain）

3.划分属性选择

一般而言，信息增益越大，则意味着使用属性a来进行划分所获得的“纯度提升”就越大，因此，我们可用信息增益来进行决策树的划分选择，即选择属性a = arg* max Gain(D,a)，这就是著名的ID3决策树学习算法。

三、MATLAB代码实现

%****************************************
%main.m
%****************************************
clear,clc
[~,data] = xlsread('data.xlsx',3)       %读入数据集
[~,feature] = xlsread('feature.xlsx')   %读入属性集
Node = createTree(data, feature);       %生成决策树
drawTree(Node)                          %绘制决策树

%****************************************
%createTree.m
%****************************************
%生成决策树ID3算法
%data：训练集
%feature：属性集
function [node] = createTree(data, feature)
    type = mostType(data);  %cell类型
    [m, n] = size(data);
    %生成节点node
    %value：分类结果，若为null则表示该节点是分支节点
    %name：节点划分属性
    %branch：节点属性值
    %children：子节点
    node = struct('value','null','name','null','branch','null','children',{});
    temp_type = data{1, n};
    temp_b = true;
    for i = 1 : m
        if temp_type ~= data{i, n}
            temp_b = false;
        end
    end
    %样本中全为同一分类结果，则node节点为叶节点
    if temp_b == true
        node(1).value = data(1, n); %cell类型
        return;
    end
    %属性集合为空，将结果标记为样本中最多的分类
    if isempty(feature) == 1
        node.value = type;  %cell类型
        return;
    end
    %获取最优划分属性
    feature_bestColumn = bestFeature(data); %最优属性列数，double类型
    best_feature = data(:,feature_bestColumn); %最优属性列，cell类型
    best_distinct = unique(best_feature); %最优属性取值
    best_num = length(best_distinct); %最优属性取值个数
    best_proc = cell(best_num, 2);
    best_proc(:, 1) = best_distinct(:, 1);
    best_proc(:, 2) = num2cell(zeros(best_num, 1));
    %循环该属性的每一个值
    for i = 1:best_num
        %为node创建一个bach_node分支，设样本data中该属性值为best_proc(i, 1)的集合为Dv
        bach_node = struct('value', 'null', 'name', 'null', 'branch', 'null', 'children',{});
        Dv_index = 0;
        for j = 1:m
            if data{j, feature_bestColumn} == best_proc{i, 1}
                Dv_index = Dv_index + 1;
            end
        end
        Dv = cell(Dv_index, n);
        Dv_index2 = 1;
        for j = 1:m
            if best_proc{i, 1} == data{j, feature_bestColumn}
                Dv(Dv_index2, :) = data(j, :);
                Dv_index2 = Dv_index2 + 1;
            end
        end
        Dfeature = feature;
        %Dv为空则将结果标记为样本中最多的分类
        if isempty(Dv) == 1
            bach_node.value = type;
            bach_node.name = feature(feature_bestColumn);
            bach_node.branch = best_proc(i, 1);
            node.children(i) = bach_node;
            return;
        else
            Dfeature(feature_bestColumn) = [];
            Dv(:,feature_bestColumn) = [];
            %递归调用createTree方法
            bach_node = createTree(Dv, Dfeature);
            bach_node(1).branch = best_proc(i, 1);
            bach_node(1).name = feature(feature_bestColumn);
            node(1).children(i) = bach_node;
        end
    end
end

%****************************************
%mostType.m
%****************************************
%计算样本最多的结果
function [res] = mostType(data)         %返回值cell类型
    [m,n] = size(data);
    res = data(:, n);
    res_distinct = unique(res);
    res_num = length(res_distinct);
    res_proc = cell(res_num,2);
    res_proc(:, 1) = res_distinct(:, 1);
    res_proc(:, 2) = num2cell(zeros(res_num,1));
    for i = 1:res_num
        for j = 1:m
            if res_proc{i, 1} == data{j, n};
                res_proc{i, 2} = res_proc{i, 2} + 1;
            end
        end
    end
end

%****************************************
%getEntropy.m
%****************************************
%计算信息熵
function [entropy] = getEntropy(data)       %返回值double类型
    entropy = 0;
    [m,n] = size(data);
    label = data(:, n);
    label_distinct = unique(label);
    label_num = length(label_distinct);
    proc = cell(label_num,2);
    proc(:, 1) = label_distinct(:, 1);
    proc(:, 2) = num2cell(zeros(label_num, 1));
     for i = 1:label_num
        for j = 1:m
            if proc{i, 1} == data{j, n}
                proc{i, 2} = proc{i, 2} + 1;
            end
        end
        proc{i, 2} = proc{i, 2} / m;
    end
    for i = 1:label_num
        entropy = entropy - proc{i, 2} * log2(proc{i, 2});
    end
end

%****************************************
%getGain.m
%****************************************
%计算信息增益
function [gain] = getGain(entropy, data, column)        %返回值double类型
    [m,n] = size(data);
    feature = data(:, column);
    feature_distinct = unique(feature);
    feature_num = length(feature_distinct);
    feature_proc = cell(feature_num, 2);
    feature_proc(:, 1) = feature_distinct(:, 1);
    feature_proc(:, 2) = num2cell(zeros(feature_num, 1));
    f_entropy = 0;
     for i = 1:feature_num
       feature_row = 0;
       for j = 1:m
           if feature_proc{i, 1} == data{j, column}
               feature_proc{i, 2} = feature_proc{i, 2} + 1;
               feature_row = feature_row + 1;
           end
       end
       feature_data = cell(feature_row,n);
       feature_row = 1;
       for j = 1:m
           if feature_distinct{i, 1} == data{j, column}
               feature_data(feature_row, :) = data(j, :);
               feature_row = feature_row + 1;
           end
       end
       f_entropy = f_entropy + feature_proc{i, 2} / m * getEntropy(feature_data);
    end
    gain = entropy - f_entropy;
end

%****************************************
%bestFeature.m
%****************************************
%获取最优划分属性
function [column] = bestFeature(data)       %返回值double类型
    [~,n] = size(data);
    featureSize = n - 1;
    gain_proc = cell(featureSize, 2);
    entropy = getEntropy(data);
    for i = 1:featureSize
        gain_proc{i, 1} = i;
        gain_proc{i, 2} = getGain(entropy, data, i);
    end
    max = gain_proc{1,2};
    max_label = 1;
    for i = 1:featureSize
        if gain_proc{i, 2} >= max
            max = gain_proc{i, 2};
            max_label = i;
        end
    end
    column = max_label;
end

%****************************************
%drawTree.m
%****************************************
% 画出决策树
function [] = drawTree(node)
    % 遍历树
    nodeVec = [];
    nodeSpec = {};
    edgeSpec = [];
    [nodeVec,nodeSpec,edgeSpec,~] = travesing(node,0,0,nodeVec,nodeSpec,edgeSpec);
    treeplot(nodeVec);
    [x,y] = treelayout(nodeVec);
    [~,n] = size(nodeVec);
    x = x';
    y = y';
    text(x(:,1),y(:,1),nodeSpec,'FontSize',15,'FontWeight','bold','VerticalAlignment','bottom','HorizontalAlignment','center');
    x_branch = [];
    y_branch = [];
    for i = 2:n
        x_branch = [x_branch; (x(i,1)+x(nodeVec(i),1))/2];
        y_branch = [y_branch; (y(i,1)+y(nodeVec(i),1))/2];
    end
    text(x_branch(:,1),y_branch(:,1),edgeSpec(1,:),'FontSize',12,'Color','blue','FontWeight','bold','VerticalAlignment','bottom','HorizontalAlignment','center');
end

% 遍历树
function [nodeVec,nodeSpec,edgeSpec,current_count] = travesing(node,current_count,last_node,nodeVec,nodeSpec,edgeSpec)
    nodeVec = [nodeVec last_node];
    if isempty(node.value)
        nodeSpec = [nodeSpec node.children(1).name];
    else
        if strcmp(node.value, '是')
            nodeSpec = [nodeSpec '好瓜'];
        else
            nodeSpec = [nodeSpec '坏瓜'];
        end
    end
    edgeSpec = [edgeSpec node.branch];
    current_count = current_count + 1;
    current_node = current_count;
    if ~isempty(node.value)
        return;
    end
    for next_ndoe = node.children
        [nodeVec,nodeSpec,edgeSpec,current_count] = travesing(next_ndoe,current_count,current_node,nodeVec,nodeSpec,edgeSpec);
    end
end
