火车车次信息管理试题
本试题使用Jsp+Spring+Mybatis+Mysql+Maven等技术实现火车车次信息管理。
题目:火车车次信息管理
语言和环境
A、实现语言
Java
B、环境要求
JDK1.8、Eclipse、Tomcat7、Spring、Mybatis、Mysql、Maven
功能要求
使用JSP+Servlet+Spring+Mybatis实现火车车次信息管理功能,MySql作为后台数据库,功能包括车次信息浏览、火车车次信息详情和车次信息删除两大功能。具体要求如下:

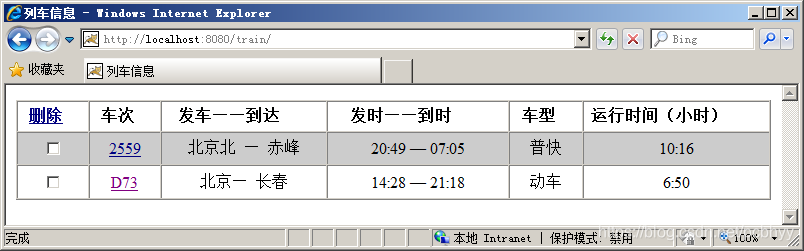

(1)打开火车车次信息管理首页,以列表方式显示所有车次信息,页面列表要求实现隔行变色效果,如下图所示。

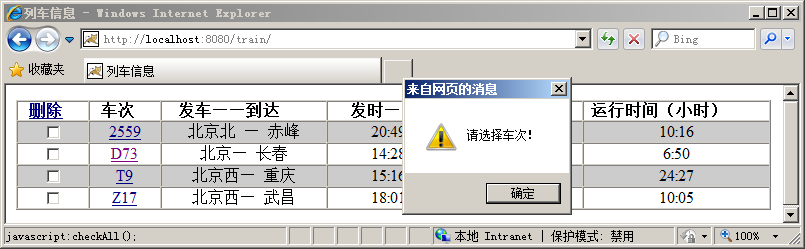

(2)单击“删除”链接可以进行火车车次信息删除,如果没有复选框被选中,当单击“删除”链接时需要提示“请选择车次!”信息,如下图所示。

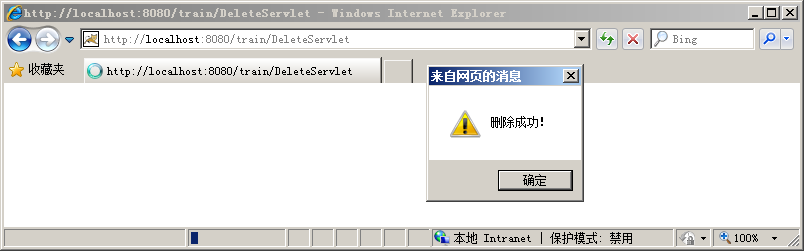

(3)如果选中复选框,单击“删除”链接,执行删除车次信息操作,并根据删除结果给出相应的信息提示,如下图所示。

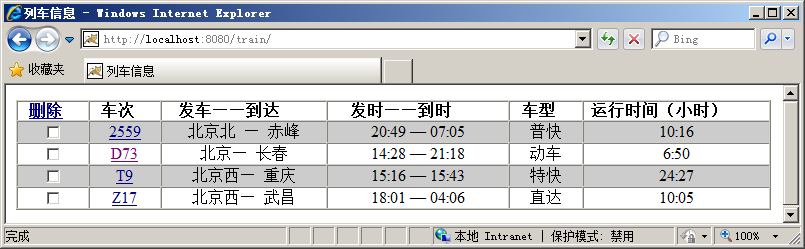

点击确定后,跳转至车次信息列表页面,并显示更新后的车次列表信息,如下图所示。

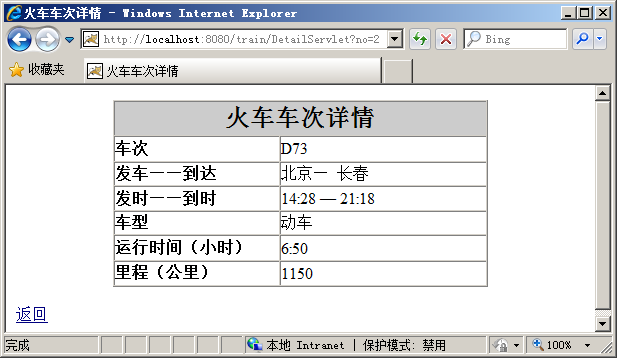

(4)单击车次超链接,则跳转至指定车次的火车车次详情页面,如下图所示。
数据库设计

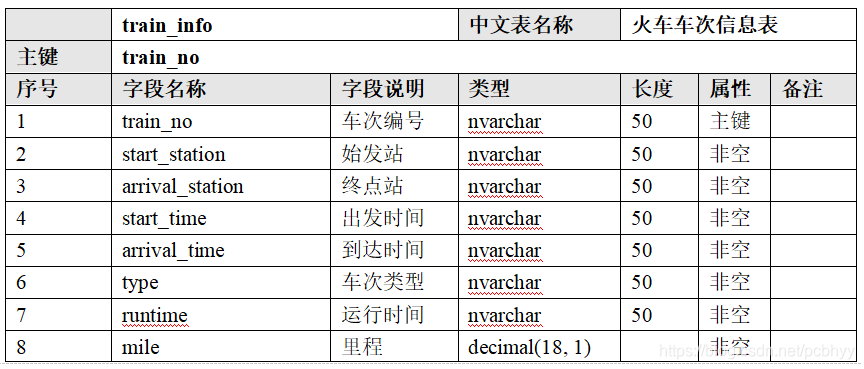

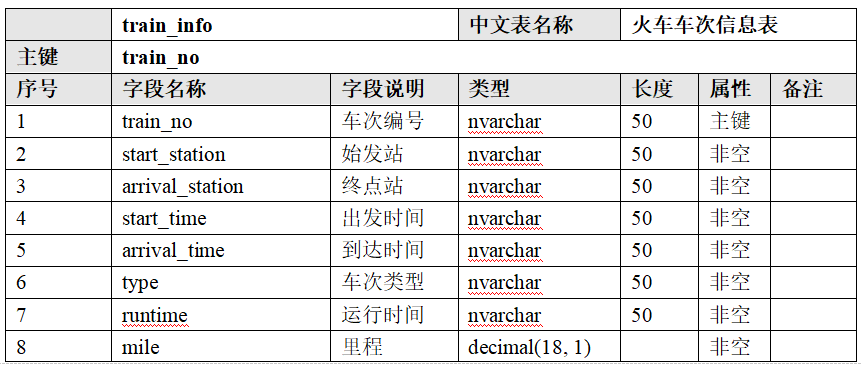

数据库表名称及要求:
视频讲解及源码地址
https://download.csdn.net/download/pcbhyy/10763118
主要代码
数据库
create table train_info(
train_no varchar(30) primary key,
start_station varchar(30) not null,
arrival_station varchar(30) not null,
start_time varchar(30) not null,
arrival_time varchar(30) not null,
type varchar(30) not null,
runtime varchar(30) not null,
mile double(10,1) not null
)
INSERT INTO `train_info` VALUES ('D73', '沈阳', '深圳', '10-24-16:40', '10-25-20:08', '特快', '20', '2000');
INSERT INTO `train_info` VALUES ('D74', '沈阳', '阜新', '10-24-16:40', '10-25-20:08', '特快', '2', '200');
INSERT INTO `train_info` VALUES ('D75', '沈阳', '北京', '10-24-16:40', '10-25-20:08', '高铁', '4', '1000');
INSERT INTO `train_info` VALUES ('D123', '沈阳北', '北京', '10:40', '16:05', '动车', '3d', '500');
INSERT INTO `train_info` VALUES ('G388', '沈阳北', '锦州', '16:40', '07:05', '高铁', '1d', '300');
INSERT INTO `train_info` VALUES ('k388', '沈阳北', '重庆北', '16:40', '07:05', '快', '39d', '1500');
INSERT INTO `train_info` VALUES ('K6206', '沈阳北', '成都北', '16:40', '07:05', '快', '39d', '1500');
INSERT INTO `train_info` VALUES ('Z17', '沈阳北', '北京北', '16:40', '09:05', '直达', '9d', '500');
Servlet
package com.yy.servlet;
import java.io.IOException;
import java.util.List;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.support.WebApplicationContextUtils;
import com.yy.eitity.TrainInfo;
import com.yy.service.TrainInfoService;
public class TrainInfoServlet extends HttpServlet {
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
request.setCharacterEncoding("utf-8");
String method = request.getParameter("method");
if("getTrainInfo".equals(method)) {
doGetTrainInfo(request,response);
}else if("getTrainById".equals(method)) {
doGetTrainById(request,response);
}else if("dels".equals(method)) {
doDels(request,response);
}
}
private void doDels(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String[] nos = request.getParameterValues("no");
ServletContext sc = request.getServletContext();
WebApplicationContext context =
WebApplicationContextUtils.getWebApplicationContext(sc);
TrainInfoService service = context.getBean(TrainInfoService.class);
int n = service.batchDelete(nos);
doGetTrainInfo(request,response);
}
private void doGetTrainById(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String no = request.getParameter("no");
ServletContext sc = request.getServletContext();
WebApplicationContext context =
WebApplicationContextUtils.getWebApplicationContext(sc);
TrainInfoService service = context.getBean(TrainInfoService.class);
TrainInfo info = service.getById(no);
request.setAttribute("train", info);
request.getRequestDispatcher("/WEB-INF/train/getTrain.jsp").forward(request, response);
}
private void doGetTrainInfo(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
ServletContext sc = request.getServletContext();
WebApplicationContext context =
WebApplicationContextUtils.getWebApplicationContext(sc);
TrainInfoService service = context.getBean(TrainInfoService.class);
List<TrainInfo> list = service.getAll();
request.setAttribute("list", list);
request.getRequestDispatcher("/WEB-INF/train/getall.jsp").forward(request, response);
}
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
doGet(request, response);
}
}
mapper接口
package com.yy.mapper;
import java.util.List;
import com.yy.eitity.TrainInfo;
public interface TrainInfoMapper {
public List<TrainInfo> getAll();
public TrainInfo getById(String no);
public int batchDelete(String[] nos);
}
mapper
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yy.mapper.TrainInfoMapper">
<resultMap type="com.yy.eitity.TrainInfo" id="basicMap">
<id property="trainNo" column="train_no" />
<result property="arrivalStation" column="arrival_Station"/>
<result property="arrivalTime" column="arrival_Time"/>
<result property="mile" column="mile"/>
<result property="runtime" column="runtime"/>
<result property="startStation" column="start_Station"/>
<result property="startTime" column="start_Time"/>
<result property="type" column="type"/>
</resultMap>
<select id="getAll" resultMap="basicMap">
select * from train_info
</select>
<select id="getById" resultMap="basicMap">
select * from train_info where train_no = #{trainNo}
</select>
<delete id="batchDelete">
delete from train_info
where train_no in
<foreach collection="array" item="trainNo" open="(" close=")" separator=",">
#{trainNo}
</foreach>
</delete>
</mapper>
pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.yy</groupId>
<artifactId>spring_demo</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>war</packaging>
<build>
<resources>
<resource>
<directory>src/main/java</directory>
<excludes>
<exclude>**/*.java</exclude>
</excludes>
</resource>
<resource>
<directory>src/main/resources</directory>
</resource>
</resources>
<plugins>
<!-- 资源文件拷贝插件 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-resources-plugin</artifactId>
<version>2.7</version>
<configuration>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
<!-- java编译插件 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.2</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<version>2.2</version>
<configuration>
<!-- 部署路径,如:/e3mall,表明部署到/e3mall路径下 -->
<path>/</path>
<!-- 端口号 -->
<port>8089</port>
</configuration>
</plugin>
</plugins>
</build>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>4.3.8.RELEASE</version>
</dependency>
<dependency>
<groupId>aopalliance</groupId>
<artifactId>aopalliance</artifactId>
<version>1.0</version>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.8.10</version>
</dependency>
<dependency>
<groupId>commons-dbcp</groupId>
<artifactId>commons-dbcp</artifactId>
<version>1.4</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.6</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>4.3.8.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>4.3.8.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-orm</artifactId>
<version>4.3.8.RELEASE</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.2.6</version>
</dependency>
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib</artifactId>
<version>3.2.5</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.2.2</version>
</dependency>
<dependency>
<groupId>jstl</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
<scope>provided</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/javax.servlet.jsp/jsp-api -->
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>4.3.8.RELEASE</version>
</dependency>
</dependencies>
</project>
