存储跟踪数据
Zipkin Server默认时间追踪数据信息保存到内存，这种方式不适合生产环境。因为一旦Service关闭重
启或者服务崩溃，就会导致历史数据消失。Zipkin支持将追踪数据持久化到mysql数据库或者存储到
elasticsearch中。这里已mysql为例。
准备数据库
可以从官网找到Zipkin Server持久mysql的数据库脚本。

CREATE TABLE IF NOT EXISTS zipkin_spans (
  `trace_id_high` BIGINT NOT NULL DEFAULT 0 COMMENT 'If non zero, this means the trace uses 128 bit traceIds instead of 64 bit',
  `trace_id` BIGINT NOT NULL,
  `id` BIGINT NOT NULL,
  `name` VARCHAR(255) NOT NULL,
  `remote_service_name` VARCHAR(255),
  `parent_id` BIGINT,
  `debug` BIT(1),
  `start_ts` BIGINT COMMENT 'Span.timestamp(): epoch micros used for endTs query and to implement TTL',
  `duration` BIGINT COMMENT 'Span.duration(): micros used for minDuration and maxDuration query',
  PRIMARY KEY (`trace_id_high`, `trace_id`, `id`)
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

ALTER TABLE zipkin_spans ADD INDEX(`trace_id_high`, `trace_id`) COMMENT 'for getTracesByIds';
ALTER TABLE zipkin_spans ADD INDEX(`name`) COMMENT 'for getTraces and getSpanNames';
ALTER TABLE zipkin_spans ADD INDEX(`remote_service_name`) COMMENT 'for getTraces and getRemoteServiceNames';
ALTER TABLE zipkin_spans ADD INDEX(`start_ts`) COMMENT 'for getTraces ordering and range';

CREATE TABLE IF NOT EXISTS zipkin_annotations (
  `trace_id_high` BIGINT NOT NULL DEFAULT 0 COMMENT 'If non zero, this means the trace uses 128 bit traceIds instead of 64 bit',
  `trace_id` BIGINT NOT NULL COMMENT 'coincides with zipkin_spans.trace_id',
  `span_id` BIGINT NOT NULL COMMENT 'coincides with zipkin_spans.id',
  `a_key` VARCHAR(255) NOT NULL COMMENT 'BinaryAnnotation.key or Annotation.value if type == -1',
  `a_value` BLOB COMMENT 'BinaryAnnotation.value(), which must be smaller than 64KB',
  `a_type` INT NOT NULL COMMENT 'BinaryAnnotation.type() or -1 if Annotation',
  `a_timestamp` BIGINT COMMENT 'Used to implement TTL; Annotation.timestamp or zipkin_spans.timestamp',
  `endpoint_ipv4` INT COMMENT 'Null when Binary/Annotation.endpoint is null',
  `endpoint_ipv6` BINARY(16) COMMENT 'Null when Binary/Annotation.endpoint is null, or no IPv6 address',
  `endpoint_port` SMALLINT COMMENT 'Null when Binary/Annotation.endpoint is null',
  `endpoint_service_name` VARCHAR(255) COMMENT 'Null when Binary/Annotation.endpoint is null'
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

ALTER TABLE zipkin_annotations ADD UNIQUE KEY(`trace_id_high`, `trace_id`, `span_id`, `a_key`, `a_timestamp`) COMMENT 'Ignore insert on duplicate';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id_high`, `trace_id`, `span_id`) COMMENT 'for joining with zipkin_spans';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id_high`, `trace_id`) COMMENT 'for getTraces/ByIds';
ALTER TABLE zipkin_annotations ADD INDEX(`endpoint_service_name`) COMMENT 'for getTraces and getServiceNames';
ALTER TABLE zipkin_annotations ADD INDEX(`a_type`) COMMENT 'for getTraces and autocomplete values';
ALTER TABLE zipkin_annotations ADD INDEX(`a_key`) COMMENT 'for getTraces and autocomplete values';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id`, `span_id`, `a_key`) COMMENT 'for dependencies job';

CREATE TABLE IF NOT EXISTS zipkin_dependencies (
  `day` DATE NOT NULL,
  `parent` VARCHAR(255) NOT NULL,
  `child` VARCHAR(255) NOT NULL,
  `call_count` BIGINT,
  `error_count` BIGINT,
  PRIMARY KEY (`day`, `parent`, `child`)
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

基于消息中间件收集数据
在默认情况下，Zipkin客户端和Server之间是使用HTTP请求的方式进行通信（即同步的请求方式），在
网络波动，Server端异常等情况下可能存在信息收集不及时的问题。Zipkin支持与rabbitMQ整合完成异
步消息传输。
加了MQ之后，通信过程如下图所示：

 服务端启动

[root@192 ~]# docker pull rabbitmq:3.7.16-management
3.7.16-management: Pulling from library/rabbitmq
7413c47ba209: Pull complete
0fe7e7cbb2e8: Pull complete
1d425c982345: Pull complete
344da5c95cec: Pull complete
e3f1cd2e2cf6: Pull complete
e265667bcecb: Pull complete
50e866cc6374: Pull complete
a293da811d82: Pull complete
27da9da6e876: Pull complete
ae131a241fa6: Pull complete
d575a37fcce7: Pull complete
8f7af4eb047e: Pull complete
Digest: sha256:0c7348631da356d980c8a358f67ca2f71074db81d925b40ef0860ddfb14f419e
Status: Downloaded newer image for rabbitmq:3.7.16-management
[root@192 ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
rabbitmq            latest              2b5cda43d345        5 days ago          151MB
rancher/rancher     stable              5ebba94410d8        2 months ago        654MB
openzipkin/zipkin   latest              12ee1ce53834        2 months ago        157MB
rabbitmq            3.7.16-management   3f92e6354d11        6 months ago        177MB
[root@192 ~]# docker run -d -p 5672:5672  -p 15672:15672 --name myrabbitmq 3f92e6354d11
68b7159690f59e350c902ad042799a42ee3c80703f17421242e8775ae9a9a669

 重启Zipkin

[root@192 ~]# docker run -d \
> --restart always \
> -v /etc/localtime:/etc/localtime:ro \
> -e MYSQL_USER=root \
> -e MYSQL_PASS=1qaz@WSX \
> -e MYSQL_HOST=rm-bp1y5jh79h6b3eh9clo.mysql.rds.aliyuncs.com \
> -e STORAGE_TYPE=mysql \
> -e MYSQL_DB=zipkin \
> -e MYSQL_TCP_PORT=3306 \
> -e RABBIT_ADDRESSES=192.168.180.137:5672  \
> --net host \
> --name zipkin \
> openzipkin/zipkin
b58686a7f42469f4050377ecbf628edf882412c3875227764076202d8f161e51
[root@192 ~]# docker ps -l
CONTAINER ID        IMAGE               COMMAND                CREATED             STATUS              PORTS               NAMES
b58686a7f424        openzipkin/zipkin   "/busybox/sh run.sh"   4 seconds ago       Up 3 seconds                            zipkin



客户端配置
（1） 配置依赖

<!--sleuth链路追踪-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-sleuth</artifactId>
        </dependency>

        <!--zipkin依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zipkin</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-sleuth-zipkin</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit</artifactId>
        </dependency>

导入 spring-rabbit 依赖，是Spring提供的对rabbit的封装，客户端会根据配置自动的生产消息并发送
到目标队列中
（2） 配置消息中间件rabbit mq地址等信息

spring:
  zipkin:
      # base-url:  http://192.168.180.137:9411/
      sender:
        #type: web
        type: rabbit
    sleuth:
      sampler:
        probability: 1.0
    rabbitmq:
      host: 192.168.180.137
      port: 5672
      username: guest
      password: guest
      listener: # 这里配置了重试策略
        direct:
          retry:
            enabled: true
        simple:
          retry:
          enabled: true

修改消息的投递方式，改为 rabbit即可。
添加 rabbitmq的相关配置
（3） 测试

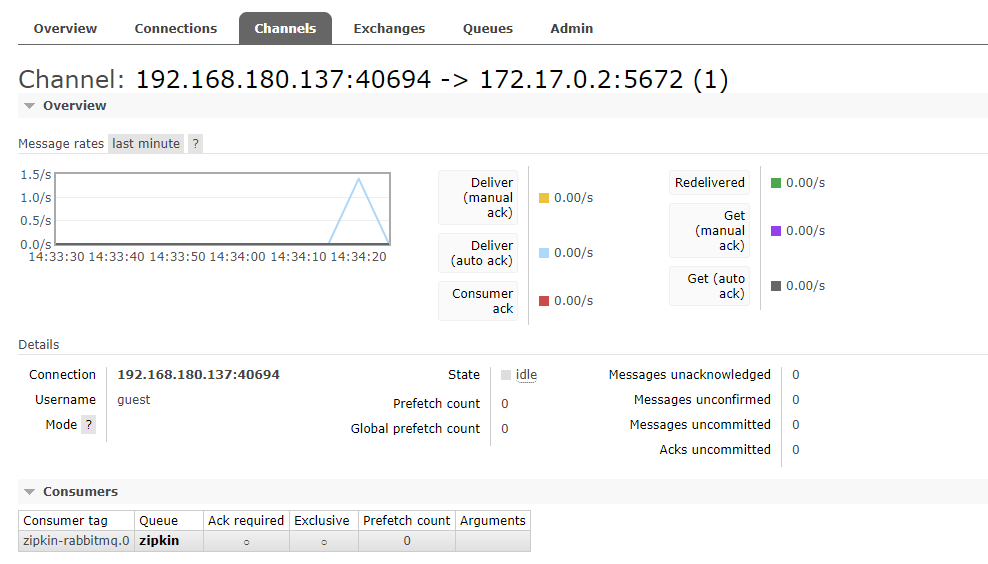

关闭Zipkin Server，并随意请求连接。打开rabbitmq管理后台可以看到，消息已经推送到rabbitmq。

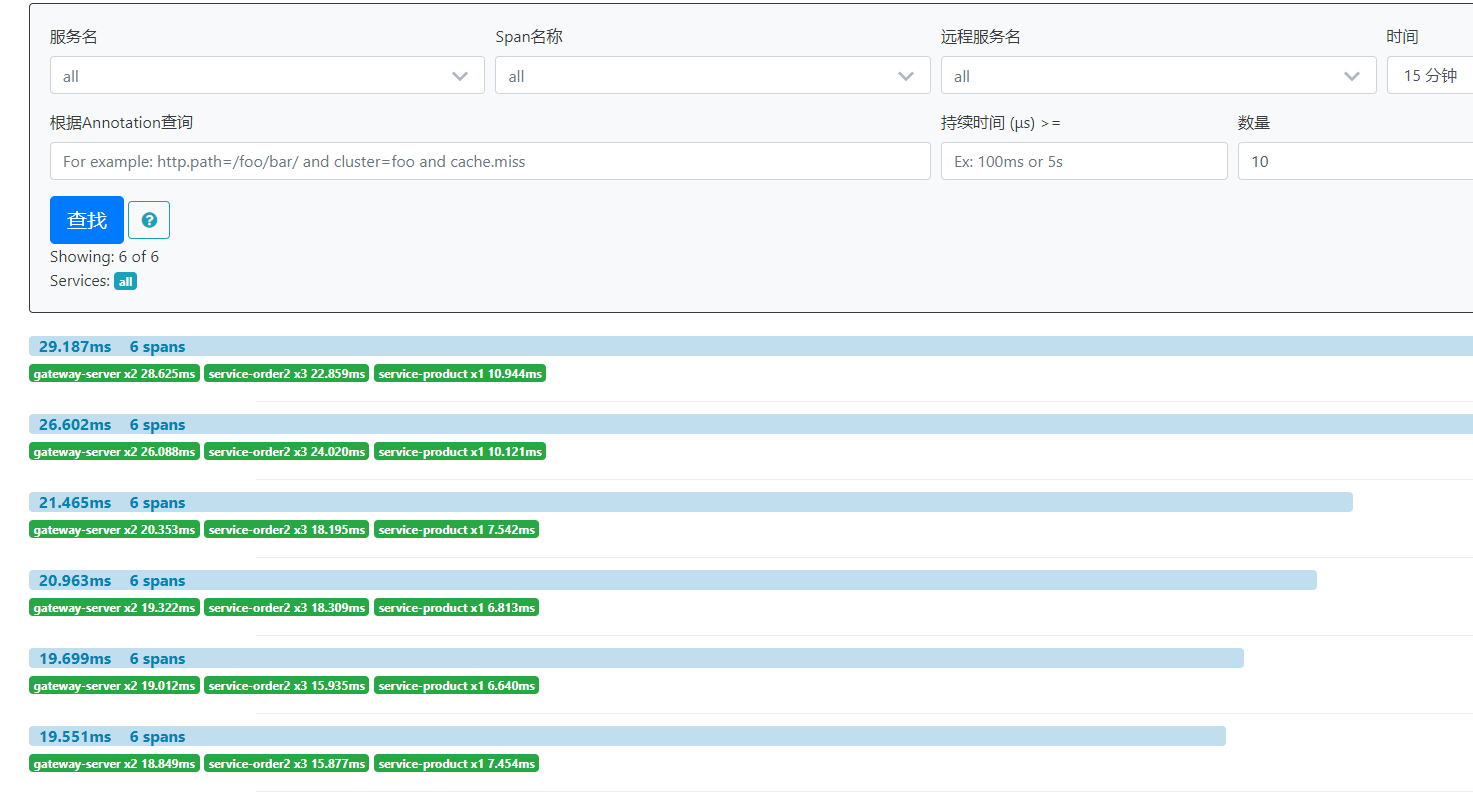

当Zipkin Server启动时，会自动的从rabbitmq获取消息并消费，展示追踪数据
可以看到如下效果：
请求的耗时时间不会出现突然耗时特长的情况
当 ZipkinServer不可用时（比如关闭、网络不通等），追踪信息不会丢失，因为这些信息会保存在
Rabbitmq服务器上，直到Zipkin服务器可用时，再从Rabbitmq中取出这段时间的信息
