使用kubeadm搭建的集群默认证书有效期是1年，续费证书其实是一件很快的事情。但是就怕出事了才发现，毕竟作为专业搬砖工程师，每天都很忙的。
鉴于此，监控集群证书有效期是一件不得不做的事情。Prometheus作为云原生领域的王者，如果能用它来监控证书有效期并能及时告警，那就再好不过了。
ssl_exporter就是来做这个事情的。ssh_exporter是一个Prometheus Exporter能提供多种针对 SSL 的检测手段，包括：https 证书生效/失效时间、文件证书生效/失效时间，OCSP 等相关指标。
下面就来监听集群证书的有效期。
安装
apiVersion: v1
kind: Service
metadata:
labels:
name: ssl-exporter
name: ssl-exporter
spec:
ports:
- name: ssl-exporter
protocol: TCP
port: 9219
targetPort: 9219
selector:
app: ssl-exporter
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ssl-exporter
spec:
replicas: 1
selector:
matchLabels:
app: ssl-exporter
template:
metadata:
name: ssl-exporter
labels:
app: ssl-exporter
spec:
initContainers:
# Install kube ca cert as a root CA
- name: ca
image: alpine
command:
- sh
- -c
- |
set -e
apk add --update ca-certificates
cp /var/run/secrets/kubernetes.io/serviceaccount/ca.crt /usr/local/share/ca-certificates/kube-ca.crt
update-ca-certificates
cp /etc/ssl/certs/* /ssl-certs
volumeMounts:
- name: ssl-certs
mountPath: /ssl-certs
containers:
- name: ssl-exporter
image: ribbybibby/ssl-exporter:v0.6.0
ports:
- name: tcp
containerPort: 9219
volumeMounts:
- name: ssl-certs
mountPath: /etc/ssl/certs
volumes:
- name: ssl-certs
emptyDir: {}
执行kubectl apply -f .安装即可。
待Pod正常运行，如下：
# kubectl get po -n monitoring -l app=ssl-exporter
NAME READY STATUS RESTARTS AGE
ssl-exporter-7ff4759679-f4qbs 1/1 Running 0 21m
然后配置prometheus抓取规则。
!! 由于我的Prometheus是通过Prometheus Operator部署的，所以通过additional的方式进行抓取。
首先创建一个文件prometheus-additional.yaml，其内容如下：
- job_name: ssl-exporter
metrics_path: /probe
static_configs:
- targets:
- kubernetes.default.svc:443
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: ssl-exporter.monitoring:9219
然后创建secret，命令如下：
kubectl delete secret additional-config -n monitoring
kubectl -n monitoring create secret generic additional-config --from-file=prometheus-additional.yaml
然后修改prometheus-prometheus.yaml配置文件，新增如下内容：
additionalScrapeConfigs:
name: additional-config
key: prometheus-additional.yaml
prometheus-prometheus.yaml的整体配置如下：
apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
labels:
prometheus: k8s
name: k8s
namespace: monitoring
spec:
alerting:
alertmanagers:
- name: alertmanager-main
namespace: monitoring
port: web
baseImage: quay.io/prometheus/prometheus
nodeSelector:
kubernetes.io/os: linux
podMonitorNamespaceSelector: {}
podMonitorSelector: {}
replicas: 2
resources:
requests:
memory: 400Mi
ruleSelector:
matchLabels:
prometheus: k8s
role: alert-rules
securityContext:
fsGroup: 2000
runAsNonRoot: true
runAsUser: 1000
additionalScrapeConfigs:
name: additional-config
key: prometheus-additional.yaml
serviceAccountName: prometheus-k8s
serviceMonitorNamespaceSelector: {}
serviceMonitorSelector: {}
version: v2.11.0
storage:
volumeClaimTemplate:
spec:
storageClassName: managed-nfs-storage
resources:
requests:
storage: 10Gi
然后重新执行prometheus-prometheus.yaml文件，命令如下：
kubectl apply -f prometheus-prometheus.yaml

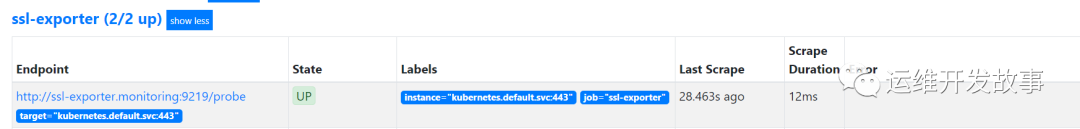

现在可以在prometheus的web界面看到正常的抓取任务了，如下：

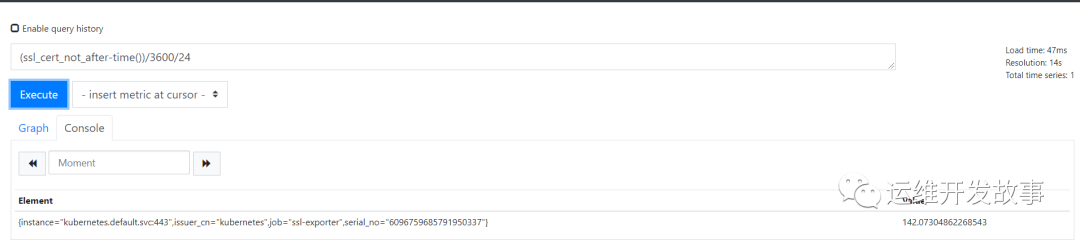

然后通过(ssl_cert_not_after-time())/3600/24即可看到证书还有多久失效。

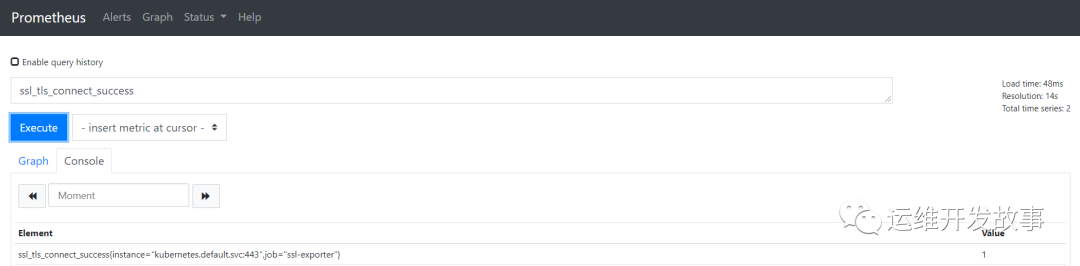

通过ssl_tls_connect_success可以观测ssl链接是否正常。
告警
上面已经安装ssl_exporter成功，并且能正常监控数据了，下面就配置一些告警规则，以便于运维能快速知道这个事情。
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
name: monitoring-ssl-tls-rules
namespace: monitoring
labels:
prometheus: k8s
role: alert-rules
spec:
groups:
- name: check_ssl_validity
rules:
- alert: "K8S集群证书在30天后过期"
expr: (ssl_cert_not_after-time())/3600/24 <30
for: 1h
labels:
severity: critical
annotations:
description: 'K8S集群的证书还有{{ printf "%.1f" $value }}天就过期了,请尽快更新证书'
summary: "K8S集群证书证书过期警告"
- name: ssl_connect_status
rules:
- alert: "K8S集群证书可用性异常"
expr: ssl_tls_connect_success == 0
for: 1m
labels:
severity: critical
annotations:
summary: "K8S集群证书连接异常"
description: "K8S集群 {{ $labels.instance }} 证书连接异常"

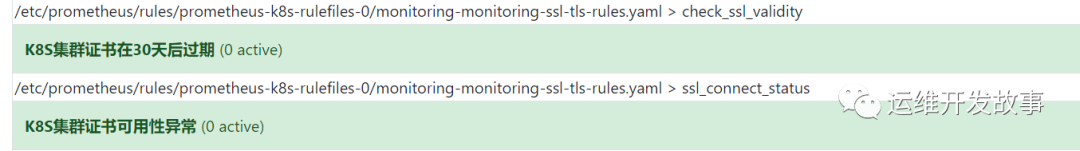

如下展示规则正常，在异常的时候就可以接收到告警了。
