Vivado中xilinx_BRAM IP核使用

纵然是瞬间 提交于 2021-01-14 05:38:38









 Vivado2017.2 中BRAM版本为 Block Memory Generator Specific Features  8.3

BRAM IP核包括有5种类型:

Single-port RAM   单端口RAM

Simple Dual-port RAM      简单双端口RAMA写数据B读数据)

True Dual-port RAM  双端口RAM

Single-por ROM  单端口ROM

Dual-port ROM  双端口ROM

BRAM核支持两种总线形式的输入输出:Native  or  AXI4

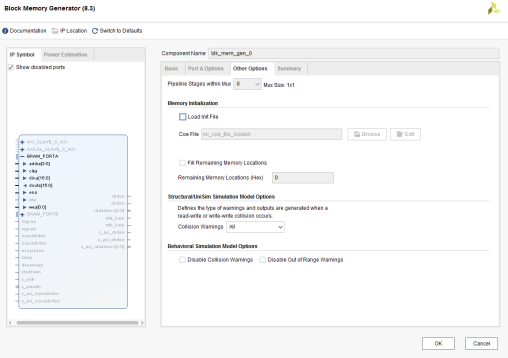

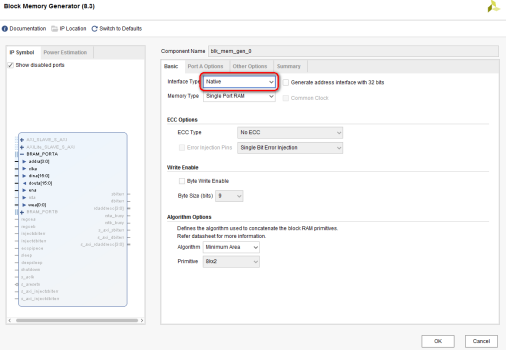

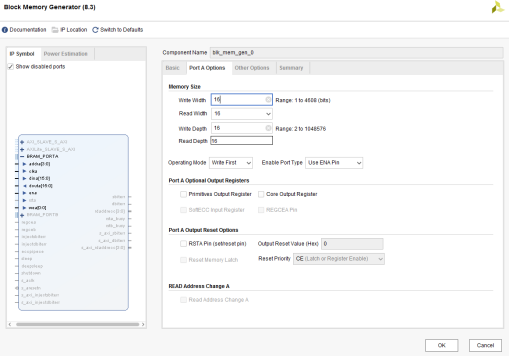

以下图配置为例:Single-port RAM

Testbench 测试代码如下:

`timescale 1ns / 1ps

//////////////////////////////////////////////////////////////////////////////////

// Company:

// Engineer:

//

// Create Date: 2018/11/21 15:52:48

// Design Name:

// Module Name: test_bench_BRAM

// Project Name:

// Target Devices:

// Tool Versions:

// Description:

//

// Dependencies:

//

// Revision:

// Revision 0.01 - File Created

// Additional Comments:

//

//////////////////////////////////////////////////////////////////////////////////





module test_bench_BRAM(



    );





reg[15:0] mem1_re[0:15];                    //输入数据存储器

integer i;

// blk_mem_gen_0  inputs

reg         clka;

reg         ena;

reg         wea;

reg[3:0]    addra;

reg[15:0]   dina;

// blk_mem_gen_0  outputs

wire[15:0]  douta;

    blk_mem_gen_0   blk_mem_gen_m0

    (

        .clka(clka),                //BRAM 输入时钟信号

        .ena(ena),                  //BRAM 时钟使能信号

        .wea(wea),                  //写使能信号

        .addra(addra),              //地址信号

        .dina(dina),                //数据输入接口   写入

        .douta(douta)               //数据输出接口   读出

    );

always #5 clka = ~clka;

initial $readmemh("D:/fpga/fft1/stimulus1_24bit.dat",mem1_re);  //数据是[1 2 3 4 5 6 7 8 9]



    initial     begin

        clka = 0;

        ena = 0;

        wea = 0;

        addra = 0;

        dina = 0;



        #150 ena = 1;



        begin

            for(i=0;i<16;i=i+1) begin

            #10 wea <= 1;

                addra <= i;

              /*if(i == 0)  begin

                    addra <= 0;

                end

                else if (i == 1)   begin



                    addra <= 1;

                end

                else if(i == 2)    begin



                    addra <= 2;

                end

                else if(i == 3) begin

                    addra <= 3;

                end

                else    begin

                    wea <= 0;

                end*/



                dina <= {mem1_re[i]};

                if(i == 15)    begin

                    dina <= 0;

                    wea <= 0;

                end

                $display("mem_a[%d] = %h", i, mem1_re[i]);

            end

        end

        #40000 $finish;

    end



endmodule

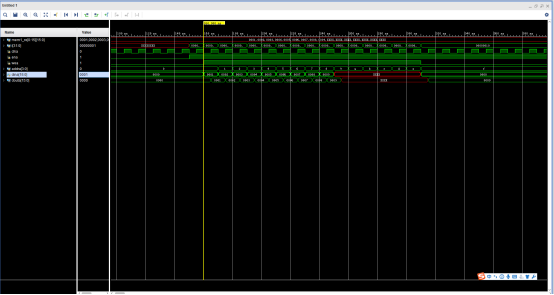

仿真结果如下:

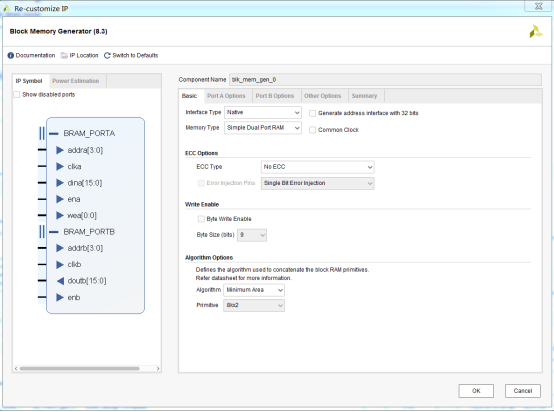

配置为simple dual port ram

Testbench

`timescale 1ns / 1ps

//////////////////////////////////////////////////////////////////////////////////

// Company:

// Engineer:

//

// Create Date: 2018/11/21 15:52:48

// Design Name:

// Module Name: test_bench_BRAM

// Project Name:

// Target Devices:

// Tool Versions:

// Description:

//

// Dependencies:

//

// Revision:

// Revision 0.01 - File Created

// Additional Comments:

//

//////////////////////////////////////////////////////////////////////////////////





module test_bench_BRAM(



    );





reg[15:0] mem1_re[0:15];                    //输入数据存储器

integer i;

integer j;

// blk_mem_gen_0  inputs

reg         clk;

reg         ena;

reg         enb;

reg         wea;

reg[3:0]    addra;

reg[3:0]    addrb;

reg[15:0]   dina;

// blk_mem_gen_0  outputs

wire[15:0]  douta;

wire[15:0]  doutb;

/*****单端口  网络配置的IP

    blk_mem_gen_0   blk_mem_gen_m0

    (

        .clka(clka),                //BRAM 输入时钟信号

        .ena(ena),                  //BRAM 时钟使能信号

        .wea(wea),                  //写使能信号

        .addra(addra),              //地址信号

        .dina(dina),                //数据输入接口   写入

        .douta(douta)

    );*******/



    /**************简单双端口RAM   AB**************/

    blk_mem_gen_0   blk_mem_gen_m0

    (

        .clka(clk),                //BRAM 输入时钟信号

        .ena(ena),                  //BRAM 时钟使能信号

        .wea(wea),                  //写使能信号

        .addra(addra),              //地址信号

        .dina(dina),                //数据输入接口   写入



        .clkb(clk),                 //BRAM 输入时钟信号

        .enb(enb),                  //BRAM 时钟使能信号

        .addrb(addrb),              //地址信号

        .doutb(doutb)

    );

always #5 clk = ~clk;

initial $readmemh("D:/fpga/fft1/stimulus1_24bit.dat",mem1_re);



    initial     begin

        clk = 0;

        ena = 0;

        enb = 0;

        wea = 0;

        addra = 0;

        addrb = 0;

        dina = 0;



        #150 ena = 1;





        begin

            for(i=0;i<16;i=i+1) begin

                #10 wea <= 1;

                addra <= i;

                dina <= {mem1_re[i]};

                if(i == 15)    begin

                    dina <= 0;

                    wea <= 0;

                    addra <= 0;

                end

                $display("mem_a[%d] = %h", i, mem1_re[i]);

            end

            for(j=0;j<16;j=j+1) begin

                #10 addrb <= j;

                enb <= 1;

                if( j == 15)    begin

                    enb <= 0;

                    addrb <= 0;

                end

            end

        end



        #40000 $finish;

    end



endmodule







测试仿真结果:
