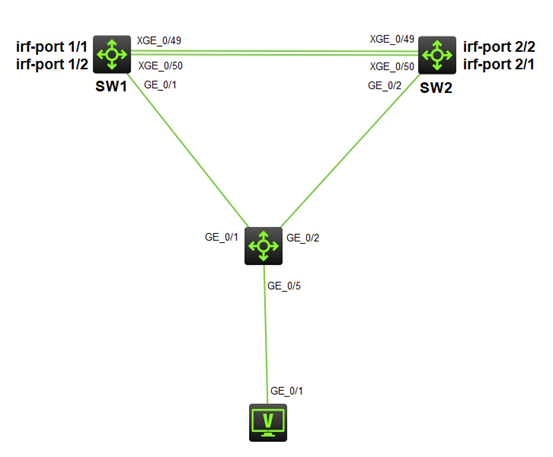

IRF链路聚合

SW1配置

[IRF]int range ten1/0/49 ten1/0/50
[IRF-if-range]shutdown
[IRF]irf member 1 priority 5
[IRF]irf-port 1/1
[IRF-irf-port1/1]port group interface Ten-GigabitEthernet 1/0/49
[IRF]irf-port 1/2
[IRF-irf-port1/2]port group interface Ten-GigabitEthernet 1/0/50
[IRF]int range ten1/0/49 ten1/0/50
[IRF-if-range]undo shutdown
[IRF]irf-port-configuration active

SW2配置

[SW2]int range ten1/0/49 ten1/0/50
[SW2-if-range]shutdown
[SW2]irf member 1 renumber 2
保存并重启生效
[SW2]irf-port 2/2
[SW2-irf-port2/2]port group interface Ten-GigabitEthernet 2/0/49
[SW2]irf-port 2/1
[SW2-irf-port2/1]port group interface Ten-GigabitEthernet 2/0/50
[SW2]int range ten2/0/49 ten2/0/50
[SW2-if-range]undo shutdown
[SW2]irf-port-configuration active

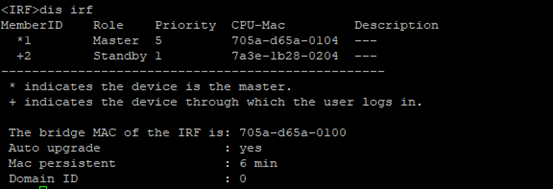

验证SW1和SW2是冗余

链路捆绑配置

IRF交换机聚合配置

#创建聚合接口1
[IRF]int Bridge-Aggregation 1
#批量进入端口
[IRF]int range GigabitEthernet 1/0/1 GigabitEthernet 2/0/2
#将端口加入聚合组1
[IRF-if-range]port link-aggregation group 1

调试命令

#查看明细

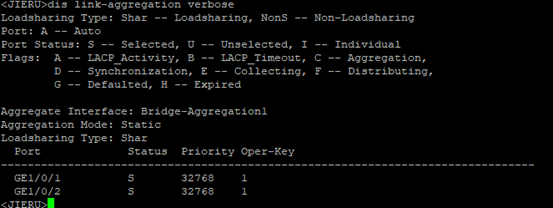

[IRF]display link-aggregation verbose

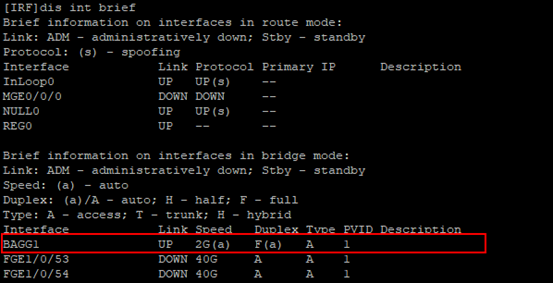

[IRF]dis int brief
