大数据处理框架之Strom：事务

环境
　　虚拟机：VMware 10
　　Linux版本：CentOS-6.5-x86_64
　　客户端：Xshell4
　　FTP：Xftp4
　　jdk1.8
　　storm-0.9
　　apache-flume-1.6.0

一、storm三种事务
1、普通事务（常用）
2、Partitioned Transaction - 分区事务
3、Opaque Transaction - 不透明分区事务

二、普通事务设计
1、Design 1
强顺序流（强有序）
(1)引入事务（transaction）的概念，每个transaction（即每个tuple）关联一个transaction id。
(2)Transaction id从1开始，每个tuple会按照顺序+1。
(3)在处理tuple时，将处理成功的tuple结果以及transaction id同时写入数据库中进行存储。

缺点：
一次只能处理一个tuple，无法实现分布式计算

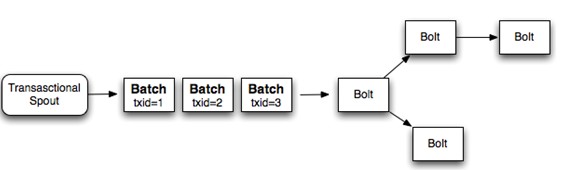

2、Design 2
强顺序的Batch流

(1)事务（transaction）以batch为单位，即把一批tuple称为一个batch，每次处理一个batch。
(2)每个batch（一批tuple）关联一个transaction id
(3)每个batch内部可以并行计算

缺点:
由于维持强有序，当一个batch处理时，其他batch处于闲置状态，效率低。

3、Design 3
将Topology拆分为两个阶段：
1、Processing phase
允许并行处理多个batch
2、Commit phase
保证batch的强有序，一次只能处理一个batch

其他：
Manages state - 状态管理
Storm通过Zookeeper存储所有transaction相关信息（包含了：当前transaction id 以及batch的元数据信息）

Coordinates the transactions - 协调事务
Storm会管理决定transaction应该处理什么阶段（processing、committing）

Fault detection - 故障检测
Storm内部通过Acker机制保障消息被正常处理（用户不需要手动去维护）

First class batch processing API
Storm提供batch bolt接口

三、案例

Topology

package com.sxt.storm.transactional;

import backtype.storm.Config;
import backtype.storm.LocalCluster;
import backtype.storm.StormSubmitter;
import backtype.storm.generated.AlreadyAliveException;
import backtype.storm.generated.InvalidTopologyException;
import backtype.storm.transactional.TransactionalTopologyBuilder;

public class MyTopo {

    /**
     * @param args
     */
    public static void main(String[] args) {
        //
        TransactionalTopologyBuilder builder = new TransactionalTopologyBuilder("ttbId","spoutid",new MyTxSpout(),1);
        builder.setBolt("bolt1", new MyTransactionBolt(),3).shuffleGrouping("spoutid");
        builder.setBolt("committer", new MyCommitter(),1).shuffleGrouping("bolt1") ;

        Config conf = new Config() ;
        conf.setDebug(false);

        if (args.length > 0) {
            try {
                StormSubmitter.submitTopology(args[0], conf, builder.buildTopology());
            } catch (AlreadyAliveException e) {
                e.printStackTrace();
            } catch (InvalidTopologyException e) {
                e.printStackTrace();
            }
        }else {
            LocalCluster localCluster = new LocalCluster();
            localCluster.submitTopology("mytopology", conf, builder.buildTopology());
        }
    }
}

Spout：

package com.sxt.storm.transactional;

import java.util.HashMap;
import java.util.Map;
import java.util.Random;

import backtype.storm.task.TopologyContext;
import backtype.storm.topology.OutputFieldsDeclarer;
import backtype.storm.transactional.ITransactionalSpout;
import backtype.storm.tuple.Fields;

public class MyTxSpout implements ITransactionalSpout<MyMeta> {

    /**
     * 数据源
     */
    Map<Long, String> dbMap = null;

    public MyTxSpout() {
        Random random = new Random();
        dbMap = new HashMap<Long, String>();
        String[] hosts = { "www.taobao.com" };
        String[] session_id = {
                "ABYH6Y4V4SCVXTG6DPB4VH9U123",
                "XXYH6YCGFJYERTT834R52FDXV9U34",
                "BBYH61456FGHHJ7JL89RG5VV9UYU7",
                "CYYH6Y2345GHI899OFG4V9U567",
                "VVVYH6Y4V4SFXZ56JIPDPB4V678"
            };
        String[] time = {
                "2017-02-21 08:40:50",
                "2017-02-21 08:40:51",
                "2017-02-21 08:40:52",
                "2017-02-21 08:40:53",
                "2017-02-21 09:40:49",
                "2017-02-21 10:40:49",
                "2017-02-21 11:40:49",
                "2017-02-21 12:40:49"
            };

        for (long i = 0; i < 100; i++) {
            dbMap.put(i, hosts[0] + "\t" + session_id[random.nextInt(5)] + "\t" + time[random.nextInt(8)]);
        }
    }

    private static final long serialVersionUID = 1L;

    @Override
    public backtype.storm.transactional.ITransactionalSpout.Coordinator<MyMeta> getCoordinator(Map conf,
            TopologyContext context) {
        return new MyCoordinator();
    }

    @Override
    public backtype.storm.transactional.ITransactionalSpout.Emitter<MyMeta> getEmitter(Map conf,
            TopologyContext context) {
        return new MyEmitter(dbMap);
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("tx", "log"));
    }

    @Override
    public Map<String, Object> getComponentConfiguration() {
        return null;
    }

}

Bolt：

package com.sxt.storm.transactional;

import java.util.Map;

import backtype.storm.coordination.BatchOutputCollector;
import backtype.storm.task.TopologyContext;
import backtype.storm.topology.OutputFieldsDeclarer;
import backtype.storm.topology.base.BaseTransactionalBolt;
import backtype.storm.transactional.TransactionAttempt;
import backtype.storm.tuple.Fields;
import backtype.storm.tuple.Tuple;
import backtype.storm.tuple.Values;

public class MyTransactionBolt extends BaseTransactionalBolt {

    /**
     *
     */
    private static final long serialVersionUID = 1L;

    Integer count = 0;
    BatchOutputCollector collector;
    TransactionAttempt tx ;

    @Override
    public void prepare(Map conf, TopologyContext context,
            BatchOutputCollector collector, TransactionAttempt id) {
        this.collector = collector;
        System.err.println("MyTransactionBolt prepare txid:"+id.getTransactionId() +";  attemptid: "+id.getAttemptId());
    }

    /**
     * 处理batch中每一个tuple
     */
    @Override
    public void execute(Tuple tuple) {

        tx = (TransactionAttempt) tuple.getValue(0);
        System.err.println("MyTransactionBolt TransactionAttempt txid:"+tx.getTransactionId() +";  attemptid:"+tx.getAttemptId());
        String log = tuple.getString(1);
        if (log != null && log.length()>0) {
            count ++ ;
        }
    }

    /**
     * 同一个batch处理完成后，会调用一次finishBatch方法
     */
    @Override
    public void finishBatch() {
        System.err.println("finishBatch: "+count );
        collector.emit(new Values(tx,count));
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("tx","count"));
    }

}

package com.sxt.storm.transactional;

import java.math.BigInteger;
import java.util.HashMap;
import java.util.Map;

import backtype.storm.coordination.BatchOutputCollector;
import backtype.storm.task.TopologyContext;
import backtype.storm.topology.OutputFieldsDeclarer;
import backtype.storm.topology.base.BaseTransactionalBolt;
import backtype.storm.transactional.ICommitter;
import backtype.storm.transactional.TransactionAttempt;
import backtype.storm.tuple.Tuple;

public class MyCommitter extends BaseTransactionalBolt implements ICommitter {

    /**
     *
     */
    private static final long serialVersionUID = 1L;

    public static final String GLOBAL_KEY = "GLOBAL_KEY";
    public static Map<String, DbValue> dbMap = new HashMap<String, DbValue>();
    int sum = 0;
    TransactionAttempt id;
    BatchOutputCollector collector;

    @Override
    public void execute(Tuple tuple) {
        sum += tuple.getInteger(1);
    }

    @Override
    public void finishBatch() {

        DbValue value = dbMap.get(GLOBAL_KEY);
        DbValue newValue;
        //
        if (value == null || !value.txid.equals(id.getTransactionId())) {
            // 更新数据库
            newValue = new DbValue();
            newValue.txid = id.getTransactionId();
            if (value == null) {
                newValue.count = sum;
            } else {
                newValue.count = value.count + sum;
            }
            dbMap.put(GLOBAL_KEY, newValue);
        } else {
            newValue = value;
        }
        System.out.println("total==========================:" + dbMap.get(GLOBAL_KEY).count);
        // collector.emit(tuple)
    }

    @Override
    public void prepare(Map conf, TopologyContext context, BatchOutputCollector collector, TransactionAttempt id) {
        this.id = id;
        this.collector = collector;
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {

    }

    public static class DbValue {
        BigInteger txid;
        int count = 0;
    }

}

package com.sxt.storm.transactional;

import java.math.BigInteger;

import backtype.storm.transactional.ITransactionalSpout;
import backtype.storm.utils.Utils;

public class MyCoordinator implements ITransactionalSpout.Coordinator<MyMeta>{

    // batch中消息条数
    public static int BATCH_NUM = 10 ;

    /**
     * 在initializeTransaction前执行
     * 确认数据源是否已经准备就绪，可以读取数据
     * 返回值 true、false
     */
    @Override
    public boolean isReady() {
        Utils.sleep(2000);
        return true;
    }

    /**
     * txid：事务序列号
     * prevMetadata：之前事务的元数据（如果第一次启动事务，则为null）
     * 返回值：当前事务的元数据
     */
    @Override
    public MyMeta initializeTransaction(BigInteger txid, MyMeta prevMetadata) {
        long beginPoint = 0;
        if (prevMetadata == null) {
            beginPoint = 0 ;
        }else {
            beginPoint = prevMetadata.getBeginPoint() + prevMetadata.getNum() ;
        }

        MyMeta meta = new MyMeta() ;
        meta.setBeginPoint(beginPoint);
        meta.setNum(BATCH_NUM);
        System.err.println("启动一个事务："+meta.toString());
        return meta;
    }

    @Override
    public void close() {

    }
}

package com.sxt.storm.transactional;

import java.io.Serializable;

public class MyMeta implements Serializable{

    /**
     *
     */
    private static final long serialVersionUID = 1L;

    private long beginPoint ;//事务开始位置

    private int num ;//batch 的tuple个数


    @Override
    public String toString() {
        return getBeginPoint()+"----"+getNum();
    }

    public long getBeginPoint() {
        return beginPoint;
    }

    public void setBeginPoint(long beginPoint) {
        this.beginPoint = beginPoint;
    }

    public int getNum() {
        return num;
    }

    public void setNum(int num) {
        this.num = num;
    }


}

package com.sxt.storm.transactional;

import java.math.BigInteger;
import java.util.Map;

import backtype.storm.coordination.BatchOutputCollector;
import backtype.storm.transactional.ITransactionalSpout;
import backtype.storm.transactional.TransactionAttempt;
import backtype.storm.tuple.Values;

public class MyEmitter implements ITransactionalSpout.Emitter<MyMeta>{

    Map<Long, String> dbMap  = null;
    public MyEmitter(Map<Long, String> dbMap) {
        this.dbMap = dbMap;
    }

    @Override
    public void cleanupBefore(BigInteger txid) {

    }

    @Override
    public void close() {

    }

    /**
     * 发送tuple的batch
     */
    @Override
    public void emitBatch(TransactionAttempt tx, MyMeta coordinatorMeta,
            BatchOutputCollector collector) {

        long beginPoint = coordinatorMeta.getBeginPoint() ;
        int num = coordinatorMeta.getNum() ;

        for (long i = beginPoint; i < num+beginPoint; i++) {
            if (dbMap.get(i)==null) {
                continue;
            }
            /**
             * 必须以TransactionAttempt第一位发送
             * _txid： transaction id 每组batch中的tuple必须为同一id，不论replay多少次
             * _attemptId
             */
            collector.emit(new Values(tx,dbMap.get(i)));
        }
    }

}
