基于腾讯云直播使用的SocketRocket，进行直播间的互动
一、SocketRocket
1.1 使用到的三方 SocketRocket，可以直接pod
1.2 创建SocketRocketUtility类文件，用于socket开启关闭时使用
//SocketRocketUtility.h文件
#import <Foundation/Foundation.h>
#import <SocketRocket.h>
@interface SocketRocketUtility : NSObject
// 获取连接状态
@property (nonatomic,assign,readonly) SRReadyState socketReadyState;
+ (SocketRocketUtility *)shareInstance;
-(void)SRWebSocketOpenWithURLString:(NSString *)urlString;//开启连接
-(void)SRWebSocketClose;//关闭连接
- (void)sendData:(id)data;//发送数据
@end
//SocketRocketUtility.m文件
#import "SocketRocketUtility.h"
@interface SocketRocketUtility()<SRWebSocketDelegate>
{
int _index;
NSTimer * heartBeat;
NSTimeInterval reConnectTime;
}
@property (nonatomic,strong) SRWebSocket *socket;
@property (nonatomic,copy) NSString *urlString;
@end
@implementation SocketRocketUtility
+(SocketRocketUtility *)shareInstance{
static SocketRocketUtility *Instance = nil;
static dispatch_once_t predicate;
dispatch_once(&predicate, ^{
Instance = [[SocketRocketUtility alloc] init];
});
return Instance;
}
#pragma mark - **************** public methods
-(void)SRWebSocketOpenWithURLString:(NSString *)urlString {
//如果是同一个url return
if (self.socket) {
return;
}
if (!urlString) {
return;
}
self.urlString = urlString;
self.socket = [[SRWebSocket alloc] initWithURLRequest:
[NSURLRequest requestWithURL:[NSURL URLWithString:urlString]]];
self.socket.delegate = self; //SRWebSocketDelegate 协议
[self.socket open]; //开始连接
}
-(void)SRWebSocketClose{
if (self.socket){
[self.socket close];
self.socket = nil;
//断开连接时销毁心跳
[self destoryHeartBeat];
}
}
- (void)sendData:(id)data {
YNWeakSelf
dispatch_queue_t queue = dispatch_queue_create("zy", NULL);
dispatch_async(queue, ^{
if (weakSelf.socket != nil) {
// 只有 SR_OPEN 开启状态才能调 send 方法啊，不然要崩
if (weakSelf.socket.readyState == SR_OPEN) {
[weakSelf.socket send:data]; // 发送数据
} else if (weakSelf.socket.readyState == SR_CONNECTING) {
NSLog(@"正在连接中，重连后其他方法会去自动同步数据");
// 每隔2秒检测一次 socket.readyState 状态，检测 10 次左右
// 只要有一次状态是 SR_OPEN 的就调用 [ws.socket send:data] 发送数据
// 如果 10 次都还是没连上的，那这个发送请求就丢失了，这种情况是服务器的问题了，小概率的
// 代码有点长，我就写个逻辑在这里好了
[self reConnect];
} else if (weakSelf.socket.readyState == SR_CLOSING || weakSelf.socket.readyState == SR_CLOSED) {
// websocket 断开了，调用 reConnect 方法重连
NSLog(@"重连");
[self reConnect];
}
} else {
NSLog(@"没网络，发送失败，一旦断网 socket 会被我设置 nil 的");
NSLog(@"其实最好是发送前判断一下网络状态比较好，我写的有点晦涩，socket==nil来表示断网");
}
});
}
#pragma mark - **************** private mothodes
//重连机制
- (void)reConnect
{
[self SRWebSocketClose];
//超过一分钟就不再重连 所以只会重连5次 2^5 = 64
if (reConnectTime > 64) {
//您的网络状况不是很好，请检查网络后重试
return;
}
dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(reConnectTime * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
self.socket = nil;
[self SRWebSocketOpenWithURLString:self.urlString];
NSLog(@"重连");
});
//重连时间2的指数级增长
if (reConnectTime == 0) {
reConnectTime = 2;
}else{
reConnectTime *= 2;
}
}
//取消心跳
- (void)destoryHeartBeat
{
dispatch_main_async_safe(^{
if (self->heartBeat) {
if ([self->heartBeat respondsToSelector:@selector(isValid)]){
if ([self->heartBeat isValid]){
[self->heartBeat invalidate];
self->heartBeat = nil;
}
}
}
})
}
//初始化心跳
- (void)initHeartBeat
{
dispatch_main_async_safe(^{
[self destoryHeartBeat];
//心跳设置为3分钟，NAT超时一般为5分钟
self->heartBeat = [NSTimer timerWithTimeInterval:10 target:self selector:@selector(sentheart) userInfo:nil repeats:YES];
//和服务端约定好发送什么作为心跳标识，尽可能的减小心跳包大小
[[NSRunLoop currentRunLoop] addTimer:self->heartBeat forMode:NSRunLoopCommonModes];
})
}

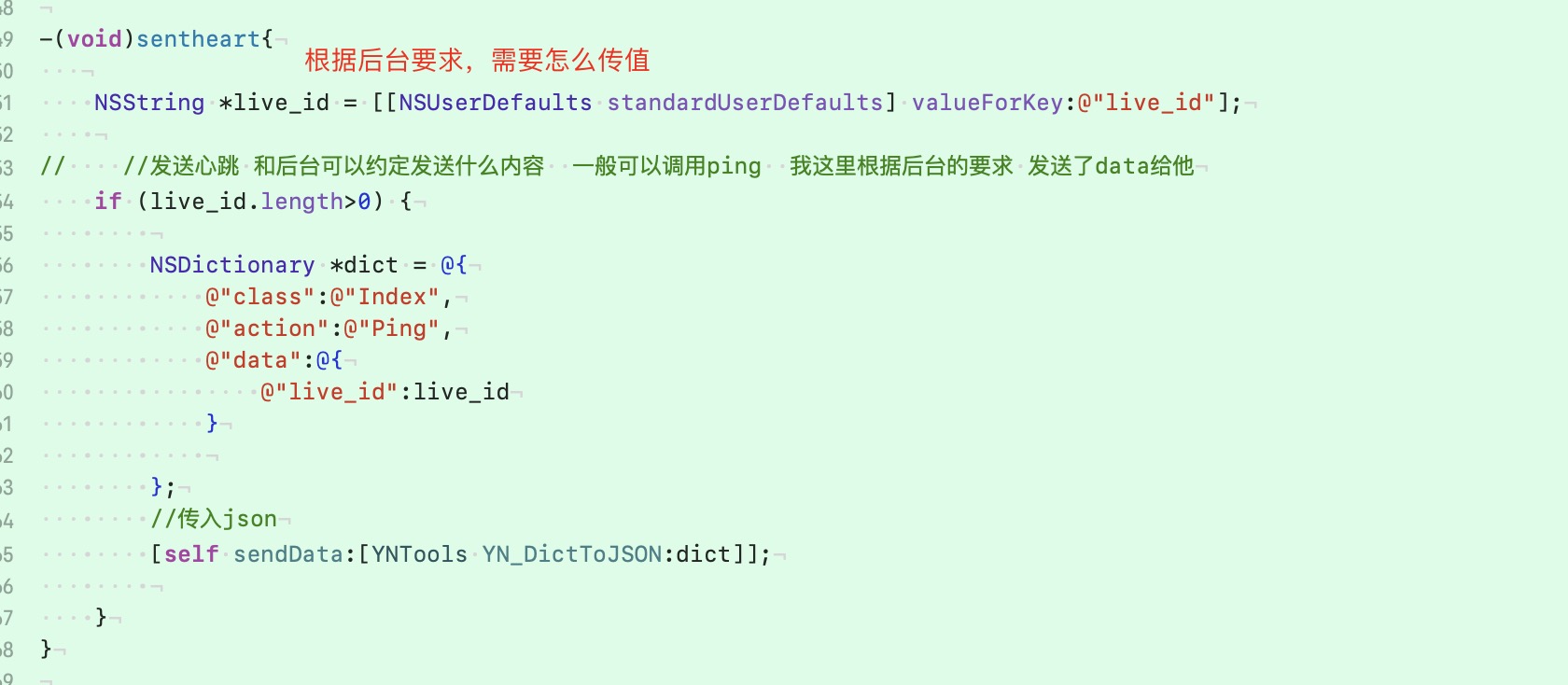

-(void)sentheart{
NSString *live_id = [[NSUserDefaults standardUserDefaults] valueForKey:@"live_id"];
// //发送心跳 和后台可以约定发送什么内容 一般可以调用ping 我这里根据后台的要求 发送了data给他
if (live_id.length>0) {
NSDictionary *dict = @{
@"class":@"Index",
@"action":@"Ping",
@"data":@{
@"live_id":live_id
}
};
//传入json
[self sendData:[YNTools YN_DictToJSON:dict]];
}
}
//pingPong
- (void)ping{
if (self.socket.readyState == SR_OPEN) {
[self.socket sendPing:nil];
}
}
#pragma mark - socket delegate
- (void)webSocketDidOpen:(SRWebSocket *)webSocket {
//每次正常连接的时候清零重连时间
reConnectTime = 0;
//开启心跳
[self initHeartBeat];
if (webSocket == self.socket) {
NSLog(@"************************** socket 连接成功************************** ");
}
}
- (void)webSocket:(SRWebSocket *)webSocket didFailWithError:(NSError *)error {
if (webSocket == self.socket) {
NSLog(@"************************** socket 连接失败************************** ");
_socket = nil;
//连接失败就重连
[self reConnect];
}
}
- (void)webSocket:(SRWebSocket *)webSocket didCloseWithCode:(NSInteger)code reason:(NSString *)reason wasClean:(BOOL)wasClean {
if (webSocket == self.socket) {
NSLog(@"************************** socket连接断开************************** ");
NSLog(@"被关闭连接，code:%ld,reason:%@,wasClean:%d",(long)code,reason,wasClean);
[self SRWebSocketClose];
}
}
/*该函数是接收服务器发送的pong消息，其中最后一个是接受pong消息的，
在这里就要提一下心跳包，一般情况下建立长连接都会建立一个心跳包，
用于每隔一段时间通知一次服务端，客户端还是在线，这个心跳包其实就是一个ping消息，
我的理解就是建立一个定时器，每隔十秒或者十五秒向服务端发送一个ping消息，这个消息可是是空的
*/
-(void)webSocket:(SRWebSocket *)webSocket didReceivePong:(NSData *)pongPayload{
NSString *reply = [[NSString alloc] initWithData:pongPayload encoding:NSUTF8StringEncoding];
NSLog(@"reply===%@",reply);
}
- (void)webSocket:(SRWebSocket *)webSocket didReceiveMessage:(id)message {
if (webSocket == self.socket) {
NSLog(@"************************** socket收到数据了************************** ");
NSLog(@"message:%@",message);
[[NSNotificationCenter defaultCenter] postNotificationName:@"YN_WebSocket_ReceiveMessage" object:message];
}
}
#pragma mark - **************** setter getter
- (SRReadyState)socketReadyState{
return self.socket.readyState;
}
-(void)dealloc{
[[NSNotificationCenter defaultCenter] removeObserver:self];
}
注意：
1.3 在所需要的页面导入头文件 #import "SocketRocketUtility.h"
二、腾讯云直播
2.1 直播SDK TXLiteAVSDK_Professional（专业版），直接pod
2.2 在AppDelegate的didFinishLaunchingWithOptions中设置sdk的licence下载url和key
//设置sdk的licence下载url和key
[TXLiveBase setLicenceURL:LiteAV_licenceURL key:LiteAV_licenceKey];

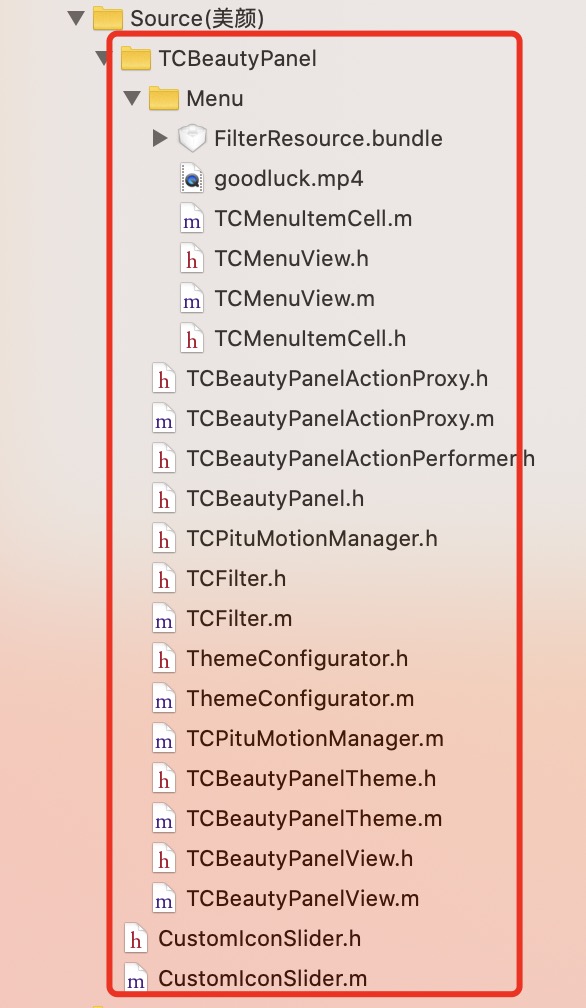

2.3 美颜功能可以直接从源码里扒出来，如图
2.4 导入头文件并遵守代理
#import "TXLivePush.h"//直播
#import "TCBeautyPanel.h"//美颜和滤镜
#import "ThemeConfigurator.h"//颜色
代理
BeautyLoadPituDelegate 和 TXLivePushListener
@property (nonatomic, strong) TXLivePush *pusher;
@property (nonatomic, strong) UIView *localView; //本地预览
@property (nonatomic, assign) BOOL appIsInActive;
@property (nonatomic, assign) BOOL appIsBackground;
- (TXLivePush *)pusher
{
if (!_pusher) {
TXLivePushConfig *config = [[TXLivePushConfig alloc] init];
config.pauseFps = 10;
config.pauseTime = 300;
config.homeOrientation = HOME_ORIENTATION_RIGHT;
config.pauseImg = [UIImage imageNamed:@"pause_publish"];
config.enableNearestIP = YES;
// 推流器初始化
_pusher = [[TXLivePush alloc] initWithConfig:config];
// 设置delegate
[_pusher setDelegate:self];
}
return _pusher;
}
- (void)viewDidLoad {
[super viewDidLoad];
_appIsInActive = NO;
_appIsBackground = NO;
if (!_localView) {
_localView = [[UIView alloc]init];
}
[self.view insertSubview:self.localView atIndex:0];
self.localView.backgroundColor = [UIColor clearColor];
[self.localView mas_makeConstraints:^(MASConstraintMaker *make) {
make.top.bottom.right.offset(0);
make.left.offset(0);
}];
//预览上部view
[self setUpStareView];
_appIsInActive = NO;
_appIsBackground = NO;
//启动本地摄像头预览（需要添加预览view）
[self.pusher startPreview:self.localView];
//用于心跳连接
[[NSUserDefaults standardUserDefaults] setValue:self.liveID forKey:@"live_id"];
}
进行直播时，连接scoket进入直播间并开启推流状态
连接scoket
//连接scoket
[[SocketRocketUtility shareInstance] SRWebSocketOpenWithURLString:url];
进入直播间
NSDictionary *dict = @{
@"class":@"Push",
@"action":@"Joinlive",
@"data":@{
@"live_id":self.liveID,
@"user_id":user_id
}
};
[[SocketRocketUtility shareInstance] sendData:[YNTools YN_DictToJSON:dict]];
开始推流
//开始推流
[self.pusher startPush:self.roomModel.pushstream_address];
在直播过程中进行的一些操作：发消息、发公告、打赏、购买商品等都可以走socket连接，如
//发消息
//发消息
NSDictionary *dict = @{
@"class":@"Push",
@"action":@"Comment",
@"data":@{
@"live_id":self.liveID,
@"content":self.commentView.textView.text,
@"type":@"3",//评论类型(1 评论 2打赏 3主播 4管理员) 根据发起评论用户类型而定可由后端返回
@"user_id":user_id
}
};
[[SocketRocketUtility shareInstance] sendData:[YNTools YN_DictToJSON:dict]];
结束直播
//停止推流
[self stopPushLive];
//关闭socket连接
[[SocketRocketUtility shareInstance] SRWebSocketClose];
-(void)stopPushLive
{
if (_pusher) {
[_pusher setDelegate:nil];
[_pusher stopPreview];
[_pusher stopPush];
}
}
直播过程中接收到的socket消息，可对其监听并处理
//socket接收到消息
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(receiveMessage:) name:@"YN_WebSocket_ReceiveMessage" object:nil];
处理收到的消息
//TODO:接收到消息
-(void)receiveMessage:(NSNotification *)noti
{
//json转字典
NSDictionary *item = [YNTools YN_JSONToDict:noti.object];
NSLog(@"------item:%@",item);
}
对于在直播过程中程序进入后台以及从后台重新激活，会有页面卡顿，因此也要进行处理
添加直播监听
//直播监听
-(void)pushLiveNotification
{
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(onAppDidEnterBackGround:) name:UIApplicationDidEnterBackgroundNotification object:nil];
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(onAppWillEnterForeground:) name:UIApplicationWillEnterForegroundNotification object:nil];
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(onAppWillResignActive:) name:UIApplicationWillResignActiveNotification object:nil];
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(onAppDidBecomeActive:) name:UIApplicationDidBecomeActiveNotification object:nil];
}
- (void)onAppWillResignActive:(NSNotification *)notification {
_appIsInActive = YES;
//暂停摄像头采集并暂停推流
[_pusher pausePush];
}
- (void)onAppDidBecomeActive:(NSNotification *)notification {
_appIsInActive = NO;
if (!_appIsBackground && !_appIsInActive) {
//恢复摄像头采集并继续推流
[_pusher resumePush];
}
}
- (void)onAppDidEnterBackGround:(NSNotification *)notification {
[[UIApplication sharedApplication] beginBackgroundTaskWithExpirationHandler:^{
}];
_appIsBackground = YES;
//暂停摄像头采集并暂停推流
[_pusher pausePush];
}
- (void)onAppWillEnterForeground:(NSNotification *)notification {
_appIsBackground = NO;
if (!_appIsBackground && !_appIsInActive) {
//恢复摄像头采集并继续推流
[_pusher resumePush];
}
}

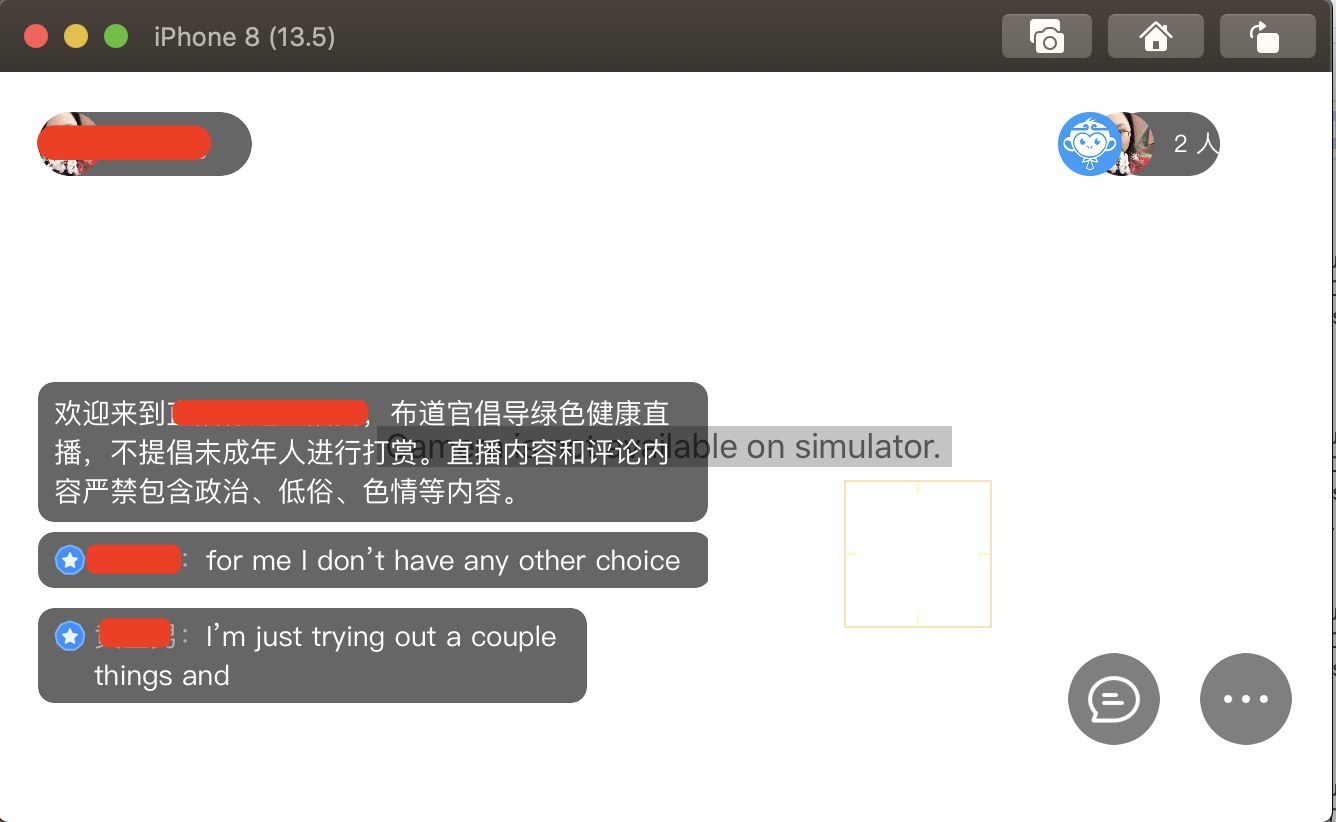

最后上一张直播间的图
