一、前言
在实时性要求较高的场合中，CPU软件执行的方式显然不能满足需求，这时需要硬件逻辑实现部分功能。要想使自定义IP核被CPU访问，就必须带有总线接口。ZYNQ采用AXI BUS实现PS和PL之间的数据交互。本文以PWM为例设计了自定义AXI总线IP，来演示如何灵活运用ARM+FPGA的架构。
功能定义：在上一篇ZYNQ入门实例博文讲解的系统中添加自定义IP核，其输出驱动LED等实现呼吸灯效果。并且软件通过配置寄存器方式对其进行使能、打开/关闭配置以及选择占空比变化步长。另外，可以按键操作完成占空比变化步长的增减。
平台：米联客 MIZ702N （ZYNQ-7020）
软件：VIVADO+SDK 2017
注：自定义IP逻辑设计采用明德扬至简设计法
二、PWM IP设计
PWM无非就是通过控制周期脉冲信号的占空比，也就是改变高电平在一段固定周期内的持续时间来达到控制目的。脉冲周期需要一个计数器来定时，占空比由低变高和由高变低两种模式同样需要一个计数器来指示，因此这里使用两个嵌套的计数器cnt_cyc和cnt_mode。cnt_mode的加一条件除了要等待cnt_cyc计数完成，还要考虑占空比的变化。
我们可以使用下降沿位置表示占空比，位置越靠近周期值占空比越高。在模式0中下降沿位置按照步长增大直至大于等于周期值，模式1中下降沿位置则按照步长递减直到小于步长。使用两个信号up_stage和down_stage分别指示模式0和模式1。至于步长值，在配置有效时被更新，否则使用默认值。模块最终的输出信号在周期计数器小于下降沿位置为1，反之为零。设计完毕，上代码：
1 `timescale 1ns / 1ps
2 //////////////////////////////////////////////////////////////////////////////////
3 // Company:
4 // Engineer:
5 //
6 // Create Date: 2020/03/01 18:14:44
7 // Design Name:
8 // Module Name: pwm
9 // Project Name:
10 // Target Devices:
11 // Tool Versions:
12 // Description:
13 //
14 // Dependencies:
15 //
16 // Revision:
17 // Revision 0.01 - File Created
18 // Additional Comments:
19 //
20 //////////////////////////////////////////////////////////////////////////////////
21
22
23 module pwm(
24 input clk,//频率100MHz 10ns
25 input rst_n,
26 input sw_en,//输出使能
27 input sw_set_en,//步长设定使能
28 input [10-1:0] sw_freq_step,//步长数值
29 output reg led
30 );
31
32 parameter FREQ_STEP = 10'd100;
33
34 parameter CNT_CYC_MAX = 50000;
35
36 function integer clogb2 (input integer bit_depth);
37 begin
38 for(clogb2=0;bit_depth>0;clogb2=clogb2+1)
39 bit_depth = bit_depth >> 1;
40 end
41 endfunction
42
43 localparam CNT_CYC_WIDTH = clogb2(CNT_CYC_MAX-1);
44
45
46 reg [CNT_CYC_WIDTH-1:0] cnt_cyc=0;
47 wire add_cnt_cyc,end_cnt_cyc;
48 reg [2-1:0] cnt_mode=0;
49 wire add_cnt_mode,end_cnt_mode;
50 wire up_stage,down_stage;
51 reg [CNT_CYC_WIDTH+1-1:0] neg_loc=0;
52 reg [10-1:0] freq_step=FREQ_STEP;
53
54
55 //周期计数器 计数50ms=50*1000ns = 50000_0ns
56 always@(posedge clk)begin
57 if(~rst_n)begin
58 cnt_cyc <= 0;
59 end
60 else if(add_cnt_cyc)begin
61 if(end_cnt_cyc)
62 cnt_cyc <= 0;
63 else
64 cnt_cyc <= cnt_cyc + 1'b1;
65 end
66 end
67
68 assign add_cnt_cyc = sw_en == 1;
69 assign end_cnt_cyc = add_cnt_cyc && cnt_cyc == CNT_CYC_MAX- 1;
70
71 //模式计数器 0-占空比递增 1-占空比递减
72 always@(posedge clk)begin
73 if(~rst_n)begin
74 cnt_mode <= 0;
75 end
76 else if(add_cnt_mode)begin
77 if(end_cnt_mode)
78 cnt_mode <= 0;
79 else
80 cnt_mode <= cnt_mode + 1'b1;
81 end
82 end
83
84 assign add_cnt_mode = end_cnt_cyc && ((up_stage && neg_loc >= CNT_CYC_MAX) || (down_stage && neg_loc == 0));
85 assign end_cnt_mode = add_cnt_mode && cnt_mode == 2 - 1;
86
87
88 //变化步长设定
89 always@(posedge clk)begin
90 if(~rst_n)begin
91 freq_step <= FREQ_STEP;
92 end
93 else if(sw_set_en)begin
94 if(sw_freq_step >= 1 && sw_freq_step < 2000)
95 freq_step <= sw_freq_step;
96 else
97 freq_step <= FREQ_STEP;
98 end
99 end
100
101 //脉冲下降沿对应周期计数器数值
102 always@(posedge clk)begin
103 if(~rst_n)begin
104 neg_loc <= 0;
105 end
106 else if(end_cnt_cyc)begin
107 if(up_stage )begin//占空比递增阶段
108 if(neg_loc < CNT_CYC_MAX)
109 neg_loc <= neg_loc + freq_step;
110 end
111 else if(down_stage )begin//占空比递减阶段
112 if(neg_loc < freq_step)
113 neg_loc <= 0;
114 else
115 neg_loc <= neg_loc - freq_step;
116 end
117 end
118
119 end
120
121 assign up_stage = add_cnt_cyc && cnt_mode == 0;
122 assign down_stage = add_cnt_cyc && cnt_mode == 1;
123
124
125 //输出
126 always@(posedge clk)begin
127 if(~rst_n)begin
128 led <= 1'b0;//高电平点亮
129 end
130 else if(add_cnt_cyc && cnt_cyc < neg_loc)begin
131 led <= 1'b1;
132 end
133 else
134 led <= 1'b0;
135 end
136
137
138
139 endmoduleVIVADO综合、布局布线比较慢，且软硬件级联调试费时费力，所以仿真是极其重要的。编写一个简单的testbench，定义update_freq_step task更新步长。这里使用System Verilog语法有一定的好处。首先单驱动信号可以统一定义为logic变量类型，其次等待时长能指定单位。
1 `timescale 1ns / 1ps
2 //////////////////////////////////////////////////////////////////////////////////
3 // Company:
4 // Engineer:
5 //
6 // Create Date: 2020/03/01 20:49:25
7 // Design Name:
8 // Module Name: testbench
9 // Project Name:
10 // Target Devices:
11 // Tool Versions:
12 // Description:
13 //
14 // Dependencies:
15 //
16 // Revision:
17 // Revision 0.01 - File Created
18 // Additional Comments:
19 //
20 //////////////////////////////////////////////////////////////////////////////////
21
22
23 module testbench();
24
25 logic clk,rst_n;
26 logic sw_en,sw_set_en;
27 logic [10-1:0]sw_freq_step;
28 logic led;
29
30 parameter CYC = 10,
31 RST_TIM = 2;
32
33 defparam dut.CNT_CYC_MAX = 2000;
34
35 pwm#(.FREQ_STEP(100))
36 dut(
37 .clk (clk) ,//频率100MHz 10ns
38 .rst_n (rst_n) ,
39 .sw_en (sw_en) ,//输出使能
40 .sw_set_en (sw_set_en) ,//步长设定使能
41 .sw_freq_step (sw_freq_step) ,//步长数值
42 .led (led)
43 );
44
45 initial begin
46 clk = 1;
47 forever begin
48 #(CYC/2.0);
49 clk=~clk;
50 end
51 end
52
53 initial begin
54 rst_n = 1;
55 #1;
56 rst_n = 0;
57 #(RST_TIM*CYC) rst_n = 1;
58 end
59
60 initial begin
61 sw_en = 0;
62 sw_set_en = 0;
63 sw_freq_step = 'd10;
64 #1;
65 #(RST_TIM*CYC);
66 #(CYC*10);
67 sw_en = 1;
68
69 #600us;
70 update_freq_step(50);
71 #600us;
72 $stop;
73
74 end
75
76 task update_freq_step([10-1:0] freq_step);
77 sw_set_en = 1;
78 sw_freq_step = freq_step;
79 #(1*CYC);
80 sw_set_en = 0;
81 endtask
82

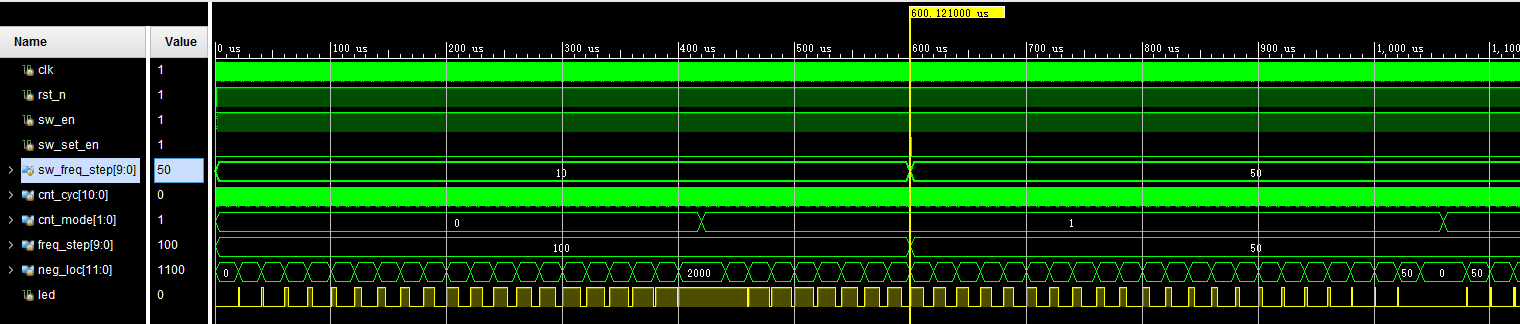

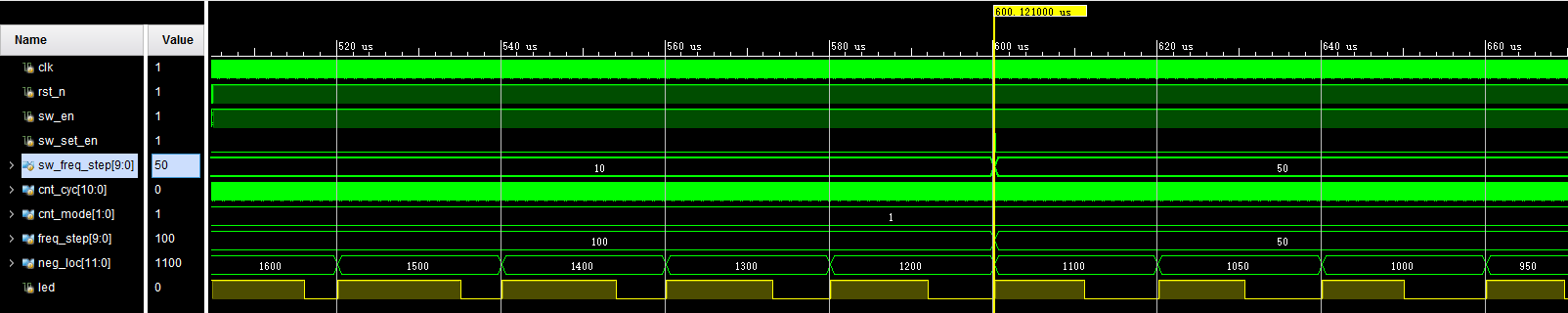

83 endmodule设计较简单，直接使用VIVADO仿真器观察波形即可：
可以看到输出信号led的占空比在不断起伏变化，当更新freq_step为50后变化更为减慢。
配置前相邻两个neg_loc数值差与更新后分别是100和50。以上证明逻辑功能无误。
三、硬件系统搭建

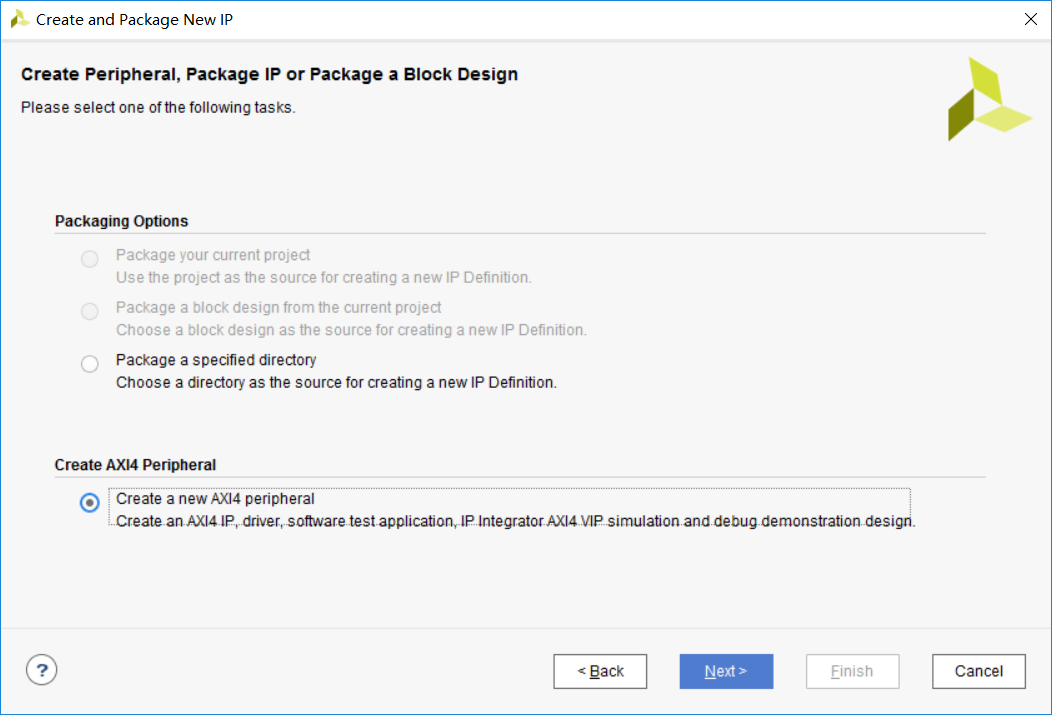

设计完PWM功能模块还没有完，需要再包一层总线Wrapper才能被CPU访问。创建AXI总线IP

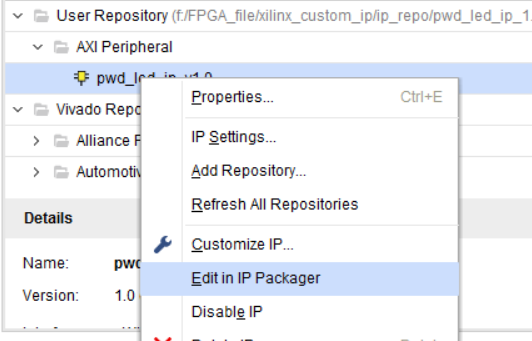

在封装器中编辑。

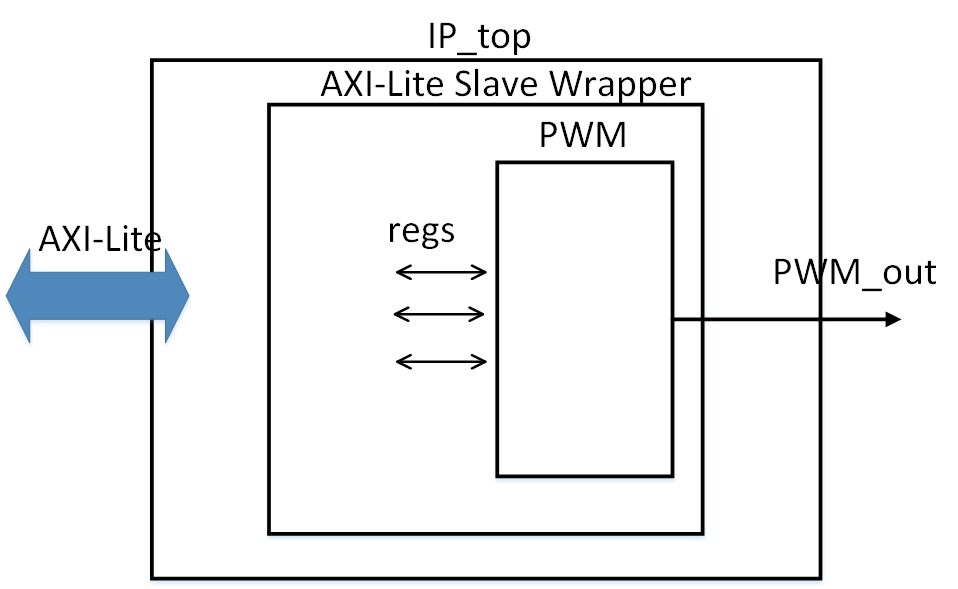

最终IP结构如图：
具体操作不过多讲述，直接以代码呈现：
1 `timescale 1 ns / 1 ps
2
3 module pwm_led_ip_v1_0 #
4 (
5 // Users to add parameters here
6 parameter FREQ_STEP = 10'd100,
7 // User parameters ends
8 // Do not modify the parameters beyond this line
9
10
11 // Parameters of Axi Slave Bus Interface S00_AXI
12 parameter integer C_S00_AXI_DATA_WIDTH = 32,
13 parameter integer C_S00_AXI_ADDR_WIDTH = 4
14 )
15 (
16 // Users to add ports here
17 output led,
18 // User ports ends
19 // Do not modify the ports beyond this line
20
21
22 // Ports of Axi Slave Bus Interface S00_AXI
23 input wire s00_axi_aclk,
24 input wire s00_axi_aresetn,
25 input wire [C_S00_AXI_ADDR_WIDTH-1 : 0] s00_axi_awaddr,
26 input wire [2 : 0] s00_axi_awprot,
27 input wire s00_axi_awvalid,
28 output wire s00_axi_awready,
29 input wire [C_S00_AXI_DATA_WIDTH-1 : 0] s00_axi_wdata,
30 input wire [(C_S00_AXI_DATA_WIDTH/8)-1 : 0] s00_axi_wstrb,
31 input wire s00_axi_wvalid,
32 output wire s00_axi_wready,
33 output wire [1 : 0] s00_axi_bresp,
34 output wire s00_axi_bvalid,
35 input wire s00_axi_bready,
36 input wire [C_S00_AXI_ADDR_WIDTH-1 : 0] s00_axi_araddr,
37 input wire [2 : 0] s00_axi_arprot,
38 input wire s00_axi_arvalid,
39 output wire s00_axi_arready,
40 output wire [C_S00_AXI_DATA_WIDTH-1 : 0] s00_axi_rdata,
41 output wire [1 : 0] s00_axi_rresp,
42 output wire s00_axi_rvalid,
43 input wire s00_axi_rready
44 );
45 // Instantiation of Axi Bus Interface S00_AXI
46 pwd_led_ip_v1_0_S00_AXI # (
47 .C_S_AXI_DATA_WIDTH(C_S00_AXI_DATA_WIDTH),
48 .C_S_AXI_ADDR_WIDTH(C_S00_AXI_ADDR_WIDTH),
49 .FREQ_STEP(FREQ_STEP)
50 ) pwd_led_ip_v1_0_S00_AXI_inst (
51 .S_AXI_ACLK(s00_axi_aclk),
52 .S_AXI_ARESETN(s00_axi_aresetn),
53 .S_AXI_AWADDR(s00_axi_awaddr),
54 .S_AXI_AWPROT(s00_axi_awprot),
55 .S_AXI_AWVALID(s00_axi_awvalid),
56 .S_AXI_AWREADY(s00_axi_awready),
57 .S_AXI_WDATA(s00_axi_wdata),
58 .S_AXI_WSTRB(s00_axi_wstrb),
59 .S_AXI_WVALID(s00_axi_wvalid),
60 .S_AXI_WREADY(s00_axi_wready),
61 .S_AXI_BRESP(s00_axi_bresp),
62 .S_AXI_BVALID(s00_axi_bvalid),
63 .S_AXI_BREADY(s00_axi_bready),
64 .S_AXI_ARADDR(s00_axi_araddr),
65 .S_AXI_ARPROT(s00_axi_arprot),
66 .S_AXI_ARVALID(s00_axi_arvalid),
67 .S_AXI_ARREADY(s00_axi_arready),
68 .S_AXI_RDATA(s00_axi_rdata),
69 .S_AXI_RRESP(s00_axi_rresp),
70 .S_AXI_RVALID(s00_axi_rvalid),
71 .S_AXI_RREADY(s00_axi_rready),
72
73 .led(led)
74 );
75
76 // Add user logic here
77
78 // User logic ends
79
80 endmodule
1 `timescale 1 ns / 1 ps
2
3 module pwm_led_ip_v1_0_S00_AXI #
4 (
5 // Users to add parameters here
6 parameter FREQ_STEP = 10'd100,
7 // User parameters ends
8 // Do not modify the parameters beyond this line
9
10 // Width of S_AXI data bus
11 parameter integer C_S_AXI_DATA_WIDTH = 32,
12 // Width of S_AXI address bus
13 parameter integer C_S_AXI_ADDR_WIDTH = 4
14 )
15 (
16 // Users to add ports here
17 output led,
18 // User ports ends
19 // Do not modify the ports beyond this line
20
21 // Global Clock Signal
22 input wire S_AXI_ACLK,
23 // Global Reset Signal. This Signal is Active LOW
24 input wire S_AXI_ARESETN,
25 // Write address (issued by master, acceped by Slave)
26 input wire [C_S_AXI_ADDR_WIDTH-1 : 0] S_AXI_AWADDR,
27 // Write channel Protection type. This signal indicates the
28 // privilege and security level of the transaction, and whether
29 // the transaction is a data access or an instruction access.
30 input wire [2 : 0] S_AXI_AWPROT,
31 // Write address valid. This signal indicates that the master signaling
32 // valid write address and control information.
33 input wire S_AXI_AWVALID,
34 // Write address ready. This signal indicates that the slave is ready
35 // to accept an address and associated control signals.
36 output wire S_AXI_AWREADY,
37 // Write data (issued by master, acceped by Slave)
38 input wire [C_S_AXI_DATA_WIDTH-1 : 0] S_AXI_WDATA,
39 // Write strobes. This signal indicates which byte lanes hold
40 // valid data. There is one write strobe bit for each eight
41 // bits of the write data bus.
42 input wire [(C_S_AXI_DATA_WIDTH/8)-1 : 0] S_AXI_WSTRB,
43 // Write valid. This signal indicates that valid write
44 // data and strobes are available.
45 input wire S_AXI_WVALID,
46 // Write ready. This signal indicates that the slave
47 // can accept the write data.
48 output wire S_AXI_WREADY,
49 // Write response. This signal indicates the status
50 // of the write transaction.
51 output wire [1 : 0] S_AXI_BRESP,
52 // Write response valid. This signal indicates that the channel
53 // is signaling a valid write response.
54 output wire S_AXI_BVALID,
55 // Response ready. This signal indicates that the master
56 // can accept a write response.
57 input wire S_AXI_BREADY,
58 // Read address (issued by master, acceped by Slave)
59 input wire [C_S_AXI_ADDR_WIDTH-1 : 0] S_AXI_ARADDR,
60 // Protection type. This signal indicates the privilege
61 // and security level of the transaction, and whether the
62 // transaction is a data access or an instruction access.
63 input wire [2 : 0] S_AXI_ARPROT,
64 // Read address valid. This signal indicates that the channel
65 // is signaling valid read address and control information.
66 input wire S_AXI_ARVALID,
67 // Read address ready. This signal indicates that the slave is
68 // ready to accept an address and associated control signals.
69 output wire S_AXI_ARREADY,
70 // Read data (issued by slave)
71 output wire [C_S_AXI_DATA_WIDTH-1 : 0] S_AXI_RDATA,
72 // Read response. This signal indicates the status of the
73 // read transfer.
74 output wire [1 : 0] S_AXI_RRESP,
75 // Read valid. This signal indicates that the channel is
76 // signaling the required read data.
77 output wire S_AXI_RVALID,
78 // Read ready. This signal indicates that the master can
79 // accept the read data and response information.
80 input wire S_AXI_RREADY
81 );
82
83 // AXI4LITE signals
84 reg [C_S_AXI_ADDR_WIDTH-1 : 0] axi_awaddr;
85 reg axi_awready;
86 reg axi_wready;
87 reg [1 : 0] axi_bresp;
88 reg axi_bvalid;
89 reg [C_S_AXI_ADDR_WIDTH-1 : 0] axi_araddr;
90 reg axi_arready;
91 reg [C_S_AXI_DATA_WIDTH-1 : 0] axi_rdata;
92 reg [1 : 0] axi_rresp;
93 reg axi_rvalid;
94
95 // Example-specific design signals
96 // local parameter for addressing 32 bit / 64 bit C_S_AXI_DATA_WIDTH
97 // ADDR_LSB is used for addressing 32/64 bit registers/memories
98 // ADDR_LSB = 2 for 32 bits (n downto 2)
99 // ADDR_LSB = 3 for 64 bits (n downto 3)
100 localparam integer ADDR_LSB = (C_S_AXI_DATA_WIDTH/32) + 1;
101 localparam integer OPT_MEM_ADDR_BITS = 1;
102 //----------------------------------------------
103 //-- Signals for user logic register space example
104 //------------------------------------------------
105 //-- Number of Slave Registers 4
106 reg [C_S_AXI_DATA_WIDTH-1:0] slv_reg0;
107 reg [C_S_AXI_DATA_WIDTH-1:0] slv_reg1;
108 reg [C_S_AXI_DATA_WIDTH-1:0] slv_reg2;
109 reg [C_S_AXI_DATA_WIDTH-1:0] slv_reg3;
110 wire slv_reg_rden;
111 wire slv_reg_wren;
112 reg [C_S_AXI_DATA_WIDTH-1:0] reg_data_out;
113 integer byte_index;
114 reg aw_en;
115
116 // I/O Connections assignments
117
118 assign S_AXI_AWREADY = axi_awready;
119 assign S_AXI_WREADY = axi_wready;
120 assign S_AXI_BRESP = axi_bresp;
121 assign S_AXI_BVALID = axi_bvalid;
122 assign S_AXI_ARREADY = axi_arready;
123 assign S_AXI_RDATA = axi_rdata;
124 assign S_AXI_RRESP = axi_rresp;
125 assign S_AXI_RVALID = axi_rvalid;
126 // Implement axi_awready generation
127 // axi_awready is asserted for one S_AXI_ACLK clock cycle when both
128 // S_AXI_AWVALID and S_AXI_WVALID are asserted. axi_awready is
129 // de-asserted when reset is low.
130
131 always @( posedge S_AXI_ACLK )
132 begin
133 if ( S_AXI_ARESETN == 1'b0 )
134 begin
135 axi_awready <= 1'b0;
136 aw_en <= 1'b1;
137 end
138 else
139 begin
140 if (~axi_awready && S_AXI_AWVALID && S_AXI_WVALID && aw_en)
141 begin
142 // slave is ready to accept write address when
143 // there is a valid write address and write data
144 // on the write address and data bus. This design
145 // expects no outstanding transactions.
146 axi_awready <= 1'b1;
147 aw_en <= 1'b0;
148 end
149 else if (S_AXI_BREADY && axi_bvalid)
150 begin
151 aw_en <= 1'b1;
152 axi_awready <= 1'b0;
153 end
154 else
155 begin
156 axi_awready <= 1'b0;
157 end
158 end
159 end
160
161 // Implement axi_awaddr latching
162 // This process is used to latch the address when both
163 // S_AXI_AWVALID and S_AXI_WVALID are valid.
164
165 always @( posedge S_AXI_ACLK )
166 begin
167 if ( S_AXI_ARESETN == 1'b0 )
168 begin
169 axi_awaddr <= 0;
170 end
171 else
172 begin
173 if (~axi_awready && S_AXI_AWVALID && S_AXI_WVALID && aw_en)
174 begin
175 // Write Address latching
176 axi_awaddr <= S_AXI_AWADDR;
177 end
178 end
179 end
180
181 // Implement axi_wready generation
182 // axi_wready is asserted for one S_AXI_ACLK clock cycle when both
183 // S_AXI_AWVALID and S_AXI_WVALID are asserted. axi_wready is
184 // de-asserted when reset is low.
185
186 always @( posedge S_AXI_ACLK )
187 begin
188 if ( S_AXI_ARESETN == 1'b0 )
189 begin
190 axi_wready <= 1'b0;
191 end
192 else
193 begin
194 if (~axi_wready && S_AXI_WVALID && S_AXI_AWVALID && aw_en )
195 begin
196 // slave is ready to accept write data when
197 // there is a valid write address and write data
198 // on the write address and data bus. This design
199 // expects no outstanding transactions.
200 axi_wready <= 1'b1;
201 end
202 else
203 begin
204 axi_wready <= 1'b0;
205 end
206 end
207 end
208
209 // Implement memory mapped register select and write logic generation
210 // The write data is accepted and written to memory mapped registers when
211 // axi_awready, S_AXI_WVALID, axi_wready and S_AXI_WVALID are asserted. Write strobes are used to
212 // select byte enables of slave registers while writing.
213 // These registers are cleared when reset (active low) is applied.
214 // Slave register write enable is asserted when valid address and data are available
215 // and the slave is ready to accept the write address and write data.
216 assign slv_reg_wren = axi_wready && S_AXI_WVALID && axi_awready && S_AXI_AWVALID;
217
218 always @( posedge S_AXI_ACLK )
219 begin
220 if ( S_AXI_ARESETN == 1'b0 )
221 begin
222 slv_reg0 <= 0;
223 slv_reg1 <= 0;
224 slv_reg2 <= 0;
225 slv_reg3 <= 0;
226 end
227 else begin
228 if (slv_reg_wren)
229 begin
230 case ( axi_awaddr[ADDR_LSB+OPT_MEM_ADDR_BITS:ADDR_LSB] )
231 2'h0:
232 for ( byte_index = 0; byte_index <= (C_S_AXI_DATA_WIDTH/8)-1; byte_index = byte_index+1 )
233 if ( S_AXI_WSTRB[byte_index] == 1 ) begin
234 // Respective byte enables are asserted as per write strobes
235 // Slave register 0
236 slv_reg0[(byte_index*8) +: 8] <= S_AXI_WDATA[(byte_index*8) +: 8];
237 end
238 2'h1:
239 for ( byte_index = 0; byte_index <= (C_S_AXI_DATA_WIDTH/8)-1; byte_index = byte_index+1 )
240 if ( S_AXI_WSTRB[byte_index] == 1 ) begin
241 // Respective byte enables are asserted as per write strobes
242 // Slave register 1
243 slv_reg1[(byte_index*8) +: 8] <= S_AXI_WDATA[(byte_index*8) +: 8];
244 end
245 2'h2:
246 for ( byte_index = 0; byte_index <= (C_S_AXI_DATA_WIDTH/8)-1; byte_index = byte_index+1 )
247 if ( S_AXI_WSTRB[byte_index] == 1 ) begin
248 // Respective byte enables are asserted as per write strobes
249 // Slave register 2
250 slv_reg2[(byte_index*8) +: 8] <= S_AXI_WDATA[(byte_index*8) +: 8];
251 end
252 2'h3:
253 for ( byte_index = 0; byte_index <= (C_S_AXI_DATA_WIDTH/8)-1; byte_index = byte_index+1 )
254 if ( S_AXI_WSTRB[byte_index] == 1 ) begin
255 // Respective byte enables are asserted as per write strobes
256 // Slave register 3
257 slv_reg3[(byte_index*8) +: 8] <= S_AXI_WDATA[(byte_index*8) +: 8];
258 end
259 default : begin
260 slv_reg0 <= slv_reg0;
261 slv_reg1 <= slv_reg1;
262 slv_reg2 <= slv_reg2;
263 slv_reg3 <= slv_reg3;
264 end
265 endcase
266 end
267 end
268 end
269
270 // Implement write response logic generation
271 // The write response and response valid signals are asserted by the slave
272 // when axi_wready, S_AXI_WVALID, axi_wready and S_AXI_WVALID are asserted.
273 // This marks the acceptance of address and indicates the status of
274 // write transaction.
275
276 always @( posedge S_AXI_ACLK )
277 begin
278 if ( S_AXI_ARESETN == 1'b0 )
279 begin
280 axi_bvalid <= 0;
281 axi_bresp <= 2'b0;
282 end
283 else
284 begin
285 if (axi_awready && S_AXI_AWVALID && ~axi_bvalid && axi_wready && S_AXI_WVALID)
286 begin
287 // indicates a valid write response is available
288 axi_bvalid <= 1'b1;
289 axi_bresp <= 2'b0; // 'OKAY' response
290 end // work error responses in future
291 else
292 begin
293 if (S_AXI_BREADY && axi_bvalid)
294 //check if bready is asserted while bvalid is high)
295 //(there is a possibility that bready is always asserted high)
296 begin
297 axi_bvalid <= 1'b0;
298 end
299 end
300 end
301 end
302
303 // Implement axi_arready generation
304 // axi_arready is asserted for one S_AXI_ACLK clock cycle when
305 // S_AXI_ARVALID is asserted. axi_awready is
306 // de-asserted when reset (active low) is asserted.
307 // The read address is also latched when S_AXI_ARVALID is
308 // asserted. axi_araddr is reset to zero on reset assertion.
309
310 always @( posedge S_AXI_ACLK )
311 begin
312 if ( S_AXI_ARESETN == 1'b0 )
313 begin
314 axi_arready <= 1'b0;
315 axi_araddr <= 32'b0;
316 end
317 else
318 begin
319 if (~axi_arready && S_AXI_ARVALID)
320 begin
321 // indicates that the slave has acceped the valid read address
322 axi_arready <= 1'b1;
323 // Read address latching
324 axi_araddr <= S_AXI_ARADDR;
325 end
326 else
327 begin
328 axi_arready <= 1'b0;
329 end
330 end
331 end
332
333 // Implement axi_arvalid generation
334 // axi_rvalid is asserted for one S_AXI_ACLK clock cycle when both
335 // S_AXI_ARVALID and axi_arready are asserted. The slave registers
336 // data are available on the axi_rdata bus at this instance. The
337 // assertion of axi_rvalid marks the validity of read data on the
338 // bus and axi_rresp indicates the status of read transaction.axi_rvalid
339 // is deasserted on reset (active low). axi_rresp and axi_rdata are
340 // cleared to zero on reset (active low).
341 always @( posedge S_AXI_ACLK )
342 begin
343 if ( S_AXI_ARESETN == 1'b0 )
344 begin
345 axi_rvalid <= 0;
346 axi_rresp <= 0;
347 end
348 else
349 begin
350 if (axi_arready && S_AXI_ARVALID && ~axi_rvalid)
351 begin
352 // Valid read data is available at the read data bus
353 axi_rvalid <= 1'b1;
354 axi_rresp <= 2'b0; // 'OKAY' response
355 end
356 else if (axi_rvalid && S_AXI_RREADY)
357 begin
358 // Read data is accepted by the master
359 axi_rvalid <= 1'b0;
360 end
361 end
362 end
363
364 // Implement memory mapped register select and read logic generation
365 // Slave register read enable is asserted when valid address is available
366 // and the slave is ready to accept the read address.
367 assign slv_reg_rden = axi_arready & S_AXI_ARVALID & ~axi_rvalid;
368 always @(*)
369 begin
370 // Address decoding for reading registers
371 case ( axi_araddr[ADDR_LSB+OPT_MEM_ADDR_BITS:ADDR_LSB] )
372 2'h0 : reg_data_out <= slv_reg0;
373 2'h1 : reg_data_out <= slv_reg1;
374 2'h2 : reg_data_out <= slv_reg2;
375 2'h3 : reg_data_out <= slv_reg3;
376 default : reg_data_out <= 0;
377 endcase
378 end
379
380 // Output register or memory read data
381 always @( posedge S_AXI_ACLK )
382 begin
383 if ( S_AXI_ARESETN == 1'b0 )
384 begin
385 axi_rdata <= 0;
386 end
387 else
388 begin
389 // When there is a valid read address (S_AXI_ARVALID) with
390 // acceptance of read address by the slave (axi_arready),
391 // output the read dada
392 if (slv_reg_rden)
393 begin
394 axi_rdata <= reg_data_out; // register read data
395 end
396 end
397 end
398
399 // Add user logic here
400 pwm#(.FREQ_STEP(FREQ_STEP))
401 u_pwm(
402 .clk (S_AXI_ACLK),
403 .rst_n (S_AXI_ARESETN),
404 .sw_en (slv_reg0[0]),
405 .sw_set_en (slv_reg1[0]),
406 .sw_freq_step (slv_reg2[10-1:0]),
407 .led (led)
408 );
409 // User logic ends
410

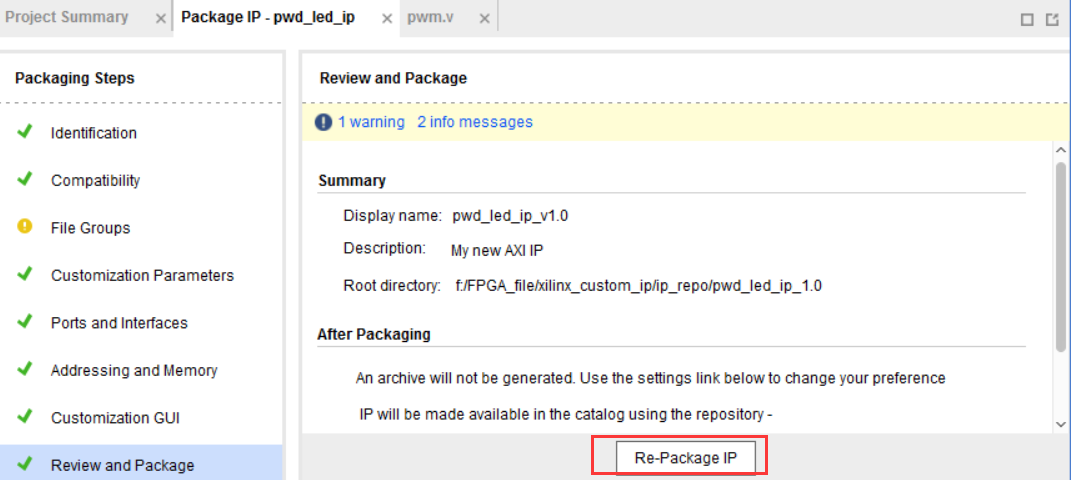

411 endmodule最后重新封装

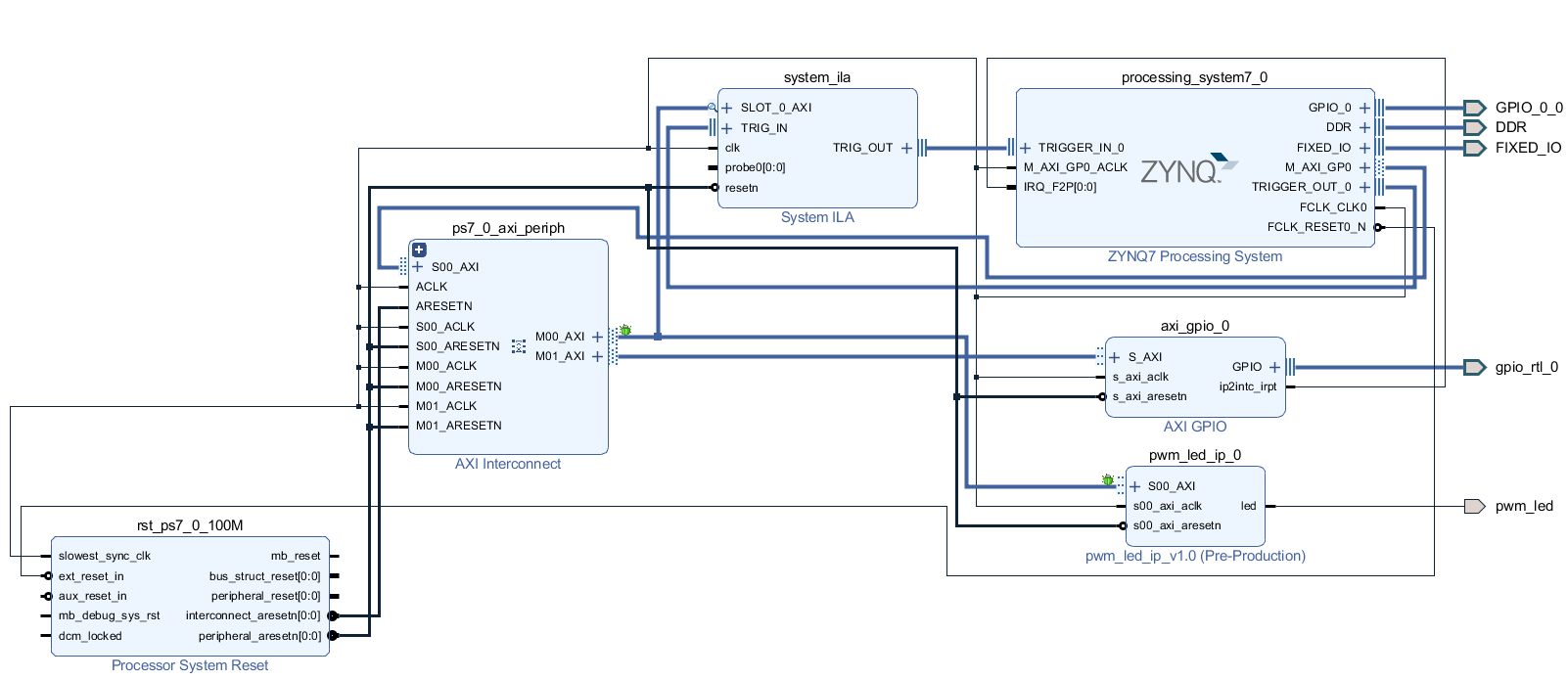

接下来搭建硬件IP子系统。

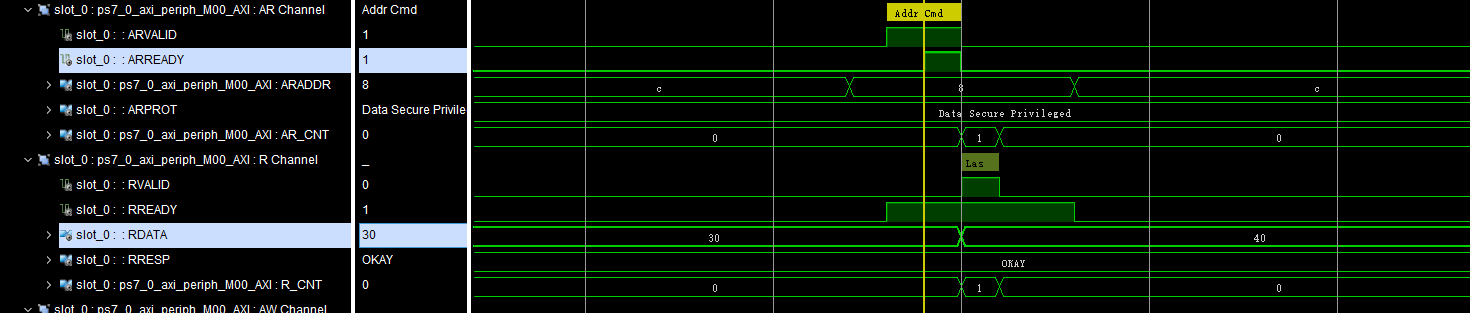

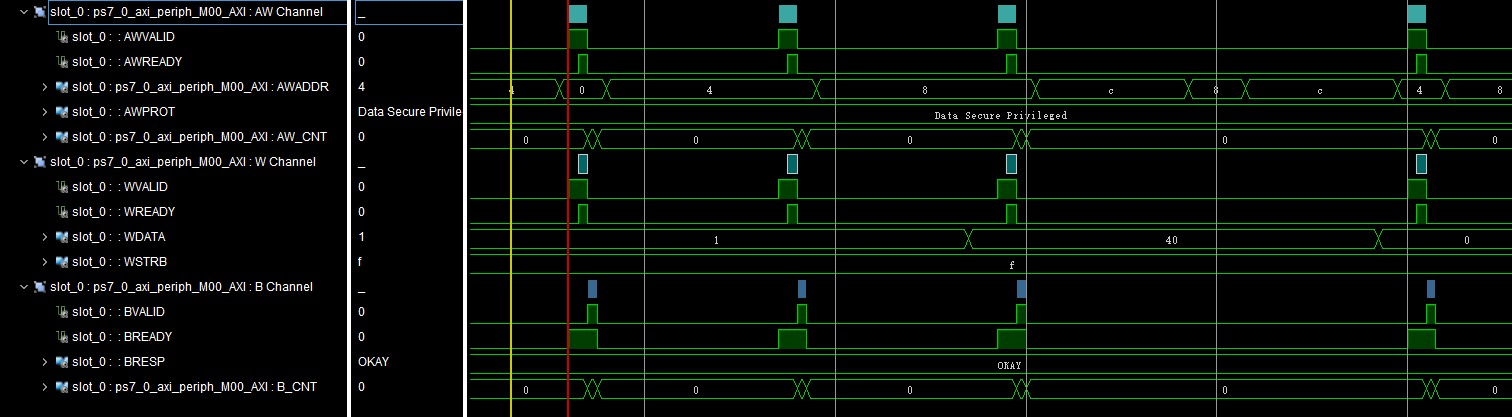

和之前相比只是添加了pwm_led_ip_0，并连接在AXI Interconnect的另一个Master接口上。使用SystemILA抓取总线信号以备后续观察。还是同样的操作流程：生成输出文件，生成HDL Wrapper，添加管脚约束文件，综合，实现，生成比特流并导出硬件，启动SDK软件环境。
四、软件编程与调试

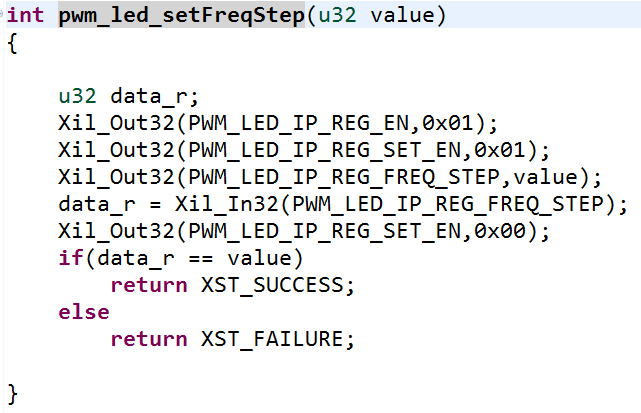

其实CPU控制自定义IP的方式就是读写数据，写就是对指针赋值，读就是返回指针所指向地址中的数据，分别使用Xil_Out32()和Xil_In32()实现。创建pwm_led_ip.h文件，进行地址宏定义并编写配置函数。为了更好地实现软件库的封装和扩展，创建environment.h文件来include不同的库以及宏定义、全局变量定义。
软件代码如下：
1 /*
2 * main.c
3 *
4 * Created on: 2020年2月22日
5 * Author: s
6 */
7
8
9 #include "environment.h"
10
11 void GpioHandler(void *CallbackRef);
12 int setupIntSystem(XScuGic *IntcInstancePtr,XGpio *gpioInstancePtr
13 ,u32 IntrId);
14
15 int main()
16 {
17 int Status;
18 u8 i=0;
19 u32 sys_led_out=0x1;
20 u32 data_r;
21 freq_step_value = 10;
22
23 Status = gpiops_initialize(&GpioPs,GPIOPS_DEVICE_ID);
24 if (Status != XST_SUCCESS) {
25 return XST_FAILURE;
26 }
27
28 Status = gpio_initialize(&Gpio,GPIO_DEVICE_ID);
29 if (Status != XST_SUCCESS) {
30 return XST_FAILURE;
31 }
32
33 /*
34 * Set the direction for the pin to be output and
35 * Enable the Output enable for the LED Pin.
36 */
37 gpiops_setOutput(&GpioPs,MIO_OUT_PIN_INDEX);
38
39 for(i=0;i<LOOP_NUM;i++){
40 gpiops_setOutput(&GpioPs,EMIO_OUT_PIN_BASE_INDEX+i);
41 }
42
43 gpio_setDirect(&Gpio, 1,GPIO_CHANNEL1);
44
45 Status = setupIntSystem(&Intc,&Gpio,INTC_GPIO_INTERRUPT_ID);
46 if (Status != XST_SUCCESS) {
47 return XST_FAILURE;
48 }
49
50 Status = pwm_led_setFreqStep(freq_step_value);
51 if (Status != XST_SUCCESS) {
52 return XST_FAILURE;
53 }
54
55 printf("Initialization finish.\n");
56
57 while(1){
58
59 for(i=0;i<LOOP_NUM;i++){
60 if(int_flag == 0)
61 {
62 gpiops_outputValue(&GpioPs, EMIO_OUT_PIN_BASE_INDEX+i, 0x1);
63 usleep(200*1000);
64 gpiops_outputValue(&GpioPs, EMIO_OUT_PIN_BASE_INDEX+i, 0x0);
65 }
66 else
67 {
68 gpiops_outputValue(&GpioPs, EMIO_OUT_PIN_BASE_INDEX+LOOP_NUM-1-i, 0x1);
69 usleep(200*1000);
70 gpiops_outputValue(&GpioPs, EMIO_OUT_PIN_BASE_INDEX+LOOP_NUM-1-i, 0x0);
71 }
72 }
73
74 gpiops_outputValue(&GpioPs, MIO_OUT_PIN_INDEX, sys_led_out);
75 sys_led_out = sys_led_out == 0x0 ? 0x1 : 0x0;
76 }
77 return 0;
78 }
79
80
81
82 int setupIntSystem(XScuGic *IntcInstancePtr,XGpio *gpioInstancePtr
83 ,u32 IntrId)
84 {
85 int Result;
86 /*
87 * Initialize the interrupt controller driver so that it is ready to
88 * use.
89 */
90
91 Result = gic_initialize(&Intc,INTC_DEVICE_ID);
92 if (Result != XST_SUCCESS) {
93 return XST_FAILURE;
94 }
95
96 XScuGic_SetPriorityTriggerType(IntcInstancePtr, IntrId,
97 0xA0, 0x3);
98
99 /*
100 * Connect the interrupt handler that will be called when an
101 * interrupt occurs for the device.
102 */
103 Result = XScuGic_Connect(IntcInstancePtr, IntrId,
104 (Xil_ExceptionHandler)GpioHandler, gpioInstancePtr);
105 if (Result != XST_SUCCESS) {
106 return Result;
107 }
108
109 /* Enable the interrupt for the GPIO device.*/
110 XScuGic_Enable(IntcInstancePtr, IntrId);
111
112 /*
113 * Enable the GPIO channel interrupts so that push button can be
114 * detected and enable interrupts for the GPIO device
115 */
116 XGpio_InterruptEnable(gpioInstancePtr,GPIO_CHANNEL1);
117 XGpio_InterruptGlobalEnable(gpioInstancePtr);
118
119 /*
120 * Initialize the exception table and register the interrupt
121 * controller handler with the exception table
122 */
123 exception_enable(&Intc);
124
125 IntrFlag = 0;
126
127 return XST_SUCCESS;
128 }
129
130 void GpioHandler(void *CallbackRef)
131 {
132 XGpio *GpioPtr = (XGpio *)CallbackRef;
133 u32 gpio_inputValue;
134
135
136 /* Clear the Interrupt */
137 XGpio_InterruptClear(GpioPtr, GPIO_CHANNEL1);
138 printf("Input interrupt routine.\n");
139
140 //IntrFlag = 1;
141 gpio_inputValue = gpio_readValue(GpioPtr, 1);
142 switch(gpio_inputValue)
143 {
144 case 30:
145 //printf("button up\n");
146 freq_step_value+=10;
147 pwm_led_setFreqStep(freq_step_value);
148 break;
149 case 29:
150 printf("button center\n");
151 break;
152 case 27:
153 //printf("button left\n");
154 int_flag = 0;
155 break;
156 case 23:
157 //printf("button right\n");
158 int_flag = 1;
159 break;
160 case 15:
161 //print("button down\n");
162 freq_step_value-=10;
163 pwm_led_setFreqStep(freq_step_value);
164 break;
165 }
166
167 }
1 /*
2 * environment.h
3 *
4 * Created on: 2020年3月2日
5 * Author: s
6 */
7
8 #ifndef SRC_ENVIRONMENT_H_
9 #define SRC_ENVIRONMENT_H_
10
11 #include "xparameters.h"
12 #include <xil_printf.h>
13 #include "sleep.h"
14 #include "xstatus.h"
15
16 #include "gpiops.h"
17 #include "gpio.h"
18 #include "pwm_led_ip.h"
19 #include "gic.h"
20
21 XGpioPs GpioPs; /* The driver instance for GPIO Device. */
22 XGpio Gpio;
23 XScuGic Intc; /* The Instance of the Interrupt Controller Driver */
24
25
26
27 #define printf xil_printf /* Smalller foot-print printf */
28 #define LOOP_NUM 4
29
30
31 u32 MIO_OUT_PIN_INDEX =7; /* LED button */
32 u32 EMIO_OUT_PIN_BASE_INDEX = 54;
33 volatile u32 IntrFlag; /* Interrupt Handler Flag */
34
35 #endif /* SRC_ENVIRONMENT_H_ */
1 /*
2 * pwm_led_ip.h
3 *
4 * Created on: 2020年3月2日
5 * Author: s
6 */
7
8 #ifndef SRC_PWM_LED_IP_H_
9 #define SRC_PWM_LED_IP_H_
10
11 #define PWM_LED_IP_S00_AXI_SLV_REG0_OFFSET 0
12 #define PWM_LED_IP_S00_AXI_SLV_REG1_OFFSET 4
13 #define PWM_LED_IP_S00_AXI_SLV_REG2_OFFSET 8
14 #define PWM_LED_IP_S00_AXI_SLV_REG3_OFFSET 12
15
16 #define PWM_LED_IP_BASEADDR XPAR_PWM_LED_IP_0_S00_AXI_BASEADDR
17 #define FREQ_STEP_SET_VALUE 30
18
19 #define PWM_LED_IP_REG_EN (PWM_LED_IP_BASEADDR+PWM_LED_IP_S00_AXI_SLV_REG0_OFFSET)
20 #define PWM_LED_IP_REG_SET_EN (PWM_LED_IP_BASEADDR+PWM_LED_IP_S00_AXI_SLV_REG1_OFFSET)
21 #define PWM_LED_IP_REG_FREQ_STEP (PWM_LED_IP_BASEADDR+PWM_LED_IP_S00_AXI_SLV_REG2_OFFSET)
22 #define PWM_LED_IP_REG_RESERVED (PWM_LED_IP_BASEADDR+PWM_LED_IP_S00_AXI_SLV_REG3_OFFSET)
23
24 volatile u32 freq_step_value;
25
26 int pwm_led_setFreqStep(u32 value)
27 {
28
29 u32 data_r;
30 Xil_Out32(PWM_LED_IP_REG_EN,0x01);
31 Xil_Out32(PWM_LED_IP_REG_SET_EN,0x01);
32 Xil_Out32(PWM_LED_IP_REG_FREQ_STEP,value);
33 data_r = Xil_In32(PWM_LED_IP_REG_FREQ_STEP);
34 Xil_Out32(PWM_LED_IP_REG_SET_EN,0x00);
35 if(data_r == value)
36 return XST_SUCCESS;
37 else
38 return XST_FAILURE;
39
40 }
41

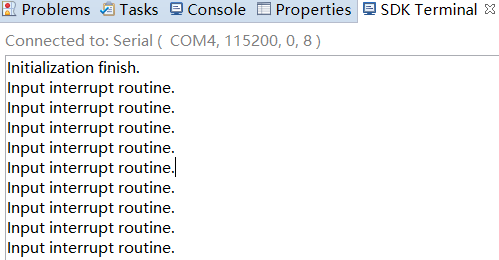

42 #endif /* SRC_PWM_LED_IP_H_ */其他文件与上一篇ZYNQ入门实例博文相同。Run程序后多次按下按键，从串口terminal可以看出系统初始化成功，进入按键中断回调函数。开发板上呼吸灯频率也随着按键按下在变化。
最后打开VIVADO硬件管理器，观察AXI总线波形：
按下步长值增加按键后，会有四次写数据操作，正好对应pwm_led_setFreqStep function中的四次Xil_Out32调用。每次写后一个时钟周期写响应通道BVALID拉高一个时钟周期证明写正确。
再来观察用于确认写入无误的读操作对应总线波形：
读取数据为40，与写入一致。到此功能定义、设计规划、硬件逻辑设计仿真、IP封装、子系统搭建、软件设计、板级调试的流程全部走完。
原文出处：https://www.cnblogs.com/moluoqishi/p/12390970.html
来源：oschina
链接：https://my.oschina.net/u/4282139/blog/3239615
