【Spring Security + OAuth2 + JWT入门到实战】9. 短信验证码之发送验证码

简介

Security默认是不支持手机短信验证码登录因此整个认证流程需要我们自己开发，这里我们分多篇文章讲解这篇文章只完成发送手机验证码

短信验证码实体类

spring-security-core项目com.spring.security.validate.code路径SmsCode类

import lombok.Data;

import java.awt.image.BufferedImage;
import java.time.LocalDateTime;

/**
 * 手机验证码
 *
 */
@Data
public class SmsCode {

    private String code;

    private LocalDateTime expireTime;

    public SmsCode(String code, int expireIn) {
        this.code = code;
        this.expireTime = LocalDateTime.now().plusSeconds(expireIn);
    }

    public boolean isExpire() {
        return LocalDateTime.now().isAfter(expireTime);
    }

}

发现图形验证码的实体类字段是包含手机验证码的实体类字段，改造图形验证码的实体类继承手机验证码的实体类

修改SmsCode类为ValidateCode类

package com.spring.security.validate.code;

import lombok.Data;

import java.awt.image.BufferedImage;
import java.time.LocalDateTime;

/**
 * 验证码实体类
 */
@Data
public class ValidateCode {

    private String code;

    private LocalDateTime expireTime;

    public ValidateCode(String code, int expireIn) {
        this.code = code;
        this.expireTime = LocalDateTime.now().plusSeconds(expireIn);
    }

    public ValidateCode(String code, LocalDateTime expireTime) {
        this.code = code;
        this.expireTime = expireTime;
    }

    public boolean isExpire() {
        return LocalDateTime.now().isAfter(expireTime);
    }

}

ImageCode类继承ValidateCode类

package com.spring.security.validate.code;

import lombok.Data;

import java.awt.image.BufferedImage;
import java.time.LocalDateTime;

/**
 * 图片的代码
 */
@Data
public class ImageCode extends ValidateCode {

    private BufferedImage image;

    public ImageCode(BufferedImage image, String code, int expireIn) {
        super(code, expireIn);
        this.image = image;
    }

    public ImageCode(BufferedImage image, String code, LocalDateTime expireTime) {
        super(code, expireTime);
        this.image = image;
    }


}

配置系统参数

spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1/auto_test?useUnicode=yes&characterEncoding=UTF-8&useSSL=false
    username: root
    password: 123456
hk:
  security:
    browser:
      loginSucess: /index #登录成功跳转
      loginType: JSON #登录成功 失败返回值类型
      loginPage: /signIn.html  #登录页面
      oginFailure: /failure #登录失败跳转
      rememberMeSeconds: 3600 #记住我过期时间  秒
    code:
      image:
        width: 90 # 验证码图片宽度
        height: 20 # 验证码图片长度
        length: 6 # 验证码位数
        expireIn: 60 # 验证码有效时间 60s
        url: /login #需要过滤的路径/login,/login/*
      sms:
        length: 6 # 验证码位数
        expireIn: 60 # 验证码有效时间 60s
        url: /login #需要过滤的路径/login,/login/*

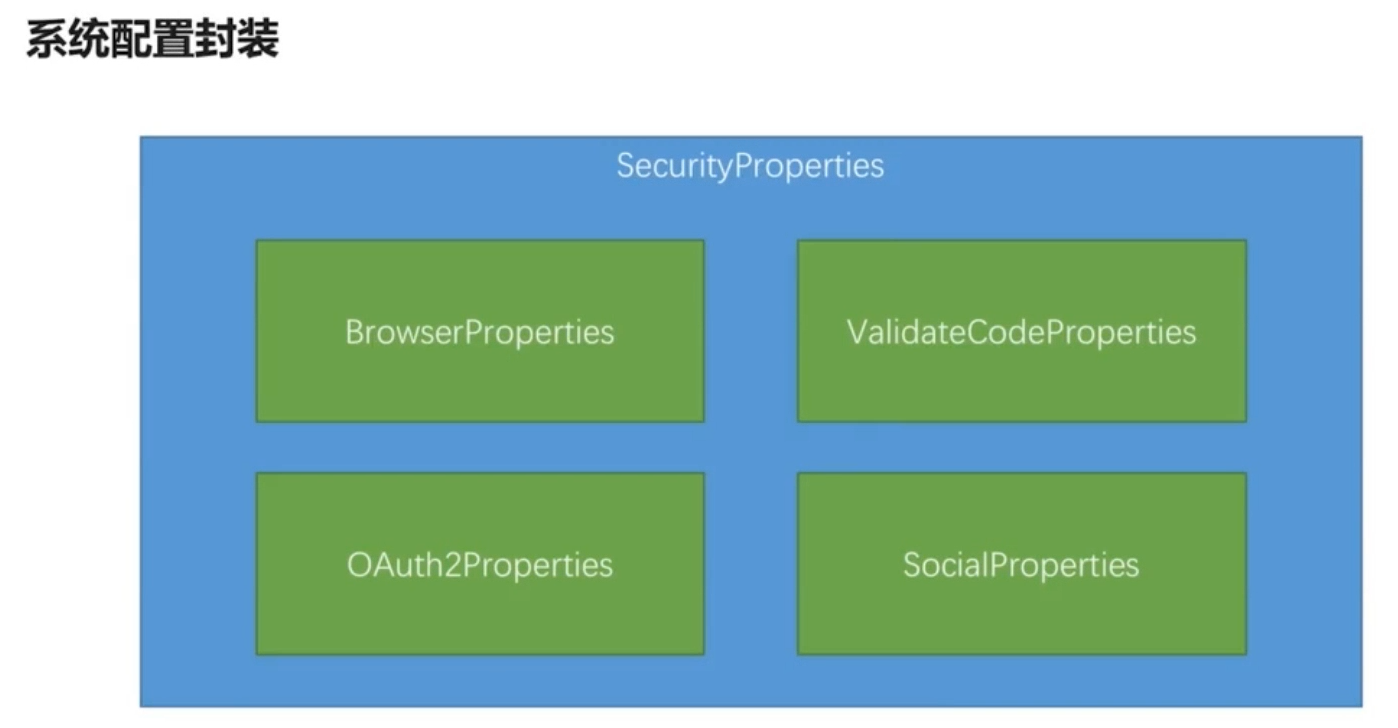

系统参数封装

core项目com.spring.security.properties路径SmsCodeProperties类

package com.spring.security.properties;

import lombok.Data;

/**
 * 手机号验证码属性
 */
@Data
public class SmsCodeProperties {

    // 验证码位数
    private int length = 6;
    // 验证码有效时间 60s
    private int expireIn = 60;
    //要拦截的路径
    private String url;
}

发现图形验证码的系统属性是包含手机验证码的系统属性，改造图形验证码的系统属性继承手机验证码的系统属性

改造ImageCodeProperties类，手机验证码默认length是6在ImageCodeProperties新建构造方法去修改图形验证码length默认值

package com.spring.security.properties;

import lombok.Data;

/**
 * 图像编码性能
 */
@Data
public class ImageCodeProperties extends SmsCodeProperties {
    //设置验证码默认长度
    public ImageCodeProperties(){
        setLength(4);
    }

    // 验证码图片宽度
    private int width = 60;
    // 验证码图片长度
    private int height = 20;
}

修改ValidateCodeProperties类加入SmsCodeProperties

package com.spring.security.properties;

import lombok.Data;

/**
 * 验证代码属性
 */

@Data
public class ValidateCodeProperties {

    private ImageCodeProperties image = new ImageCodeProperties();

    private SmsCodeProperties sms = new SmsCodeProperties();
}



生成手机验证码接口

修改ValidateCodeGenerator类适用两种验证码

package com.spring.security.validate.code;

import org.springframework.web.context.request.ServletWebRequest;

/**
 * 验证代码生成器
 *
 */
public interface ValidateCodeGenerator {

    ValidateCode createCode(ServletWebRequest request);

}

同目录创建SmsCodeGenerator类实现ValidateCodeGenerator类

package com.spring.security.validate.code;

import com.spring.security.properties.SecurityProperties;
import lombok.Data;
import org.apache.commons.lang3.RandomStringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.ServletRequestUtils;
import org.springframework.web.context.request.ServletWebRequest;

import java.awt.*;
import java.awt.image.BufferedImage;
import java.util.Random;

/**
 * 短信验证码生成器
 */
@Data
@Component("smsCodeGenerator")
public class SmsCodeGenerator implements ValidateCodeGenerator {

    @Autowired
    private SecurityProperties securityProperties;

    /**
     * 短信验证码生成器
     */
    @Override
    public ValidateCode createCode(ServletWebRequest request) {
        //生成随机码
        String code = RandomStringUtils.randomNumeric(securityProperties.getCode().getSms().getLength());

        return new ValidateCode(code, securityProperties.getCode().getSms().getExpireIn());
    }

}

发送手机验证码接口

core项目com.spring.security.sms路径创建SmsCodeSender接口

package com.spring.security.sms;

public interface SmsCodeSender {
    void send(String mobile, String code);
}

同目录创建接口DefaultSmsCodeSender实现SmsCodeSender类

真实项目需要把输出改为接第三方接口发送短信

package com.spring.security.sms;

public class DefaultSmsCodeSender implements SmsCodeSender {

    @Override
    public void send(String mobile, String code) {
        System.out.println("向手机号：" + mobile + " 发送验证码：" + code);
    }
}

修改ValidateCodeBeanConfig类把SmsCodeGenerator加入到Bean

package com.spring.security.validate.code;

import com.spring.security.properties.SecurityProperties;
import com.spring.security.sms.DefaultSmsCodeSender;
import com.spring.security.sms.SmsCodeSender;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * 验证代码Bean配置
 */
@Configuration
public class ValidateCodeBeanConfig {

    @Autowired
    private SecurityProperties securityProperties;

    /**
     * 不存在imageCodeGenerator再使用下面的bean
     *
     * @return
     */
    @Bean
    @ConditionalOnMissingBean(name = "imageCodeGenerator")
    public ValidateCodeGenerator imageCodeGenerator() {
        ImageCodeGenerator codeGenerator = new ImageCodeGenerator();
        codeGenerator.setSecurityProperties(securityProperties);
        return codeGenerator;
    }

    @Bean
    @ConditionalOnMissingBean(SmsCodeSender.class)
    public SmsCodeSender smsCodeSender() {
        return new DefaultSmsCodeSender();
    }
}

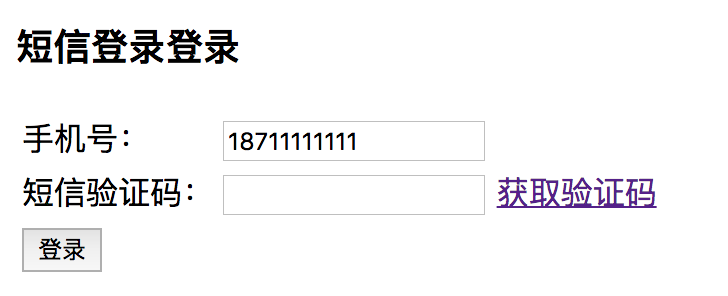

手机验证码访问接口

修改ValidateController类加访问获取手机验证码方法

package com.spring.security.validate.code;

import com.spring.security.sms.SmsCodeSender;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.social.connect.web.HttpSessionSessionStrategy;
import org.springframework.social.connect.web.SessionStrategy;
import org.springframework.web.bind.ServletRequestBindingException;
import org.springframework.web.bind.ServletRequestUtils;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.context.request.ServletWebRequest;

import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 验证控制器
 */
@RestController
public class ValidateController {
    public final static String SESSION_KEY_IMAGE_CODE = "SESSION_KEY_IMAGE_CODE";

    private SessionStrategy sessionStrategy = new HttpSessionSessionStrategy();

    @Autowired
    private ValidateCodeGenerator imageCodeGenerator;

    @Autowired
    private ValidateCodeGenerator smsCodeGenerator;

    @Autowired
    private SmsCodeSender smsCodeSender;

    /**
     * 创建验证码
     *
     * @param request  请求
     * @param response 响应
     * @throws IOException IOException
     */
    @GetMapping("/code/image")
    public void createCode(HttpServletRequest request, HttpServletResponse response) throws IOException {
        ImageCode imageCode = (ImageCode) imageCodeGenerator.createCode(new ServletWebRequest(request));
        sessionStrategy.setAttribute(new ServletWebRequest(request), SESSION_KEY_IMAGE_CODE, imageCode);
        ImageIO.write(imageCode.getImage(), "jpeg", response.getOutputStream());
    }

    /**
     * 发送短信验证码
     * @param request
     * @param response
     * @throws IOException
     */
    @GetMapping("/code/sms")
    public void createSmsCode(HttpServletRequest request, HttpServletResponse response) throws IOException, ServletRequestBindingException {
        ValidateCode smsCode = smsCodeGenerator.createCode(new ServletWebRequest(request));
        sessionStrategy.setAttribute(new ServletWebRequest(request), SESSION_KEY_IMAGE_CODE, smsCode);
        //获取手机号
        String mobile = ServletRequestUtils.getRequiredStringParameter(request,"mobile");
        //发送短信
        smsCodeSender.send(mobile,smsCode.getCode());
    }
}

修改BrowserSecurityConfig把/code/sms放到不需要认证



贺小康的个人空间     Spring Security

正文

【Spring Security + OAuth2 + JWT入门到实战】7. 图形验证码

原

  贺小康  发布于 昨天 18:41



字数 1611



阅读 401



收藏   0



点赞   0



 评论 0



管理

简介

在登录界面图形添加验证码，流程1.开发生成图像验证码接口  2.在认证流程中加入图像验证码校验

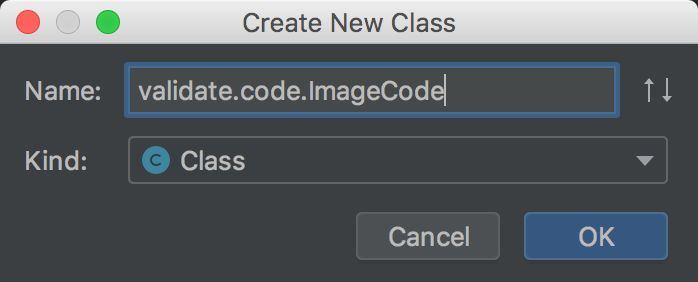

图形验证码实体类
