都说Netty是一款高性的网络框架，很多分布式通讯框架底层都是采用Netty，如：dubbo。所以想了解下Netty是如何做到高性能的。下面是近期的一些学习总结。
netty版本目前有3.x 、 4.x 、 5.x几个版本。下面的源码和总结主要是针对3.x版本。
要了解netty首页需要了解下NIO相关知识。netty是对JDK 的NIO进行了优化改造和封装，使得开发变的更加简单方便。
这里不过多讲解NIO的相关知识，之前也写过一些文章对NIO进行总结，下面给出一个NIO简单的通讯代码(网上找在代码)，说明下并发的瓶颈出在哪里。
public class NIOServer {
// 通道管理器
private Selector selector;
/**
* 获得一个ServerSocket通道，并对该通道做一些初始化的工作
*
* @param port
* 绑定的端口号
* @throws IOException
*/
public void initServer(int port) throws IOException {
// 获得一个ServerSocket通道
ServerSocketChannel serverChannel = ServerSocketChannel.open();
// 设置通道为非阻塞
serverChannel.configureBlocking(false);
// 将该通道对应的ServerSocket绑定到port端口
serverChannel.socket().bind(new InetSocketAddress(port));
// 获得一个通道管理器
this.selector = Selector.open();
// 将通道管理器和该通道绑定，并为该通道注册SelectionKey.OP_ACCEPT事件,注册该事件后，
// 当该事件到达时，selector.select()会返回，如果该事件没到达selector.select()会一直阻塞。
serverChannel.register(selector, SelectionKey.OP_ACCEPT);
}
/**
* 采用轮询的方式监听selector上是否有需要处理的事件，如果有，则进行处理
*
* @throws IOException
*/
public void listen() throws IOException {
System.out.println("服务端启动成功！");
// 轮询访问selector
while (true) {
// 当注册的事件到达时，方法返回；否则,该方法会一直阻塞
selector.select();
// 获得selector中选中的项的迭代器，选中的项为注册的事件
Iterator<?> ite = this.selector.selectedKeys().iterator();
while (ite.hasNext()) {
SelectionKey key = (SelectionKey) ite.next();
// 删除已选的key,以防重复处理
ite.remove();
handler(key);
}
}
}
/**
* 处理请求
*
* @param key
* @throws IOException
*/
public void handler(SelectionKey key) throws IOException {
// 客户端请求连接事件
if (key.isAcceptable()) {
handlerAccept(key);
// 获得了可读的事件
} else if (key.isReadable()) {
handelerRead(key);
}
}
/**
* 处理连接请求
*
* @param key
* @throws IOException
*/
public void handlerAccept(SelectionKey key) throws IOException {
ServerSocketChannel server = (ServerSocketChannel) key.channel();
// 获得和客户端连接的通道
SocketChannel channel = server.accept();
// 设置成非阻塞
channel.configureBlocking(false);
// 在这里可以给客户端发送信息哦
System.out.println("新的客户端连接");
// 在和客户端连接成功之后，为了可以接收到客户端的信息，需要给通道设置读的权限。
channel.register(this.selector, SelectionKey.OP_READ);
}
/**
* 处理读的事件
*
* @param key
* @throws IOException
*/
public void handelerRead(SelectionKey key) throws IOException {
// 服务器可读取消息:得到事件发生的Socket通道
SocketChannel channel = (SocketChannel) key.channel();
// 创建读取的缓冲区
ByteBuffer buffer = ByteBuffer.allocate(1024);
int read = channel.read(buffer);
if(read > 0){
byte[] data = buffer.array();
String msg = new String(data).trim();
System.out.println("服务端收到信息：" + msg);
//回写数据
ByteBuffer outBuffer = ByteBuffer.wrap("好的".getBytes());
channel.write(outBuffer);// 将消息回送给客户端
}else{
System.out.println("客户端关闭");
key.cancel();
}
}
/**
* 启动服务端测试
*
* @throws IOException
*/
public static void main(String[] args) throws IOException {
NIOServer server = new NIOServer();
server.initServer(8000);
server.listen();
}
}
以上是使用JDK 的NIO编写的一个服务端，上面这种方式的的主要瓶颈：
1.整个流程使用是单线程处理。
2.所有channel都绑定到一个selector上。
上面的这两个问题就好比我们去饭店点餐吃饭，如果就一个服务员（selector）。 既要在门口迎宾（serverChannel.register(selector, SelectionKey.OP_ACCEPT)后的相关处理），又要服务每一桌上的客人（channel.register(this.selector, SelectionKey.OP_READ)后的相关处理）。这种工作模式在有很多的客户情况下肯定是支撑不了的。要提高并发就要解决这个问题。

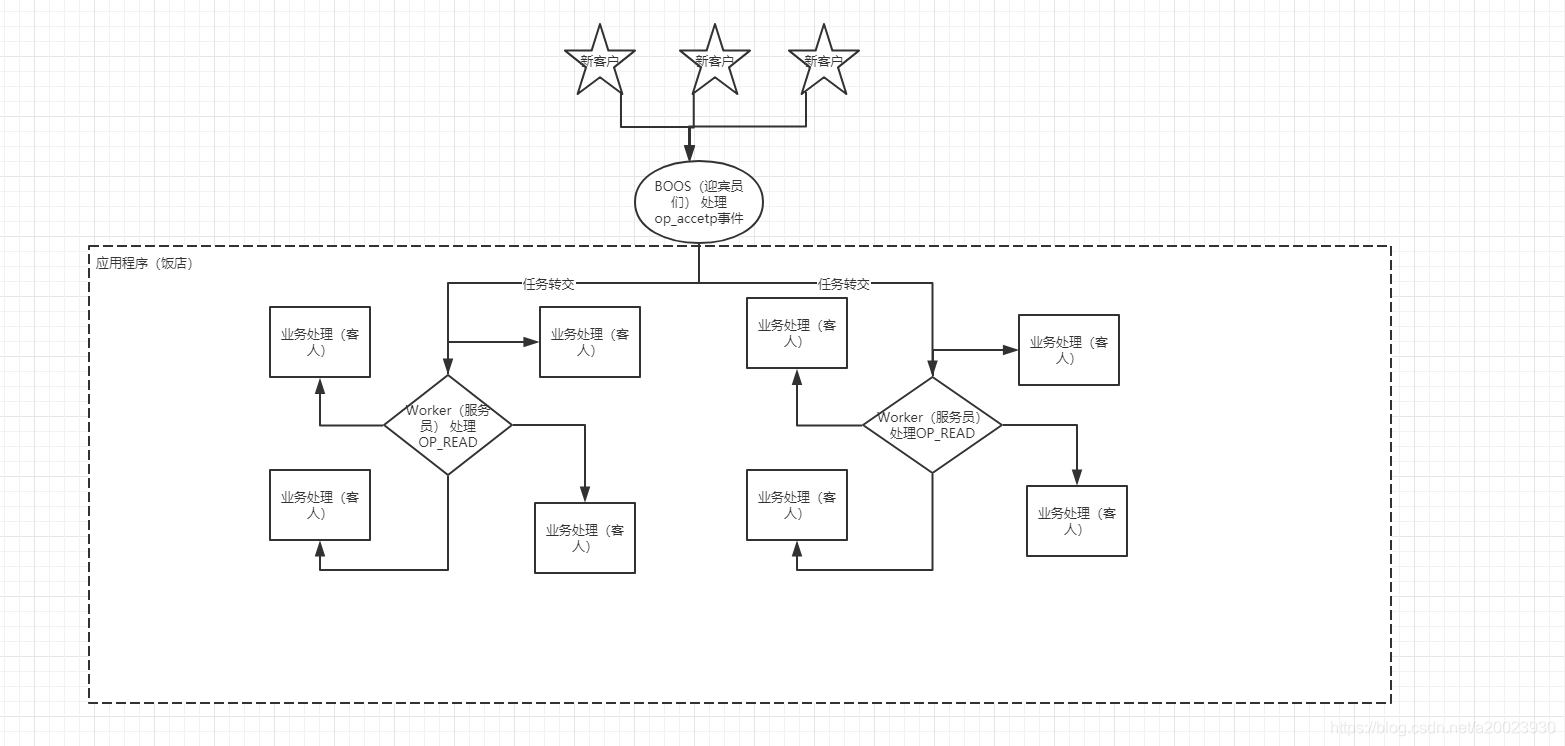

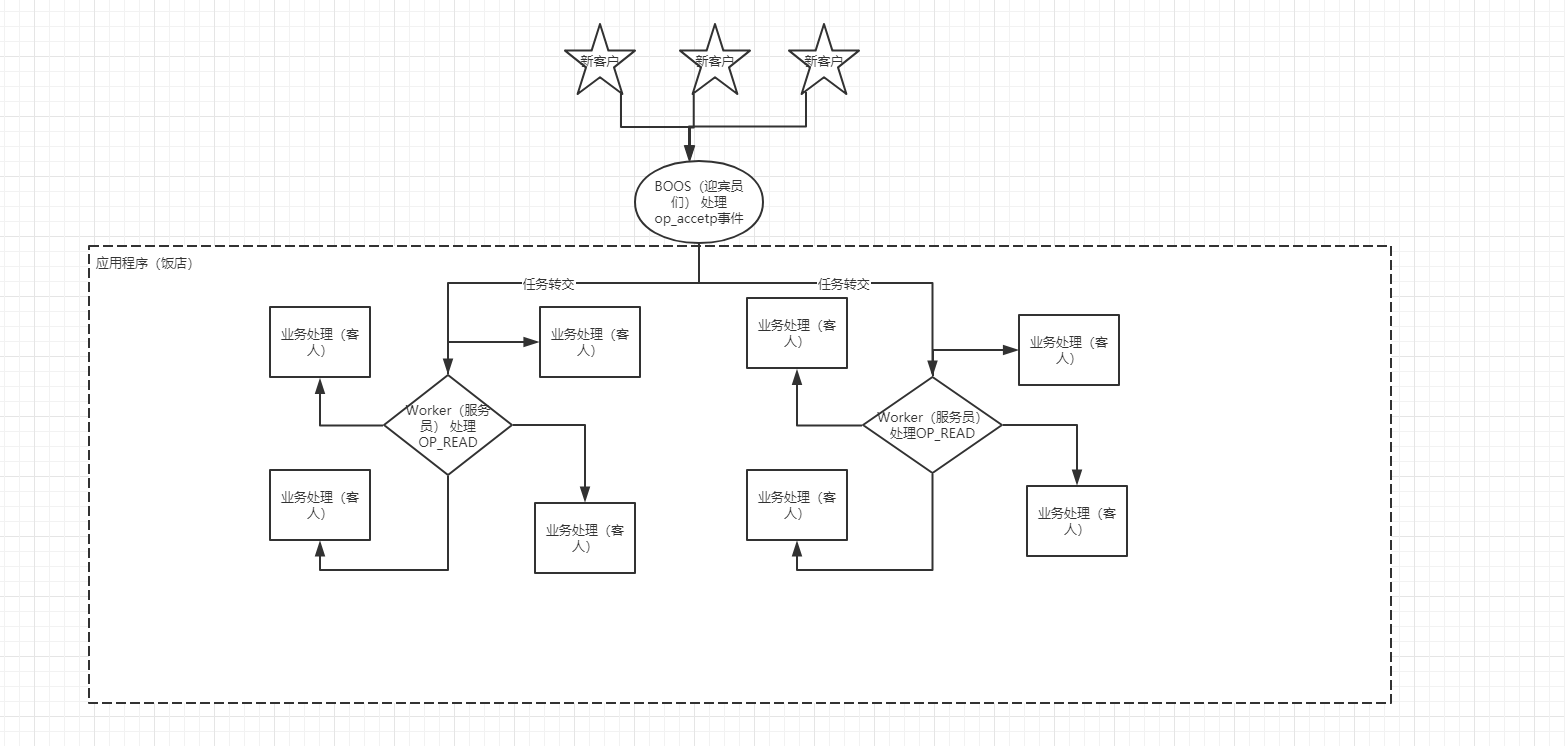

我们可以学习海底捞的服务模式，让多个服务员在门口迎宾。店内每N桌儿分配给一个服务员进行服务。这样就能提供高效的服务了。如图：
其核心思想就海量连接通道分别绑定到不同的selector上进行监听，并且使用多线程去处理业务。netty将selector抽象成
Boss线程池对象 和 worker线程池对象。boss 负责接收新的连接请求，当接收到accept事件的请求时，把对应的socket封装到一个NioSocketChannel中，并交给work线程池。worker用于处理 channel的读、写、编解码、业务处理等。
Netty基本使用：
public class Server {
public static void main(String[] args) {
//服务类
ServerBootstrap bootstrap = new ServerBootstrap();
//boss线程监听端口，worker线程负责数据读写
ExecutorService boss = Executors.newCachedThreadPool();
ExecutorService worker = Executors.newCachedThreadPool();
//设置niosocket工厂
bootstrap.setFactory(new NioServerSocketChannelFactory(boss, worker));
//设置管道的工厂
bootstrap.setPipelineFactory(new ChannelPipelineFactory() {
@Override
public ChannelPipeline getPipeline() throws Exception {
ChannelPipeline pipeline = Channels.pipeline();
pipeline.addLast("decoder", new StringDecoder());
pipeline.addLast("encoder", new StringEncoder());
pipeline.addLast("helloHandler", new HelloHandler());
return pipeline;
}
});
bootstrap.bind(new InetSocketAddress(10010));
}
}
HelloHandler：
public class HelloHandler extends SimpleChannelHandler {
/**
* 接收消息
*/
@Override
public void messageReceived(ChannelHandlerContext ctx, MessageEvent e) throws Exception {
String s = (String) e.getMessage();
System.out.println(s);
//回写数据
ctx.getChannel().write("hi");
super.messageReceived(ctx, e);
}
/**
* 捕获异常
*/
@Override
public void exceptionCaught(ChannelHandlerContext ctx, ExceptionEvent e) throws Exception {
System.out.println("exceptionCaught");
super.exceptionCaught(ctx, e);
}
/**
* 新连接
*/
@Override
public void channelConnected(ChannelHandlerContext ctx, ChannelStateEvent e) throws Exception {
System.out.println("channelConnected");
super.channelConnected(ctx, e);
}
/**
* 必须是链接已经建立，关闭通道的时候才会触发
*/
@Override
public void channelDisconnected(ChannelHandlerContext ctx, ChannelStateEvent e) throws Exception {
System.out.println("channelDisconnected");
super.channelDisconnected(ctx, e);
}
/**
* channel关闭的时候触发
*/
@Override
public void channelClosed(ChannelHandlerContext ctx, ChannelStateEvent e) throws Exception {
System.out.println("channelClosed");
super.channelClosed(ctx, e);
}
}
源码解析：
我们首页看下 NioServerSocketChannelFactory 类，这个类主要是初始化 BossPool 和 WorkerPool ：
public NioServerSocketChannelFactory(
Executor bossExecutor, int bossCount, Executor workerExecutor,
int workerCount) {
this(bossExecutor, bossCount, new NioWorkerPool(workerExecutor, workerCount));
}
public NioServerSocketChannelFactory(
Executor bossExecutor, int bossCount, WorkerPool<NioWorker> workerPool) {
this(new NioServerBossPool(bossExecutor, bossCount, null), workerPool);
}
首先我们先看下bossPool的初始化：
protected void init() {
if (!initialized.compareAndSet(false, true)) {
throw new IllegalStateException("initialized already");
}
for (int i = 0; i < bosses.length; i++) {
bosses[i] = newBoss(bossExecutor);
}
waitForBossThreads();
}
这里主要看newBoss过程，每个一个Boss就是一个独立处理连接请求，收到accept事件。
在newBoss中会创建NioServerBoss对象，绑定线程池，然后打开一个新的selector，维护在当前Boss对象中。
AbstractNioSelector 是 nioServerBoss的父类，很多功能代码都是在父类中完成的：
AbstractNioSelector(Executor executor, ThreadNameDeterminer determiner) {
this.executor = executor;
openSelector(determiner);
}
private void openSelector(ThreadNameDeterminer determiner) {
try {
selector = SelectorUtil.open();
} catch (Throwable t) {
throw new ChannelException("Failed to create a selector.", t);
}
// Start the worker thread with the new Selector.
boolean success = false;
try {
DeadLockProofWorker.start(executor, newThreadRenamingRunnable(id, determiner));
success = true;
} finally {
if (!success) {
// Release the Selector if the execution fails.
try {
selector.close();
} catch (Throwable t) {
logger.warn("Failed to close a selector.", t);
}
selector = null;
// The method will return to the caller at this point.
}
}
assert selector != null && selector.isOpen();
}
这里主要是 selector = SelectorUtil.open(); 开启selector。然后启动线程任务，最终调用的是本类的run方法：
run方法的代码比较长，这里删除一些代码只列出run中调用的几个重要方法:
public void run() {
thread = Thread.currentThread();
startupLatch.countDown();
int selectReturnsImmediately = 0;
Selector selector = this.selector;
if (selector == null) {
return;
}
boolean wakenupFromLoop = false;
for (;;) {
wakenUp.set(false);
try {
long beforeSelect = System.nanoTime();
int selected = select(selector);
if (wakenUp.get()) {
wakenupFromLoop = true;
selector.wakeup();
} else {
wakenupFromLoop = false;
}
cancelledKeys = 0;
processTaskQueue();
selector = this.selector; // processTaskQueue() can call rebuildSelector()
if (shutdown) {
this.selector = null;
// process one time again
processTaskQueue();
for (SelectionKey k: selector.keys()) {
close(k);
}
try {
selector.close();
} catch (IOException e) {
logger.warn(
"Failed to close a selector.", e);
}
shutdownLatch.countDown();
break;
} else {
process(selector);
}
} catch (Throwable t) {
}
}
}
1.select 方法：
protected int select(Selector selector) throws IOException {
// Just do a blocking select without any timeout
// as this thread does not execute anything else.
return selector.select();
}
直接调用select()方法，在没有新连接的情况下线程将被阻塞。注意，父类中默认实现调用select方法是采用的轮询，默认500毫秒。在后面worker中采用的是这种默认实现。
2.processTaskQueue 方法：
private void processTaskQueue() {
for (;;) {
final Runnable task = taskQueue.poll();
if (task == null) {
break;
}
task.run();
try {
cleanUpCancelledKeys();
} catch (IOException e) {
// Ignore
}
}
}
不断的获取新的任务执行任务，boss的任务内容在NioServerBoss 的bind方法中增加：
void bind(final NioServerSocketChannel channel, final ChannelFuture future,
final SocketAddress localAddress) {
registerTask(new RegisterTask(channel, future, localAddress));
}
//task的run
public void run() {
boolean bound = false;
boolean registered = false;
try {
channel.socket.socket().bind(localAddress, channel.getConfig().getBacklog());
bound = true;
future.setSuccess();
fireChannelBound(channel, channel.getLocalAddress());
channel.socket.register(selector, SelectionKey.OP_ACCEPT, channel);
registered = true;
} catch (Throwable t) {
future.setFailure(t);
fireExceptionCaught(channel, t);
} finally {
if (!registered && bound) {
close(channel, future);
}
}
}
主要做的事就是将serverChannel绑定注册到selector中。
3.process 方法
protected void process(Selector selector) {
Set<SelectionKey> selectedKeys = selector.selectedKeys();
if (selectedKeys.isEmpty()) {
return;
}
for (Iterator<SelectionKey> i = selectedKeys.iterator(); i.hasNext();) {
SelectionKey k = i.next();
i.remove();
NioServerSocketChannel channel = (NioServerSocketChannel) k.attachment();
try {
// accept connections in a for loop until no new connection is ready
for (;;) {
SocketChannel acceptedSocket = channel.socket.accept();
if (acceptedSocket == null) {
break;
}
registerAcceptedChannel(channel, acceptedSocket, thread);
}
} catch (CancelledKeyException e) {
// Raised by accept() when the server socket was closed.
k.cancel();
channel.close();
} catch (SocketTimeoutException e) {
// Thrown every second to get ClosedChannelException
// raised.
} catch (ClosedChannelException e) {
// Closed as requested.
} catch (Throwable t) {
if (logger.isWarnEnabled()) {
logger.warn(
"Failed to accept a connection.", t);
}
try {
Thread.sleep(1000);
} catch (InterruptedException e1) {
// Ignore
}
}
}
}
当有新的连接时，获取到SocketChannel 将这个连接后续的读写等处理进行注册,平均分布换交给不同的worker处理：
private static void registerAcceptedChannel(NioServerSocketChannel parent, SocketChannel acceptedSocket,
Thread currentThread) {
try {
ChannelSink sink = parent.getPipeline().getSink();
ChannelPipeline pipeline =
parent.getConfig().getPipelineFactory().getPipeline();
NioWorker worker = parent.workerPool.nextWorker();
worker.register(new NioAcceptedSocketChannel(
parent.getFactory(), pipeline, parent, sink
, acceptedSocket,
worker, currentThread), null);
} catch (Exception e) {
if (logger.isWarnEnabled()) {
logger.warn(
"Failed to initialize an accepted socket.", e);
}
try {
acceptedSocket.close();
} catch (IOException e2) {
if (logger.isWarnEnabled()) {
logger.warn(
"Failed to close a partially accepted socket.",
e2);
}
}
}
}
workerPool的初始化过程
NioWorkerPoll 的init方法：
protected void init() {
if (!initialized.compareAndSet(false, true)) {
throw new IllegalStateException("initialized already");
}
for (int i = 0; i < workers.length; i++) {
workers[i] = newWorker(workerExecutor);
}
waitForWorkerThreads();
}
这里和bossPoll的流程基本一样，调用newWorker方法创建的是NioWorker对象。NioWorker和NioServerBoss都是AbstractNioSelector的子类，所以整个初始化流程基本是一样的，只有个别的抽象方法实现不同，都会调用openSelector方法进行以上几步方法的调用。下面只列出几个不同的方法处理代码：
1. process 方法：
protected void process(Selector selector) throws IOException {
Set<SelectionKey> selectedKeys = selector.selectedKeys();
// check if the set is empty and if so just return to not create garbage by
// creating a new Iterator every time even if there is nothing to process.
// See https://github.com/netty/netty/issues/597
if (selectedKeys.isEmpty()) {
return;
}
for (Iterator<SelectionKey> i = selectedKeys.iterator(); i.hasNext();) {
SelectionKey k = i.next();
i.remove();
try {
int readyOps = k.readyOps();
if ((readyOps & SelectionKey.OP_READ) != 0 || readyOps == 0) {
if (!read(k)) {
// Connection already closed - no need to handle write.
continue;
}
}
if ((readyOps & SelectionKey.OP_WRITE) != 0) {
writeFromSelectorLoop(k);
}
} catch (CancelledKeyException e) {
close(k);
}
if (cleanUpCancelledKeys()) {
break; // break the loop to avoid ConcurrentModificationException
}
}
}

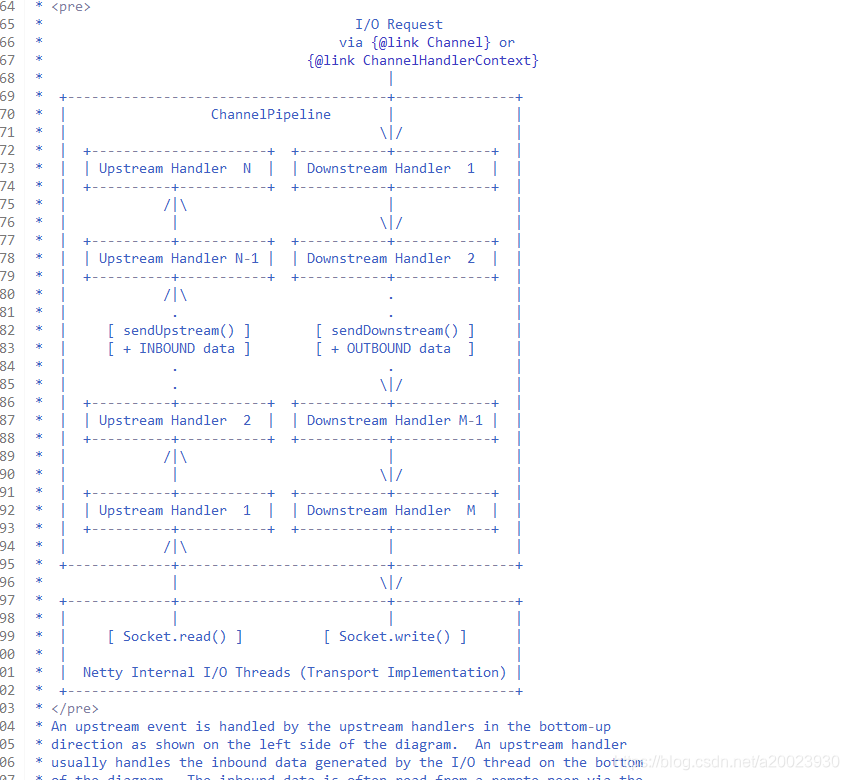

这里会调用writeFromSelectorLoop方法，进行写并向ChannelPipeline增加事件进行后续的相应的处理。下图（源码中的说明）对管道的处理流程表达的相当清楚：
来源：CSDN
作者：洋洋2018
链接：https://blog.csdn.net/a20023930/article/details/104114825
