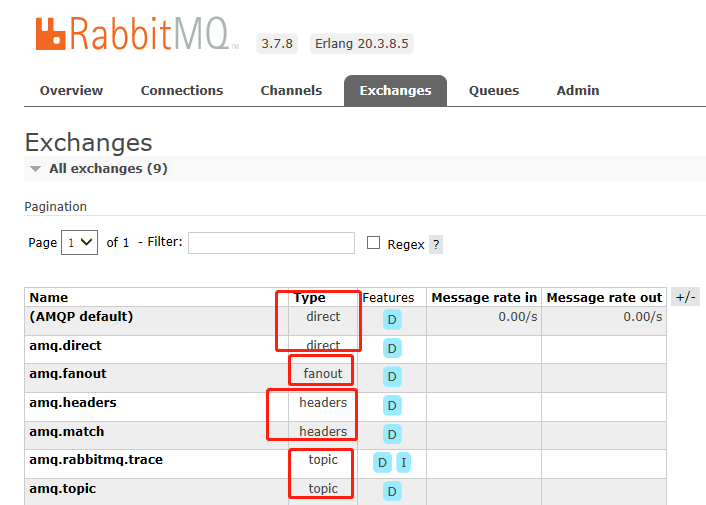

RabbitMQ 基于AMQP协议，默认的交换机类型direct，direct 直接转发，fanout广播模式，topic带通配符匹配的广播模式

direct

这种发送消息的模式，是最简单也是rabbitmq默认的一种，直接创建队列向其发送消息，等待监听者消费

// 直接注册一个常规队列，向这个队列发送消息
@Component
public class SendMessage {

    @Bean
    public Queue getQueues() {
        return new Queue(RabbitConstant.HELLO_QUEUE);
    }

    @Autowired
    private AmqpTemplate amqpTemplate;

    public void send() {
        try {
            User user = new User();
            user.setAddress("地址");
            user.setAge("1");
            user.setName("mq");
            amqpTemplate.convertAndSend(RabbitConstant.HELLO_QUEUE, JSON.toJSONString(user));
        } catch (Exception e) {
            e.getStackTrace();
        }
    }
}

这种队列是点对点的发送与接收，一个消息只能被所有监听者中的一个消费

// 监听这个队列
@Component
@RabbitListener(queues = RabbitConstant.HELLO_QUEUE)
public class ReceiverMessageOne {

    @RabbitHandler
    public void receiverHello(String val) {

        System.out.println("one ReceiverMessage: " + val);
    }
}

从结果中看出消费者接收消息也是有顺序规律的，消费者轮询拿消息，

one ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
Thrid ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
two ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
one ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
Thrid ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
two ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
one ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
Thrid ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
two ReceiverMessage: {"address":"地址","age":"1","name":"mq"}
one ReceiverMessage: {"address":"地址","age":"1","name":"mq"}

topic

topic 类型的消息模式可以使用通配符，设置交换机转发消息到队列的规则，重点在于交换机和队列的绑定上，配置.#后这个队列可以接受来自其他相似队列的消息

RabbitMqTopicConfiguration  配置交换机与队列

@Configuration
public class RabbitMqTopicConfiguration {

    /**
     * topic交换机注册
     */
    @Bean(name = "paySuccessTopicExchange")
    public TopicExchange paySuccessFanoutExchange() {
        return new TopicExchange(RabbitConstant.PAY_SUCCESS_TOPIC_EXCHANGE);
    }

    /**
     * topic队列注册
     */
    @Bean(name = "paySuccessTopicQueue")
    public Queue paySuccessQueue() {
        return new Queue(RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE);
    }

    /**
     * topic队列注册
     */
    @Bean(name = "paySuccessTopicQueue2")
    public Queue paySuccessQueue2() {
        return new Queue(RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE_TWO);
    }

    /**
     *
     */
    @Bean
    public Binding bingPaySuccessFanoutExchangeAndQueue(
            @Qualifier("paySuccessTopicExchange") TopicExchange paySuccessTopicExchange,
            @Qualifier("paySuccessTopicQueue") Queue paySuccessTopicQueue) {
        return BindingBuilder.bind(paySuccessTopicQueue).to(paySuccessTopicExchange).with("com.xin.pay.success.topic.#");
    }

    @Bean
    public Binding bingPaySuccessFanoutExchangeAndQueue2(
            @Qualifier("paySuccessTopicExchange") TopicExchange paySuccessTopicExchange,
            @Qualifier("paySuccessTopicQueue2") Queue paySuccessTopicQueue) {
        return BindingBuilder.bind(paySuccessTopicQueue).to(paySuccessTopicExchange).with(RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE_TWO);
    }

}

RabbitMqTopicSendMessage 发送者

@Component
public class RabbitMqTopicSendMessage {

    @Autowired
    private AmqpTemplate amqpTemplate;

    @Bean
    public Queue getQueues() {
        return new Queue(RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE);
    }

    @Bean
    public Queue getQueues2() {
        return new Queue(RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE_TWO);
    }


    public void send() {

        try {
            User user = new User();
            user.setName("我是队列11111111111111111");
            user.setAddress("11111111111111111");
            user.setAge("1");

            User user2 = new User();
            user2.setName("我是队列22222222222222222");
            user2.setAddress("22222222222222222");
            user2.setAge("2");

            amqpTemplate.convertAndSend(
                    RabbitConstant.PAY_SUCCESS_TOPIC_EXCHANGE, RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE, JSON.toJSONString(user));

            amqpTemplate.convertAndSend(
                    RabbitConstant.PAY_SUCCESS_TOPIC_EXCHANGE, RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE_TWO, JSON.toJSONString(user2));

        } catch (Exception e) {
            e.getStackTrace();
        }
    }

RabbitMqTopicReceiverMessage 消费者

@Component
@RabbitListener(queues = RabbitConstant.PAY_SUCCESS_TOPIC_QUEUE)
public class RabbitMqTopicReceiverMessage {


    @RabbitHandler
    public void receiver(String val){

        System.out.println("1 receiver :"+val);
    }
}

结果如下，绑定在同一个topic类型交换机下的队列，配置通配符的队列可以接收到，发送在其他队列的消息

2 receiver :{"address":"22222222222222222","age":"2","name":"我是队列22222222222222222"}
1 receiver :{"address":"11111111111111111","age":"1","name":"我是队列11111111111111111"}
1 receiver :{"address":"22222222222222222","age":"2","name":"我是队列22222222222222222"}

Fanout

fanout类型的交换机，是标准的广播模式，订阅了交换机的队列都能拿到消息

RabbitMqFanoutConfiguration

/**
 * @Author:
 * @Description: 广播交换机没有那么复杂 ，只是将消息推送给所有绑定这个交换机的队列
 */
@Configuration
public class RabbitMqFanoutConfiguration {


    /**
     * 广播交换机注册
     */
    @Bean(name = "paySuccessFanoutExchange")
    public FanoutExchange paySuccessFanoutExchange() {
        return new FanoutExchange(RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE);
    }

    /**
     * 订阅广播队列注册
     */
    @Bean(name = "paySuccessQueue")
    public Queue paySuccessQueue() {
        return new Queue(RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE_QUEUE);
    }

    /**
     * 订阅广播队列注册
     */
    @Bean(name = "paySuccessQueue2")
    public Queue paySuccessQueue2() {
        return new Queue(RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE_QUEUE2);
    }

    /**
     * 将广播的交换机和队列绑定，一个交换机可以绑定多个队列
     */
    @Bean
    public Binding bingPaySuccessFanoutExchangeAndQueue(
            @Qualifier("paySuccessFanoutExchange") FanoutExchange paySuccessFanoutExchange,
            @Qualifier("paySuccessQueue") Queue paySuccessQueue) {
        return BindingBuilder.bind(paySuccessQueue).to(paySuccessFanoutExchange);
    }

    @Bean
    public Binding bingPaySuccessFanoutExchangeAndQueue2(
            @Qualifier("paySuccessFanoutExchange") FanoutExchange paySuccessFanoutExchange,
            @Qualifier("paySuccessQueue2") Queue paySuccessQueue) {
        return BindingBuilder.bind(paySuccessQueue).to(paySuccessFanoutExchange);
    }
}

RabbitMFanoutSendMessage

@Component
public class RabbitMFanoutSendMessage {


    @Autowired
    private AmqpTemplate amqpTemplate;

    public void send() {

        try {
            User user = new User();
            user.setName("我是队列11111111111111111");
            user.setAddress("11111111111111111");
            user.setAge("1");

            User user2 = new User();
            user2.setName("我是队列22222222222222222");
            user2.setAddress("22222222222222222");
            user2.setAge("2");
            amqpTemplate.convertAndSend(
                    RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE, RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE_QUEUE, JSON.toJSONString(user));

            amqpTemplate.convertAndSend(
                    RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE, RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE_QUEUE2, JSON.toJSONString(user2));

        } catch (Exception e) {
            e.getStackTrace();
        }
    }

}

RabbitMqFanoutReceiverMessage

@Component
@RabbitListener(queues = RabbitConstant.PAY_SUCCESS_FANOUT_EXCHANGE_QUEUE2)
public class RabbitMqFanoutReceiverMessage {


    @RabbitHandler
    public void receiver(String val){

        System.out.println("1 receiver :"+val);
    }
}
