  2. 权限系统框架搭建(Spring Boot + Spring Security + MyBatis-Plus + Beetl) 未完待续～

权限系统框架搭建(Spring Boot + Spring Security + MyBatis-Plus + Beetl) 未完待续～

由 萝らか妹 提交于 2020-01-07 15:18:36

【推荐】2019 Java 开发者跳槽指南.pdf(吐血整理) >>>

一、数据库表设计

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for sys_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_permission`;
CREATE TABLE `sys_permission` (
  `id` varchar(255) NOT NULL DEFAULT '',
  `description` varchar(255) NOT NULL DEFAULT '' COMMENT '权限描述',
  `name` varchar(255) NOT NULL DEFAULT '' COMMENT '权限名称',
  `pid` varchar(255) NOT NULL DEFAULT '' COMMENT '父节点',
  `url` varchar(255) NOT NULL DEFAULT '' COMMENT '授权链接',
  `create_time` datetime NOT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime NOT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',
  `deleted` int(11) NOT NULL DEFAULT '0' COMMENT '删除标志位',
  `version` int(11) NOT NULL DEFAULT '0' COMMENT '版本',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='权限表';

-- ----------------------------
-- Table structure for sys_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_role`;
CREATE TABLE `sys_role` (
  `id` varchar(255) NOT NULL DEFAULT '',
  `descprtion` varchar(255) DEFAULT '' COMMENT '角色描述',
  `name` varchar(255) DEFAULT '' COMMENT '角色名',
  `create_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',
  `deleted` int(11) NOT NULL DEFAULT '0' COMMENT '删除标志位',
  `version` int(11) NOT NULL DEFAULT '0' COMMENT '版本',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='角色表';

-- ----------------------------
-- Table structure for sys_role_permission
-- ----------------------------
DROP TABLE IF EXISTS `sys_role_permission`;
CREATE TABLE `sys_role_permission` (
  `permission_id` varchar(255) NOT NULL,
  `role_id` varchar(255) NOT NULL DEFAULT '',
  KEY `FKa6jx8n8xkesmjmv6jqug6bg68` (`role_id`),
  KEY `FKf8yllw1ecvwqy3ehyxawqa1qp` (`permission_id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='角色权限关联表';

-- ----------------------------
-- Table structure for sys_uer_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_uer_role`;
CREATE TABLE `sys_uer_role` (
  `uid` varchar(255) NOT NULL,
  `role_id` varchar(255) NOT NULL DEFAULT '',
  KEY `FKdpira1rf7d4dg92yp4fg2ltij` (`role_id`),
  KEY `FKdb9d5h4r2iy9rld4fcvbdp7ab` (`uid`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='用户角色关联表';

-- ----------------------------
-- Table structure for sys_user_info
-- ----------------------------
DROP TABLE IF EXISTS `sys_user_info`;
CREATE TABLE `sys_user_info` (
  `id` varchar(255) NOT NULL COMMENT '主键',
  `password` varchar(255) NOT NULL COMMENT '密码',
  `username` varchar(255) NOT NULL COMMENT '用户名',
  `age` int(11) NOT NULL COMMENT '年龄',
  `create_time` datetime NOT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime NOT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',
  `email` varchar(255) NOT NULL COMMENT '邮箱',
  `phone` varchar(255) NOT NULL COMMENT '电话',
  `parent_id` varchar(255) NOT NULL COMMENT '上级',
  `deleted` int(11) NOT NULL DEFAULT '0' COMMENT '删除标志位',
  `version` int(11) NOT NULL DEFAULT '0' COMMENT '版本',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=MyISAM DEFAULT CHARSET=latin1 COMMENT='用户表';

SET FOREIGN_KEY_CHECKS = 1;

二、新建项目：初始化一个 Spring Boot 工程。

1、添加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.8.RELEASE</version>
        <relativePath/>
    </parent>
    <groupId>com.xiao</groupId>
    <artifactId>permission_system</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>permission_system</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.baomidou/mybatis-plus -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.1.2</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.2.0</version>
        </dependency>
        <!-- Beetl 代码生成使用-->
        <dependency>
            <groupId>com.ibeetl</groupId>
            <artifactId>beetl</artifactId>
            <version>2.9.10</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-extension</artifactId>
            <version>3.2.0</version>
            <scope>compile</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/io.swagger/swagger-annotations -->
        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-annotations</artifactId>
            <version>1.5.20</version>
        </dependency>
        <dependency>
            <groupId>p6spy</groupId>
            <artifactId>p6spy</artifactId>
            <version>3.8.4</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

三、项目配置

#数据库配置
spring.datasource.url=jdbc:mysql://47.106.95.68:3306/permission_system?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&allowMultiQueries=true&useSSL=false
spring.datasource.username=root
spring.datasource.password=000000
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

#spring.datasource.driver-class-name=com.p6spy.engine.spy.P6SpyDriver
#spring.datasource.url=jdbc:p6spy:mysql://localhost:3306/permission_system


#日志设置
logging.level.root = warn
logging.level.com.xiao.permission_system.mapper = trace
logging.pattern.console = %p%m%n

#mapper.xml地址
mybatis-plus.mapper-locations = classpath*:/mapper/**/*.xml

#全局设置主键类型
mybatis-plus.global-config.db-config.id-type = uuid

#设置mybatis配置文件路径
spring.config.location = classpath:mybatis-config.xml

#MyBaits 别名包扫描路径，通过该属性可以给包中的类注册别名，注册后在 Mapper 对应的 XML 文件中可以直接使用类名，而不用使用全限定的类名（即 XML 中调用的时候不用包含包名）。
mybatis-plus.type-aliases-package = com.xiao.permission_system.entity

#逻辑删除状态设置
mybatis-plus.global-config.db-config.logic-not-delete-value = 0
mybatis-plus.global-config.db-config.logic-delete-value= = 1

server.port=8088

#自定义用户名和密码
#spring.security.user.name=admin
#spring.security.user.password=000000

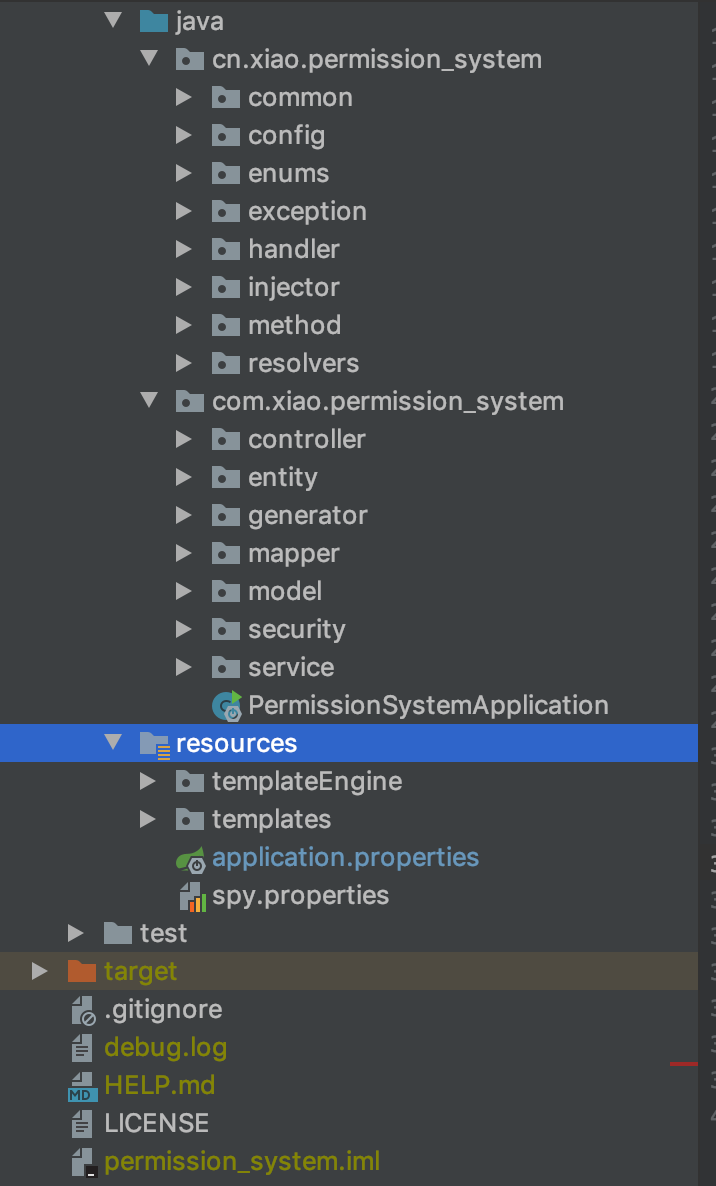

四、项目文件结构设计

五、代码生成 https://my.oschina.net/u/2427561/blog/3106442

六、源码https://gitee.com/xiaojuanjuan/permission_system
