2019 SDN上机第6次作业

1.实验拓扑

构建拓扑代码

from mininet.topo import Topo
from mininet.net import Mininet
from mininet.node import RemoteController,CPULimitedHost
from mininet.link import TCLink
from mininet.util import dumpNodeConnections

class MyTopo( Topo ):
    "Simple topology example."

    def __init__( self ):
        "Create custom topo."

        Topo.__init__( self )
    switchs = []
        for i in range(2):
            sw = self.addSwitch("s{}".format(i + 1))
            switchs.append(sw)

    self.addLink(switchs[0], switchs[1],4,4)

    count = 1
        for sw in switchs:
            for i in range(3):
                h = self.addHost("h{}".format(count))
                self.addLink(sw, h,i+1,1)
                count += 1

topos = { 'mytopo': ( lambda: MyTopo() ) }

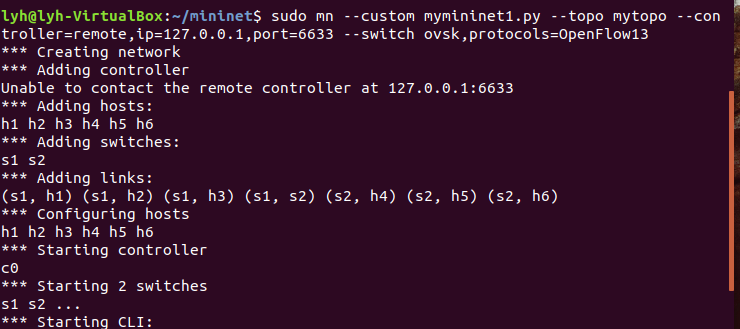

构建成功

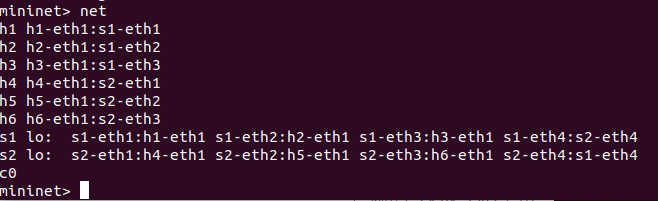

查看端口连接情况
连接ryu控制器

2.使用Ryu的REST API下发流表实现和第2次实验同样的VLAN

交换机2流表：

curl -X POST -d '{
    "dpid": 2,
    "priority":1,
    "match":{
        "in_port":1
    },
    "actions":[
        {
            "type": "PUSH_VLAN",
            "ethertype": 33024
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",
            "value": 4096
        },
        {
            "type": "OUTPUT",
            "port": 4
        }
    ]
}' http://127.0.0.1:8080/stats/flowentry/add

curl -X POST -d '{
    "dpid": 2,
    "priority":1,
    "match":{
        "in_port":2
    },
    "actions":[
        {
            "type": "PUSH_VLAN",
            "ethertype": 33024
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",
            "value": 4097
        },
        {
            "type": "OUTPUT",
            "port": 4
        }
    ]
}' http://127.0.0.1:8080/stats/flowentry/add

curl -X POST -d '{
    "dpid": 2,
    "priority":1,
    "match":{
        "in_port":3
    },
    "actions":[
        {
            "type": "PUSH_VLAN",
            "ethertype": 33024
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",
            "value": 4098
        },
        {
            "type": "OUTPUT",
            "port": 4
        }
    ]
}' http://127.0.0.1:8080/stats/flowentry/add

curl -X POST -d '{
    "dpid": 2,
    "priority":1,
    "match":{
        "dl_vlan": "0"
    },
    "actions":[
        {
            "type": "POP_VLAN",
        },
        {
            "type": "OUTPUT",
            "port": 1
        }
    ]
}' http://localhost:8080/stats/flowentry/add

curl -X POST -d '{
    "dpid": 2,
    "priority":1,
    "match":{
        "dl_vlan": "1"
    },
    "actions":[
        {
            "type": "POP_VLAN",
        },
        {
            "type": "OUTPUT",
            "port": 2
        }
    ]
}' http://localhost:8080/stats/flowentry/add

curl -X POST -d '{
    "dpid": 2,
    "priority":1,
    "match":{
        "dl_vlan": "2"
    },
    "actions":[
        {
            "type": "POP_VLAN",
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
}' http://localhost:8080/stats/flowentry/add

交换机1流表参照交换机1
运行结果
查看流表

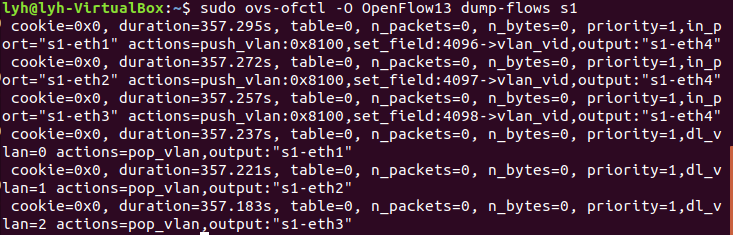

sudo ovs-ofctl -O OpenFlow13 dump-flows s1

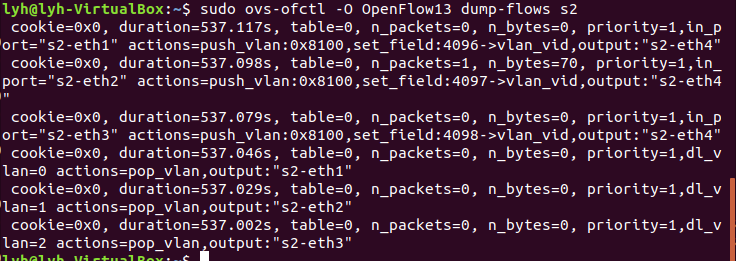

sudo ovs-ofctl -O OpenFlow13 dump-flows s2

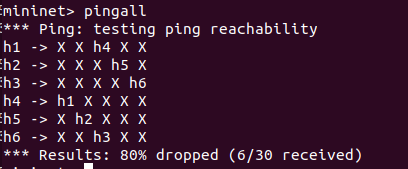

pingall查看主机连通情况
查看图形界面

3.对比两种方法，写出你的实验体会

本次实验不用安装软件真是太开心了，果然做的很快
ryu可以一次性下发流表，相比ovs-ofctl简单易懂很多，通用性更高。
