EFK简介
Kubernetes 开发了一个 Elasticsearch 附加组件来实现集群的日志管理。这是一个 Elasticsearch、Fluentd 和 Kibana 的组合。
- Elasticsearch 是一个搜索引擎，负责存储日志并提供查询接口；
- Fluentd 负责从 Kubernetes 搜集日志，每个node节点上面的fluentd监控并收集该节点上面的系统日志，并将处理过后的日志信息发送给Elasticsearch；
- Kibana 提供了一个 Web GUI，用户可以浏览和搜索存储在 Elasticsearch 中的日志。
通过在每台node上部署一个以DaemonSet方式运行的fluentd来收集每台node上的日志。Fluentd将docker日志目录/var/lib/docker/containers和/var/log目录挂载到Pod中，然后Pod会在node节点的/var/log/pods目录中创建新的目录，可以区别不同的容器日志输出，该目录下有一个日志文件链接到/var/lib/docker/contianers目录下的容器日志输出。
部署环境装备
软件版本：
Elasticsearch版本：elasticsearch:v6.5.4
Kibana版本：kibana:6.5.4
Fluentd版本：fluentd-elasticsearch:v2.3.2
kubernetes版本：v1.13.0
集群节点规划：
网络CNI：flannel
集群节点：master节点x1，node节点x2
kubeadm搭建集群参考：
https://blog.csdn.net/networken/article/details/84991940
部署EFK
下载yaml文件
Elasticsearch 附加组件本身会作为 Kubernetes 的应用在集群里运行，其 YAML 配置文件可从kubernetes官方 github仓库获取：
https://github.com/kubernetes/kubernetes/tree/master/cluster/addons/fluentd-elasticsearch
将这些 YAML 文件下载到本地目录，例如efk目录：
# mkdir efk && cd efk
wget \
https://raw.githubusercontent.com/kubernetes/kubernetes/master/cluster/addons/fluentd-elasticsearch/es-statefulset.yaml
wget \
https://raw.githubusercontent.com/kubernetes/kubernetes/master/cluster/addons/fluentd-elasticsearch/es-service.yaml
wget \
https://raw.githubusercontent.com/kubernetes/kubernetes/master/cluster/addons/fluentd-elasticsearch/fluentd-es-configmap.yaml
wget \
https://raw.githubusercontent.com/kubernetes/kubernetes/master/cluster/addons/fluentd-elasticsearch/fluentd-es-ds.yaml
wget \
https://raw.githubusercontent.com/kubernetes/kubernetes/master/cluster/addons/fluentd-elasticsearch/kibana-service.yaml
wget \
https://raw.githubusercontent.com/kubernetes/kubernetes/master/cluster/addons/fluentd-elasticsearch/kibana-deployment.yaml
查看下载的yml文件：
[centos@k8s-master efk]$ ll
total 36
-rw-rw-r-- 1 centos centos 382 Dec 26 14:50 es-service.yaml
-rw-rw-r-- 1 centos centos 2871 Dec 26 14:55 es-statefulset.yaml
-rw-rw-r-- 1 centos centos 15528 Dec 26 18:12 fluentd-es-configmap.yaml
-rw-rw-r-- 1 centos centos 2833 Dec 26 18:40 fluentd-es-ds.yaml
-rw-rw-r-- 1 centos centos 1052 Dec 26 14:50 kibana-deployment.yaml
-rw-rw-r-- 1 centos centos 354 Dec 26 14:50 kibana-service.yaml
[centos@k8s-master elk]$
解决镜像拉取问题
elastic官方镜像仓库：https://www.docker.elastic.co
使用vim打开以下3个yaml文件，输入/image回车，定位到3个容器镜像的拉取路径：
#es-statefulset.yaml
k8s.gcr.io/elasticsearch:v6.3.0
#fluentd-es-ds.yaml
k8s.gcr.io/fluentd-elasticsearch:v2.2.0
#kibana-deployment.yaml
docker.elastic.co/kibana/kibana-oss:6.3.2
其中前2个k8s.gcr.io镜像路径国内无法访问，这里将elasticsearch镜像替换为其官方仓库镜像，fluentd-elasticsearch镜像从google container构建到个人dockerhub仓库，kibana镜像默认为官方仓库镜像，这里仅修改镜像版本，最终镜像路径及版本如下：
#es-statefulset.yaml
docker.elastic.co/elasticsearch/elasticsearch-oss:6.5.4
#fluentd-es-ds.yaml
willdockerhub/fluentd-elasticsearch:v2.3.2
#kibana-deployment.yaml
docker.elastic.co/kibana/kibana-oss:6.5.4
以上镜像也可以从dockerhub或者阿里云镜像仓库自行搜索获取，镜像获取及构建方法参考：
https://blog.csdn.net/networken/article/details/84571373
yaml文件中的镜像路径替换结果：
[centos@k8s-master elk]$ vim es-statefulset.yaml
......
#- image: k8s.gcr.io/elasticsearch:v6.3.0
- image: docker.elastic.co/elasticsearch/elasticsearch-oss:6.5.4
......
[centos@k8s-master elk]$ vim fluentd-es-ds.yaml
......
#image: k8s.gcr.io/fluentd-elasticsearch:v2.2.0
image: willdockerhub/fluentd-elasticsearch:v2.3.2
......
[centos@k8s-master efk]$ vim kibana-deployment.yaml
......
#image: docker.elastic.co/kibana/kibana-oss:6.3.2
image: docker.elastic.co/kibana/kibana-oss:6.5.4
......
由于版本改变，注意修改yaml文件中默认字段的版本参数：
[centos@k8s-master efk]$ sed -i 's/v6.3.0/v6.5.4/g' es-statefulset.yaml
[centos@k8s-master efk]$ sed -i 's/v2.2.0/v2.3.2/g' fluentd-es-ds.yaml
[centos@k8s-master efk]$ sed -i 's/6.3.2/6.5.4/g' kibana-deployment.yaml
解决elasticsearch pod无法启动问题
elasticsearch-loggin的 pod不断的restart，无法正常启动
[centos@k8s-master elk]$ kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
......
elasticsearch-logging-0 0/1 ImagePullBackOff 0 87m 10.244.2.32 k8s-node2 <none> <none>
[centos@k8s-master ~]$ kubectl describe pod elasticsearch-logging-0 -n kube-system
......
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 8m50s default-scheduler Successfully assigned kube-system/elasticsearch-logging-0 to k8s-node1
Normal Pulled 8m49s kubelet, k8s-node1 Container image "alpine:3.6" already present on machine
Normal Created 8m49s kubelet, k8s-node1 Created container
Normal Started 8m49s kubelet, k8s-node1 Started container
Normal Pulling 8m48s kubelet, k8s-node1 pulling image "willdockerhub/elasticsearch:v6.3.0"
Normal Pulled 7m32s kubelet, k8s-node1 Successfully pulled image "willdockerhub/elasticsearch:v6.3.0"
Normal Created 3m32s (x5 over 7m32s) kubelet, k8s-node1 Created container
Normal Pulled 3m32s (x4 over 5m45s) kubelet, k8s-node1 Container image "willdockerhub/elasticsearch:v6.3.0" already present on machine
Normal Started 3m31s (x5 over 7m32s) kubelet, k8s-node1 Started container
Warning BackOff 3m8s (x7 over 5m30s) kubelet, k8s-node1 Back-off restarting failed container

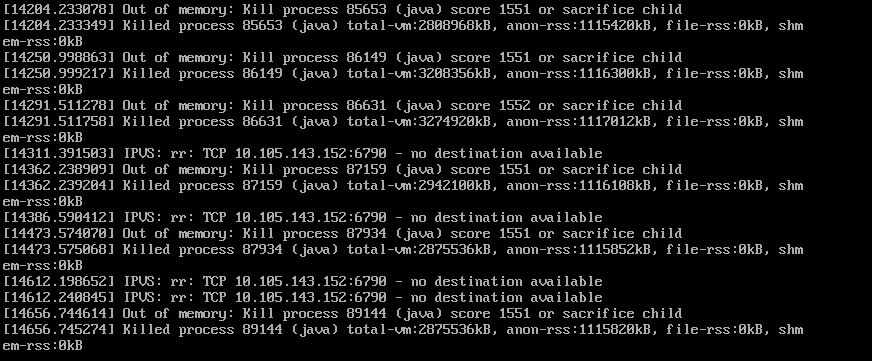

VMware Workstation的终端console上可以看出是因为java的oom引起的:
我这里kubernetes集群中的node节点仅仅配置了2G内存，可能是内存资源不足导致的，这里将所有node节点内存调整为4G， pod运行恢复正常。
参考：http://blog.51cto.com/ylw6006/2071943
Node节点打标签
Fluentd 是以 DaemonSet 的形式运行在 Kubernetes 集群中，这样就可以保证集群中每个 Node 上都会启动一个 Fluentd，我们在 Master 节点创建 Fluented 服务，最终会在各个 Node 上运行，查看fluentd-es-ds.yaml 信息:
[centos@k8s-master efk]$ kubectl get -f fluentd-es-ds.yaml
NAME SECRETS AGE
serviceaccount/fluentd-es 1 70m
NAME AGE
clusterrole.rbac.authorization.k8s.io/fluentd-es 70m
NAME AGE
clusterrolebinding.rbac.authorization.k8s.io/fluentd-es 70m
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/fluentd-es-v2.2.1 0 0 0 0 0 beta.kubernetes.io/fluentd-ds-ready=true 70m
通过输出内容我们发现 NODE-SELECTOR 选项为 beta.kubernetes.io/fluentd-ds-ready=true，这个选项说明 fluentd 只会调度到设置了标签 beta.kubernetes.io/fluentd-ds-ready=true 的 Node 节点，否则fluentd的pod无法正常启动。
查看集群中 Node 节点是否有这个标签：
[centos@k8s-master efk]$ kubectl describe nodes k8s-node1
Name: k8s-node1
Roles: <none>
Labels: beta.kubernetes.io/arch=amd64
beta.kubernetes.io/os=linux
kubernetes.io/hostname=k8s-node1
......
发现没有这个标签，为需要收集日志的Node 打上这个标签：
[centos@k8s-master elk]$ kubectl label node k8s-node1 beta.kubernetes.io/fluentd-ds-ready=true
node/k8s-node1 labeled
[centos@k8s-master elk]$ kubectl label node k8s-node2 beta.kubernetes.io/fluentd-ds-ready=true
node/k8s-node2 labeled
部署yaml文件
所有准备工作完成后，通过 kubectl apply -f .直接进行部署：
[centos@k8s-master elk]$ kubectl apply -f .
service/elasticsearch-logging created
serviceaccount/elasticsearch-logging created
clusterrole.rbac.authorization.k8s.io/elasticsearch-logging created
clusterrolebinding.rbac.authorization.k8s.io/elasticsearch-logging created
statefulset.apps/elasticsearch-logging created
configmap/fluentd-es-config-v0.1.6 created
serviceaccount/fluentd-es created
clusterrole.rbac.authorization.k8s.io/fluentd-es created
clusterrolebinding.rbac.authorization.k8s.io/fluentd-es created
daemonset.apps/fluentd-es-v2.2.1 created
deployment.apps/kibana-logging created
service/kibana-logging created
[centos@k8s-master elk]$
所有资源都部署在 kube-system Namespace里，镜像拉取可能需要一段时间，拉取失败也可以登录对应节点手动拉取。
查看pod状态：
[centos@k8s-master efk]$ kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
coredns-78d4cf999f-7hv9m 1/1 Running 6 15d 10.244.0.15 k8s-master <none> <none>
coredns-78d4cf999f-lj5rg 1/1 Running 6 15d 10.244.0.14 k8s-master <none> <none>
elasticsearch-logging-0 1/1 Running 0 97m 10.244.1.105 k8s-node1 <none> <none>
elasticsearch-logging-1 1/1 Running 0 96m 10.244.2.95 k8s-node2 <none> <none>
etcd-k8s-master 1/1 Running 6 15d 192.168.92.56 k8s-master <none> <none>
fluentd-es-v2.3.2-jkkgp 1/1 Running 0 97m 10.244.1.104 k8s-node1 <none> <none>
fluentd-es-v2.3.2-kj4f7 1/1 Running 0 97m 10.244.2.93 k8s-node2 <none> <none>
kibana-logging-7b59799486-wg97l 1/1 Running 0 97m 10.244.2.94 k8s-node2 <none> <none>
kube-apiserver-k8s-master 1/1 Running 6 15d 192.168.92.56 k8s-master <none> <none>
kube-controller-manager-k8s-master 1/1 Running 7 15d 192.168.92.56 k8s-master <none> <none>
kube-flannel-ds-amd64-ccjrp 1/1 Running 6 15d 192.168.92.56 k8s-master <none> <none>
kube-flannel-ds-amd64-lzx5v 1/1 Running 9 15d 192.168.92.58 k8s-node2 <none> <none>
kube-flannel-ds-amd64-qtnx6 1/1 Running 7 15d 192.168.92.57 k8s-node1 <none> <none>
kube-proxy-89d96 1/1 Running 0 7h32m 192.168.92.57 k8s-node1 <none> <none>
kube-proxy-t2vfx 1/1 Running 0 7h32m 192.168.92.56 k8s-master <none> <none>
kube-proxy-w6pl4 1/1 Running 0 7h32m 192.168.92.58 k8s-node2 <none> <none>
kube-scheduler-k8s-master 1/1 Running 7 15d 192.168.92.56 k8s-master <none> <none>
kubernetes-dashboard-847f8cb7b8-wrm4l 1/1 Running 8 15d 10.244.2.80 k8s-node2 <none> <none>
tiller-deploy-7bf99c9559-8p7w4 1/1 Running 5 6d21h 10.244.1.90 k8s-node1 <none> <none>
[centos@k8s-master efk]$
查看其它信息：
[centos@k8s-master efk]$ kubectl get daemonset -n kube-system
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
fluentd-es-v2.2.1 2 2 2 2 2 beta.kubernetes.io/fluentd-ds-ready=true 164m
......
[centos@k8s-master efk]$ kubectl get statefulset -n kube-system
NAME READY AGE
elasticsearch-logging 2/2 6m32s
[centos@k8s-master efk]$ kubectl get service -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
elasticsearch-logging ClusterIP 10.107.236.158 <none> 9200/TCP 6m51s
kibana-logging ClusterIP 10.97.214.200 <none> 5601/TCP 6m51s
......
[centos@k8s-master efk]$
查看pod日志信息：
[centos@k8s-master efk]$ kubectl logs -f elasticsearch-logging-0 -n kube-system
[centos@k8s-master efk]$ kubectl logs -f fluentd-es-v2.3.2-jkkgp -n kube-system
[centos@k8s-master efk]$ kubectl logs -f kibana-logging-7b59799486-wg97 -n kube-system
访问 kibana
通过proxy代理将kibana服务暴露出来：
kubectl proxy --address=‘192.168.92.56’ --port=8086 --accept-hosts=’^*$’
[centos@k8s-master efk]$ kubectl proxy --address='192.168.92.56' --port=8086 --accept-hosts='^*$'
Starting to serve on 192.168.92.56:8086

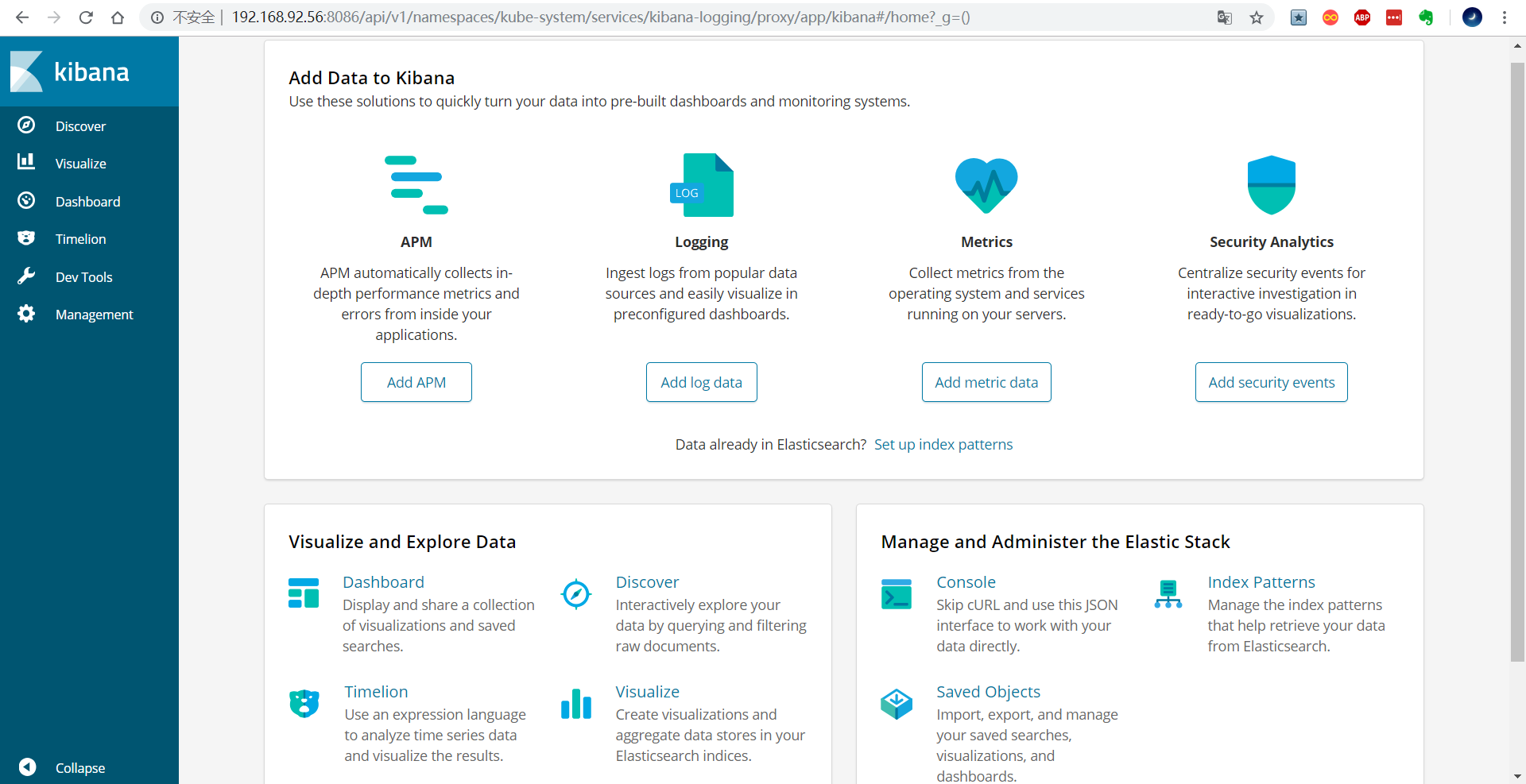

浏览器重新访问，端口改为8086：
http://192.168.92.56:8086/api/v1/namespaces/kube-system/services/kibana-logging/proxy

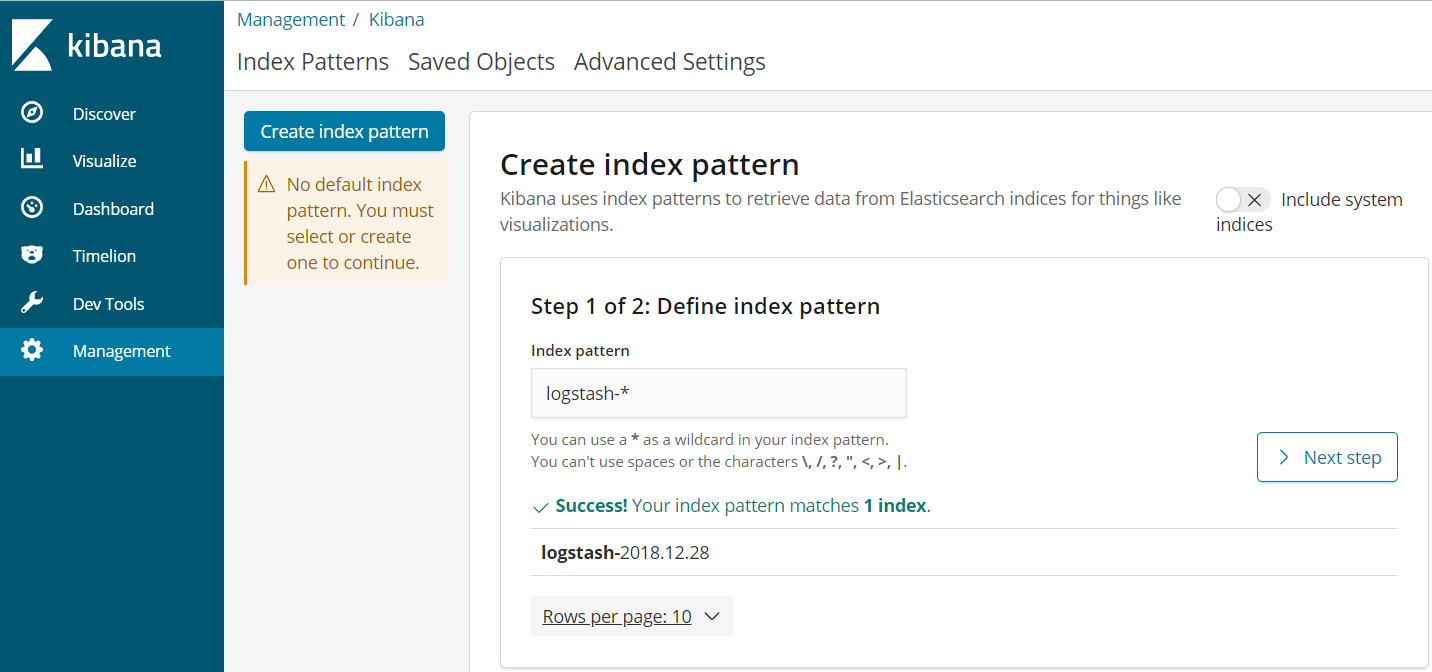

我们需要创建一个index-pattern索引，点击导航栏 “Management” -> “index pattern”， Index pattern默认 logstash-* 即可：

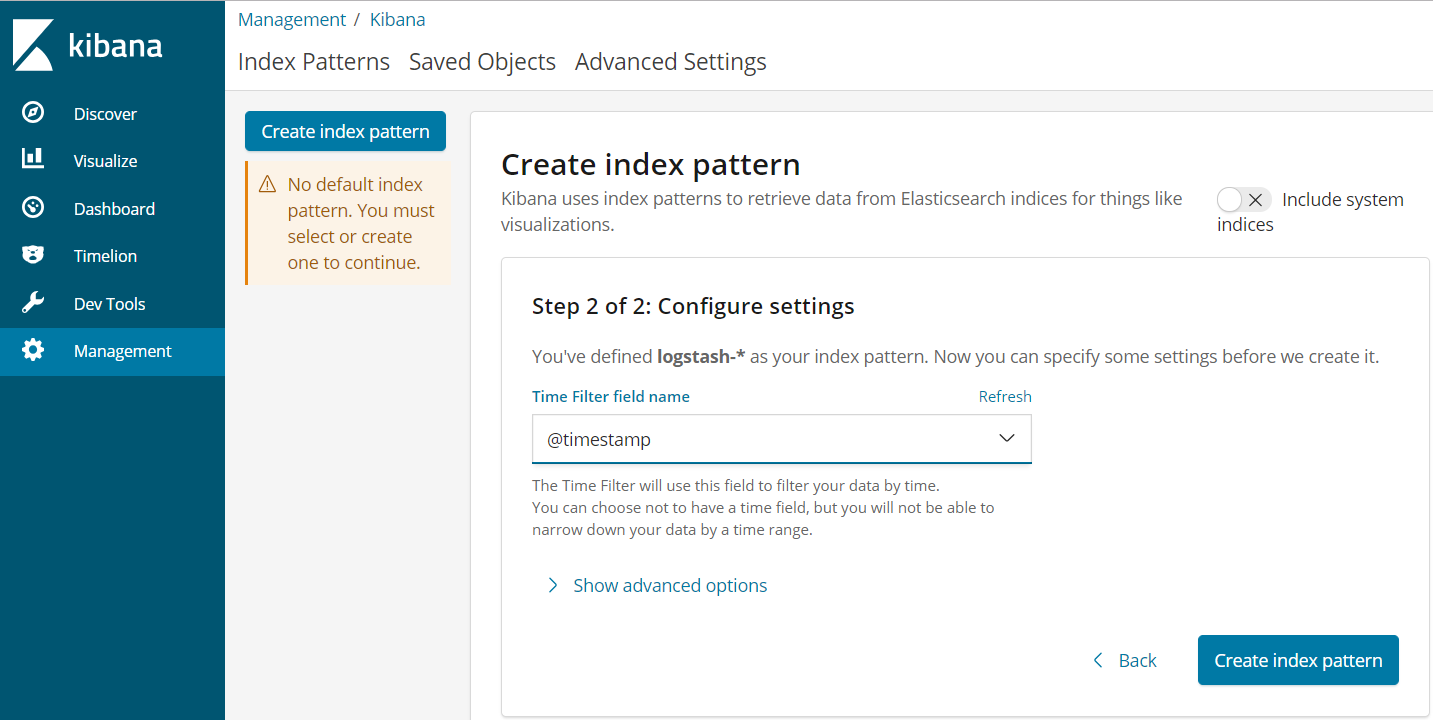

“Time-field name” 默认 @timestamp，最后点击 “Create” 即可完成索引创建。

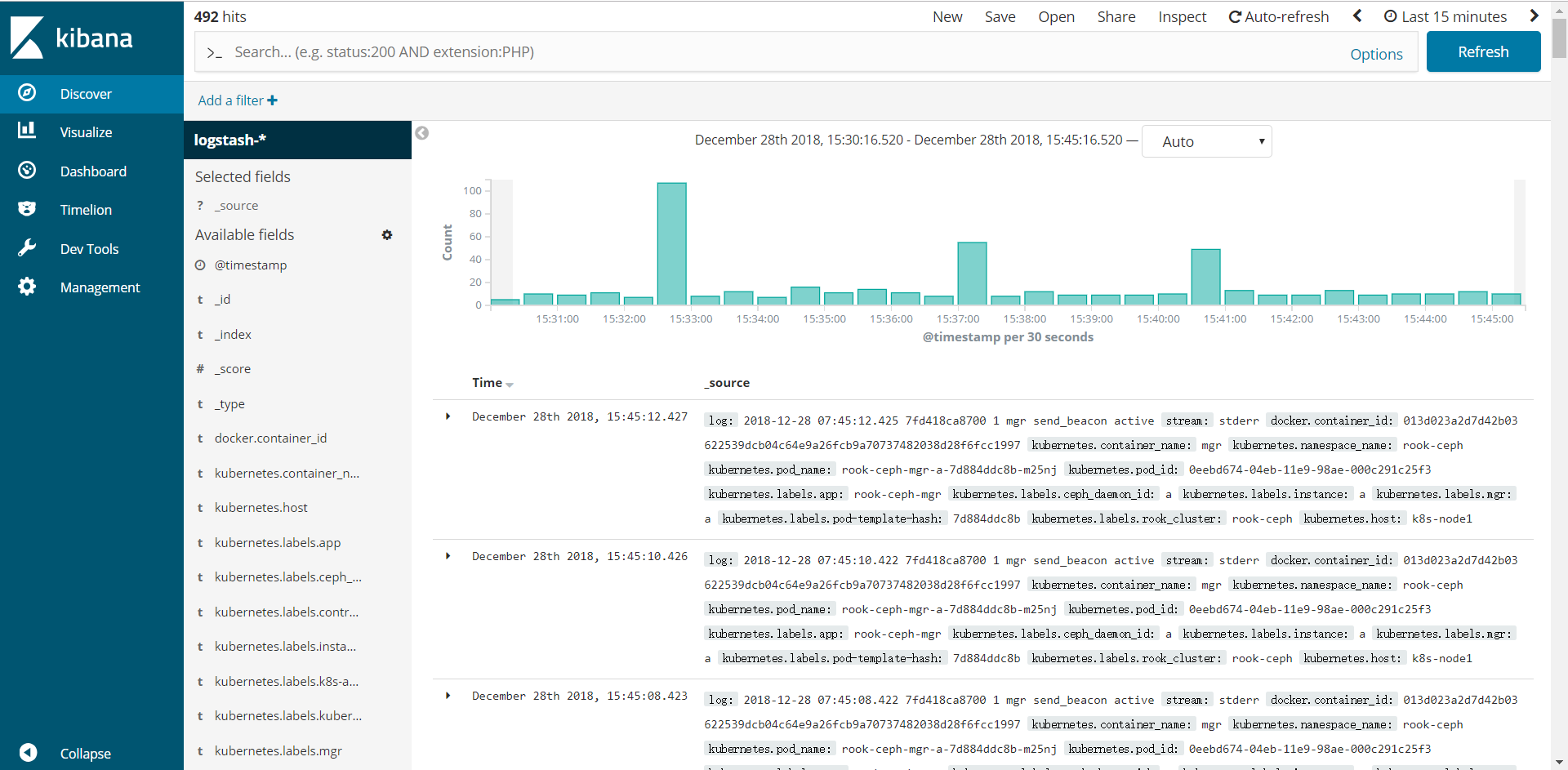

等待一会，查看边栏中的”Discover”，如果你看到类似下面截图中的日志内容输出，说明kibana可以正常从elasticsearch获取数据了：
