分析Mybatis如何利用Spring的扩展点集成到框架中的，Mybatis本身的扩展点不再本次分析范畴

构建环境

上Github上下载https://github.com/mybatis/spring。通过Git的方式试了几次没成功，后来直接Down的zip包，再导入的Idea中的。

导入的过程当中会有点慢，要下载不少东西。记得一定要修改Maven的配置文件和本地仓库地址，否则可能之前你已经下过的相关包会又下载到C盘的本地仓库当中

测试代码

直接在源码目录下新建了一个目录来写测试代码

测试类


@Configuration
@MapperScan("com.jv.mapper")
@ComponentScan("com.jv.scan")
public class TestMybatis {

  public static void main(String[] args) {
    AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext(TestMybatis.class);
    UserService bean = ac.getBean(UserService.class);
    System.out.println(bean.query());
  }

  @Bean
  public SqlSessionFactory sqlSessionFactory() throws Exception {
    SqlSessionFactoryBean factoryBean = new SqlSessionFactoryBean();
    PooledDataSource dataSource = new PooledDataSource();
    dataSource.setDriver("org.mariadb.jdbc.Driver");
    dataSource.setUrl("jdbc:mysql://192.168.10.12:3306/acct?useSSL=false&serverTimezone=UTC");
    dataSource.setUsername("dev01");
    dataSource.setPassword("12340101");
    factoryBean.setDataSource(dataSource);
    return factoryBean.getObject();
  }
}

Service类

@Service
public class UserService {
  @Autowired
  private UserMapper userMapper;

  public List<User> query(){
    return userMapper.query();
  }
}

Mapper类

public interface UserMapper {
  @Select("SELECT name,age FROM user")
  List<User> query();
}

实体类

@ToString
public class User {

  private String name;

  public String getName() {
    return name;
  }

  public void setName(String name) {
    this.name = name;
  }

  public Integer getAge() {
    return age;
  }

  public void setAge(Integer age) {
    this.age = age;
  }

  private Integer age;
}

注意：运行之前一定要修改pom.xml。因为Mybatis导入的Spring相关的依赖不在运行时生效

<scope>provided</scope>全部注释掉，否则运行的时候会报好不到类

表结构：

CREATE TABLE `user` (
`name` varchar(50) COLLATE utf8_unicode_ci DEFAULT NULL,
`age` int(4) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci

insert into user(name,age) values("Messi",35);

commit;

源码分析

从mybatis-spring官方文档中可以找到@MapperScan的用法：http://mybatis.org/spring/mappers.html

注册BeanDefinition

既然和Spring集成是通过@MapperScan完成的，那从它入手

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(MapperScannerRegistrar.class)
@Repeatable(MapperScans.class)
public @interface MapperScan {
....
}

其中@Import(MapperScannerRegistrar.class)是重点，再看MapperScannerRegistrar

public class MapperScannerRegistrar implements ImportBeanDefinitionRegistrar, ResourceLoaderAware {

  /**
   * {@inheritDoc}
   *
   * @deprecated Since 2.0.2, this method not used never.
   */
  @Override
  @Deprecated
  public void setResourceLoader(ResourceLoader resourceLoader) {
    // NOP
  }

  /**
   * {@inheritDoc}
   */
  @Override
  public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
    AnnotationAttributes mapperScanAttrs = AnnotationAttributes
        .fromMap(importingClassMetadata.getAnnotationAttributes(MapperScan.class.getName()));
    if (mapperScanAttrs != null) {
      registerBeanDefinitions(mapperScanAttrs, registry, generateBaseBeanName(importingClassMetadata, 0));
    }
  }

  void registerBeanDefinitions(AnnotationAttributes annoAttrs, BeanDefinitionRegistry registry, String beanName) {

    /**
     * 注册一个MapperScannerConfigurer的BeanDefinition,MapperScannerConfigurer实现了BeanDefinitionRegistryPostProcessor
     * BeanDefinitionRegistryPostProcessor接口的实现类，一旦放入Spring容器中，那么在Spring容器启动的时候它可以担任注册自己需要BeanDefinition的功能
     */

    BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MapperScannerConfigurer.class);
    builder.addPropertyValue("processPropertyPlaceHolders", true);

    Class<? extends Annotation> annotationClass = annoAttrs.getClass("annotationClass");
    if (!Annotation.class.equals(annotationClass)) {
      builder.addPropertyValue("annotationClass", annotationClass);
    }

    Class<?> markerInterface = annoAttrs.getClass("markerInterface");
    if (!Class.class.equals(markerInterface)) {
      builder.addPropertyValue("markerInterface", markerInterface);
    }

    //自定义BeanNameGenerator
    Class<? extends BeanNameGenerator> generatorClass = annoAttrs.getClass("nameGenerator");
    if (!BeanNameGenerator.class.equals(generatorClass)) {
      builder.addPropertyValue("nameGenerator", BeanUtils.instantiateClass(generatorClass));
    }

    //自定义MapperFactoryBean
    Class<? extends MapperFactoryBean> mapperFactoryBeanClass = annoAttrs.getClass("factoryBean");
    if (!MapperFactoryBean.class.equals(mapperFactoryBeanClass)) {
      builder.addPropertyValue("mapperFactoryBeanClass", mapperFactoryBeanClass);
    }

    //自定义sqlSessionTemplate
    String sqlSessionTemplateRef = annoAttrs.getString("sqlSessionTemplateRef");
    if (StringUtils.hasText(sqlSessionTemplateRef)) {
      builder.addPropertyValue("sqlSessionTemplateBeanName", annoAttrs.getString("sqlSessionTemplateRef"));
    }

    //自定义sqlSessionFactory
    String sqlSessionFactoryRef = annoAttrs.getString("sqlSessionFactoryRef");
    if (StringUtils.hasText(sqlSessionFactoryRef)) {
      builder.addPropertyValue("sqlSessionFactoryBeanName", annoAttrs.getString("sqlSessionFactoryRef"));
    }

    //生成所有的scan要扫描的基础包路径
    List<String> basePackages = new ArrayList<>();
    basePackages.addAll(
        Arrays.stream(annoAttrs.getStringArray("value")).filter(StringUtils::hasText).collect(Collectors.toList()));

    basePackages.addAll(Arrays.stream(annoAttrs.getStringArray("basePackages")).filter(StringUtils::hasText)
        .collect(Collectors.toList()));

    basePackages.addAll(Arrays.stream(annoAttrs.getClassArray("basePackageClasses")).map(ClassUtils::getPackageName)
        .collect(Collectors.toList()));

    //设置延迟加载
    String lazyInitialization = annoAttrs.getString("lazyInitialization");
    if (StringUtils.hasText(lazyInitialization)) {
      builder.addPropertyValue("lazyInitialization", lazyInitialization);
    }

    builder.addPropertyValue("basePackage", StringUtils.collectionToCommaDelimitedString(basePackages));

    //将MapperScannerConfigurer的BeanDefinition注册
    registry.registerBeanDefinition(beanName, builder.getBeanDefinition());

  }

}

MapperScannerRegistrar implements ImportBeanDefinitionRegistrar

这就是它集成到Spring的关键点，关于ImportBeanDefinitionRegistrar可以参考https://my.oschina.net/u/3049601/blog/3129295

MapperScannerRegistrar 在Spring容器初始化的时候完成从外部导入MapperScannerConfigurer类对应的BeanDefinition

MapperScannerConfigurer implements BeanDefinitionRegistryPostProcessor（又是Spring的另外一个扩展点，也是扩展BeanDefinition注册功能，但它要晚于ImportBeanDefinitionRegistrar生效，因为前者的作用触发时机是Spring的ConfigurationClassPostProcessor Implements PriorityOrder。这个类是扫描路径下所有Mapper的关键类

/**
 * BeanDefinitionRegistryPostProcessor递归地从基本包中搜索接口并将它们注册为MapperFactoryBean
 *   MapperFactoryBean非常重要，它实现了InitializingBean，Spring会让Bean属性设置完之后调用它的抽象方法afterPropertiesSet，完成一些初始化操作
 */
public class MapperScannerConfigurer
    implements BeanDefinitionRegistryPostProcessor, InitializingBean, ApplicationContextAware, BeanNameAware {

  .................省略部分代码..................

  @Override
  public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    if (this.processPropertyPlaceHolders) {
      processPropertyPlaceHolders();
    }

    ClassPathMapperScanner scanner = new ClassPathMapperScanner(registry);
    scanner.setAddToConfig(this.addToConfig);
    scanner.setAnnotationClass(this.annotationClass);
    scanner.setMarkerInterface(this.markerInterface);
    scanner.setSqlSessionFactory(this.sqlSessionFactory);
    scanner.setSqlSessionTemplate(this.sqlSessionTemplate);
    scanner.setSqlSessionFactoryBeanName(this.sqlSessionFactoryBeanName);
    scanner.setSqlSessionTemplateBeanName(this.sqlSessionTemplateBeanName);
    scanner.setResourceLoader(this.applicationContext);
    scanner.setBeanNameGenerator(this.nameGenerator);
    //默认是MapperFactoryBean,可以是自定义的
    scanner.setMapperFactoryBeanClass(this.mapperFactoryBeanClass);
    if (StringUtils.hasText(lazyInitialization)) {
      scanner.setLazyInitialization(Boolean.valueOf(lazyInitialization));
    }
    scanner.registerFilters();
    //开始扫描
    scanner.scan(
        StringUtils.tokenizeToStringArray(this.basePackage, ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS));
  }

  .................省略部分代码..................

}

ClassPathMapperScanner 继承自 Spring.ClassPathBeanDefinitionScanner，重写了doScan方法


public class ClassPathMapperScanner extends ClassPathBeanDefinitionScanner {
  .................省略部分代码..................

  /**
   * 重写了ClassPathBeanDefinitionScanner的doScan方法，但是扫描工作还是由父类的doScan完成
   */
  @Override
  public Set<BeanDefinitionHolder> doScan(String... basePackages) {
    Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages);

    if (beanDefinitions.isEmpty()) {
      LOGGER.warn(() -> "No MyBatis mapper was found in '" + Arrays.toString(basePackages)
          + "' package. Please check your configuration.");
    } else {
      processBeanDefinitions(beanDefinitions);
    }

    return beanDefinitions;
  }

  /**
   * 重写了ClassPathBeanDefinitionScanner的processBeanDefinitions方法
   * 完成BeanDefinition的属性填充
   * 其中的setAutowireMode=AbstractBeanDefinition.AUTOWIRE_BY_TYPE  是Spring根据类型完成自动注入的关键。
   * @param beanDefinitions
   */
  private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
    GenericBeanDefinition definition;
    for (BeanDefinitionHolder holder : beanDefinitions) {
      definition = (GenericBeanDefinition) holder.getBeanDefinition();
      String beanClassName = definition.getBeanClassName();
      LOGGER.debug(() -> "Creating MapperFactoryBean with name '" + holder.getBeanName() + "' and '" + beanClassName
          + "' mapperInterface");

      // the mapper interface is the original class of the bean
      // but, the actual class of the bean is MapperFactoryBean
      /**
       * 自定义的Mapper接口只是Bean最初的类，当Spring初始化之后Bean的Class实际上是MapperFactoryBean
       */
      definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName); // issue #59
      //设置BeanClass为MapperFactoryBean
      definition.setBeanClass(this.mapperFactoryBeanClass);

      definition.getPropertyValues().add("addToConfig", this.addToConfig);

      boolean explicitFactoryUsed = false;
      if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
        definition.getPropertyValues().add("sqlSessionFactory",
            new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionFactory != null) {
        definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
        explicitFactoryUsed = true;
      }

      if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate",
            new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionTemplate != null) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
        explicitFactoryUsed = true;
      }

      if (!explicitFactoryUsed) {
        LOGGER.debug(() -> "Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
        // 相当的重要，这就是Spring的根据类型进行依赖注入。
        // @Autowired使用的时候，其实Spring默认是没有自动注入的，也就是说autowireMode是AUTOWIRE_NO
        definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
      }
      definition.setLazyInit(lazyInitialization);
    }
  }

  .................省略部分代码..................
}

上面的代码完成了对basePackage的类扫描，Mybatis根据扫描生成的BeanDefinition做增强，相当重要的两点：

1.BeanClass=MapperFactoryBean

也就是说：最开始Spring容器初始化完成之后，所有Mapper并没有真正的实例化（可以通过观察XXXApplicationContext.beanFactory.FactoryBeanObjectCache中是否有对象），而是它们的FactoryBean已经完成了实例化。当需要Mapper时再创建，如果是单例，则将已经实例化的Bean放到FactoryBeanObjectCache中

2.autowireMode=AUTOWIRE_BY_TYPE

按类型自动注入和@Autowired没直接联系，Spring默认是AUTOWIRE_NO，只不过Spring发现你用了@Autowired注解会自动根据类型注入而已。按类型自动注入必须要有setXXX方法。

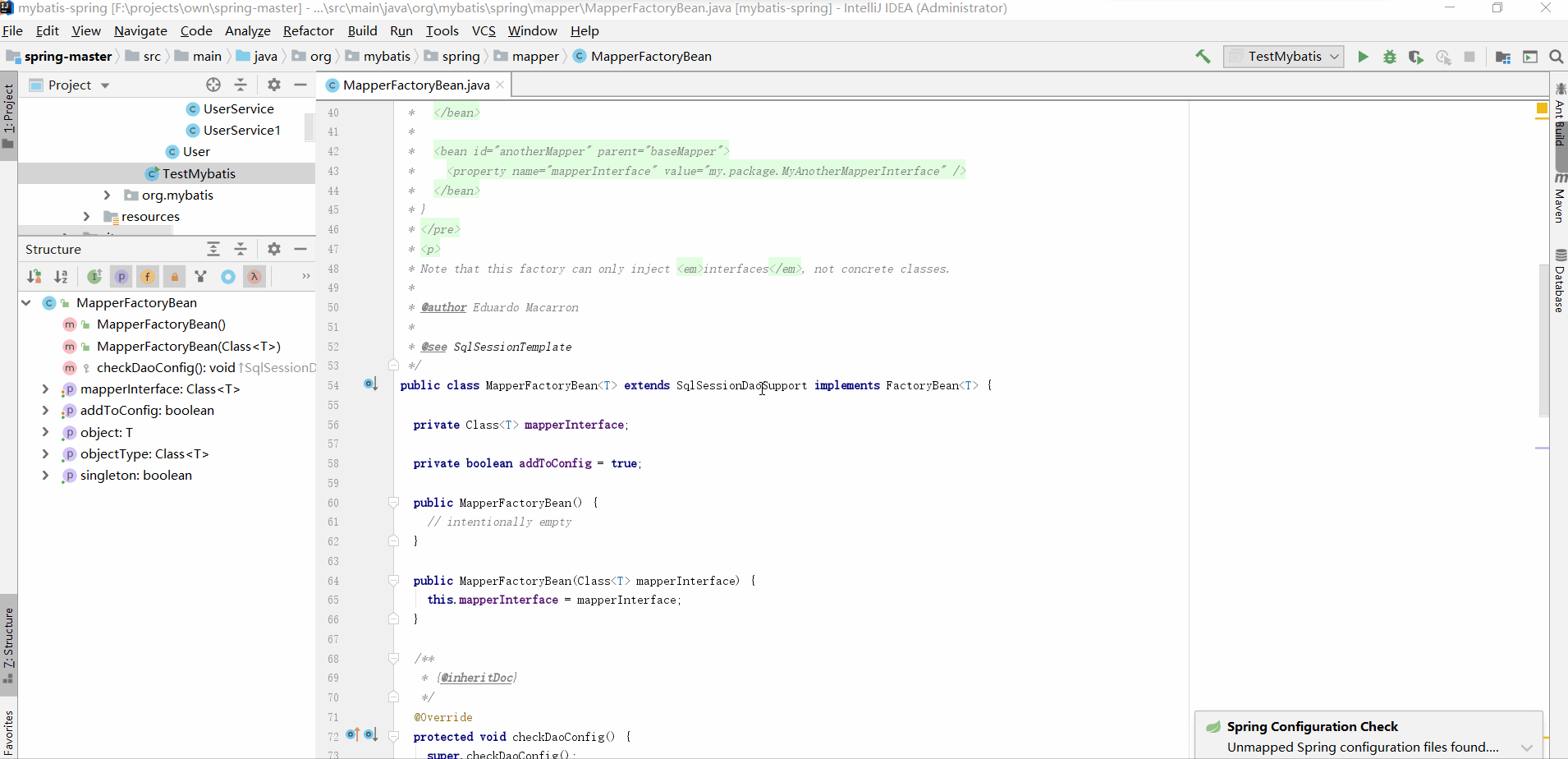

代表了被扫描的类支持按类型实例化，为什么要设置这个值喃？我们自己写的Mapper紧紧是一个接口，为什么还要注入东西喃。。。根本原因是MapperFactoryBean extends SqlSessionDaoSupport

SqlSessionDaoSupport里面有两个set方法，分别是：

public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory)

public void setSqlSessionTemplate(SqlSessionTemplate sqlSessionTemplate)

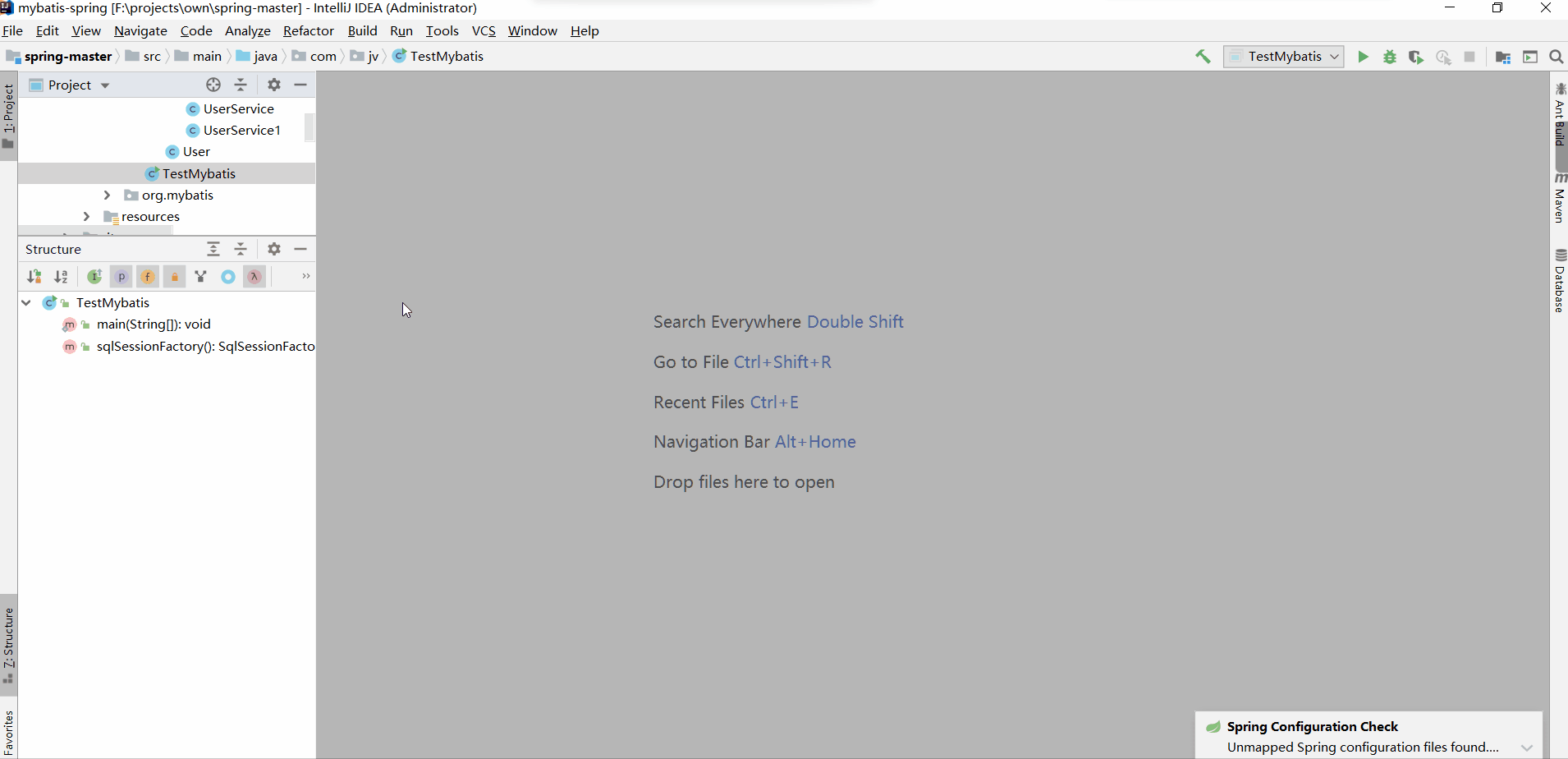

可以验证一下，将“definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE)” 注释掉，报错：

代表着没有注入成功，也验证了AUTOWIRE_BY_TYPE的重要性

截止到这里，Mybatis相关类的BeanDefinition（BeanClass=MapperFactoryBean）全部完成了注册，接下来就是实例化。

实例化

实例化时有两个非常重要的点：

1.前面说过因为添加到BeanDefinitionMap中的bd都是MapperFactoryBean，所以完成实例化的Mapper都是MapperFactoryBean，而不是真正的Mapper。但是在实例化MapperFactoryBean所需要的SqlSessionFactory,SqlSessionTemplate从哪里获取到喃。

首先在TestMybatis类中使用了@Bean注解，Spring对于@Bean和ImportBeanDefinitionRegistrar，前者会先处理，也就是说@MapperScan扫描到的类会晚于@Bean修饰的SqlSessionFactory注册到容器中。所以Spring在实例化MapperFactoryBean的时候自动注入SqlSessionFactory是可以成功的，具体源码见：

根据BeanDefinition.propertValues+setterXXX标记的属性获取Bean，在这里就是被setSqlSesstionFactory()标记的SqlSessionFactory属性：

org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#autowireByType（）

	protected void autowireByType(
			String beanName, AbstractBeanDefinition mbd, BeanWrapper bw, MutablePropertyValues pvs) {

		TypeConverter converter = getCustomTypeConverter();
		if (converter == null) {
			converter = bw;
		}

		Set<String> autowiredBeanNames = new LinkedHashSet<>(4);
		//过滤掉不需要自动注入的属性，比如没有setter方法啊，简单类：Class,URL,Number等
		String[] propertyNames = unsatisfiedNonSimpleProperties(mbd, bw);
		//循环处理属性，最终会将要注入的对象获取到并放入到PVS当中，等候后面的注入
		for (String propertyName : propertyNames) {
			try {
				PropertyDescriptor pd = bw.getPropertyDescriptor(propertyName);
				// Don't try autowiring by type for type Object: never makes sense,
				// even if it technically is a unsatisfied, non-simple property.
				if (Object.class != pd.getPropertyType()) {
					MethodParameter methodParam = BeanUtils.getWriteMethodParameter(pd);
					// Do not allow eager init for type matching in case of a prioritized post-processor.
					boolean eager = !PriorityOrdered.class.isInstance(bw.getWrappedInstance());
					//获取到Class对象
					DependencyDescriptor desc = new AutowireByTypeDependencyDescriptor(methodParam, eager);
					//获取到Class对象
					Object autowiredArgument = resolveDependency(desc, beanName, autowiredBeanNames, converter);
					if (autowiredArgument != null) {
						pvs.add(propertyName, autowiredArgument);
					}
					for (String autowiredBeanName : autowiredBeanNames) {
						registerDependentBean(autowiredBeanName, beanName);
						if (logger.isTraceEnabled()) {
							logger.trace("Autowiring by type from bean name '" + beanName + "' via property '" +
									propertyName + "' to bean named '" + autowiredBeanName + "'");
						}
					}
					autowiredBeanNames.clear();
				}
			}
			catch (BeansException ex) {
				throw new UnsatisfiedDependencyException(mbd.getResourceDescription(), beanName, propertyName, ex);
			}
		}
	}

根据获取到的Bean进行注入：

org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#populateBean

	/**
	 * Populate the bean instance in the given BeanWrapper with the property values
	 * from the bean definition.  用bean定义中的属性值填充给定BeanWrapper中的bean实例
	 * @param beanName the name of the bean
	 * @param mbd the bean definition for the bean
	 * @param bw the BeanWrapper with bean instance
	 */
	@SuppressWarnings("deprecation")  // for postProcessPropertyValues
	protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
        。。。。省略部分代码。。。。
		/**
		 * 给任何InstantiationAwareBeanPostProcessors机会在属性被设置之前修改Bean的状态（属性），比如设置特殊的属性值，
		 * 或者修改PropertyValues中的值
		 */
		boolean continueWithPropertyPopulation = true;
		//第十二次PostProcessor  InstantiationAwareBeanPostProcessors
		if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
			for (BeanPostProcessor bp : getBeanPostProcessors()) {
				if (bp instanceof InstantiationAwareBeanPostProcessor) {
					InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
					if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
						continueWithPropertyPopulation = false;
						break;
					}
				}
			}
		}

		if (!continueWithPropertyPopulation) {
			return;
		}

		PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);

		int resolvedAutowireMode = mbd.getResolvedAutowireMode();
		//根据名称或类型注入依赖
		if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
			MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
			// Add property values based on autowire by name if applicable.
			// 通过属性名称注入依赖  BeanDefinition.autowireMode=AUTOWIRE_BY_NAME
			if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
				autowireByName(beanName, mbd, bw, newPvs);
			}
			// Add property values based on autowire by type if applicable.
			// 通过属性类型注入依赖 BeanDefinition.autowireMode=AUTOWIRE_BY_TYPE
			if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
				autowireByType(beanName, mbd, bw, newPvs);
			}
			pvs = newPvs;
		}

		boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
		boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);

		PropertyDescriptor[] filteredPds = null;
		if (hasInstAwareBpps) {
			if (pvs == null) {
				pvs = mbd.getPropertyValues();
			}
			for (BeanPostProcessor bp : getBeanPostProcessors()) {
				if (bp instanceof InstantiationAwareBeanPostProcessor) {
					InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
					//PostProcessor  和下面调用是同样的效果，后者已经过期了，Spring5就是在这里注入的，
					// -----------------比如对象和属性值的注入------------------------
					PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
					if (pvsToUse == null) {
						if (filteredPds == null) {
							filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
						}
						//PostProcessor
						pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
						if (pvsToUse == null) {
							return;
						}
					}
					pvs = pvsToUse;
				}
			}
		}
      。。。。省略部分代码。。。。
	}

但是Spring容器中并没有SqlSessionTemplate，为什么MapperFactoryBean最后也还是有喃，因为在注入SqlSessionFactory的时候Mybatis自动实例化了它

public abstract class SqlSessionDaoSupport extends DaoSupport {
  。。。。。注释部分代码。。。。
  public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
    if (this.sqlSessionTemplate == null || sqlSessionFactory != this.sqlSessionTemplate.getSqlSessionFactory()) {
      this.sqlSessionTemplate = createSqlSessionTemplate(sqlSessionFactory);
    }
  }
  。。。。。注释部分代码。。。。
}

2.执行DML所需要的信息从哪里来？

接下来看看MapperFactoryBean的类图

可以看到最终实现了InitializingBean，Spring针对实现了该接口的Bean，在完成属性填充之后会调用实现类的afterPropertiesSet()方法。

调用位置：org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#invokeInitMethods

	protected void invokeInitMethods(String beanName, final Object bean, @Nullable RootBeanDefinition mbd)
			throws Throwable {

		boolean isInitializingBean = (bean instanceof InitializingBean);
		if (isInitializingBean && (mbd == null || !mbd.isExternallyManagedInitMethod("afterPropertiesSet"))) {
			。。。。省略部分代码。。。。
			if (System.getSecurityManager() != null) {
				。。。。省略部分代码。。。。
			}
			else {
				//执行实现了InitializingBean子类的afterPropertiesSet
				((InitializingBean) bean).afterPropertiesSet();
			}
		}

		//执行设置的InitMethod
		if (mbd != null && bean.getClass() != NullBean.class) {
			String initMethodName = mbd.getInitMethodName();
			if (StringUtils.hasLength(initMethodName) &&
					!(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&
					!mbd.isExternallyManagedInitMethod(initMethodName)) {
				invokeCustomInitMethod(beanName, bean, mbd);
			}
		}
	}

来看看Mybatis的DaoSupport类的afterPropertiesSet()方法干了什么

    public final void afterPropertiesSet() throws IllegalArgumentException, BeanInitializationException {
        //运行时会调用MapperFactoryBean的checkDaoConfig
        this.checkDaoConfig();

        try {
            this.initDao();
        } catch (Exception var2) {
            throw new BeanInitializationException("Initialization of DAO failed", var2);
        }
    }

checkDaoConfig最终调用的是实现类MapperFactoryBean.checkDaoConfig方法

  protected void checkDaoConfig() {
    super.checkDaoConfig();

    notNull(this.mapperInterface, "Property 'mapperInterface' is required");

    Configuration configuration = getSqlSession().getConfiguration();
    if (this.addToConfig && !configuration.hasMapper(this.mapperInterface)) {
      try {
        //非常重要
        configuration.addMapper(this.mapperInterface);
      } catch (Exception e) {
        logger.error("Error while adding the mapper '" + this.mapperInterface + "' to configuration.", e);
        throw new IllegalArgumentException(e);
      } finally {
        ErrorContext.instance().reset();
      }
    }
  }

configuration.addMapper(this.mapperInterface)完成了MappedStatement添加。

configuration是DefaultSqlSesstionFactory（默认的）中的属性，全局唯一

MappedStatement描述了一个要执行的SQL，参数、返回类型等等

通过这一步，调用真正的query方法所需要的东西都准备好了。

总结：Mybatis利用了@Import(class implements ImportBeanDefinitionRegistrar),BeanDefinitionRegistryPostProcessor,InitializingBean三个扩展点来完成整合。

其中Mybatis的如下几个类非常重要：

MapperScan
MapperScannerRegistrar
MapperScannerConfigurer
ClassPathMapperScanner
MapperFactoryBean
DefaultSqlSessionFactory
Configuration
MapperStatement

来源：oschina

链接：https://my.oschina.net/u/3049601/blog/3131697

标签

Autowire
