DataX源码解析与插件开发
  1. DataX是个啥
  2. 框架设计
  3. 源码下载与工程编译
  4. Job&Task概念
  5. 物理运行模型
  6. 源码解析(不包括重入锁和有界阻塞队列)
  7. 插件开发和调试
  8. 插件部署





















  • Datax源码解析与Writer插件开发

Datax是个啥

DataX 是阿里巴巴集团内被广泛使用的 离线数据 同步工具/平台,实现包括 MySQL、Oracle、SqlServer、Postgre、HDFS、Hive、ADS、HBase、TableStore(OTS)、MaxCompute(ODPS)、DRDS 等各种 异构数据源之间 高效的数据同步功能。


框架设计

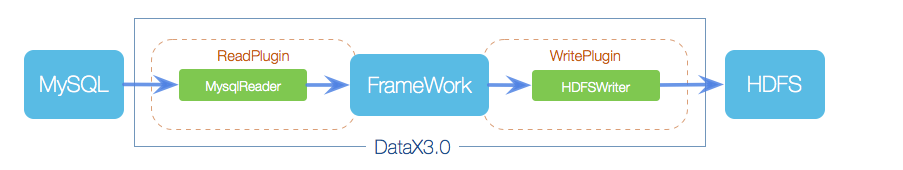

DataX本身作为离线数据同步框架,采用 Framework + plugin架构构建。将数据源读取和写入抽象成为Reader/Writer插件,纳入到整个同步框架中。
  • Reader:Reader为数据采集模块,负责采集数据源的数据,将数据发送给Framework。
  • Writer: Writer为数据写入模块,负责不断向Framework取数据,并将数据写入到目的端。
  • Framework:Framework用于连接reader和writer,作为两者的数据传输通道,并处理 缓冲,流控,并发,数据转换等核心技术问题。

源码下载和工程编译

源码下载地址: https://github.com/alibaba/DataX
编译命令:
mvn -U clean package assembly:assembly -Dmaven.test.skip=true





Job&Task概念

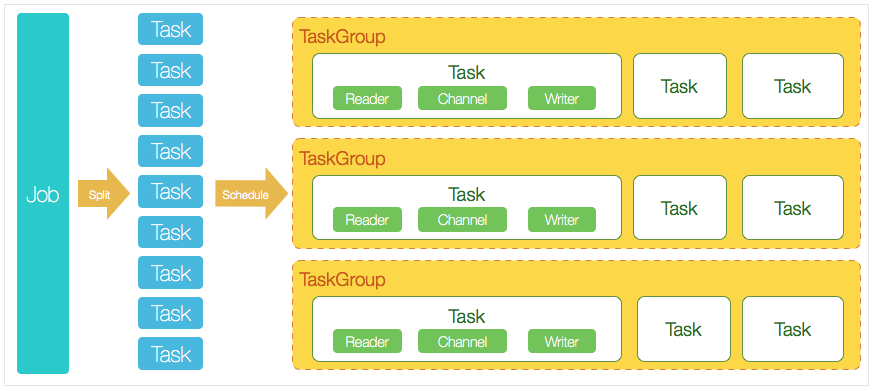

在DataX的逻辑模型中包括job、task两个维度,通过将job进行task拆分,然后将task合并到taskGroup进行运行。
  • job实例运行在jobContainer容器中,它是所有任务的master,负责初始化、拆分、调度、运行、回收、监控和汇报,但它并不做实际的数据同步操作。
  • Job: Job是DataX用以描述从一个源头到一个目的端的同步作业,是DataX数据同步的最小业务单元。比如:从一张mysql的表同步到odps的一个表的特定分区。
  • Task: Task是为最大化而把Job拆分得到的最小执行单元。比如:读一张有1024个分表的mysql表的Job,拆分成1024个读Task,用若干个并发执行。
  • TaskGroup: 描述的是一组Task集合。在同一个TaskGroupContainer执行下的Task集合称之为TaskGroup。
  • JobContainer: Job执行器,负责Job全局拆分、调度、前置语句和后置语句等工作的工作单元。类似Yarn中的JobTracker。
  • TaskGroupContainer: TaskGroup执行器,负责执行一组Task的工作单元,类似Yarn中的TaskTracker。
简而言之, Job拆分成Task,分别在框架提供的容器中执行,插件只需要实现Job和Task两部分逻辑。


物理运行模型

框架为插件提供物理上的执行能力(线程)。DataX框架有三种运行模式:
Standalone: 单进程运行,没有外部依赖。
Local: 单进程运行,统计信息、错误信息汇报到集中存储。
Distrubuted: 分布式多进程运行, 依赖DataX Service服务

当然,上述三种模式对插件的编写而言没有什么区别,你只需要避开一些小错误,插件就能够在单机/分布式之间无缝切换了。 当JobContainer和TaskGroupContainer运行在同一个进程内时,就是单机模式(Standalone和Local);当它们分布在不同的进程中执行时,就是分布式(Distributed)模式。



源码解析

1、启动流程:
说明: 黄色表示 Job 部分的执行阶段,蓝色表示 Task 部分的执行阶段,绿色表示框架执行阶段。

2、工程入口: DataX的入口是 Engine 这个类,直接进去看它的 main 方法,main方法的主要功能就是接收传入的运行参数,然后运行Engine的 entry 方法来启动整个工程;

运行参数:

-mode standalone
-jobid -1
-job C:\Users\Administrator\Desktop\19年新功能\datax-json\test_datax.json




main方法:
public static void main(String[] args) throws Exception {
    int exitCode = 0;
    try {
        LOG.info("##### 请求参数 #####");
        for(String arg:args){
            LOG.info(arg);
        }
        LOG.info("##### 请求参数 #####");
        System.setProperty("datax.home","D:\\Code\\ideaCode\\DataX-master\\target\\datax\\datax");
        Engine.entry(args);
    } catch (Throwable e) {
        exitCode = 1;
        LOG.error("经DataX智能分析,该任务最可能的错误原因是:" + ExceptionTracker.trace(e));

        if (e instanceof DataXException) {
            DataXException tempException = (DataXException) e;
            ErrorCode errorCode = tempException.getErrorCode();
            if (errorCode instanceof FrameworkErrorCode) {
                FrameworkErrorCode tempErrorCode = (FrameworkErrorCode) errorCode;
                exitCode = tempErrorCode.toExitValue();
            }
        }

        System.exit(exitCode);
    }
    System.exit(exitCode);
}


3、Entry方法工作: 主要做了2件事情,运行 ConfigParser.parse(String path) 方法解析生成configration生成一个新的Engine然后启动Engine的 start() 方法;
public static void entry(final String[] args) throws Throwable {
        Options options = new Options();
        options.addOption("job", true, "Job config.");
        options.addOption("jobid", true, "Job unique id.");
        options.addOption("mode", true, "Job runtime mode.");

        BasicParser parser = new BasicParser();
        CommandLine cl = parser.parse(options, args);

        String jobPath = cl.getOptionValue("job");

        // 如果用户没有明确指定jobid, 则 datax.py 会指定 jobid 默认值为-1
        String jobIdString = cl.getOptionValue("jobid");
        RUNTIME_MODE = cl.getOptionValue("mode");

        /*
        1. 解析job.json的数据抽取文件,生成一个configuration
        整个解析配置文件的过程分为三部分
        1.解析job的配置信息,由启动参数指定job.json文件。
        2. 解析DataX自带配置信息,由默认指定的core.json文件。
        3.解析读写插件配置信息,由job.json指定的reader和writer插件信息
        4.加载对应的插件信息
*/
        Configuration configuration = ConfigParser.parse(jobPath);

        long jobId;
        if (!"-1".equalsIgnoreCase(jobIdString)) {
            jobId = Long.parseLong(jobIdString);
        } else {
            // only for dsc & ds & datax 3 update
            String dscJobUrlPatternString = "/instance/(\\d{1,})/config.xml";
            String dsJobUrlPatternString = "/inner/job/(\\d{1,})/config";
            String dsTaskGroupUrlPatternString = "/inner/job/(\\d{1,})/taskGroup/";
            List<String> patternStringList = Arrays.asList(dscJobUrlPatternString,
                    dsJobUrlPatternString, dsTaskGroupUrlPatternString);
            jobId = parseJobIdFromUrl(patternStringList, jobPath);
        }

        boolean isStandAloneMode = "standalone".equalsIgnoreCase(RUNTIME_MODE);
        if (!isStandAloneMode && jobId == -1) {
            // 如果不是 standalone 模式,那么 jobId 一定不能为-1
            throw DataXException.asDataXException(FrameworkErrorCode.CONFIG_ERROR, "非 standalone 模式必须在 URL 中提供有效的 jobId.");
        }
        configuration.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_ID, jobId);

        //打印vmInfo
        VMInfo vmInfo = VMInfo.getVmInfo();
        if (vmInfo != null) {
            LOG.info(vmInfo.toString());
        }

        LOG.info("\n" + Engine.filterJobConfiguration(configuration) + "\n");

        LOG.debug(configuration.toJSON());

        ConfigurationValidate.doValidate(configuration);
        //2. 新建一个engine, 然后调用start方法启动
        Engine engine = new Engine();
        engine.start(configuration);
    }




解析job.json文件生成configuration的过程主要有三步:
  1. 解析job的配置信息,由启动参数指定job.json文件。
  2. 解析DataX自带配置信息,由默认指定的core.json文件。
  3. 解析读写插件配置信息,由job.json指定的reader和writer插件信息。
public static Configuration parse(final String jobPath) {


    //1.解析job的配置信息,由启动参数指定job.json文件。
    Configuration configuration = ConfigParser.parseJobConfig(jobPath);

    //2. 解析DataX自带配置信息,由默认指定的core.json文件。
    configuration.merge(
            ConfigParser.parseCoreConfig(CoreConstant.DATAX_CONF_PATH),
            false);
    // todo config优化,只捕获需要的plugin
    //3.解析读写插件配置信息,由job.json指定的reader和writer插件信息
    String readerPluginName = configuration.getString(
            CoreConstant.DATAX_JOB_CONTENT_READER_NAME);
    String writerPluginName = configuration.getString(
            CoreConstant.DATAX_JOB_CONTENT_WRITER_NAME);

    String preHandlerName = configuration.getString(
            CoreConstant.DATAX_JOB_PREHANDLER_PLUGINNAME);

    String postHandlerName = configuration.getString(
            CoreConstant.DATAX_JOB_POSTHANDLER_PLUGINNAME);

    Set<String> pluginList = new HashSet<String>();
    pluginList.add(readerPluginName);
    pluginList.add(writerPluginName);

    if(StringUtils.isNotEmpty(preHandlerName)) {
        pluginList.add(preHandlerName);
    }
    if(StringUtils.isNotEmpty(postHandlerName)) {
        pluginList.add(postHandlerName);
    }
    try {
       // 4.加载对应的插件信息
        configuration.merge(parsePluginConfig(new ArrayList<String>(pluginList)), false);
    }catch (Exception e){
        //吞掉异常,保持log干净。这里message足够。
        LOG.warn(String.format("插件[%s,%s]加载失败,1s后重试... Exception:%s ", readerPluginName, writerPluginName, e.getMessage()));
        try {
            Thread.sleep(1000);
        } catch (InterruptedException e1) {
            //
        }
        configuration.merge(parsePluginConfig(new ArrayList<String>(pluginList)), false);
    }

    return configuration;
}




Configuration的配置文件:有job.json,core.json,plugin.json,以上代码的作用就是读取这三个配置文件并合并成项目需要的Configuration对象;
job.json

{
    "job":{
        "content":[{
            "reader":{
                "parameter":{
                    "password":"iflytek",
                    "column":[
                        "sed_account",
                        "rec_account",
                        "sed_zjhm",
                        "sed_name",
                        "rec_zjhm",
                        "rec_name",
                        "trans_type",
                        "channel",
                        "amount",
                        "detail",
                        "trans_date",
                        "increment_id"
                    ],
                    "connection":[{
                        "jdbcUrl":[
                            "jdbc:mysql://xxxxx:3306/zstp"
                        ],
                        "table":[
                            "r_transfer"
                        ]
                    }],
                    "where":"increment_id>0 and increment_id<=44",
                    "splitPk":"increment_id",
                    "username":"root"
                },
                "name":"mysqlreader"
            },
            "writer":{
                "parameter":{
                    "writerParams":{
                    "columnsMapping":{
                        "amount":{"name":"交易_金额"},
                        "trans_date":{"name":"交易_交易日期"},
                        "sed_zjhm":{"name":"交易_转出身份证号"},
                        "channel":{
                            "name":"交易_交易渠道"},
                        "increment_id":{
                            "name":"交易_自增长ID"},
                        "sed_name":{
                            "name":"交易_转出姓名"},
                        "rec_account":{
                            "name":"账号_账号",
                            "type":"end"},
                        "detail":{
                            "name":"交易_交易明细"},
                        "sed_name":{
                            "name":"交易_转入姓名"},
                        "rec_account":{
                            "name":"账号_账号",
                            "type":"start"},
                        "rec_zjhm":{
                            "name":"交易_转入身份证号"},
                        "trans_type":{
                            "name":"交易_交易类型"}
                    },
                    "direction":"positive",
                    "graphConfigInfo":{
                        "cachedbCache":"true",
                        "cachedbCacheCleanWait":"20",
                        "cachedbCacheSize":"0.5",
                        "cachedbCacheTime":"180000",
                        "gremlinGraph":"org.janusgraph.core.JanusGraphFactory",
                        "indexSearchBackend":"elasticsearch",
                        "indexSearchClientOnly":"true",
                        "indexSearchHostname":"yyyyyyy",
                        "storageBackend":"hbase",
                        "storageBatchLoading":"true",
                        "storageHbaseTable":"JDModel",
                        "storageHostname":"yyyyyyyy"
                        },
                    "importType":"relation",
                    "insertType":"edge",
                    "isPeriod":"2",
                    "kafkaConf":{
                        "brokerHost":"yyyyyy:9092",
                        "dirtyDataTopic":"datax_plugin_task_dirtyData",
                        "staticTopic":"datax_plugin_task_importStatic"},
                    "moveDuplicate":"true",
                    "ownerId":"229061068735066112",
                    "sourceColumns":[
                        {"name":"sed_account","type":"String"},
                        {"name":"rec_account","type":"String"},
                        {"name":"sed_zjhm","type":"String"},
                        {"name":"sed_name","type":"String"},
                        {"name":"rec_zjhm","type":"String"},
                        {"name":"rec_name","type":"String"},
                        {"name":"trans_type","type":"String"},
                        {"name":"channel","type":"String"},
                        {"name":"amount","type":"Float"},
                        {"name":"detail","type":"String"},
                        {"name":"trans_date","type":"Date"},
                        {"name":"increment_id","type":"Integer"}
                    ],
                    "tableName":"交易",
                    "taskId":"230918959959814144"
                }
                },
                "name":"janusgraphwriter"
            }
        }],
        "setting":{
            "speed":{
                "channel":4
            }
        }
    }
}



core.json
{
    "entry": {
        "jvm": "-Xms1G -Xmx1G",
        "environment": {}
    },
    "common": {
        "column": {
            "datetimeFormat": "yyyy-MM-dd HH:mm:ss",
            "timeFormat": "HH:mm:ss",
            "dateFormat": "yyyy-MM-dd",
            "extraFormats":["yyyyMMdd"],
            "timeZone": "GMT+8",
            "encoding": "utf-8"
        }
    },
    "core": {
        "dataXServer": {
            "address": "http://localhost:7001/api",
            "timeout": 10000,
            "reportDataxLog": false,
            "reportPerfLog": false
        },
        "transport": {
            "channel": {
                "class": "com.alibaba.datax.core.transport.channel.memory.MemoryChannel",
                "speed": {
                    "byte": -1,
                    "record": -1
                },
                "flowControlInterval": 20,
                "capacity": 512,
                "byteCapacity": 67108864
            },
            "exchanger": {
                "class": "com.alibaba.datax.core.plugin.BufferedRecordExchanger",
                "bufferSize": 32
            }
        },
        "container": {
            "job": {
                "reportInterval": 10000
            },
            "taskGroup": {
                "channel": 5
            },
            "trace": {
                "enable": "false"
            }


        },
        "statistics": {
            "collector": {
                "plugin": {
                    "taskClass": "com.alibaba.datax.core.statistics.plugin.task.StdoutPluginCollector",
                    "maxDirtyNumber": 10
                }
            }
        }
    }
}




plugin.json

{
    "name": "mysqlreader",
    "class": "com.alibaba.datax.plugin.reader.mysqlreader.MysqlReader",
    "description": "useScene: prod. mechanism: Jdbc connection using the database, execute select sql, retrieve data from the ResultSet. warn: The more you know about the database, the less problems you encounter.",
    "developer": "alibaba"
}

{
    "name": "janusgraphwriter",
    "class": "com.alibaba.datax.plugin.writer.janusgraphwriter.JanusgraphWriter",
    "description": "useScene: dev. mechanism: via org.janusgraph.core.JanusGraphFactory.class connect Janusgraph to write data .",
    "developer": "wangzhou"
}




合并之后的Configuration

{
    "common": {
        "column": {
            "dateFormat": "yyyy-MM-dd",
            "datetimeFormat": "yyyy-MM-dd HH:mm:ss",
            "encoding": "utf-8",
            "extraFormats": ["yyyyMMdd"],
            "timeFormat": "HH:mm:ss",
            "timeZone": "GMT+8"
        }
    },
    "core": {
        "container": {
            "job": {
                "id": -1,
                "reportInterval": 10000
            },
            "taskGroup": {
                "channel": 5
            },
            "trace": {
                "enable": "false"
            }
        },
        "dataXServer": {
            "address": "http://localhost:7001/api",
            "reportDataxLog": false,
            "reportPerfLog": false,
            "timeout": 10000
        },
        "statistics": {
            "collector": {
                "plugin": {
                    "maxDirtyNumber": 10,
                    "taskClass": "com.alibaba.datax.core.statistics.plugin.task.StdoutPluginCollector"
                }
            }
        },
        "transport": {
            "channel": {
                "byteCapacity": 67108864,
                "capacity": 512,
                "class": "com.alibaba.datax.core.transport.channel.memory.MemoryChannel",
                "flowControlInterval": 20,
                "speed": {
                    "byte": -1,
                    "record": -1
                }
            },
            "exchanger": {
                "bufferSize": 32,
                "class": "com.alibaba.datax.core.plugin.BufferedRecordExchanger"
            }
        }
    },
    "entry": {
        "jvm": "-Xms1G -Xmx1G"
    },
    "job": {
        "content": [{
            "reader": {
                "name": "mysqlreader",
                "parameter": {
                    "column": ["sed_account", "rec_account", "sed_zjhm", "sed_name", "rec_zjhm", "rec_name", "trans_type", "channel", "amount", "detail", "trans_date", "increment_id"],
                    "connection": [{
                        "jdbcUrl": ["jdbc:mysql://172.31.95.34:3306/zstp"],
                        "table": ["r_transfer"]
                    }],
                    "password": "iflytek",
                    "splitPk": "increment_id",
                    "username": "root",
                    "where": "increment_id>0 and increment_id<=44"
                }
            },
            "writer": {
                "name": "janusgraphwriter",
                "parameter": {
                    "writerParams": {
                        "columnsMapping": {
                            "amount": {
                                "name": "交易_金额"
                            },
                            "channel": {
                                "name": "交易_交易渠道"
                            },
                            "detail": {
                                "name": "交易_交易明细"
                            },
                            "increment_id": {
                                "name": "交易_自增长ID"
                            },
                            "rec_account": {
                                "name": "账号_账号",
                                "type": "start"
                            },
                            "rec_zjhm": {
                                "name": "交易_转入身份证号"
                            },
                            "sed_name": {
                                "name": "交易_转入姓名"
                            },
                            "sed_zjhm": {
                                "name": "交易_转出身份证号"
                            },
                            "trans_date": {
                                "name": "交易_交易日期"
                            },
                            "trans_type": {
                                "name": "交易_交易类型"
                            }
                        },
                        "direction": "positive",
                        "graphConfigInfo": {
                            "cachedbCache": "true",
                            "cachedbCacheCleanWait": "20",
                            "cachedbCacheSize": "0.5",
                            "cachedbCacheTime": "180000",
                            "gremlinGraph": "org.janusgraph.core.JanusGraphFactory",
                            "indexSearchBackend": "elasticsearch",
                            "indexSearchClientOnly": "true",
                            "indexSearchHostname": "171.31.95.50",
                            "storageBackend": "hbase",
                            "storageBatchLoading": "true",
                            "storageHbaseTable": "JDModel",
                            "storageHostname": "171.31.95.50"
                        },
                        "importType": "relation",
                        "insertType": "edge",
                        "isPeriod": "2",
                        "kafkaConf": {
                            "brokerHost": "171.31.95.50:9092",
                            "dirtyDataTopic": "datax_plugin_task_dirtyData",
                            "staticTopic": "datax_plugin_task_importStatic"
                        },
                        "moveDuplicate": "true",
                        "ownerId": "229061068735066112",
                        "sourceColumns": [{
                            "name": "sed_account",
                            "type": "String"
                        }, {
                            "name": "rec_account",
                            "type": "String"
                        }, {
                            "name": "sed_zjhm",
                            "type": "String"
                        }, {
                            "name": "sed_name",
                            "type": "String"
                        }, {
                            "name": "rec_zjhm",
                            "type": "String"
                        }, {
                            "name": "rec_name",
                            "type": "String"
                        }, {
                            "name": "trans_type",
                            "type": "String"
                        }, {
                            "name": "channel",
                            "type": "String"
                        }, {
                            "name": "amount",
                            "type": "Float"
                        }, {
                            "name": "detail",
                            "type": "String"
                        }, {
                            "name": "trans_date",
                            "type": "Date"
                        }, {
                            "name": "increment_id",
                            "type": "Integer"
                        }],
                        "tableName": "交易",
                        "taskId": "230918959959814144"
                    }
                }
            }
        }],
        "setting": {
            "speed": {
                "channel": 4
            }
        }
    },
    "plugin": {
        "reader": {
            "mysqlreader": {
                "class": "com.alibaba.datax.plugin.reader.mysqlreader.MysqlReader",
                "description": "useScene: prod. mechanism: Jdbc connection using the database, execute select sql, retrieve data from the ResultSet. warn: The more you know about the database, the less problems you encounter.",
                "developer": "alibaba",
                "name": "mysqlreader",
                "path": "D:\\Code\\ideaCode\\DataX-master\\target\\datax\\datax\\plugin\\reader\\mysqlreader"
            }
        },
        "writer": {
            "janusgraphwriter": {
                "class": "com.alibaba.datax.plugin.writer.janusgraphwriter.JanusgraphWriter",
                "description": "useScene: dev. mechanism: via org.janusgraph.core.JanusGraphFactory.class connect Janusgraph to write data .",
                "developer": "wangzhou",
                "name": "janusgraphwriter",
                "path": "D:\\Code\\ideaCode\\DataX-master\\target\\datax\\datax\\plugin\\writer\\janusgraphwriter"
            }
        }
    }
}





Engine.start()方法主要目的就是创建JobContainer对象,调用JobContainer.start()的方法启动JobContainer对象:

public void start(Configuration allConf) {


    // 绑定column转换信息
    ColumnCast.bind(allConf);

    /**
     * 初始化PluginLoader,可以获取各种插件配置
     */
    LoadUtil.bind(allConf);

    boolean isJob = !("taskGroup".equalsIgnoreCase(allConf
            .getString(CoreConstant.DATAX_CORE_CONTAINER_MODEL)));
    //JobContainer会在schedule后再行进行设置和调整值
    int channelNumber =0;
    AbstractContainer container;
    long instanceId;
    int taskGroupId = -1;
    if (isJob) {
        allConf.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_MODE, RUNTIME_MODE);
        container = new JobContainer(allConf);
        instanceId = allConf.getLong(
                CoreConstant.DATAX_CORE_CONTAINER_JOB_ID, 0);
    } else {
        container = new TaskGroupContainer(allConf);
        instanceId = allConf.getLong(
                CoreConstant.DATAX_CORE_CONTAINER_JOB_ID);
        taskGroupId = allConf.getInt(
                CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_ID);
        channelNumber = allConf.getInt(
                CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL);
    }
    //缺省打开perfTrace
    boolean traceEnable = allConf.getBool(CoreConstant.DATAX_CORE_CONTAINER_TRACE_ENABLE, true);
    boolean perfReportEnable = allConf.getBool(CoreConstant.DATAX_CORE_REPORT_DATAX_PERFLOG, true);

    //standlone模式的datax shell任务不进行汇报
    if(instanceId == -1){
        perfReportEnable = false;
    }

    int priority = 0;
    try {
        priority = Integer.parseInt(System.getenv("SKYNET_PRIORITY"));
    }catch (NumberFormatException e){
        LOG.warn("prioriy set to 0, because NumberFormatException, the value is: "+System.getProperty("PROIORY"));
    }

    Configuration jobInfoConfig = allConf.getConfiguration(CoreConstant.DATAX_JOB_JOBINFO);
    //初始化PerfTrace
    PerfTrace perfTrace = PerfTrace.getInstance(isJob, instanceId, taskGroupId, priority, traceEnable);
    perfTrace.setJobInfo(jobInfoConfig,perfReportEnable,channelNumber);
    container.start();
}




4、JobContainer.start(): JobContainer.start方法是整个框架的核心, 依次执行job的preHandler()、init()、prepare()、split()、schedule()、 post()、postHandle()等方法, 最重要的就是 init(), split() schedule() ,其主要过程如下:

  • 执行job的preHandle()操作, 暂时不关注。
  • 执行job的 init() 操作,需重点关注
  • 执行job的prepare()操作, 涉及到初始化reader和writer插件的初始化,保存当前classLoader,并将当前线程的classLoader设置为所给classLoader,再将当前线程的类加载器设置为保存的类加载,通过调用插件的prepare()方法实现,每个插件都有自己的jarLoader,是通过集成URLClassloader实现而来, 暂时不关注。
  • 执行job的 split() 操作, 通过adjustChannelNumber()方法调整channel个数,同时执行reader和writer最细粒度的切分,需要注意的是,writer的切分结果要参照reader的切分结果,达到切分后数目相等,才能满足1:1的通道模型;channel的计数主要是根据byte和record的限速来实现的,在split()的函数中第一步就是计算channel的大小;split()方法reader插件会根据channel的值进行拆分,但是有些reader插件可能不会参考channel的值,writer插件会完全根据reader的插件1:1进行返回;split()方法内部的mergeReaderAndWriterTaskConfigs()负责合并reader、writer、以及transformer三者关系,生成task的配置,并且重写job.content的配置, 需重点关注。
  • 执行job的 schedule() 操作, 根据split()拆分生成的task配置分配生成taskGroup对象,根据task的数量和单个taskGroup支持的task数量进行配置,两者相除就可以得出taskGroup的数量;schdule()内部通过AbstractScheduler的schedule()执行,继续执行startAllTaskGroup()方法创建所有的TaskGroupContainer组织相关的task,TaskGroupContainerRunner负责运行TaskGroupContainer执行分配的task;taskGroupContainerExecutorService启动固定的线程池用以执行TaskGroupContainerRunner对象,TaskGroupContainerRunner的run()方法调用taskGroupContainer.start()方法,针对每个channel创建一个TaskExecutor,通过taskExecutor.doStart()启动任务 需重点关注。
  • 执行job的post()和postHandle()操作,暂时不关注。
public void start() {
    LOG.info("DataX jobContainer starts job.");

    boolean hasException = false;
    boolean isDryRun = false;
    try {
        this.startTimeStamp = System.currentTimeMillis();
        isDryRun = configuration.getBool(CoreConstant.DATAX_JOB_SETTING_DRYRUN, false);
        if(isDryRun) {
            LOG.info("jobContainer starts to do preCheck ...");
            this.preCheck();
        } else {
            userConf = configuration.clone();
            LOG.debug("jobContainer starts to do preHandle ...");
            this.preHandle();
            LOG.debug("jobContainer starts to do init ...");
            this.init();
            LOG.info("jobContainer starts to do prepare ...");
            this.prepare();
            LOG.info("jobContainer starts to do split ...");
            this.totalStage = this.split();
            LOG.info("jobContainer starts to do schedule ...");
            this.schedule();
            LOG.debug("jobContainer starts to do post ...");
            this.post();
            LOG.debug("jobContainer starts to do postHandle ...");
            this.postHandle();
            LOG.info("DataX jobId [{}] completed successfully.", this.jobId);
            this.invokeHooks();
        }
    } catch (Throwable e) {
        LOG.error("Exception when job run", e);
        hasException = true;
        if (e instanceof OutOfMemoryError) {
            this.destroy();
            System.gc();
        }
        if (super.getContainerCommunicator() == null) {
            // 由于 containerCollector 是在 scheduler() 中初始化的,所以当在 scheduler() 之前出现异常时,需要在此处对 containerCollector 进行初始化

            AbstractContainerCommunicator tempContainerCollector;
            // standalone
            tempContainerCollector = new StandAloneJobContainerCommunicator(configuration);

            super.setContainerCommunicator(tempContainerCollector);
        }

        Communication communication = super.getContainerCommunicator().collect();
        // 汇报前的状态,不需要手动进行设置
        // communication.setState(State.FAILED);
        communication.setThrowable(e);
        communication.setTimestamp(this.endTimeStamp);

        Communication tempComm = new Communication();
        tempComm.setTimestamp(this.startTransferTimeStamp);

        Communication reportCommunication = CommunicationTool.getReportCommunication(communication, tempComm, this.totalStage);
        super.getContainerCommunicator().report(reportCommunication);

        throw DataXException.asDataXException(
                FrameworkErrorCode.RUNTIME_ERROR, e);
    } finally {
        if(!isDryRun) {
            this.destroy();
            this.endTimeStamp = System.currentTimeMillis();
            if (!hasException) {
                //最后打印cpu的平均消耗,GC的统计
                VMInfo vmInfo = VMInfo.getVmInfo();
                if (vmInfo != null) {
                    vmInfo.getDelta(false);
                    LOG.info(vmInfo.totalString());
                }
                LOG.info(PerfTrace.getInstance().summarizeNoException());
                this.logStatistics();
            }
        }
    }
}





Job的初始化过程
init()方法中 涉及到根据configuration来 初始化reader和writer插件 ,这里涉及到通过 URLClassLoader实现类加载, jar包热加载以及调用插件init()操作方法,同时设置reader和writer的configuration信息, initJobReader()和initJobWriter()方法差不多,主要就是根据json配置文件获取插件具体的class,然后进行加载class,获取具体的插件对象(write类似),然后执行插件的init()方法并返回这个插件:
private void init() {
    this.jobId = this.configuration.getLong(
            CoreConstant.DATAX_CORE_CONTAINER_JOB_ID, -1);

    if (this.jobId < 0) {
        LOG.info("Set jobId = 0");
        this.jobId = 0;
        this.configuration.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_ID,
                this.jobId);
    }

    Thread.currentThread().setName("job-" + this.jobId);


    JobPluginCollector jobPluginCollector = new DefaultJobPluginCollector(
            this.getContainerCommunicator());
    //必须先Reader ,后Writer
    this.jobReader = this.initJobReader(jobPluginCollector);
    this.jobWriter = this.initJobWriter(jobPluginCollector);
}




Job的split过程
spilt()主要做三件事:
  • adjustChannelNumber() 调整channel个数
  • doReaderSplit() & doWriterSplit()
  • mergeReaderAndWriterTaskConfigs

private int split() {
    this.adjustChannelNumber();

    if (this.needChannelNumber <= 0) {
        this.needChannelNumber = 1;
    }
    System.out.println("**********通道数:"+needChannelNumber);
    List<Configuration> readerTaskConfigs = this
            .doReaderSplit(this.needChannelNumber);
    int taskNumber = readerTaskConfigs.size();
    System.out.println("**********taskNumber:"+taskNumber);
    List<Configuration> writerTaskConfigs = this
            .doWriterSplit(taskNumber);

    List<Configuration> transformerList = this.configuration.getListConfiguration(CoreConstant.DATAX_JOB_CONTENT_TRANSFORMER);

    LOG.debug("transformer configuration: "+ JSON.toJSONString(transformerList));
    /**
     * 输入是reader和writer的parameter list,输出是content下面元素的list
     */
    List<Configuration> contentConfig = mergeReaderAndWriterTaskConfigs(
            readerTaskConfigs, writerTaskConfigs, transformerList);

    LOG.debug("contentConfig configuration: "+ JSON.toJSONString(contentConfig));
    this.configuration.set(CoreConstant.DATAX_JOB_CONTENT, contentConfig);
    return contentConfig.size();
}

adjustChannelNumber的过程根据按照字节限流和record限流计算channel的个数
private void adjustChannelNumber() {
    int needChannelNumberByByte = Integer.MAX_VALUE;
    int needChannelNumberByRecord = Integer.MAX_VALUE;

    boolean isByteLimit = (this.configuration.getInt(
            CoreConstant.DATAX_JOB_SETTING_SPEED_BYTE, 0) > 0);
    if (isByteLimit) {
        long globalLimitedByteSpeed = this.configuration.getInt(
                CoreConstant.DATAX_JOB_SETTING_SPEED_BYTE, 10 * 1024 * 1024);

        // 在byte流控情况下,单个Channel流量最大值必须设置,否则报错!
        Long channelLimitedByteSpeed = this.configuration
                .getLong(CoreConstant.DATAX_CORE_TRANSPORT_CHANNEL_SPEED_BYTE);
        if (channelLimitedByteSpeed == null || channelLimitedByteSpeed <= 0) {
            DataXException.asDataXException(
                    FrameworkErrorCode.CONFIG_ERROR,
                    "在有总bps限速条件下,单个channel的bps值不能为空,也不能为非正数");
        }

        needChannelNumberByByte =
                (int) (globalLimitedByteSpeed / channelLimitedByteSpeed);
        needChannelNumberByByte =
                needChannelNumberByByte > 0 ? needChannelNumberByByte : 1;
        LOG.info("Job set Max-Byte-Speed to " + globalLimitedByteSpeed + " bytes.");
    }

    boolean isRecordLimit = (this.configuration.getInt(
            CoreConstant.DATAX_JOB_SETTING_SPEED_RECORD, 0)) > 0;
    if (isRecordLimit) {
        long globalLimitedRecordSpeed = this.configuration.getInt(
                CoreConstant.DATAX_JOB_SETTING_SPEED_RECORD, 100000);

        Long channelLimitedRecordSpeed = this.configuration.getLong(
                CoreConstant.DATAX_CORE_TRANSPORT_CHANNEL_SPEED_RECORD);
        if (channelLimitedRecordSpeed == null || channelLimitedRecordSpeed <= 0) {
            DataXException.asDataXException(FrameworkErrorCode.CONFIG_ERROR,
                    "在有总tps限速条件下,单个channel的tps值不能为空,也不能为非正数");
        }

        needChannelNumberByRecord =
                (int) (globalLimitedRecordSpeed / channelLimitedRecordSpeed);
        needChannelNumberByRecord =
                needChannelNumberByRecord > 0 ? needChannelNumberByRecord : 1;
        LOG.info("Job set Max-Record-Speed to " + globalLimitedRecordSpeed + " records.");
    }

    // 取较小值
    this.needChannelNumber = needChannelNumberByByte < needChannelNumberByRecord ?
            needChannelNumberByByte : needChannelNumberByRecord;

    // 如果从byte或record上设置了needChannelNumber则退出
    if (this.needChannelNumber < Integer.MAX_VALUE) {
        return;
    }

    boolean isChannelLimit = (this.configuration.getInt(
            CoreConstant.DATAX_JOB_SETTING_SPEED_CHANNEL, 0) > 0);
    if (isChannelLimit) {
        this.needChannelNumber = this.configuration.getInt(
                CoreConstant.DATAX_JOB_SETTING_SPEED_CHANNEL);
        LOG.info("Job set Channel-Number to " + this.needChannelNumber
                + " channels.");
        return;
    }

    throw DataXException.asDataXException(
            FrameworkErrorCode.CONFIG_ERROR,
            "Job运行速度必须设置");
}



doReaderSplit & doWriterSplit的主要工作就是根据配置加载插件的类和jar包,然后调用插件内部的split()方法根据通道数对插件进行拆分,返回复制的插件配置信息, reader的通道数根据channel数确认,writer的split个数是根据reader的split个数确认的,以保证reader和writer的1:1的个数
private List<Configuration> doReaderSplit(int adviceNumber) {
    LOG.info("*********** 传入reader的通道数:"+adviceNumber);
    classLoaderSwapper.setCurrentThreadClassLoader(LoadUtil.getJarLoader(
            PluginType.READER, this.readerPluginName));
    List<Configuration> readerSlicesConfigs =
            this.jobReader.split(adviceNumber);
    if (readerSlicesConfigs == null || readerSlicesConfigs.size() <= 0) {
        throw DataXException.asDataXException(
                FrameworkErrorCode.PLUGIN_SPLIT_ERROR,
                "reader切分的task数目不能小于等于0");
    }
    LOG.info("DataX Reader.Job [{}] splits to [{}] tasks.",
            this.readerPluginName, readerSlicesConfigs.size());
    classLoaderSwapper.restoreCurrentThreadClassLoader();
    return readerSlicesConfigs;
}


private List<Configuration> doWriterSplit(int readerTaskNumber) {
    classLoaderSwapper.setCurrentThreadClassLoader(LoadUtil.getJarLoader(
            PluginType.WRITER, this.writerPluginName));

    List<Configuration> writerSlicesConfigs = this.jobWriter
            .split(readerTaskNumber);
    if (writerSlicesConfigs == null || writerSlicesConfigs.size() <= 0) {
        throw DataXException.asDataXException(
                FrameworkErrorCode.PLUGIN_SPLIT_ERROR,
                "writer切分的task不能小于等于0");
    }
    LOG.info("DataX Writer.Job [{}] splits to [{}] tasks.",
            this.writerPluginName, writerSlicesConfigs.size());
    classLoaderSwapper.restoreCurrentThreadClassLoader();

    return writerSlicesConfigs;
}

//mergeReaderAndWriterTaskConfigs方法生成reader+writer的task的configuration
private List<Configuration> mergeReaderAndWriterTaskConfigs(
        List<Configuration> readerTasksConfigs,
        List<Configuration> writerTasksConfigs,
        List<Configuration> transformerConfigs) {
    if (readerTasksConfigs.size() != writerTasksConfigs.size()) {
        throw DataXException.asDataXException(
                FrameworkErrorCode.PLUGIN_SPLIT_ERROR,
                String.format("reader切分的task数目[%d]不等于writer切分的task数目[%d].",
                        readerTasksConfigs.size(), writerTasksConfigs.size())
        );
    }

    List<Configuration> contentConfigs = new ArrayList<Configuration>();
    for (int i = 0; i < readerTasksConfigs.size(); i++) {
        Configuration taskConfig = Configuration.newDefault();
        taskConfig.set(CoreConstant.JOB_READER_NAME,
                this.readerPluginName);
        taskConfig.set(CoreConstant.JOB_READER_PARAMETER,
                readerTasksConfigs.get(i));
        taskConfig.set(CoreConstant.JOB_WRITER_NAME,
                this.writerPluginName);
        taskConfig.set(CoreConstant.JOB_WRITER_PARAMETER,
                writerTasksConfigs.get(i));

        if(transformerConfigs!=null && transformerConfigs.size()>0){
            taskConfig.set(CoreConstant.JOB_TRANSFORMER, transformerConfigs);
        }

        taskConfig.set(CoreConstant.TASK_ID, i);
        contentConfigs.add(taskConfig);
    }
    return contentConfigs;
}




Job的schedule过程
Job的schedule的过程主要做了两件事,分别是 分组启动
  • 将task拆分成taskGroup,生成List<Configuration> taskGroupConfigs。
  • 启动taskgroup的对象, scheduler.schedule(taskGroupConfigs)。
private void schedule() {
    /**
     * 这里的全局speed和每个channel的速度设置为B/s
     */
    int channelsPerTaskGroup = this.configuration.getInt(
            CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL, 5);
    int taskNumber = this.configuration.getList(
            CoreConstant.DATAX_JOB_CONTENT).size();

    this.needChannelNumber = Math.min(this.needChannelNumber, taskNumber);
    PerfTrace.getInstance().setChannelNumber(needChannelNumber);


    /**
     * 通过获取配置信息得到每个taskGroup需要运行哪些tasks任务
     */

    List<Configuration> taskGroupConfigs = JobAssignUtil.assignFairly(this.configuration,
            this.needChannelNumber, channelsPerTaskGroup);

    LOG.info("Scheduler starts [{}] taskGroups.", taskGroupConfigs.size());

    ExecuteMode executeMode = null;
    AbstractScheduler scheduler;
    try {
       executeMode = ExecuteMode.STANDALONE;
        scheduler = initStandaloneScheduler(this.configuration);

        //设置 executeMode
        for (Configuration taskGroupConfig : taskGroupConfigs) {
            taskGroupConfig.set(CoreConstant.DATAX_CORE_CONTAINER_JOB_MODE, executeMode.getValue());
        }

        if (executeMode == ExecuteMode.LOCAL || executeMode == ExecuteMode.DISTRIBUTE) {
            if (this.jobId <= 0) {
                throw DataXException.asDataXException(FrameworkErrorCode.RUNTIME_ERROR,
                        "在[ local | distribute ]模式下必须设置jobId,并且其值 > 0 .");
            }
        }

        LOG.info("Running by {} Mode.", executeMode);

        this.startTransferTimeStamp = System.currentTimeMillis();

        scheduler.schedule(taskGroupConfigs);

        this.endTransferTimeStamp = System.currentTimeMillis();
    } catch (Exception e) {
        LOG.error("运行scheduler 模式[{}]出错.", executeMode);
        this.endTransferTimeStamp = System.currentTimeMillis();
        throw DataXException.asDataXException(
                FrameworkErrorCode.RUNTIME_ERROR, e);
    }

    /**
     * 检查任务执行情况
     */
    this.checkLimit();
}




先来看看分组,在分组之前,先调整needChannelNumber的值,从上一步split()方法获得的needChannelNumber和task的数量,这两个值取一个小的重新赋值给needChannelNumber。然后进入这个assignFairly(),assignFamily方法主要做了三件事:
  • 确定任务分组号taskGroupNumber, 根据task的数量和单个taskGroup支持的task数量进行配置,两者相除就可以得出taskGroup的数量
  • 做分组分配
  • 做分组优化
public static List<Configuration> assignFairly(Configuration configuration, int channelNumber, int channelsPerTaskGroup) {
    Validate.isTrue(configuration != null, "框架获得的 Job 不能为 null.");

    List<Configuration> contentConfig = configuration.getListConfiguration(CoreConstant.DATAX_JOB_CONTENT);
    Validate.isTrue(contentConfig.size() > 0, "框架获得的切分后的 Job 无内容.");

    Validate.isTrue(channelNumber > 0 && channelsPerTaskGroup > 0,
            "每个channel的平均task数[averTaskPerChannel],channel数目[channelNumber],每个taskGroup的平均channel数[channelsPerTaskGroup]都应该为正数");

    int taskGroupNumber = (int) Math.ceil(1.0 * channelNumber / channelsPerTaskGroup);

    Configuration aTaskConfig = contentConfig.get(0);


    String readerResourceMark = aTaskConfig.getString(CoreConstant.JOB_READER_PARAMETER + "." +
            CommonConstant.LOAD_BALANCE_RESOURCE_MARK);
    String writerResourceMark = aTaskConfig.getString(CoreConstant.JOB_WRITER_PARAMETER + "." +
            CommonConstant.LOAD_BALANCE_RESOURCE_MARK);

    boolean hasLoadBalanceResourceMark = StringUtils.isNotBlank(readerResourceMark) ||
            StringUtils.isNotBlank(writerResourceMark);

    if (!hasLoadBalanceResourceMark) {
        // fake 一个固定的 key 作为资源标识(在 reader 或者 writer 上均可,此处选择在 reader 上进行 fake)
        for (Configuration conf : contentConfig) {
            conf.set(CoreConstant.JOB_READER_PARAMETER + "." +
                    CommonConstant.LOAD_BALANCE_RESOURCE_MARK, "aFakeResourceMarkForLoadBalance");
        }
        // 是为了避免某些插件没有设置 资源标识 而进行了一次随机打乱操作
        Collections.shuffle(contentConfig, new Random(System.currentTimeMillis()));
    }

    LinkedHashMap<String, List<Integer>> resourceMarkAndTaskIdMap = parseAndGetResourceMarkAndTaskIdMap(contentConfig);
    List<Configuration> taskGroupConfig = doAssign(resourceMarkAndTaskIdMap, configuration, taskGroupNumber);

    // 调整 每个 taskGroup 对应的 Channel 个数(属于优化范畴)
    adjustChannelNumPerTaskGroup(taskGroupConfig, channelNumber);
    return taskGroupConfig;
}

doAssign()方法,这个方法主要就是根据传入的resourceMarkAndTaskIdMap和taskGroupNumber来把task分配到taskGroup中去。


private static List<Configuration> doAssign(LinkedHashMap<String, List<Integer>> resourceMarkAndTaskIdMap, Configuration jobConfiguration, int taskGroupNumber) {
    List<Configuration> contentConfig = jobConfiguration.getListConfiguration(CoreConstant.DATAX_JOB_CONTENT);

    Configuration taskGroupTemplate = jobConfiguration.clone();
    taskGroupTemplate.remove(CoreConstant.DATAX_JOB_CONTENT);

    List<Configuration> result = new LinkedList<Configuration>();

    List<List<Configuration>> taskGroupConfigList = new ArrayList<List<Configuration>>(taskGroupNumber);
    for (int i = 0; i < taskGroupNumber; i++) {
        taskGroupConfigList.add(new LinkedList<Configuration>());
    }

    int mapValueMaxLength = -1;


    List<String> resourceMarks = new ArrayList<String>();
    for (Map.Entry<String, List<Integer>> entry : resourceMarkAndTaskIdMap.entrySet()) {
        resourceMarks.add(entry.getKey());
        if (entry.getValue().size() > mapValueMaxLength) {
            mapValueMaxLength = entry.getValue().size();
        }
    }

    int taskGroupIndex = 0;
    for (int i = 0; i < mapValueMaxLength; i++) {
        for (String resourceMark : resourceMarks) {
            if (resourceMarkAndTaskIdMap.get(resourceMark).size() > 0) {
                int taskId = resourceMarkAndTaskIdMap.get(resourceMark).get(0);
                taskGroupConfigList.get(taskGroupIndex % taskGroupNumber).add(contentConfig.get(taskId));
                taskGroupIndex++;

                resourceMarkAndTaskIdMap.get(resourceMark).remove(0);
            }
        }
    }

    Configuration tempTaskGroupConfig;
    for (int i = 0; i < taskGroupNumber; i++) {
        tempTaskGroupConfig = taskGroupTemplate.clone();
        tempTaskGroupConfig.set(CoreConstant.DATAX_JOB_CONTENT, taskGroupConfigList.get(i));
        tempTaskGroupConfig.set(CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_ID, i);
        result.add(tempTaskGroupConfig);
    }

    return result;
}




assignFairly()中的adjustChannelNumPerTaskGroup(),这个方法主要就是把整除之后多余的余数个task的组多加一个channel,从而使整个分配最优化
private static void adjustChannelNumPerTaskGroup(List<Configuration> taskGroupConfig, int channelNumber) {
    int taskGroupNumber = taskGroupConfig.size();
    int avgChannelsPerTaskGroup = channelNumber / taskGroupNumber;
    int remainderChannelCount = channelNumber % taskGroupNumber;
    // 表示有 remainderChannelCount 个 taskGroup,其对应 Channel 个数应该为:avgChannelsPerTaskGroup + 1;
    // (taskGroupNumber - remainderChannelCount)个 taskGroup,其对应 Channel 个数应该为:avgChannelsPerTaskGroup

    int i = 0;
    for (; i < remainderChannelCount; i++) {
        taskGroupConfig.get(i).set(CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL, avgChannelsPerTaskGroup + 1);
    }

    for (int j = 0; j < taskGroupNumber - remainderChannelCount; j++) {
        taskGroupConfig.get(i + j).set(CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL, avgChannelsPerTaskGroup);
    }
}



接下来便是taskGroup对象的启动,也就是具体的Task数据抽取代码的启动,通过调用 StandAloneScheduler的schedule()方法,也就是AbstractScheduler.schedule(),而这个方法中最主要的就是调用了startAllTaskGroup(configurations)来启动所有任务组。
public void schedule(List<Configuration> configurations) {
    Validate.notNull(configurations,
            "scheduler配置不能为空");
    int jobReportIntervalInMillSec = configurations.get(0).getInt(
            CoreConstant.DATAX_CORE_CONTAINER_JOB_REPORTINTERVAL, 30000);
    int jobSleepIntervalInMillSec = configurations.get(0).getInt(
            CoreConstant.DATAX_CORE_CONTAINER_JOB_SLEEPINTERVAL, 10000);

    this.jobId = configurations.get(0).getLong(
            CoreConstant.DATAX_CORE_CONTAINER_JOB_ID);
    errorLimit = new ErrorRecordChecker(configurations.get(0));
    /**
     * 给 taskGroupContainer 的 Communication 注册
     */
    this.containerCommunicator.registerCommunication(configurations);


    int totalTasks = calculateTaskCount(configurations);
    startAllTaskGroup(configurations);

    Communication lastJobContainerCommunication = new Communication();

    long lastReportTimeStamp = System.currentTimeMillis();
    try {
        while (true) {
            /**
             * step 1: collect job stat
             * step 2: getReport info, then report it
             * step 3: errorLimit do check
             * step 4: dealSucceedStat();
             * step 5: dealKillingStat();
             * step 6: dealFailedStat();
             * step 7: refresh last job stat, and then sleep for next while
             *
             * above steps, some ones should report info to DS
             *
             */
            Communication nowJobContainerCommunication = this.containerCommunicator.collect();
            nowJobContainerCommunication.setTimestamp(System.currentTimeMillis());
            LOG.debug(nowJobContainerCommunication.toString());

            //汇报周期
            long now = System.currentTimeMillis();
            if (now - lastReportTimeStamp > jobReportIntervalInMillSec) {
                Communication reportCommunication = CommunicationTool
                        .getReportCommunication(nowJobContainerCommunication, lastJobContainerCommunication, totalTasks);

                this.containerCommunicator.report(reportCommunication);
                lastReportTimeStamp = now;
                lastJobContainerCommunication = nowJobContainerCommunication;
            }

            errorLimit.checkRecordLimit(nowJobContainerCommunication);

            if (nowJobContainerCommunication.getState() == State.SUCCEEDED) {
                LOG.info("Scheduler accomplished all tasks.");
                break;
            }

            if (isJobKilling(this.getJobId())) {
                dealKillingStat(this.containerCommunicator, totalTasks);
            } else if (nowJobContainerCommunication.getState() == State.FAILED) {
                dealFailedStat(this.containerCommunicator, nowJobContainerCommunication.getThrowable());
            }


            Thread.sleep(jobSleepIntervalInMillSec);
        }
    } catch (InterruptedException e) {
        // 以 failed 状态退出
        LOG.error("捕获到InterruptedException异常!", e);


        throw DataXException.asDataXException(
                FrameworkErrorCode.RUNTIME_ERROR, e);
    }


}


整个框架的核心 startAllTaskGroup(configurations),用来执行taskGroup中的Task
TaskGroupContainerRunner负责运行TaskGroupContainer执行分配的task;taskGroupContainerExecutorService启动固定的线程池用以执行TaskGroupContainerRunner对象,TaskGroupContainerRunner的run()方法调用taskGroupContainer.start()方法,针对每个channel创建一个TaskExecutor,通过taskExecutor.doStart()启动任务
public void startAllTaskGroup(List<Configuration> configurations) {
        //根据taskGroup的大小创建一个固定线程池用以执行TaskGroupContainerRunner对象
    this.taskGroupContainerExecutorService = Executors
            .newFixedThreadPool(configurations.size());

    for (Configuration taskGroupConfiguration : configurations) {

        //TaskGroupContainerRunner负责运行TaskGroupContainer执行分配的task
        TaskGroupContainerRunner taskGroupContainerRunner = newTaskGroupContainerRunner(taskGroupConfiguration);
        this.taskGroupContainerExecutorService.execute(taskGroupContainerRunner);
    }

    this.taskGroupContainerExecutorService.shutdown();
}

private TaskGroupContainerRunner newTaskGroupContainerRunner(
        Configuration configuration) {
    TaskGroupContainer taskGroupContainer = new TaskGroupContainer(configuration);


    return new TaskGroupContainerRunner(taskGroupContainer);
}


public class TaskGroupContainerRunner implements Runnable {

   private TaskGroupContainer taskGroupContainer;

   private State state;

   public TaskGroupContainerRunner(TaskGroupContainer taskGroup) {
      this.taskGroupContainer = taskGroup;
      this.state = State.SUCCEEDED;
   }

   @Override
   public void run() {
      try {
            Thread.currentThread().setName(
                    String.format("taskGroup-%d", this.taskGroupContainer.getTaskGroupId()));
            this.taskGroupContainer.start();
         this.state = State.SUCCEEDED;
      } catch (Throwable e) {
         this.state = State.FAILED;
         throw DataXException.asDataXException(
               FrameworkErrorCode.RUNTIME_ERROR, e);
      }
   }


   public TaskGroupContainer getTaskGroupContainer() {
      return taskGroupContainer;
   }


   public State getState() {
      return state;
   }


   public void setState(State state) {
      this.state = state;
   }
}



可以看到最后线程执行的是 TaskGroupContaine.start()方法,它有两部分工作,首先创建TaskExecutor,生成reader和writer运行的线程,然后执行taskExecutor.doStart()方法调用线程run方法;去启动task的读写。
taskExecutor.doStart()方法调用 this.writerThread.start() 和this.readerThread.start() 也就是调用了插件Writer.Task和Reader.Task开始读写了。
public void start() {
    try {
        /**
         * 状态check时间间隔,较短,可以把任务及时分发到对应channel中
         */
        int sleepIntervalInMillSec = this.configuration.getInt(
                CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_SLEEPINTERVAL, 100);
        /**
         * 状态汇报时间间隔,稍长,避免大量汇报
         */
        long reportIntervalInMillSec = this.configuration.getLong(
                CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_REPORTINTERVAL,
                10000);
        /**
         * 2分钟汇报一次性能统计
         */

        // 获取channel数目
        int channelNumber = this.configuration.getInt(
                CoreConstant.DATAX_CORE_CONTAINER_TASKGROUP_CHANNEL);

        int taskMaxRetryTimes = this.configuration.getInt(
                CoreConstant.DATAX_CORE_CONTAINER_TASK_FAILOVER_MAXRETRYTIMES, 1);

        long taskRetryIntervalInMsec = this.configuration.getLong(
                CoreConstant.DATAX_CORE_CONTAINER_TASK_FAILOVER_RETRYINTERVALINMSEC, 10000);

        long taskMaxWaitInMsec = this.configuration.getLong(CoreConstant.DATAX_CORE_CONTAINER_TASK_FAILOVER_MAXWAITINMSEC, 60000);

        List<Configuration> taskConfigs = this.configuration
                .getListConfiguration(CoreConstant.DATAX_JOB_CONTENT);

        if(LOG.isDebugEnabled()) {
            LOG.debug("taskGroup[{}]'s task configs[{}]", this.taskGroupId,
                    JSON.toJSONString(taskConfigs));
        }

        int taskCountInThisTaskGroup = taskConfigs.size();
        LOG.info(String.format(
                "taskGroupId=[%d] start [%d] channels for [%d] tasks.",
                this.taskGroupId, channelNumber, taskCountInThisTaskGroup));

        this.containerCommunicator.registerCommunication(taskConfigs);

        Map<Integer, Configuration> taskConfigMap = buildTaskConfigMap(taskConfigs); //taskId与task配置
        List<Configuration> taskQueue = buildRemainTasks(taskConfigs); //待运行task列表
        Map<Integer, TaskExecutor> taskFailedExecutorMap = new HashMap<Integer, TaskExecutor>(); //taskId与上次失败实例
        List<TaskExecutor> runTasks = new ArrayList<TaskExecutor>(channelNumber); //正在运行task
        Map<Integer, Long> taskStartTimeMap = new HashMap<Integer, Long>(); //任务开始时间

        long lastReportTimeStamp = 0;
        Communication lastTaskGroupContainerCommunication = new Communication();

        while (true) {
           //1.判断task状态
           boolean failedOrKilled = false;
           Map<Integer, Communication> communicationMap = containerCommunicator.getCommunicationMap();
           for(Map.Entry<Integer, Communication> entry : communicationMap.entrySet()){
              Integer taskId = entry.getKey();
              Communication taskCommunication = entry.getValue();
                if(!taskCommunication.isFinished()){
                    continue;
                }
                TaskExecutor taskExecutor = removeTask(runTasks, taskId);

                //上面从runTasks里移除了,因此对应在monitor里移除
                taskMonitor.removeTask(taskId);

                //失败,看task是否支持failover,重试次数未超过最大限制
              if(taskCommunication.getState() == State.FAILED){
                    taskFailedExecutorMap.put(taskId, taskExecutor);
                 if(taskExecutor.supportFailOver() && taskExecutor.getAttemptCount() < taskMaxRetryTimes){
                        taskExecutor.shutdown(); //关闭老的executor
                        containerCommunicator.resetCommunication(taskId); //将task的状态重置
                    Configuration taskConfig = taskConfigMap.get(taskId);
                    taskQueue.add(taskConfig); //重新加入任务列表
                 }else{
                    failedOrKilled = true;
                     break;
                 }
              }else if(taskCommunication.getState() == State.KILLED){
                 failedOrKilled = true;
                 break;
              }else if(taskCommunication.getState() == State.SUCCEEDED){
                    Long taskStartTime = taskStartTimeMap.get(taskId);
                    if(taskStartTime != null){
                        Long usedTime = System.currentTimeMillis() - taskStartTime;
                        LOG.info("taskGroup[{}] taskId[{}] is successed, used[{}]ms",
                                this.taskGroupId, taskId, usedTime);
                        //usedTime*1000*1000 转换成PerfRecord记录的ns,这里主要是简单登记,进行最长任务的打印。因此增加特定静态方法
                        PerfRecord.addPerfRecord(taskGroupId, taskId, PerfRecord.PHASE.TASK_TOTAL,taskStartTime, usedTime * 1000L * 1000L);
                        taskStartTimeMap.remove(taskId);
                        taskConfigMap.remove(taskId);
                    }
                }
           }

            // 2.发现该taskGroup下taskExecutor的总状态失败则汇报错误
            if (failedOrKilled) {
                lastTaskGroupContainerCommunication = reportTaskGroupCommunication(
                        lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

                throw DataXException.asDataXException(
                        FrameworkErrorCode.PLUGIN_RUNTIME_ERROR, lastTaskGroupContainerCommunication.getThrowable());
            }

            //3.有任务未执行,且正在运行的任务数小于最大通道限制
            Iterator<Configuration> iterator = taskQueue.iterator();
            while(iterator.hasNext() && runTasks.size() < channelNumber){
                Configuration taskConfig = iterator.next();
                Integer taskId = taskConfig.getInt(CoreConstant.TASK_ID);
                int attemptCount = 1;
                TaskExecutor lastExecutor = taskFailedExecutorMap.get(taskId);
                if(lastExecutor!=null){
                    attemptCount = lastExecutor.getAttemptCount() + 1;
                    long now = System.currentTimeMillis();
                    long failedTime = lastExecutor.getTimeStamp();
                    if(now - failedTime < taskRetryIntervalInMsec){  //未到等待时间,继续留在队列
                        continue;
                    }
                    if(!lastExecutor.isShutdown()){ //上次失败的task仍未结束
                        if(now - failedTime > taskMaxWaitInMsec){
                            markCommunicationFailed(taskId);
                            reportTaskGroupCommunication(lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);
                            throw DataXException.asDataXException(CommonErrorCode.WAIT_TIME_EXCEED, "task failover等待超时");
                        }else{
                            lastExecutor.shutdown(); //再次尝试关闭
                            continue;
                        }
                    }else{
                        LOG.info("taskGroup[{}] taskId[{}] attemptCount[{}] has already shutdown",
                                this.taskGroupId, taskId, lastExecutor.getAttemptCount());
                    }
                }
                Configuration taskConfigForRun = taskMaxRetryTimes > 1 ? taskConfig.clone() : taskConfig;
               TaskExecutor taskExecutor = new TaskExecutor(taskConfigForRun, attemptCount);
                taskStartTimeMap.put(taskId, System.currentTimeMillis());
               taskExecutor.doStart();

                iterator.remove();
                runTasks.add(taskExecutor);

                //上面,增加task到runTasks列表,因此在monitor里注册。
                taskMonitor.registerTask(taskId, this.containerCommunicator.getCommunication(taskId));

                taskFailedExecutorMap.remove(taskId);
                LOG.info("taskGroup[{}] taskId[{}] attemptCount[{}] is started",
                        this.taskGroupId, taskId, attemptCount);
            }

            //4.任务列表为空,executor已结束, 搜集状态为success--->成功
            if (taskQueue.isEmpty() && isAllTaskDone(runTasks) && containerCommunicator.collectState() == State.SUCCEEDED) {
               // 成功的情况下,也需要汇报一次。否则在任务结束非常快的情况下,采集的信息将会不准确
                lastTaskGroupContainerCommunication = reportTaskGroupCommunication(
                        lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

                LOG.info("taskGroup[{}] completed it's tasks.", this.taskGroupId);
                break;
            }

            // 5.如果当前时间已经超出汇报时间的interval,那么我们需要马上汇报
            long now = System.currentTimeMillis();
            if (now - lastReportTimeStamp > reportIntervalInMillSec) {
                lastTaskGroupContainerCommunication = reportTaskGroupCommunication(
                        lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

                lastReportTimeStamp = now;

                //taskMonitor对于正在运行的task,每reportIntervalInMillSec进行检查
                for(TaskExecutor taskExecutor:runTasks){
                    taskMonitor.report(taskExecutor.getTaskId(),this.containerCommunicator.getCommunication(taskExecutor.getTaskId()));
                }
            }
            Thread.sleep(sleepIntervalInMillSec);
        }


        //6.最后还要汇报一次
        reportTaskGroupCommunication(lastTaskGroupContainerCommunication, taskCountInThisTaskGroup);

    } catch (Throwable e) {
        Communication nowTaskGroupContainerCommunication = this.containerCommunicator.collect();


        if (nowTaskGroupContainerCommunication.getThrowable() == null) {
            nowTaskGroupContainerCommunication.setThrowable(e);
        }
        nowTaskGroupContainerCommunication.setState(State.FAILED);
        this.containerCommunicator.report(nowTaskGroupContainerCommunication);
        throw DataXException.asDataXException(
                FrameworkErrorCode.RUNTIME_ERROR, e);
    }finally {
        if(!PerfTrace.getInstance().isJob()){
            //最后打印cpu的平均消耗,GC的统计
            VMInfo vmInfo = VMInfo.getVmInfo();
            if (vmInfo != null) {
                vmInfo.getDelta(false);
                LOG.info(vmInfo.totalString());
            }
            LOG.info(PerfTrace.getInstance().summarizeNoException());
        }
    }
}



TaskExecutor
class TaskExecutor {
    private Configuration taskConfig;
    private int taskId;
    private int attemptCount;
    private Channel channel;
    private Thread readerThread;
    private Thread writerThread;
    private ReaderRunner readerRunner;
    private WriterRunner writerRunner;
    /**
     * 该处的taskCommunication在多处用到:
     * 1. channel
     * 2. readerRunner和writerRunner
     * 3. reader和writer的taskPluginCollector
     */
    private Communication taskCommunication;
    public TaskExecutor(Configuration taskConf, int attemptCount) {
        // 获取该taskExecutor的配置
        this.taskConfig = taskConf;
        Validate.isTrue(null != this.taskConfig.getConfiguration(CoreConstant.JOB_READER)
                        && null != this.taskConfig.getConfiguration(CoreConstant.JOB_WRITER),
                "[reader|writer]的插件参数不能为空!");
        // 得到taskId
        this.taskId = this.taskConfig.getInt(CoreConstant.TASK_ID);
        this.attemptCount = attemptCount;
        /**
         * 由taskId得到该taskExecutor的Communication
         * 要传给readerRunner和writerRunner,同时要传给channel作统计用
         */
        this.taskCommunication = containerCommunicator
                .getCommunication(taskId);
        Validate.notNull(this.taskCommunication,
                String.format("taskId[%d]的Communication没有注册过", taskId));
        this.channel = ClassUtil.instantiate(channelClazz,
                Channel.class, configuration);
        this.channel.setCommunication(this.taskCommunication);
        /**
         * 获取transformer的参数
         */
        List<TransformerExecution> transformerInfoExecs = TransformerUtil.buildTransformerInfo(taskConfig);
        /**
         * 生成writerThread
         */
        writerRunner = (WriterRunner) generateRunner(PluginType.WRITER);
        this.writerThread = new Thread(writerRunner,
                String.format("%d-%d-%d-writer",
                        jobId, taskGroupId, this.taskId));
        //通过设置thread的contextClassLoader,即可实现同步和主程序不通的加载器
        this.writerThread.setContextClassLoader(LoadUtil.getJarLoader(
                PluginType.WRITER, this.taskConfig.getString(
                        CoreConstant.JOB_WRITER_NAME)));

        /**
         * 生成readerThread
         */
        readerRunner = (ReaderRunner) generateRunner(PluginType.READER,transformerInfoExecs);
        this.readerThread = new Thread(readerRunner,
                String.format("%d-%d-%d-reader",
                        jobId, taskGroupId, this.taskId));
        /**
         * 通过设置thread的contextClassLoader,即可实现同步和主程序不通的加载器
         */
        this.readerThread.setContextClassLoader(LoadUtil.getJarLoader(
                PluginType.READER, this.taskConfig.getString(
                        CoreConstant.JOB_READER_NAME)));
    }

    public void doStart() {
        this.writerThread.start();
        // reader没有起来,writer不可能结束
        if (!this.writerThread.isAlive() || this.taskCommunication.getState() == State.FAILED) {
            throw DataXException.asDataXException(
                    FrameworkErrorCode.RUNTIME_ERROR,
                    this.taskCommunication.getThrowable());
        }
        this.readerThread.start();
        // 这里reader可能很快结束
        if (!this.readerThread.isAlive() && this.taskCommunication.getState() == State.FAILED) {
            // 这里有可能出现Reader线上启动即挂情况 对于这类情况 需要立刻抛出异常
            throw DataXException.asDataXException(
                    FrameworkErrorCode.RUNTIME_ERROR,
                    this.taskCommunication.getThrowable());
        }
    }



ReaderRunner
public class ReaderRunner extends AbstractRunner implements Runnable {
    private static final Logger LOG = LoggerFactory
            .getLogger(ReaderRunner.class);

    private RecordSender recordSender;
    public void setRecordSender(RecordSender recordSender) {
        this.recordSender = recordSender;
    }

    public ReaderRunner(AbstractTaskPlugin abstractTaskPlugin) {
        super(abstractTaskPlugin);
    }
    @Override
    public void run() {
        assert null != this.recordSender;
        Reader.Task taskReader = (Reader.Task) this.getPlugin();
        //统计waitWriterTime,并且在finally才end。
        PerfRecord channelWaitWrite = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WAIT_WRITE_TIME);
        try {
            channelWaitWrite.start();
            LOG.debug("task reader starts to do init ...");
            PerfRecord initPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_INIT);
            initPerfRecord.start();
            taskReader.init();
            initPerfRecord.end();
            LOG.debug("task reader starts to do prepare ...");
            PerfRecord preparePerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_PREPARE);
            preparePerfRecord.start();
            taskReader.prepare();
            preparePerfRecord.end();
            LOG.debug("task reader starts to read ...");
            PerfRecord dataPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_DATA);
            dataPerfRecord.start();
            taskReader.startRead(recordSender);
            recordSender.terminate();
            dataPerfRecord.addCount(CommunicationTool.getTotalReadRecords(super.getRunnerCommunication()));
            dataPerfRecord.addSize(CommunicationTool.getTotalReadBytes(super.getRunnerCommunication()));
            dataPerfRecord.end();
            LOG.debug("task reader starts to do post ...");
            PerfRecord postPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_POST);
            postPerfRecord.start();
            taskReader.post();
            postPerfRecord.end();
            // automatic flush
            // super.markSuccess(); 这里不能标记为成功,成功的标志由 writerRunner 来标志(否则可能导致 reader 先结束,而 writer 还没有结束的严重 bug)
        } catch (Throwable e) {
            LOG.error("Reader runner Received Exceptions:", e);
            super.markFail(e);
        } finally {
            LOG.debug("task reader starts to do destroy ...");
            PerfRecord desPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.READ_TASK_DESTROY);
            desPerfRecord.start();
            super.destroy();
            desPerfRecord.end();
            channelWaitWrite.end(super.getRunnerCommunication().getLongCounter(CommunicationTool.WAIT_WRITER_TIME));
            long transformerUsedTime = super.getRunnerCommunication().getLongCounter(CommunicationTool.TRANSFORMER_USED_TIME);
            if (transformerUsedTime > 0) {
                PerfRecord transformerRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.TRANSFORMER_TIME);
                transformerRecord.start();
                transformerRecord.end(transformerUsedTime);
            }
        }
    }
    public void shutdown(){
        recordSender.shutdown();
    }
}




WriterRunner
public class WriterRunner extends AbstractRunner implements Runnable {
    private static final Logger LOG = LoggerFactory
            .getLogger(WriterRunner.class);
   private RecordReceiver recordReceiver;


    public void setRecordReceiver(RecordReceiver receiver) {
        this.recordReceiver = receiver;
    }
    public WriterRunner(AbstractTaskPlugin abstractTaskPlugin) {
        super(abstractTaskPlugin);
    }
    @Override
    public void run() {
        Validate.isTrue(this.recordReceiver != null);
        Writer.Task taskWriter = (Writer.Task) this.getPlugin();
        //统计waitReadTime,并且在finally end
        PerfRecord channelWaitRead = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WAIT_READ_TIME);
        try {
            channelWaitRead.start();
            LOG.debug("task writer starts to do init ...");
            PerfRecord initPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_INIT);
            initPerfRecord.start();
            taskWriter.init();
            initPerfRecord.end();
            LOG.debug("task writer starts to do prepare ...");
            PerfRecord preparePerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_PREPARE);
            preparePerfRecord.start();
            taskWriter.prepare();
            preparePerfRecord.end();
            LOG.debug("task writer starts to write ...");
            PerfRecord dataPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_DATA);
            dataPerfRecord.start();
            taskWriter.startWrite(recordReceiver);
            dataPerfRecord.addCount(CommunicationTool.getTotalReadRecords(super.getRunnerCommunication()));
            dataPerfRecord.addSize(CommunicationTool.getTotalReadBytes(super.getRunnerCommunication()));
            dataPerfRecord.end();
            LOG.debug("task writer starts to do post ...");
            PerfRecord postPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_POST);
            postPerfRecord.start();
            taskWriter.post();
            postPerfRecord.end();


            super.markSuccess();
        } catch (Throwable e) {
            LOG.error("Writer Runner Received Exceptions:", e);
            super.markFail(e);
        } finally {
            LOG.debug("task writer starts to do destroy ...");
            PerfRecord desPerfRecord = new PerfRecord(getTaskGroupId(), getTaskId(), PerfRecord.PHASE.WRITE_TASK_DESTROY);
            desPerfRecord.start();
            super.destroy();
            desPerfRecord.end();
            channelWaitRead.end(super.getRunnerCommunication().getLongCounter(CommunicationTool.WAIT_READER_TIME));
        }
    }

    public boolean supportFailOver(){
       Writer.Task taskWriter = (Writer.Task) this.getPlugin();
       return taskWriter.supportFailOver();
    }
    public void shutdown(){
        recordReceiver.shutdown();
    }
}




5、DataX的数据传输

Reader插件和Writer插件之间也是通过channel来实现数据的传输的。channel可以是内存的,也可能是持久化的,插件不必关心。插件通过 RecordSender往channel写入数据,通过 RecordReceiver从channel读取数据。channel中的一条数据为一个 Record的对象,Record中可以放多个Column对象,这可以简单理解为数据库中的记录和列。主要是 对column的操作和对占用内存的记录

public class DefaultRecord implements Record {

   private static final int RECORD_AVERGAE_COLUMN_NUMBER = 16;

   private List<Column> columns;

   private int byteSize;


   // 首先是Record本身需要的内存
   private int memorySize = ClassSize.DefaultRecordHead;   //这个东西看似在这里没啥用,实际上是作为往channel里面写数据时候的重入锁的其中一个condition的计算条件


   public DefaultRecord() {
      this.columns = new ArrayList<Column>(RECORD_AVERGAE_COLUMN_NUMBER);
   }


   @Override
   public void addColumn(Column column) {
      columns.add(column);
      incrByteSize(column);
   }

   @Override
   public Column getColumn(int i) {
      if (i < 0 || i >= columns.size()) {
         return null;
      }
      return columns.get(i);
   }

   @Override
   public void setColumn(int i, final Column column) {
      if (i < 0) {
         throw DataXException.asDataXException(FrameworkErrorCode.ARGUMENT_ERROR,
               "不能给index小于0的column设置值");
      }

      if (i >= columns.size()) {
         expandCapacity(i + 1);
      }

      decrByteSize(getColumn(i));
      this.columns.set(i, column);
      incrByteSize(getColumn(i));
   }


   @Override
   public String toString() {
      Map<String, Object> json = new HashMap<String, Object>();
      json.put("size", this.getColumnNumber());
      json.put("data", this.columns);
      return JSON.toJSONString(json);
   }


   @Override
   public int getColumnNumber() {
      return this.columns.size();
   }

   @Override
   public int getByteSize() {
      return byteSize;
   }


   public int getMemorySize(){
      return memorySize;
   }

   private void decrByteSize(final Column column) {
      if (null == column) {
         return;
      }

      byteSize -= column.getByteSize();

      //内存的占用是column对象的头 再加实际大小
      memorySize = memorySize -  ClassSize.ColumnHead - column.getByteSize();
   }

   private void incrByteSize(final Column column) {
      if (null == column) {
         return;
      }

      byteSize += column.getByteSize();

      //内存的占用是column对象的头 再加实际大小
      memorySize = memorySize + ClassSize.ColumnHead + column.getByteSize();
   }

   private void expandCapacity(int totalSize) {
      if (totalSize <= 0) {
         return;
      }
      int needToExpand = totalSize - columns.size();
      while (needToExpand-- > 0) {
         this.columns.add(null);
      }
   }
}




数据与channel的交互是通过调用 generateRunner方法生成ReaderRunner和writerRunner开始的。
private AbstractRunner generateRunner(PluginType pluginType, List<TransformerExecution> transformerInfoExecs) {
    AbstractRunner newRunner = null;
    TaskPluginCollector pluginCollector;

    switch (pluginType) {
        case READER:
            newRunner = LoadUtil.loadPluginRunner(pluginType,
                    this.taskConfig.getString(CoreConstant.JOB_READER_NAME));
            newRunner.setJobConf(this.taskConfig.getConfiguration(
                    CoreConstant.JOB_READER_PARAMETER));

            pluginCollector = ClassUtil.instantiate(
                    taskCollectorClass, AbstractTaskPluginCollector.class,
                    configuration, this.taskCommunication,
                    PluginType.READER);

            RecordSender recordSender;
            if (transformerInfoExecs != null && transformerInfoExecs.size() > 0) {
                recordSender = new BufferedRecordTransformerExchanger(taskGroupId, this.taskId, this.channel,this.taskCommunication ,pluginCollector, transformerInfoExecs);
            } else {
                recordSender = new BufferedRecordExchanger(this.channel, pluginCollector);
            }


            //将数据与线程绑定
            ((ReaderRunner) newRunner).setRecordSender(recordSender);

            /**
             * 设置taskPlugin的collector,用来处理脏数据和job/task通信
             */
            newRunner.setTaskPluginCollector(pluginCollector);
            break;
        case WRITER:
            newRunner = LoadUtil.loadPluginRunner(pluginType,
                    this.taskConfig.getString(CoreConstant.JOB_WRITER_NAME));
            newRunner.setJobConf(this.taskConfig
                    .getConfiguration(CoreConstant.JOB_WRITER_PARAMETER));

            pluginCollector = ClassUtil.instantiate(
                    taskCollectorClass, AbstractTaskPluginCollector.class,
                    configuration, this.taskCommunication,
                    PluginType.WRITER);
            //将reader写入channel的数据与线程绑定
            ((WriterRunner) newRunner).setRecordReceiver(new BufferedRecordExchanger(
                    this.channel, pluginCollector));
            /**
             * 设置taskPlugin的collector,用来处理脏数据和job/task通信
             */
            newRunner.setTaskPluginCollector(pluginCollector);
            break;
        default:
            throw DataXException.asDataXException(FrameworkErrorCode.ARGUMENT_ERROR, "Cant generateRunner for:" + pluginType);
    }

    newRunner.setTaskGroupId(taskGroupId);
    newRunner.setTaskId(this.taskId);
    newRunner.setRunnerCommunication(this.taskCommunication);

    return newRunner;
}




reader与channel交互
reader与channel的数据交互是通过BufferdRecordExchanher类来实现的
public class BufferedRecordExchanger implements RecordSender, RecordReceiver {


   private final Channel channel;
   private final Configuration configuration;
   private final List<Record> buffer;   //用来缓存数据,批量提交,通过buffersize来控制批量提交个数
   private int bufferSize ;
   protected final int byteCapacity;
   private final AtomicInteger memoryBytes = new AtomicInteger(0);
   private final AtomicInteger dirtyDataNum = new AtomicInteger(0); //脏数据数量
   private final AtomicInteger totalDataNum = new AtomicInteger(0); //总数量
   private int bufferIndex = 0;
   private static Class<? extends Record> RECORD_CLASS;
   private volatile boolean shutdown = false;
   private final TaskPluginCollector pluginCollector;
   @Override
   public AtomicInteger getDirtyDataNum(){
      return dirtyDataNum;
   }
   @Override
   public AtomicInteger getTotalDataNum() {
      return totalDataNum;
   }

   @SuppressWarnings("unchecked")
   public BufferedRecordExchanger(final Channel channel, final TaskPluginCollector pluginCollector) {
      assert null != channel;
      assert null != channel.getConfiguration();
      this.channel = channel;
      this.pluginCollector = pluginCollector;
      this.configuration = channel.getConfiguration();


      this.bufferSize = configuration
            .getInt(CoreConstant.DATAX_CORE_TRANSPORT_EXCHANGER_BUFFERSIZE);
      this.buffer = new ArrayList<Record>(bufferSize);
      //channel的queue默认大小为8M,原来为64M
      this.byteCapacity = configuration.getInt(
            CoreConstant.DATAX_CORE_TRANSPORT_CHANNEL_CAPACITY_BYTE, 8 * 1024 * 1024);
      try {
         BufferedRecordExchanger.RECORD_CLASS = ((Class<? extends Record>) Class
               .forName(configuration.getString(
                            CoreConstant.DATAX_CORE_TRANSPORT_RECORD_CLASS,
                            "com.alibaba.datax.core.transport.record.DefaultRecord")));
      } catch (Exception e) {
         throw DataXException.asDataXException(
               FrameworkErrorCode.CONFIG_ERROR, e);
      }
   }

   @Override
   public Record createRecord() {
      try {
         return BufferedRecordExchanger.RECORD_CLASS.newInstance();
      } catch (Exception e) {
         throw DataXException.asDataXException(
               FrameworkErrorCode.CONFIG_ERROR, e);
      }
   }


   @Override
    //在reader的task.startRead方法中被调用,用来往channel中写数据
   public void sendToWriter(Record record) {
      if(shutdown){
         throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");
      }

      Validate.notNull(record, "record不能为空.");

      if (record.getMemorySize() > this.byteCapacity) {
         this.pluginCollector.collectDirtyRecord(record, new Exception(String.format("单条记录超过大小限制,当前限制为:%s", this.byteCapacity)));
         return;
      }


      boolean isFull = (this.bufferIndex >= this.bufferSize || this.memoryBytes.get() + record.getMemorySize() > this.byteCapacity);
      if (isFull) {
         flush();
      }


      this.buffer.add(record);
      this.bufferIndex++;
      memoryBytes.addAndGet(record.getMemorySize());
   }


   @Override
   public void flush() {
      if(shutdown){
         throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");
      }
      this.channel.pushAll(this.buffer);
      this.buffer.clear();
      this.bufferIndex = 0;
      this.memoryBytes.set(0);
   }


   @Override
   public void terminate() {
      if(shutdown){
         throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");
      }
      flush();
      this.channel.pushTerminate(TerminateRecord.get());
   }


   @Override
   public Record getFromReader() {
      if(shutdown){
         throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");
      }
      boolean isEmpty = (this.bufferIndex >= this.buffer.size());
      if (isEmpty) {
         receive();
      }


      Record record = this.buffer.get(this.bufferIndex++);
      if (record instanceof TerminateRecord) {
         record = null;
      }
      return record;
   }

   @Override
   public void shutdown(){
      shutdown = true;
      try{
         buffer.clear();
         channel.clear();
      }catch(Throwable t){
         t.printStackTrace();
      }
   }


   private void receive() {
      this.channel.pullAll(this.buffer);
      this.bufferIndex = 0;
      this.bufferSize = this.buffer.size();
   }


}



下面我们以mysqlReader为例看看在startReader方法中如何与channel交互
public void startRead(RecordSender recordSender) {
    int fetchSize = this.readerSliceConfig.getInt(Constant.FETCH_SIZE);


    this.commonRdbmsReaderTask.startRead(this.readerSliceConfig, recordSender,
            super.getTaskPluginCollector(), fetchSize);
}

public void startRead(Configuration readerSliceConfig,
                      RecordSender recordSender,
                      TaskPluginCollector taskPluginCollector, int fetchSize) {
    String querySql = readerSliceConfig.getString(Key.QUERY_SQL);
    String table = readerSliceConfig.getString(Key.TABLE);


    PerfTrace.getInstance().addTaskDetails(taskId, table + "," + basicMsg);


    LOG.info("Begin to read record by Sql: [{}\n] {}.",
            querySql, basicMsg);
    PerfRecord queryPerfRecord = new PerfRecord(taskGroupId,taskId, PerfRecord.PHASE.SQL_QUERY);
    queryPerfRecord.start();


    Connection conn = DBUtil.getConnection(this.dataBaseType, jdbcUrl,
            username, password);


    // session config .etc related
    DBUtil.dealWithSessionConfig(conn, readerSliceConfig,
            this.dataBaseType, basicMsg);


    int columnNumber = 0;
    ResultSet rs = null;
    try {
        rs = DBUtil.query(conn, querySql, fetchSize);
        queryPerfRecord.end();


        ResultSetMetaData metaData = rs.getMetaData();
        columnNumber = metaData.getColumnCount();


        //这个统计干净的result_Next时间
        PerfRecord allResultPerfRecord = new PerfRecord(taskGroupId, taskId, PerfRecord.PHASE.RESULT_NEXT_ALL);
        allResultPerfRecord.start();


        long rsNextUsedTime = 0;
        long lastTime = System.nanoTime();
        while (rs.next()) {
            rsNextUsedTime += (System.nanoTime() - lastTime);
            this.transportOneRecord(recordSender, rs,
                    metaData, columnNumber, mandatoryEncoding, taskPluginCollector);
            lastTime = System.nanoTime();
        }


        allResultPerfRecord.end(rsNextUsedTime);
        //目前大盘是依赖这个打印,而之前这个Finish read record是包含了sql查询和result next的全部时间
        LOG.info("Finished read record by Sql: [{}\n] {}.",
                querySql, basicMsg);


    }catch (Exception e) {
        throw RdbmsException.asQueryException(this.dataBaseType, e, querySql, table, username);
    } finally {
        DBUtil.closeDBResources(null, conn);
    }
}


protected Record transportOneRecord(RecordSender recordSender, ResultSet rs,
        ResultSetMetaData metaData, int columnNumber, String mandatoryEncoding,
        TaskPluginCollector taskPluginCollector) {
    Record record = buildRecord(recordSender,rs,metaData,columnNumber,mandatoryEncoding,taskPluginCollector);
    recordSender.sendToWriter(record);
    return record;
}




至此我们发现,reader与channel的交互是通过sendtoWriter方法来实现的,而此方法最后调用了抽象类 Channel的pushAll(this.buffer)方法,将数据push到channel的队列中,至此reader和channel的交互就完成了,意味着取数据的时候就是将队列中的数据pull出来。
public void pushAll(final Collection<Record> rs) {
    Validate.notNull(rs);
    Validate.noNullElements(rs);
    this.doPushAll(rs);
    this.statPush(rs.size(), this.getByteSize(rs));
}

@Override
//一个是重入锁,一个是数组实现的有界阻塞线程安全队列(为什么使用有界阻塞队列并且加上重入锁具体原理再说)
private ArrayBlockingQueue<Record> queue = null;
private ReentrantLock lock;
protected void doPushAll(Collection<Record> rs) {
   try {
      long startTime = System.nanoTime();
      lock.lockInterruptibly();
      int bytes = getRecordBytes(rs);
      while (memoryBytes.get() + bytes > this.byteCapacity || rs.size() > this.queue.remainingCapacity()) {
         notInsufficient.await(200L, TimeUnit.MILLISECONDS);
           }
      this.queue.addAll(rs);
      waitWriterTime += System.nanoTime() - startTime;
      memoryBytes.addAndGet(bytes);
      notEmpty.signalAll();
   } catch (InterruptedException e) {
      throw DataXException.asDataXException(
            FrameworkErrorCode.RUNTIME_ERROR, e);
   } finally {
      lock.unlock();
   }
}


private void statPush(long recordSize, long byteSize) {
    currentCommunication.increaseCounter(CommunicationTool.READ_SUCCEED_RECORDS,
            recordSize);
    currentCommunication.increaseCounter(CommunicationTool.READ_SUCCEED_BYTES,
            byteSize);
    //在读的时候进行统计waitCounter即可,因为写(pull)的时候可能正在阻塞,但读的时候已经能读到这个阻塞的counter数

    currentCommunication.setLongCounter(CommunicationTool.WAIT_READER_TIME, waitReaderTime);
    currentCommunication.setLongCounter(CommunicationTool.WAIT_WRITER_TIME, waitWriterTime);

    boolean isChannelByteSpeedLimit = (this.byteSpeed > 0);
    boolean isChannelRecordSpeedLimit = (this.recordSpeed > 0);
    if (!isChannelByteSpeedLimit && !isChannelRecordSpeedLimit) {
        return;
    }

    long lastTimestamp = lastCommunication.getTimestamp();
    long nowTimestamp = System.currentTimeMillis();
    long interval = nowTimestamp - lastTimestamp;
    if (interval - this.flowControlInterval >= 0) {
        long byteLimitSleepTime = 0;
        long recordLimitSleepTime = 0;
        //channel的限流操作
        if (isChannelByteSpeedLimit) {
            long currentByteSpeed = (CommunicationTool.getTotalReadBytes(currentCommunication) -
                    CommunicationTool.getTotalReadBytes(lastCommunication)) * 1000 / interval;
            if (currentByteSpeed > this.byteSpeed) {
                // 计算根据byteLimit得到的休眠时间
                byteLimitSleepTime = currentByteSpeed * interval / this.byteSpeed
                        - interval;
            }
        }

        if (isChannelRecordSpeedLimit) {
            long currentRecordSpeed = (CommunicationTool.getTotalReadRecords(currentCommunication) -
                    CommunicationTool.getTotalReadRecords(lastCommunication)) * 1000 / interval;
            if (currentRecordSpeed > this.recordSpeed) {
                // 计算根据recordLimit得到的休眠时间
                recordLimitSleepTime = currentRecordSpeed * interval / this.recordSpeed
                        - interval;
            }
        }

        // 休眠时间取较大值
        long sleepTime = byteLimitSleepTime < recordLimitSleepTime ?
                recordLimitSleepTime : byteLimitSleepTime;
        if (sleepTime > 0) {
            try {
                Thread.sleep(sleepTime);
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            }
        }

        lastCommunication.setLongCounter(CommunicationTool.READ_SUCCEED_BYTES,
                currentCommunication.getLongCounter(CommunicationTool.READ_SUCCEED_BYTES));
        lastCommunication.setLongCounter(CommunicationTool.READ_FAILED_BYTES,
                currentCommunication.getLongCounter(CommunicationTool.READ_FAILED_BYTES));
        lastCommunication.setLongCounter(CommunicationTool.READ_SUCCEED_RECORDS,
                currentCommunication.getLongCounter(CommunicationTool.READ_SUCCEED_RECORDS));
        lastCommunication.setLongCounter(CommunicationTool.READ_FAILED_RECORDS,
                currentCommunication.getLongCounter(CommunicationTool.READ_FAILED_RECORDS));
        lastCommunication.setTimestamp(nowTimestamp);
    }
}




writer与channel交互
reader将数据写入channel的ArrayBlockingQueue队列中,那么writer是如何取到channel中的数据的呢?有个很巧妙的设计TaskExecutor将task执行线程通过channel成员变量和channel绑定到一起, BufferedRecordExchangerBufferedRecordExchanger 实现了 RecordSender, RecordReceiver,
class TaskExecutor {
        private Configuration taskConfig;
        private int taskId;
        private int attemptCount;
        private Channel channel;   //绑定channel
        private Thread readerThread;
        private Thread writerThread;
        private ReaderRunner readerRunner;
        private WriterRunner writerRunner;


        /**
         * 该处的taskCommunication在多处用到:
         * 1. channel
         * 2. readerRunner和writerRunner
         * 3. reader和writer的taskPluginCollector
         */
        private Communication taskCommunication;


        public TaskExecutor(Configuration taskConf, int attemptCount) {
            // 获取该taskExecutor的配置
            this.taskConfig = taskConf;
            Validate.isTrue(null != this.taskConfig.getConfiguration(CoreConstant.JOB_READER)
                            && null != this.taskConfig.getConfiguration(CoreConstant.JOB_WRITER),
                    "[reader|writer]的插件参数不能为空!");


            // 得到taskId
            this.taskId = this.taskConfig.getInt(CoreConstant.TASK_ID);
            this.attemptCount = attemptCount;


            /**
             * 由taskId得到该taskExecutor的Communication
             * 要传给readerRunner和writerRunner,同时要传给channel作统计用
             */
            this.taskCommunication = containerCommunicator
                    .getCommunication(taskId);
            Validate.notNull(this.taskCommunication,
                    String.format("taskId[%d]的Communication没有注册过", taskId));
            this.channel = ClassUtil.instantiate(channelClazz,
                    Channel.class, configuration);
            this.channel.setCommunication(this.taskCommunication);


            /**
             * 获取transformer的参数
             */


            List<TransformerExecution> transformerInfoExecs = TransformerUtil.buildTransformerInfo(taskConfig);


            /**
             * 生成writerThread
             */
            writerRunner = (WriterRunner) generateRunner(PluginType.WRITER);
            this.writerThread = new Thread(writerRunner,
                    String.format("%d-%d-%d-writer",
                            jobId, taskGroupId, this.taskId));
            //通过设置thread的contextClassLoader,即可实现同步和主程序不通的加载器
            this.writerThread.setContextClassLoader(LoadUtil.getJarLoader(
                    PluginType.WRITER, this.taskConfig.getString(
                            CoreConstant.JOB_WRITER_NAME)));


            /**
             * 生成readerThread
             */
            readerRunner = (ReaderRunner) generateRunner(PluginType.READER,transformerInfoExecs);
            this.readerThread = new Thread(readerRunner,
                    String.format("%d-%d-%d-reader",
                            jobId, taskGroupId, this.taskId));
            /**
             * 通过设置thread的contextClassLoader,即可实现同步和主程序不通的加载器
             */
            this.readerThread.setContextClassLoader(LoadUtil.getJarLoader(
                    PluginType.READER, this.taskConfig.getString(
                            CoreConstant.JOB_READER_NAME)));
        }


        public void doStart() {
            this.writerThread.start();


            // reader没有起来,writer不可能结束
            if (!this.writerThread.isAlive() || this.taskCommunication.getState() == State.FAILED) {
                throw DataXException.asDataXException(
                        FrameworkErrorCode.RUNTIME_ERROR,
                        this.taskCommunication.getThrowable());
            }


            this.readerThread.start();


            // 这里reader可能很快结束
            if (!this.readerThread.isAlive() && this.taskCommunication.getState() == State.FAILED) {
                // 这里有可能出现Reader线上启动即挂情况 对于这类情况 需要立刻抛出异常
                throw DataXException.asDataXException(
                        FrameworkErrorCode.RUNTIME_ERROR,
                        this.taskCommunication.getThrowable());
            }


        }


        private AbstractRunner generateRunner(PluginType pluginType) {
            return generateRunner(pluginType, null);
        }


        private AbstractRunner generateRunner(PluginType pluginType, List<TransformerExecution> transformerInfoExecs) {
            AbstractRunner newRunner = null;
            TaskPluginCollector pluginCollector;


            switch (pluginType) {
                case READER:
                    newRunner = LoadUtil.loadPluginRunner(pluginType,
                            this.taskConfig.getString(CoreConstant.JOB_READER_NAME));
                    newRunner.setJobConf(this.taskConfig.getConfiguration(
                            CoreConstant.JOB_READER_PARAMETER));


                    pluginCollector = ClassUtil.instantiate(
                            taskCollectorClass, AbstractTaskPluginCollector.class,
                            configuration, this.taskCommunication,
                            PluginType.READER);


                    RecordSender recordSender;
                    if (transformerInfoExecs != null && transformerInfoExecs.size() > 0) {
                        recordSender = new BufferedRecordTransformerExchanger(taskGroupId, this.taskId, this.channel,this.taskCommunication ,pluginCollector, transformerInfoExecs);
                    } else {
                        recordSender = new BufferedRecordExchanger(this.channel, pluginCollector);
                    }


                    ((ReaderRunner) newRunner).setRecordSender(recordSender);


                    /**
                     * 设置taskPlugin的collector,用来处理脏数据和job/task通信
                     */
                    newRunner.setTaskPluginCollector(pluginCollector);
                    break;
                case WRITER:
                    newRunner = LoadUtil.loadPluginRunner(pluginType,
                            this.taskConfig.getString(CoreConstant.JOB_WRITER_NAME));
                    newRunner.setJobConf(this.taskConfig
                            .getConfiguration(CoreConstant.JOB_WRITER_PARAMETER));


                    pluginCollector = ClassUtil.instantiate(
                            taskCollectorClass, AbstractTaskPluginCollector.class,
                            configuration, this.taskCommunication,
                            PluginType.WRITER);
                    //将reader写过数据的channel与writerRunner绑定
                    ((WriterRunner) newRunner).setRecordReceiver(new BufferedRecordExchanger(
                            this.channel, pluginCollector));
                    /**
                     * 设置taskPlugin的collector,用来处理脏数据和job/task通信
                     */
                    newRunner.setTaskPluginCollector(pluginCollector);
                    break;
                default:
                    throw DataXException.asDataXException(FrameworkErrorCode.ARGUMENT_ERROR, "Cant generateRunner for:" + pluginType);
            }

            newRunner.setTaskGroupId(taskGroupId);
            newRunner.setTaskId(this.taskId);
            newRunner.setRunnerCommunication(this.taskCommunication);

            return newRunner;
        }


        // 检查任务是否结束
        private boolean isTaskFinished() {
            // 如果reader 或 writer没有完成工作,那么直接返回工作没有完成
            if (readerThread.isAlive() || writerThread.isAlive()) {
                return false;
            }


            if(taskCommunication==null || !taskCommunication.isFinished()){
              return false;
           }


            return true;
        }

        private int getTaskId(){
           return taskId;
        }


        private long getTimeStamp(){
            return taskCommunication.getTimestamp();
        }


        private int getAttemptCount(){
            return attemptCount;
        }

        private boolean supportFailOver(){
           return writerRunner.supportFailOver();
        }


        private void shutdown(){
            writerRunner.shutdown();
            readerRunner.shutdown();
            if(writerThread.isAlive()){
                writerThread.interrupt();
            }
            if(readerThread.isAlive()){
                readerThread.interrupt();
            }
        }


        private boolean isShutdown(){
            return !readerThread.isAlive() && !writerThread.isAlive();
        }
    }
}




以janusGrpahWriter为例子,看数据如何取出,查看WriterRunner的run方法,终止会盗用writer的startWriter(lineReceiver)方法,发现是调用了lineReceiver.getFromReader()方法来获取数据,最终调用channel的 pullAll方法获取reader对象push到队列中的数据;
public Record getFromReader() {
   if(shutdown){
      throw DataXException.asDataXException(CommonErrorCode.SHUT_DOWN_TASK, "");
   }
   boolean isEmpty = (this.bufferIndex >= this.buffer.size());
   if (isEmpty) {
      receive();
   }

   Record record = this.buffer.get(this.bufferIndex++);
   if (record instanceof TerminateRecord) {
      record = null;
   }
   return record;
}

private void receive() {
   this.channel.pullAll(this.buffer);
   this.bufferIndex = 0;
   this.bufferSize = this.buffer.size();
}

public void pullAll(final Collection<Record> rs) {
    Validate.notNull(rs);
    this.doPullAll(rs);
    this.statPull(rs.size(), this.getByteSize(rs));
}

@Override
protected void doPullAll(Collection<Record> rs) {
   assert rs != null;
   rs.clear();
   try {
      long startTime = System.nanoTime();
      lock.lockInterruptibly();
      while (this.queue.drainTo(rs, bufferSize) <= 0) {
         notEmpty.await(200L, TimeUnit.MILLISECONDS);
      }
      waitReaderTime += System.nanoTime() - startTime;
      int bytes = getRecordBytes(rs);
      memoryBytes.addAndGet(-bytes);
      notInsufficient.signalAll();
   } catch (InterruptedException e) {
      throw DataXException.asDataXException(
            FrameworkErrorCode.RUNTIME_ERROR, e);
   } finally {
      lock.unlock();
   }
}



    至此,整个DataX运行的大概流程全部完成。

插件开发

整个datax执行流程清楚之后基本插件的开发就没有太大的难度了,大概工作就是重写 Reader.startRead()Writer.startWriter()方法,基本都是与业务相关的逻辑,此处不再赘述,开发流程见 阿里Datax插件开发文档,演示见janusGraphWriter或elasticsearchWriter插件代码。

易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
